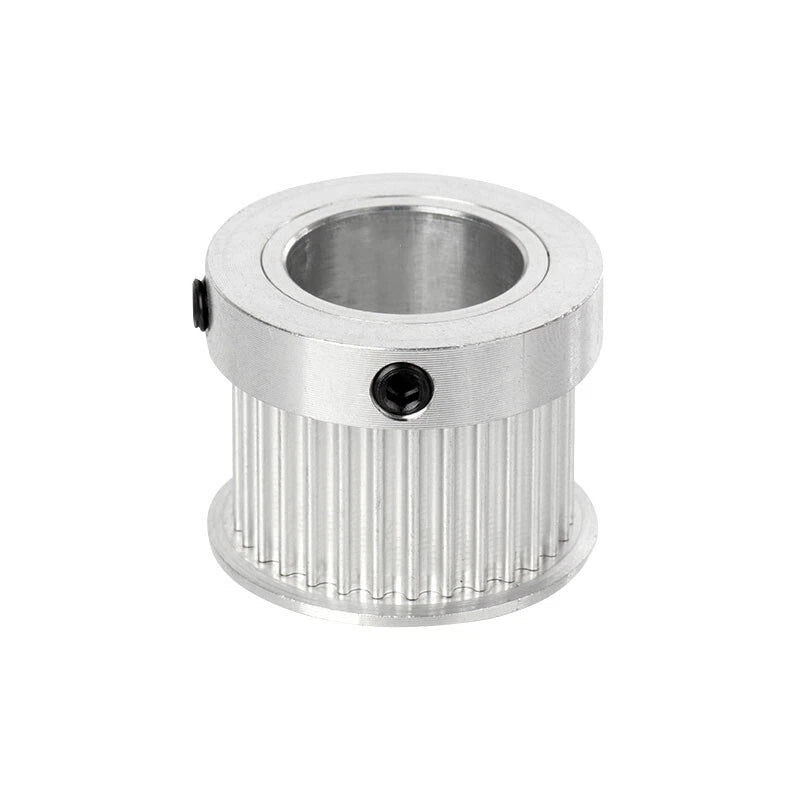

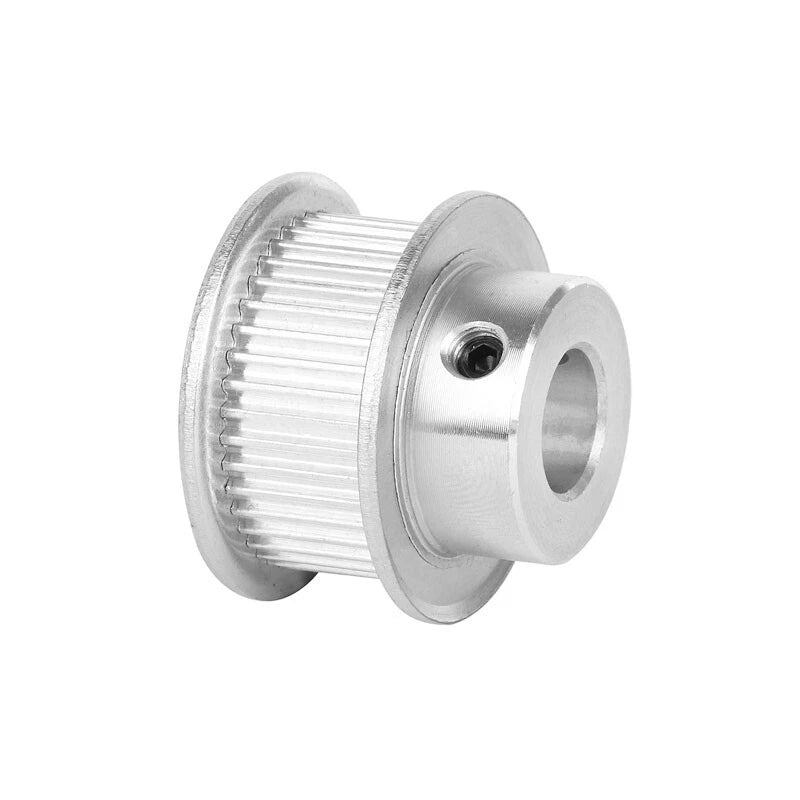

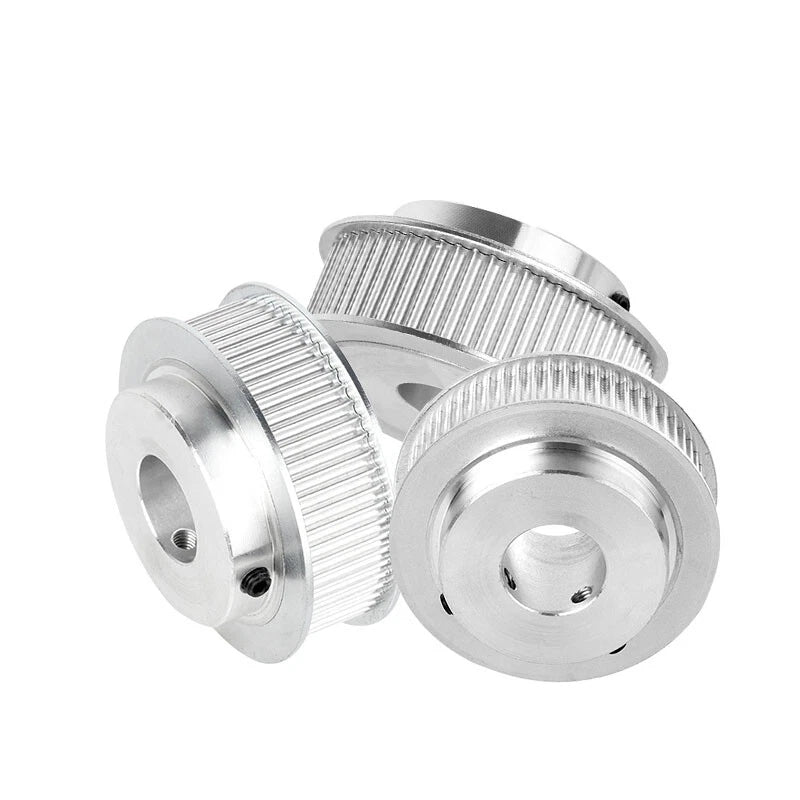

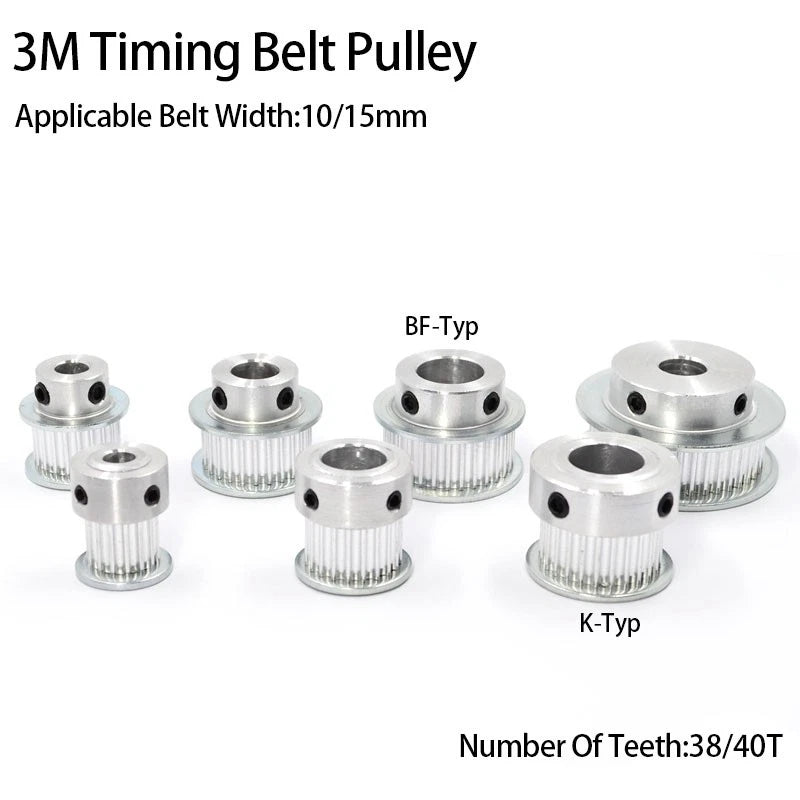

3M BF-Type Timing Belt Pulley 38/40T Synchronous Wheel For 10mm/15mm Width Belt

The tooth count affects your drive ratio and output speed. A 40T pulley on the drive shaft paired with a smaller pulley on the driven shaft increases torque and reduces speed. For most desktop CNC and 3D printer builds, 38T and 40T are interchangeable if you adjust belt length accordingly — check your motion system's calculated steps-per-mm before swapping.

Match the belt width to your existing 3M timing belt. A 10 mm wide belt requires a pulley rated for 10 mm; a 15 mm belt requires the 15 mm variant. Using a narrower pulley with a wider belt will cause the belt to overhang and wear unevenly. The variant name clearly states the applicable belt width.

Measure your motor or shaft diameter with calipers before ordering. Common stepper motor shaft sizes are 5 mm, 6.35 mm (1/4 in), and 8 mm. The bore options in this listing range from 5 mm to 20 mm. Select the variant whose bore matches your shaft exactly — the BF flat allows a set screw to lock the pulley without slipping.

No. This pulley is designed specifically for 3M pitch timing belts (3 mm tooth pitch, trapezoidal profile). GT2 belts use a 2 mm pitch with a curvilinear tooth profile, and HTD belts use a different tooth geometry. Mixing belt and pulley profiles causes poor engagement, noise, and accelerated wear. Always pair 3M pulleys with 3M belts.

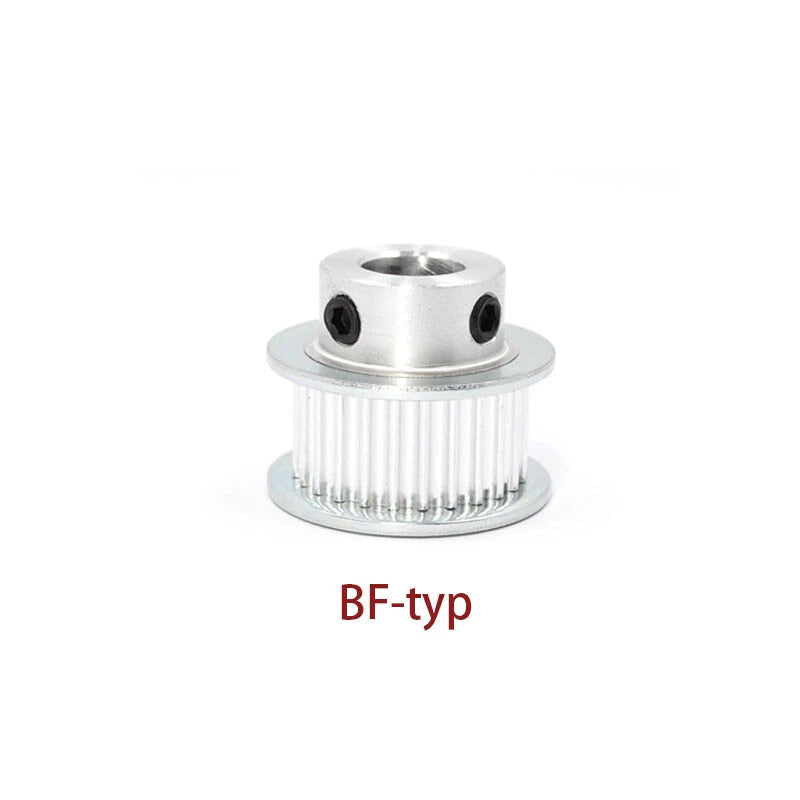

The BF-type flat bore provides a flat surface for the set screw to bear against, significantly increasing holding torque compared to a round bore alone. For typical DIY CNC and 3D printer loads (low to moderate torque), this connection is reliable. For high-torque industrial applications, consider a keyed bore variant or a shaft collar for additional security.

This pulley is machined metal and may be susceptible to surface oxidation in persistently wet or corrosive environments without protective treatment. For outdoor or high-humidity installations, apply a light machine oil or corrosion-inhibiting coating to exposed surfaces. For fully corrosion-resistant requirements, consider stainless steel or anodized aluminum pulleys.

B-type pulleys have a plain round through-bore with no flat, relying solely on friction or a keyway for shaft retention. BF-type pulleys add a machined flat on the bore wall, allowing a set screw to lock against a flat surface for stronger, more reliable retention. BF-type is the preferred choice for most DIY and light industrial applications where disassembly and reassembly are needed.
