When your CNC router skips steps or your 3D printer loses positional accuracy, the culprit is often a mismatched or worn pulley. Engineers, makers, and automation builders who demand repeatable, slip-free motion need a 3M timing belt pulley that fits their shaft precisely and meshes cleanly with standard 3M open-end or closed-loop belts.

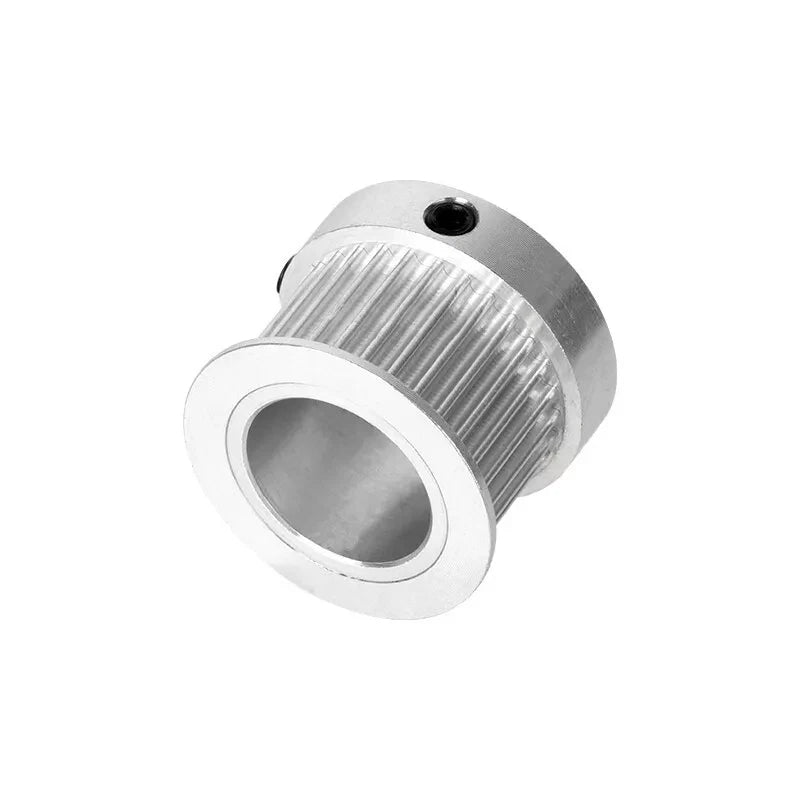

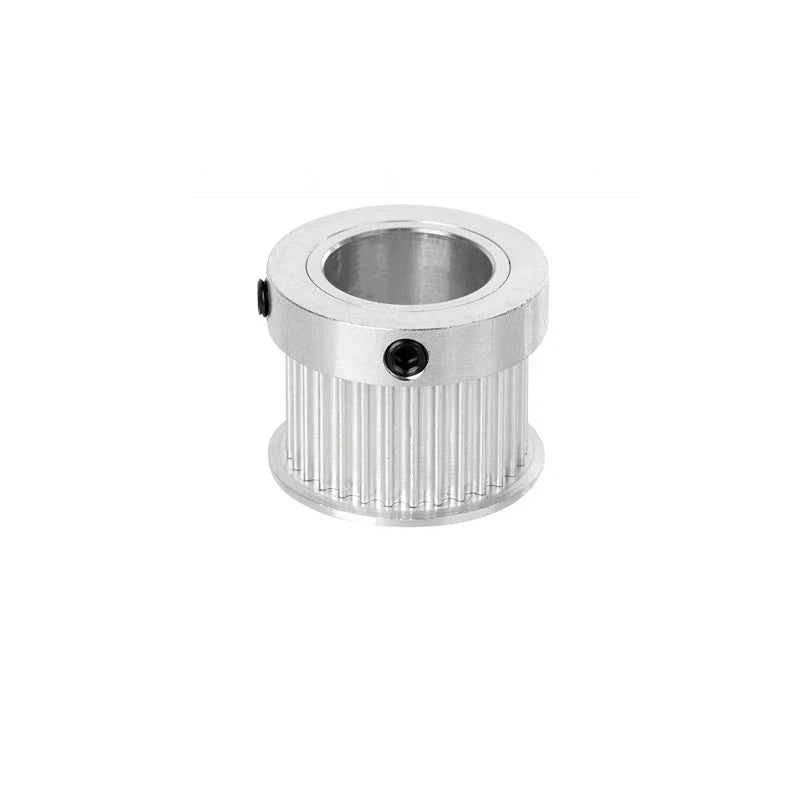

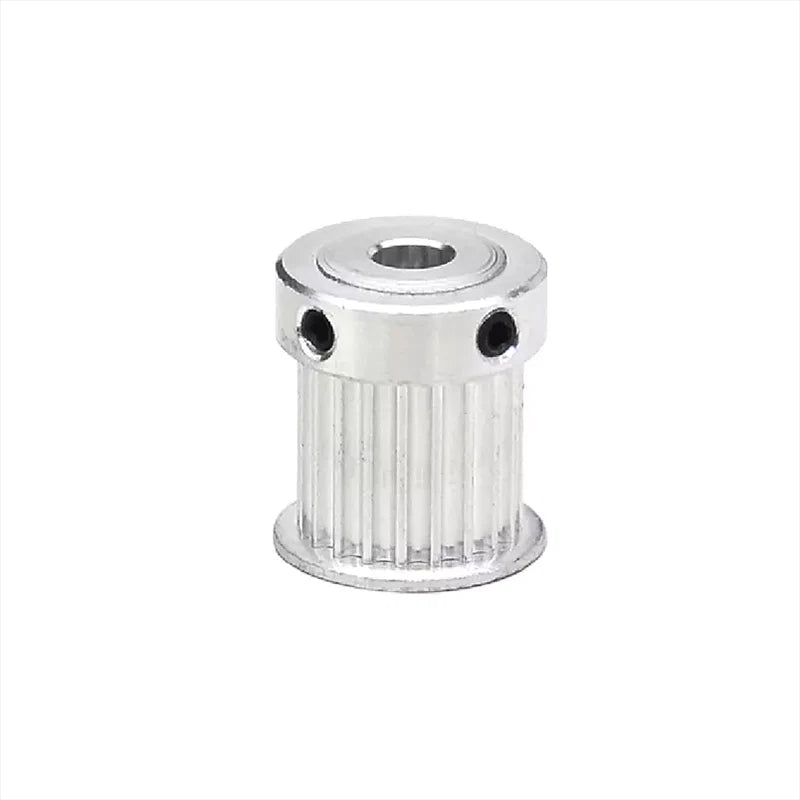

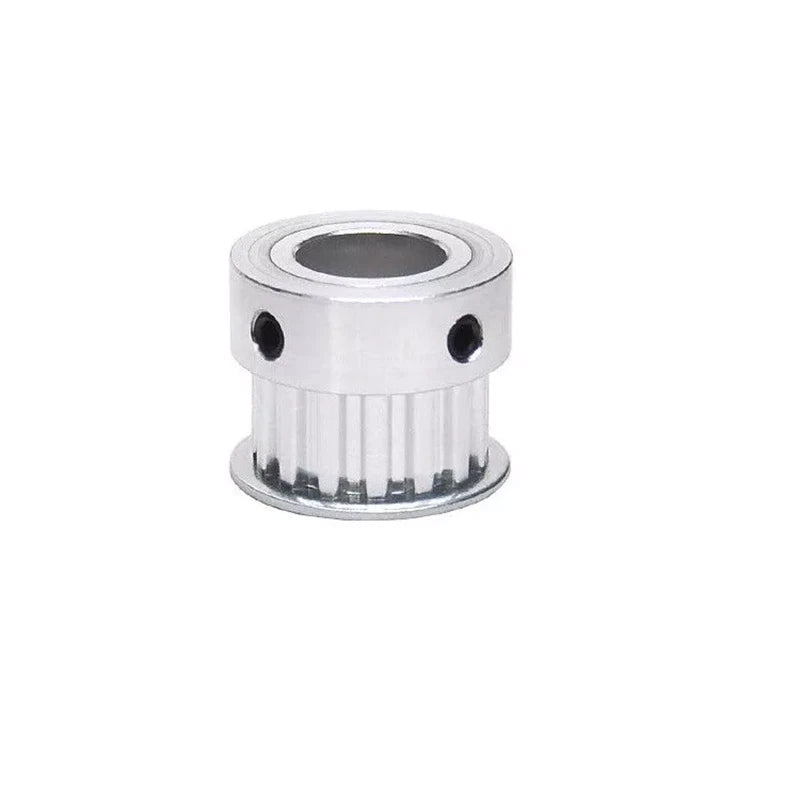

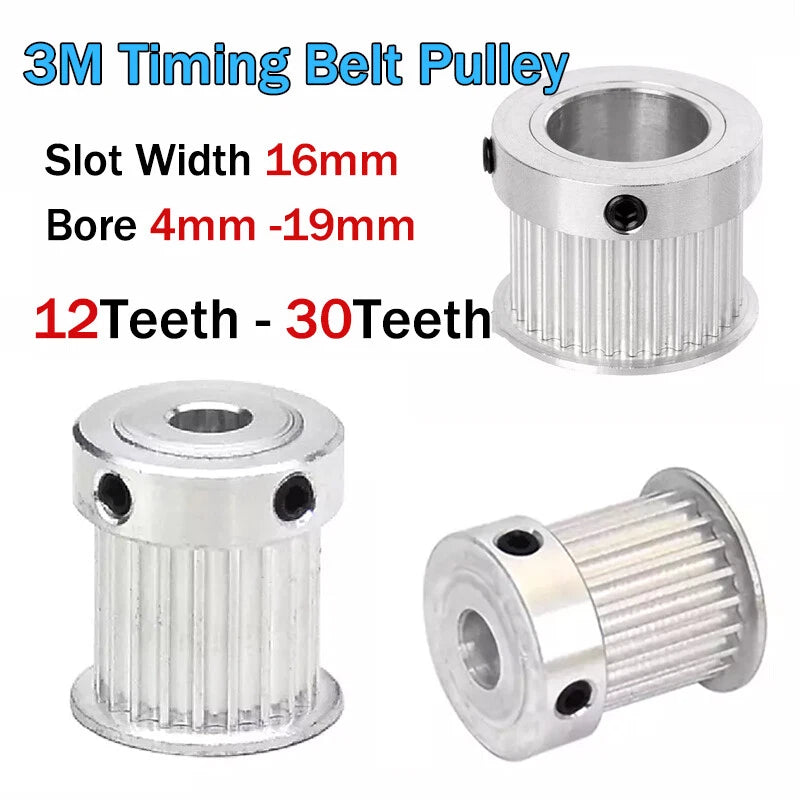

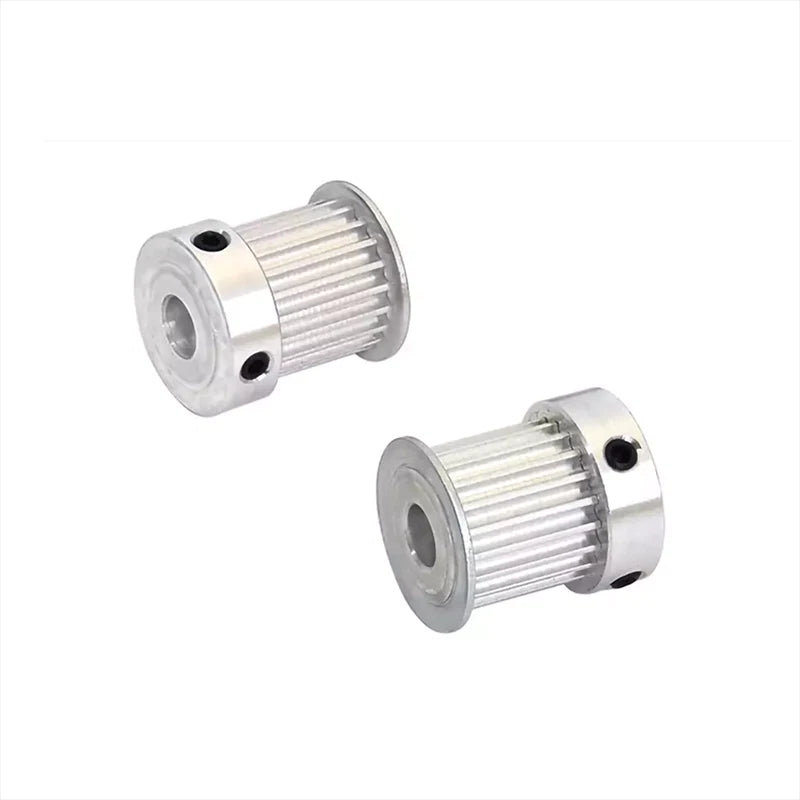

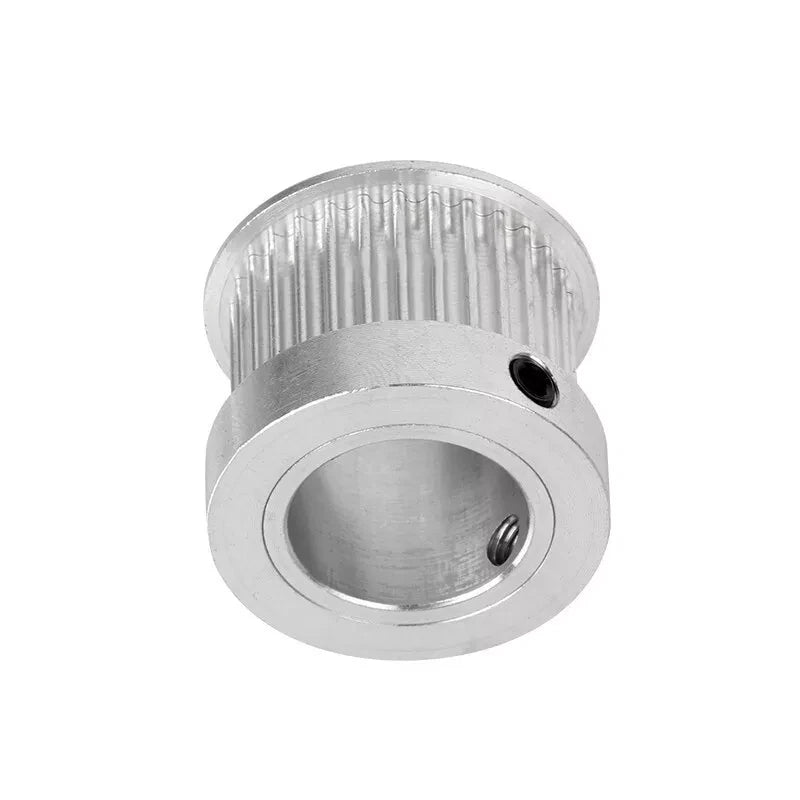

These 3M timing belt pulleys are machined from aluminum alloy and feature a 16mm belt slot width. The tooth count ranges from 12 to 30 teeth, and the bore diameter spans 4mm to 19mm (approximately 0.16 in to 0.75 in), covering the most common stepper motor and servo shaft sizes used in desktop and industrial motion systems.
Typical use cases include X/Y axis drives on CNC routers requiring 3M pitch belt drives, extruder and Z-axis assemblies on FDM 3D printers, and compact conveyor or pick-and-place automation rigs where a lightweight aluminum timing belt pulley keeps inertia low and positioning accuracy high.
Ten tooth-count options let you dial in the exact gear ratio your drive system needs — from fast, high-torque 12T configurations to smoother, higher-resolution 30T setups.
Fourteen bore sizes from 4mm to 19mm accommodate the most common stepper motor shafts (5mm, 6.35mm, 8mm) as well as servo and DC motor shafts up to 19mm.
Machined aluminum keeps the pulley lightweight to minimize rotational inertia while providing the rigidity needed for accurate, repeatable positioning in CNC and 3D printing applications.
The 16mm belt channel matches widely available 3M timing belts, ensuring flush belt tracking and even load distribution across the full belt width.
Each pulley includes a set screw bore for secure shaft locking, preventing slippage under dynamic loads without requiring adhesives or press-fit tooling.
Dimensionally compatible with standard 3M belt drive assemblies found on popular open-source CNC and 3D printer frames, making upgrades and replacements straightforward.
| Belt Pitch | 3M (3mm tooth pitch) |
|---|---|

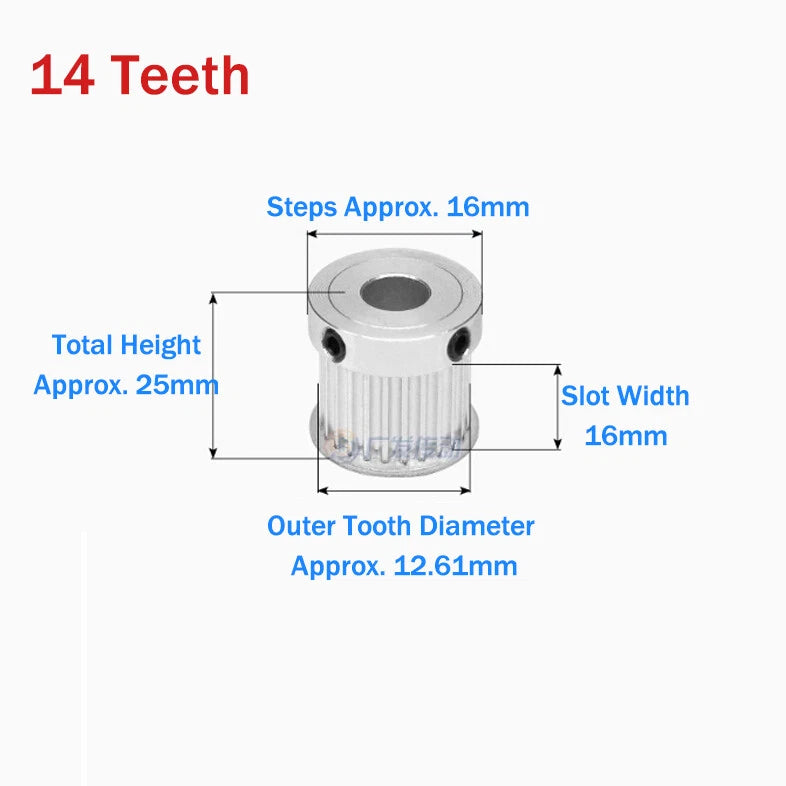

| Number of Teeth | 12 / 14 / 15 / 16 / 18 / 20 / 24 / 25 / 28 / 30 (see variant options) |
| Belt Slot Width | 16mm (0.63 in) |
| Bore Diameter | 4 / 5 / 6 / 6.35 / 7 / 8 / 10 / 12 / 14 / 15 / 16 / 17 / 18 / 19mm (see variant options) |
| Material | Aluminum alloy |
| Shaft Retention | Set screw |
| Outer Diameter | See variant options |
| Flange | See variant options |
| Quantity per Order | 1 piece |

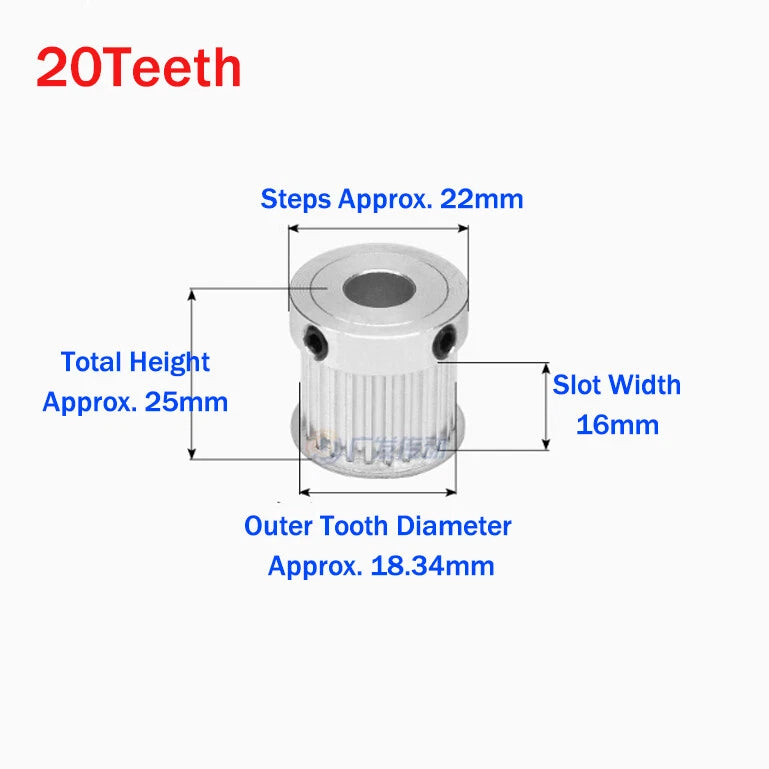

The tooth count determines your drive ratio and linear resolution. Fewer teeth (e.g., 12T) give a smaller pulley diameter and higher torque multiplication, while more teeth (e.g., 30T) increase the effective pitch diameter for smoother, higher-resolution motion. Match the tooth count to your motor's step angle and the linear travel per revolution you need. For most desktop CNC and 3D printer X/Y axes, 20T is a common starting point with 3M belts.
Check your motor's shaft diameter before ordering. NEMA 17 steppers typically use a 5mm shaft; NEMA 23 steppers commonly use 6.35mm (1/4 in) or 8mm shafts. Servo motors and DC gearmotors vary widely — measure with calipers. The bore must match the shaft exactly; a loose bore causes runout and positioning errors even with the set screw tightened.
This pulley is designed for 16mm wide 3M timing belts. Using a narrower belt (e.g., 10mm or 6mm) is possible but the belt will not be guided by the flanges correctly and may track off-center under load. Using a wider belt is not recommended as it will not seat in the 16mm slot. For other belt widths, please check our other pulley listings.
Aluminum alloy pulleys are well-suited for the torque levels generated by NEMA 17 and NEMA 23 stepper motors in CNC and 3D printing applications. For very high-torque industrial drives or applications with significant shock loading, consider whether a steel pulley would be more appropriate. Under normal CNC routing and 3D printing duty cycles, aluminum provides an excellent balance of strength and low rotational inertia.
The pulley includes a set screw for shaft retention. A keyway is not included as standard — the set screw is the primary retention method. If your application requires a keyed connection for high-torque or reversing loads, please confirm the bore configuration before ordering or contact us for guidance.
Yes. 3M pitch pulleys are commonly used on extruder and axis drive assemblies in FDM 3D printers. Ensure your belt is also 3M pitch and 16mm wide. For direct-drive extruders with compact motor shafts, the 5mm or 8mm bore variants are the most frequently used options.
A 12T pulley has a smaller pitch diameter, which means more motor rotations per unit of linear travel — giving you finer resolution but lower top speed for a given motor RPM. A 20T pulley increases the pitch diameter, allowing faster travel speeds at the cost of slightly lower resolution per step. Most hobby CNC routers use 20T as a balanced default; choose 12T–16T for finer detail work or 24T–30T for faster rapid moves.
