When your motion-control build demands zero-slip synchronization, a mismatched or poorly machined pulley becomes the weakest link in the entire drivetrain. Engineers, hobbyist makers, and automation integrators who need repeatable, backlash-free power transmission rely on 3M timing belt pulleys that are dimensionally consistent and ready to mount without secondary machining.

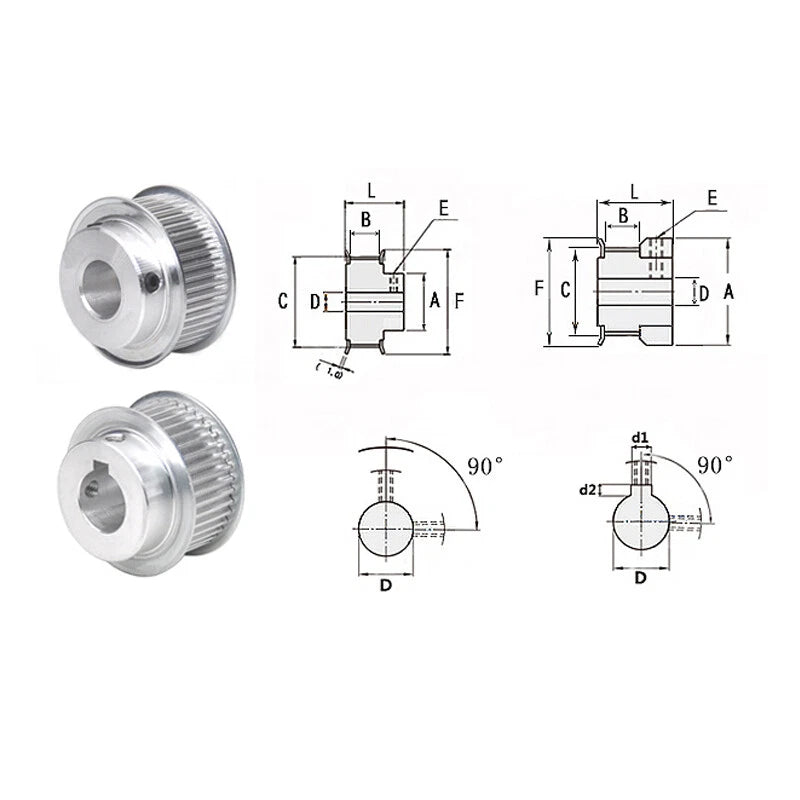

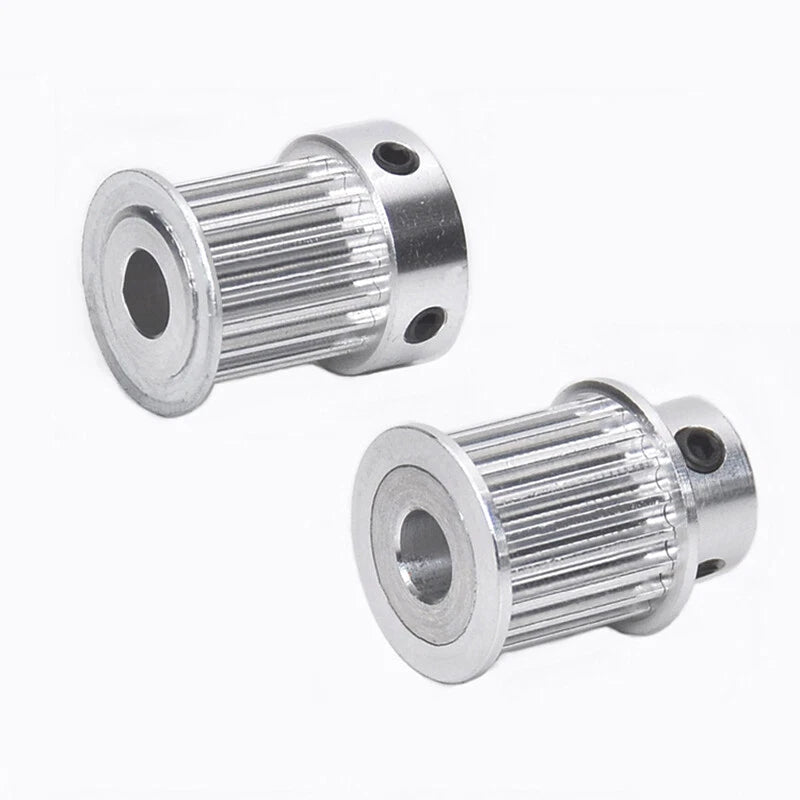

These 3M pitch synchronous pulleys are machined from aluminum alloy and are available in BF-type (with flange) and K-type (without flange) configurations. Tooth counts span 12T to 35T, bore diameters range from 4 mm (0.16 in) to 20 mm (0.79 in), and the belt-contact width is a standardized 16 mm (0.63 in). A set screw secures the pulley to the shaft on standard bore variants; keyway bore options (e.g., 8 mm 3×1.4 mm, 10 mm 4×1.8 mm, 12 mm 5×2.3 mm) are available for higher-torque applications.
Typical use cases include 3M belt-driven CNC router axes, desktop 3D printer extruder and motion systems, lightweight robotic joint drives, and compact conveyor or indexing mechanisms where a 3M synchronous belt pulley with a 16 mm width is the specified component.

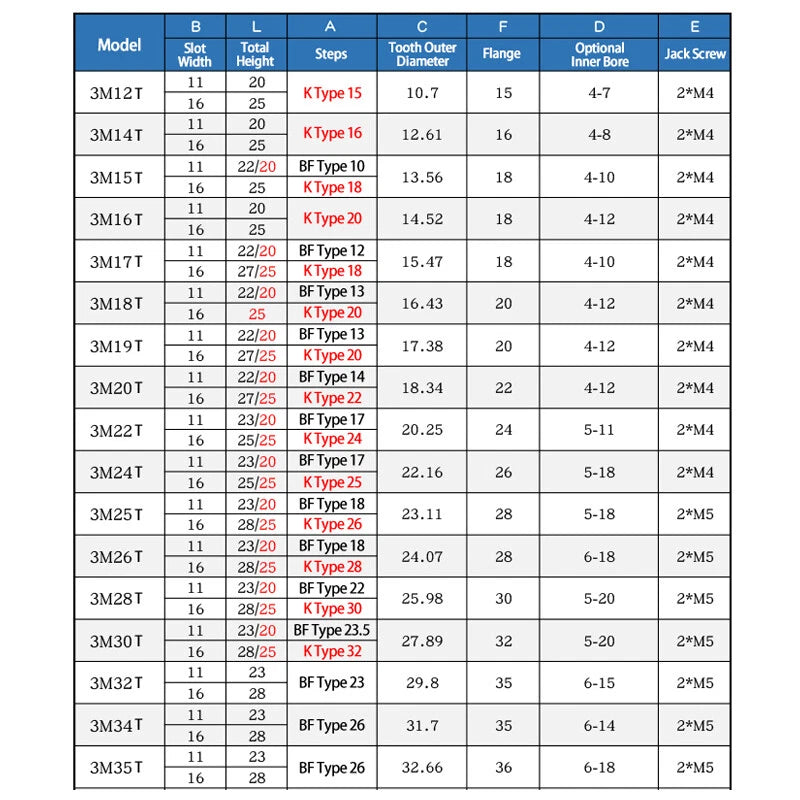

| Belt Pitch | 3M (3 mm) |
|---|---|
| Pulley Type | BF-type (flanged) / K-type (flangeless) |
| Number of Teeth | 12T, 14T, 15T, 16T, 18T, 20T, 24T, 25T, 26T, 28T, 30T, 35T |
| Belt Width | 16 mm (0.63 in) |
| Bore Diameter | 4 mm – 20 mm (see variant options) |
| Keyway Options | 3×1.4 mm, 4×1.8 mm, 5×2.3 mm (see variant options) |
| Material | Aluminum alloy |
| Finish | Natural / anodized (see variant options) |
| Fastening | Set screw (standard bore); keyway (keyway bore variants) |
| Outer Diameter | See variant options |
| Hub Width | See variant options |
| Weight | See variant options |

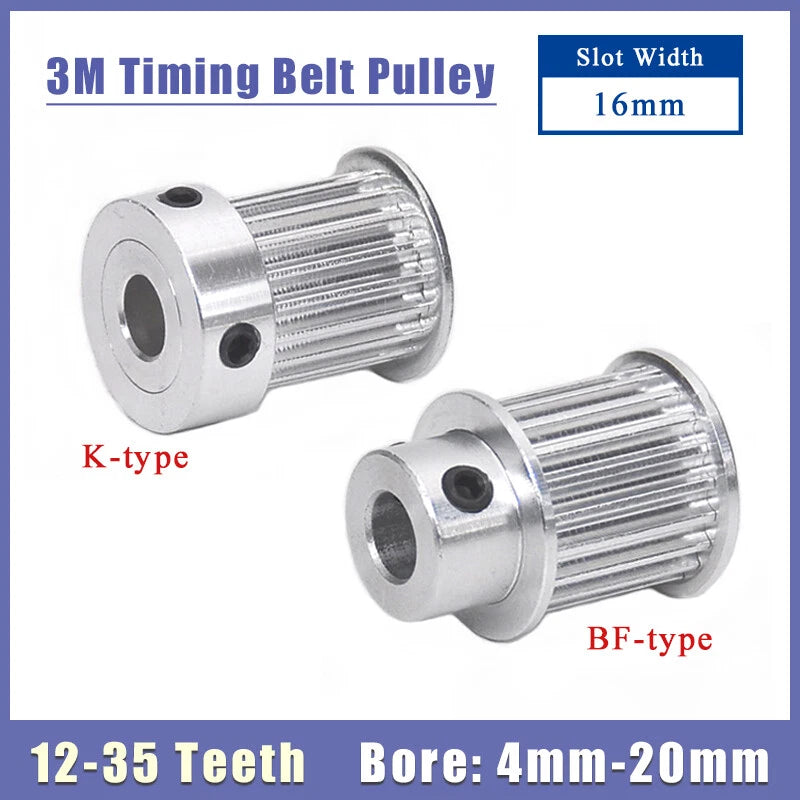

BF-type pulleys have flanges on both sides of the tooth section, which physically retain the belt and prevent it from walking off the pulley — ideal when the belt is not otherwise guided. K-type pulleys are flangeless and are used when the machine frame, idler, or tensioner already keeps the belt aligned, or when axial space is limited.

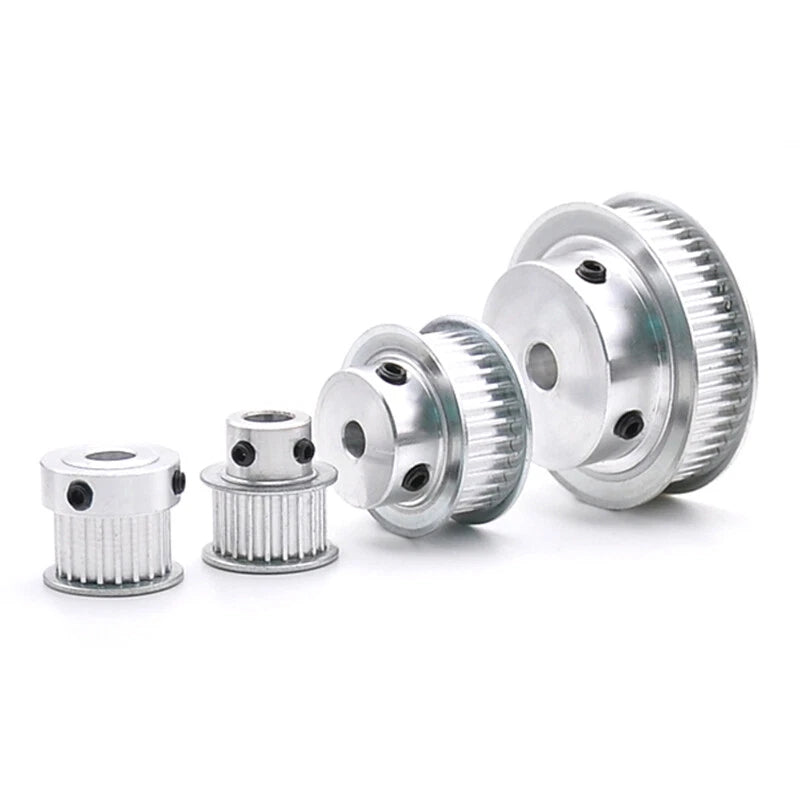

Tooth count determines the pulley pitch diameter and, combined with your motor pulley, sets the drive ratio. A smaller tooth count (e.g., 12T) gives a smaller pitch diameter and higher belt speed per revolution; a larger count (e.g., 35T) gives a larger pitch diameter and more torque multiplication. Match the tooth count to your required linear speed or gear ratio calculation.
Measure your motor or drive shaft diameter precisely with calipers. Select the bore that matches — for example, a NEMA 17 stepper typically has a 5 mm shaft, while larger servo motors may use 6 mm, 8 mm, or larger. For high-torque applications, choose a keyway bore variant (e.g., 8 mm 3×1.4 mm) to prevent rotational slip.
Yes. These pulleys are machined to the standard 3M tooth profile (3 mm pitch), and are compatible with any 3M open-end or closed-loop timing belt with a 16 mm width. Confirm the belt width matches the 16 mm pulley face before ordering.
Aluminum alloy pulleys offer an excellent strength-to-weight ratio for most CNC, 3D printing, and light robotics applications. They handle the belt tension and torque loads typical of 3M belt systems without deformation. For very high-torque or heavy industrial duty cycles, consult the torque rating of your belt system and consider whether a steel pulley is required.
Aluminum naturally forms a thin oxide layer that provides moderate corrosion resistance in typical indoor environments. For humid or mildly corrosive environments, anodized variants offer additional surface protection. These pulleys are not recommended for immersion or highly corrosive chemical exposure without additional protective coating.
Yes. 3M pitch pulleys with a 16 mm belt width are used in larger-format 3D printers and CNC machines. Verify that your printer's belt specification calls for 3M pitch — many desktop printers use 2GT (2 mm pitch) belts, which are not compatible. Check your machine's documentation before ordering.

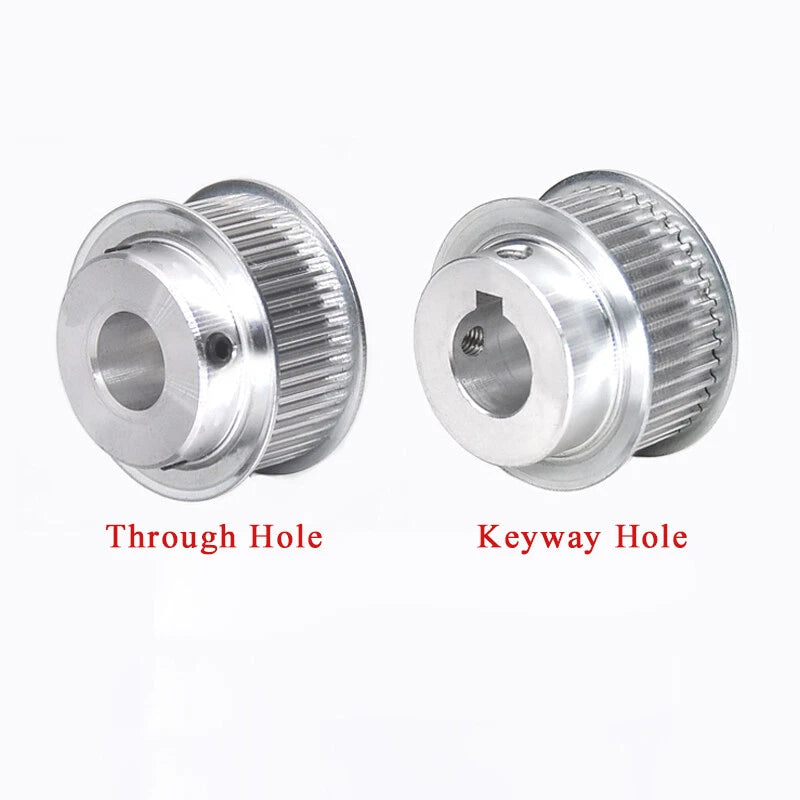

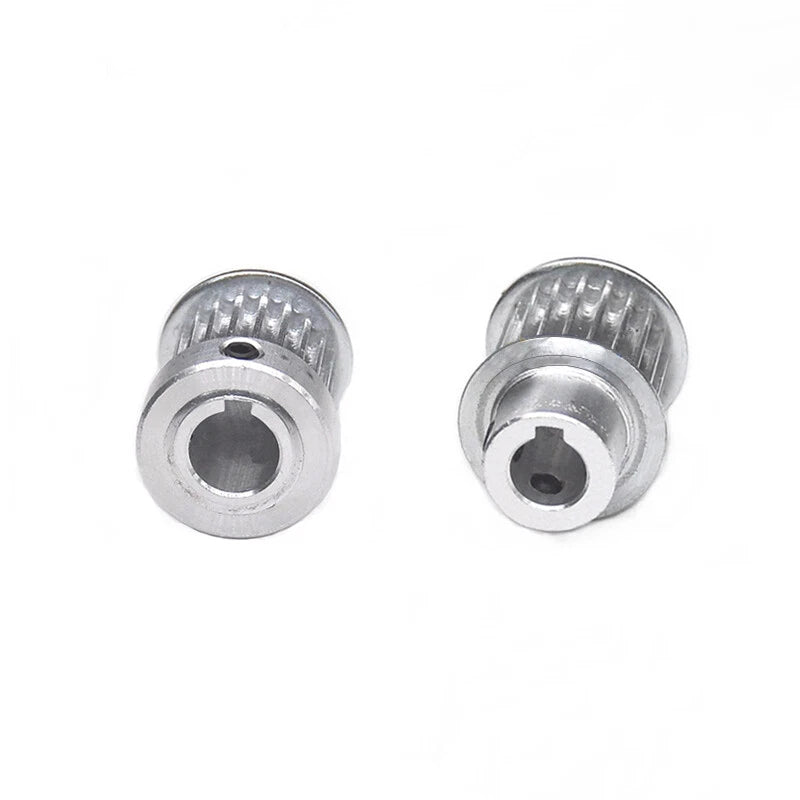

A standard round bore uses a set screw to clamp the pulley onto the shaft. This is sufficient for most low-to-medium torque applications. A keyway bore includes a machined slot that accepts a key inserted between the shaft and pulley, providing a positive mechanical lock that prevents rotational slip under higher torque loads. Keyway dimensions (e.g., 3×1.4 mm, 4×1.8 mm, 5×2.3 mm) must match the key on your shaft.
