3M Timing Belt Pulley 15T–60T — Precision Synchronous Wheel for 3D Printers & DIY Automation

When a slipping or mismatched pulley throws off your print quality or stalls your CNC axis mid-run, the fix starts with the right synchronous wheel. These 3M timing belt pulleys are built for makers, hobbyists, and small-workshop engineers who need reliable, repeatable motion transfer without the guesswork of one-size-fits-all hardware.

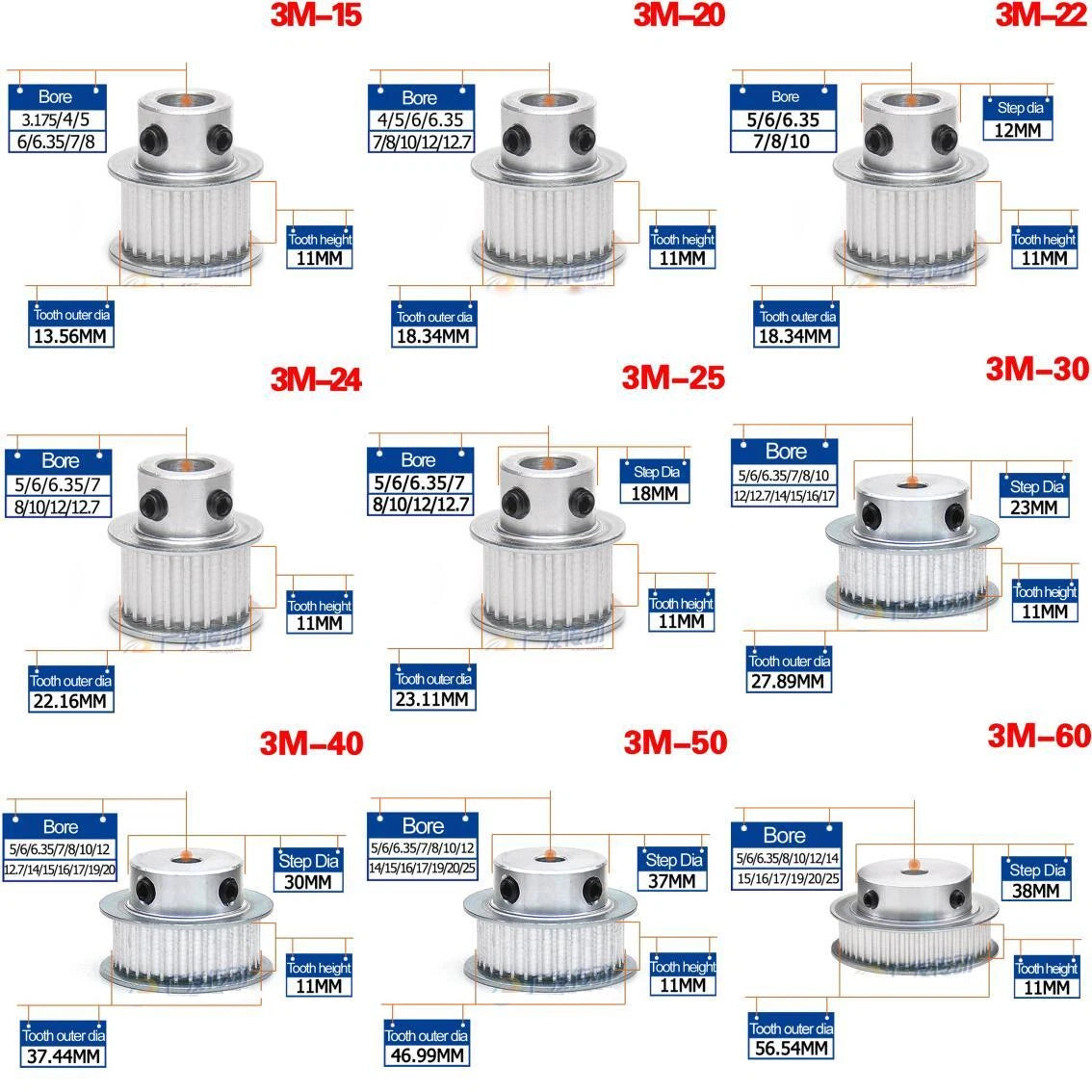

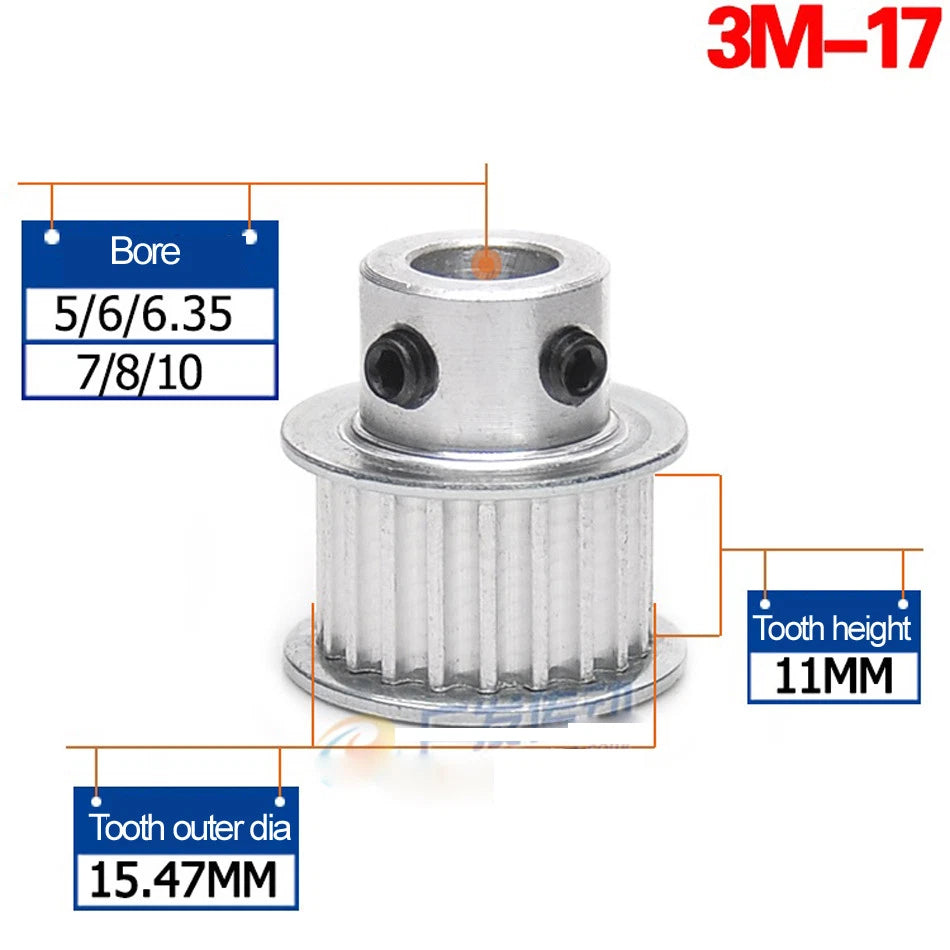

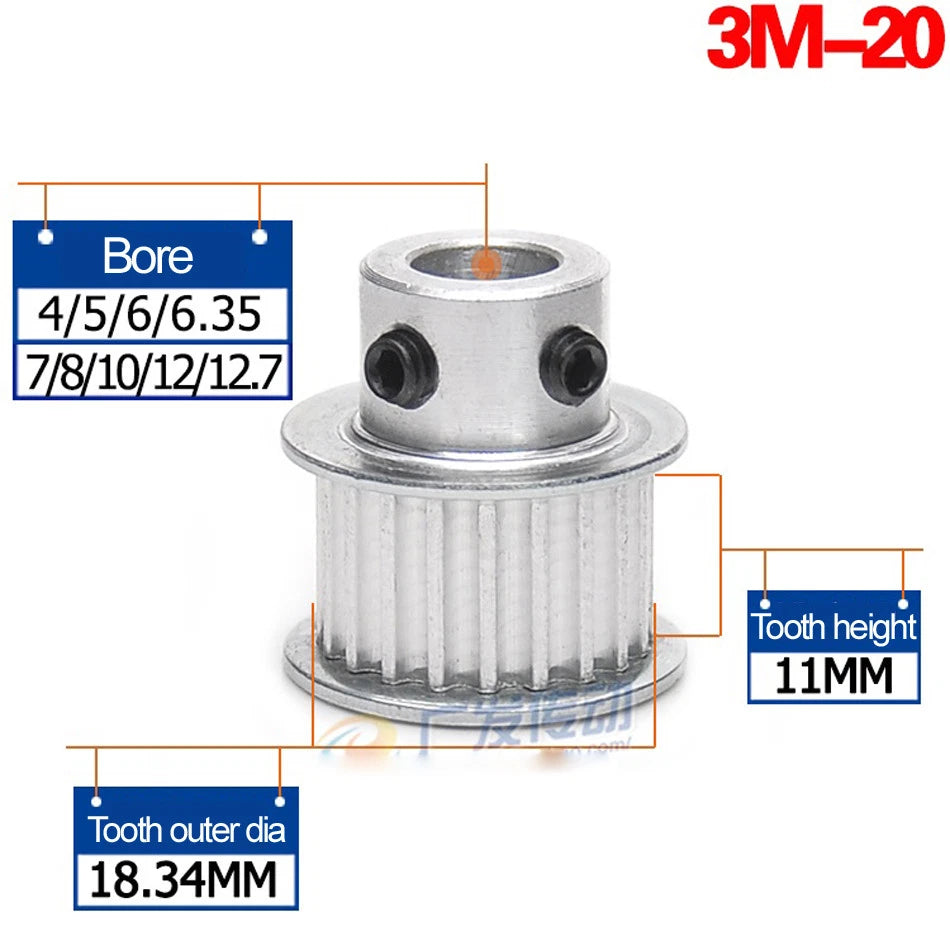

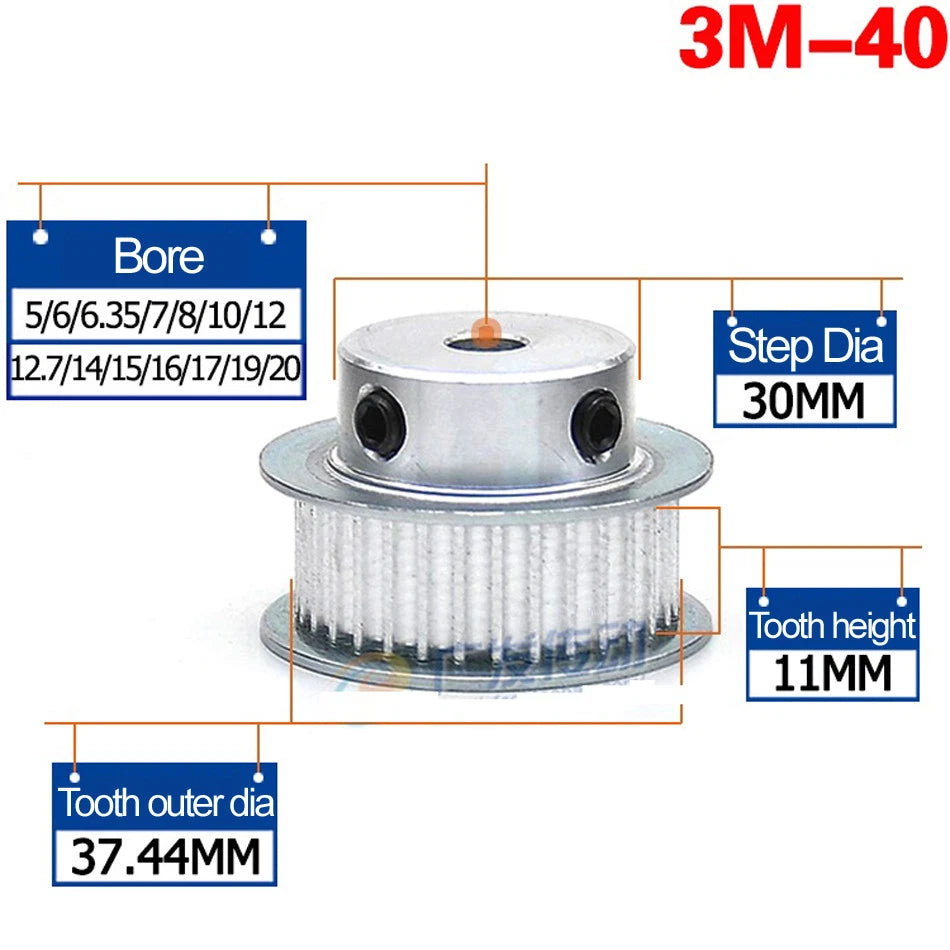

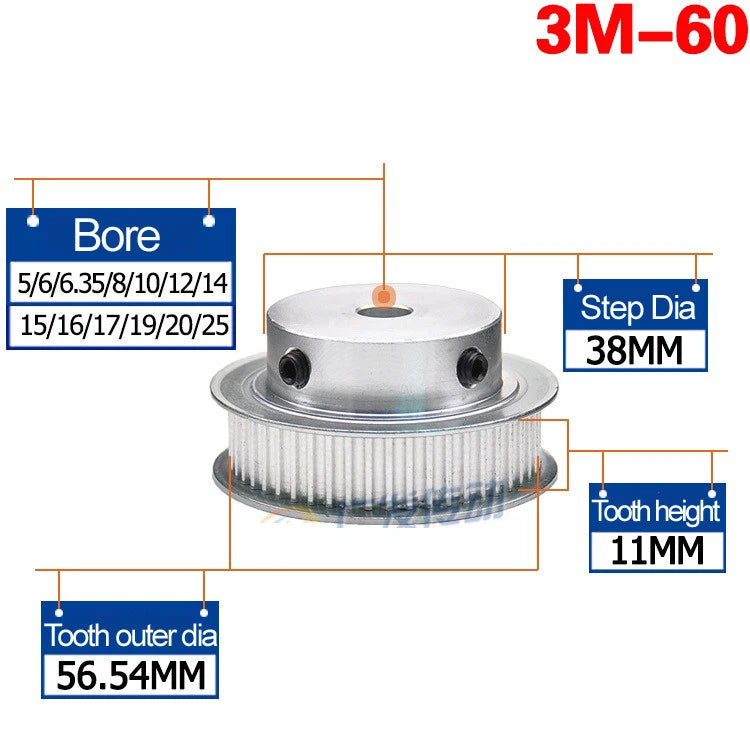

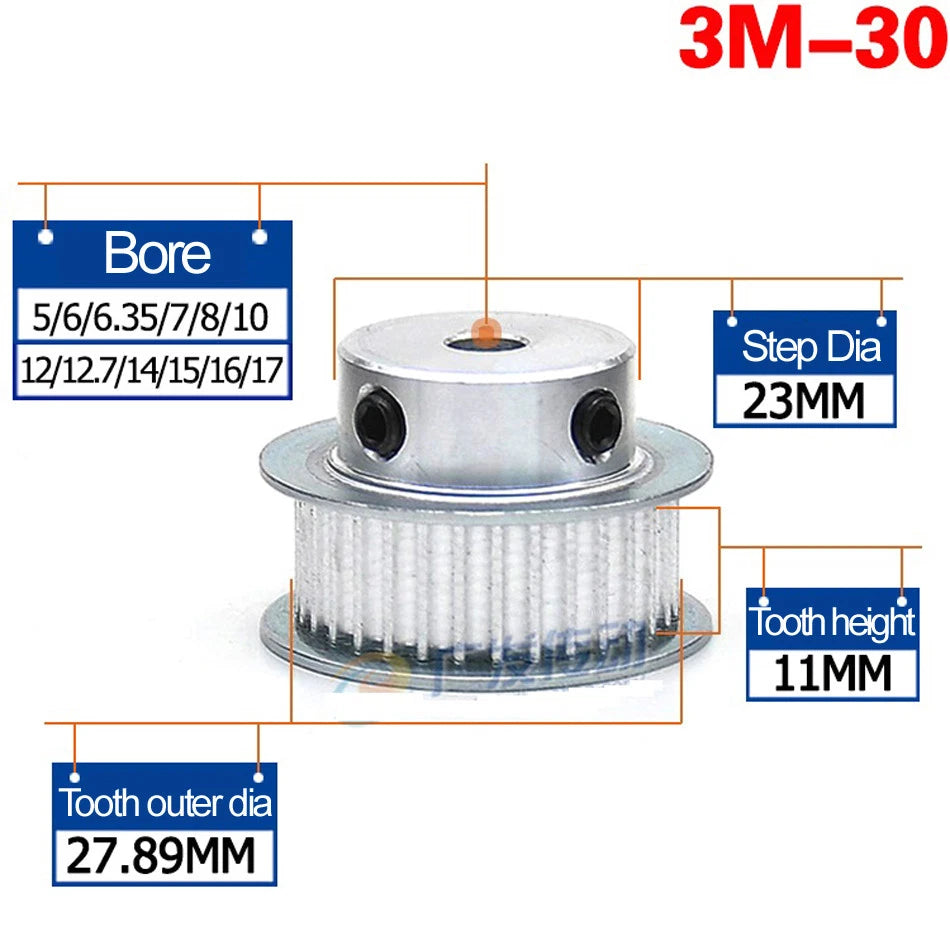

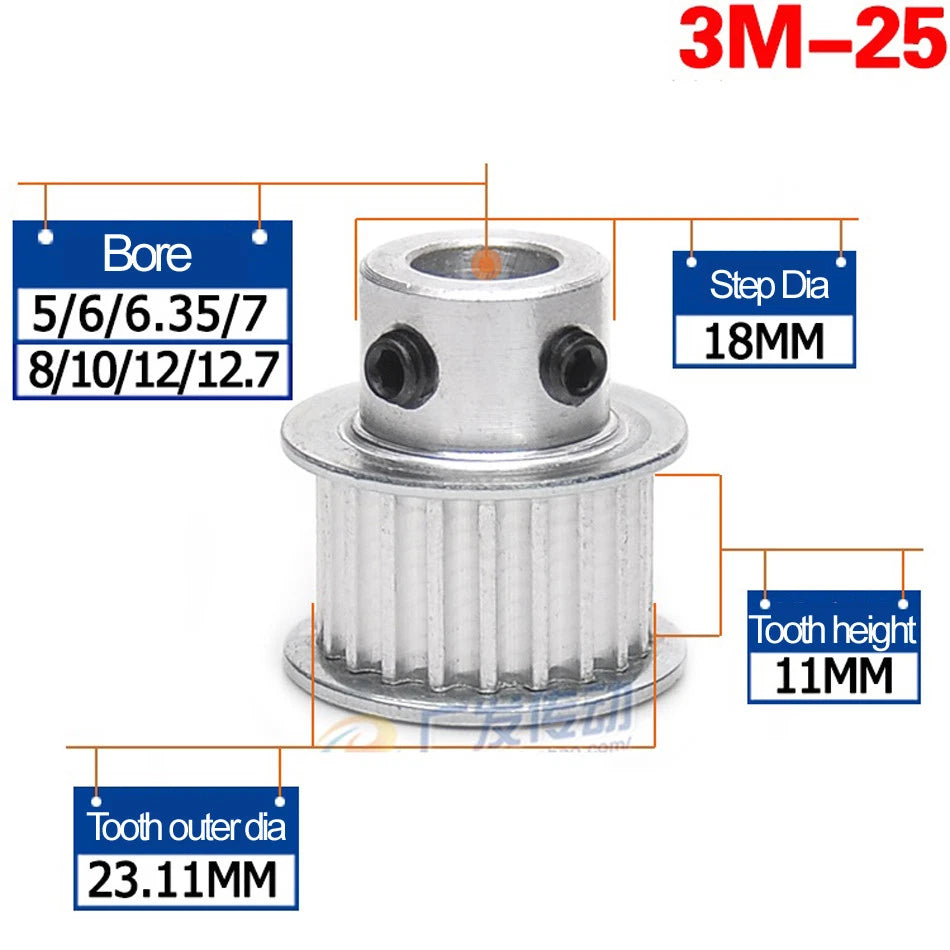

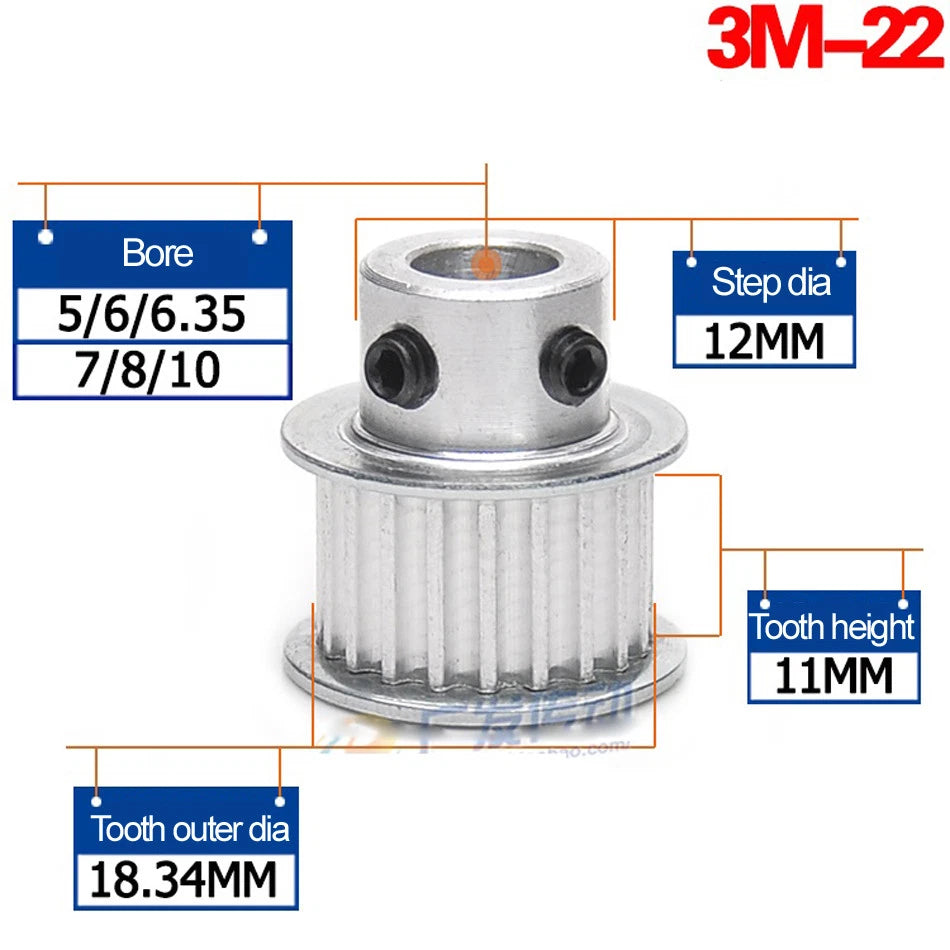

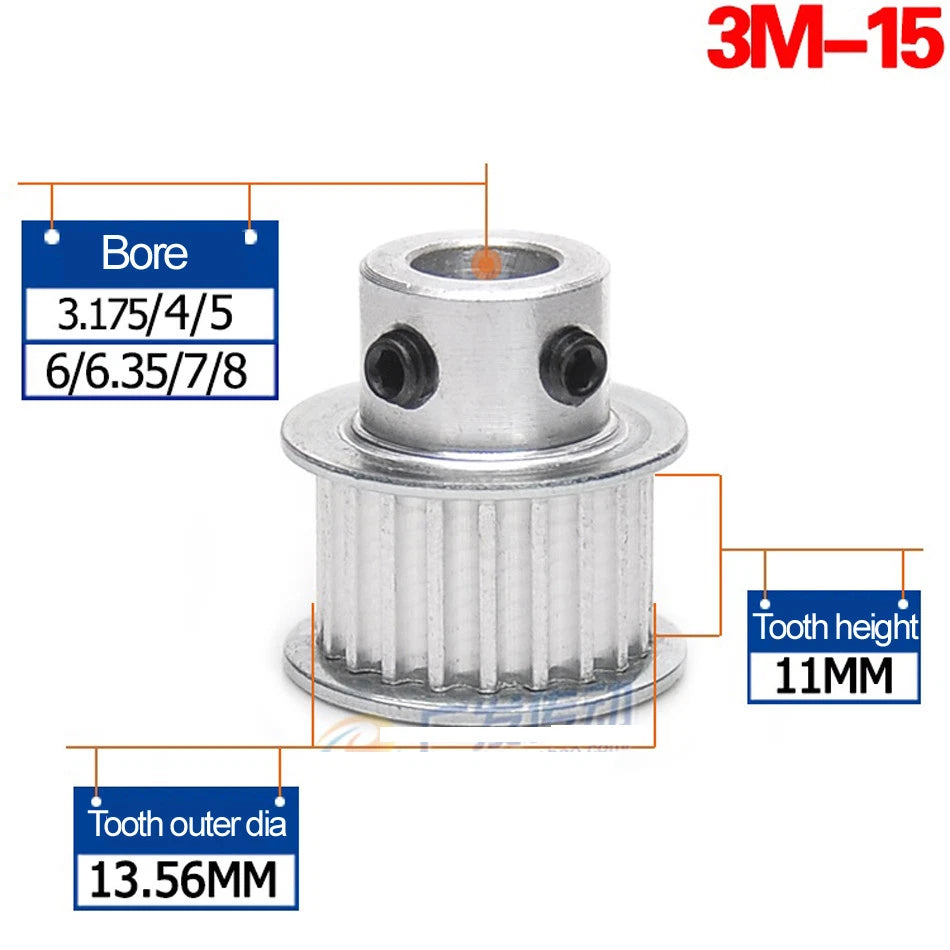

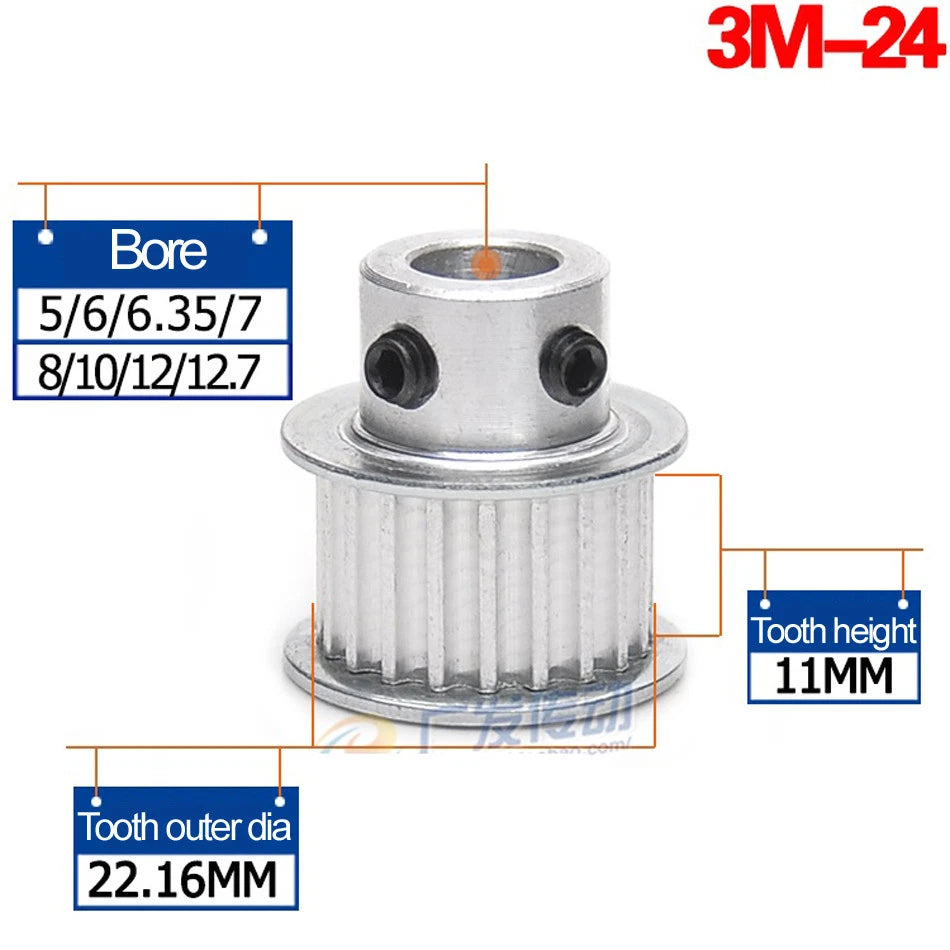

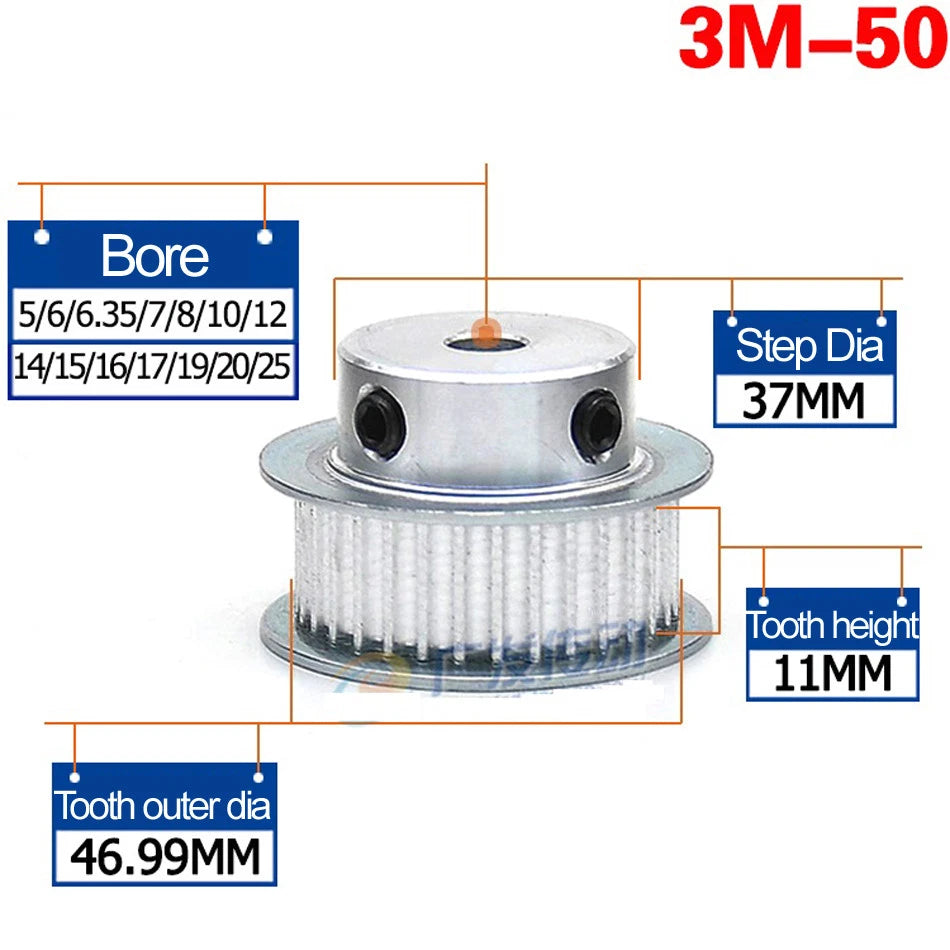

Each pulley is machined from aluminum alloy with a natural silver finish and features a 3M pitch (3 mm tooth spacing) profile. Tooth counts range from 15T to 60T, and bore sizes span 3.175 mm (1/8 in) to 20 mm — covering the most common shaft diameters used in desktop automation. Select your exact tooth count and bore combination from the variant options above.

Typical use cases include 3D printer X/Y/Z axis drives (compatible with GT2-3M belt systems), DIY CNC router gantry drives requiring low-backlash synchronous motion, and small conveyor or pick-and-place automation rigs in educational labs and maker spaces.

⚙️ Compatibility: Designed for 3M pitch (3 mm) synchronous timing belts. Verify your belt pitch and shaft diameter before ordering. Bore sizes available: 3.175 mm – 20 mm. Tooth counts: 15T, 17T, 20T, 22T, 24T, 25T, 30T, 40T.

✅ Key Features of These 3M Timing Belt Pulleys

🔩Selectable Bore Sizes
Choose from 3.175 mm to 20 mm bore diameters to match your motor shaft exactly — no reaming or adapters needed for standard shaft sizes.
⚙️3M Pitch Tooth Profile
3 mm tooth pitch delivers positive engagement with 3M synchronous belts, eliminating slip and maintaining accurate step-to-distance ratios critical for 3D printing and CNC work.
🏗️Aluminum Alloy Construction
Lightweight yet rigid aluminum body keeps rotational inertia low — ideal for high-acceleration stepper motor applications where mass matters.
📐Wide Tooth Count Range (15T–60T)
Eight tooth count options let you dial in your drive ratio precisely, whether you need fast travel on a CoreXY printer or torque-multiplied feed on a router axis.
🔄Set-Screw Bore Retention
Each pulley includes a set-screw bore clamp to lock the wheel firmly onto the shaft, preventing axial migration during continuous operation.
🛠️Drop-In Fit for Common Platforms
Dimensioned to fit standard NEMA 17 and NEMA 23 motor shafts used in most desktop 3D printers, laser cutters, and DIY CNC builds.

📐 Technical Specifications — 3M Timing Belt Pulley

Belt Pitch	3M (3 mm)
Tooth Count Options	15T, 17T, 20T, 22T, 24T, 25T, 30T, 40T
Bore Size Range	3.175 mm – 20 mm (see variant options)
Material	Aluminum alloy
Finish	Natural anodized / silver
Bore Retention	Set screw
Belt Width Compatibility	See variant options
Flange	See variant options
Weight	See variant options
Compatible Belt Type	3M synchronous timing belt

❓ Frequently Asked Questions

How do I choose the right tooth count for my application?

The tooth count determines your drive ratio. A smaller pulley (e.g., 15T) on the motor paired with a larger pulley on the driven shaft reduces speed and increases torque. For 3D printers where both pulleys are typically the same size, choose a tooth count that matches your existing belt loop length and axis geometry. Common choices are 20T for CoreXY and Cartesian printers.

Which bore size should I select for a NEMA 17 stepper motor?

Standard NEMA 17 stepper motors have a 5 mm output shaft. Select the 5 mm bore option. If your motor has a D-cut shaft, the set screw will engage the flat to prevent rotation. For NEMA 23 motors, the typical shaft diameter is 6.35 mm or 8 mm — check your motor datasheet before ordering.

Are these pulleys compatible with GT2 belts?

No. These pulleys use a 3M tooth profile (3 mm pitch, trapezoidal tooth form). GT2 belts have a 2 mm pitch with a curvilinear tooth profile and are not interchangeable with 3M pulleys. Ensure your belt is labeled 3M before purchasing.

How strong is the aluminum body — will it strip or crack under load?

The aluminum alloy construction provides sufficient strength for typical desktop automation loads (3D printers, small CNC routers, light conveyor systems). For heavy industrial drives with high belt tension or shock loads, a steel pulley would be more appropriate. Under normal DIY and maker-scale use, these pulleys are durable and resistant to deformation.

Is the bore pre-finished, or do I need to ream it to size?

The bore is machined to the nominal diameter listed in the variant option. For standard shaft sizes (e.g., 5 mm, 6 mm, 8 mm), the pulley should slide onto the shaft without additional machining. The set screw locks it in place. If you require a precision interference fit, light finishing with a reamer may be needed.

Can I use these pulleys outdoors or in humid environments?

Aluminum has natural corrosion resistance due to its oxide layer, making these pulleys suitable for moderately humid indoor environments. For outdoor or high-moisture applications, consider applying a light coating of machine oil to the bore and tooth surfaces to extend service life. They are not rated for submersion or salt-spray environments.

What belt width is compatible with these pulleys?

Belt width compatibility depends on the specific pulley variant. 3M pulleys are commonly paired with 6 mm or 9 mm wide 3M belts. Check the pulley flange width in the variant details or contact us to confirm compatibility with your specific belt width before ordering.

🛒 Select your tooth count (Types) and bore size above, then add to cart.
