When a slipping or misaligned pulley derails your CNC router, 3D printer, or robotic arm mid-run, the cost is more than downtime — it's lost accuracy and wasted material. Engineers, makers, and automation builders who demand repeatable, zero-backlash motion need a synchronous drive pulley that locks onto the shaft and stays there. These 3M timing belt pulleys are engineered for exactly that.

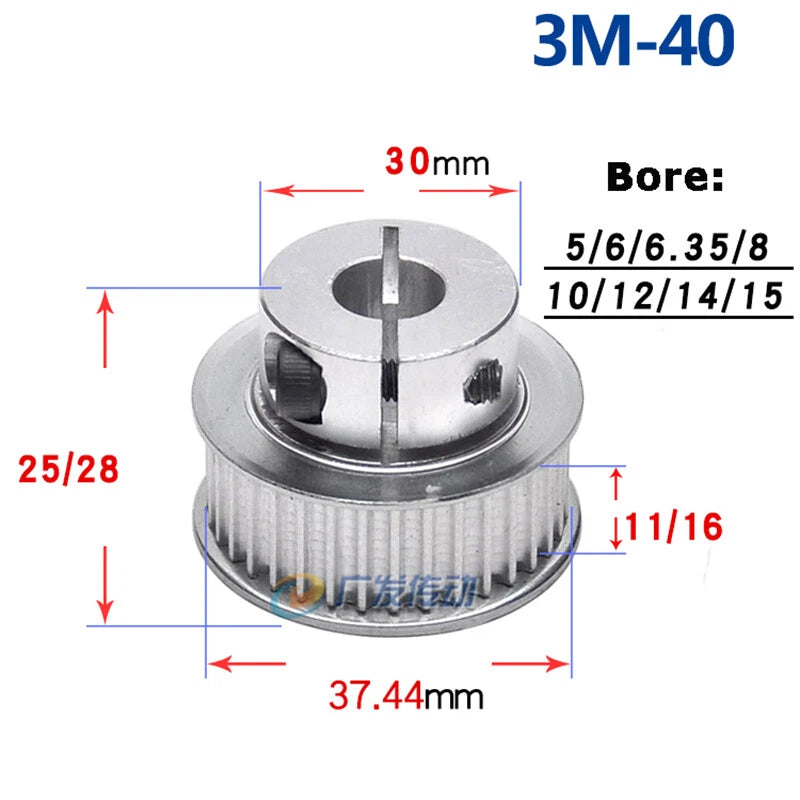

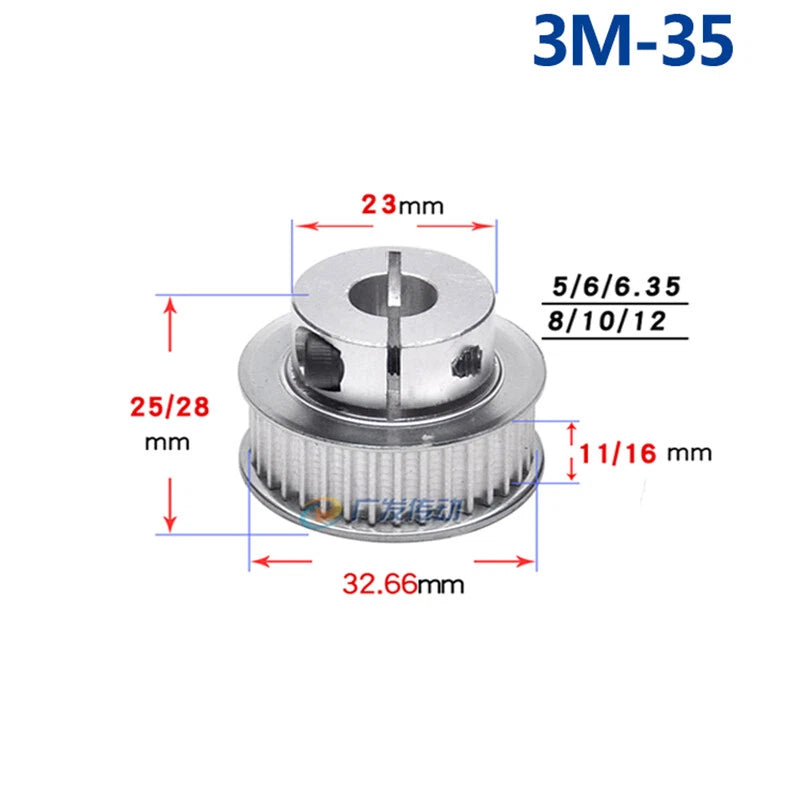

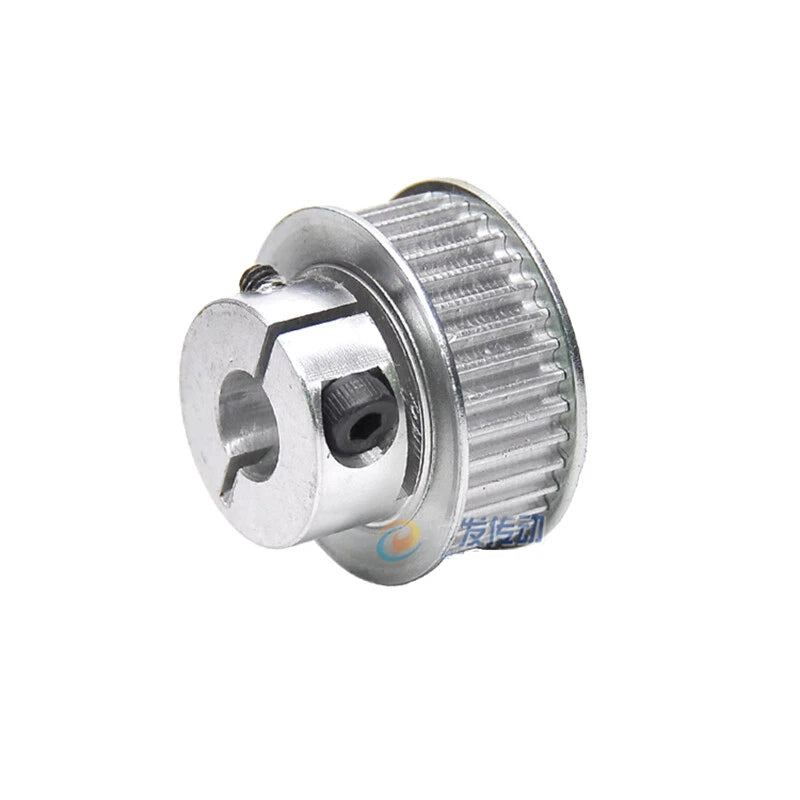

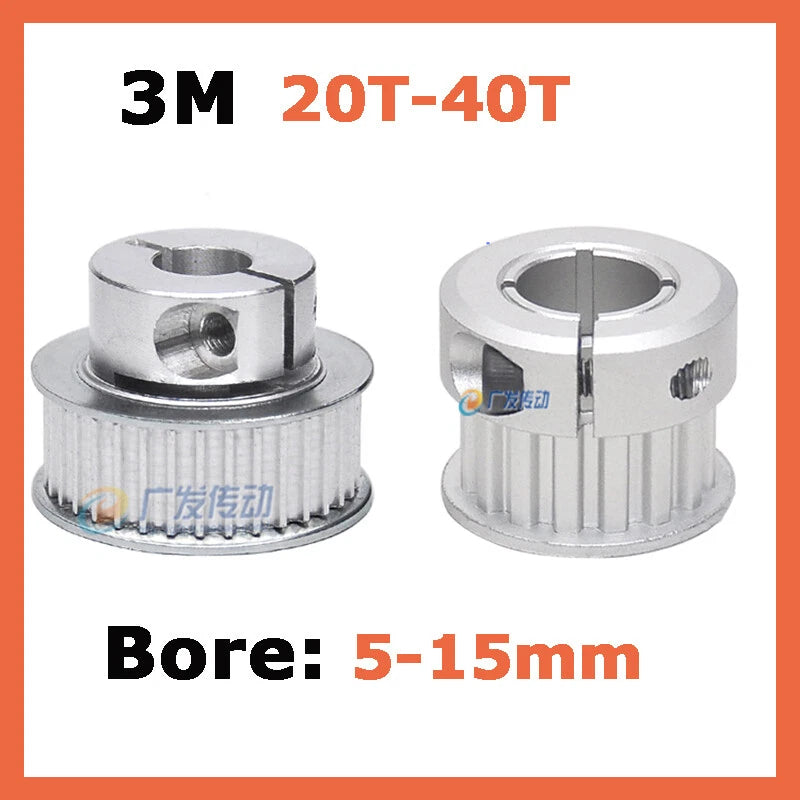

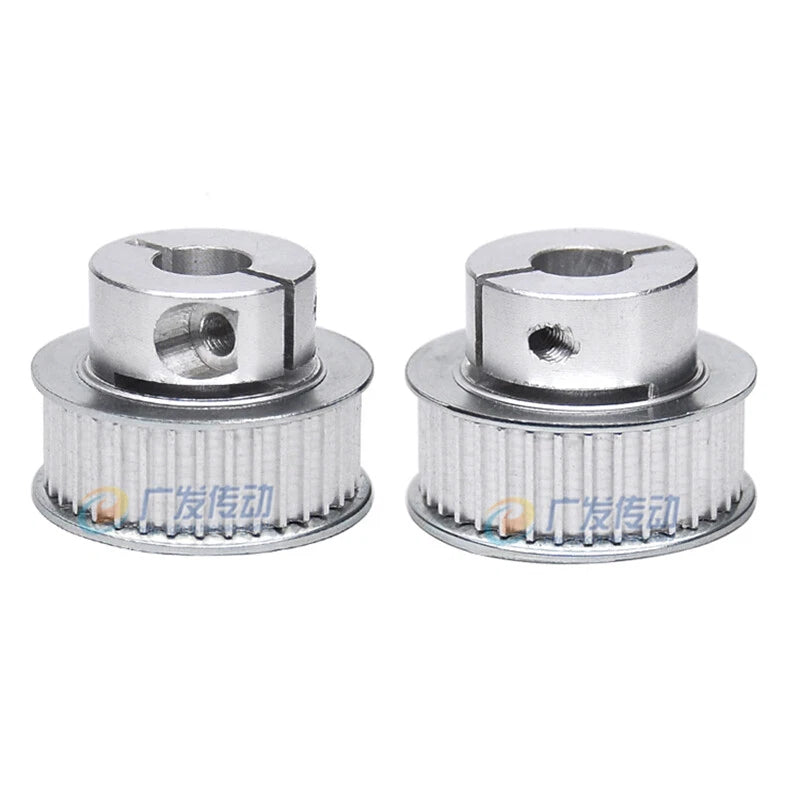

Each pulley is machined from aluminum alloy and features a 3M tooth profile (3 mm pitch) compatible with standard 3M timing belts. Available in five tooth counts — 20T, 25T, 30T, 35T, and 40T — with bore diameters ranging from 5 mm (~0.197 in) to 15 mm (~0.591 in). Slot widths of 11 mm (~0.433 in) and 16 mm (~0.630 in) accommodate both narrow and wide belt configurations. BF-type pulleys include a flange on both sides for lateral belt retention; K-type pulleys feature a single-side flange for applications requiring belt removal without disassembly.
Typical use cases include CNC router X/Y axis drives where consistent tooth engagement prevents positioning drift, desktop 3D printer extruder and motion systems requiring lightweight yet rigid pulleys, and small-scale conveyor or pick-and-place automation where bore-to-shaft fit is critical. Long-tail applications include DIY laser cutter belt drive upgrades, servo motor coupling in educational robotics kits, and replacement pulleys for open-source motion platforms.
3 mm pitch tooth geometry ensures positive engagement with 3M timing belts, eliminating slip under load for accurate linear and rotary motion.
Five options — 20T, 25T, 30T, 35T, 40T — let you dial in the exact gear ratio and pitch diameter your drive system requires.
Bore diameters from 5 mm to 15 mm (including 6 mm, 6.35 mm, 7 mm, 8 mm, 10 mm, 12 mm, 12.7 mm, 14 mm) cover NEMA stepper shafts, servo shafts, and custom drive rods.
11 mm and 16 mm slot widths accommodate both standard and wide 3M belt configurations, giving you flexibility across different machine builds.
BF-type dual flanges keep the belt centered under dynamic loads; K-type single flange allows lateral belt removal without full disassembly — choose based on your maintenance workflow.
Machined aluminum alloy body delivers a low-inertia, corrosion-resistant pulley that withstands continuous duty cycles in workshop and light industrial environments.
| Belt Profile | 3M (3 mm pitch) |
|---|---|
| Tooth Count Options | 20T / 25T / 30T / 35T / 40T |
| Bore Diameter Range | 5 mm – 15 mm (see variant options) |
| Slot Width Options | 11 mm / 16 mm |
| Flange Type | BF-type (dual flange) / K-type (single flange) |
| Material | Aluminum alloy |
| Finish | See variant options |
| Set Screw | See variant options |
| Compatible Belt Width | 11 mm or 16 mm (match to slot width selected) |
| Application | CNC, 3D printers, robotics, automation, conveyor drives |
Tooth count determines the pitch diameter and, combined with your motor pulley, sets the drive ratio. Fewer teeth (20T) give a smaller diameter and higher belt speed per shaft revolution; more teeth (40T) increase pitch diameter and reduce belt tension for a given torque. Match the tooth count to your required linear speed, torque, and available shaft center distance. If you are replacing an existing pulley, count the teeth on the original.

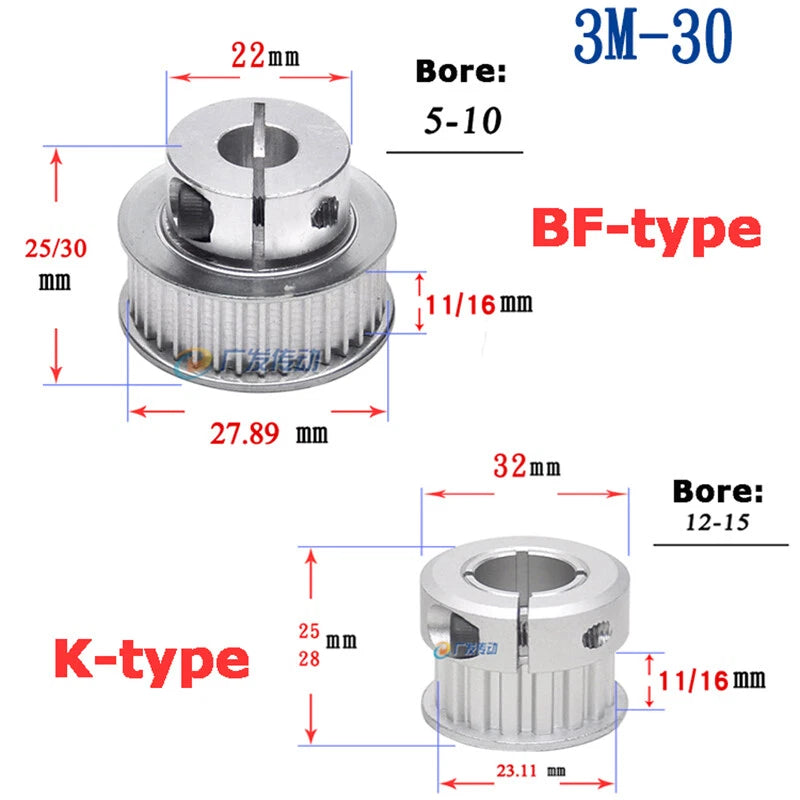

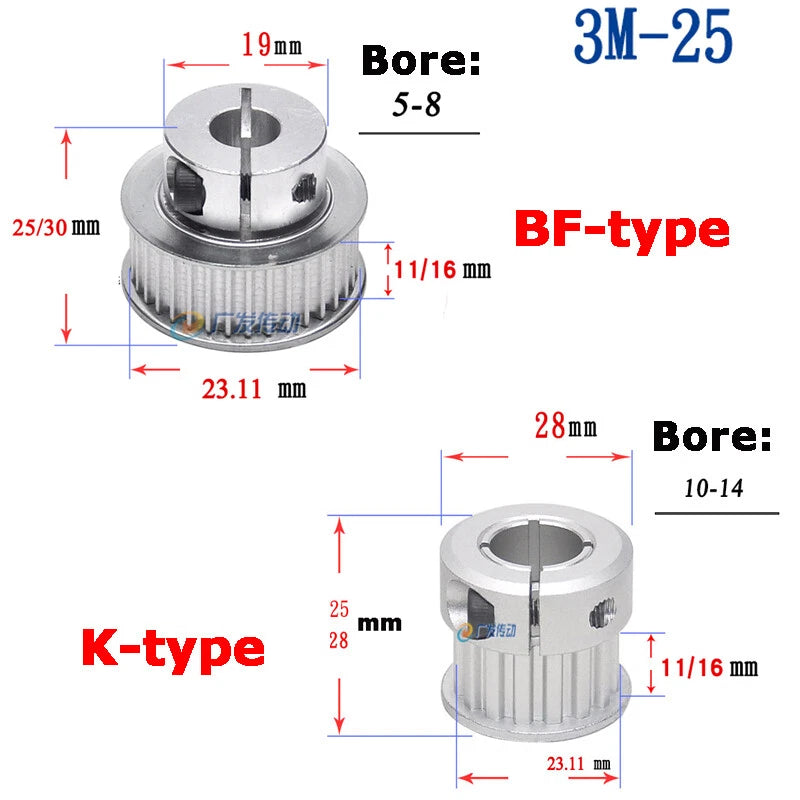

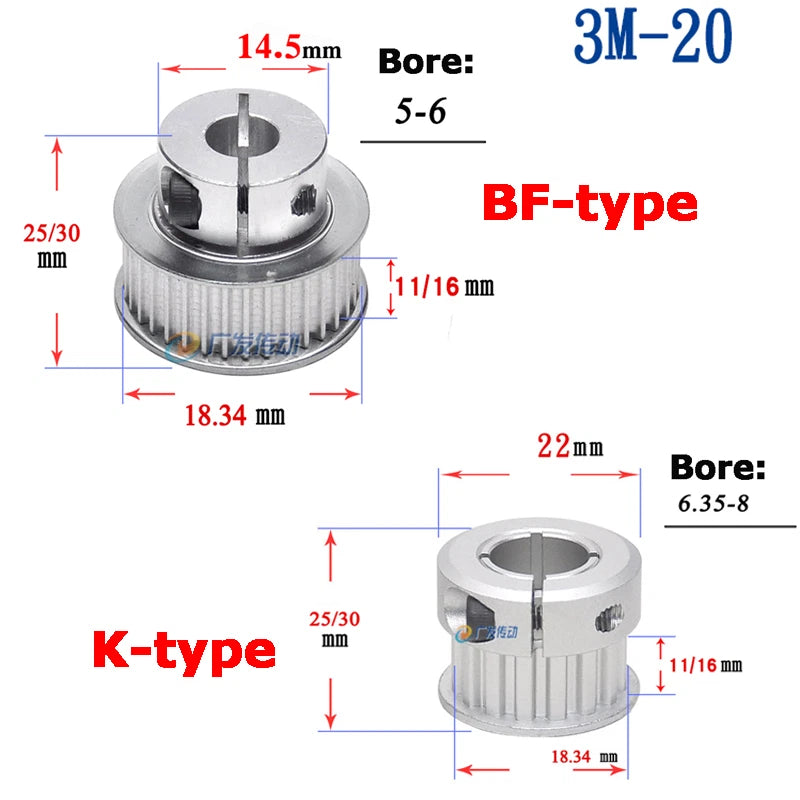

BF-type pulleys have flanges on both sides of the belt groove. This keeps the belt centered and prevents it from walking off under lateral forces — ideal for high-speed or long-run applications. K-type pulleys have a flange on one side only, which allows the belt to be slid off laterally without removing the pulley from the shaft, making belt replacement faster in confined spaces.
Standard NEMA 17 stepper motors have a 5 mm output shaft. Select the 5 mm bore variant. If your motor has a D-cut shaft, ensure the set screw engages the flat. For NEMA 23 motors, the shaft is typically 6.35 mm (1/4 inch) — select the 6.35 mm bore variant accordingly.
Yes. The 3M tooth profile is an industry-standard specification. These pulleys are compatible with any 3M pitch timing belt (3 mm tooth pitch) regardless of brand, provided the belt width matches the slot width you select (11 mm or 16 mm).
Aluminum alloy construction provides a good strength-to-weight ratio and adequate fatigue resistance for typical CNC, 3D printing, and light automation duty cycles. For very high-load or high-temperature industrial environments, contact us to confirm suitability before ordering.

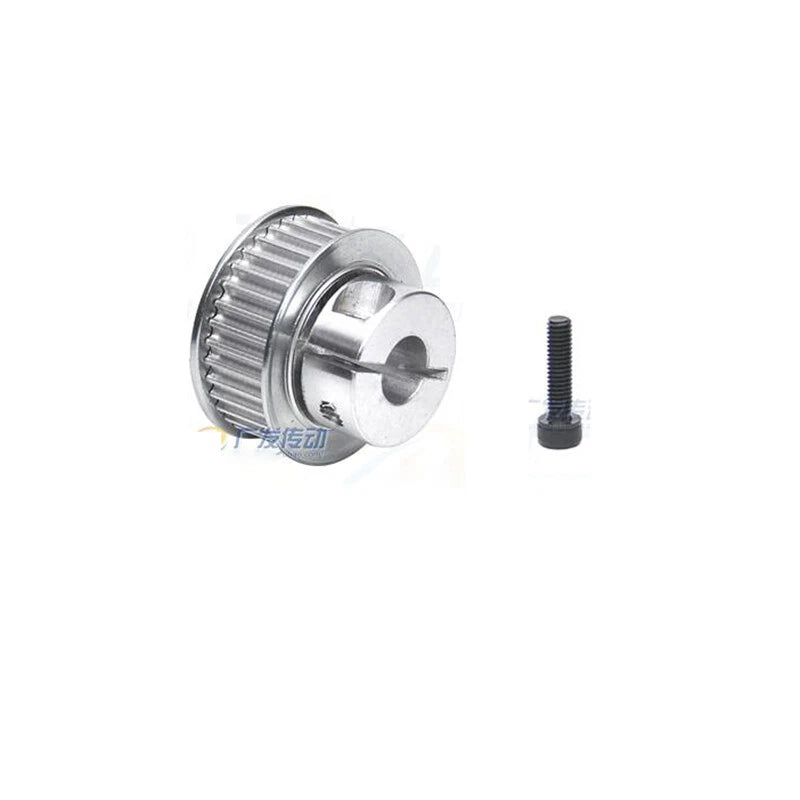

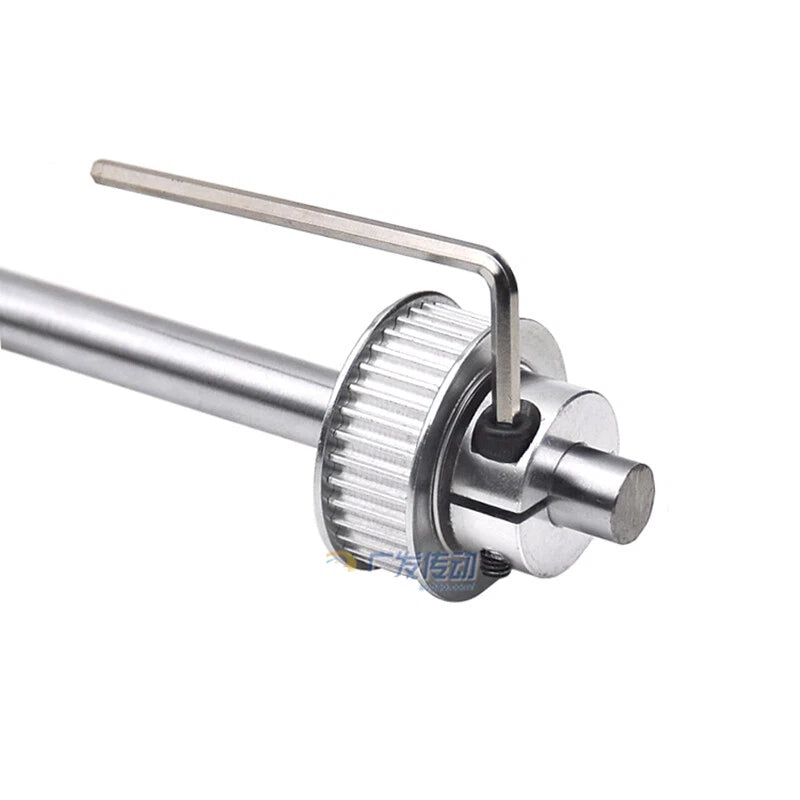

These pulleys use a set screw (grub screw) to clamp onto the shaft. Ensure the bore diameter matches your shaft exactly for a secure fit. For D-cut shafts, align the set screw with the flat. For round shafts, apply a small amount of thread-locking compound to the set screw for added security under vibration.
No. The slot width must match the belt width. Using a belt wider than the slot will cause the belt to ride on the flanges and wear prematurely. Using a belt narrower than the slot may allow lateral movement and reduce power transmission efficiency. Always match slot width to belt width.
