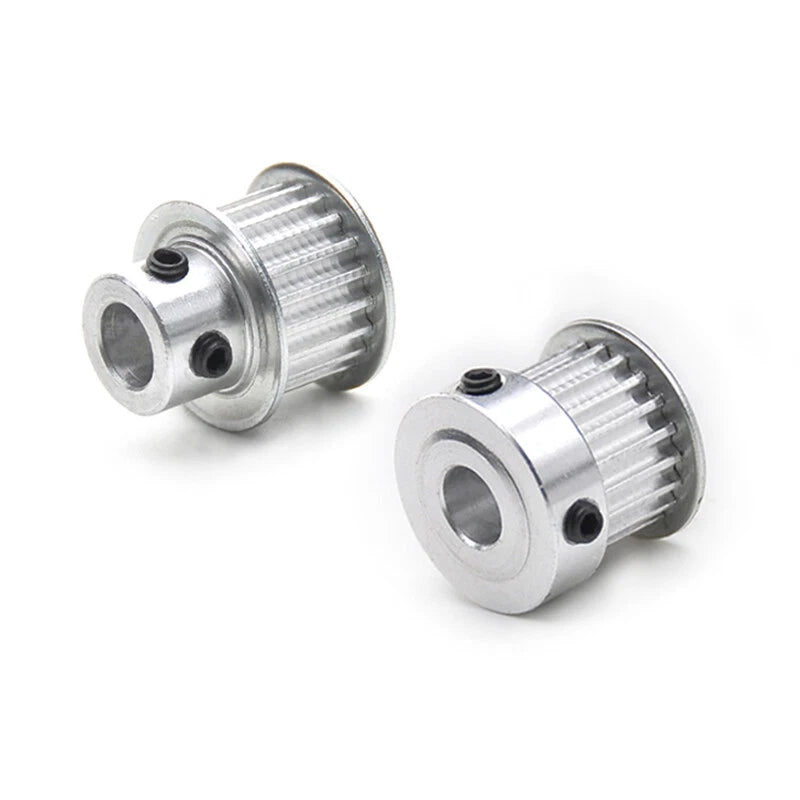

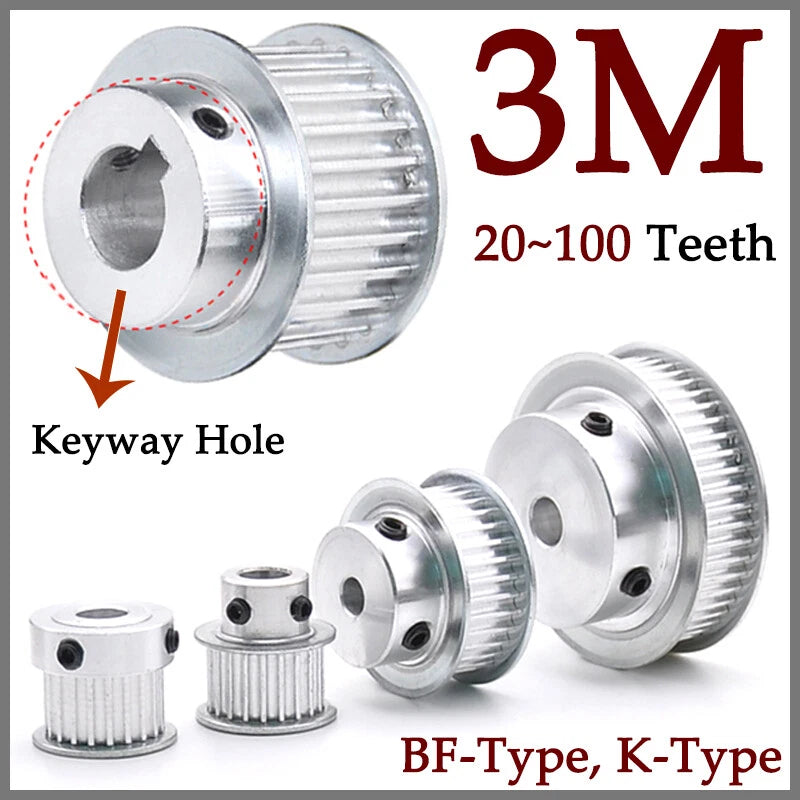

When your CNC router, 3D printer, or robotic actuator demands repeatable, slip-free motion, a mismatched or worn pulley becomes the weakest link in the entire drive train. Engineers and makers who need dimensional accuracy across long print runs or multi-axis cutting paths rely on correctly specified timing pulleys to eliminate backlash and maintain positional fidelity. These 3M pitch timing belt drive pulleys are engineered for that exact use case, available in both BF-Type (with integrated flanges for belt retention) and K-Type (open-hub, compact profile) configurations.
Each pulley is machined from aluminum alloy with an anodized finish for corrosion resistance and reduced rotating mass. The 3M designation refers to a 3 mm belt pitch, compatible with standard 3M synchronous belts. Tooth counts span 20T through 100T, covering a wide range of speed-reduction and torque-multiplication ratios. Bore diameters range from 8 mm (0.31 in) to 25 mm (0.98 in), with keyway slot widths from 3×1.4 mm up to 8×3.3 mm to accommodate common shaft and key standards. Belt width compatibility is 11 mm across all variants.
Typical applications include NEMA 17/23 stepper motor drives in desktop CNC mills and laser engravers, Z-axis and extruder drives in FDM 3D printers requiring consistent layer height, and lightweight robotic joint actuators where low inertia and accurate gear ratio selection are critical. The broad tooth-count range also makes these pulleys suitable for custom timing belt conveyor systems and automated pick-and-place mechanisms.

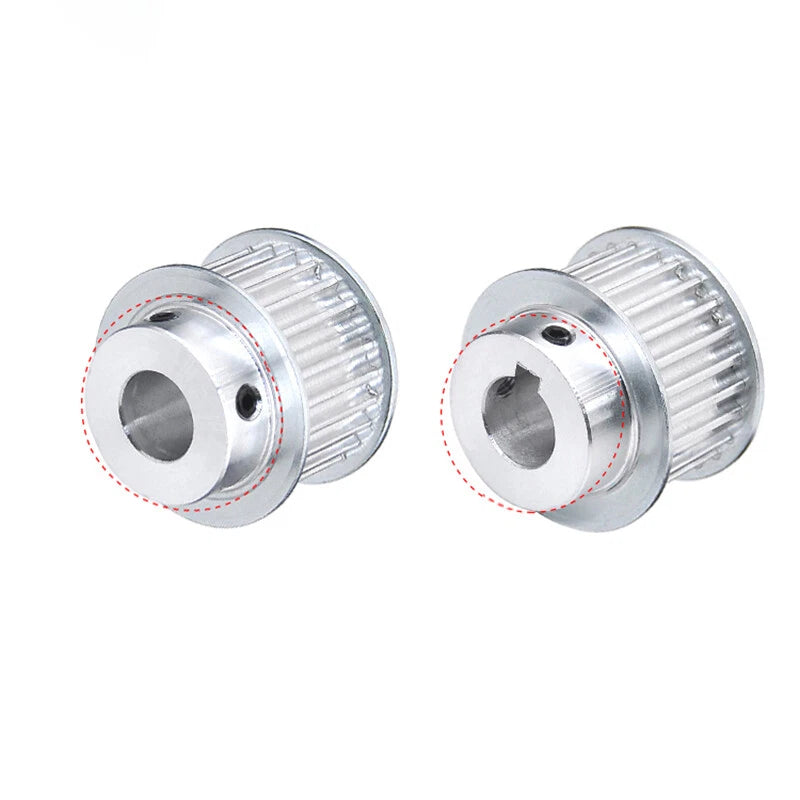

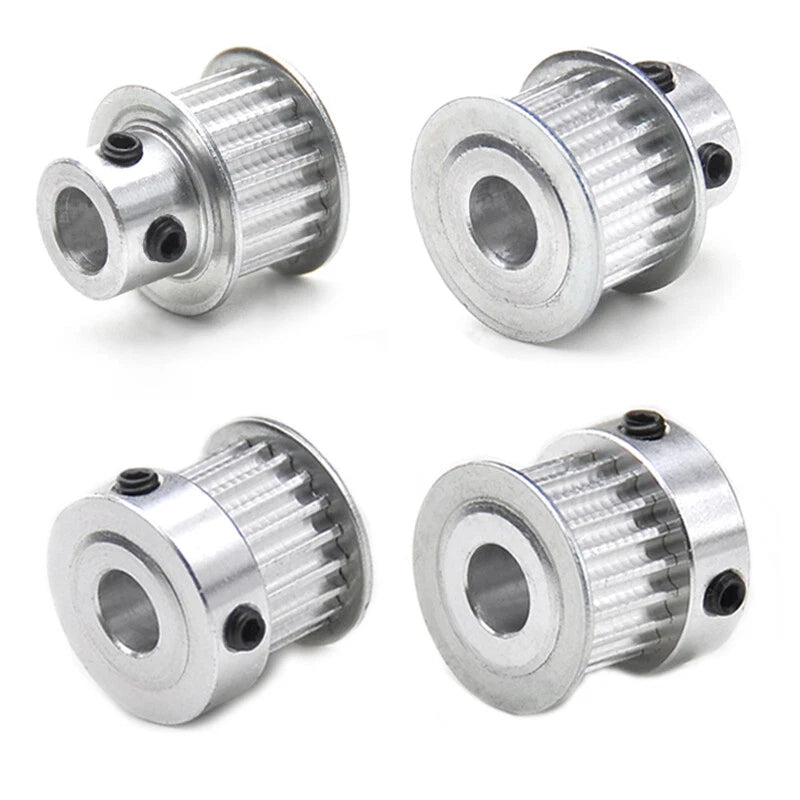

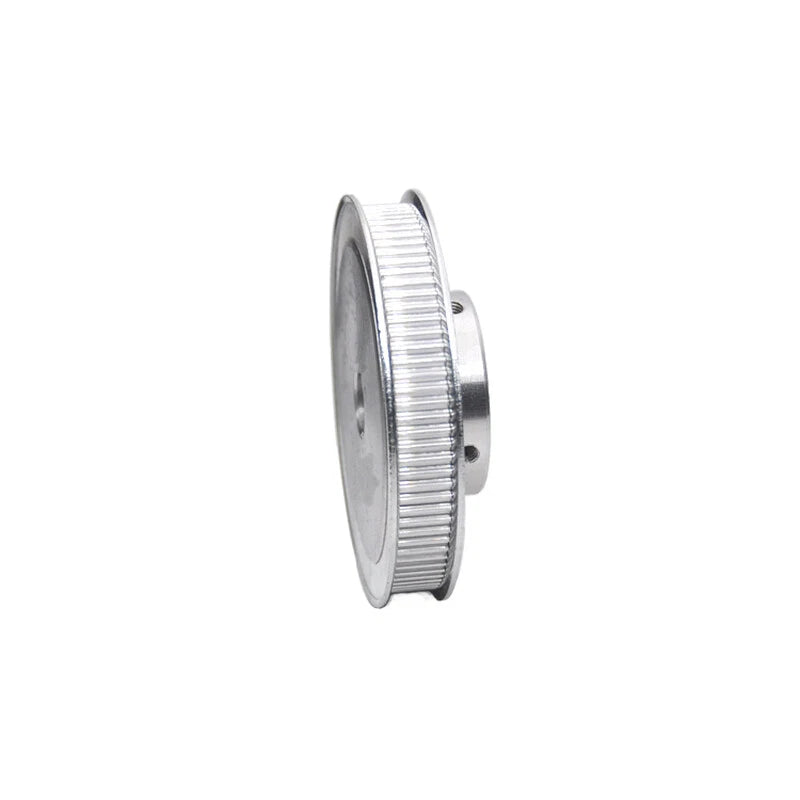

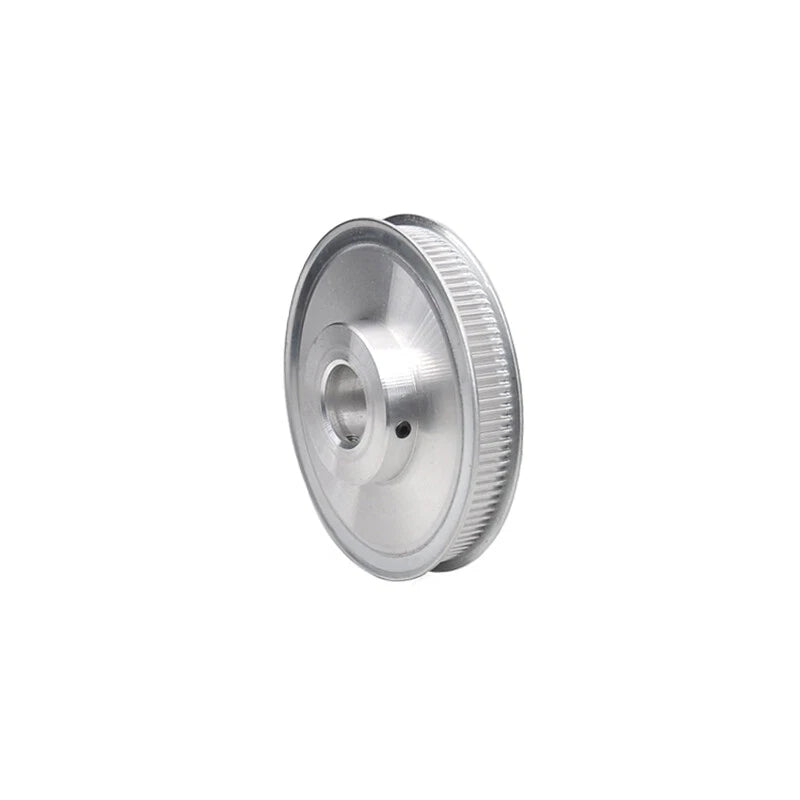

Two Pulley Types — BF-Type includes dual flanges to keep the belt tracked under lateral load; K-Type offers a compact open-hub profile for space-constrained assemblies.
Wide Tooth-Count Range — 17 tooth-count options from 20T to 100T let you dial in the exact speed ratio your drive system requires without custom machining.
Multiple Bore and Keyway Options — Bore sizes from 8 mm to 25 mm with matching keyway slots (3×1.4 mm through 8×3.3 mm) cover NEMA stepper shafts and standard metric shaft diameters.
Aluminum Alloy Construction — Lightweight yet rigid aluminum body reduces rotational inertia for faster acceleration and deceleration in servo and stepper applications.
Anodized Finish — Surface anodizing provides corrosion resistance and wear protection, extending service life in open-frame machines exposed to coolant mist or humidity.
3M Pitch Compatibility — Designed to mesh precisely with 3M synchronous belts, delivering low-noise, backlash-minimized power transmission for positioning-critical CNC and 3D printing drives.

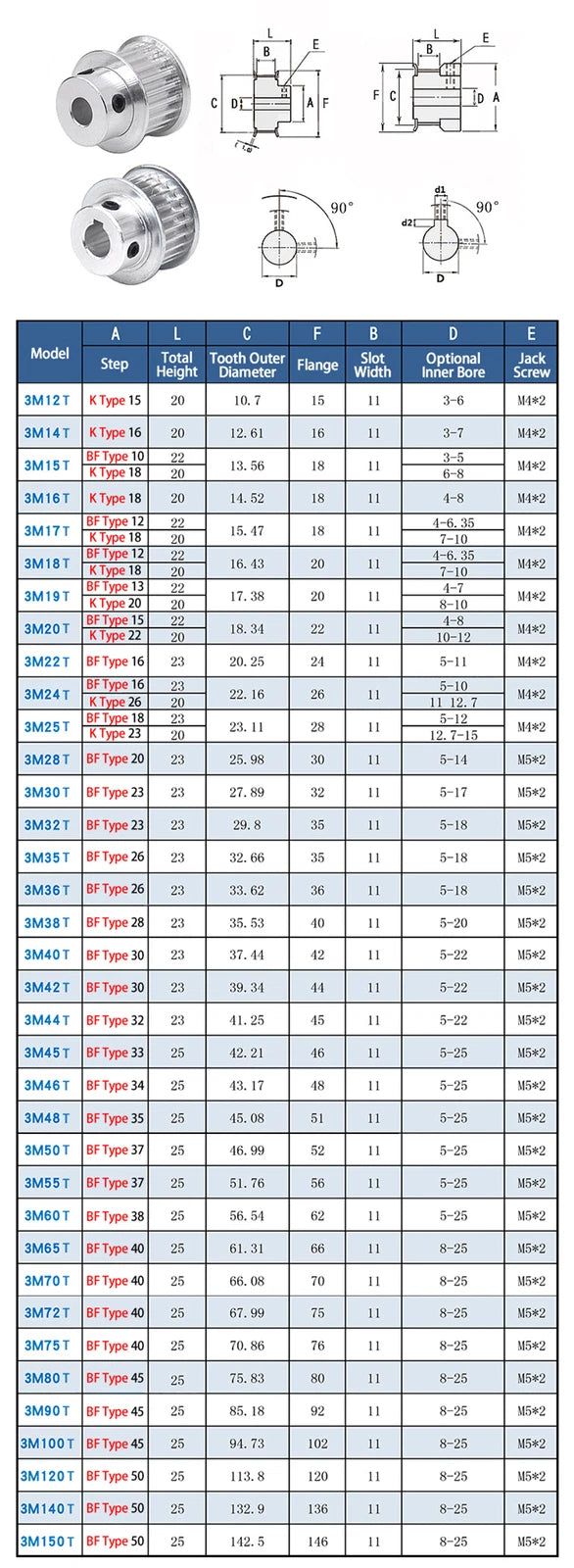

| Belt Pitch | 3M (3 mm) |
|---|---|
| Pulley Type | BF-Type (flanged) / K-Type (open hub) |
| Tooth Count | 20T, 24T, 25T, 30T, 32T, 35T, 36T, 40T, 50T, 60T, 65T, 70T, 72T, 75T, 80T, 90T, 100T |
| Bore Diameter | 8 mm – 25 mm (see variant options) |
| Keyway Slot | 3×1.4 mm / 4×1.8 mm / 5×2.3 mm / 6×2.8 mm / 8×3.3 mm (see variant options) |
| Belt Width Compatibility | 11 mm |
| Material | Aluminum alloy |
| Surface Finish | Anodized |

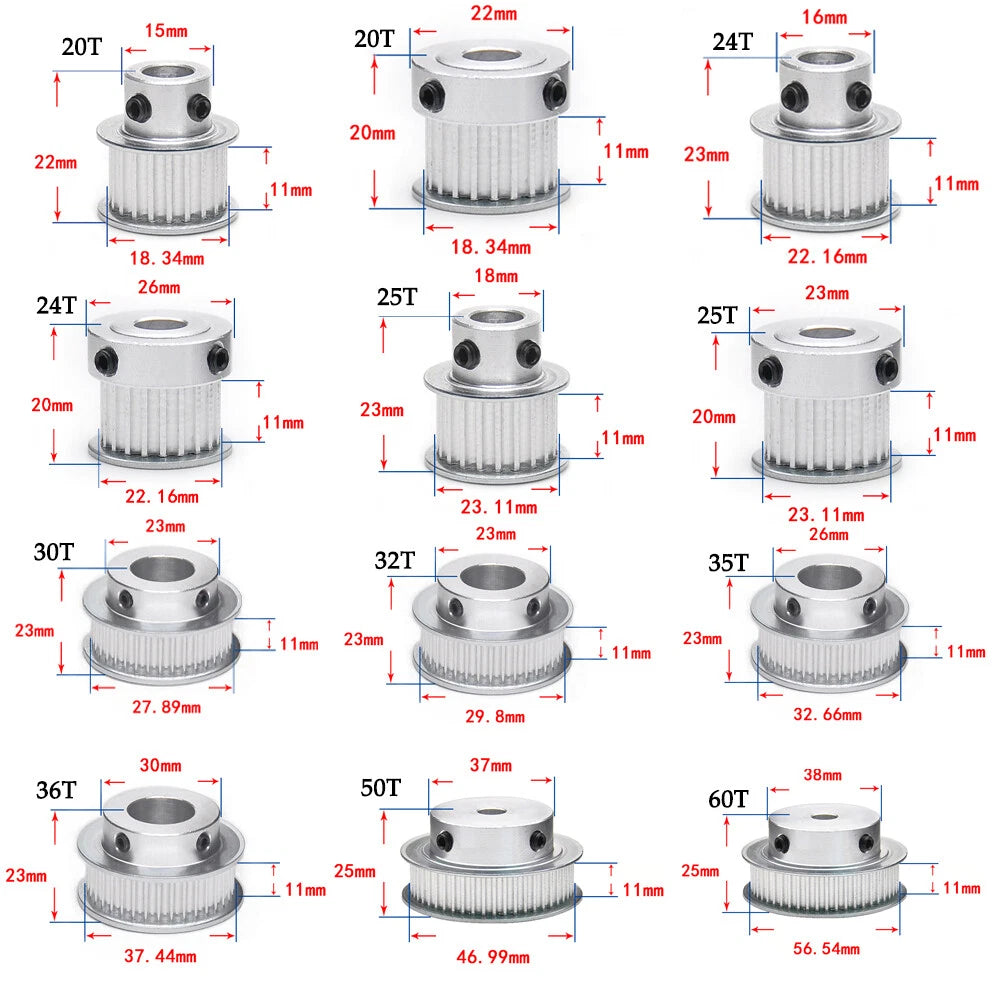

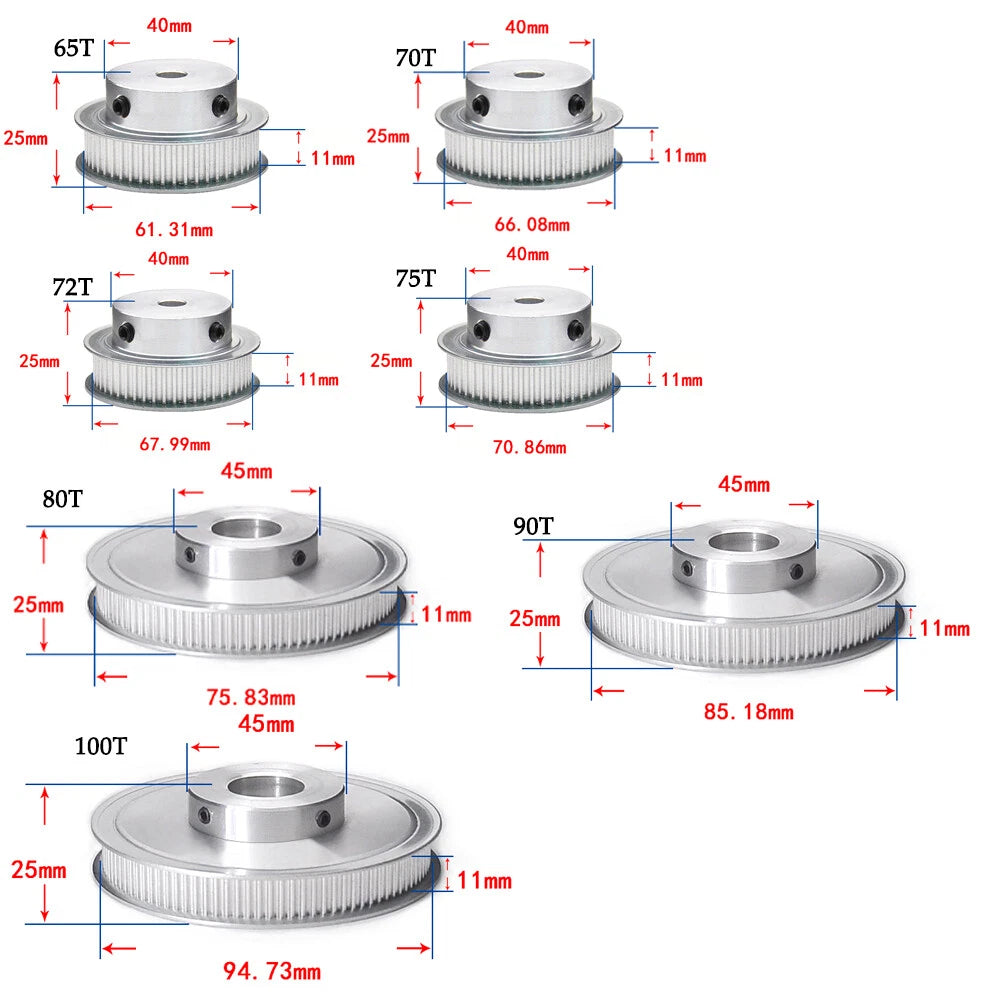

| Outer Diameter | See variant options |
| Weight | See variant options |

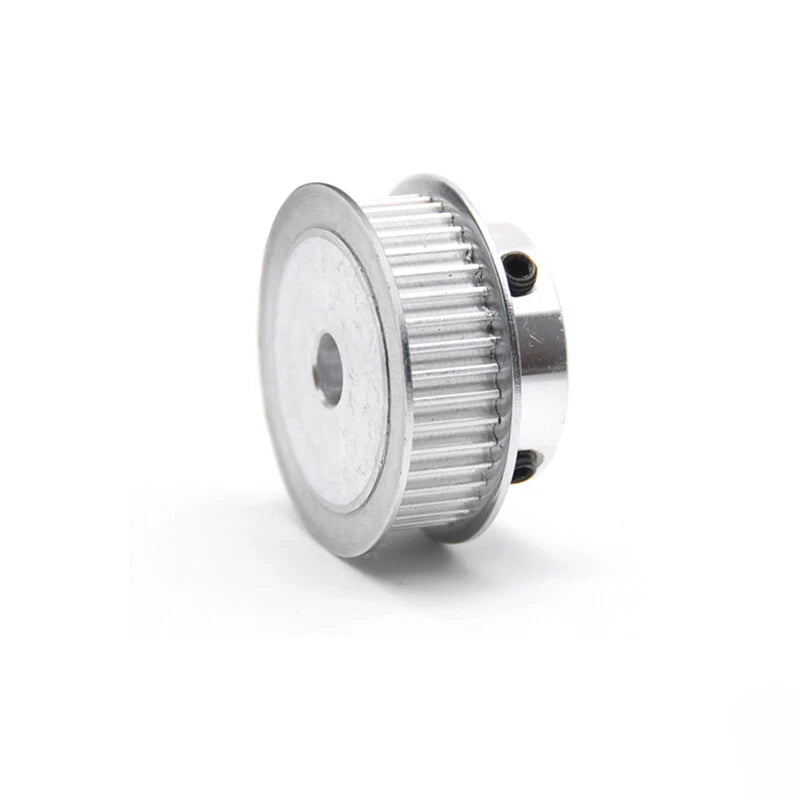

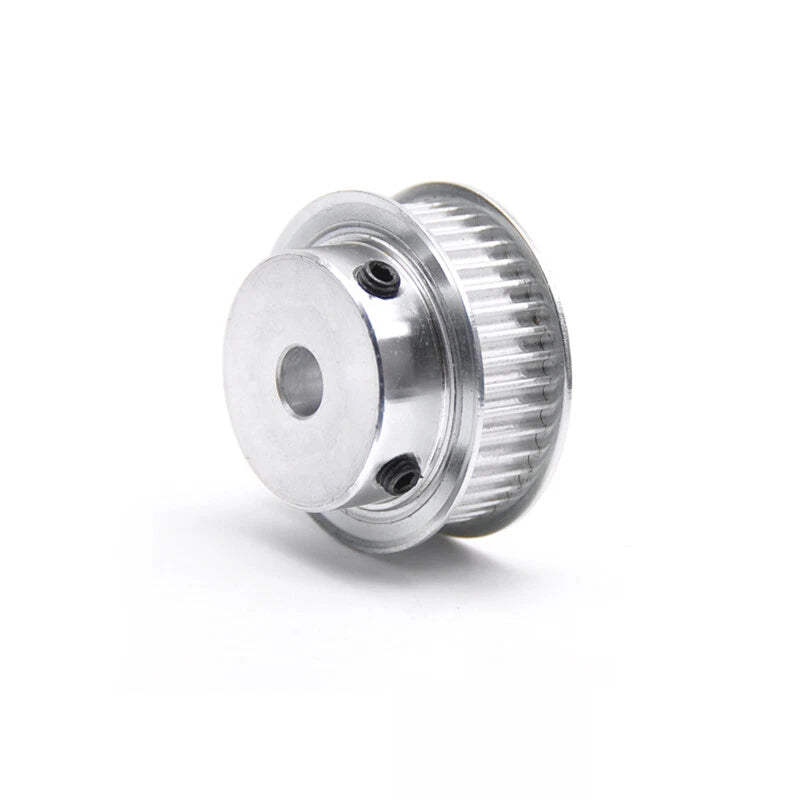

BF-Type pulleys have integrated flanges on both sides of the tooth profile, which physically retain the belt and prevent it from walking off the pulley under lateral forces or misalignment. Choose BF-Type for open-loop stepper systems, long belt spans, or any setup where belt tracking is a concern. K-Type pulleys omit the flanges for a narrower overall width, making them better suited for compact assemblies where axial space is limited and belt alignment is well-controlled by the frame geometry.
The tooth count determines the pulley pitch diameter and, combined with your motor's steps-per-revolution, sets the linear resolution of your axis. For most desktop CNC and 3D printer X/Y axes using NEMA 17 motors, 20T is the most common choice, yielding approximately 40 mm of belt travel per motor revolution with a 3M belt. Higher tooth counts (e.g., 30T–40T) are used on the driven (passive) side to create a speed reduction, increasing torque at the cost of speed. Match your tooth count to your target steps/mm calculation.
Measure your motor or drive shaft diameter with a caliper. NEMA 17 stepper motors typically have a 5 mm shaft, while NEMA 23 motors commonly use 6.35 mm (1/4 in) or 8 mm shafts. Select the bore size that matches your shaft diameter exactly — a loose bore will cause runout and positioning errors. Also verify the keyway dimensions: the slot width and depth must match the key stock you plan to use for torque transmission.
These pulleys are designed to the standard 3M pitch profile (3 mm tooth pitch, trapezoidal tooth form), which is an industry-standard specification. They are compatible with any 3M synchronous timing belt of 11 mm width from any manufacturer that conforms to the 3M standard. Always verify that your belt is rated for 3M pitch and 11 mm width before pairing it with these pulleys.
Aluminum alloy pulleys are well-suited for the torque levels produced by NEMA 17 and NEMA 23 stepper motors in CNC and 3D printing applications. For reference, NEMA 17 motors typically produce 0.4–0.6 N·m of holding torque, and NEMA 23 motors range from 1–3 N·m — both well within the load capacity of aluminum pulleys at these belt widths. For very high-torque industrial drives exceeding these ranges, consult the specific load ratings for your application.
Yes. The anodized surface treatment creates an aluminum oxide layer that significantly improves corrosion resistance compared to bare aluminum. This makes the pulleys suitable for use in open-frame CNC routers where coolant mist or cutting fluid may be present, as well as in humid workshop environments. For immersion or heavy coolant flood applications, additional protective measures may be advisable.
Yes. The wide range of tooth counts (20T–100T) and bore sizes makes these pulleys adaptable to custom conveyor and automation builds beyond CNC and 3D printing. For conveyor applications, select the tooth count that gives you the desired belt speed at your motor's operating RPM, and ensure the belt tension and load are within the capacity of the 3M belt and pulley combination. The BF-Type flanged variant is recommended for conveyor use to maintain belt tracking.
