When your CNC router skips steps or your 3D printer loses position mid-print, the culprit is often a mismatched or worn timing pulley. Engineers, makers, and automation builders who demand repeatable, slip-free motion need a 3M timing belt pulley that fits their shaft exactly and meshes cleanly with their belt. This listing covers a wide selection of 3M timing belt pulleys designed for 10mm wide belts, giving you the flexibility to match your exact drive system requirements.

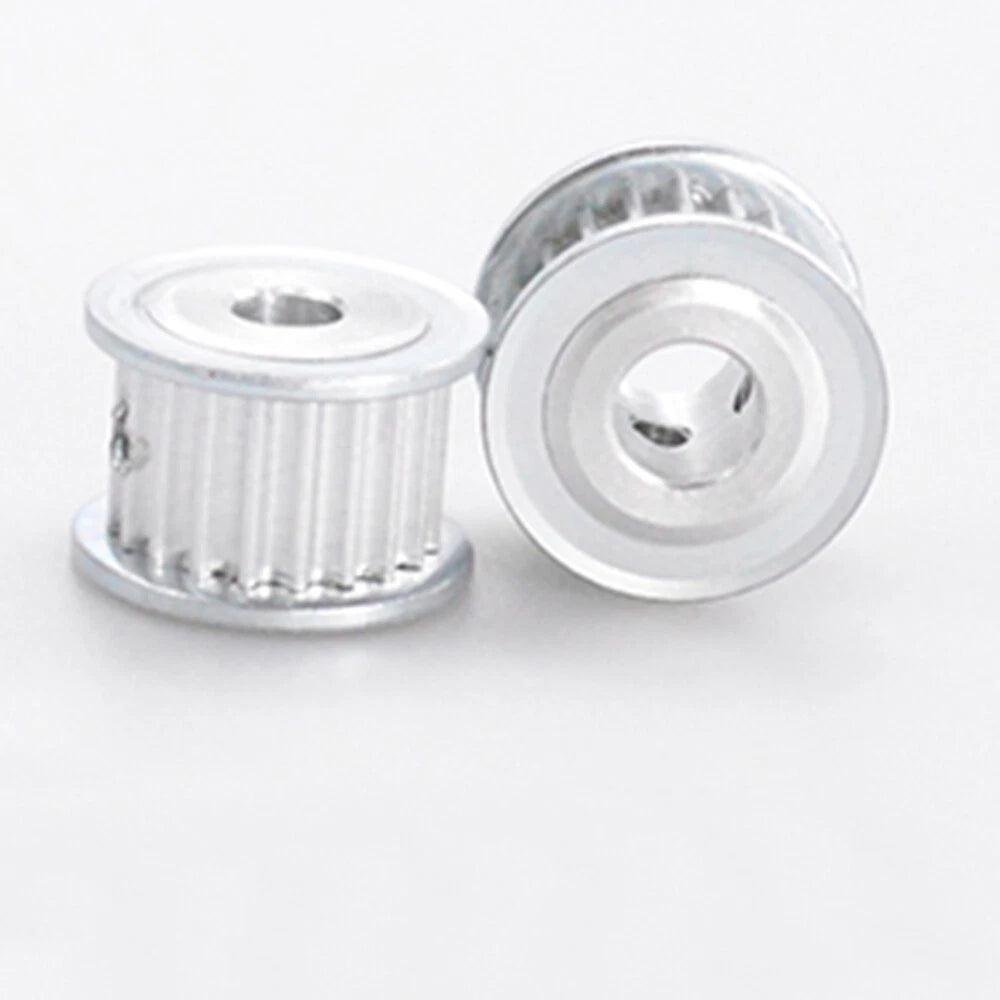

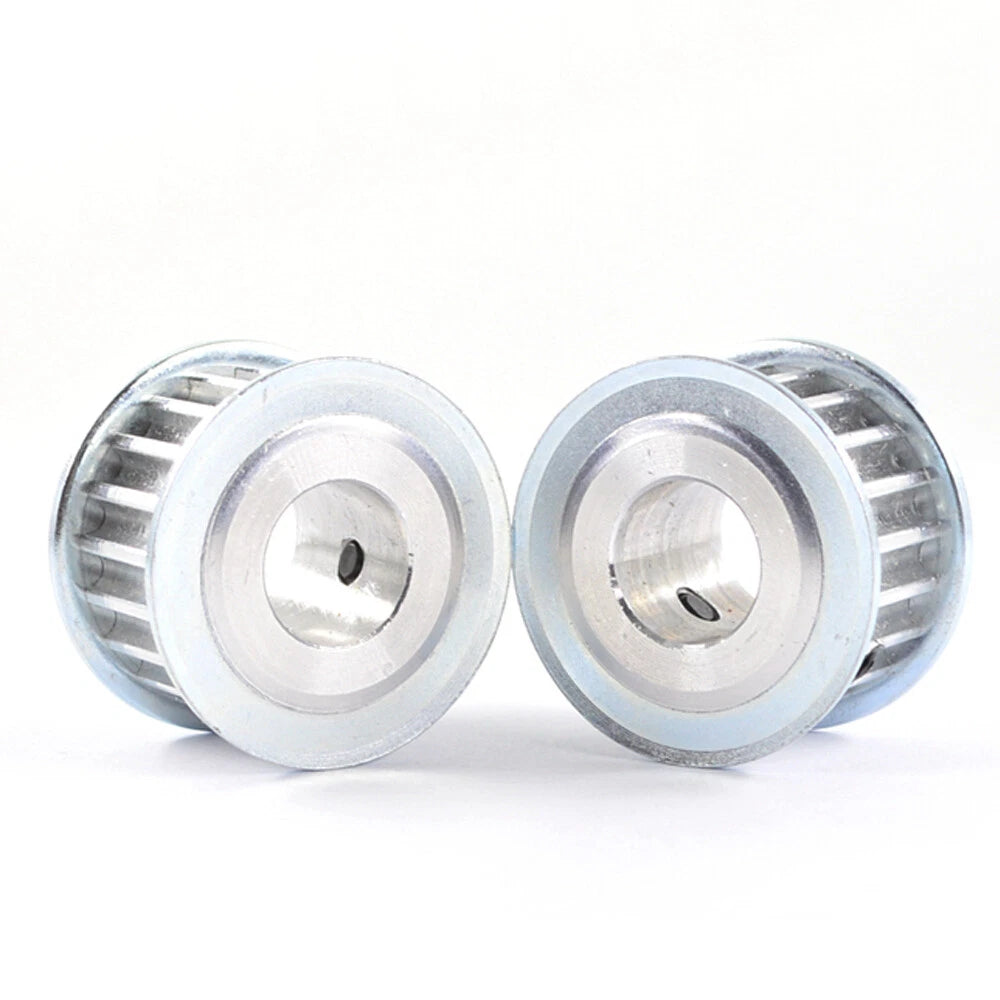

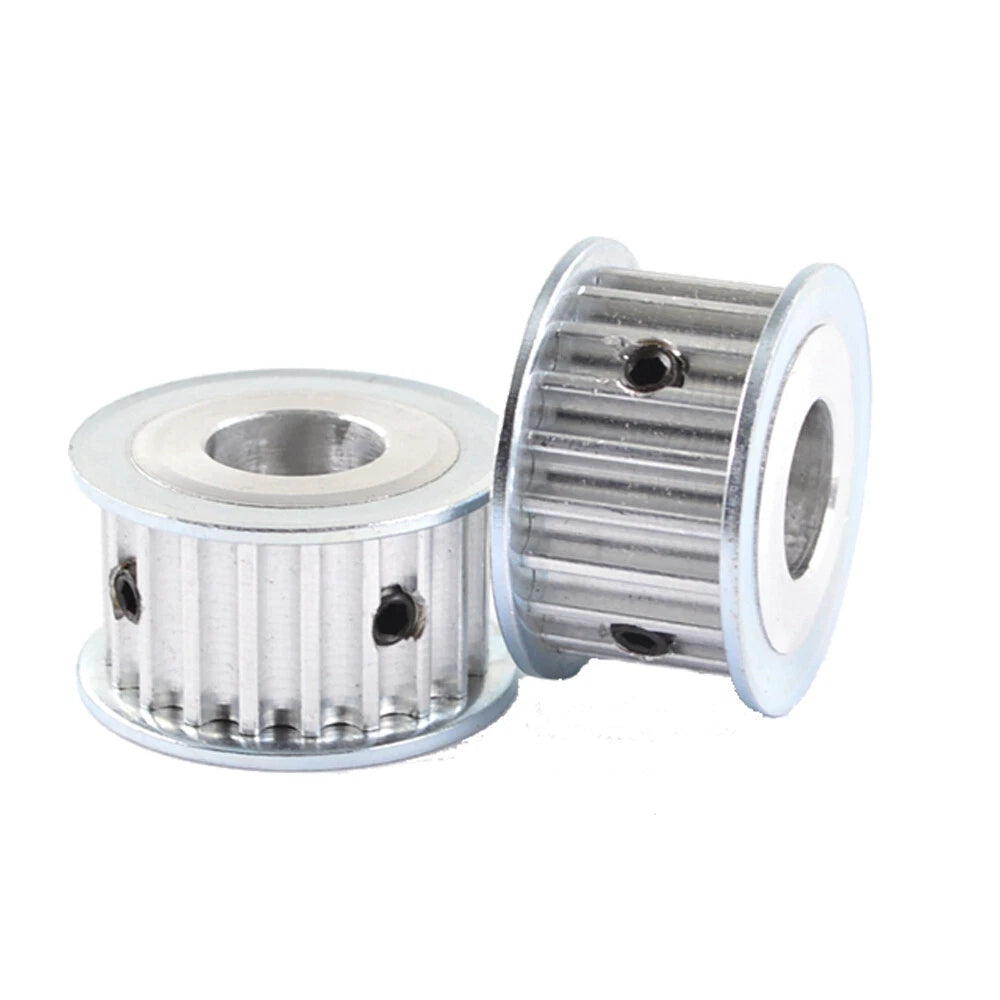

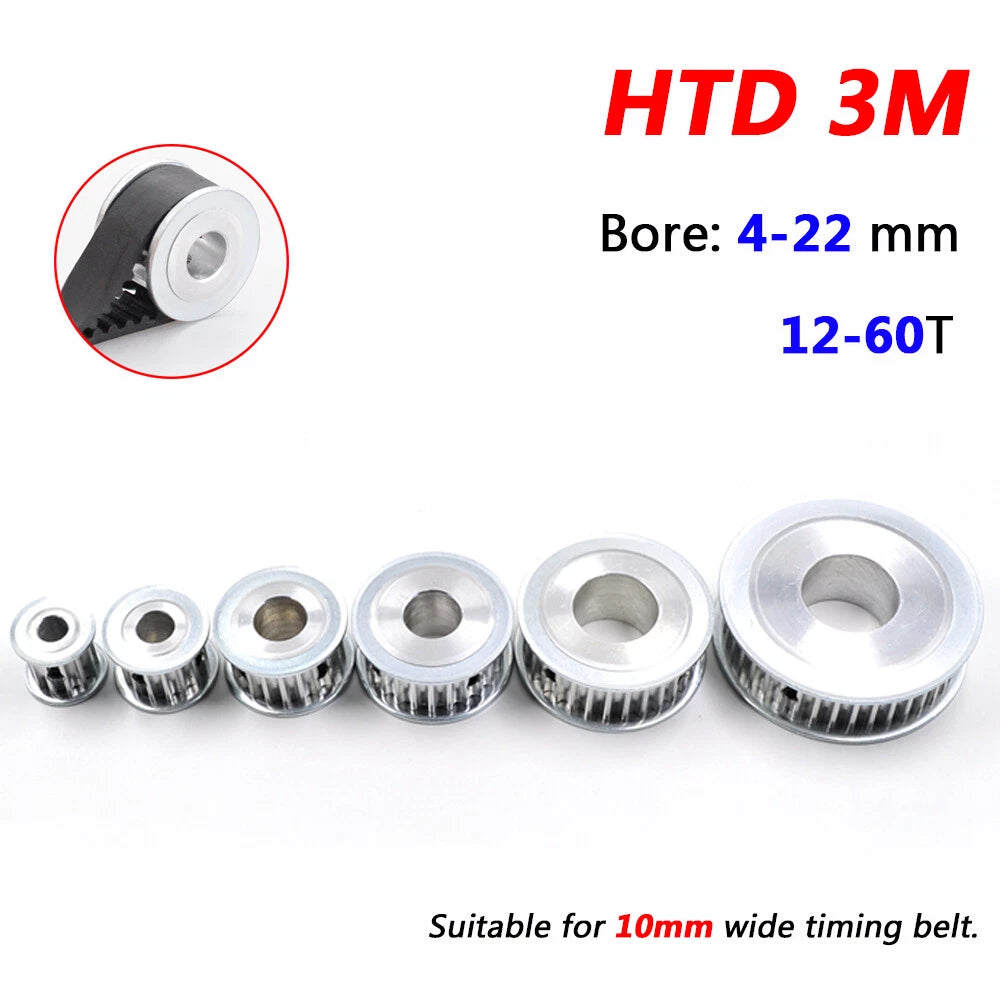

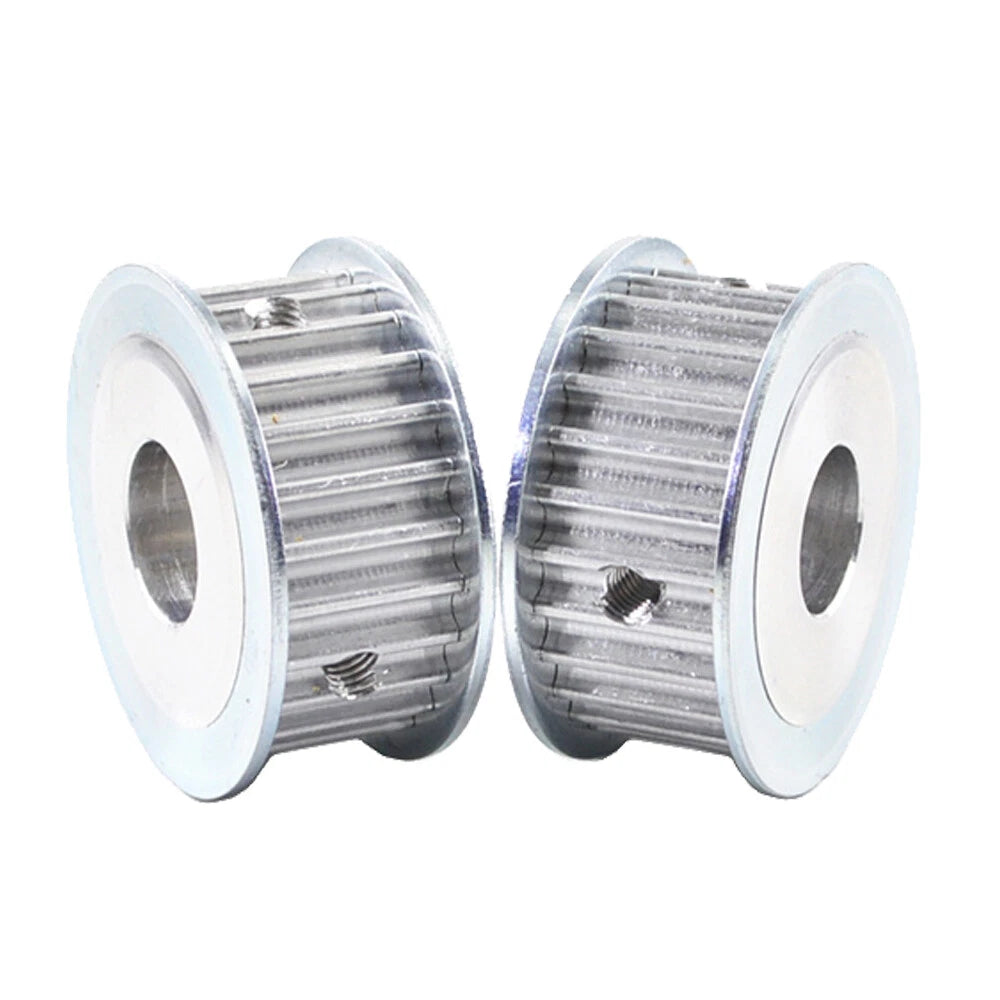

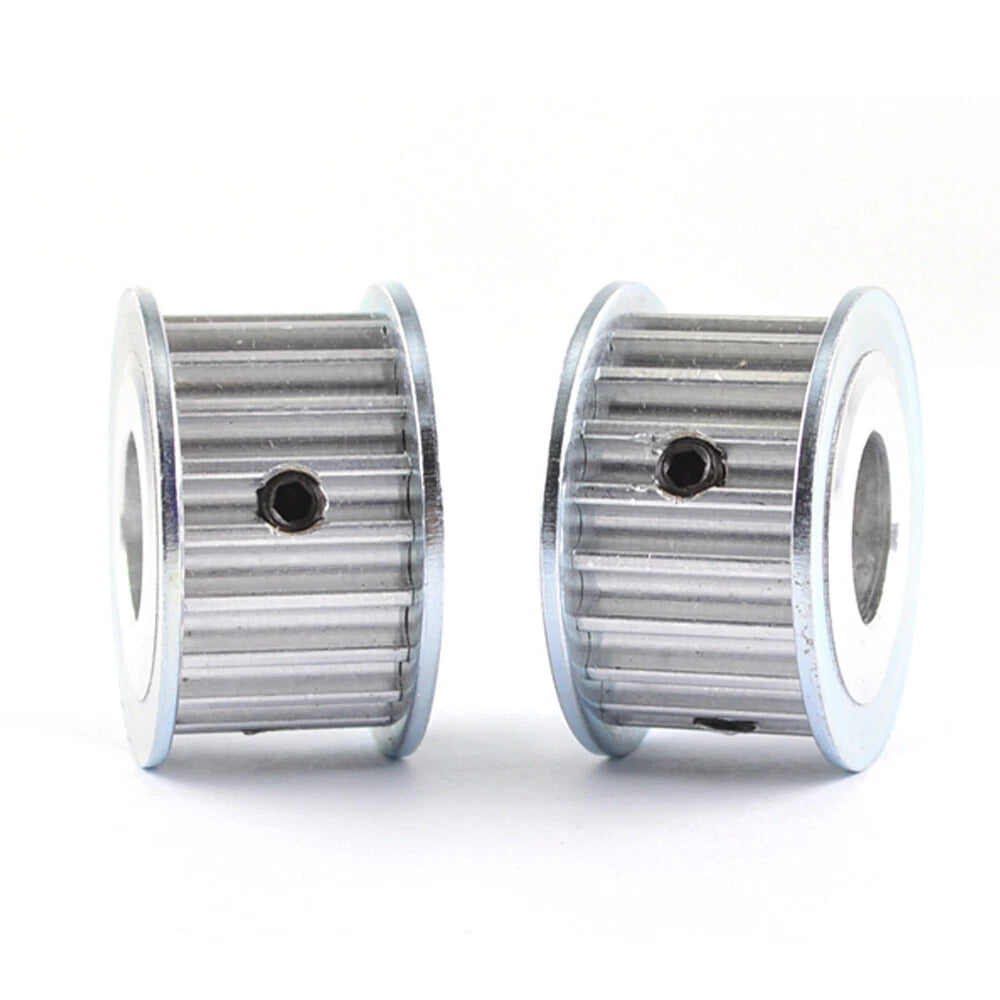

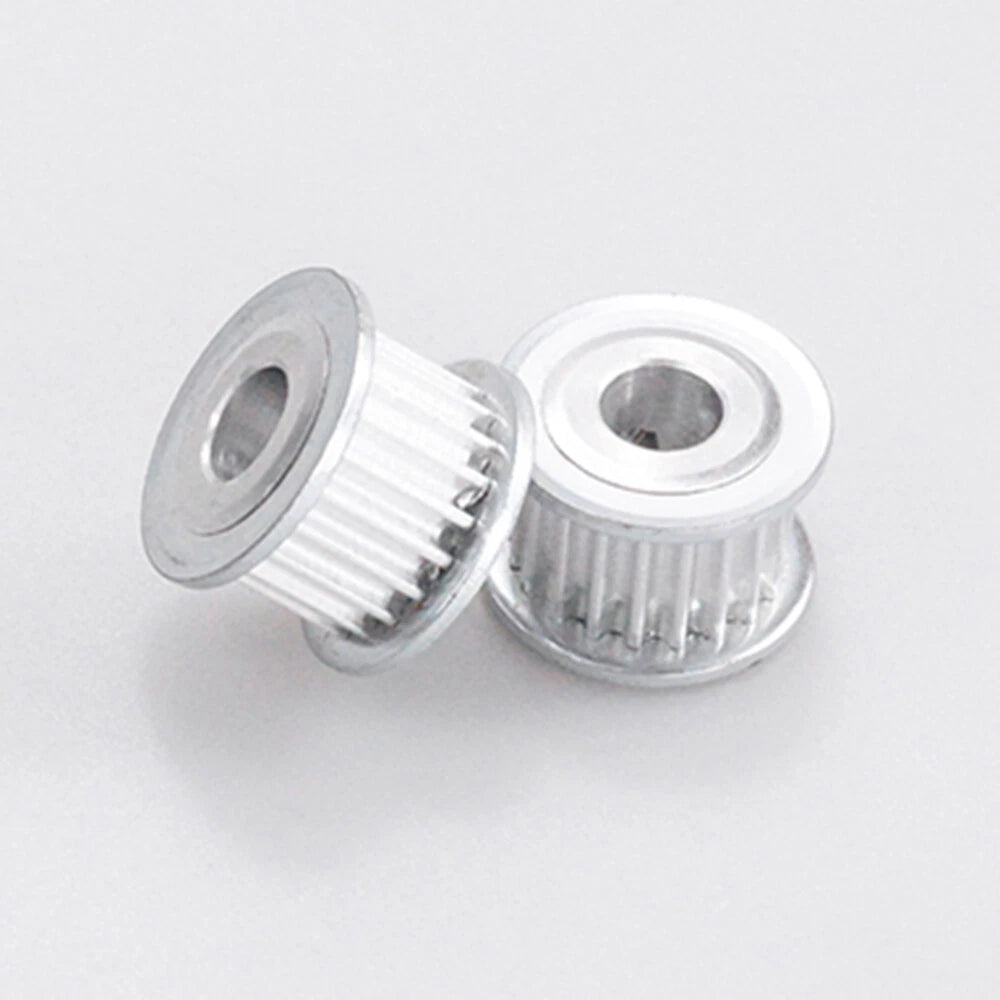

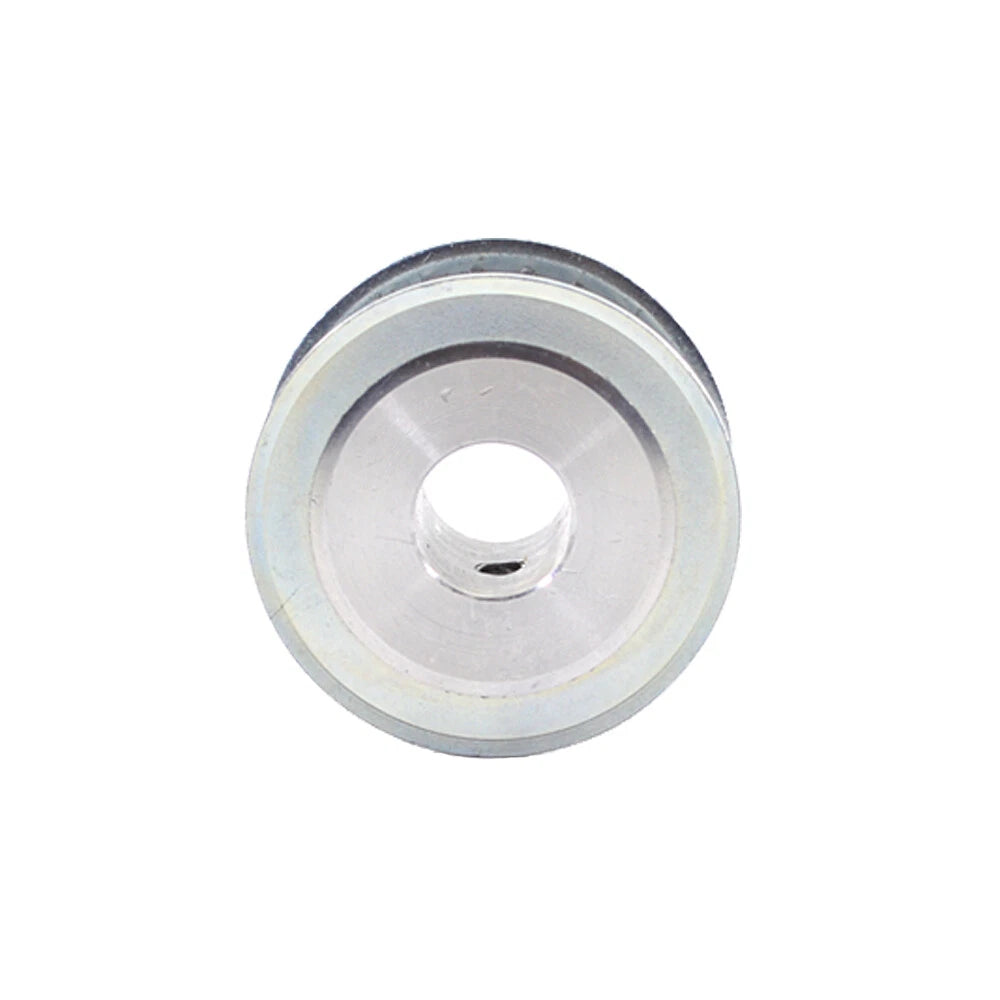

These 3M timing belt pulleys are machined from aluminum alloy with a natural or anodized finish. The tooth profile follows the standard 3M pitch (3 mm between teeth), and the bore range spans 4 mm to 22 mm (approximately 0.16 in to 0.87 in). Tooth counts range from 12T to 60T, covering pitch circle diameters of roughly 11.5 mm to 57.3 mm (0.45 in to 2.26 in). Belt width compatibility is fixed at 10 mm across all variants.
Typical use cases include CNC router X/Y axis drives, FDM 3D printer extruder and motion systems, desktop laser engraver gantries, small robotic arm joints, and DIY linear actuator builds. The standardized 3M tooth profile ensures compatibility with any off-the-shelf 3M open-ended or closed-loop timing belt for 10mm wide belt applications.
Available from 12T to 60T, letting you dial in the exact gear ratio for your CNC, printer, or automation project without custom machining.
Bore sizes from 4 mm to 22 mm cover the most common motor and shaft diameters used in hobby and light-industrial motion systems.
The 3 mm pitch tooth geometry meshes with any standard 3M timing belt, ensuring consistent, backlash-minimized power transmission.
Lightweight yet rigid aluminum body keeps rotational inertia low — critical for high-acceleration CNC and 3D printer axes.

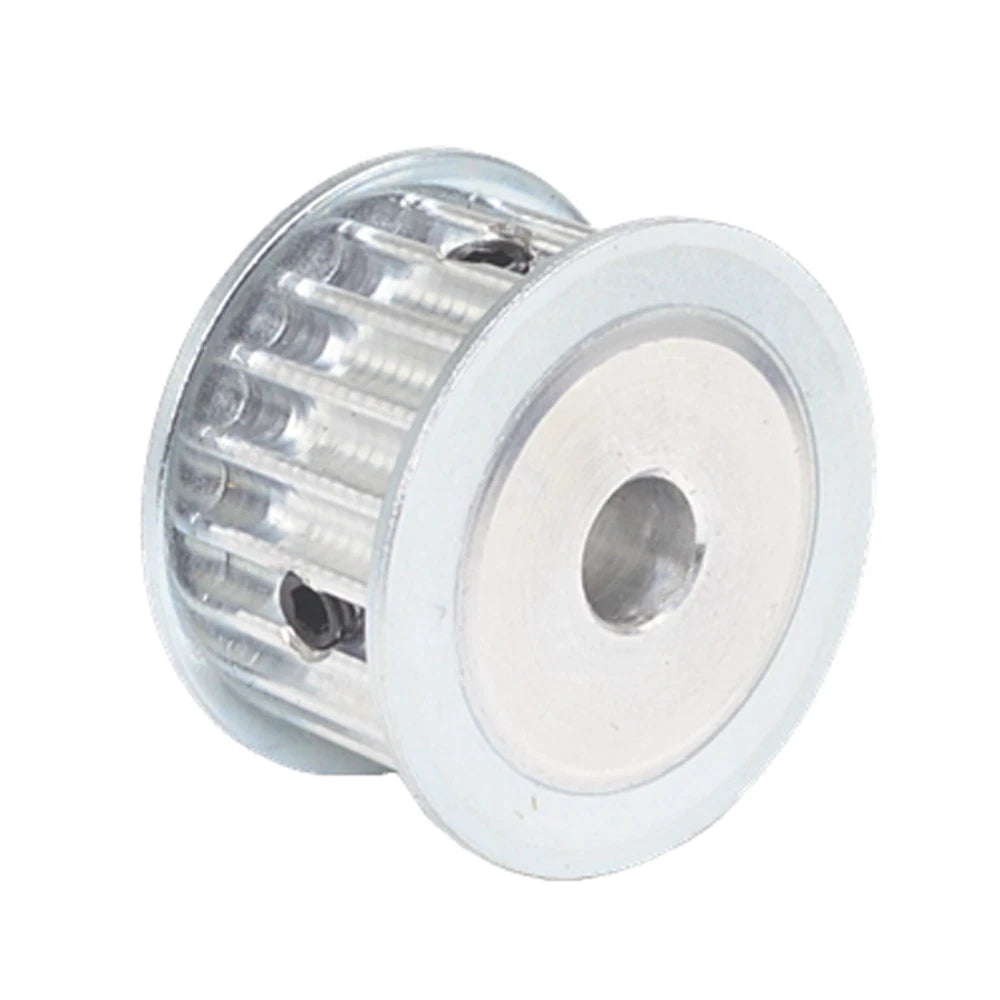

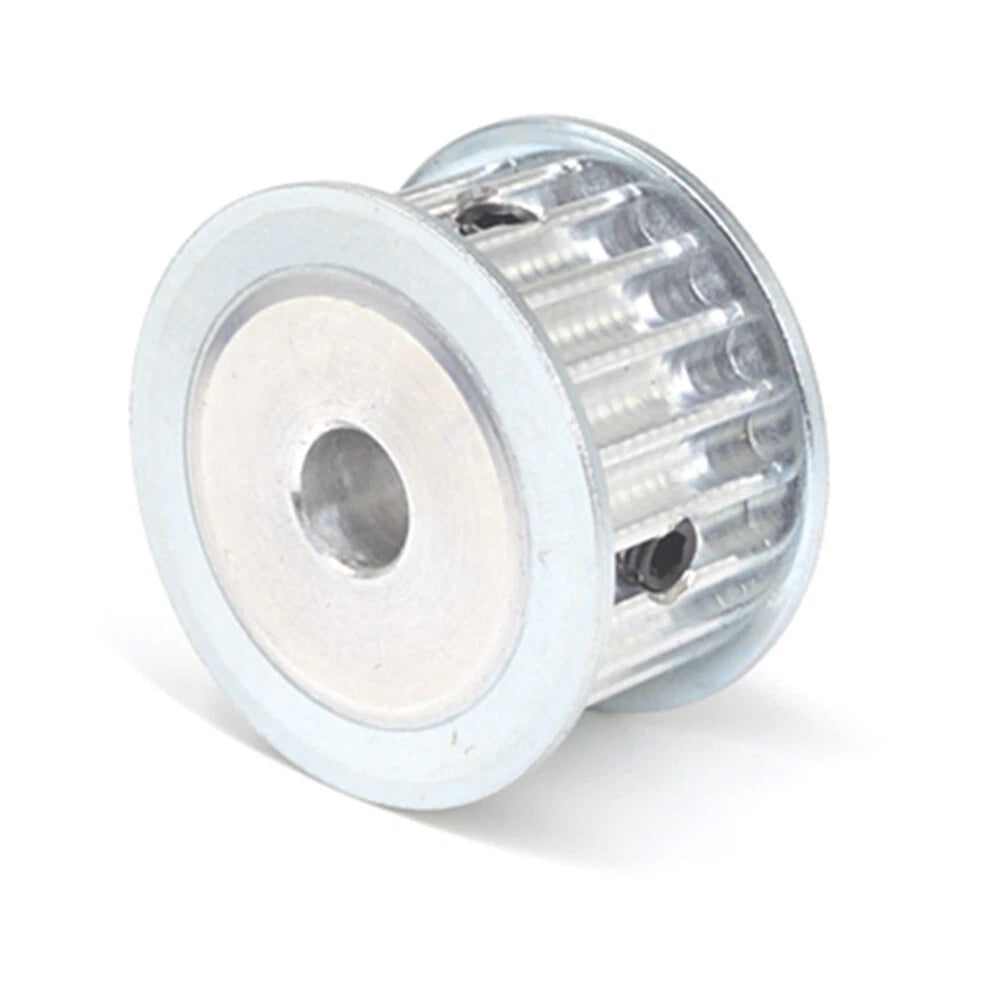

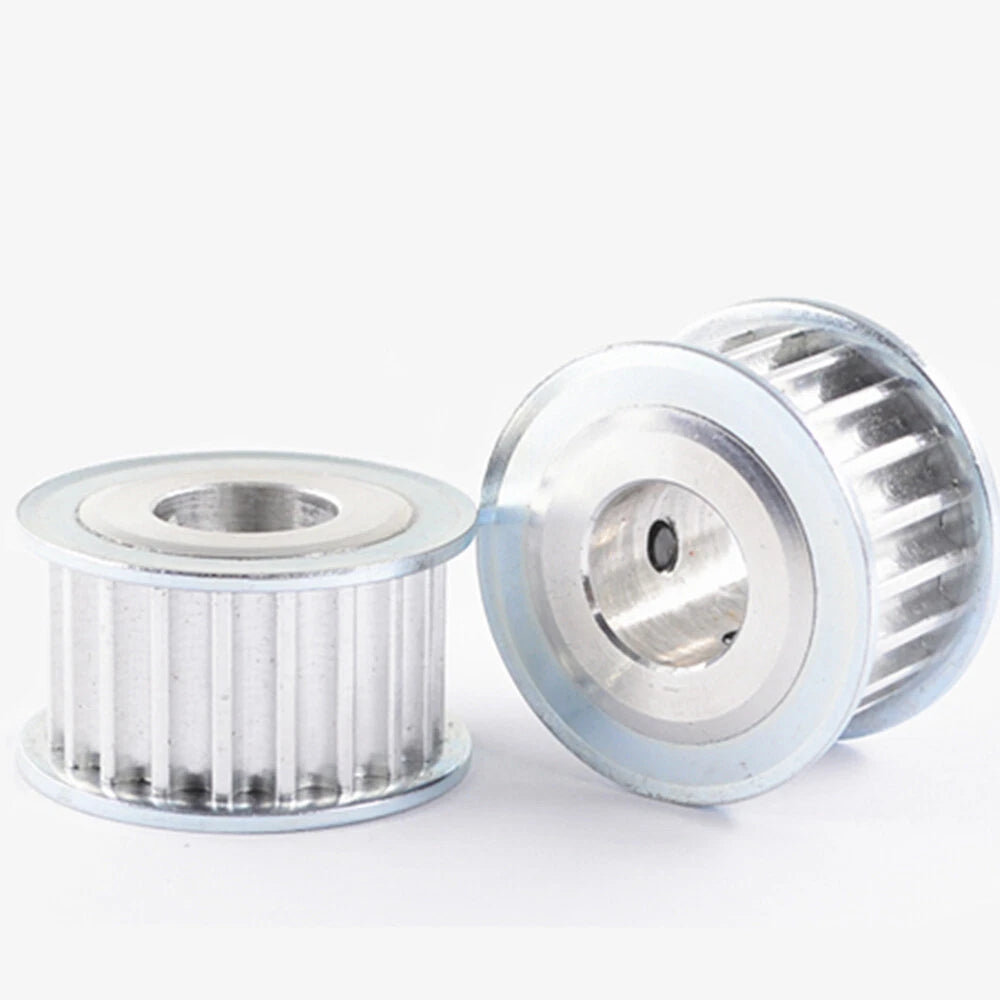

Flanged pulley design keeps the 10 mm belt tracked reliably, reducing belt walk and misalignment during continuous operation.
Standardized dimensions make these pulleys direct replacements for worn or undersized pulleys in existing CNC, laser, and robotics builds.
| Belt Pitch | 3M (3 mm) |
|---|---|
| Belt Width Compatibility | 10 mm |
| Tooth Count Range | 12T – 60T |
| Bore Range | 4 mm – 22 mm (0.16 in – 0.87 in) |
| Material | Aluminum alloy |
| Pitch Circle Diameter Range | Approx. 11.5 mm – 57.3 mm (varies by tooth count) |
| Flange | See variant options |
| Set Screw | See variant options |
| Surface Finish | See variant options |
| Weight (per unit) | See variant options |
The tooth count determines the pitch circle diameter and, combined with your motor pulley, sets the drive ratio. For CNC and 3D printer axes, 20T is a common starting point for balanced speed and torque. Larger tooth counts (e.g., 40T–60T) increase belt contact and reduce tooth load, while smaller counts (12T–16T) are used on motor shafts for higher reduction ratios. Match your tooth count to your existing belt loop length and desired steps-per-mm calculation.
Measure your motor or drive shaft diameter with a caliper. The bore must match the shaft exactly — a loose bore causes runout and lost steps. Common motor shaft sizes are 5 mm (NEMA 17), 6.35 mm (1/4 inch), and 8 mm (NEMA 23). Select the bore option that matches your shaft. If your shaft has a flat (D-cut), ensure the set screw aligns with it.
No. These pulleys use the 3M trapezoidal tooth profile with a 3 mm pitch. They are not interchangeable with GT2 (2 mm pitch) or HTD 3M (rounded tooth) belts. Always pair these pulleys with a standard 3M trapezoidal timing belt of 10 mm width for correct mesh and load capacity.
Aluminum alloy pulleys are well-suited for CNC routers, laser engravers, and 3D printers operating at typical hobby and light-industrial loads. For heavy-duty industrial applications with sustained high torque, steel pulleys may be preferred. For most DIY CNC and desktop automation builds, aluminum provides an excellent strength-to-weight ratio.
Aluminum alloy naturally forms a thin oxide layer that provides moderate corrosion resistance in normal indoor environments. For humid or outdoor environments, an anodized finish (where available) adds additional protection. Avoid prolonged exposure to salt spray or strong acids without additional protective coating.
Yes. These pulleys can be used on both the drive (motor) shaft and the driven shaft. For idler applications where the pulley spins freely on a fixed shaft, you would typically add a bearing insert — the bore size should match your bearing outer diameter or shaft diameter accordingly. Contact us to confirm suitability for your specific idler setup.

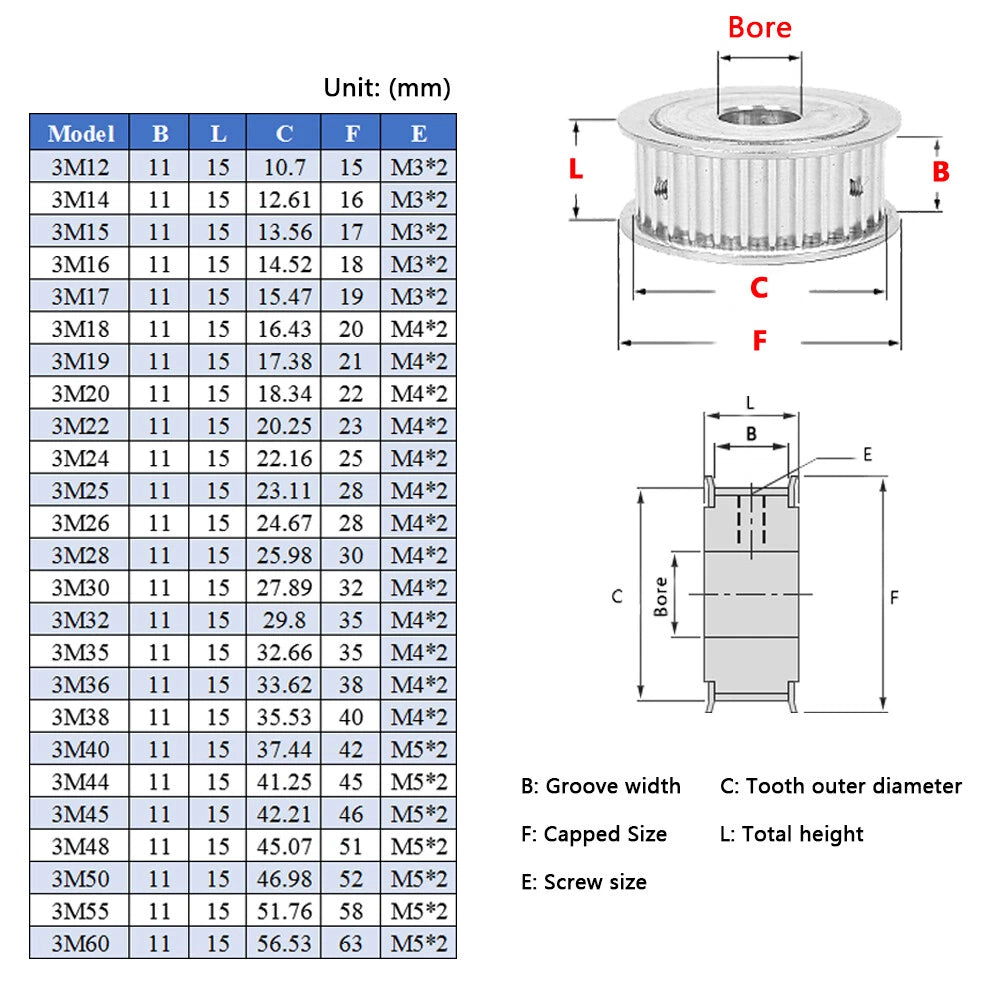

The model designation (e.g., 3M20) indicates the belt pitch (3M = 3 mm pitch) followed by the tooth count (20 = 20 teeth). So 3M12 = 3 mm pitch, 12 teeth; 3M60 = 3 mm pitch, 60 teeth. Select the model that matches your required tooth count and then choose the bore size that fits your shaft.
