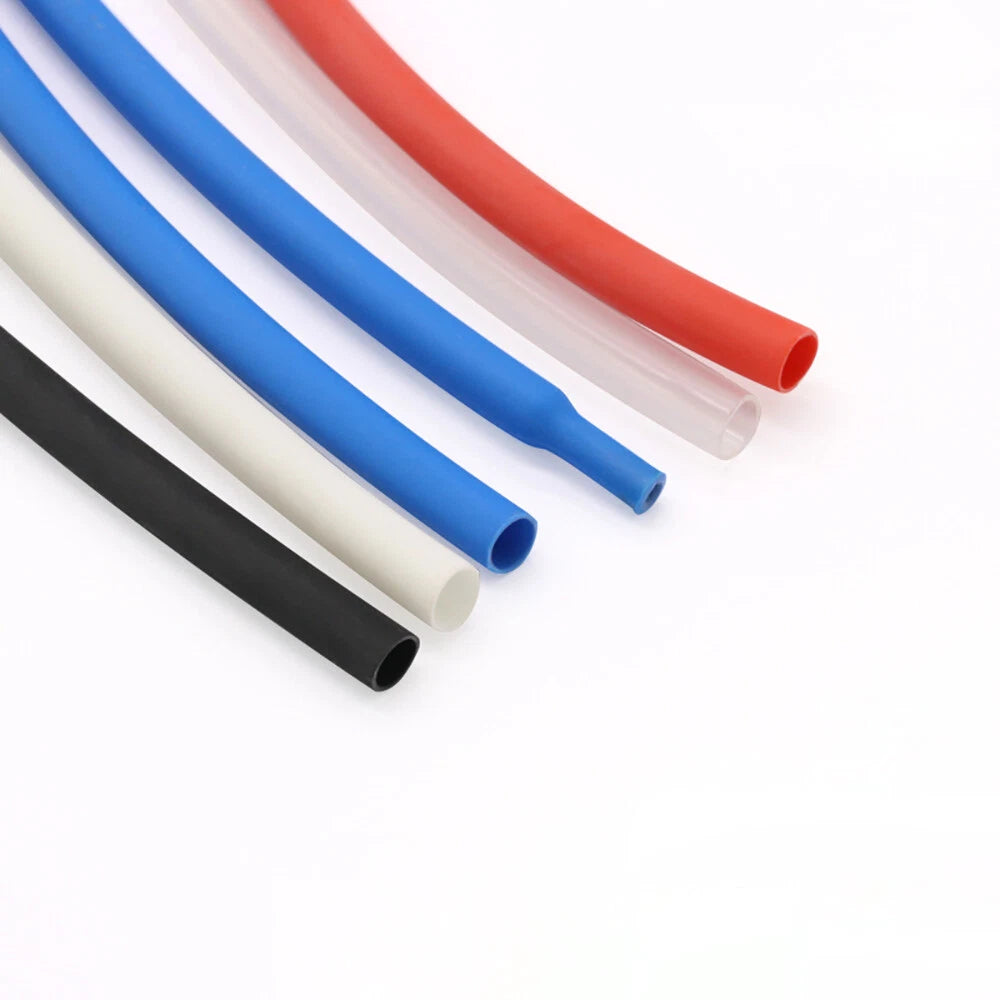

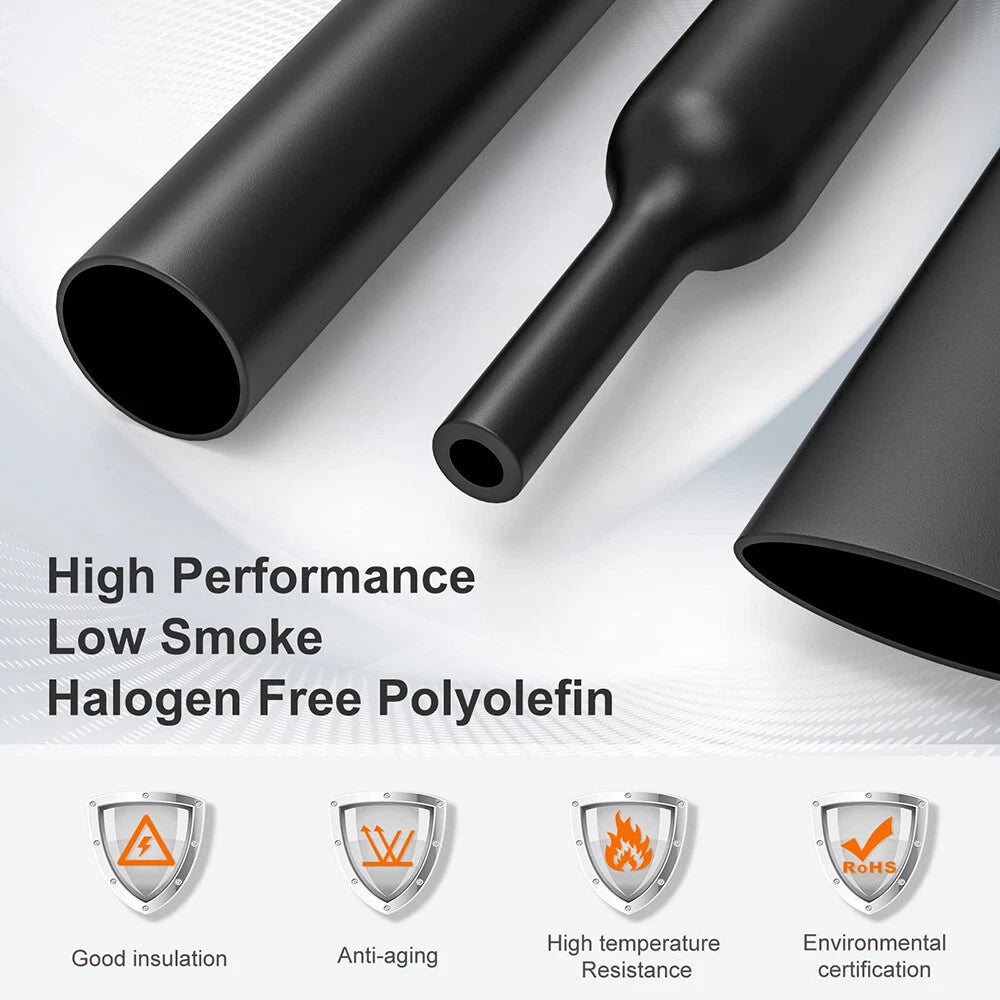

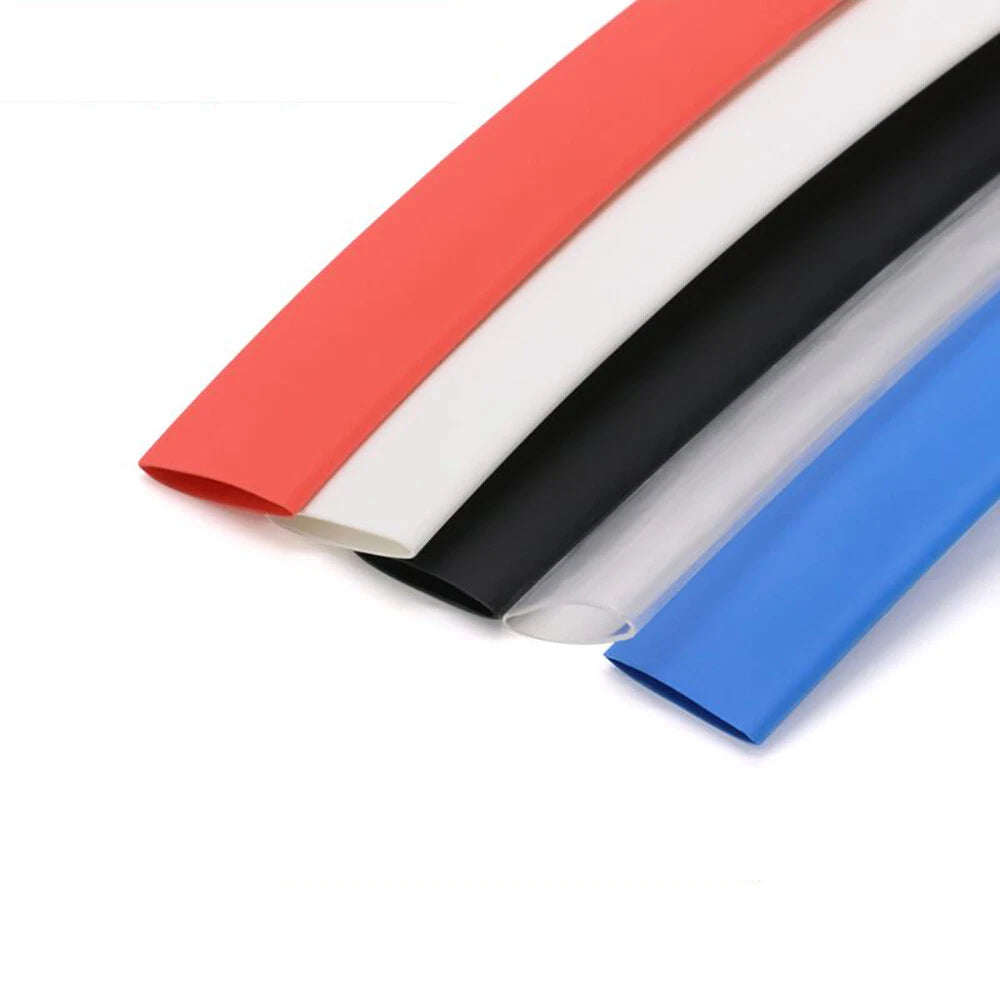

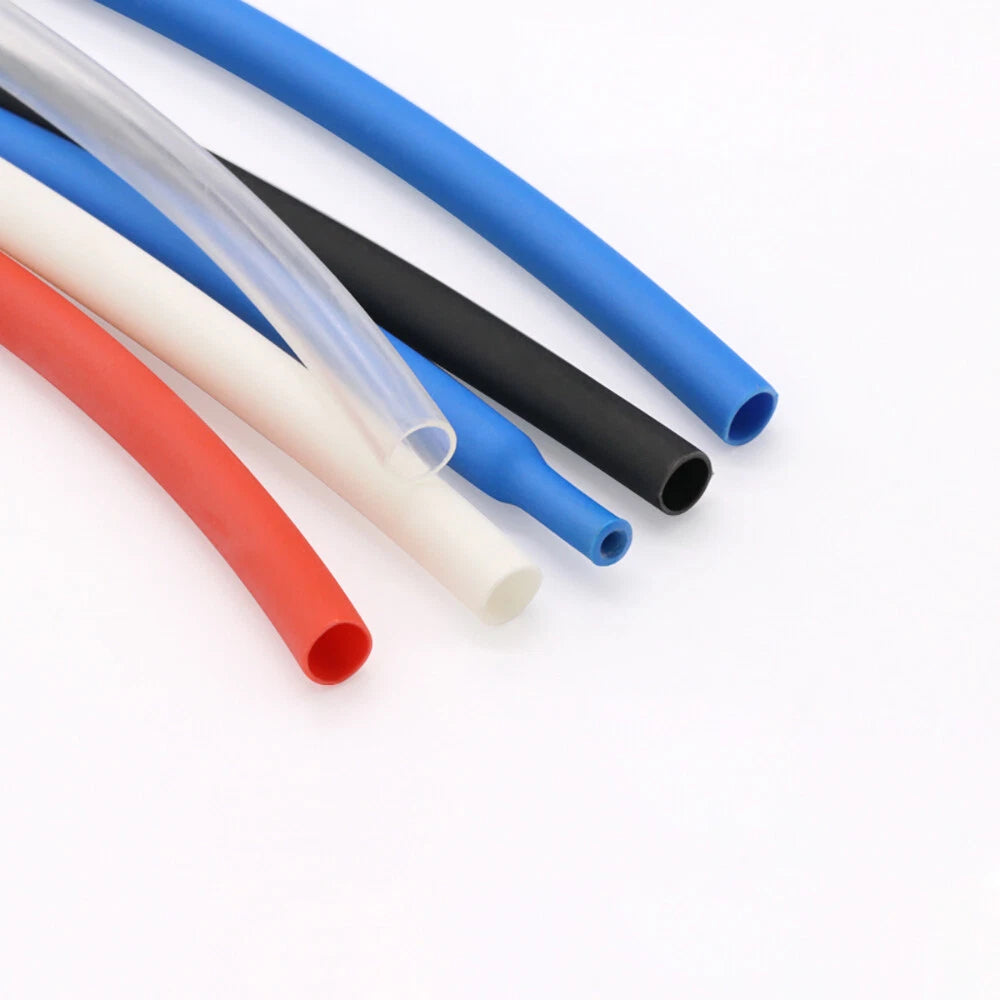

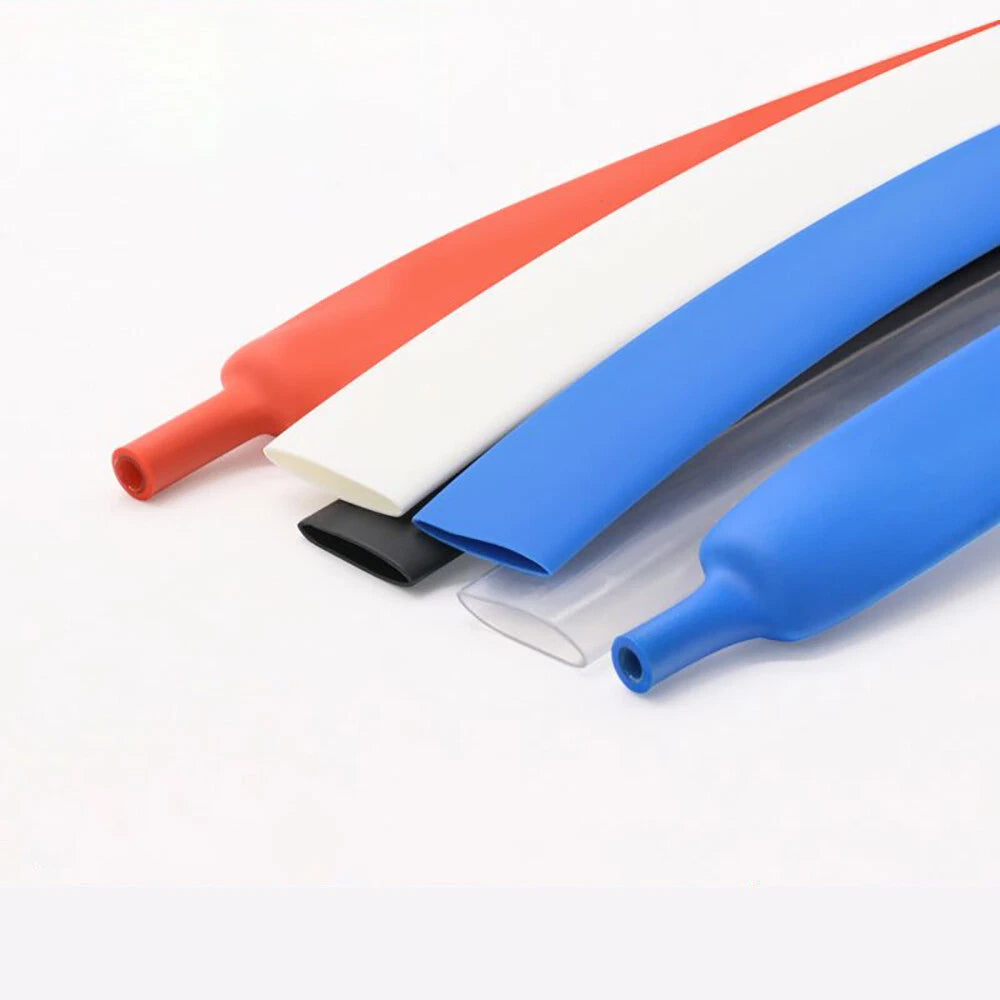

4:1 Adhesive Glue Lined Heat Shrink Tubing 6mm – Waterproof Heatshrink Sleeving

The 6mm refers to the inner diameter before shrinking. After applying heat, the tubing shrinks to approximately 2mm (≈5/64") inner diameter at a 4:1 ratio, forming a tight, waterproof seal around your wire or connector. Always select a size where your cable's outer diameter is comfortably smaller than 6mm to allow the tubing to slide on easily.

Measure the total length of wire, splice, or connector you need to cover, then add at least 10–15% extra for overlap and trimming. For single repairs, 1 Metre is typically sufficient. For wiring harnesses or batch jobs, 5 Metre or 10 Metre rolls offer better value per metre. When in doubt, size up — unused tubing stores easily for future use.

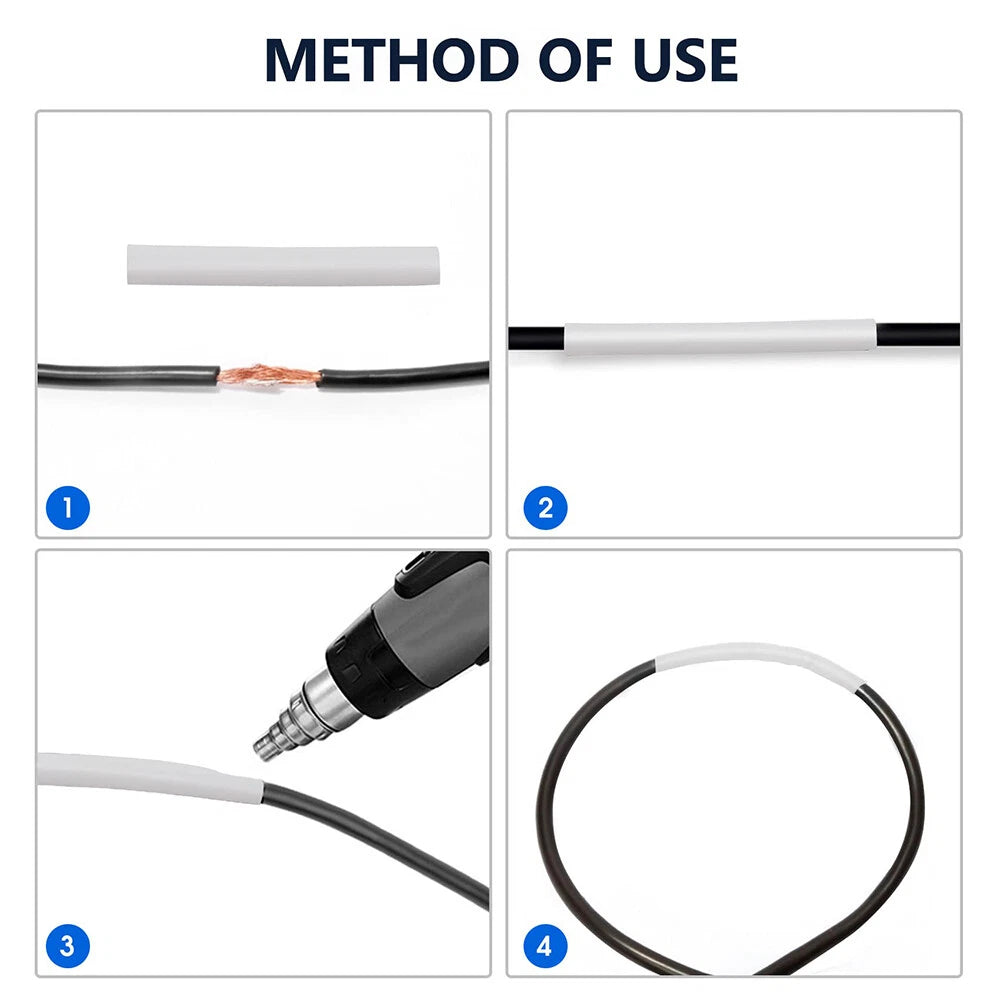

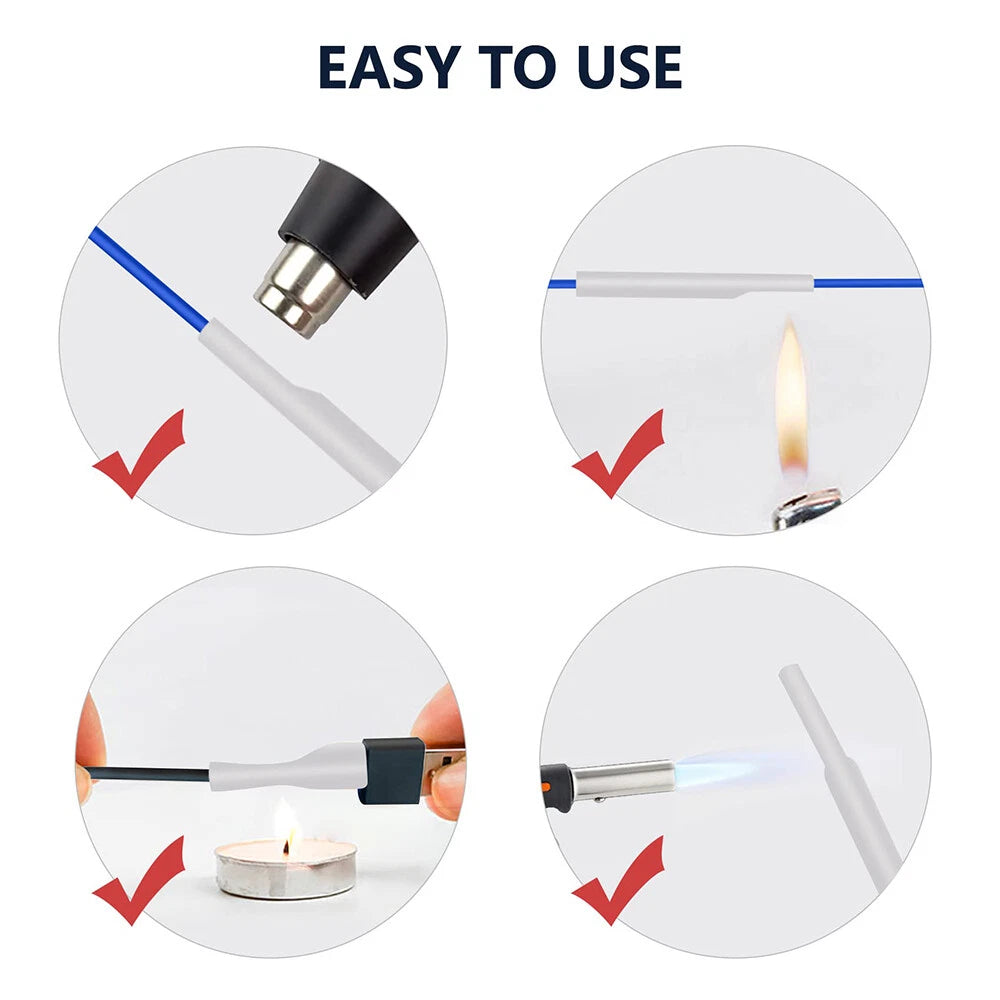

This tubing generally requires a shrink temperature of around 120°C (248°F), and the adhesive liner typically activates fully at around 150°C (302°F). A heat gun is strongly recommended over an open flame for even, controlled shrinkage. Move the heat gun slowly along the tubing from the center outward to avoid trapping air bubbles.

Yes. The glue-lined construction creates a moisture-proof seal that is well-suited for outdoor, marine, and automotive environments. The adhesive liner flows into gaps and around irregular shapes, blocking water ingress effectively. It is commonly used for marine wiring harness repairs, trailer connector waterproofing, and outdoor solar panel wiring connections.

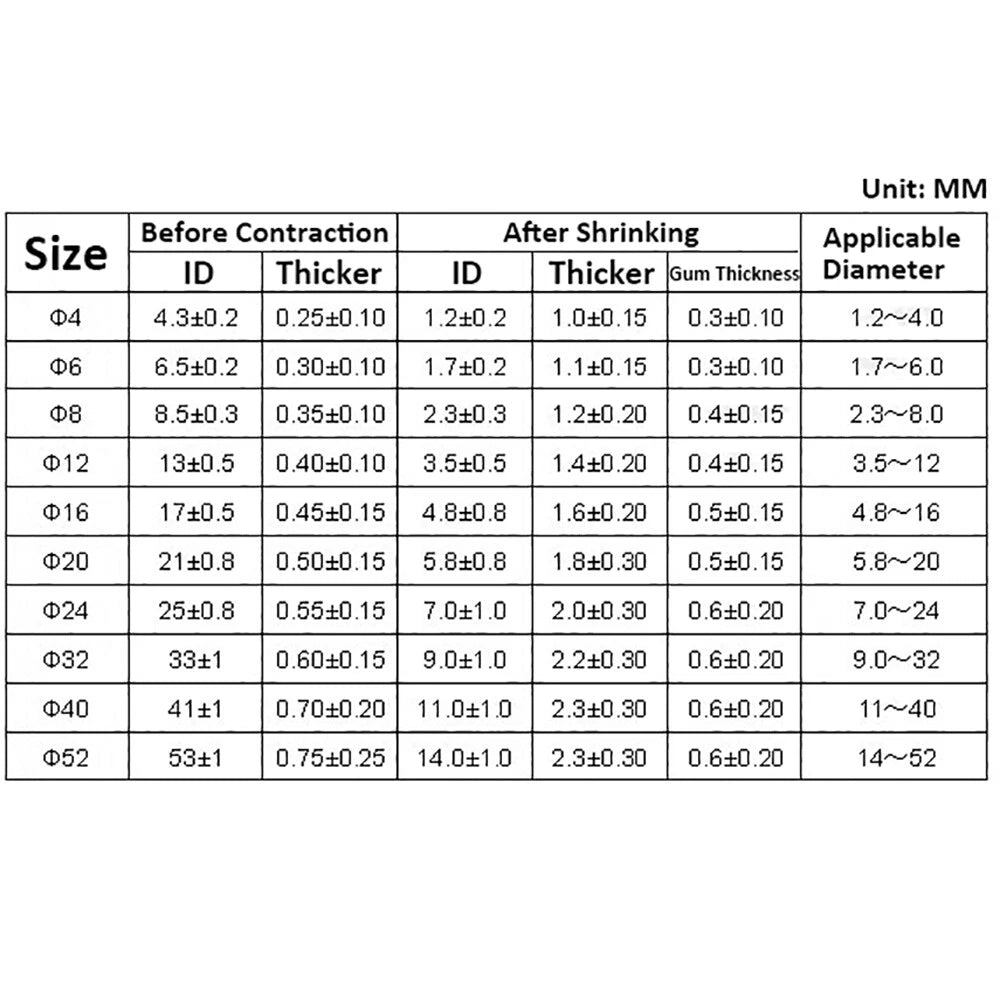

A 6mm inner diameter before shrinking generally accommodates wire bundles or connectors up to approximately 5.5mm in outer diameter. This typically covers AWG 8–12 single conductors or small multi-wire bundles. Always verify your cable's outer diameter before ordering — if your cable is close to 6mm OD, the tubing may be difficult to slide on.

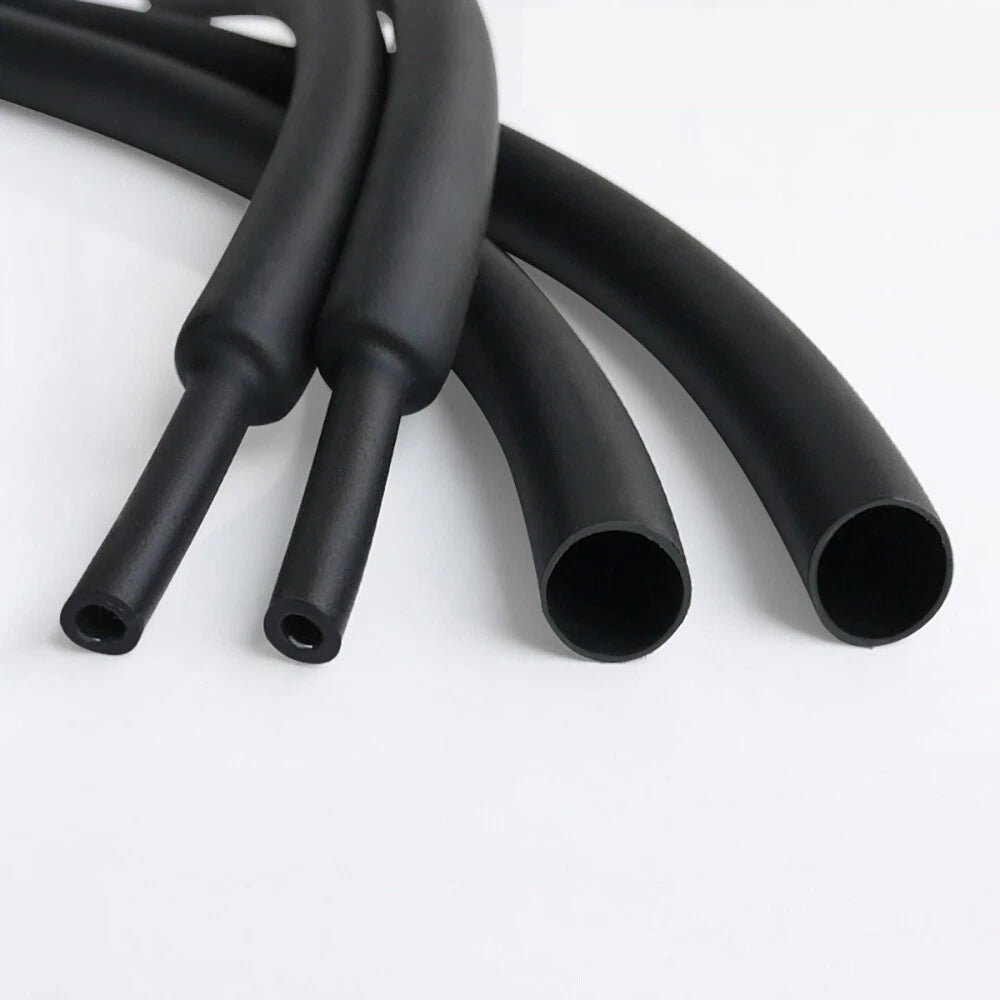

A 4:1 ratio means the tubing shrinks to one-quarter of its original diameter, compared to one-half for standard 2:1 tubing. This makes 4:1 glue-lined tubing far more versatile — it can cover a wider range of cable sizes and creates a much tighter, more durable seal, especially over connectors and irregular shapes. For waterproofing applications, 4:1 adhesive heat shrink is generally the preferred choice over standard 2:1 tubing.

Yes. This type of adhesive heat shrink tubing is commonly used on automotive wiring repairs, battery terminals, trailer connectors, and underhood splices. The glue liner provides strain relief and corrosion protection in high-vibration environments. It is also suitable for motorcycle wiring, RV electrical systems, and 12V/24V DC marine circuits.
