When a drainage run needs to branch off at a right angle, a poorly fitted connector is the fastest route to leaks, backflow, and costly repairs. Whether you're a homeowner tackling a bathroom rough-in or a contractor routing a commercial floor drain, the right PVC drainage tee fitting makes the difference between a watertight system and a callback job.

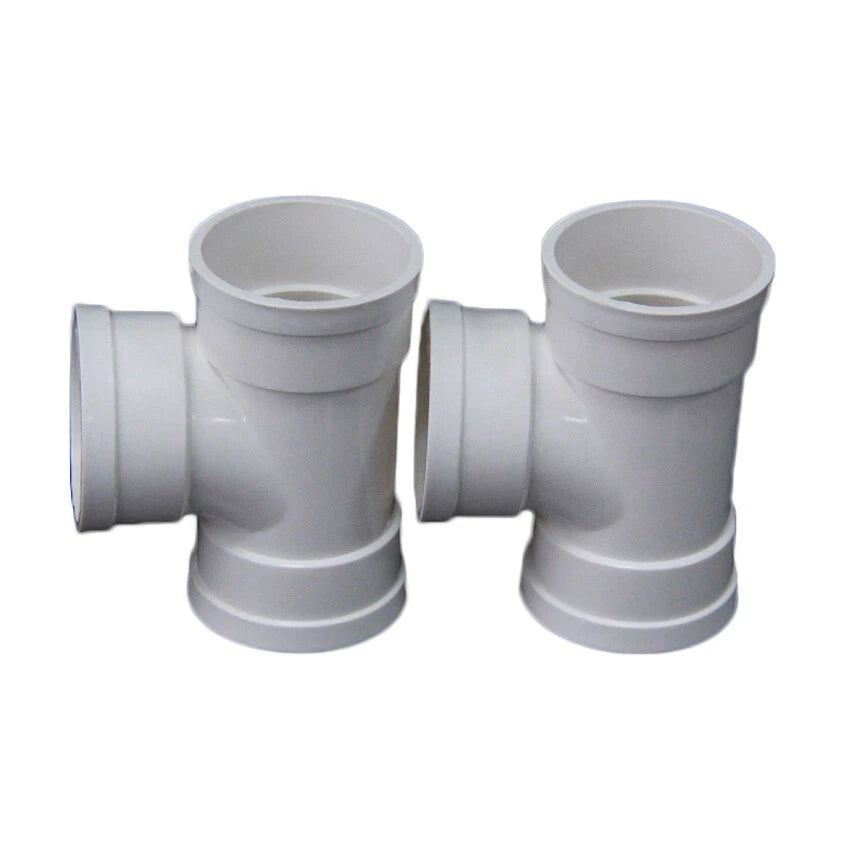

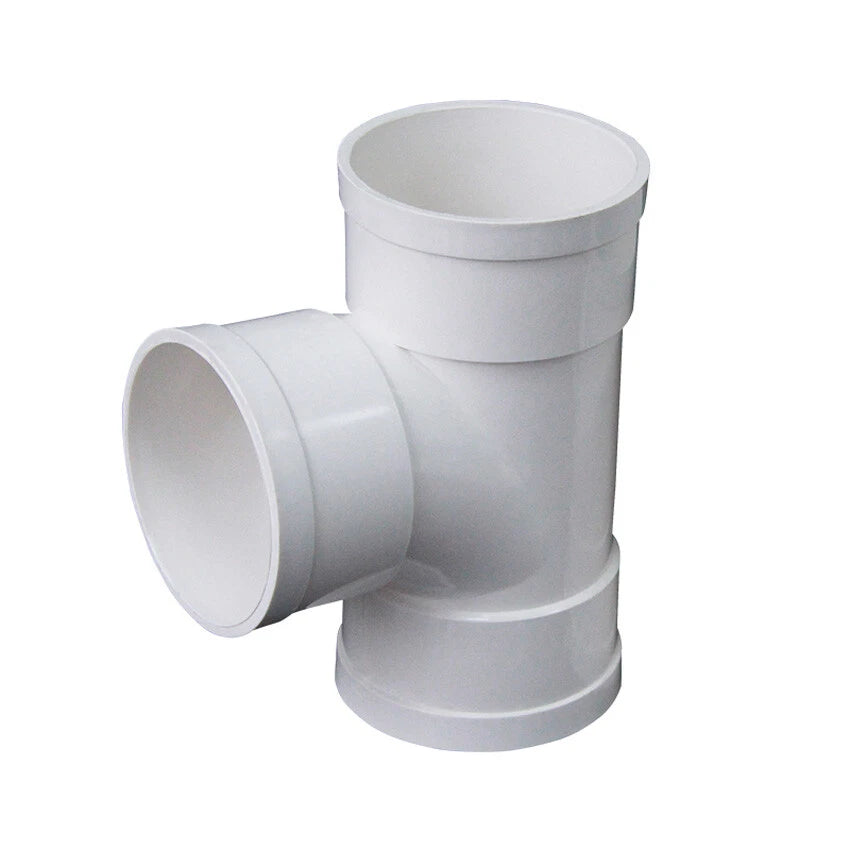

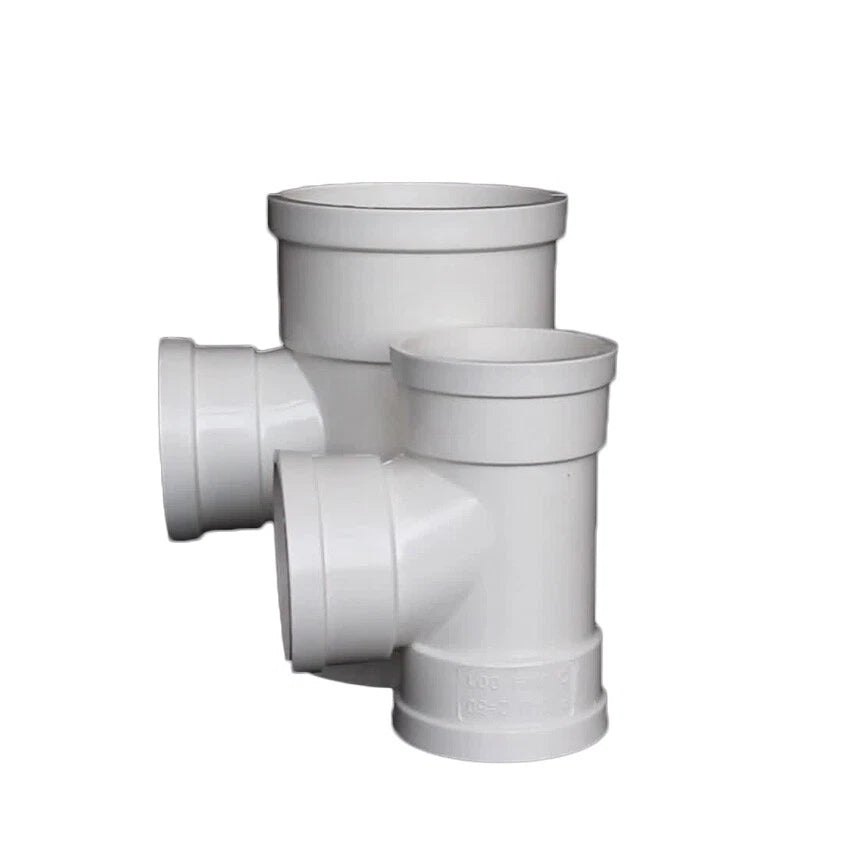

This PVC T-shape tee 3-way connector adapter is molded from rigid PVC (polyvinyl chloride), offering a smooth interior bore that promotes unobstructed flow. Available in square and rectangular cross-section models ranging from 50×50mm (approx. 2"×2") up to 200×200mm (approx. 7.9"×7.9"), with rectangular transition sizes such as 75×50mm, 110×50mm, 110×75mm, 160×110mm, 200×110mm, and 200×160mm to accommodate mixed-size drain runs.
Typical applications include residential bathroom and kitchen drain branch lines, commercial building floor drain manifolds, and outdoor rainwater downpipe tee junctions — all scenarios where a PVC 3-way drain tee adapter must handle continuous water flow without degradation.
| Material | PVC (Polyvinyl Chloride) |
|---|---|
| Fitting Type | T-Shape Tee / 3-Way Connector |
| Connection Style | Socket / Slip-fit (solvent weld compatible) |

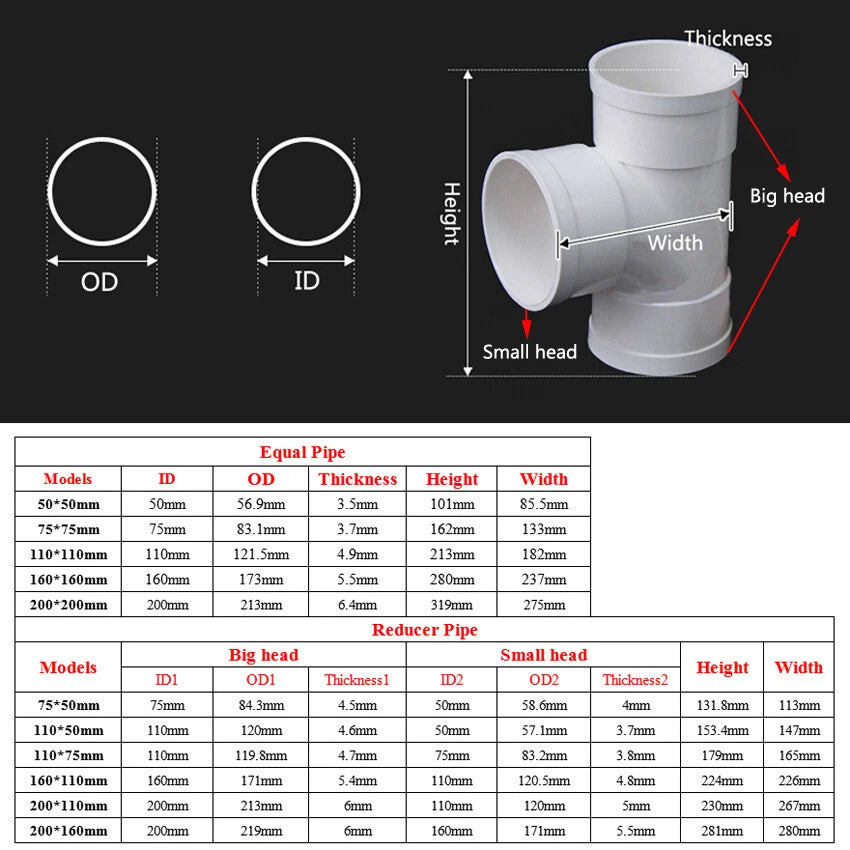

| Available Models (W×H) | 50×50mm, 75×75mm, 110×110mm, 160×160mm, 200×200mm, 75×50mm, 110×50mm, 110×75mm, 160×110mm, 200×110mm, 200×160mm |
| Size Range | 50mm – 200mm (approx. 2" – 7.9") |
| Wall Thickness | See variant options |
| Color | See variant options |
| Pressure Rating | See variant options |
| Application | Drainage / Waste / Vent (DWV) systems |
| Quantity per Order | 1 Piece |
Measure the outer width and height of your existing drain pipe cross-section in millimeters. Match those dimensions to the model listed (e.g., if your pipe is 110mm wide and 75mm tall, select the 110×75mm model). When in doubt, measure twice before ordering.
Yes. The socket ends are designed for solvent-weld (glue) installation using standard PVC pipe cement and primer. Follow the cement manufacturer's cure time instructions before running water through the joint.
When properly solvent-welded to compatible PVC pipe, these fittings form a watertight joint suitable for continuous drainage flow. Ensure pipe ends are clean, deburred, and dry before applying cement for a reliable seal.
PVC is resistant to most common household drain cleaners, soaps, and wastewater. Avoid prolonged exposure to highly concentrated solvents or industrial chemicals outside the scope of standard DWV applications, as these may degrade the material over time.

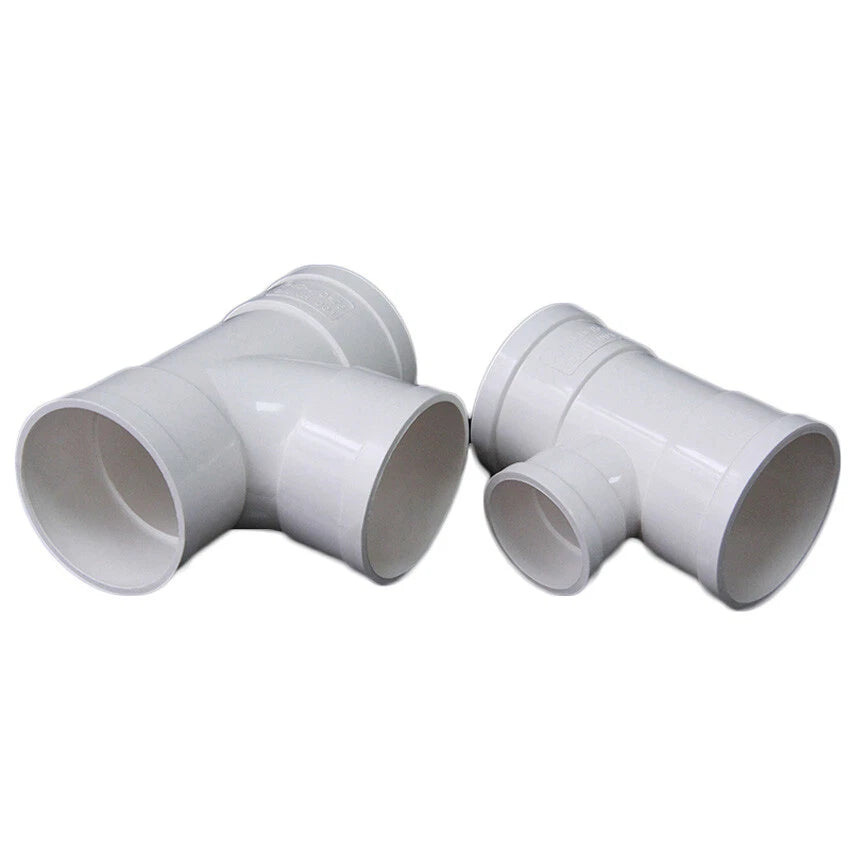

Square models (e.g., 50×50mm, 110×110mm) have equal width and height and are used where both the main run and branch pipe share the same cross-section dimension. Rectangular models (e.g., 110×75mm, 200×160mm) are transition fittings that connect pipes of different widths and heights within the same tee junction.
Yes. PVC is UV-tolerant for typical outdoor drainage use and does not rust or corrode when exposed to rainwater. For installations in direct prolonged sunlight, confirm the specific PVC grade is rated for exterior UV exposure in your local climate.
No specialized tools are required beyond a pipe cutter or hacksaw to cut pipe to length, sandpaper or a deburring tool to smooth the cut end, and standard PVC primer and cement. The slip-fit socket design allows straightforward hand assembly before cementing.
