When your CNC router, 3D printer, or linear actuator loses belt tension or develops unwanted slack, the culprit is often a missing or undersized idler pulley. Engineers and makers who work with 5M (5mm pitch) synchronous belt systems need a reliable idler that fits precisely, runs quietly, and holds alignment under continuous load. These 5M idler pulleys are designed for exactly that role — keeping your drive system taut and your motion repeatable.

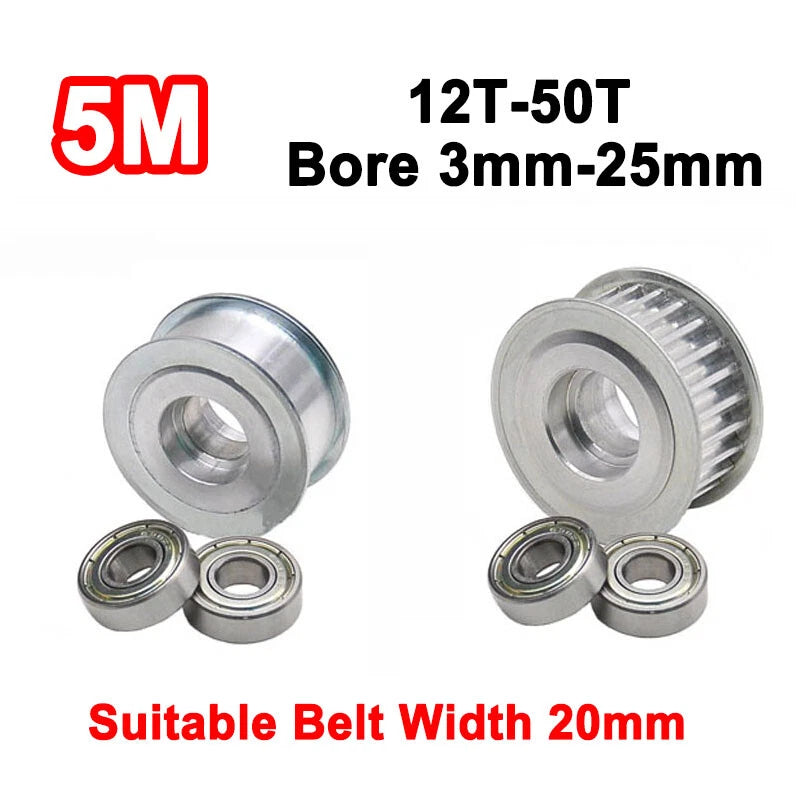

Each pulley is machined from aluminum alloy with a hard-anodized or natural finish, available in smooth-rim (flat idler) and toothed configurations. Tooth counts range from 12T to 50T, bore diameters from 3mm to 25mm, and all variants are sized for 20mm wide 5M timing belts. The overall pulley diameter scales with tooth count — typically 19mm (12T) up to approximately 80mm (50T) outer diameter.
Typical use cases include 5M belt tensioning in CNC gantry systems, idler routing in 3D printer CoreXY and Cartesian setups, and belt-path redirection in conveyor and automation equipment. Long-tail applications include replacement idler pulleys for laser cutters, pick-and-place machines, and servo-driven linear stages.

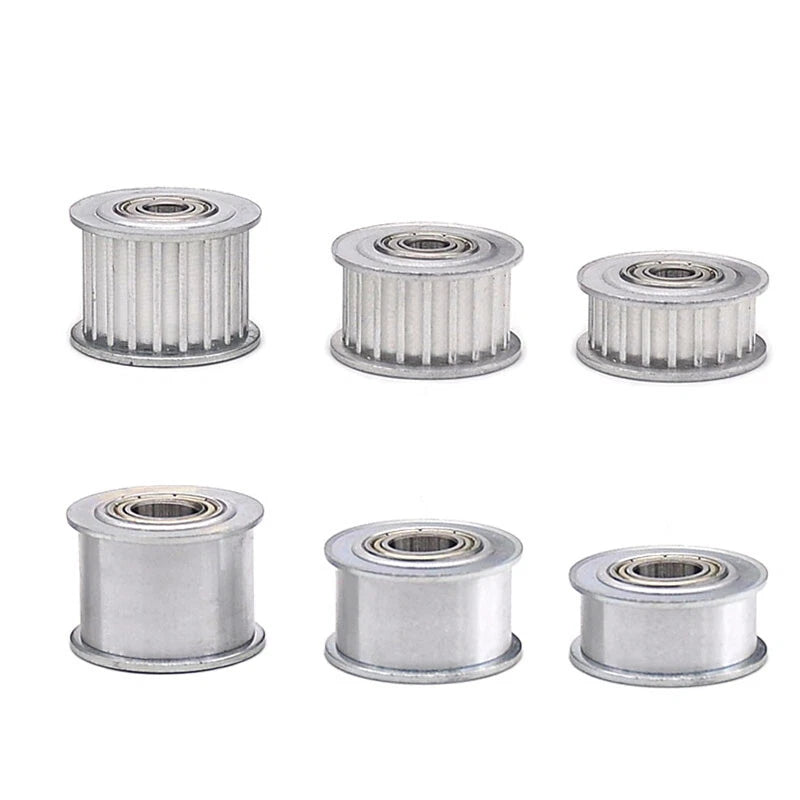

Choose flat smooth-rim idlers for belt back-face tensioning or toothed idlers for positive engagement — both available across the full tooth-count range.
Bore diameters from 3mm to 25mm cover most standard shaft sizes used in CNC, robotics, and automation builds.
Pulley face width is matched to 20mm 5M timing belts, ensuring full belt contact and preventing edge wear or tracking drift.
Machined aluminum body keeps rotating mass low while providing the rigidity needed for consistent belt tension in high-cycle applications.

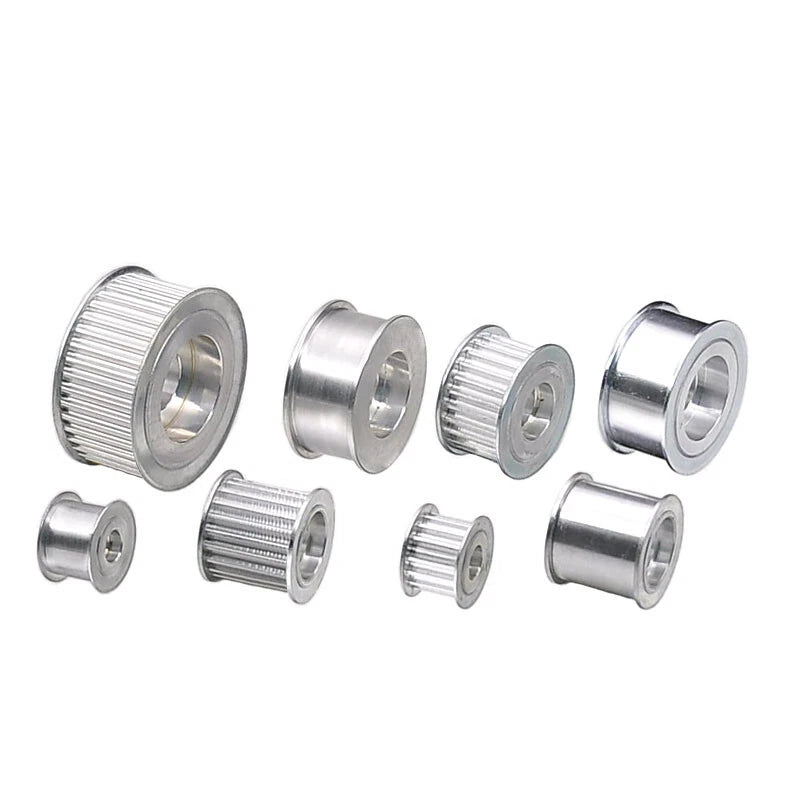

Select the tooth count that matches your drive geometry — smaller pulleys for tight routing, larger pulleys for lower belt wrap angles and reduced stress.
Standard 5M pitch geometry means these pulleys are dimensionally compatible with common open-source CNC and 3D printer idler positions.
| Belt Pitch | 5M (5mm) |
|---|---|
| Belt Width Compatibility | 20mm |

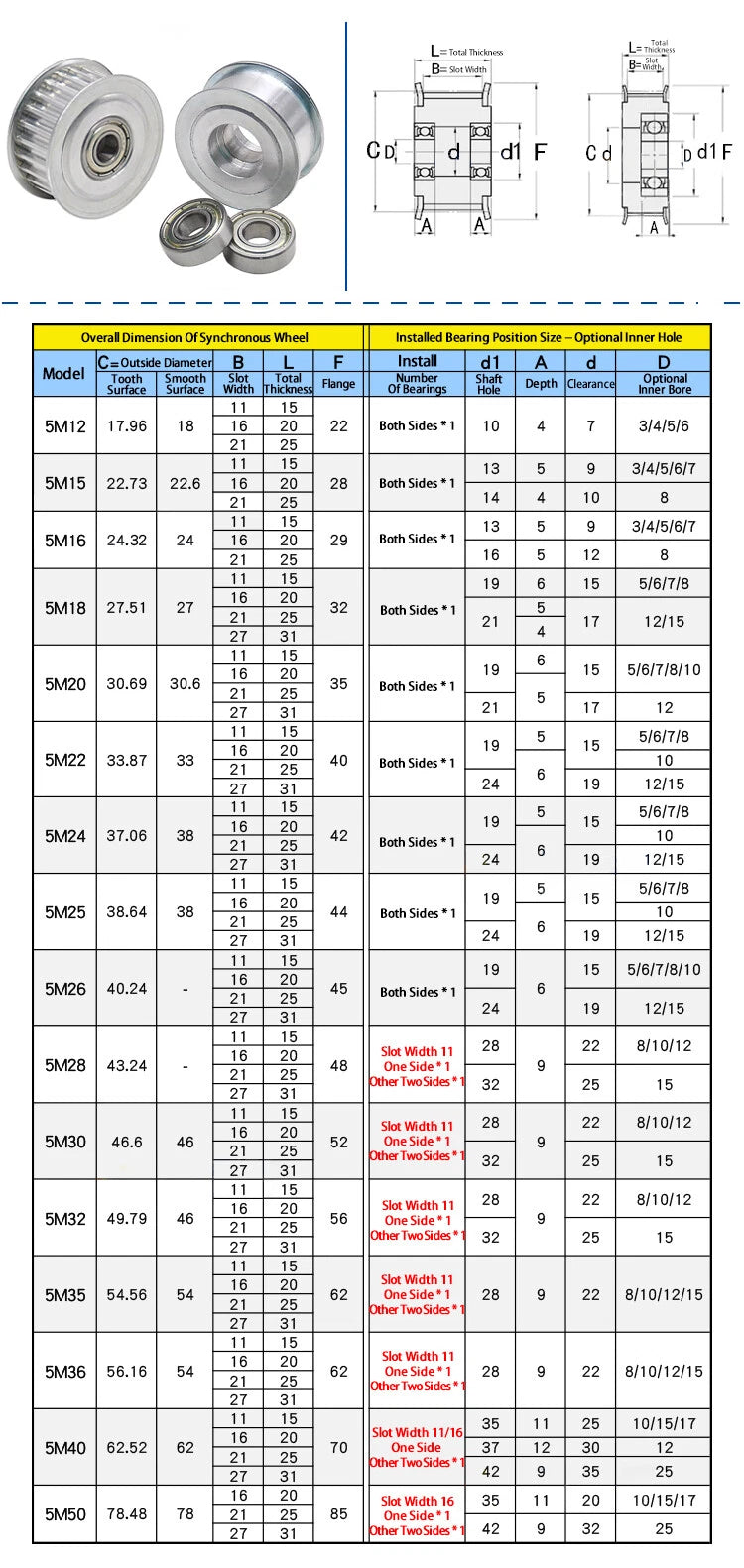

| Tooth Count Options | 12T, 15T, 16T, 18T, 20T, 22T, 24T, 25T, 26T, 28T, 30T, 32T, 35T, 36T, 40T, 50T |
| Bore Diameter Options | 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 12mm, 15mm, 17mm, 20mm, 25mm |
| Idler Type | Smooth (flat rim) / Toothed — see variant options |
| Material | Aluminum alloy |
| Outer Diameter | See variant options (scales with tooth count) |
| Hub / Flange | See variant options |
| Quantity per Order | 1 piece |

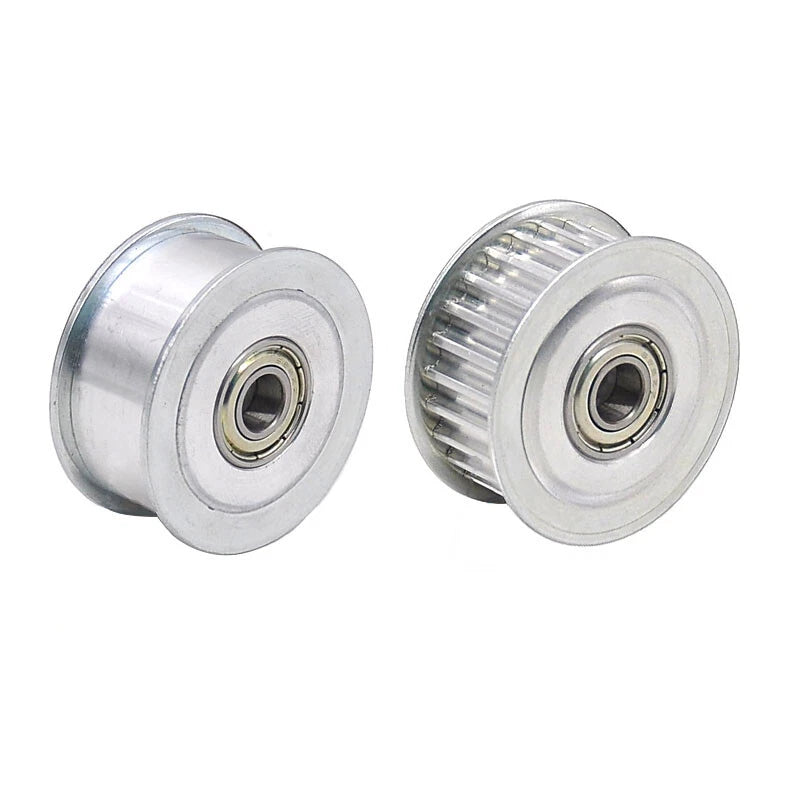

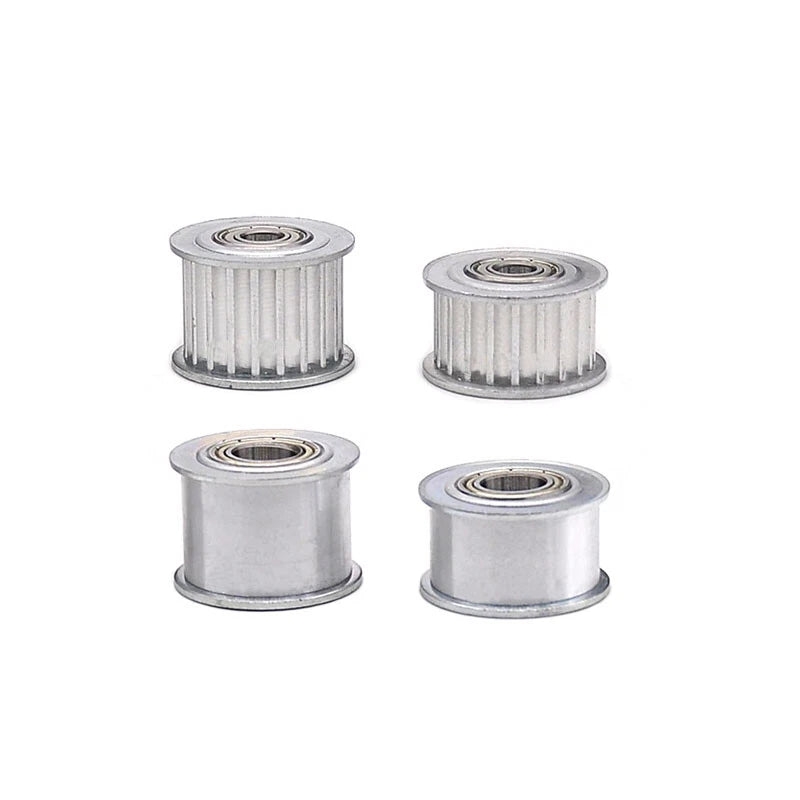

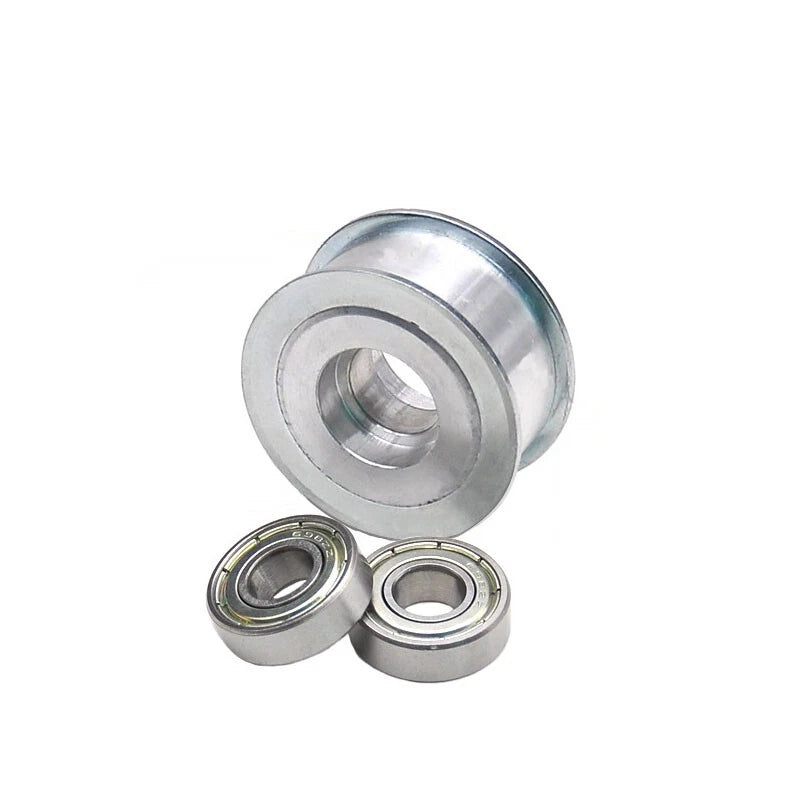

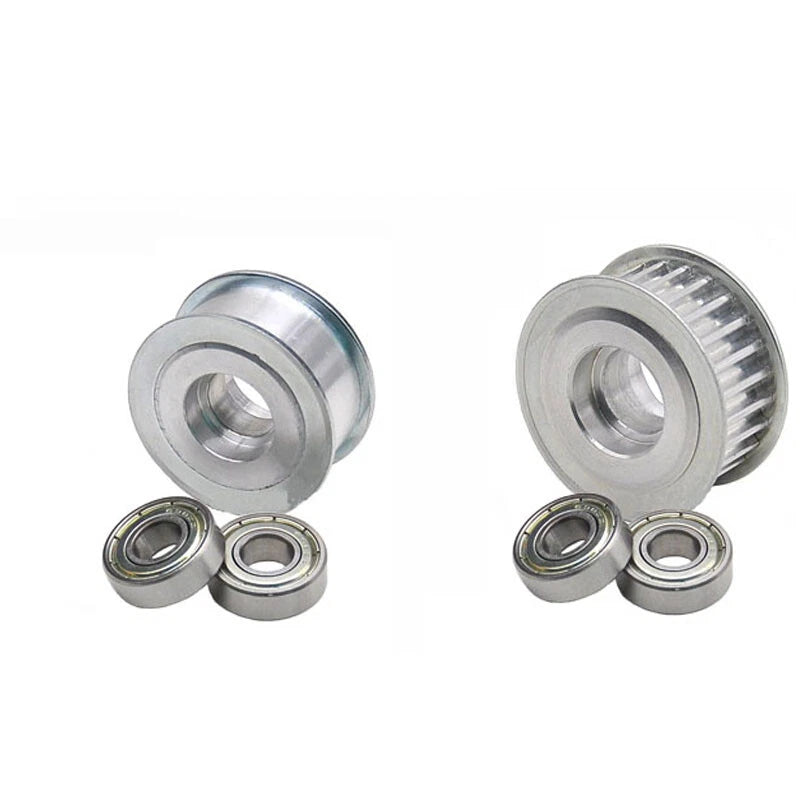

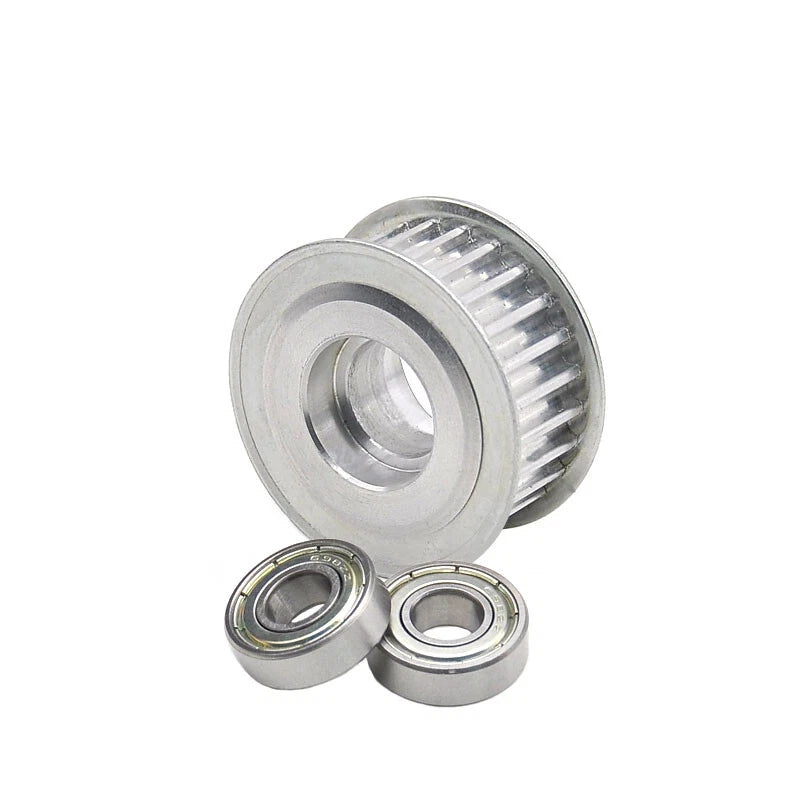

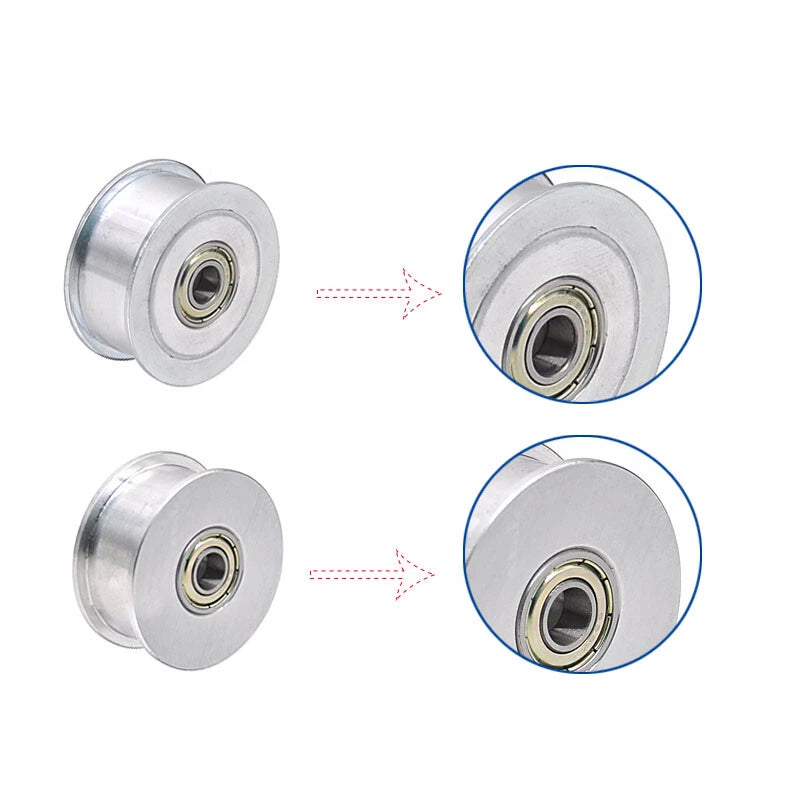

Smooth (flat-rim) idlers contact the back face of the belt and are used purely for tensioning or path redirection without engaging the belt teeth. Toothed idlers mesh with the belt teeth and are used when you need positive engagement at the idler position — common in CoreXY and H-bot printer designs where the idler also contributes to motion accuracy.

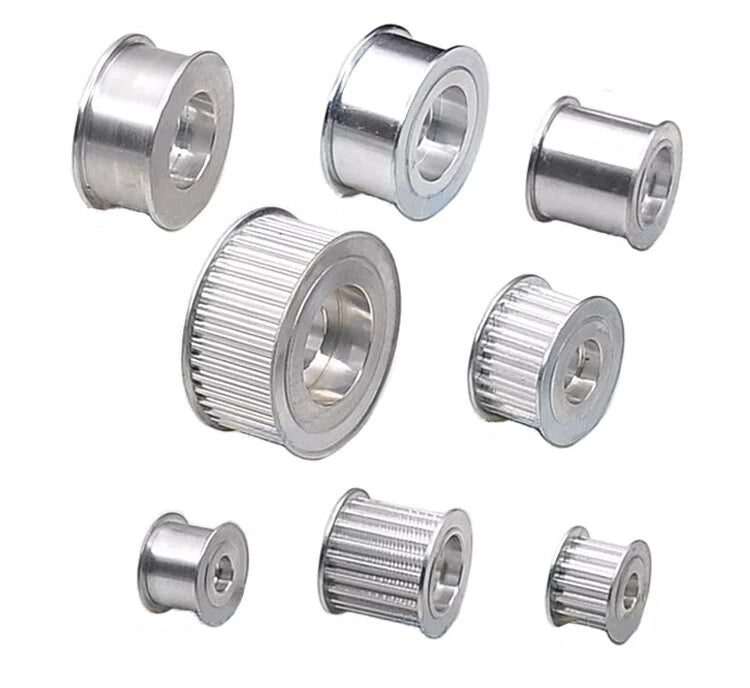

Match the tooth count to your available space and desired belt wrap angle. Smaller tooth counts (12T–16T) suit tight routing in compact frames. Larger counts (30T–50T) reduce belt bending stress and are preferred when the idler carries significant belt load. Check your machine's BOM or CAD model for the specified idler size.
Measure your idler shaft or bearing outer diameter precisely with calipers. The bore must match the shaft for a proper fit — too loose causes wobble and belt tracking issues, too tight prevents installation. Common sizes for 5M systems are 5mm, 8mm, and 10mm, but verify against your specific design.
Yes. These pulleys follow the standard 5M (5mm pitch) tooth profile, making them dimensionally compatible with 5M timing belts from all major belt manufacturers. The 20mm face width accommodates standard 20mm wide 5M belts.
Aluminum alloy pulleys are well-suited for the belt loads typical in CNC routers, 3D printers, and light automation. For very high-tension or high-temperature environments, verify the load rating against your system's belt tension specification. In most maker and light-industrial applications, aluminum idlers provide reliable long-term service.

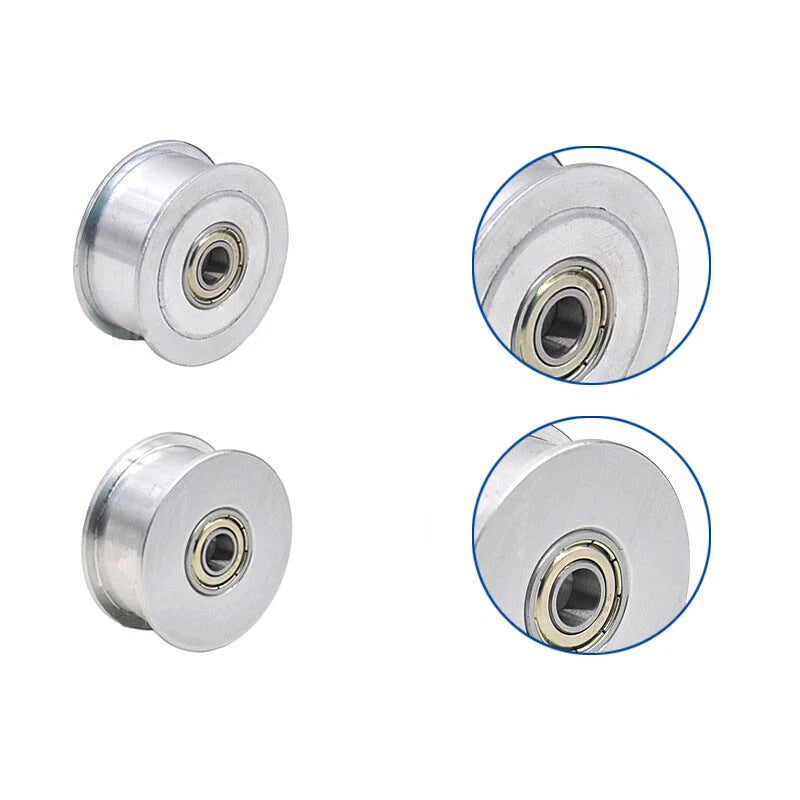

The bore is machined to the selected diameter for direct shaft mounting. Whether a bearing is included depends on the specific variant — please check the variant description or contact us to confirm bearing inclusion for your selected tooth count and bore combination.
It is not recommended. Smooth idlers are designed for back-face contact. Placing a smooth idler against the tooth side can cause belt tooth deformation and accelerated wear. Use a toothed idler when contact is required on the tooth face of the belt.
