When a failed bearing brings a motor, pump, or conveyor to a standstill, every minute of downtime costs money. Engineers, maintenance technicians, and serious DIYers who need a reliable, drop-in replacement for 6200-series deep groove ball bearings require a part that meets dimensional tolerances without guesswork. These 6200–6206 RZ single-shielded bearings are stocked in multiple pack sizes so you can keep spares on hand and get equipment back online fast.

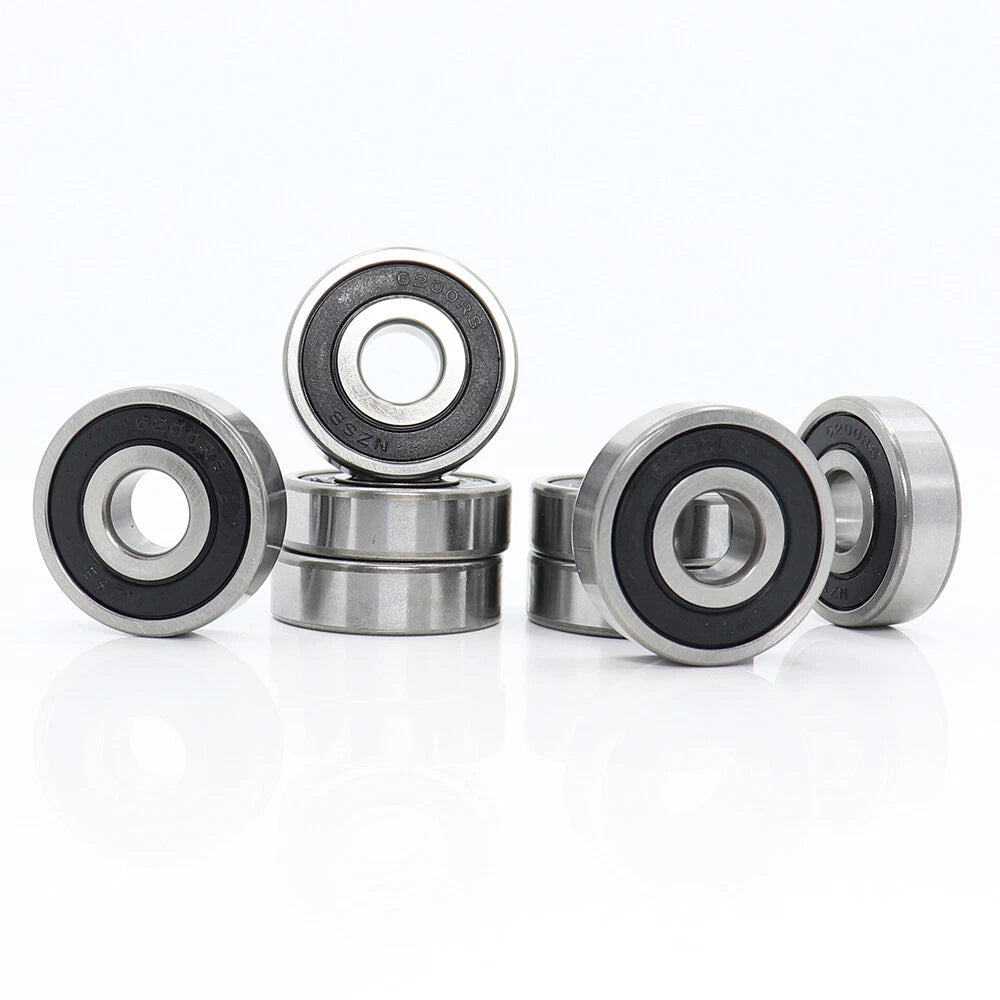

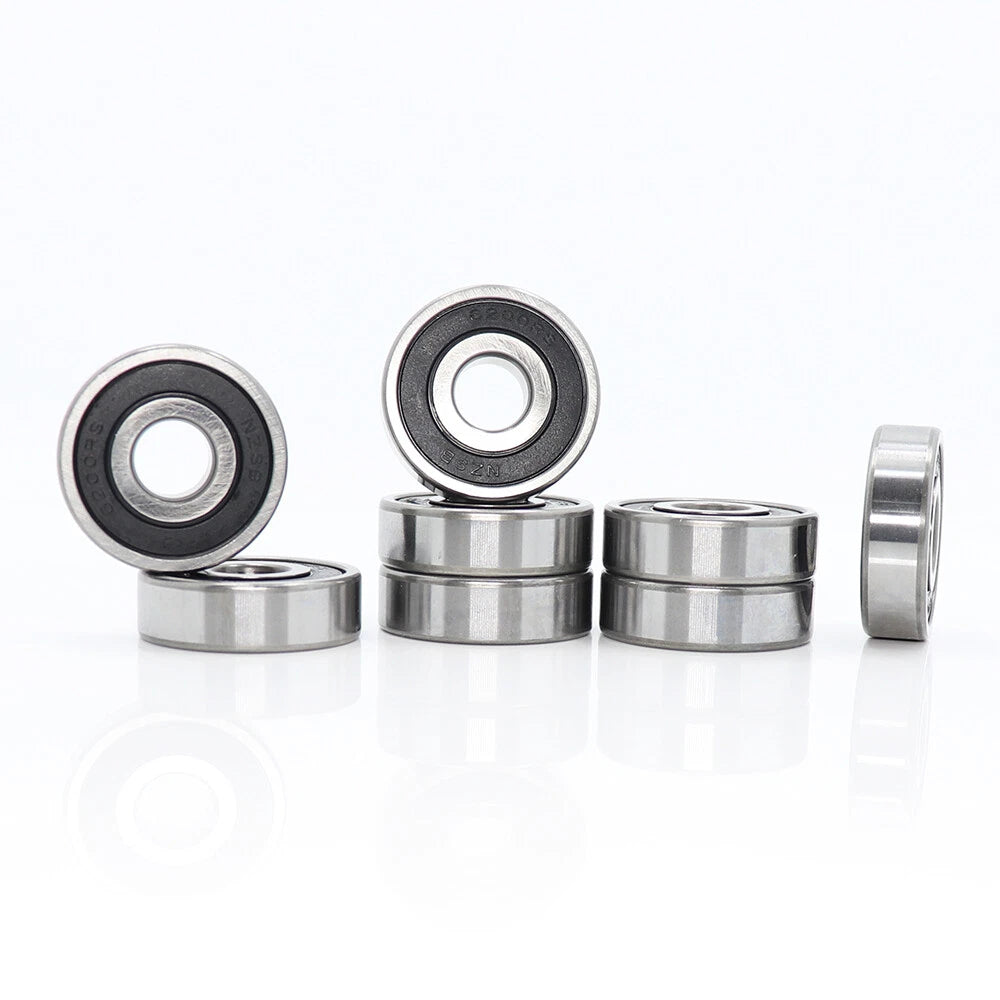

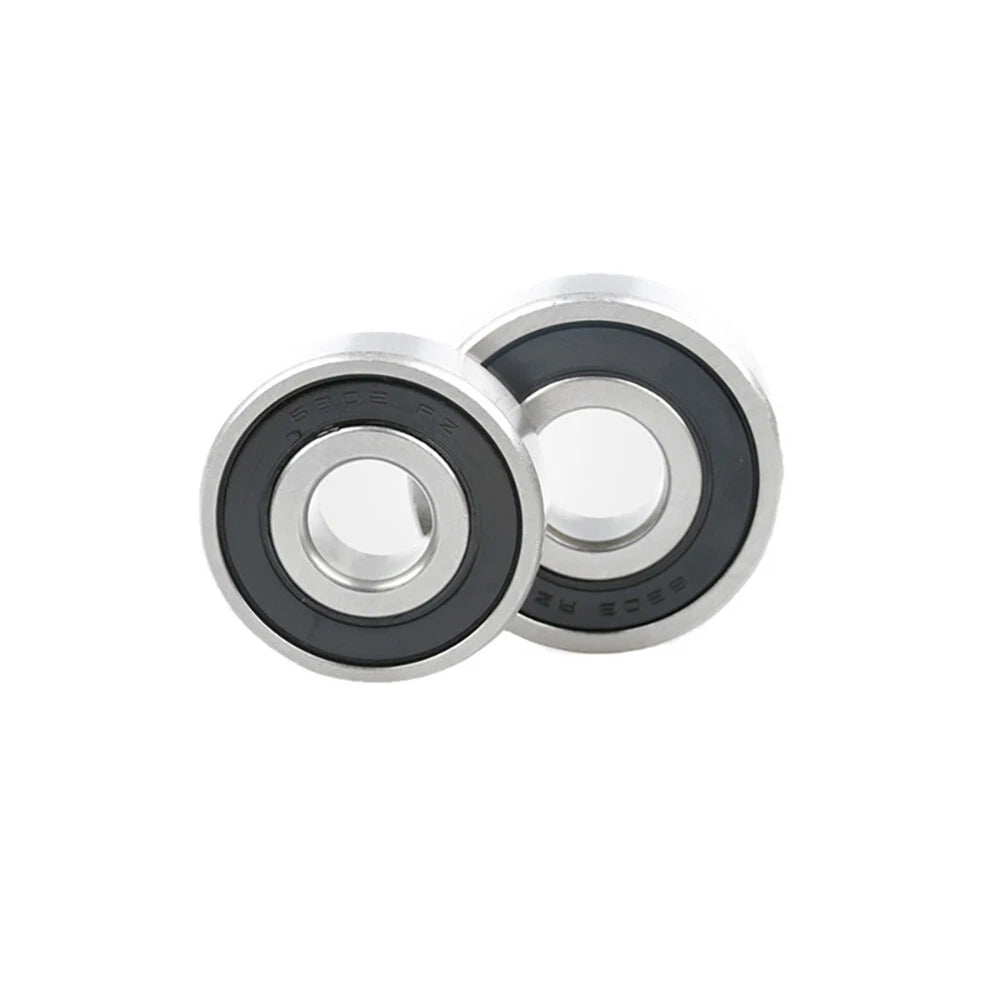

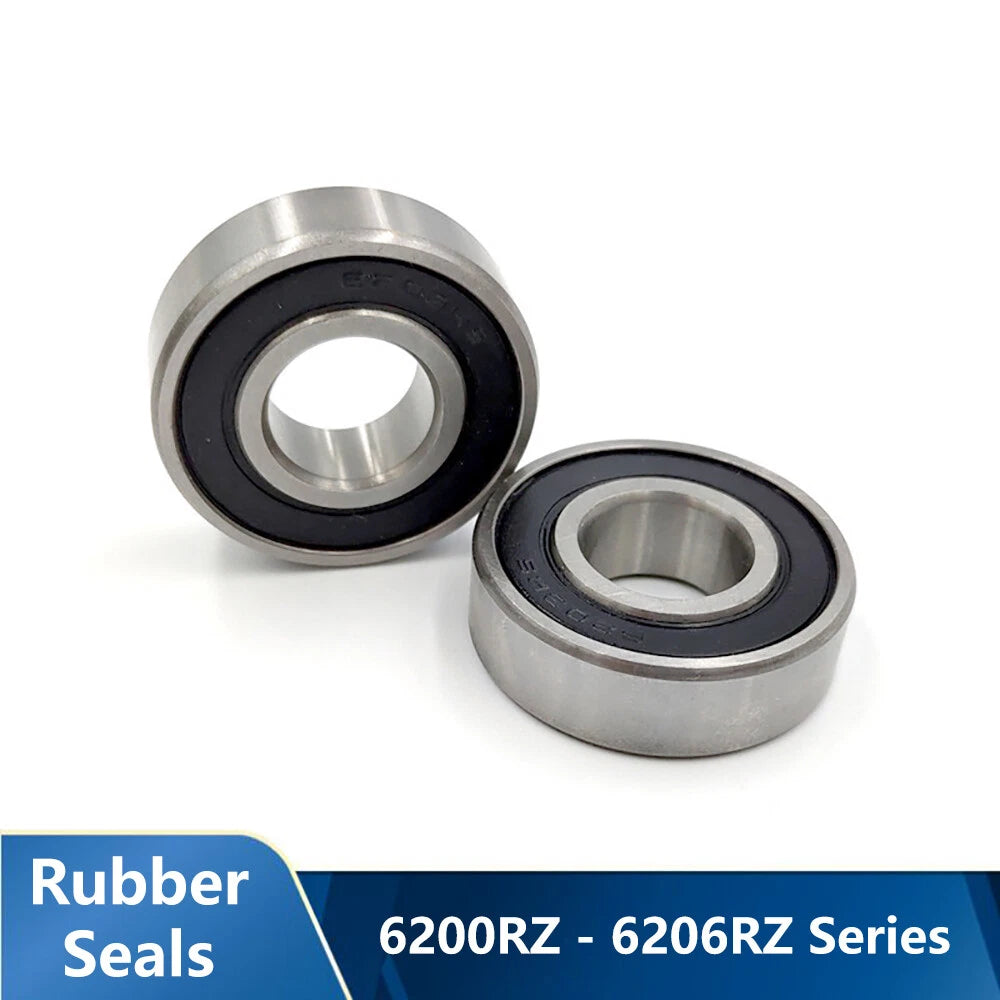

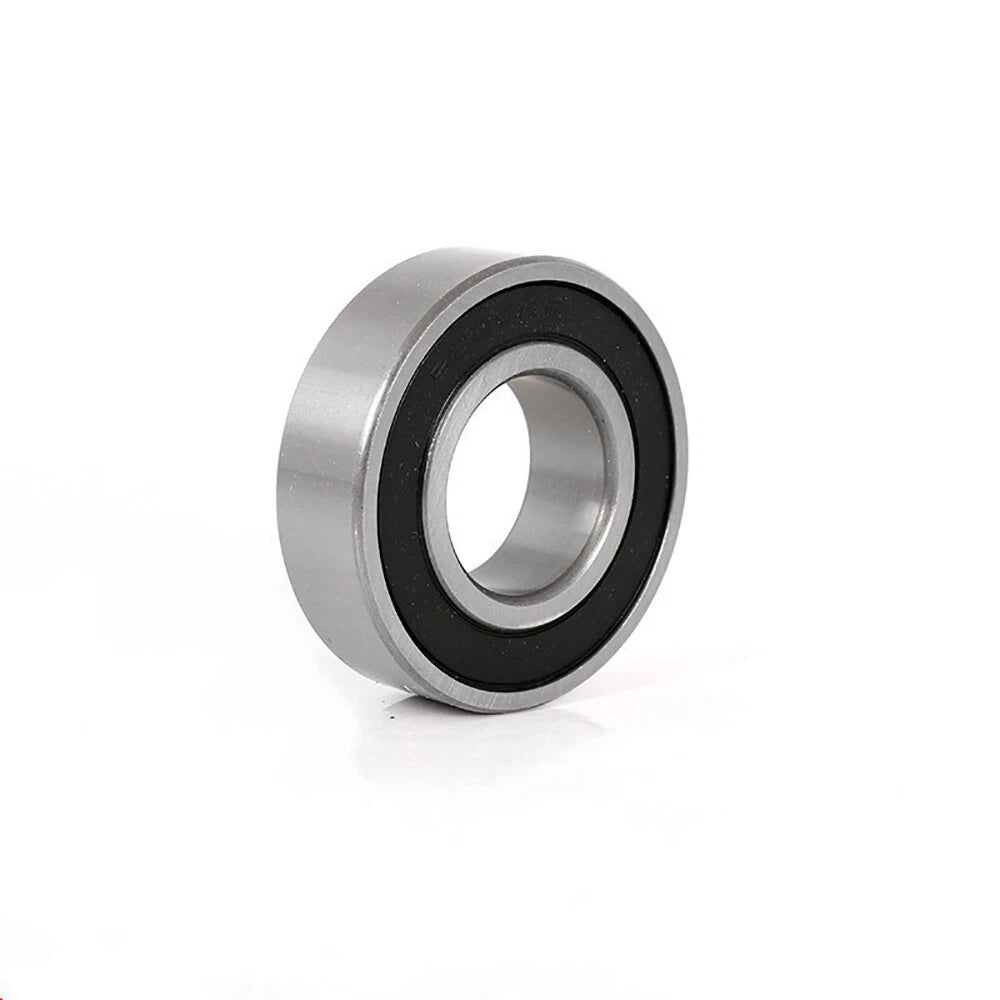

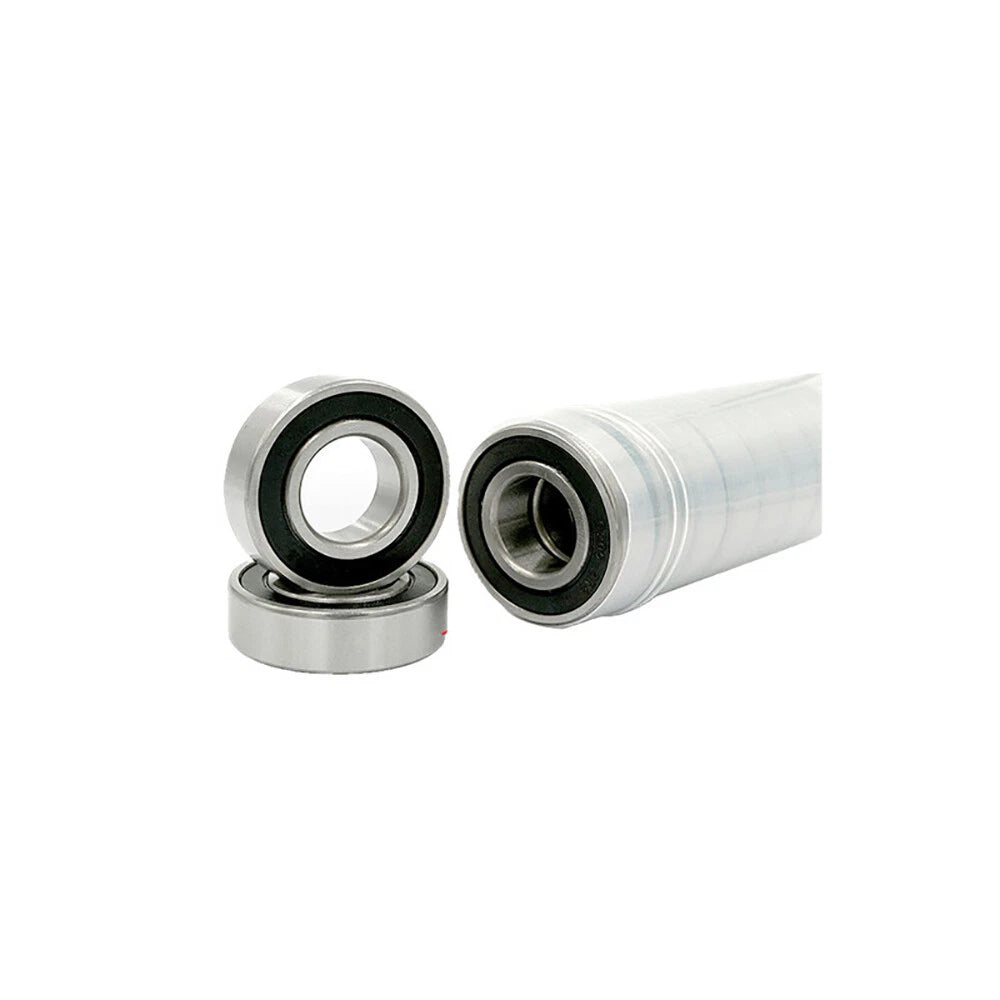

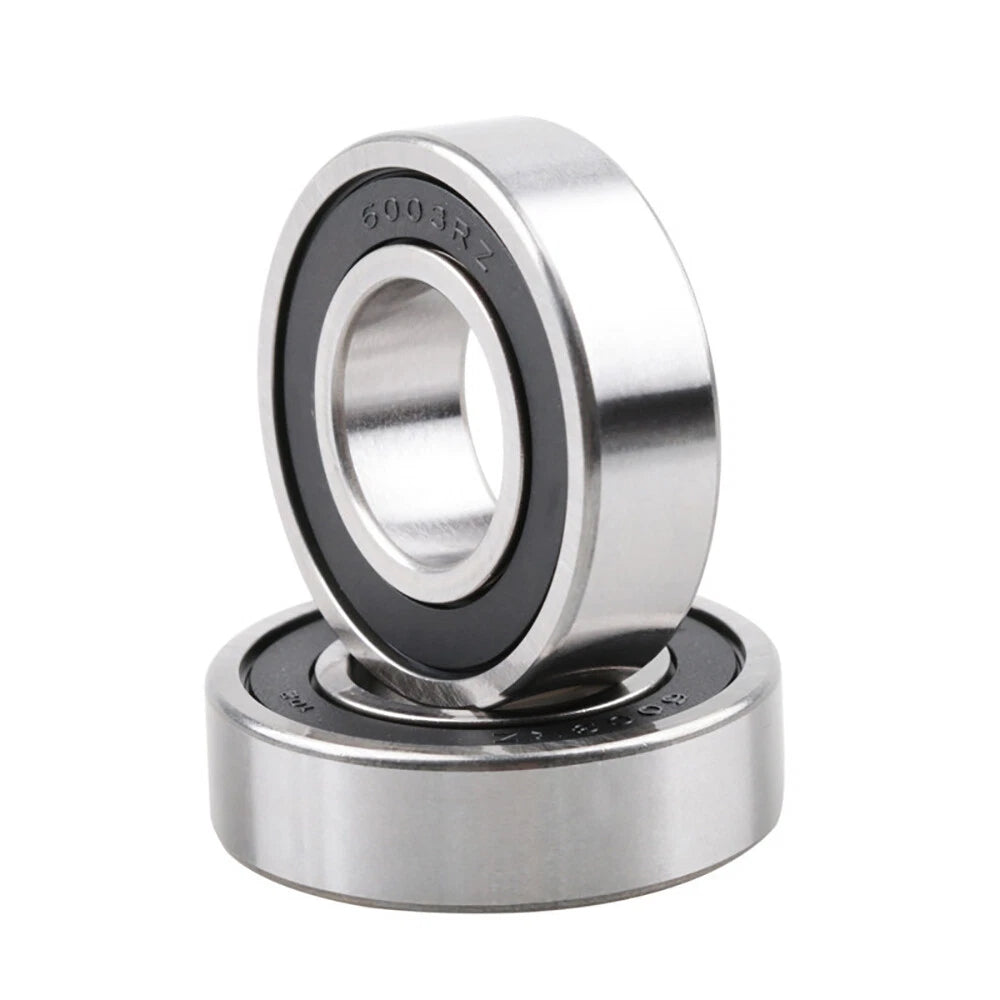

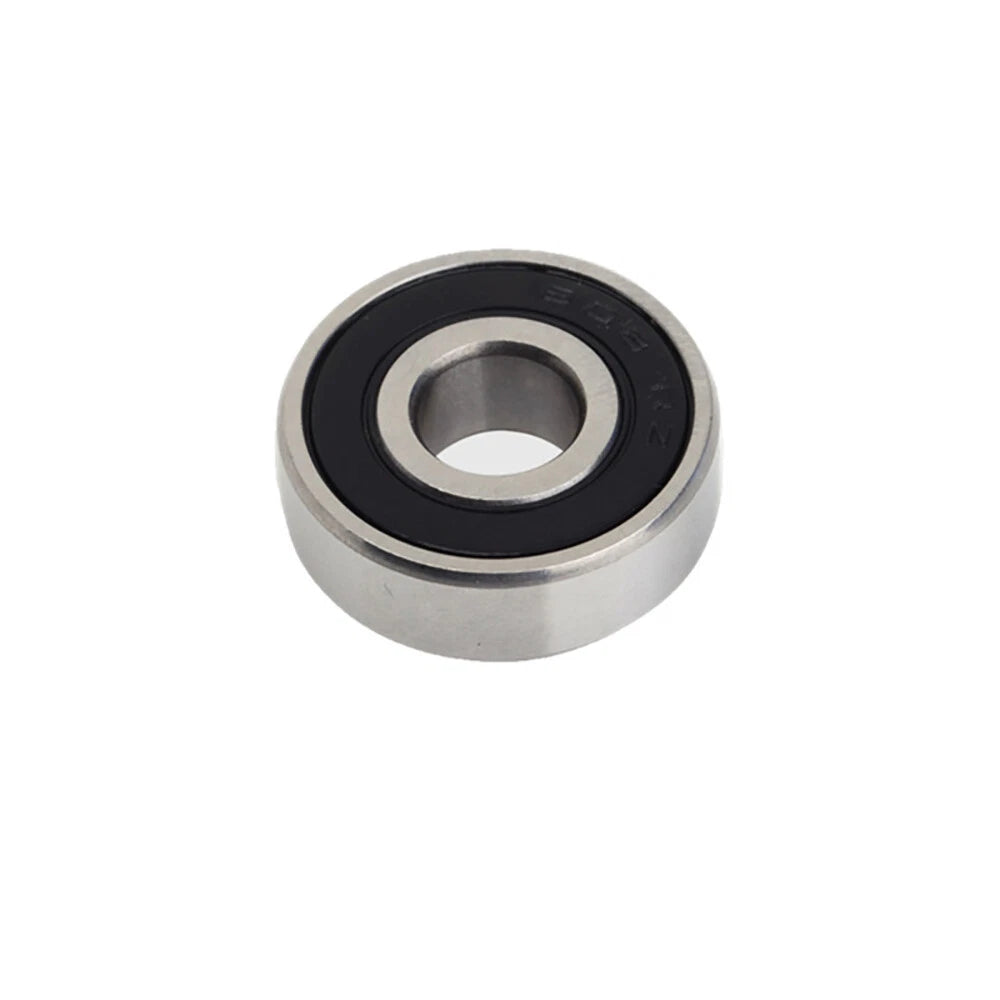

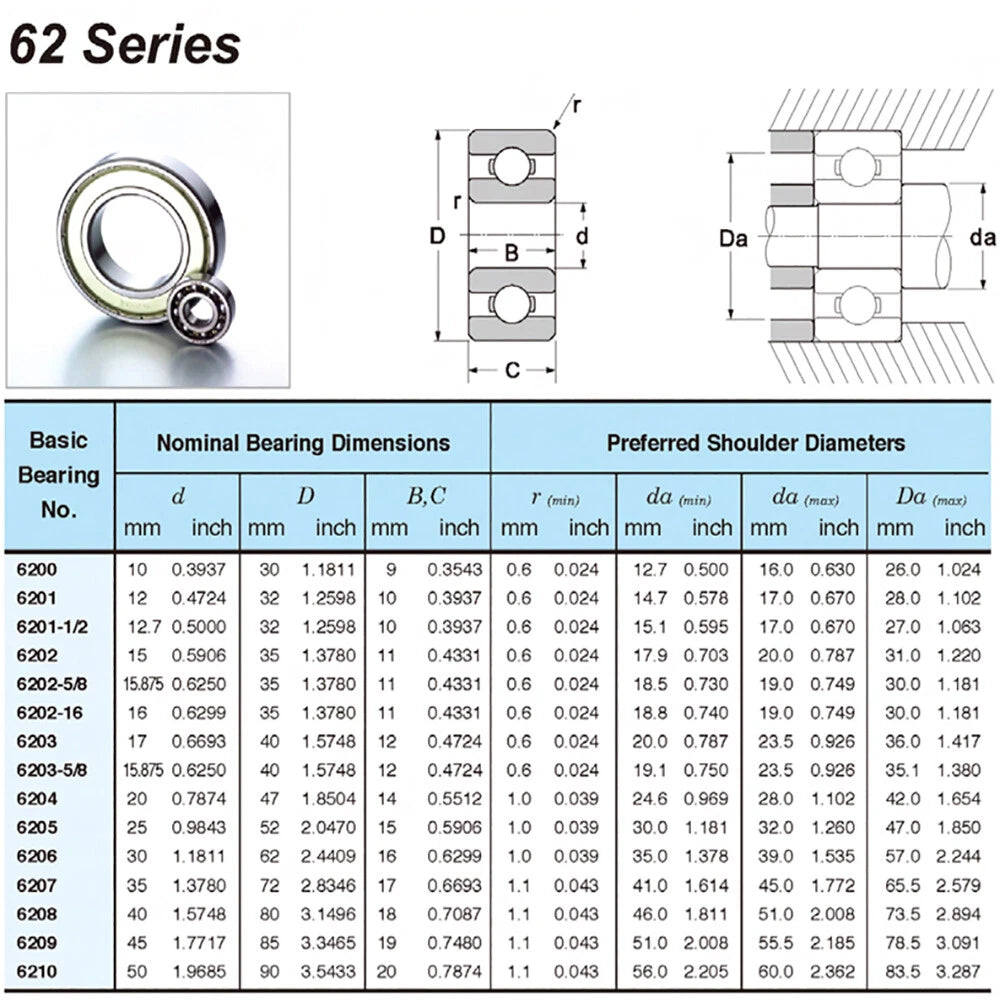

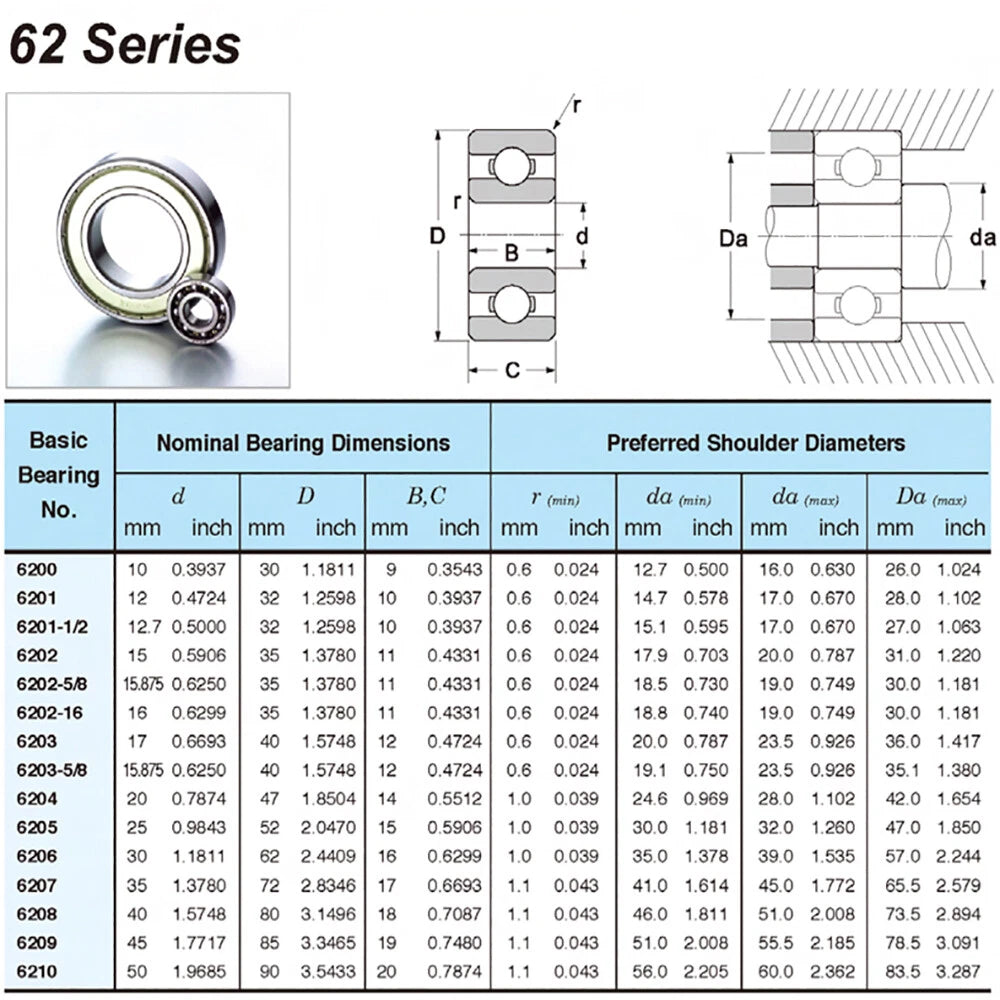

Each bearing features a single metal shield (RZ designation) on one side, a precision-ground steel inner and outer ring, and a full complement of steel balls retained in a pressed-steel cage. Available in seven standard bore sizes — 6200RZ (10×30×9 mm / 0.394×1.181×0.354 in) through 6206RZ (30×62×16 mm / 1.181×2.441×0.630 in) — these bearings conform to ISO 15 dimensional standards and are sold in quantities of 1, 5, 10, or 20 pieces per order.
Typical applications include electric motor front and rear end-shields, small centrifugal pumps, light conveyor rollers, power-tool spindles, and agricultural equipment gearboxes. Whether you are rebuilding a bench grinder, replacing a washing-machine drum bearing, or stocking a maintenance crib for RZ deep groove ball bearings in rotating machinery, these units cover the most common 6200-series bore sizes in a single listing.
One-side metal shield keeps grease in and coarse contaminants out while leaving the opposite side open for re-lubrication or flush-mounting against a sealed housing.
Bore, outer diameter, and width match published 6200-series standards, ensuring direct interchangeability with OEM and aftermarket parts across the full 6200–6206 range.
Precision-ground steel balls in a pressed-steel cage deliver smooth, low-noise rotation suited to moderate-speed applications such as motors, fans, and light conveyor drives.
Select from 6200RZ (10 mm bore) through 6206RZ (30 mm bore) — the most frequently replaced sizes in the 6200 series — without navigating multiple product pages.
Order 1, 5, 10, or 20 pieces per size to match your project scope, from a single repair to a maintenance-crib restock, with per-unit cost decreasing at higher quantities.
Each bearing ships pre-greased behind the metal shield and is ready for installation without additional lubrication steps in standard operating conditions.
| Bearing Series | 6200 RZ (6200 through 6206) |
|---|---|
| Shield Type | Single metal shield, one side (RZ) |
| Bore Diameter (d) | 10 mm – 30 mm (0.394 in – 1.181 in) |
| Outer Diameter (D) | 30 mm – 62 mm (1.181 in – 2.441 in) |
| Width (B) | 9 mm – 16 mm (0.354 in – 0.630 in) |
| Available Sizes | 6200RZ, 6201RZ, 6202RZ, 6203RZ, 6204RZ, 6205RZ, 6206RZ |
| Ring Material | Bearing-grade steel |
| Rolling Elements | Steel balls |
| Cage Type | Pressed steel |
| Lubrication | Grease-filled (factory-applied) |
| Dimensional Standard | ISO 15 / DIN 625 |
| Pack Quantity Options | 1 pcs, 5 pcs, 10 pcs, 20 pcs |
| Operating Temperature | See variant options |
| Dynamic Load Rating (C) | See variant options |
| Static Load Rating (C₀) | See variant options |
Measure the shaft diameter (bore), the housing bore (outer diameter), and the available axial space (width) with calipers. Match those three dimensions to the size chart: for example, a 17 mm shaft with a 40 mm housing bore and 12 mm width corresponds to the 6203RZ. If the original bearing is still accessible, the part number is usually stamped on the outer ring.
RZ indicates a single low-friction metal shield on one side of the bearing. 2RS means rubber contact seals on both sides (better contamination exclusion, slightly higher drag). ZZ means metal shields on both sides (similar protection to RZ but fully enclosed). Choose RZ when you need one side open for re-lubrication or when the housing itself provides sealing on the open side.
6200-series deep groove ball bearings are rated for moderate-to-high speeds depending on bore size and lubrication. Smaller bores (6200–6202) tolerate higher RPM than larger bores (6205–6206) under equivalent conditions. For exact limiting-speed values, consult the ISO 15 / DIN 625 data sheet for the specific size you are using, or contact us to confirm suitability for your application.
Standard 6200 RZ bearings use bearing-grade steel rings and balls, which are not corrosion-resistant in continuously wet or chemically aggressive environments. For washdown, marine, or food-processing applications, consider stainless-steel or ceramic-hybrid variants. The single metal shield provides basic splash protection but is not designed for full immersion.
No. Each bearing is factory-filled with grease behind the metal shield and is ready to install directly. Adding excess grease can increase operating temperature and cause premature failure. If your application requires a specific grease type or quantity, purge the factory grease and re-pack before installation.
Keep bearings in their original packaging in a clean, dry location away from direct sunlight, vibration, and temperature extremes. Store flat — do not stack heavy items on top of bearing packages. Avoid magnetic fields, which can affect steel rolling elements. Properly stored bearings typically remain serviceable for several years before installation.
Single-piece orders are ideal for one-off repairs where you need an exact replacement immediately. Multi-pack quantities (5, 10, or 20 pcs) reduce the per-unit cost and are suited to maintenance cribs, production lines, or projects requiring multiple bearings of the same size. Select your preferred quantity from the Packing Quantity option above before adding to cart.
