Description

625ZZ Nylon Pulley Guide Wheels — Smooth, Quiet Rolling for DIY Automation

When your 3D printer carriage skips, your CNC gantry wobbles, or your belt-driven axis loses tension, the culprit is often a worn or undersized guide wheel. Makers, hobbyists, and small-workshop builders who demand consistent motion control need a guide wheel that rolls true, resists wear, and fits standard hardware without modification.

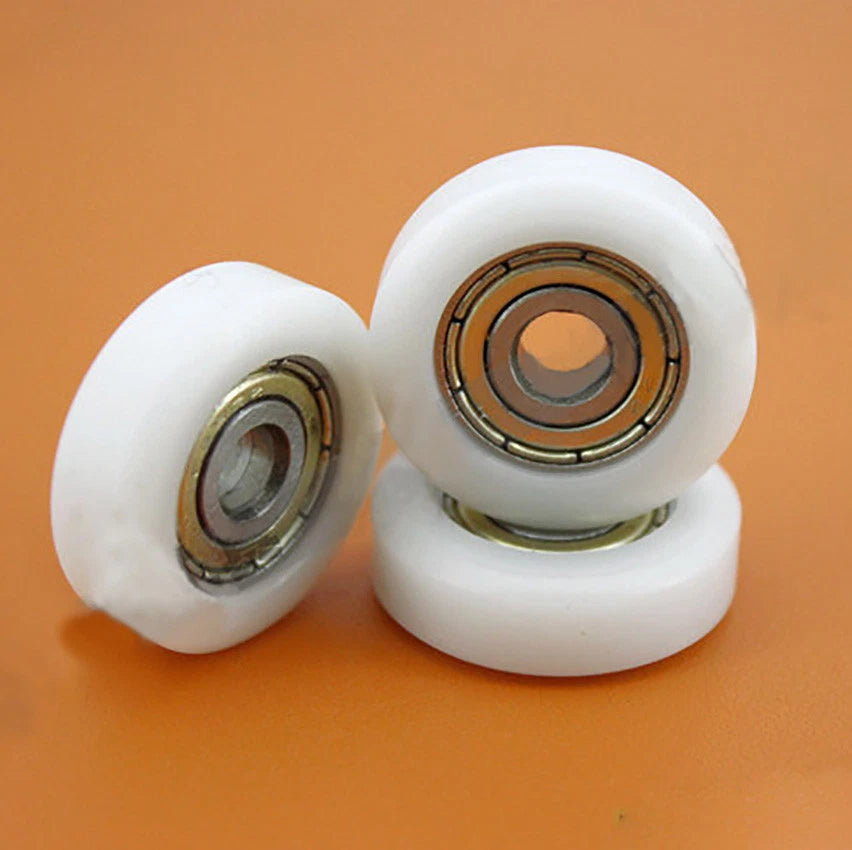

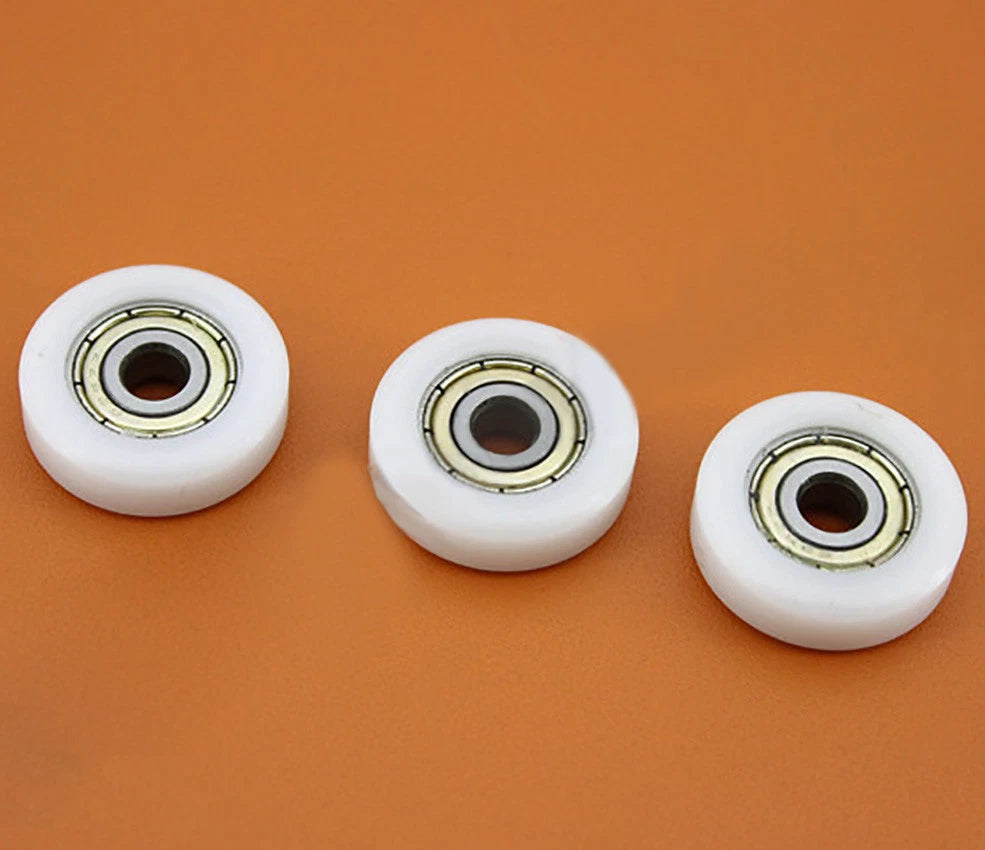

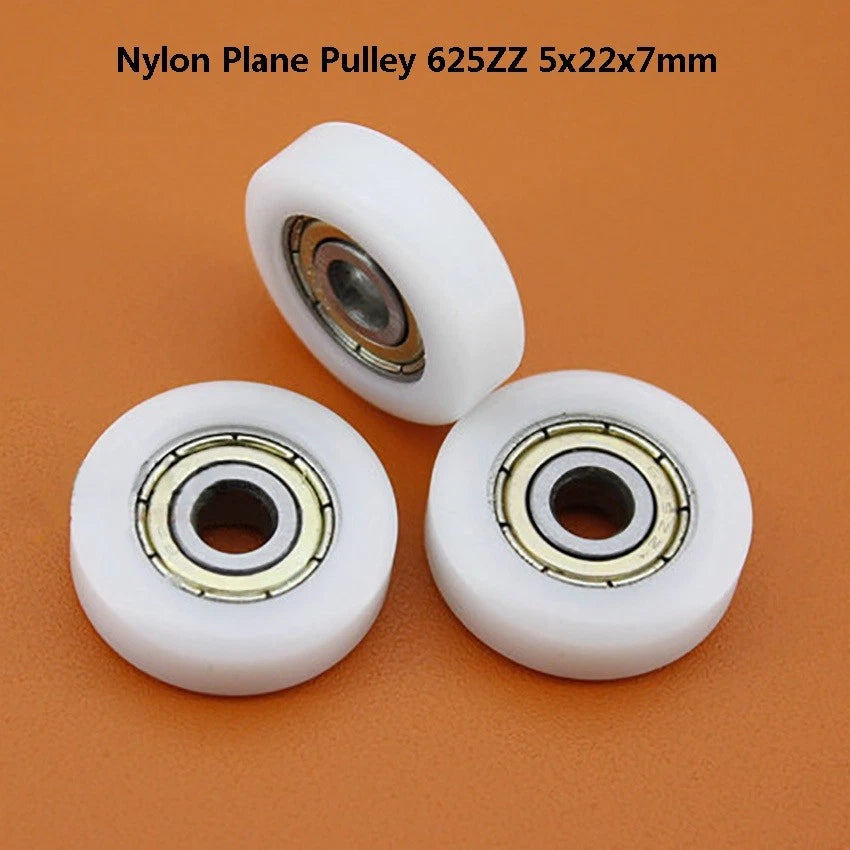

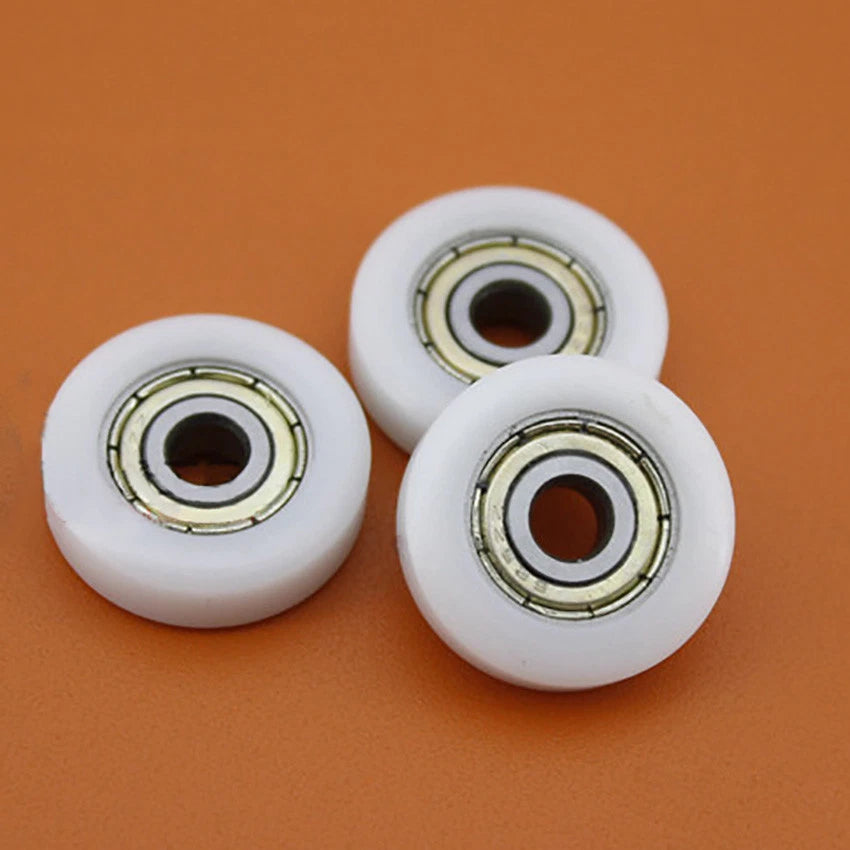

These nylon plastic plane pulley guide wheels are built around a 625ZZ deep groove ball bearing with an outer race diameter of 22 mm (~0.87 in), a bore of 5 mm (~0.20 in), and a total width of 7 mm (~0.28 in). The nylon outer rim provides a smooth rolling surface while the sealed 625ZZ bearing handles radial loads quietly and with minimal friction.

Typical applications include 625ZZ guide wheels for 3D printer V-slot extrusion systems, belt tensioner idler pulleys for CoreXY and Cartesian builds, and lightweight linear guide rollers for DIY CNC routers and laser engravers.

🔩 Compatibility: Fits M5 bolt/shaft (5 mm bore). Compatible with standard 2020/2040 V-slot aluminum extrusion profiles and most open-belt motion systems using 625-series bearings.

✅ Key Features of These 625ZZ Nylon Pulley Guide Wheels

  • ⚙️625ZZ Deep Groove Ball Bearing Core — Sealed steel bearing provides smooth, low-friction rotation and protects against dust and debris in workshop environments.
  • 🔵Nylon Outer Rim — Lightweight, wear-resistant nylon reduces noise and vibration compared to all-metal wheels, ideal for precision motion systems.
  • 📐Precise 5×22×7 mm Dimensions — Standard 625ZZ footprint (5 mm bore, 22 mm OD, 7 mm width) ensures drop-in compatibility with common DIY motion hardware.
  • 🔗V-Slot Extrusion Ready — Flat-face plane pulley profile rolls cleanly along V-slot and smooth-rail surfaces without derailing under load.
  • 📦Flexible Pack Sizes — Available in 1 Pcs, 4 Pcs, and 10 Pcs quantities so you can stock exactly what your build or repair requires.
  • 🛠️Tool-Free Shaft Mounting — Slides directly onto an M5 bolt or smooth rod; secure with a standard M5 nut and washer for immediate use.

📐 Technical Specifications — 625ZZ Nylon Pulley Guide Wheel

Bearing Model 625ZZ
Bore Diameter (ID) 5 mm (0.197 in)
Outer Diameter (OD) 22 mm (0.866 in)
Width 7 mm (0.276 in)
Rim Material Nylon (PA)
Bearing Type Deep Groove Ball Bearing, Double Shielded (ZZ)
Shaft Compatibility M5 bolt or 5 mm smooth rod
Load Type Radial
Surface Profile Flat plane (smooth face)
Unit Weight See variant options
Pack Quantity 1 Pcs / 4 Pcs / 10 Pcs (see variant options)

❓ Frequently Asked Questions

What size bolt or shaft fits this pulley wheel?

These wheels have a 5 mm bore and are designed for M5 bolts or 5 mm smooth rods. Use an M5 nut and washer to secure the wheel in place. They will not fit M3 or M4 hardware without an adapter.

Are these wheels compatible with V-slot aluminum extrusion profiles?

Yes. The flat-face plane pulley profile rolls smoothly along V-slot and standard smooth-rail surfaces. They are commonly used with 2020 and 2040 V-slot extrusion in 3D printer and CNC builds. Note: these are flat-face wheels, not V-groove wheels — confirm your rail profile before ordering.

How strong are these wheels under load?

The 625ZZ bearing handles moderate radial loads suitable for 3D printer carriages, belt tensioners, and lightweight CNC gantries. For heavy-duty industrial loads exceeding several kilograms of continuous radial force, a steel-rimmed bearing wheel would be more appropriate.

Will the nylon rim wear out quickly?

Nylon (PA) offers good abrasion resistance for typical DIY motion applications. Under normal operating conditions — light to moderate loads, clean rail surfaces — the rim provides long service life. Avoid running the wheels on abrasive or heavily contaminated surfaces to maximize longevity.

Are the bearings sealed or open?

The 625ZZ designation indicates double-shielded (metal shields on both sides). The shields keep out dust and debris, reducing maintenance needs. They are not fully sealed rubber-contact seals (RS type), so avoid submerging them in liquids.

How do I choose between 1 Pcs, 4 Pcs, and 10 Pcs?

Select 1 Pcs for a single replacement or test fit. Choose 4 Pcs if you are building a standard CoreXY or Cartesian 3D printer that typically uses 4–6 idler positions. The 10 Pcs pack offers the best per-unit value for full machine builds or workshop stock.

Can these be used as belt idler pulleys?

Yes — the flat-face nylon rim works as a smooth idler for flat or round belts in low-tension applications. For toothed GT2 belts, a toothed idler pulley is recommended to prevent belt skipping; these flat wheels are best suited for the non-toothed (smooth) idler positions in a belt system.

🛒 Select your quantity (Amount) above, then add to cart.
