6mm MXL Timing Belt — Precision Drive for CNC Machines & Stepper Motors

When a slipping or worn drive belt throws off your CNC router's positioning or causes your 3D printer to skip steps, the entire job is ruined. Hobbyists, engineers, and small-shop machinists who rely on stepper motor-driven systems need a replacement belt that matches the original spec exactly — no guesswork, no adapters.

This listing covers a 6mm wide MXL timing belt with a 2.032mm (0.080") pitch, available in 208+ sizes ranging from 22MXL (27 teeth, ≈44.5mm / ≈1.75" circumference) up to 1636MXL (2046 teeth, ≈3320mm / ≈130.7" circumference). Each belt is a closed-loop synchronous drive belt with a fiberglass-reinforced neoprene construction — sold individually (1 pcs per order).

Typical applications include desktop CNC router X/Y axis drives, laser engraver gantry systems, stepper motor linear actuators, and light-duty laboratory automation equipment where precise, repeatable positioning is required.

ℹ️ Compatibility Note: This belt uses the MXL tooth profile (2.032mm pitch). It is not interchangeable with GT2, HTD, or XL profiles. Always match both the pitch and the tooth count to your existing pulley before ordering.

✅ Key Features of These 6mm MXL Timing Belts

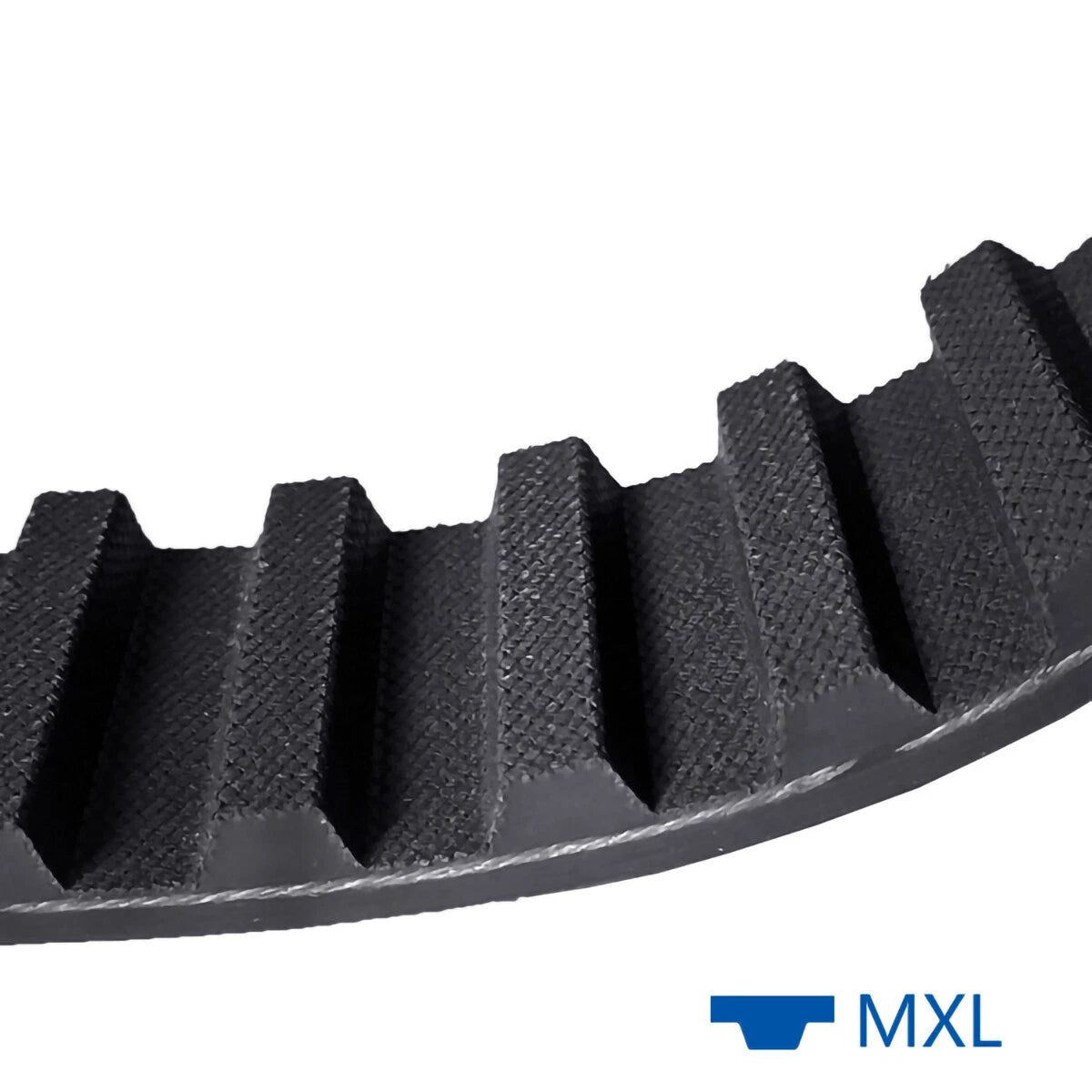

  • ⚙️Standardized MXL Tooth Profile — 2.032mm (0.080") pitch conforms to the MXL industry standard, ensuring consistent mesh with any MXL-spec pulley for accurate stepper motor positioning.
  • 📏Wide Size Selection — 208+ closed-loop sizes from 22MXL to 1636MXL let you find an exact replacement for CNC routers, laser cutters, and linear drive systems without custom cutting.
  • 🔩Fiberglass Tension Cord — Internal fiberglass cords resist stretching under cyclic load, maintaining consistent belt tension and reducing the need for frequent re-tensioning in CNC drive applications.
  • 🛡️Neoprene Rubber Body — The neoprene compound provides flexibility across a range of operating temperatures and offers moderate resistance to oils and mild lubricants found in workshop environments.
  • 🎯Synchronous Drive Design — Positive tooth engagement eliminates slippage between the belt and pulley, which is critical for maintaining step accuracy in CNC and 3D printer motion systems.
  • 🚀Drop-In Replacement Fit — Sized to match OEM MXL belt dimensions, making these a direct swap for worn or broken belts on desktop CNC machines, engravers, and stepper-driven actuators.

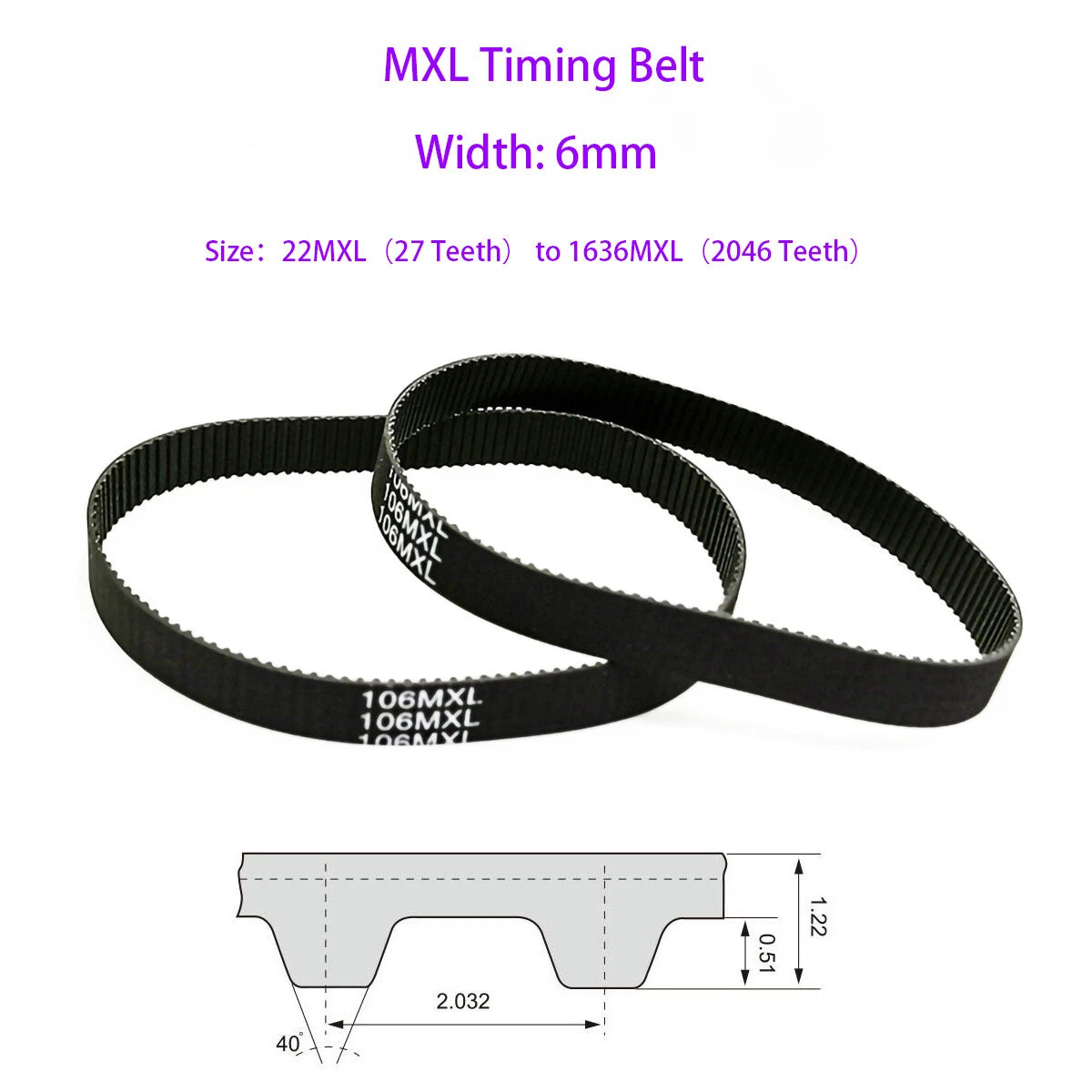

📐 Technical Specifications — MXL Timing Belt (6mm Width)

Belt Profile MXL (Miniature Extra Light)
Pitch 2.032mm (0.080")
Belt Width 6mm (≈0.236")
Tooth Count Range 27 teeth (22MXL) to 2046 teeth (1636MXL)
Circumference Range ≈44.5mm (≈1.75") to ≈3320mm (≈130.7")

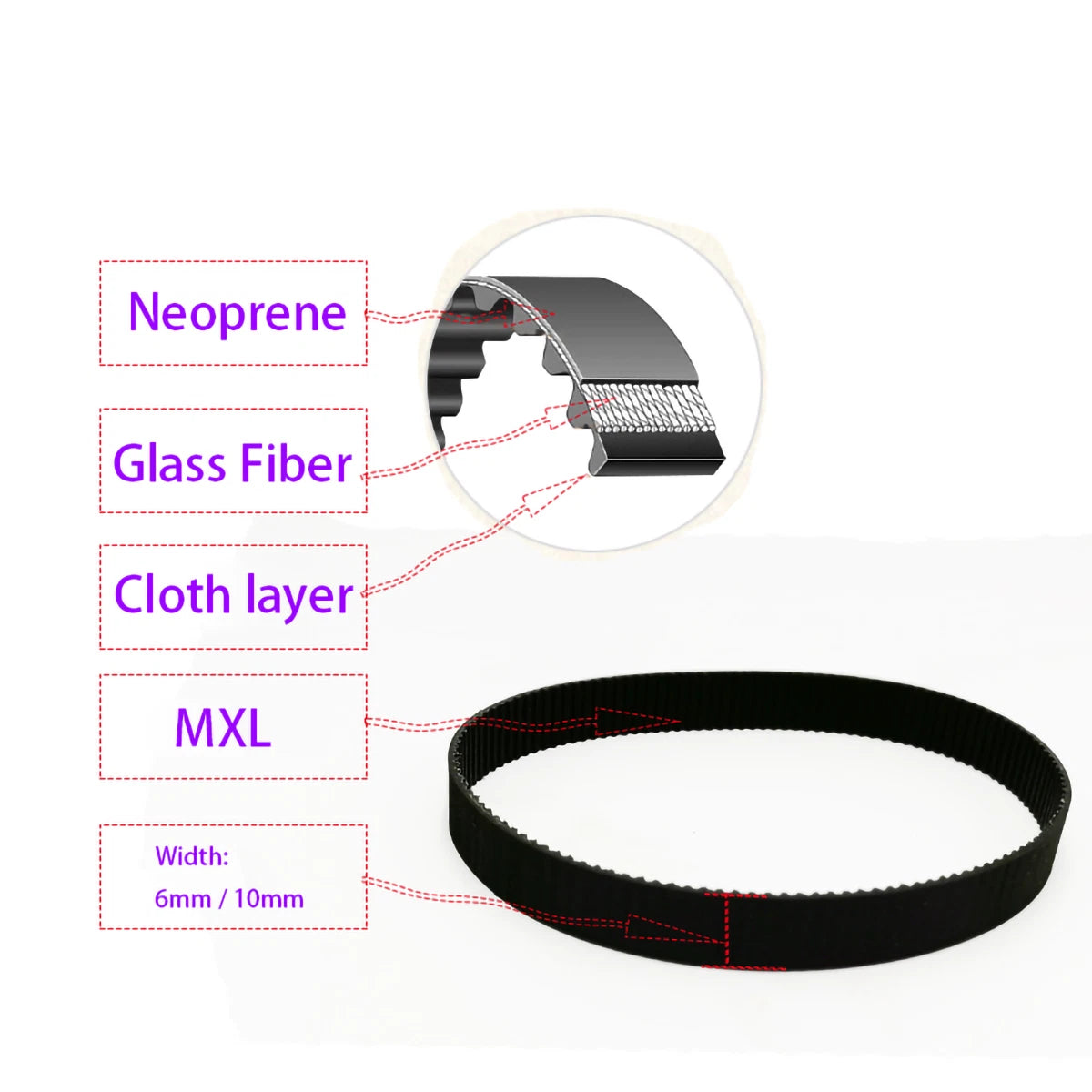

Belt Construction Neoprene rubber with fiberglass tension cord
Belt Type Closed-loop synchronous drive belt
Tooth Profile MXL standard (not compatible with GT2, HTD, or XL)
Quantity per Order 1 pcs
Typical Applications CNC routers, laser engravers, 3D printers, stepper motor drives
Working Load Capacity See variant options (light-duty precision drive; contact us to confirm)
Operating Temperature Contact us to confirm
⚠️ Size Selection Tip: The number before "MXL" represents the belt circumference in tenths of an inch (e.g., 100MXL = 10.0" = 254mm circumference). The number in parentheses is the tooth count. Match the tooth count to your pulley and verify the circumference fits your drive geometry before ordering.

❓ Frequently Asked Questions

How do I choose the right MXL belt size for my machine?

Count the number of teeth on your drive pulley and measure the center-to-center distance between pulleys. The belt circumference equals the number of teeth multiplied by the pitch (2.032mm / 0.080"). For example, a 100MXL belt has 125 teeth and a circumference of approximately 203.2mm (≈8.0"). Always verify against your machine's spec sheet or existing belt markings.

What does the MXL designation mean?

MXL stands for 'Miniature Extra Light' — a standardized tooth profile with a 2.032mm (0.080") pitch. It is widely used in light-duty precision motion applications such as CNC routers, 3D printers, and laboratory automation equipment.

What load or torque can an MXL timing belt handle?

MXL belts are designed for light-duty precision drives. Typical working tension is generally in the range of 10–40 N depending on belt width and speed. For higher torque requirements, consider upgrading to GT2 or HTD profiles. Contact us to confirm suitability for your specific application.

Can this belt be used outdoors or in wet environments?

These belts are generally suitable for indoor, dry-to-slightly-humid environments. Neoprene-based MXL belts typically offer moderate resistance to oils and mild chemicals, but prolonged exposure to UV, standing water, or harsh solvents may degrade performance over time. For outdoor or washdown applications, confirm material compatibility before ordering.

What pulley standard is compatible with this MXL belt?

This belt is compatible with standard MXL pulleys (2.032mm pitch, 0.080" pitch). Ensure your pulley tooth profile matches the MXL standard. MXL is not interchangeable with GT2, HTD, or XL profiles even if the pitch appears similar.

How do I read the size label, e.g., "100MXL (125 Teeth)"?

The number before 'MXL' represents the belt's pitch circumference in units of 0.1 inch (so 100MXL = 10.0" circumference = 254mm). The number in parentheses is the actual tooth count. Use the tooth count to match your pulley and the circumference to verify the belt loop length fits your drive geometry.

Is this belt suitable for 3D printers and CNC routers?

Yes. MXL timing belts are commonly used in desktop CNC routers, laser engravers, and older-generation 3D printers that use MXL pulleys. Verify your machine's belt specification (pitch, width, and tooth count) before ordering to ensure a direct fit.
