When a slipping or misaligned drive pulley brings your CNC router, 3D printer, or conveyor system to a halt, the cost is more than downtime — it's lost precision and wasted material. Engineers, makers, and machine builders who demand repeatable, zero-slip motion need a timing pulley they can trust. These 8M timing pulleys are engineered for synchronous belt drive systems where accurate speed ratios and consistent torque transmission are non-negotiable.

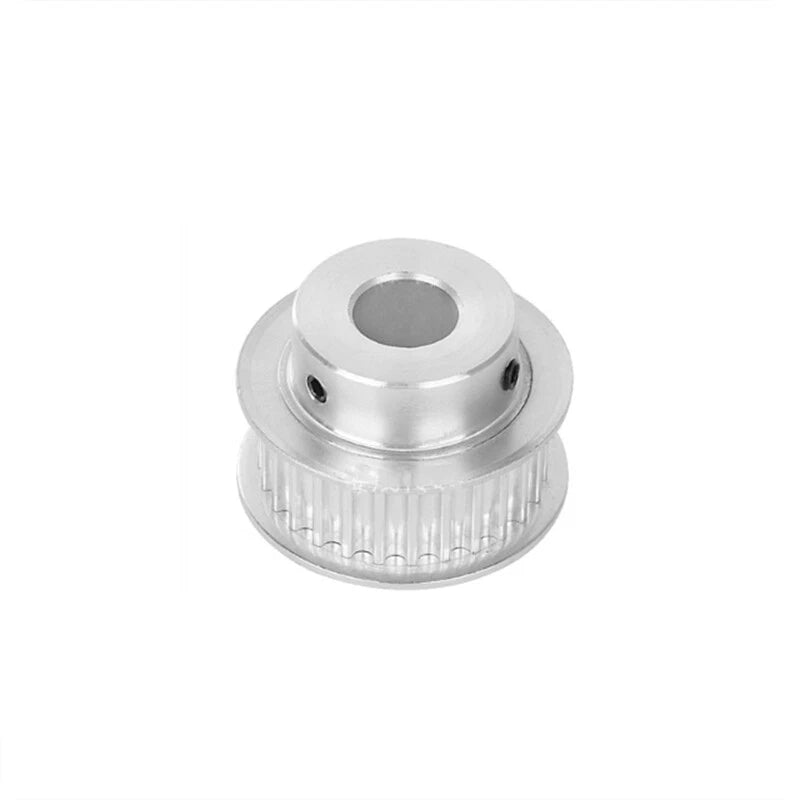

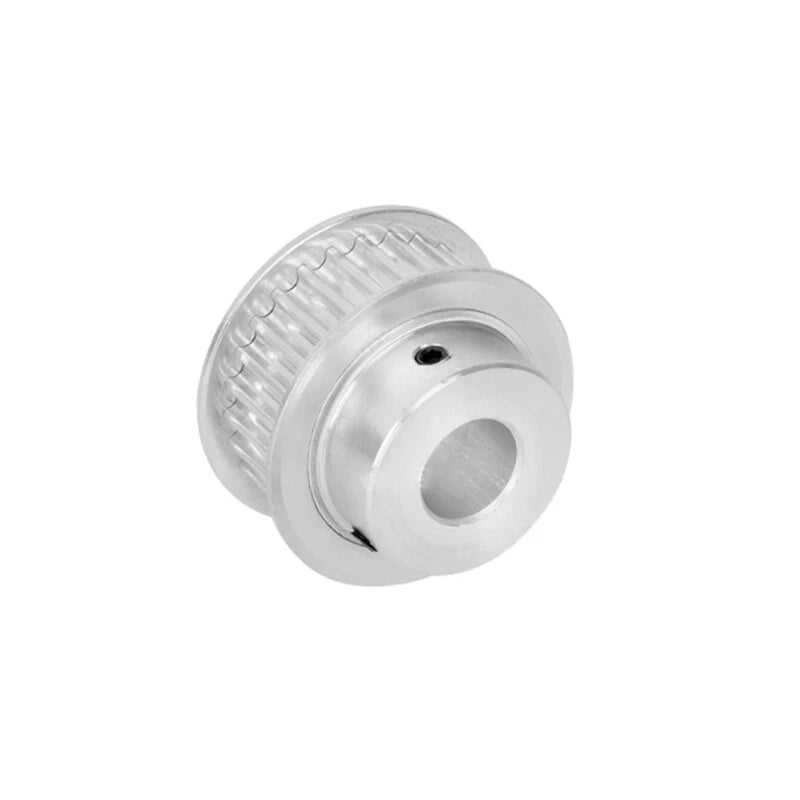

Each 8M timing pulley is machined to accept a 30mm-wide 8M pitch synchronous belt. Available in tooth counts from 12T to 26T and bore diameters from 8mm to 30mm (approximately 0.31" to 1.18"), with optional keyway configurations (3mm, 4mm, 5mm, 6mm, 8mm, and 10mm keyways) for positive shaft locking. The hub is typically 30–60mm in outer diameter depending on tooth count, with a flange on both sides to keep the belt tracking true.
Typical use cases include CNC router X/Y axis drives requiring tight positional accuracy, 3D printer extruder and motion systems needing consistent belt tension, and light industrial conveyor or indexing table drives where synchronous motion is critical. The 8M pitch profile is also widely used in laser cutter gantry systems and automated packaging equipment.
| Belt Pitch | 8M (8mm tooth pitch) |
|---|---|
| Belt Width | 30mm |
| Tooth Count | 12T, 14T, 15T, 16T, 18T, 20T, 22T, 24T, 25T, 26T |
| Bore Diameter | 8mm – 30mm (see variant options) |
| Keyway Options | Plain bore, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm keyway (see variant options) |

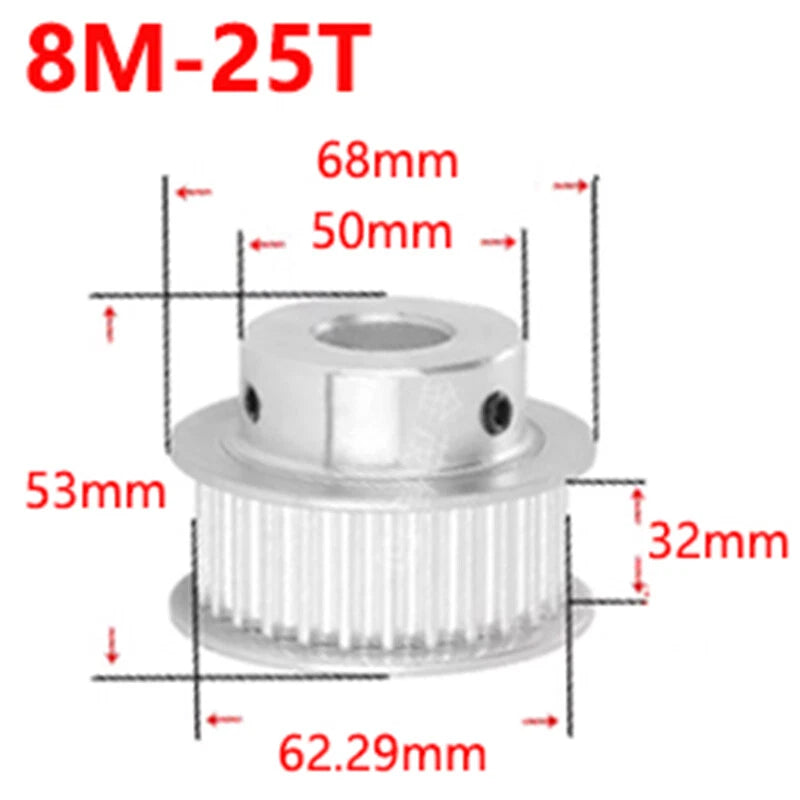

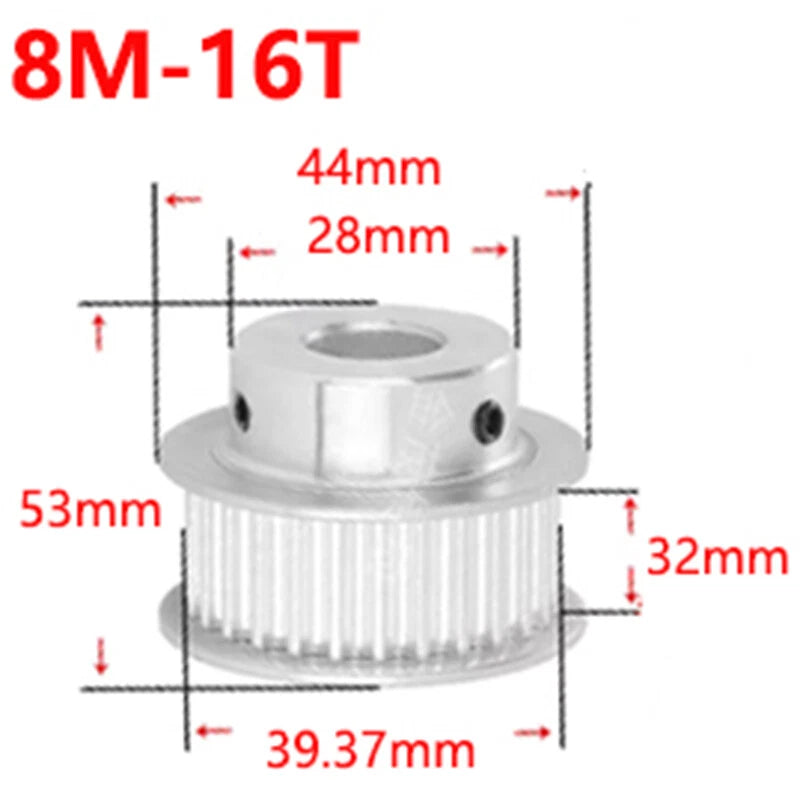

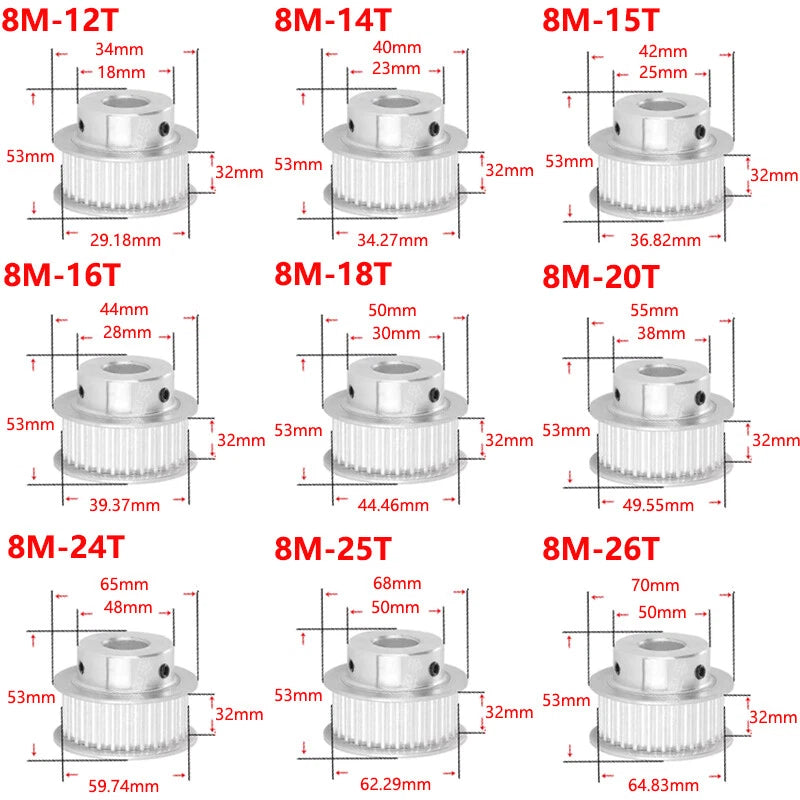

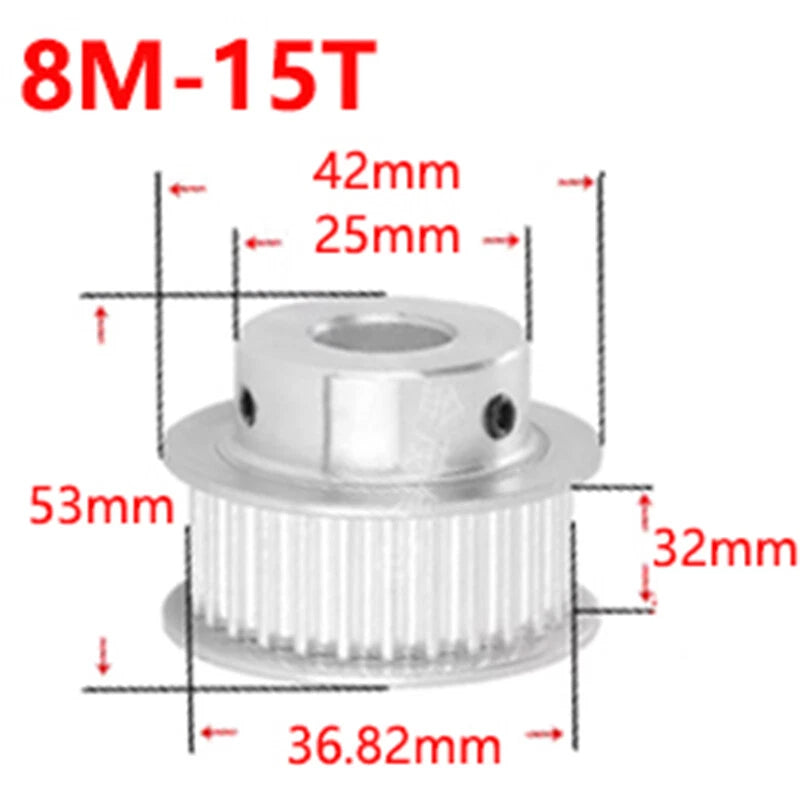

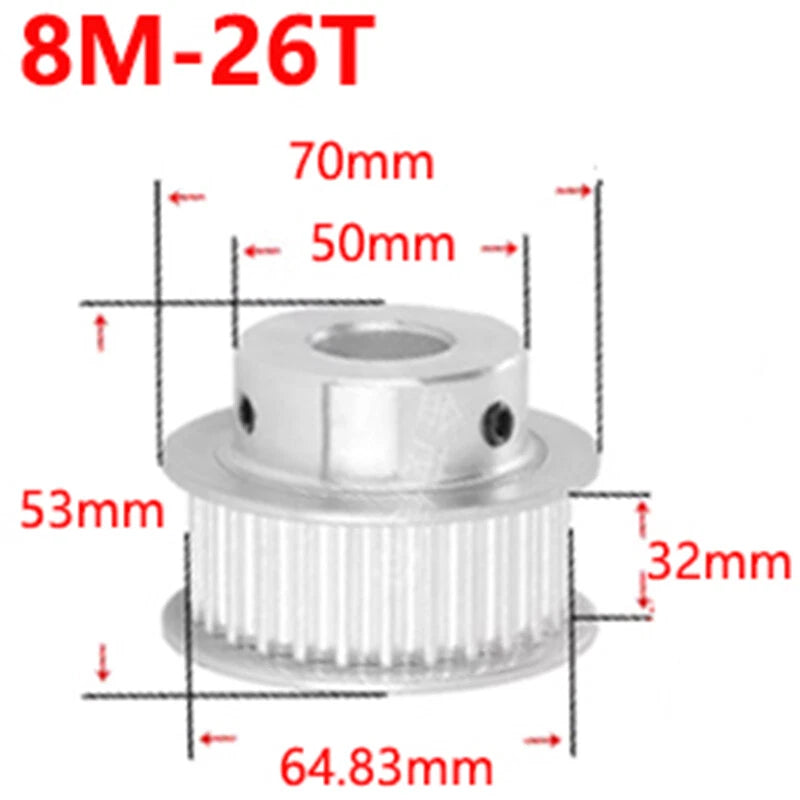

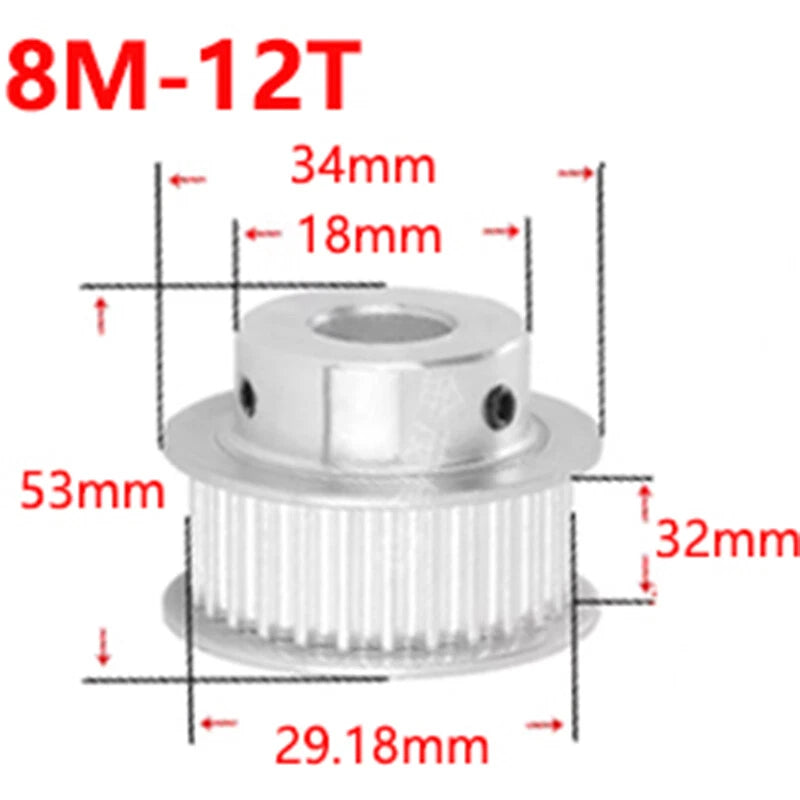

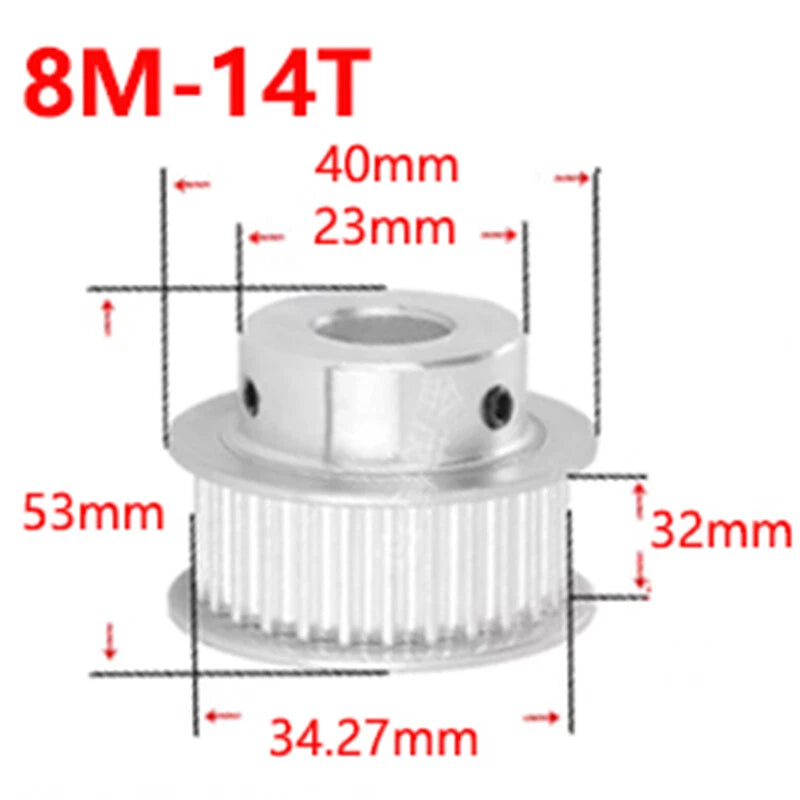

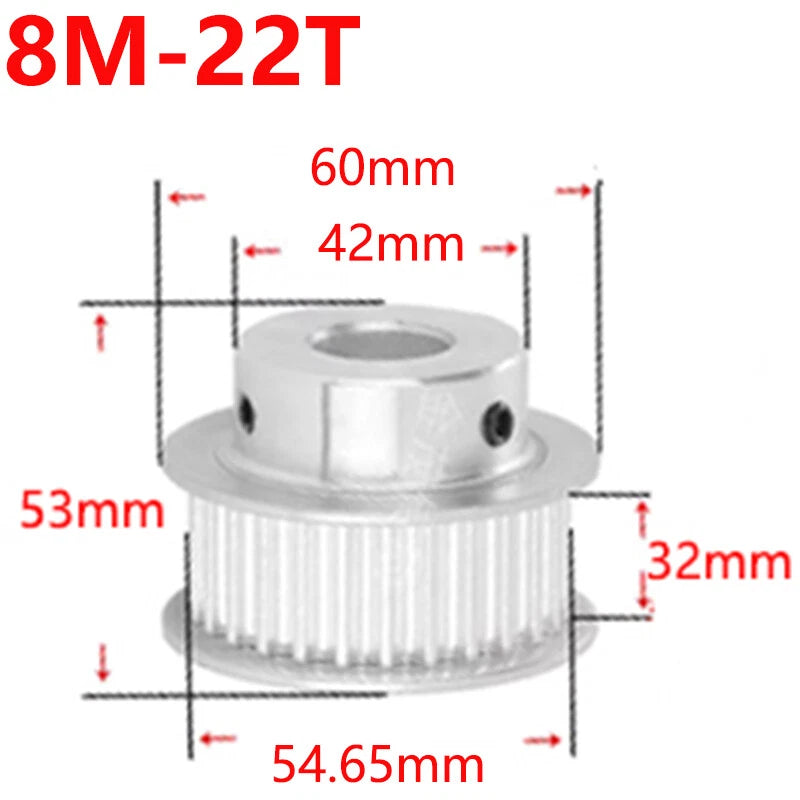

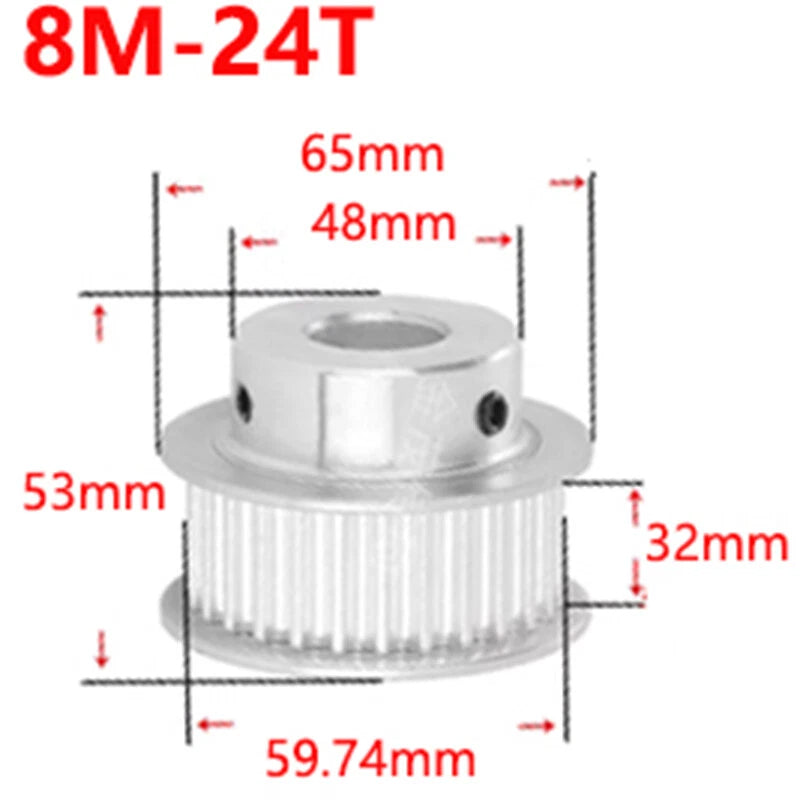

| Pitch Diameter (approx.) | Varies by tooth count: ~30.56mm (12T) to ~66.21mm (26T) |
| Flange | Dual flange (both sides) |
| Material | See variant options |
| Finish | See variant options |
| Weight | See variant options |
Tooth count determines the pitch diameter of the pulley, which sets your speed ratio when paired with a driven pulley. More teeth = larger diameter = lower output speed for a given input RPM. For CNC and 3D printer axes, match the tooth count to your motion controller's steps-per-mm calculation. If you're replacing an existing pulley, count the teeth on the original or measure the pitch diameter.
Select a bore diameter that matches your motor or drive shaft diameter exactly. For example, a NEMA 23 stepper motor typically has a 6.35mm or 8mm shaft — choose the 8mm bore option for a direct fit. If your shaft has a keyway, select the matching keyway variant (e.g., 8mm bore with 3mm keyway). Measure your shaft with calipers before ordering.

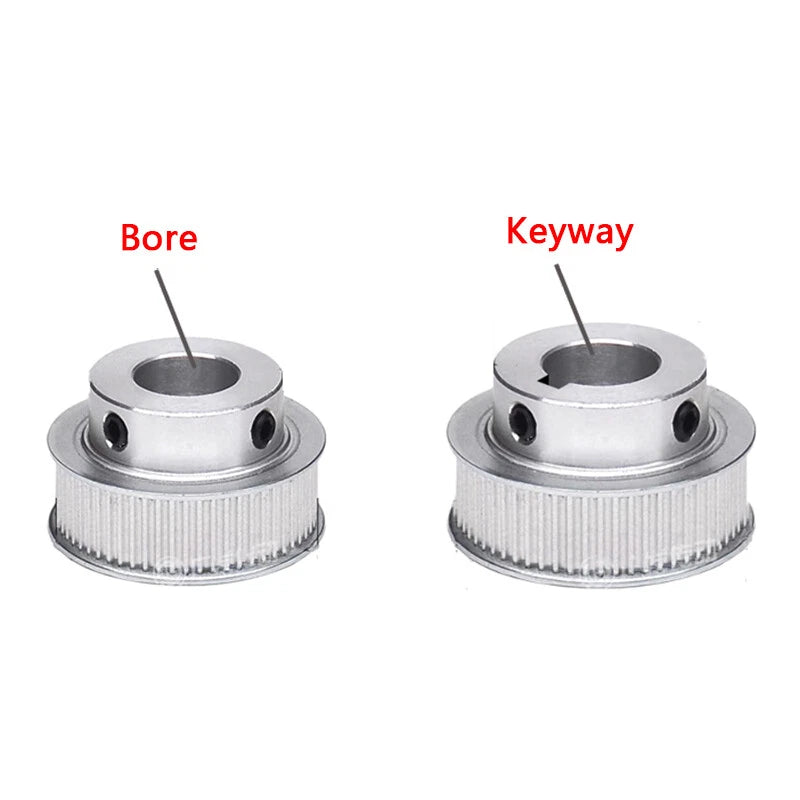

For light-duty or low-torque applications (such as 3D printer motion systems), a plain bore with a set screw is typically sufficient. For higher-torque applications — such as CNC router drives, conveyor systems, or servo motor outputs — a keyway provides a positive mechanical lock that prevents rotational slippage under load. If your shaft already has a keyway machined into it, always use the matching keyway pulley variant.
Yes. These pulleys are designed to the standard 8M tooth profile and are compatible with any 8M pitch synchronous belt (also called HTD 8M or 8M-30 for 30mm width). Ensure your belt width is 30mm to match the pulley's belt groove width. Using a narrower or wider belt will reduce performance and may cause tracking issues.

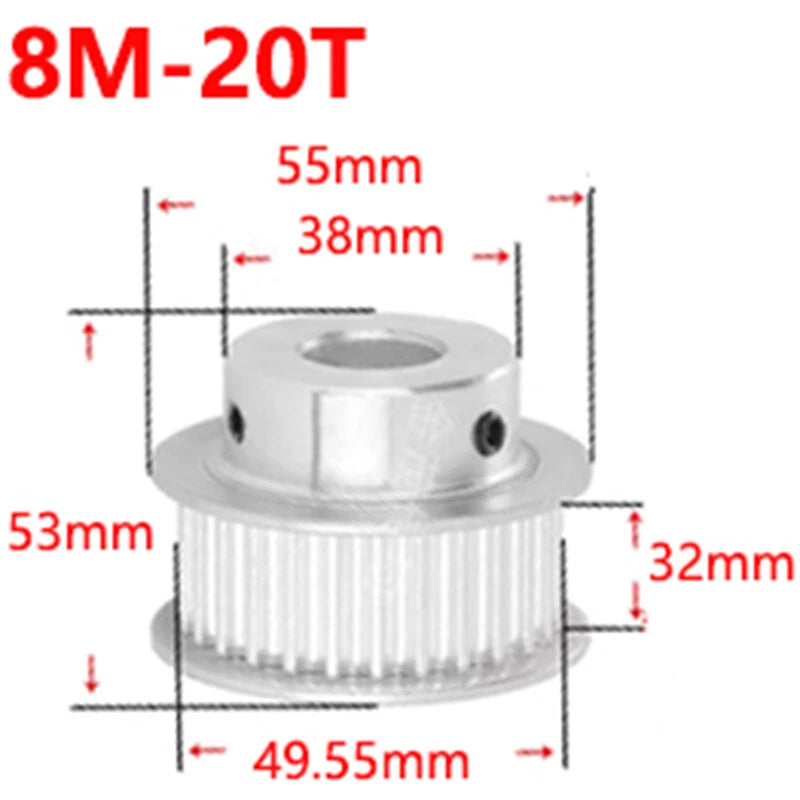

The pitch diameter (PD) of an 8M pulley is calculated as: PD = (Number of Teeth × Pitch) ÷ π = (T × 8) ÷ 3.1416. For example, a 20-tooth pulley has a PD of approximately 50.93mm (~2.01"). Use this value to calculate your belt speed and speed ratio when designing your drive system.
Yes. The dual-flange design keeps the belt centered during both forward and reverse operation, making these pulleys suitable for bidirectional CNC axes, robotic joints, and indexing tables. For high-cycle reversing applications, ensure your belt tension is correctly set to avoid premature wear on the tooth flanks.
8M refers to an 8mm tooth pitch (center-to-center distance between teeth). GT2 has a 2mm pitch and is common in desktop 3D printers for light loads. 5M has a 5mm pitch for medium loads. 8M is designed for higher torque and heavier loads — typical in industrial CNC machines, servo-driven conveyors, and large-format 3D printers. These pulleys are not interchangeable with GT2 or 5M belts.
