When a misaligned belt or a noisy, binding pulley brings your build to a halt, the root cause is almost always a low-tolerance wheel that can't hold its groove under load. Engineers, makers, and repair technicians who work with 3D printers, CNC routers, and conveyor assemblies need a U groove guide pulley wheel 608ZZ that stays true at speed and resists wear over thousands of cycles.

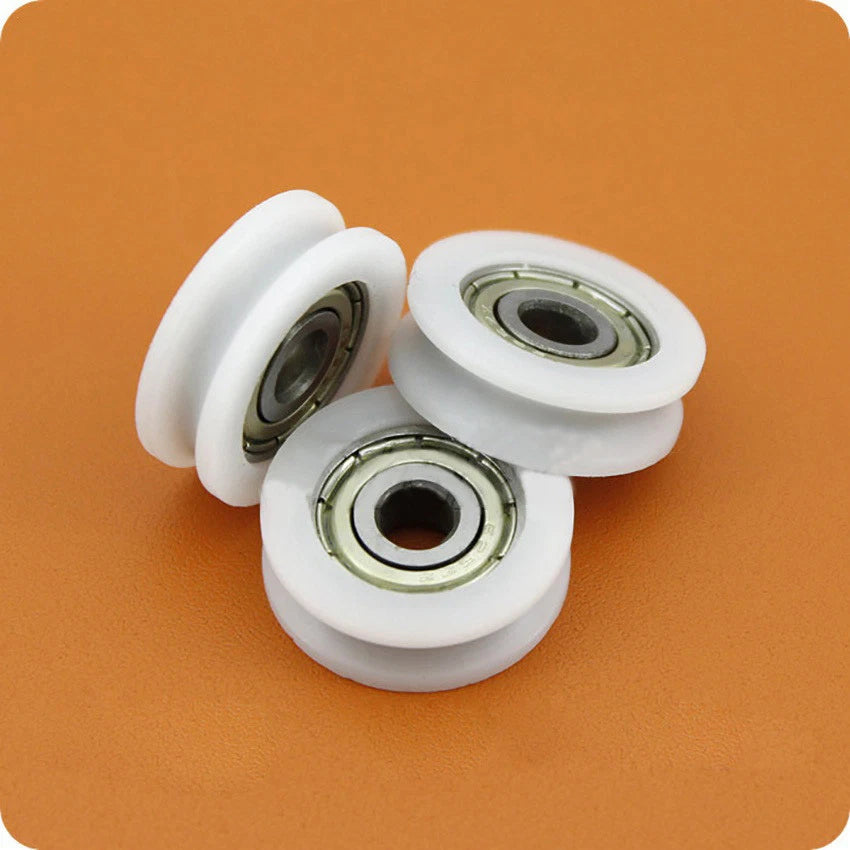

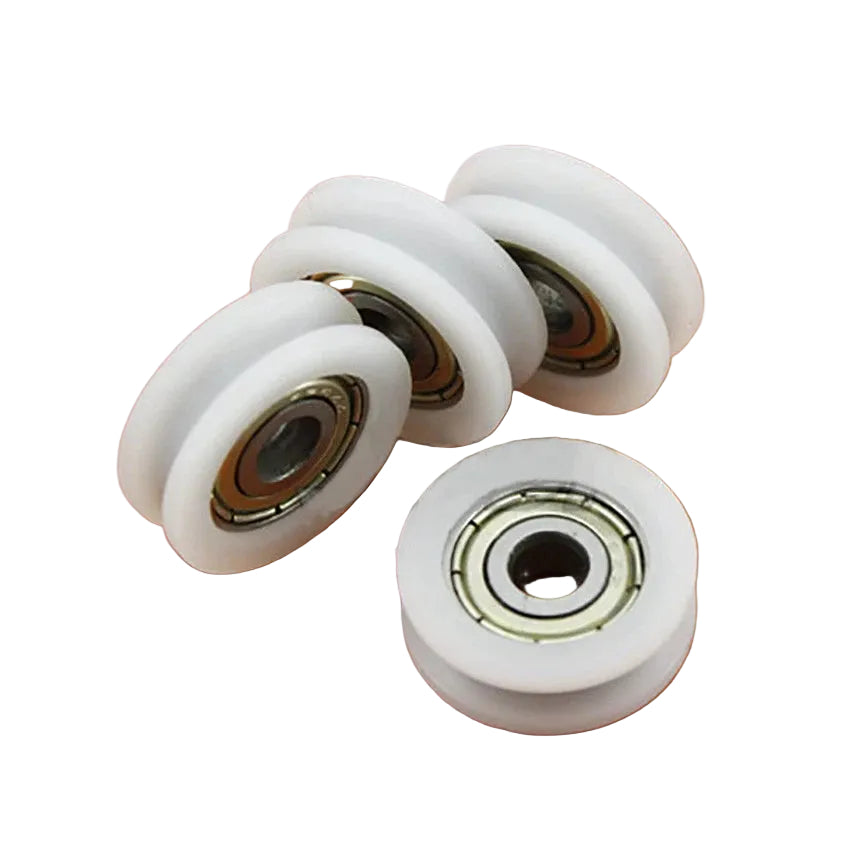

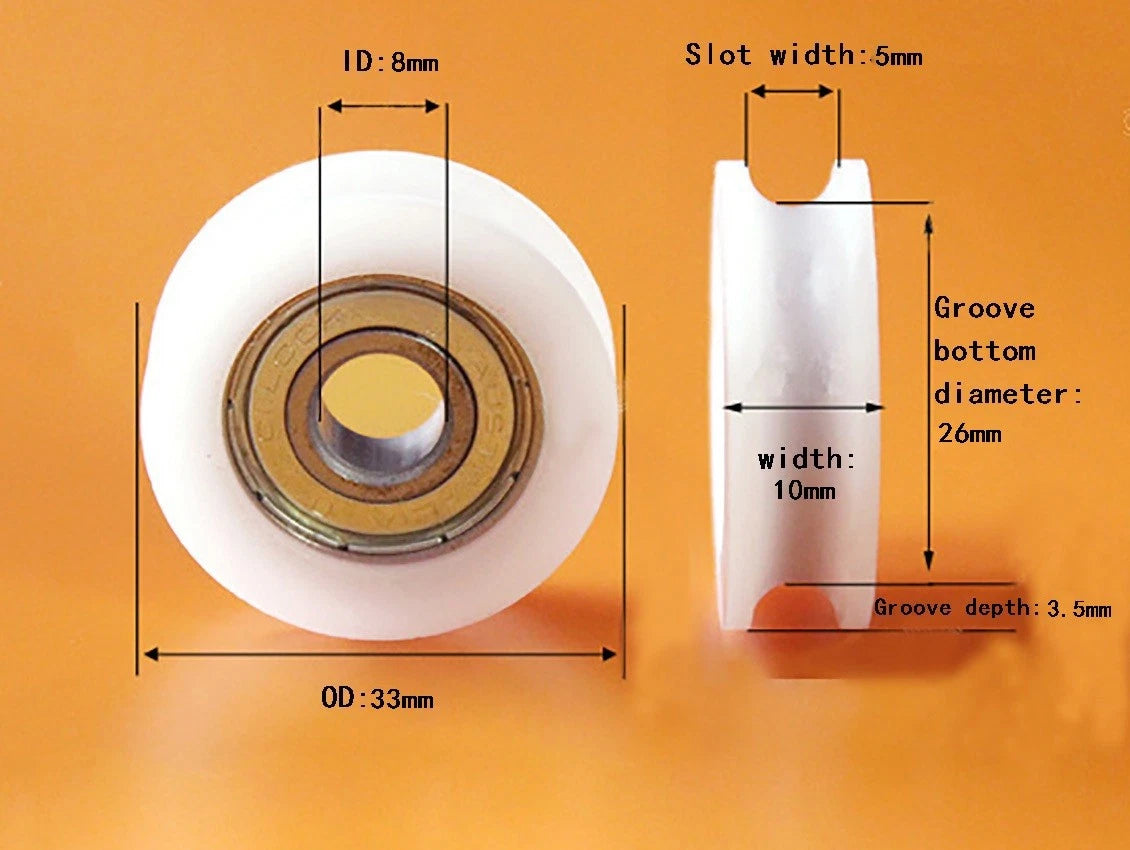

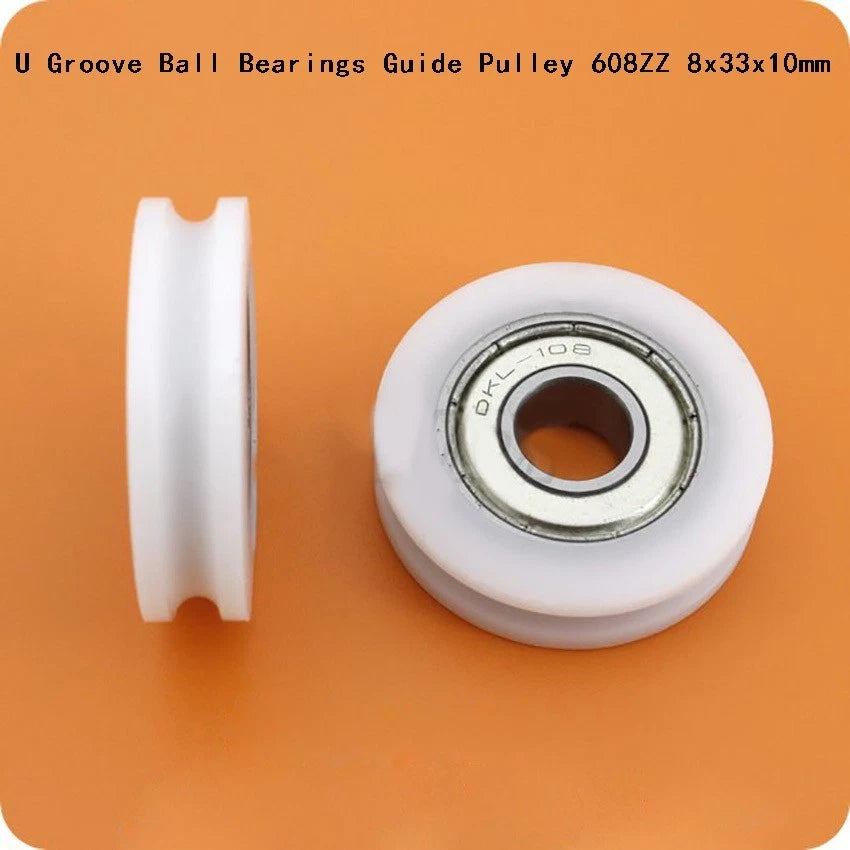

This pulley wheel measures 8mm inner diameter × 33mm outer diameter × 10mm width (approx. 0.31" × 1.30" × 0.39"). The outer wheel body is molded from engineering-grade nylon, while the core houses a pre-lubricated 608ZZ deep-groove ball bearing with steel races and a full complement of balls for radial load support.
Typical applications include GT2/T5 belt tensioner idlers on FDM 3D printers, V-slot or round-rail linear guide systems, small conveyor belt redirectors, and rope or cable guide pulleys in light mechanical assemblies. The U-shaped groove profile keeps round belts, cords, and cables centered without additional flanges or retainers.
Each pulley ships with a factory-installed, pre-lubricated 608ZZ deep-groove ball bearing pressed flush into the nylon hub — no press-fit tools or separate assembly required.
Inner bore of exactly 8mm fits M8 bolts and 8mm shafts without slop. The 33mm outer diameter and 10mm width are machined to tight tolerances for repeatable belt tracking.
The outer pulley is molded from reinforced nylon, offering a balance of rigidity and slight flex that absorbs vibration, reduces operating noise, and resists abrasion from belt contact.
The 608ZZ bearing's steel ball complement and grease fill keep rolling resistance minimal, so belt-driven axes and tensioner idlers run quietly even at elevated cycle rates.
Nylon is inherently resistant to moisture, mild chemicals, and oxidation. The 608ZZ bearing's shielded design (ZZ suffix) blocks dust and debris from contaminating the grease pack.
Available in 1, 4, 10, and 16-piece quantities so you can order exactly what a single repair, a full printer build, or a multi-axis CNC machine demands — no excess inventory.
| Inner Diameter (Bore) | 8mm (0.31") |
|---|---|
| Outer Diameter | 33mm (1.30") |
| Width (Thickness) | 10mm (0.39") |
| Groove Profile | U Groove |
| Bearing Type | 608ZZ Deep-Groove Ball Bearing |
| Wheel Material | Engineering-Grade Nylon |
| Bearing Shield | Double-shielded (ZZ) |
| Shaft / Bolt Compatibility | 8mm shaft or M8 bolt |
| Suitable Belt / Cord Diameter | Typically 4–10mm (round belt, O-ring, cord) |
| Available Quantities | 1 Pcs, 4 Pcs, 10 Pcs, 16 Pcs |
| Color | See variant options |
| Max Radial Load | See variant options |
The inner bore is 8mm, so this pulley fits any 8mm diameter shaft or an M8 bolt used as a fixed axle. If you need to use a smaller shaft, a sleeve bushing can be added, but the wheel is designed for a direct 8mm fit.
The U-shaped groove is optimized for round cross-section belts, O-rings, ropes, and cords typically ranging from 4mm to 10mm in diameter. It is not designed for flat belts or toothed (GT2/HTD) timing belts, which require a matching tooth profile.
Yes. The 608ZZ is a globally standardized bearing size. If the bearing eventually wears, a replacement 608ZZ can be pressed out and a new one pressed in using a bearing press or a simple bolt-and-socket method. Replacement 608ZZ bearings are widely available.
Engineering-grade nylon resists moisture absorption and mild chemical exposure well, making it suitable for workshop and light outdoor enclosure use. The double-shielded (ZZ) bearing prevents dust and debris from entering the grease pack. For continuous immersion or aggressive chemical environments, contact us to confirm suitability.
This pulley is commonly used as a tensioner idler for round belts and cords on FDM 3D printers and similar machines. However, if your printer uses GT2 or other toothed timing belts, you will need a toothed idler pulley with a matching tooth profile instead of this smooth U groove wheel.
Order 1 Pcs for a single replacement or prototype test. Choose 4 Pcs for a typical dual-axis machine build (e.g., CoreXY printer with multiple idler points). The 10 Pcs and 16 Pcs packs offer a lower per-unit cost and are suited for multi-machine builds, production runs, or keeping spares on hand for maintenance.
A 608Z has a single metal shield on one side, while a 608ZZ (used in this pulley) has double metal shields on both sides. The double-shielded design provides better protection against dust and debris from both faces of the bearing, extending service life in typical workshop conditions.
