When a seized bearing brings a motor, skateboard wheel, or conveyor shaft to a grinding halt, the fix demands a dimensionally accurate replacement — not a guess. Engineers, repair technicians, and DIY builders who need a drop-in deep groove ball bearing with a confirmed bore and outer diameter will find the S6200Z through S6212Z series covers the most common metric sizes in a single listing.
Each bearing is manufactured from bearing steel with a single metal shield (Z suffix) on one side, leaving the opposite face open for lubrication access. The range spans inner diameters from 10 mm (0.394 in) to 60 mm (2.362 in), outer diameters from 30 mm (1.181 in) to 110 mm (4.331 in), and widths from 9 mm (0.354 in) to 22 mm (0.866 in). Available in packs of 1 or 3 pieces to suit single-unit repairs or multi-axis builds.
Typical applications include electric motor shaft support, inline skate and skateboard wheel axles, small agricultural equipment, 3D printer carriage rails, and light industrial conveyor rollers — anywhere a compact radial load bearing with a standardized metric bore is required.
Manufactured from bearing-grade steel for consistent hardness and fatigue resistance under sustained radial loads in rotating machinery.
One-side metal shield keeps contaminants out of the raceway while the open side allows re-lubrication — suited for moderate-dust environments.
S6200Z through S6212Z covers ID 10–60 mm and OD 30–110 mm, eliminating the need to source from multiple listings for a multi-axis project.
The deep groove profile handles both radial and moderate axial (thrust) loads in either direction, making these bearings versatile across motor and wheel applications.
Order a single replacement or a 3-pack for multi-bearing assemblies — both options are available for every size in the range.
Dimensions conform to ISO 15 metric deep groove ball bearing standards, ensuring interchangeability with OEM and aftermarket housings worldwide.

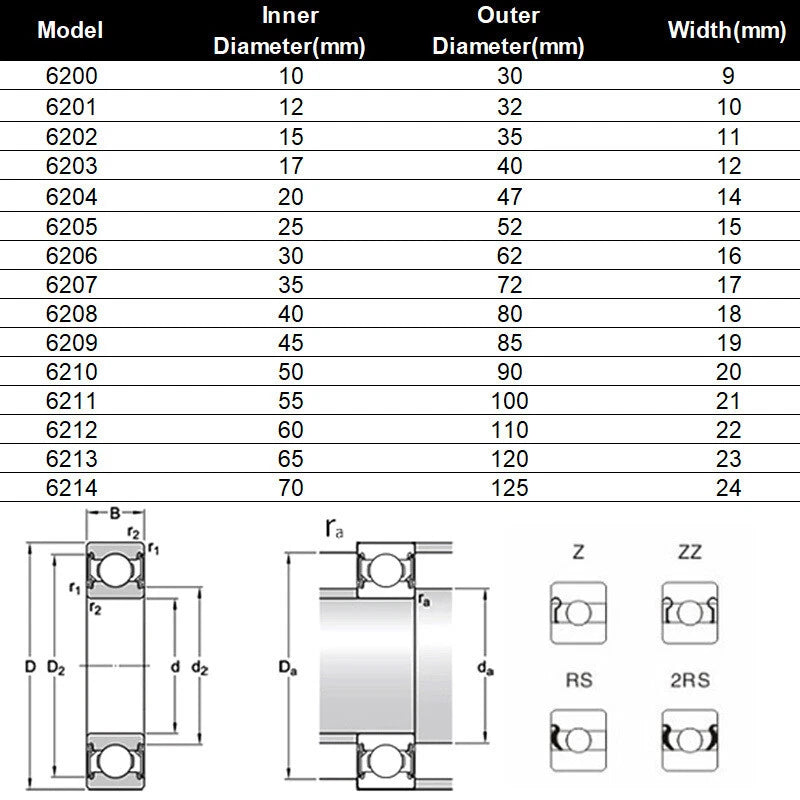

| Bearing Series | S6200Z – S6212Z |
|---|---|
| Bearing Type | Deep Groove Ball Bearing |
| Shield Type | Single Metal Shield (Z, one side) |
| Material | Bearing Steel |
| Inner Diameter (ID) | 10 mm – 60 mm (0.394 in – 2.362 in) |
| Outer Diameter (OD) | 30 mm – 110 mm (1.181 in – 4.331 in) |
| Width | 9 mm – 22 mm (0.354 in – 0.866 in) |
| Available Sizes | S6200Z, S6201Z, S6202Z, S6203Z, S6204Z, S6205Z, S6206Z, S6207Z, S6208Z, S6209Z, S6210Z, S6211Z, S6212Z |
| Pack Quantity | 1 pcs or 3 pcs (select via variant) |
| Dimensional Standard | ISO 15 |
| Load Direction | Radial + moderate axial (both directions) |
| Lubrication | See variant options |
| Operating Temperature | See variant options |
| Cage Material | See variant options |
Match the inner diameter (ID) to your shaft diameter and the outer diameter (OD) to your housing bore. The width must also fit within the available axial space. Use the variant name format — for example, S6204Z 20*47*14 means ID 20 mm, OD 47 mm, Width 14 mm — to confirm all three dimensions before ordering.
The Z suffix indicates a single metal shield on one side of the bearing. This shield reduces contamination ingress from one direction while keeping the opposite side open for re-lubrication. If you need shielding on both sides, look for ZZ-suffix bearings instead.
These bearings are made from bearing steel, which offers good mechanical strength and fatigue resistance but is not inherently stainless. For wet, washdown, or corrosive environments, consider stainless steel deep groove ball bearings (typically designated with an SS or 440C prefix). In dry or lightly oiled conditions, bearing steel performs reliably.
Deep groove ball bearings can accommodate moderate axial loads in both directions in addition to their primary radial load capacity. They are not designed for heavy or dominant thrust loads — for those applications, angular contact or thrust bearings are more appropriate.
Yes. These bearings follow ISO 15 standard metric dimensions, so they are dimensionally interchangeable with any housing or pillow block designed for the corresponding 62xx series metric deep groove ball bearing. Confirm the OD and width match your housing specification.
Order 1 pc for a single-point replacement or to test fitment before a larger purchase. The 3-pack is cost-effective for multi-bearing assemblies — such as a motor with bearings on both shaft ends plus a spare — or for stocking a commonly used size in your workshop.
Always apply installation force to the bearing ring that is being press-fitted. Use a bearing press or a correctly sized sleeve to push evenly on the inner ring when fitting to a shaft, and on the outer ring when fitting into a housing. Never strike the bearing directly with a hammer, as this can damage the raceways and balls. Ensure the shaft and housing are clean and within tolerance before installation.
