Inconsistent belt tension is one of the most common causes of print artifacts, layer shifting, and positioning errors in 3D printers and CNC routers. Whether you're maintaining a CoreXY build, a belt-driven gantry, or a CNC axis, these belt torsion springs are engineered to deliver steady, repeatable tension without manual re-adjustment. They are suited for makers, engineers, and workshop professionals who demand precision from their motion systems.

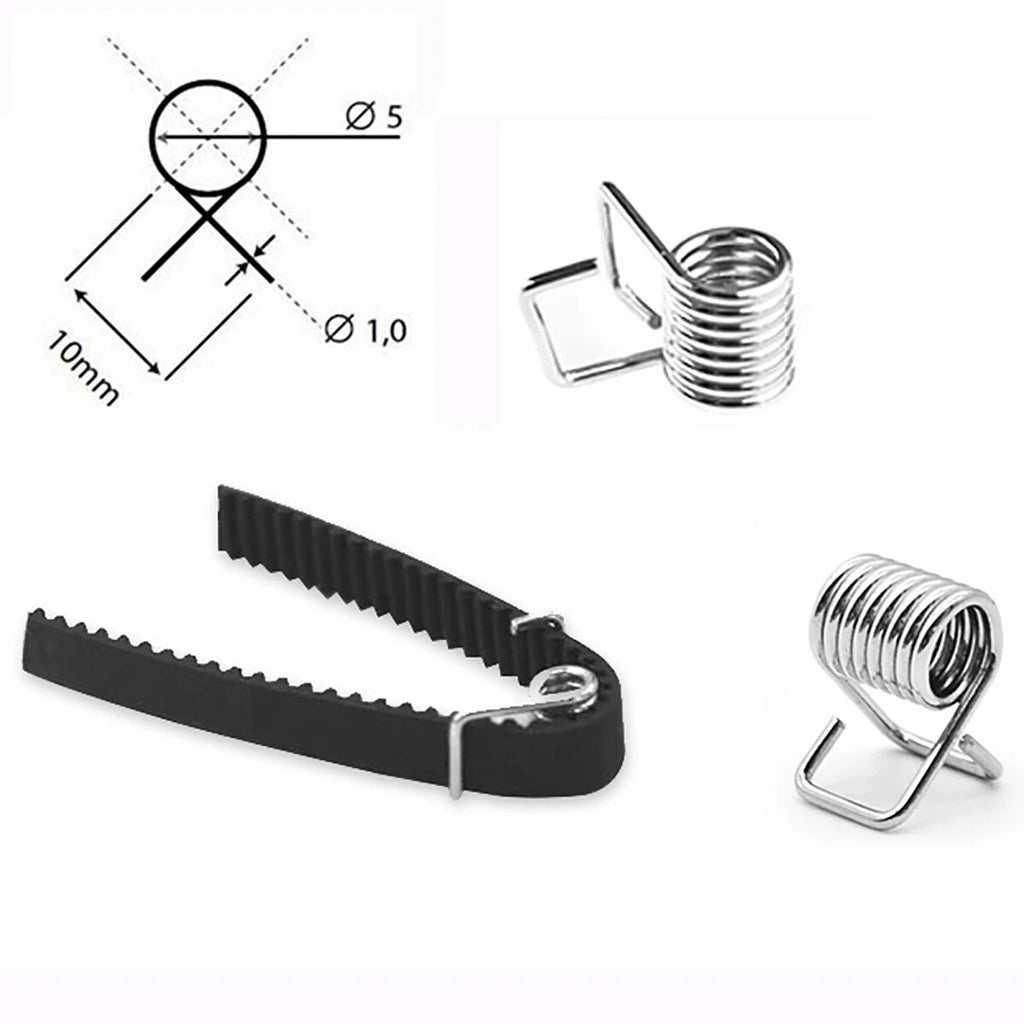

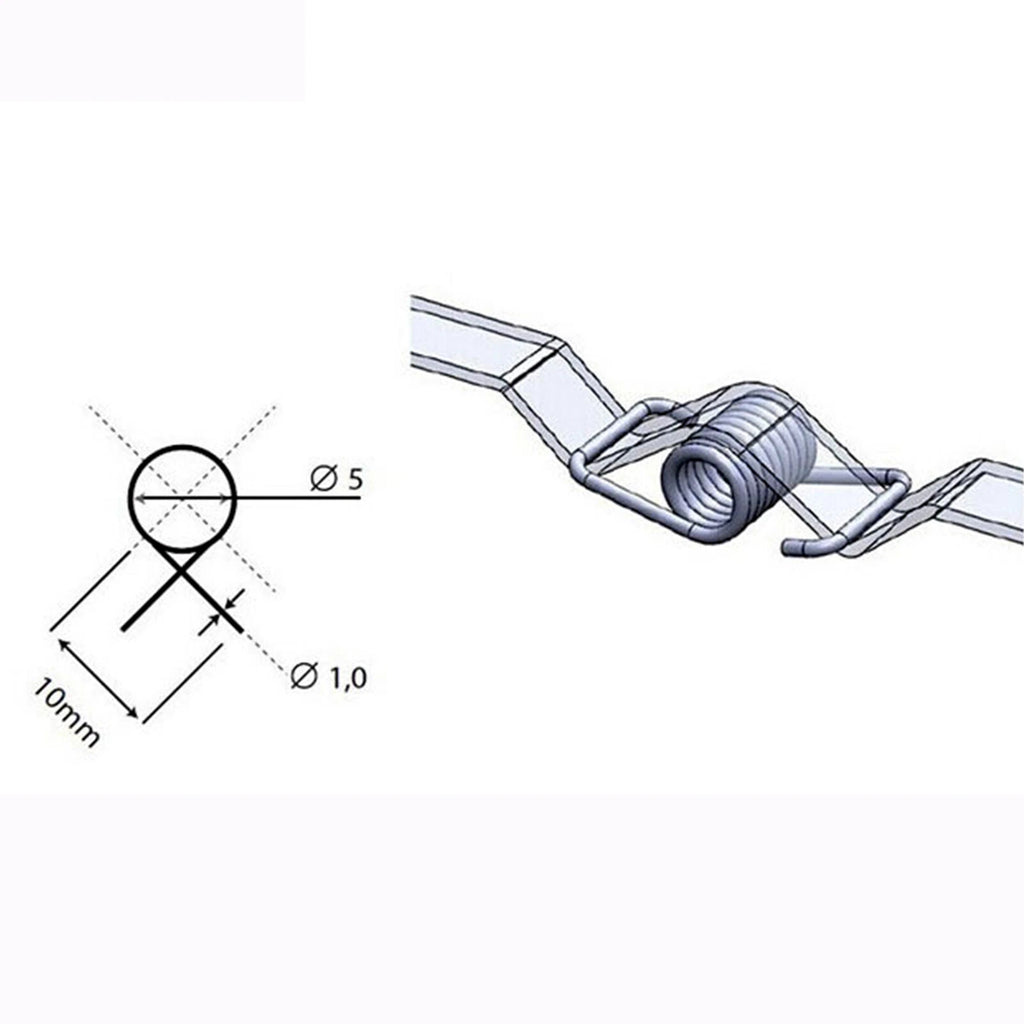

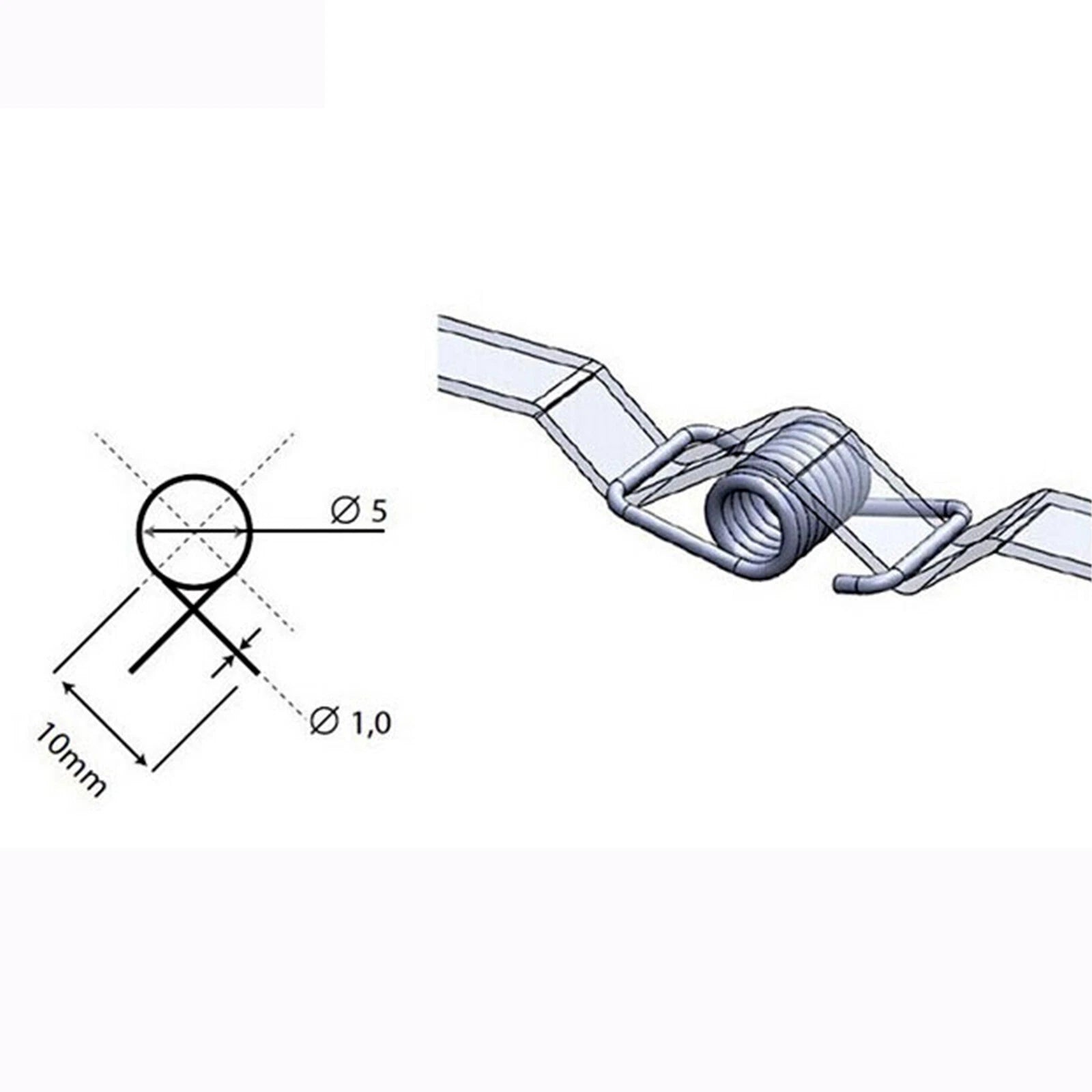

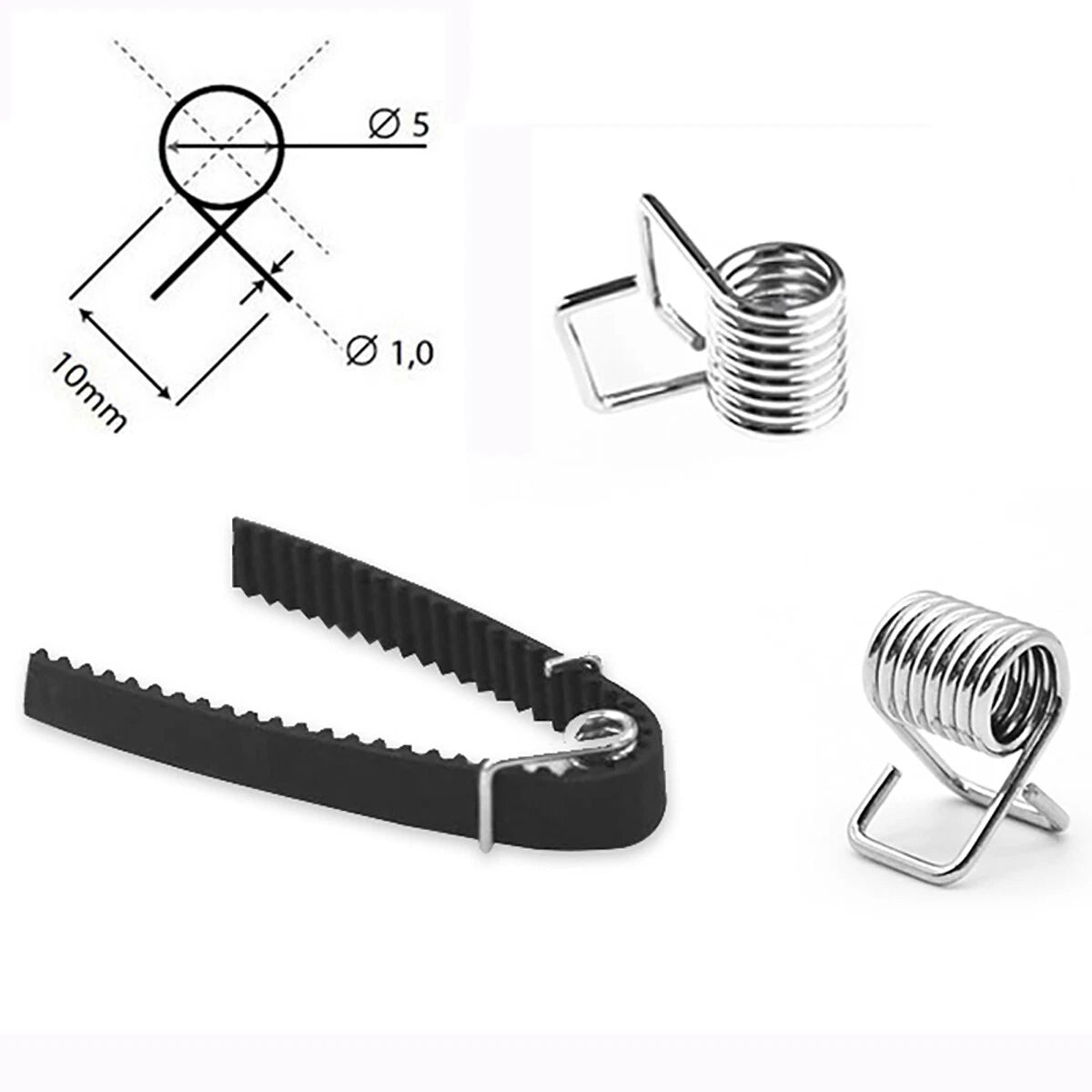

Each spring is manufactured from hardened steel wire with a consistent coil geometry. Available in two belt-width configurations — 6mm (~0.24 in) and 10mm (~0.39 in) — these torsion springs are compact enough to fit within standard belt tensioner housings. Wire diameter is typically 0.5–1.0mm (0.020–0.039 in), with an outer coil diameter in the range of 4–12mm (0.16–0.47 in) depending on variant.
Typical use cases include belt tensioner assemblies on FDM 3D printers (e.g., Ender, Voron, RatRig), CNC router X/Y axis belt drives, and custom motion platforms requiring passive spring-loaded tension. Long-tail applications include "3D printer belt tensioner spring replacement", "CNC belt drive torsion spring", and "GT2 belt tension spring for CoreXY".
Available for 6mm and 10mm belt widths to match your specific printer or CNC axis configuration without modification.
Formed from hardened steel wire for consistent spring force and resistance to fatigue over extended duty cycles.
Designed to fit within tight tensioner housings common in 3D printer frames and CNC gantry assemblies.
Delivers repeatable spring tension to keep belts taut across temperature changes and long print or machining sessions.
Surface treatment helps resist oxidation in workshop environments, extending service life in varied humidity conditions.
Order one for a quick replacement or a 10-pack to stock your workshop for future builds and maintenance.
| Belt Width Compatibility | 6mm (~0.24 in) / 10mm (~0.39 in) |
|---|---|
| Material | Hardened steel |
| Wire Diameter | Typically 0.5–1.0mm (0.020–0.039 in) |
| Outer Coil Diameter | See variant options |
| Spring Type | Torsion |
| Finish | See variant options |
| Quantity per Order | 1 or 10 (select above) |
| Application | 3D printer belt tensioner, CNC belt drive |
Match the spring to your belt width. If your printer or CNC uses a standard GT2 6mm belt (common on most FDM printers), select the 6mm option. If your machine uses a wider 10mm belt for higher torque or load capacity, select the 10mm option. Check your belt markings or tensioner housing width if unsure.
These torsion springs are designed to fit standard belt tensioner assemblies used across popular FDM printer platforms. The 6mm variant is compatible with most Ender-series, Voron, and RatRig builds that use GT2 6mm belts. Always verify your tensioner bracket's spring pocket dimensions before ordering.
The torsional force is calibrated for typical belt tensioner applications — firm enough to maintain consistent belt tension during printing or machining, but not so stiff as to overload idler bearings. Exact spring rate varies by variant; contact us if you need specific force values for engineering calculations.
Yes. The springs feature a surface treatment that provides resistance to oxidation and light moisture exposure typical of workshop environments. For high-humidity or outdoor enclosures, we recommend periodic inspection and replacement as part of routine maintenance.
Yes. These torsion springs are suitable for any belt-driven motion system that uses 6mm or 10mm wide timing belts, including CNC routers, laser cutters, and custom automation platforms. Ensure the spring fits your tensioner bracket geometry before installation.
If you maintain multiple machines or build custom printers and CNC systems regularly, the 10-pack offers a cost-effective way to keep spares on hand. Springs are wear items and can fatigue over time, so having replacements ready minimizes downtime during builds or maintenance sessions.
A torsion spring applies rotational force around its axis, making it ideal for spring-loaded tensioner arms that pivot to maintain belt contact. A tension (extension) spring pulls linearly. Belt tensioner designs that use a pivoting arm or lever typically require a torsion spring like this one.
