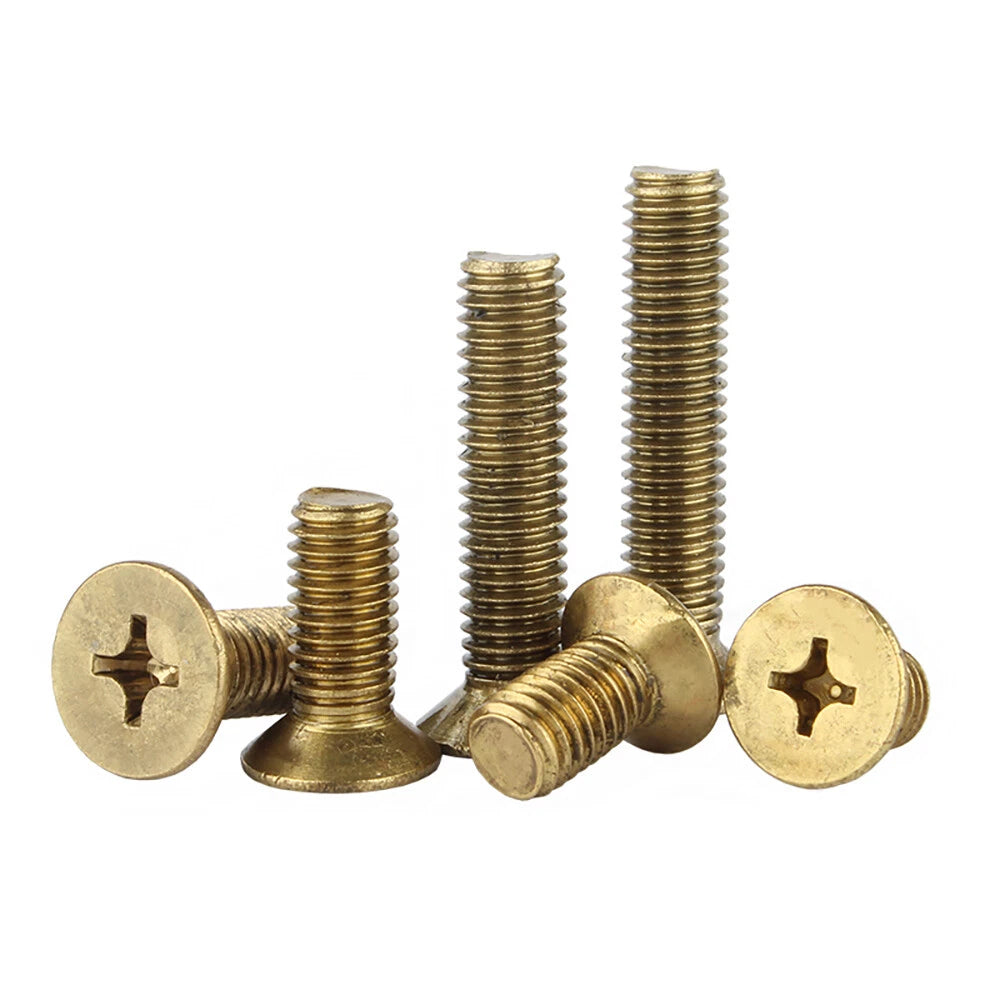

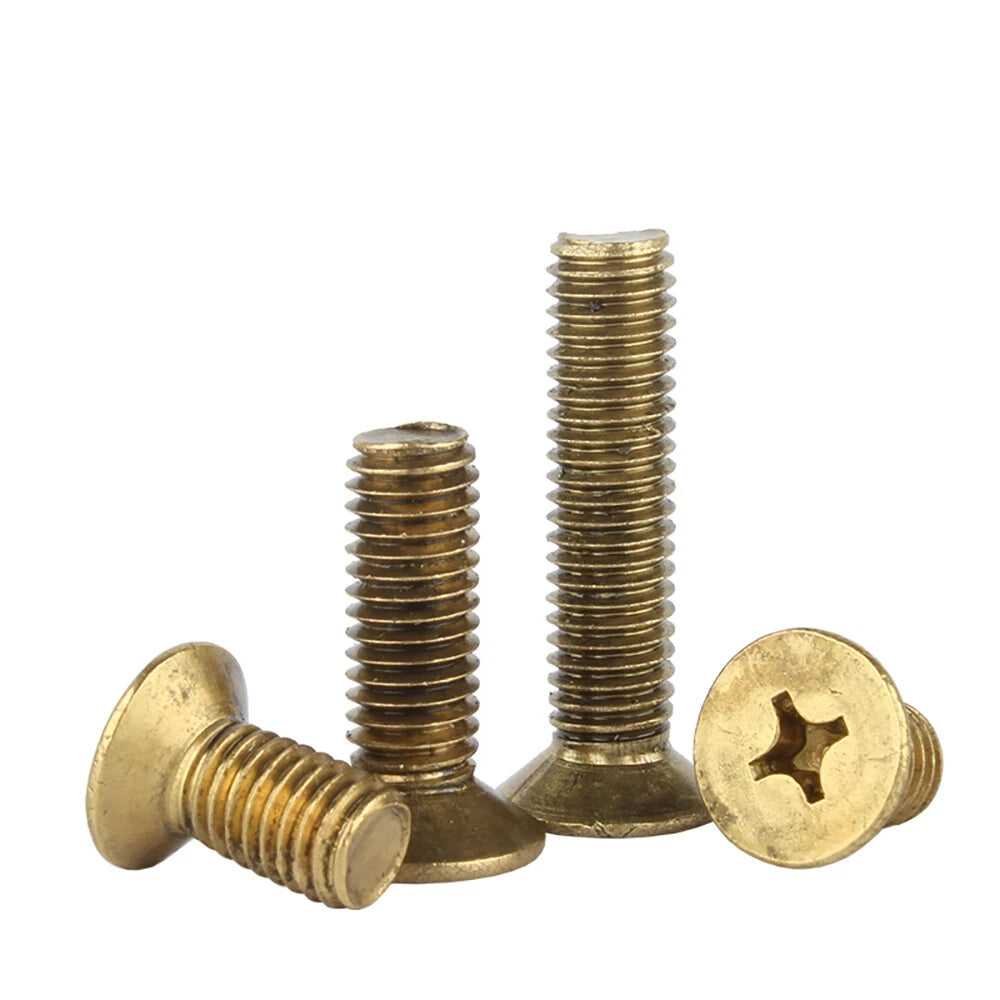

A screw head that sticks up where it shouldn't is more than an eyesore — it catches fingers, snags fabric, and ruins a clean finish. These brass Phillips and Pozi countersunk machine screws are built for woodworkers, furniture makers, instrument builders, and hardware enthusiasts who need a fastener that disappears into the surface and stays there. The flat conical head seats flush with or below the material for a smooth, professional result every time.

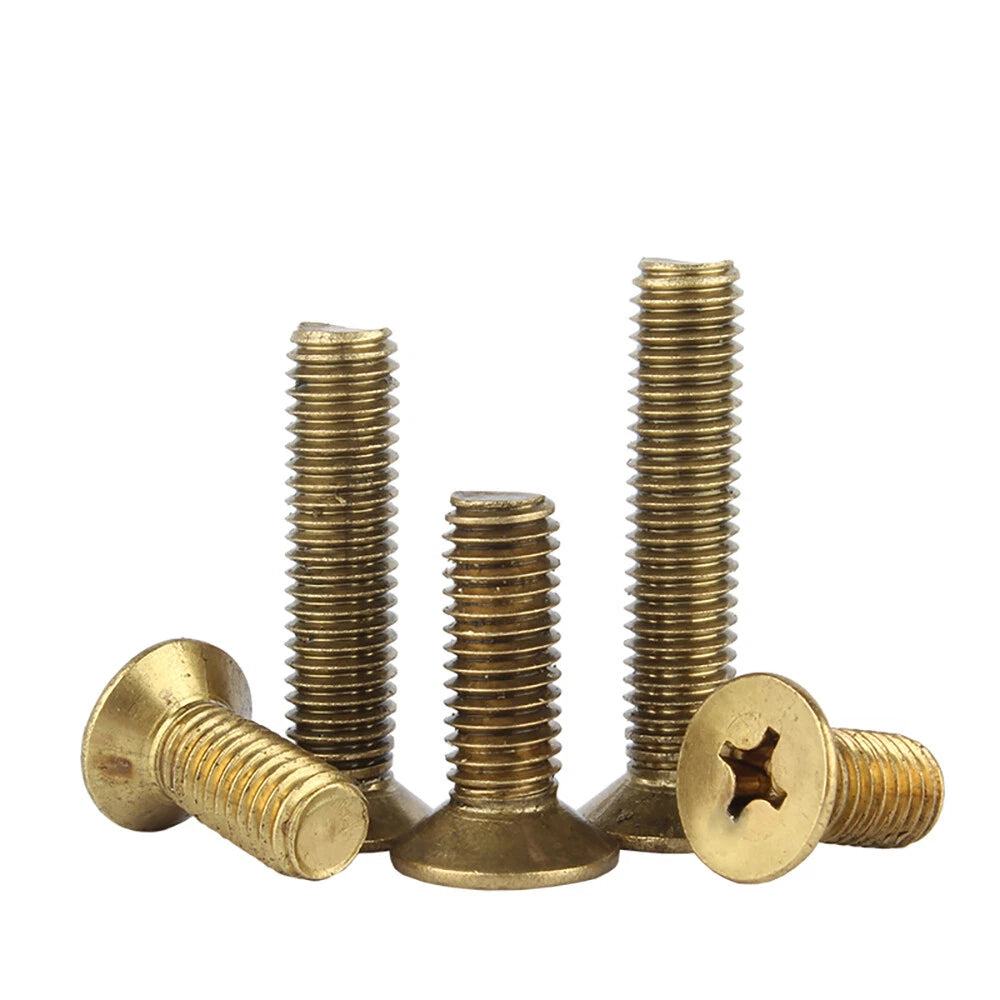

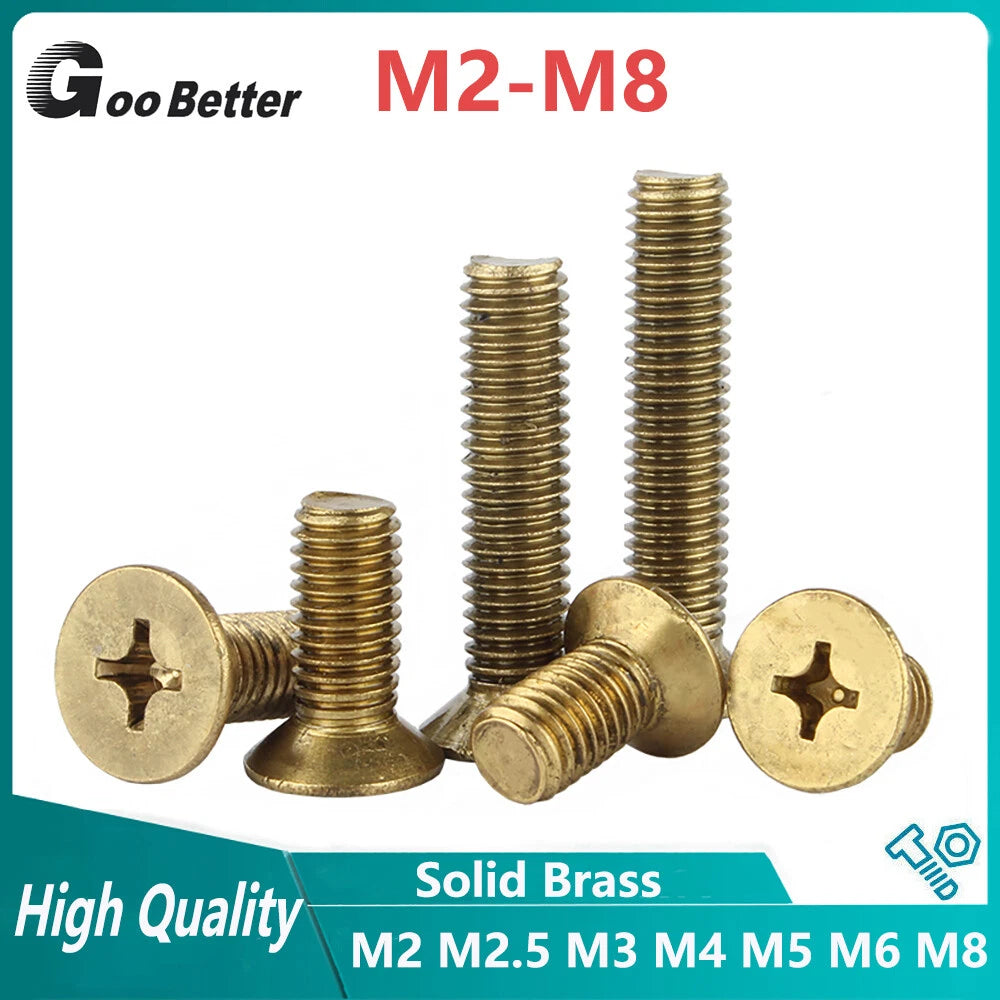

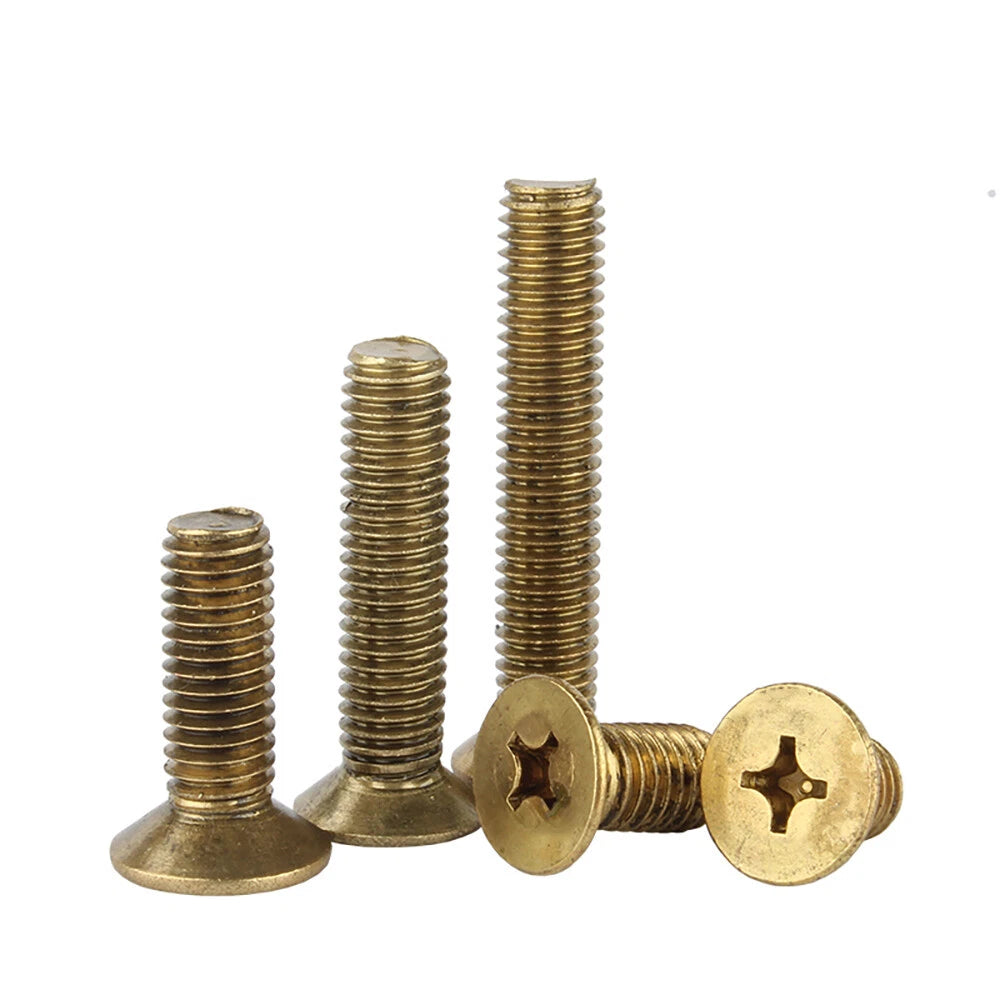

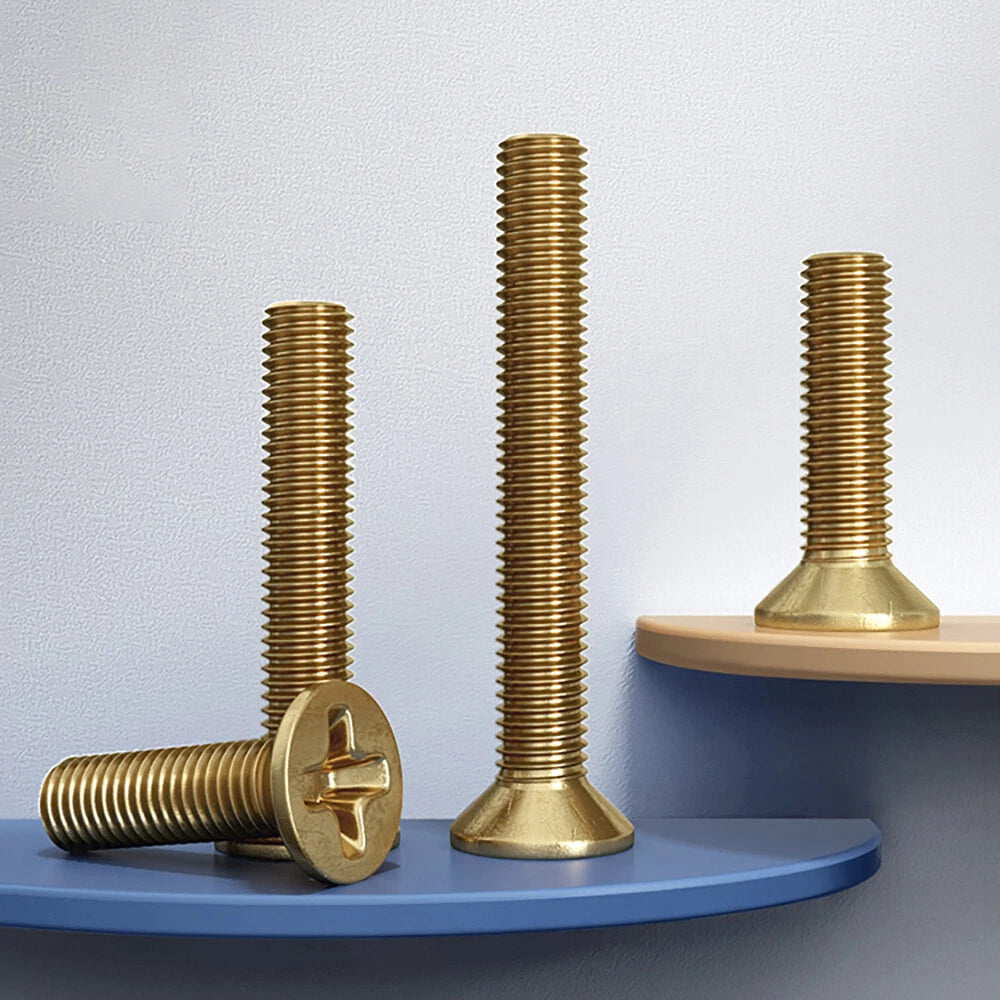

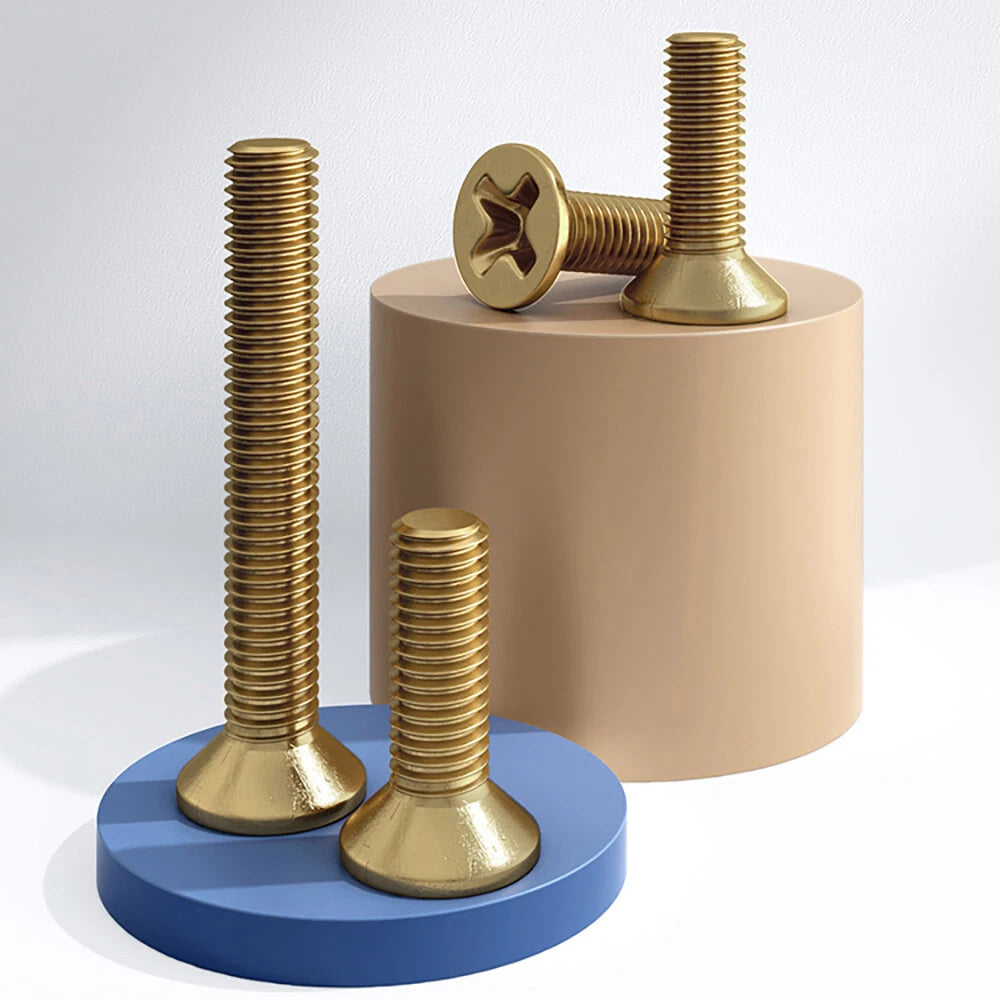

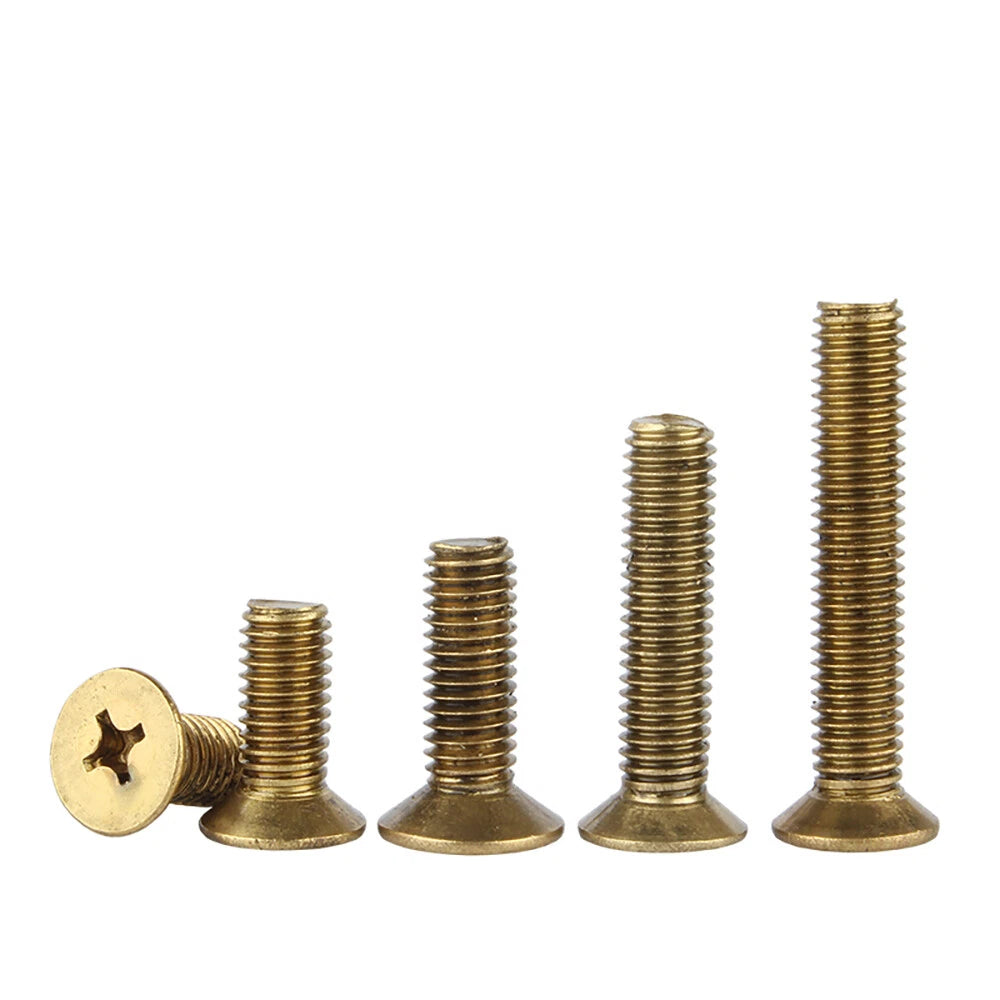

Each screw is machined from solid brass, delivering a warm gold tone and natural corrosion resistance without surface coatings that can chip or flake. Available in seven metric diameters — M2, M2.5, M3, M4, M5, M6, and M8 — with lengths ranging from 4mm (5/32") to 60mm (2-3/8") depending on diameter. Pack sizes of 5, 10, 20, and 50 pieces let you order exactly what your project needs without overstocking.
These brass countersunk screws are a natural fit for furniture and cabinetry assembly where a flush, attractive fixing is required; for electronics enclosures and instrument bodies where non-magnetic, corrosion-resistant fasteners are essential; and for decorative hardware, hinges, and fittings where the gold brass tone complements the surrounding finish.
| Material | Solid Brass (CW614N / CZ121 equivalent) |
|---|---|
| Finish | Natural brass, uncoated (warm gold tone) |
| Head Style | Countersunk (Flat Head) — 90° included angle |
| Drive Type | Phillips (Cross) / Pozi (Pozidriv) |
| Thread Standard | ISO Metric, coarse pitch |
| Available Diameters | M2, M2.5, M3, M4, M5, M6, M8 |
| Length Range by Diameter | M2: 4–10mm (5/32"–3/8") · M2.5: 4–12mm · M3: 5–25mm (3/16"–1") · M4: 6–40mm (1/4"–1-9/16") · M5: 8–40mm · M6: 8–50mm (5/16"–2") · M8: 12–60mm (1/2"–2-3/8") |
| Pack Quantities | 5, 10, 20, 50 pieces |
| Corrosion Resistance | Good — suitable for indoor, humid, and light outdoor use |
| Magnetic | Non-magnetic |
| Tensile Strength | Typically 340–500 MPa (brass alloy dependent) |
| Recommended Applications | Woodworking, furniture, cabinetry, electronics enclosures, musical instruments, decorative hardware, light outdoor fixtures |
| Country of Warehouse | United States |
A general rule: the screw should penetrate the receiving material by at least 2–3 times the screw diameter. For example, an M4 screw (4mm diameter) should ideally grip at least 8–12mm (5/16"–1/2") into the base material. If joining two panels, add the top panel thickness to the required grip depth. Reference: 10mm ≈ 3/8", 16mm ≈ 5/8", 25mm ≈ 1", 50mm ≈ 2".
Brass is generally softer than steel, with a tensile strength typically in the range of 340–500 MPa depending on alloy and manufacturing process. These screws are well-suited for light-to-medium duty fastening in wood, plastic, and soft metals. For high-load structural applications, stainless steel or grade 8.8 steel screws are generally recommended instead.
Brass offers good natural corrosion resistance and performs well in humid, indoor, and light outdoor environments. Because these screws are solid brass with no surface coating, there is nothing to peel or flake. For prolonged direct exposure to saltwater or harsh coastal conditions, a marine-grade stainless steel fastener is generally a better choice. For most sheltered outdoor and decorative applications, brass is a reliable and attractive option.
Yes. These are ISO metric coarse-pitch machine screws fully compatible with standard metric nuts, threaded inserts, and tapped holes manufactured to ISO metric standards. The size designation (M2, M2.5, M3, M4, M5, M6, M8) refers to the nominal thread diameter in millimeters. They are not compatible with imperial UNC or UNF threads.
Phillips (cross) drive has four tapered slots designed to cam out under high torque. Pozi (Pozidriv) adds secondary slots at 45 degrees, providing more contact area and significantly reducing cam-out. Both drives are compatible with the countersunk head on these screws. For best results, match the bit type to the screw marking and use the correct size: PZ0 for M2–M2.5, PZ1 for M3–M4, PZ2 for M5–M6, PZ3 for M8.
Yes — for a flush or sub-flush finish, pre-drill a pilot hole and then use a countersink bit to create the conical recess matching the screw head angle (typically 90 degrees for metric countersunk screws). Without countersinking, the head will sit proud of the surface. In softwoods, the head may partially self-countersink, but a dedicated countersink bit gives the cleanest, most consistent result.
Choose based on your project scale: 5 pieces for small repairs or testing a fit, 10 pieces for small projects, 20 pieces for medium builds, and 50 pieces for larger production runs or workshop stock. Larger packs offer better value per screw. Select your preferred size and quantity from the options above.
