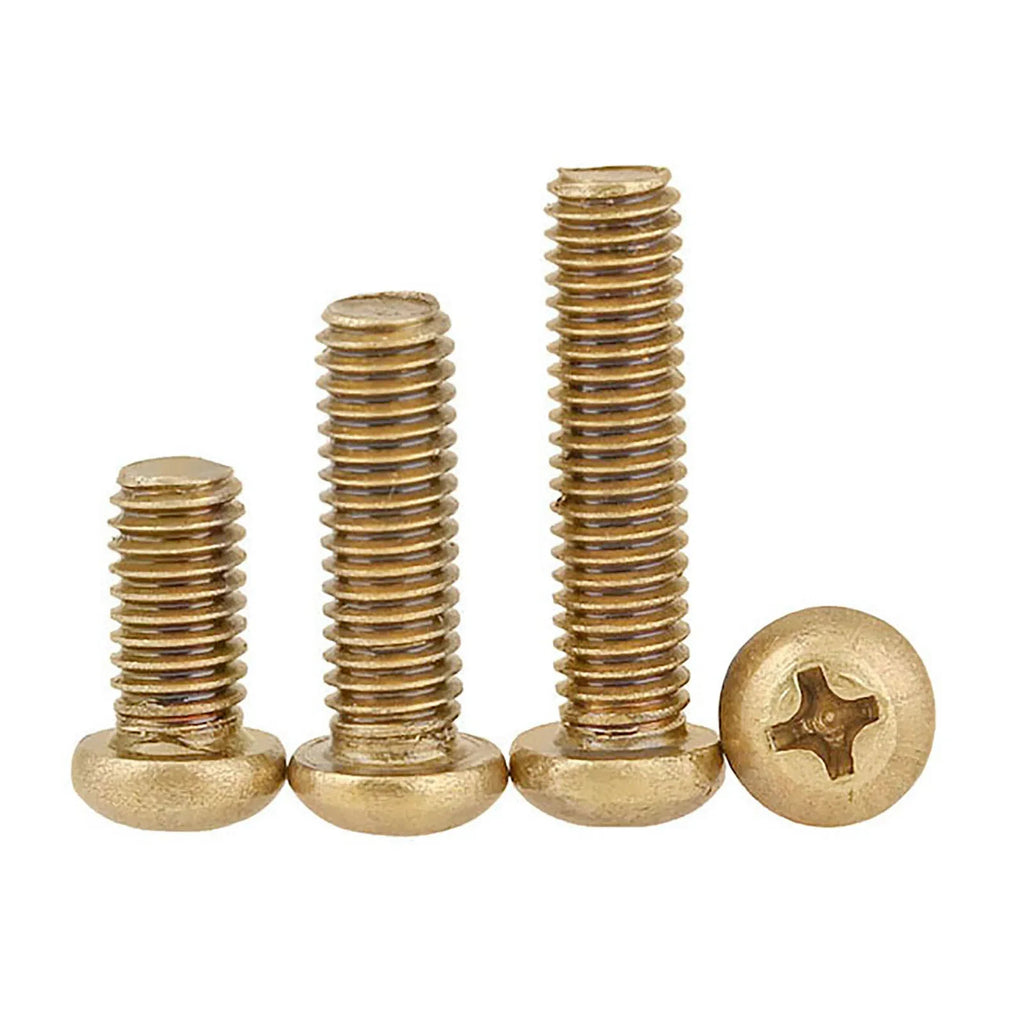

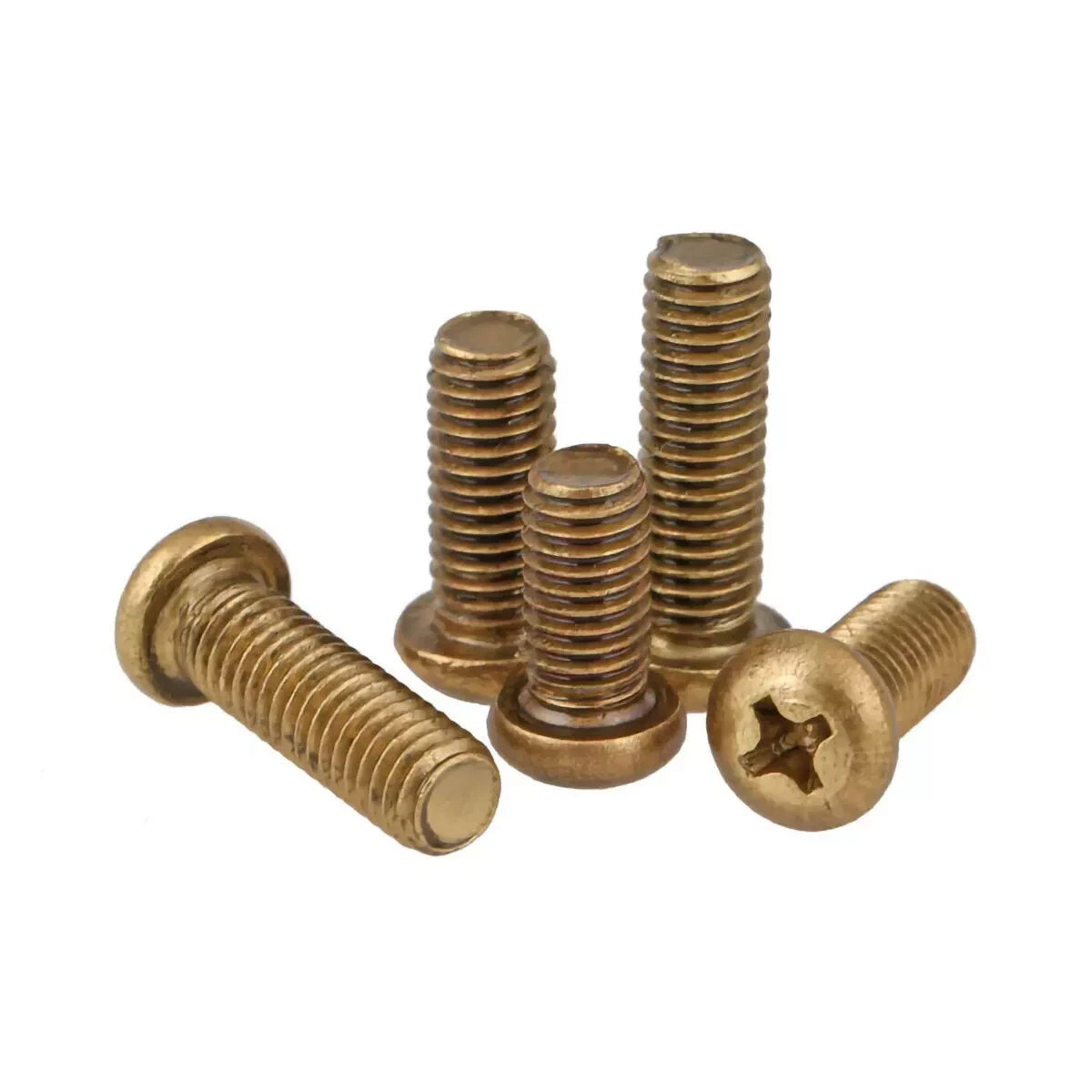

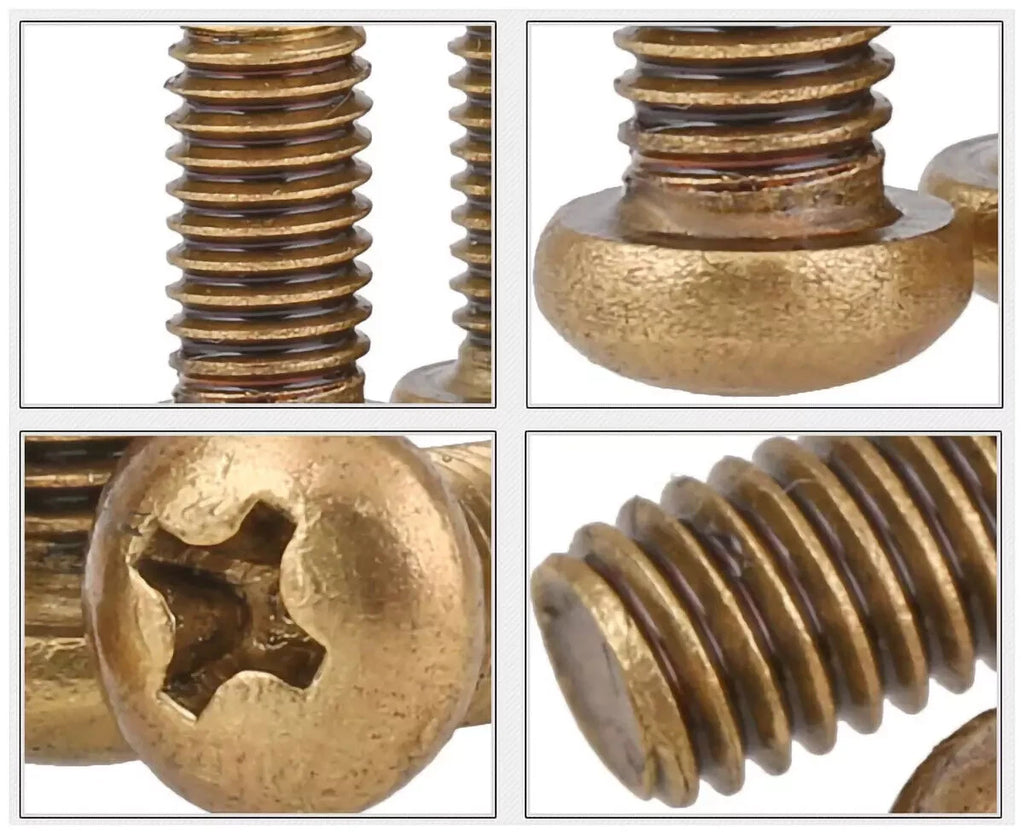

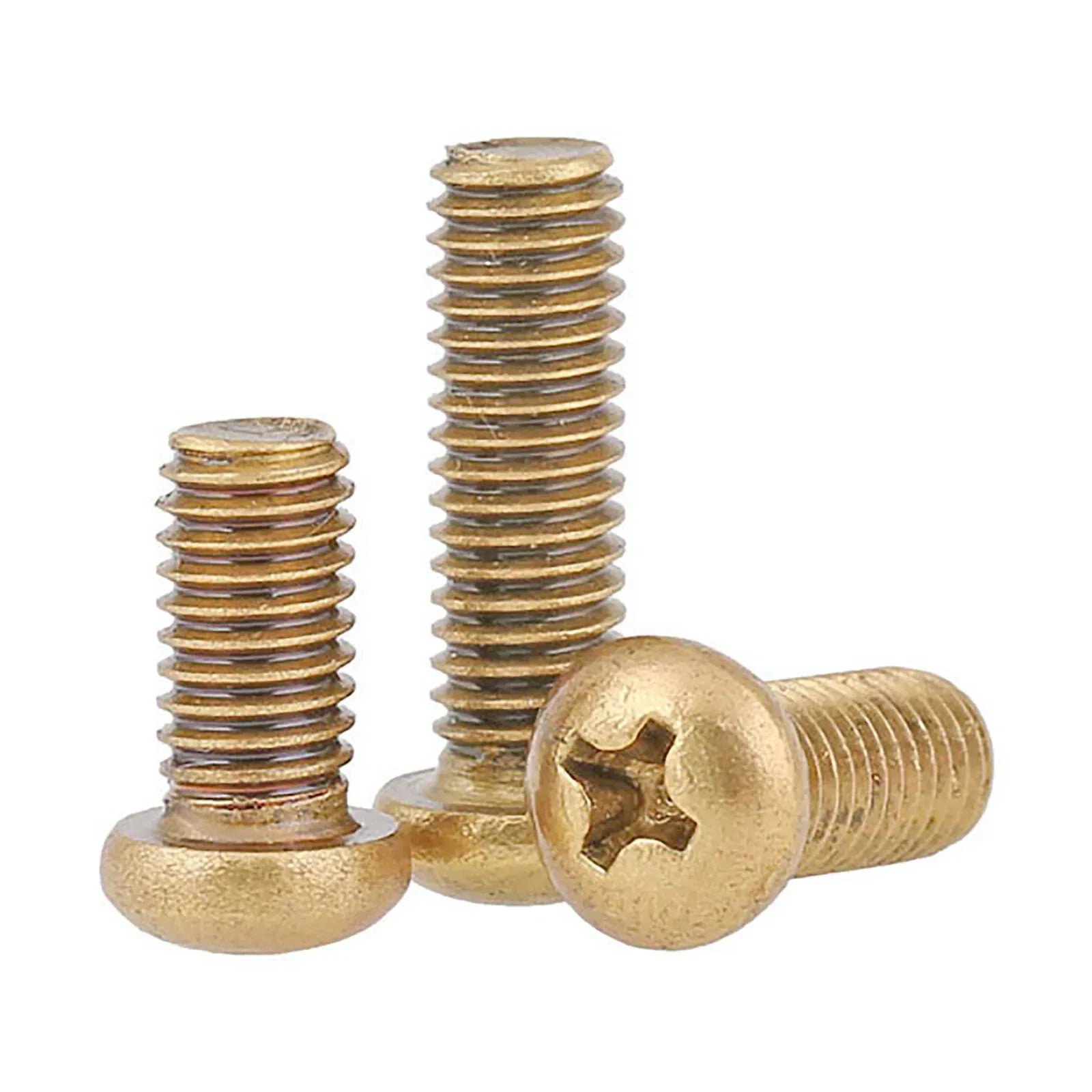

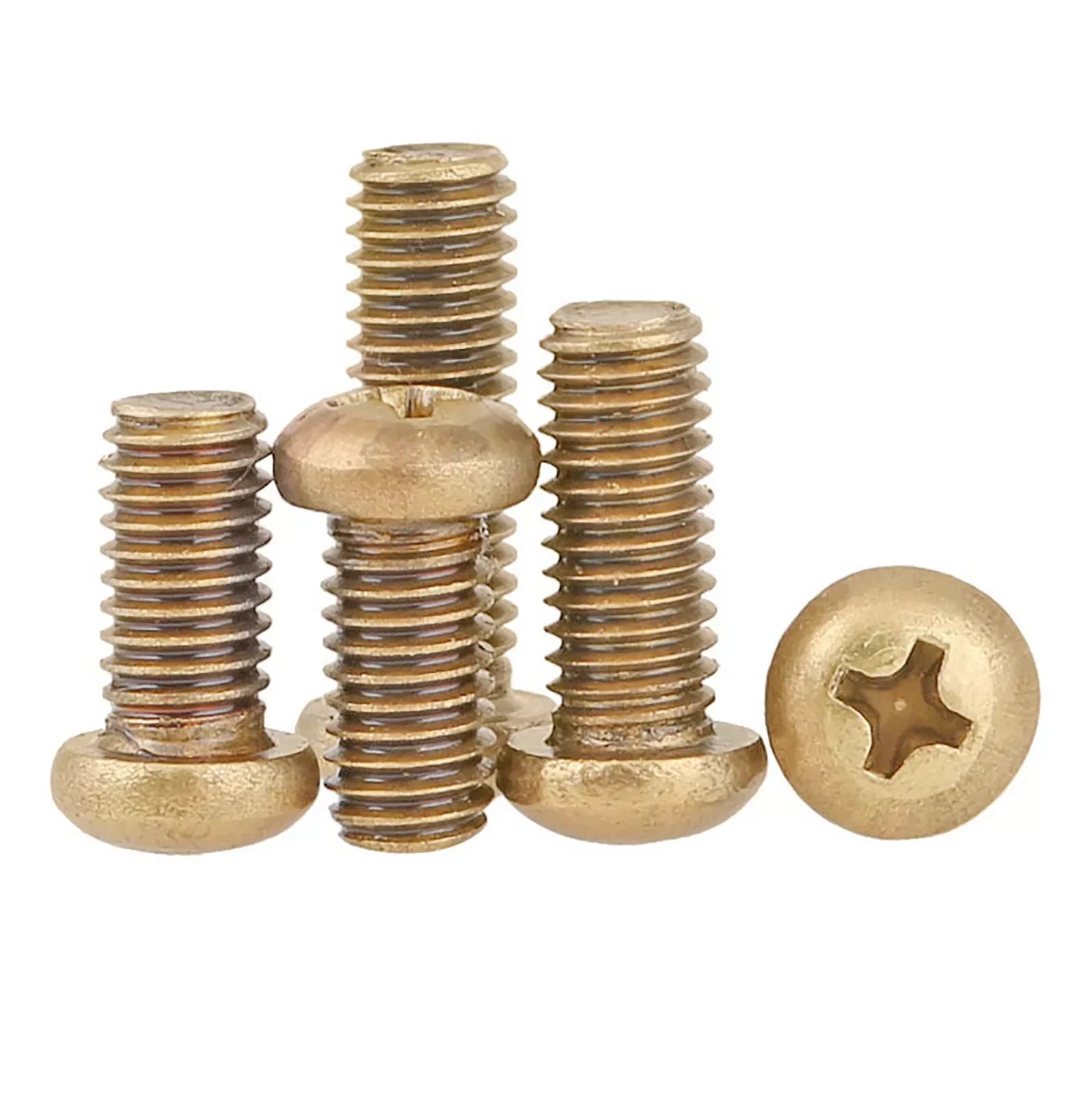

You're working on a vintage boat restoration, building custom furniture with brass hardware, or repairing a classic musical instrument – and you want fasteners that look as good as they perform. These M5, M6, and M8 brass pan head screws are made to DIN 7985 standards, offering a low‑profile head with a wide bearing surface. The cross recess (compatible with both Phillips and Pozidriv drivers) gives you reliable engagement without slipping. Solid brass construction resists corrosion, provides a warm golden accent, and develops a beautiful patina over time. All screws are fully threaded, with length measured from under the head (grip length). Choose from M5, M6, or M8 diameters in various lengths – perfect for marine hardware, electrical terminals, furniture assembly, and decorative metalwork.

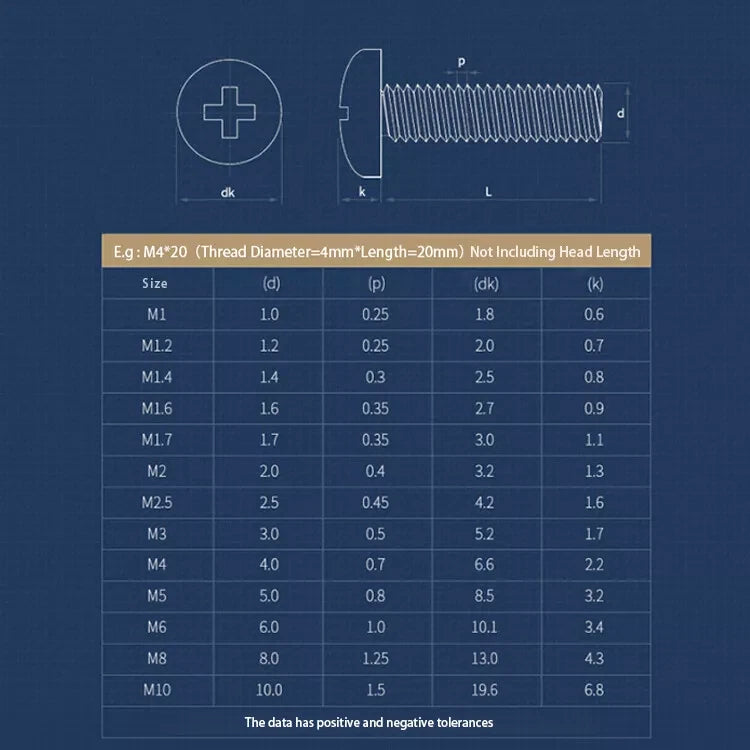

| Thread Diameter | Length (mm, under head) * | Thread Pitch (mm) | Head Style | Drive | Material |
|---|---|---|---|---|---|
| 📐 Length = from underside of head to tip – head height NOT included. Fully threaded. | |||||
| M5 | 8, 10, 12, 16, 20, 25, 30, 35, 40, 45, 50 | 0.8 |
Pan head (DIN 7985) |
Phillips / Pozidriv compatible |
Solid brass |
| M6 | 8, 10, 12, 16, 20, 25, 30, 35, 40, 45, 50, 60 | 1.0 | |||
| M8 | 10, 12, 16, 20, 25, 30, 35, 40, 45, 50, 60, 70, 80 | 1.25 | |||
* Length measured from under the head (grip length). All screws are fully threaded with metric coarse pitch. Select exact length from dropdown. Please allow minor manual measurement errors.
| Property | Benefit |
|---|---|
| Corrosion resistance | Excellent in freshwater, marine, and humid environments – forms protective patina. No red rust. |
| Conductivity | Good electrical and thermal conductivity – ideal for grounding or electrical terminals. |
| Non‑magnetic | Safe for sensitive electronics, MRI rooms, and compass housings. |
| Aesthetic | Warm golden color that matches wood, leather, and vintage hardware. Can be polished or left to age. |
| Strength | Lower than steel, but sufficient for furniture, decorative, and light‑duty structural applications. |
1. How is the length measured for these pan head screws?
For pan head screws (DIN 7985), the length is measured from the underside of the head (the flat bearing surface) to the tip. The head itself is NOT included. So an “M5 x 8mm” screw has a 8mm long threaded shaft under the head. This is different from countersunk screws, which are measured overall.
2. Are these screws compatible with both Phillips and Pozidriv drivers?
Yes – the cross recess is designed to work with both standard Phillips bits and Pozidriv bits. However, for best fit and to avoid cam‑out, we recommend using a Pozidriv bit if available – it provides a slightly tighter fit. But a Phillips driver will work well for most applications.
3. Will brass screws rust or tarnish? Can I use them in saltwater?
Brass does not rust (it contains no iron). It does develop a natural patina – first darkening, then sometimes turning greenish (verdigris) in saltwater or high‑humidity environments. This patina is protective and actually stops further corrosion. For marine use, brass is suitable for above‑water fittings and interior boat hardware. For continuous underwater immersion, use bronze or 316 stainless. For most furniture, outdoor decorations, and coastal environments, brass works beautifully.
4. Are these screws fully threaded? What does “coarse pitch” mean?
Yes – all screws in this range are fully threaded from under the head to the tip. “Coarse pitch” refers to the standard metric thread pitch (e.g., M5 x 0.8mm, M6 x 1.0mm, M8 x 1.25mm). Coarse threads are more resistant to cross‑threading and are the most common choice for general assembly.
5. Can I use these screws with a nut or do they need a tapped hole?
Both – these are machine screws. They can be threaded into pre‑tapped holes of the same metric size (M5, M6, or M8) or used with matching brass nuts. They are not self‑tapping. For wood, drill a pilot hole and use a threaded insert or a nut on the back for maximum holding strength.
6. What is DIN 7985? Why is it important?
DIN 7985 is the German standard for pan head screws with cross recess (Phillips/Pozidriv). It specifies exact head dimensions, recess depth, and thread tolerances. Screws made to this standard are interchangeable and consistent – so you can rely on a perfect fit every time.
