When a worn-out spring causes a mechanism to fail mid-project, finding an exact replacement in the right wire diameter and outer diameter can be frustrating. Whether you are a hobbyist repairing a tool, a maker building a custom jig, or a technician maintaining light machinery, these 65Mn manganese steel compression springs give you the precise elastic force you need without guesswork.

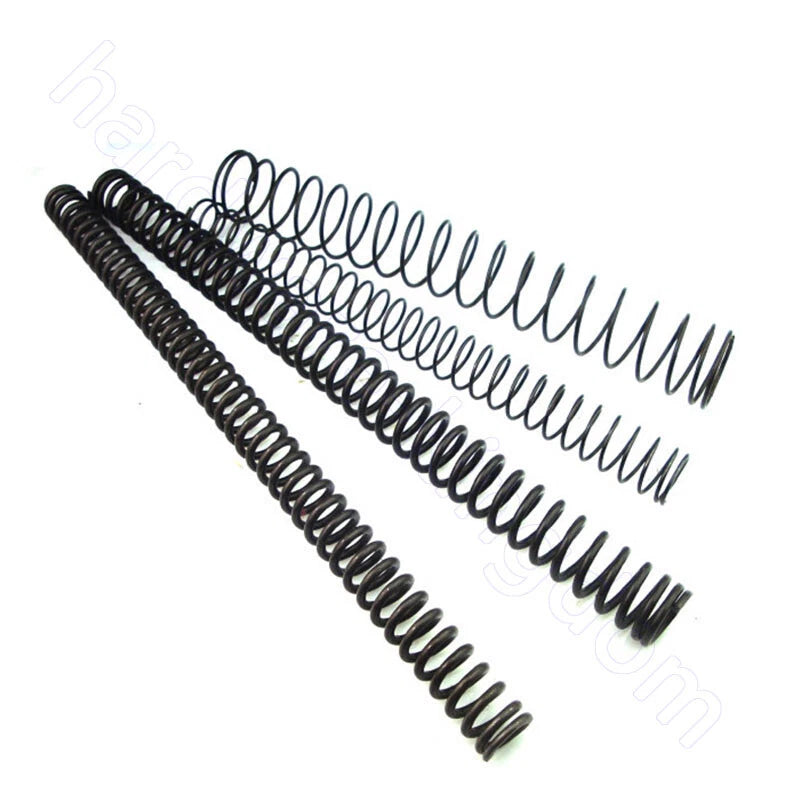

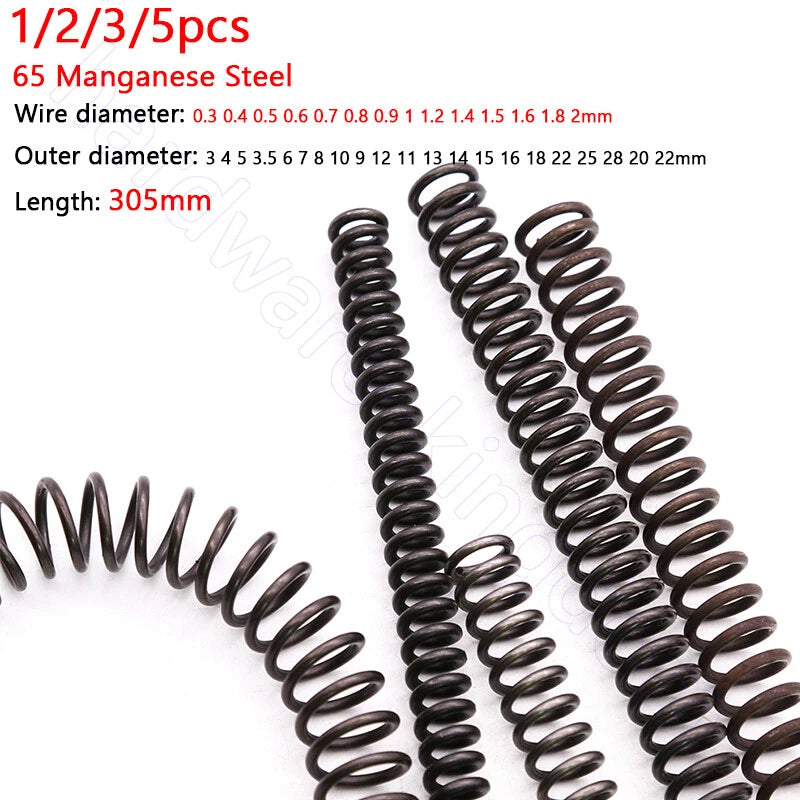

Each spring is formed from 65Mn manganese steel wire, a material known for its consistent spring-back characteristics and resistance to fatigue under repeated cycling. Wire diameters span 0.3 mm to 2 mm (approximately 0.012 in to 0.079 in), outer diameters range from 3 mm to 22 mm (approximately 0.12 in to 0.87 in), and every spring is wound to a free length of 305 mm (approximately 12.0 in). Variants are sold in quantities of 1, 2, or 3 pieces per order.
Typical use cases include compression spring replacement for small appliances and hand tools, custom spring-loaded fixtures and jigs for woodworking or metalworking, precision mechanical assemblies in robotics and automation prototypes, and light-load valve or latch mechanisms in DIY hardware projects.
Formulated for consistent spring-back force and fatigue resistance across repeated compression cycles — a reliable choice for mechanical and DIY applications.
Wire diameters from 0.3 mm to 2 mm and outer diameters from 3 mm to 22 mm cover a broad spectrum of replacement and custom-build needs in a single listing.
The 305 mm (≈12 in) free length provides ample material for cutting to a shorter working length or using as-is in longer spring seats and guide rods.
Order 1, 2, or 3 pieces per variant to match your project needs — whether you need a single replacement or a small batch for prototyping.

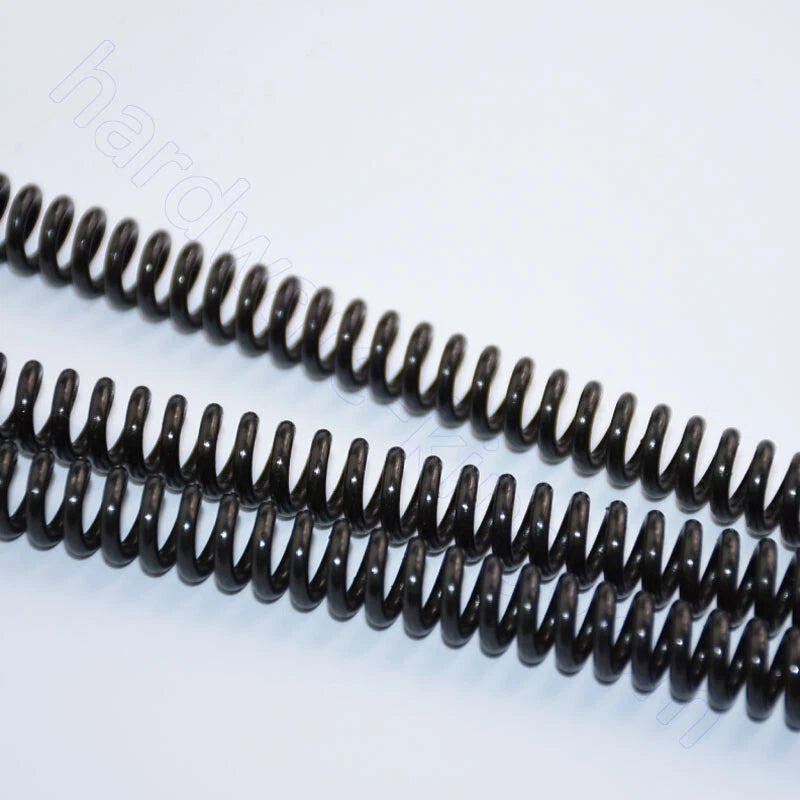

Uniform pitch and coil spacing ensure even load distribution along the spring body, reducing the risk of buckling under axial compression.
Compatible with spring-loaded latches, tool mechanisms, jig fixtures, robotics prototypes, and light-duty valve assemblies across hobbyist and small-scale industrial settings.
| Material | 65Mn Manganese Steel |
|---|---|
| Wire Diameter Range | 0.3 mm – 2 mm (0.012 in – 0.079 in) |
| Outer Diameter Range | 3 mm – 22 mm (0.12 in – 0.87 in) |
| Free Length | 305 mm (approx. 12.0 in) |
| Spring Type | Compression (closed / ground ends) |
| Coil Direction | See variant options |
| Surface Finish | See variant options |
| Spring Rate | See variant options |
| Max Load Capacity | See variant options |
| Quantity per Order | 1 / 2 / 3 pcs (select above) |
Measure the wire thickness of your existing spring with a caliper to determine the wire diameter. Then measure the outer coil diameter. Match both dimensions to the variant options in this listing. If you are designing from scratch, the wire diameter determines the spring rate and load capacity — thicker wire produces a stiffer spring — while the outer diameter must fit inside your bore or over your guide rod with a small clearance (typically 0.5–1 mm per side).
Yes. 65Mn steel can be cut with an angle grinder or spring cutter. After cutting, lightly grind the cut end flat so the spring seats evenly. Note that cutting changes the number of active coils and therefore the spring rate — a shorter spring from the same wire will be stiffer. Plan your cut length with this in mind.
Load capacity depends on the specific wire diameter, outer diameter, and the working deflection in your application. Thicker wire diameters (e.g., 1.5 mm–2 mm) handle significantly higher loads than fine wire variants (e.g., 0.3 mm–0.5 mm). For precise load calculations, use the standard spring rate formula or consult a spring design calculator with the coil count and dimensions of your selected variant. Contact us if you need further guidance.
65Mn manganese steel provides good mechanical properties but is not inherently stainless. For outdoor, humid, or corrosive environments, consider applying a light coat of oil or grease, or look for stainless steel spring variants. For dry indoor applications — tool mechanisms, jigs, and light machinery — these springs perform reliably without additional treatment.

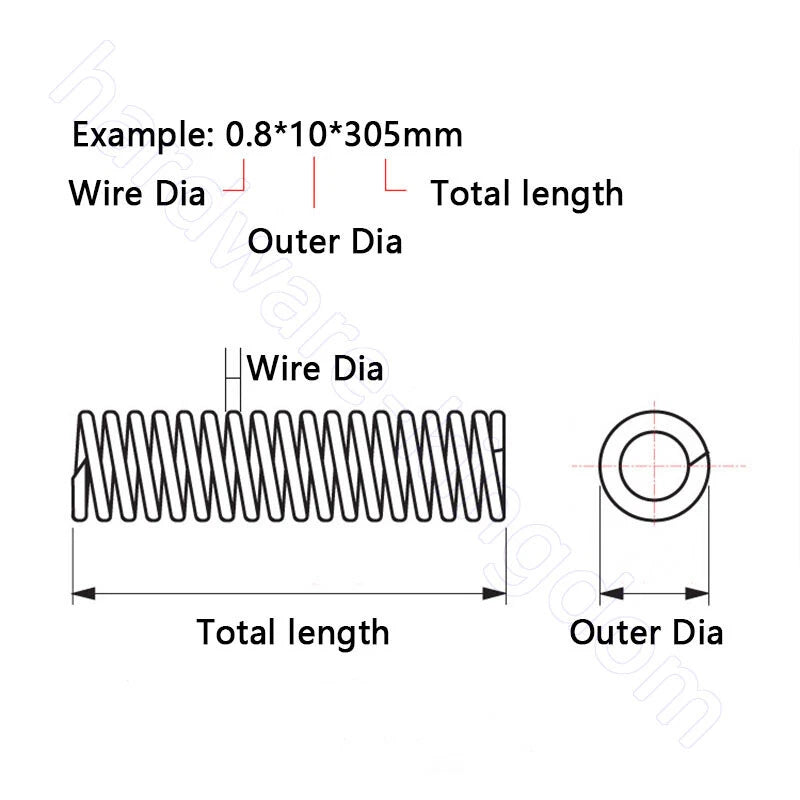

Wire diameter is the thickness of the steel wire used to wind the coil. Outer diameter is the overall width of the coiled spring. Always match the outer diameter to your housing bore or guide rod first to ensure physical fit, then confirm the wire diameter matches your load and stiffness requirements. Both dimensions must be correct for the spring to function properly in your assembly.
Yes. These compression springs are suitable for light-duty automation, robotics prototypes, and maker projects where precise spring force is needed. For high-cycle industrial machinery (millions of cycles), verify the fatigue rating of the specific wire diameter against your cycle count requirements. For hobbyist and prototype use, 65Mn steel performs well within typical DIY and small-scale automation loads.
Ordering 2 or 3 pieces is useful when you need a matched set for symmetrical mechanisms (e.g., dual-spring assemblies), want a spare in case of installation error or future replacement, or are prototyping and need to test different compression lengths. Multi-piece options are priced to offer better value per spring compared to single-piece orders.
