When shaft misalignment causes vibration, lost steps, or encoder drift in your CNC router, 3D printer, or motion-control build, the root cause is often a rigid or worn coupler that can't absorb angular and parallel offset. Engineers, makers, and machine builders who need a reliable, zero-backlash connection between motor and lead screw rely on the D25L30 flexible shaft coupling to keep their axes running true.

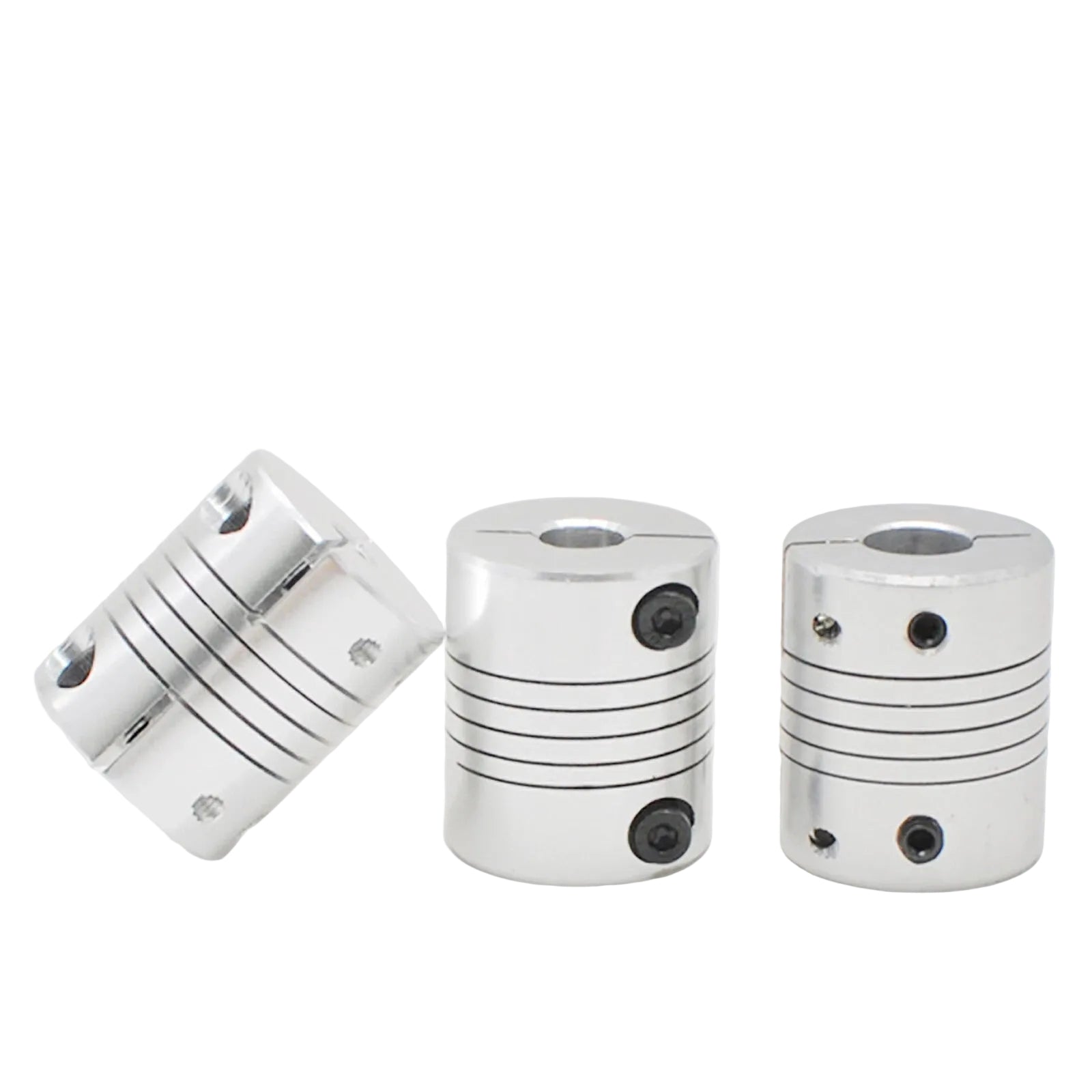

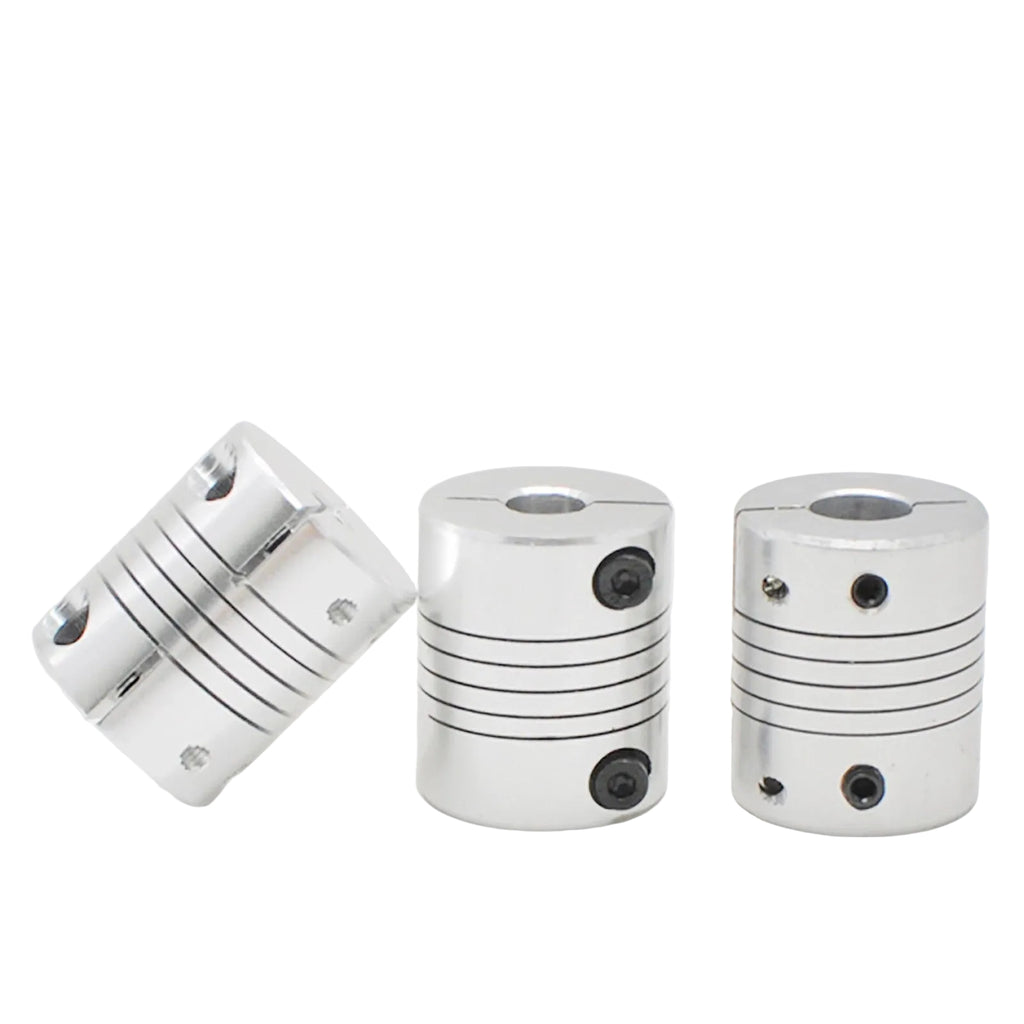

This D25L30 flexible shaft coupling features a one-piece aluminum alloy body with a spiral-cut flexible section, machined to an outer diameter of 25 mm (≈ 0.984 in) and a body length of 30 mm (≈ 1.181 in). The clamping collar design uses a split-clamp mechanism on each end, securing bore diameters from 5 mm up to 12 mm — including the imperial 6.35 mm (1/4 in) size — without set screws that can mar shaft surfaces. Available bore combinations (φd1 × φd2) span same-size and stepped pairings to suit mixed metric/imperial shaft configurations.
Typical use cases include connecting NEMA 17 or NEMA 23 stepper motor shafts to T8 or T12 lead screws in 3D printer Z-axis assemblies, linking servo motor output shafts to rotary encoders in CNC plasma tables, and coupling DC motor shafts to ball screws in DIY milling machines — all scenarios where a flexible shaft coupler for stepper motor encoder must handle slight misalignment without transmitting shock loads back to the motor bearings.
| Coupling Type | Spiral-cut flexible shaft coupling (clamping collar) |
|---|---|

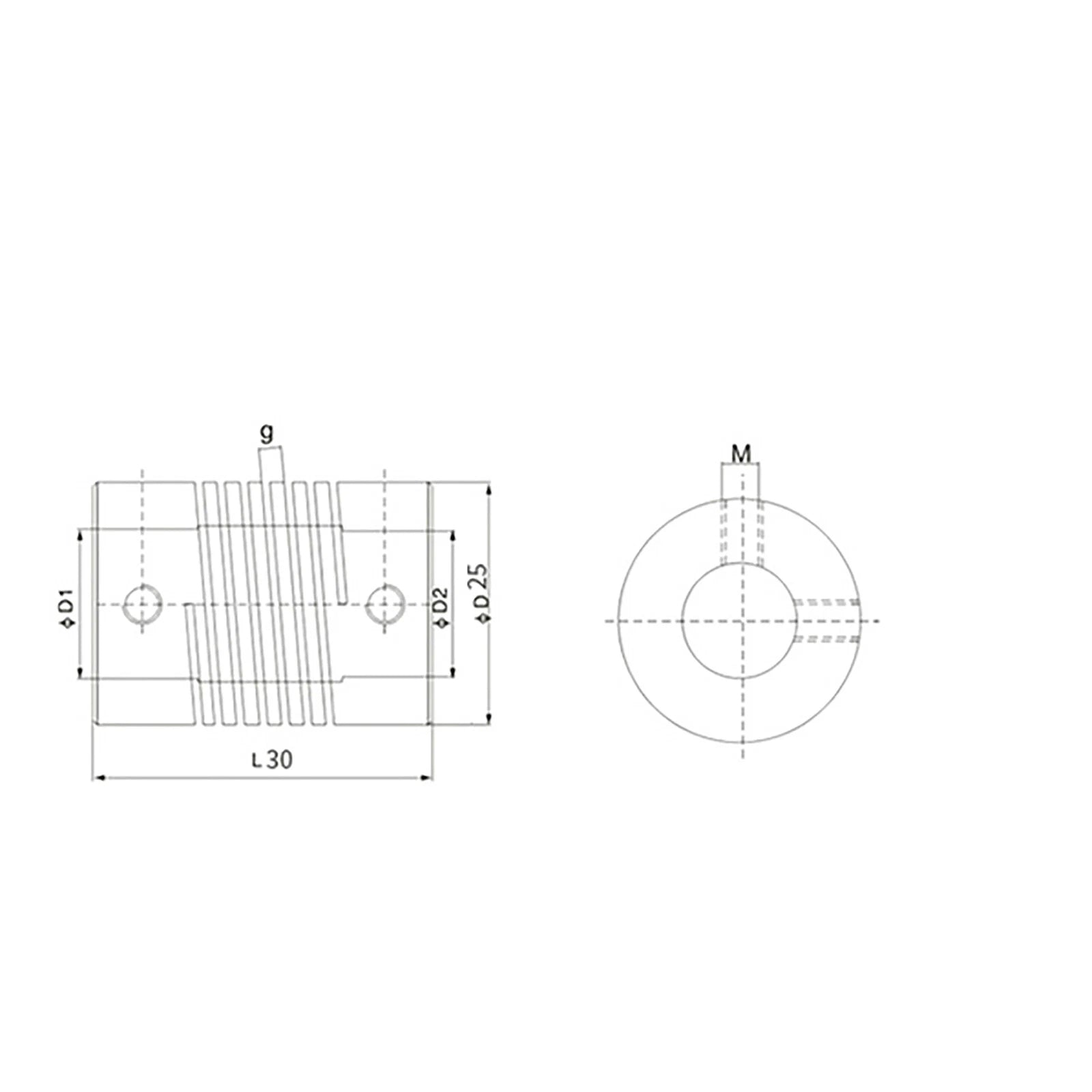

| Outer Diameter (D) | 25 mm (≈ 0.984 in) |
| Body Length (L) | 30 mm (≈ 1.181 in) |

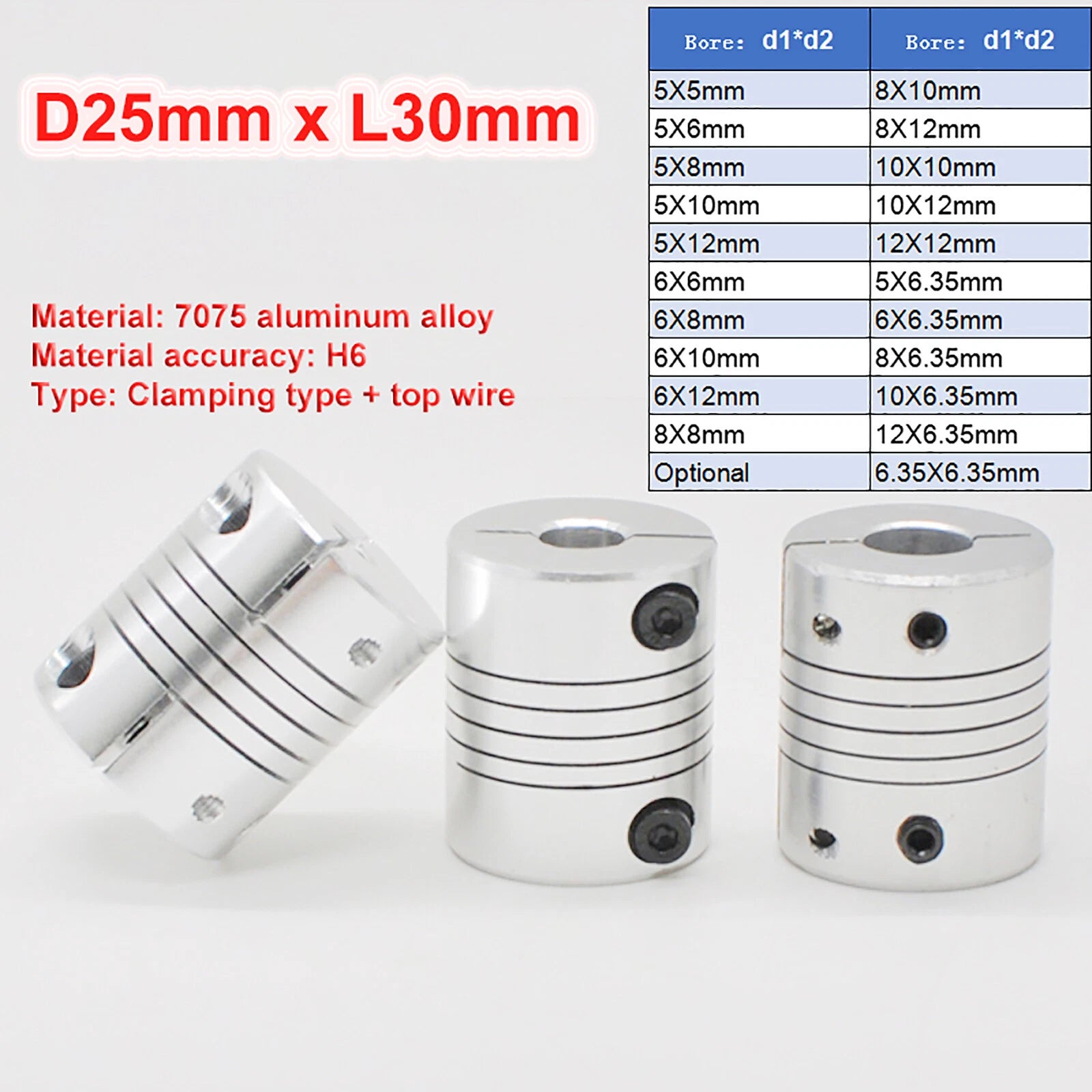

| Bore Diameter (φd1 × φd2) | 5, 6, 8, 10, 12 mm; 6.35 mm (1/4 in) — See variant options |
| Material | Aluminum alloy |
| Shaft Fixing Method | Split clamping collar (both ends) |
| Flexible Element | Spiral-cut integral helix |
| Backlash | Zero (one-piece body) |
| Angular Misalignment Tolerance | Typically 1°–3° (conservative estimate) |
| Parallel Offset Tolerance | See variant options |
| Max Torque | See variant options |
| Quantity per Pack | 1 / 3 / 5 / 10 / 25 pcs — See variant options |
Measure the output shaft diameter of your motor (e.g., 5 mm for many NEMA 17 steppers) and the input shaft or lead screw diameter (e.g., 8 mm for T8 lead screws). Select the φd1 × φd2 variant that matches those two diameters — for example, "5 × 8 mm". If one shaft is imperial (1/4 in = 6.35 mm), choose the corresponding 6.35 mm bore option.
A spiral coupler is machined from a single piece of aluminum with a helical slit that acts as the flexible element, giving zero backlash and no wear parts. A jaw coupler uses two hubs and a separate elastomeric spider insert; the spider can wear over time and introduce backlash. For encoder feedback and precise CNC positioning, the spiral design is generally preferred.
Yes. The spiral-cut section allows angular misalignment typically up to 1°–3° and absorbs a small degree of parallel (radial) offset. However, for best service life and lowest vibration, align shafts as closely as possible during installation. Excessive misalignment will fatigue the flexible section over time.
Yes. The D25L30 spiral coupler is widely used on 3D printer Z-axis assemblies to connect NEMA 17 motor shafts (typically 5 mm) to T8 lead screws (typically 8 mm). The zero-backlash design prevents Z-wobble artifacts in prints. Select the "5 × 8 mm" bore variant for this application.
No. The split-clamp design grips the shaft circumferentially using a clamping screw, distributing force evenly around the shaft without point-loading. Unlike set-screw designs, it does not create a flat spot or gouge on the shaft surface, making it safe for hardened steel and stainless lead screws.
A standard 3-axis machine (X, Y, Z) requires one coupler per motor-to-lead-screw connection. Some Z-axis designs use two lead screws driven by one motor via a belt, requiring only one coupler on the motor side. For a full 3-axis build, a Pack of 3 or Pack of 5 is a practical choice that also provides a spare.
The rated torque and maximum RPM depend on the specific bore size and operating conditions. For typical CNC stepper and servo motor applications (low to moderate speed, moderate torque), the D25L30 aluminum spiral coupler is well-suited. For high-torque or high-speed industrial applications, contact us to confirm suitability before ordering.
