Dual Heatpipe CPU Cooler — Quiet, Efficient Cooling for Intel & AMD Desktops

When your desktop PC runs hot under sustained workloads — whether you're editing video, gaming for hours, or just tired of a loud stock cooler — a capable aftermarket dual heatpipe CPU cooler makes a noticeable difference. This tower cooler is built for everyday desktop builders and upgraders who want reliable thermal performance without the complexity of liquid cooling. It installs without removing the motherboard on most supported platforms, making it accessible even for first-time builders.

Each package includes 1 × CPU cooler assembly (heatsink tower + dual 90mm fans pre-mounted), a mounting kit with brackets and backplate for supported sockets, thermal paste, and retail box. The heatsink tower is constructed from copper and aluminum — two 6mm sintered copper heatpipes run through a 35-fin aluminum fin stack. The dual-fan configuration measures 95 × 88 × 130mm (≈3.7" × 3.5" × 5.1") and weighs approximately 385g (±3%). The single-fan variant measures 95 × 65 × 130mm (≈3.7" × 2.6" × 5.1") at approximately 290g (±3%).

This cooler is well-suited for budget and mid-range desktop PC builds using Intel Core i3/i5, Celeron, or Pentium processors on LGA1700, LGA115X, or LGA1200 platforms, as well as AMD Ryzen and older AM3+/AM4 socket systems. It's also a practical upgrade for home office and HTPC builds where low noise at idle is a priority, and for anyone replacing a worn-out or noisy stock cooler on a mainstream desktop CPU.

🔌 Compatibility: Intel LGA775 / LGA1700 / LGA115X (1150/1151/1155/1156) / LGA1200 — AMD Socket 754 / AM2 / AM2+ / AM3 / AM3+ / AM4 / FM1 / FM2+. Fans use a 3-pin DC connector. No motherboard removal required on most supported platforms.

✅ Key Features of These Dual Heatpipe CPU Coolers

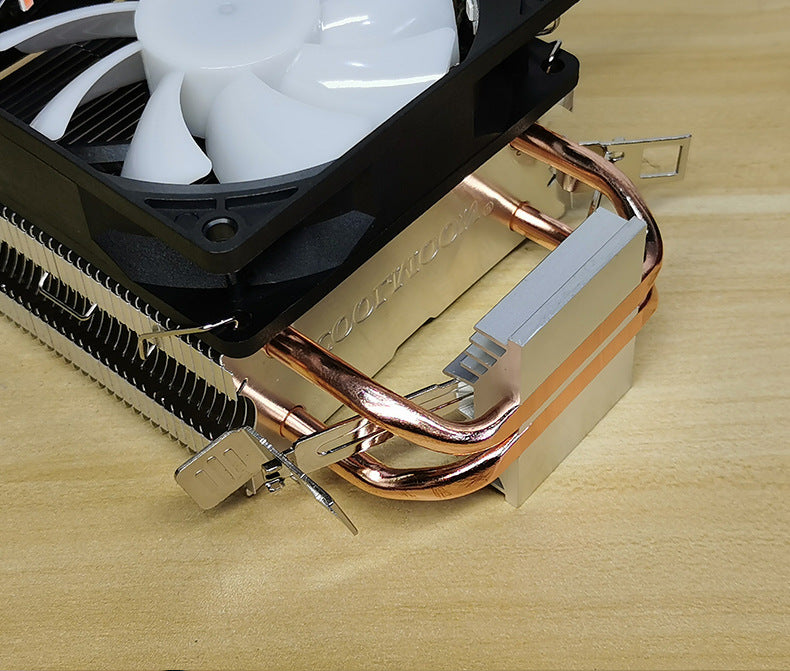

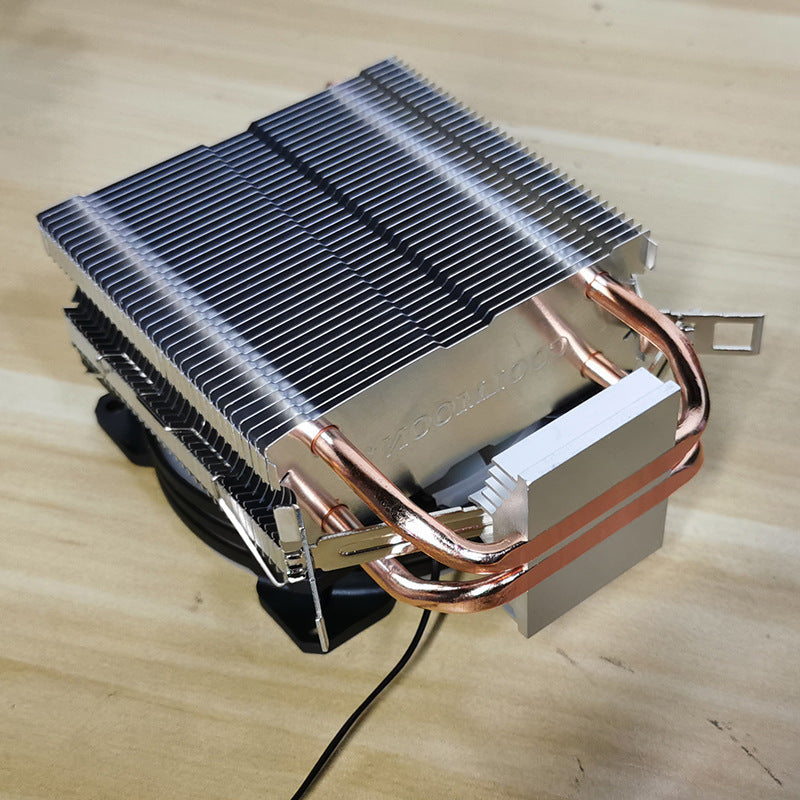

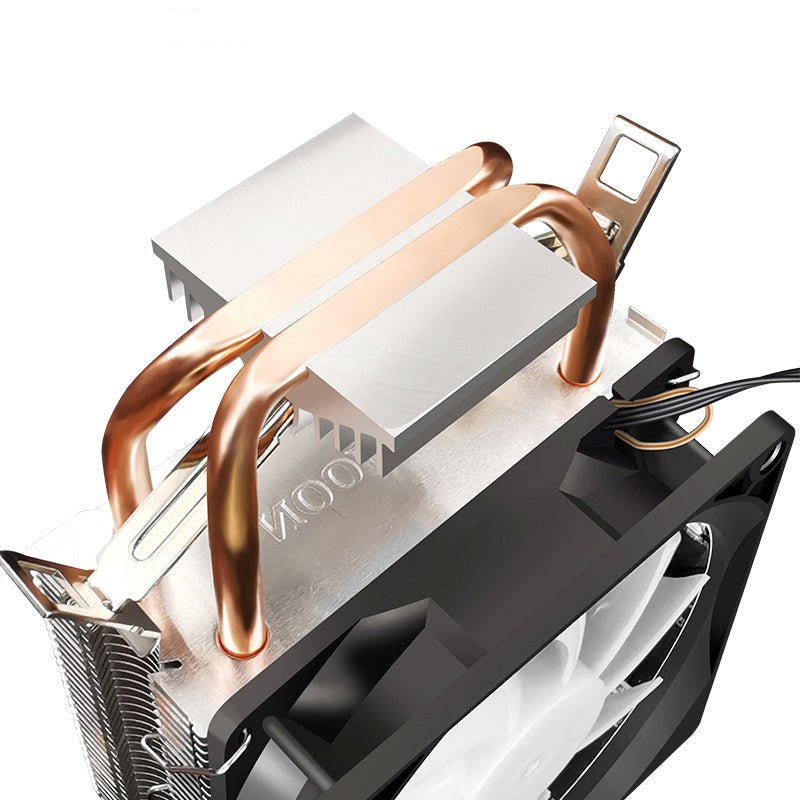

🔥Direct-Contact Heatpipe Technology — Two 6mm sintered copper heatpipes make direct contact with the CPU heat spreader. The base is precision-milled flat to maximize surface contact, allowing heat to transfer into the fin stack faster than a standard copper base plate design.

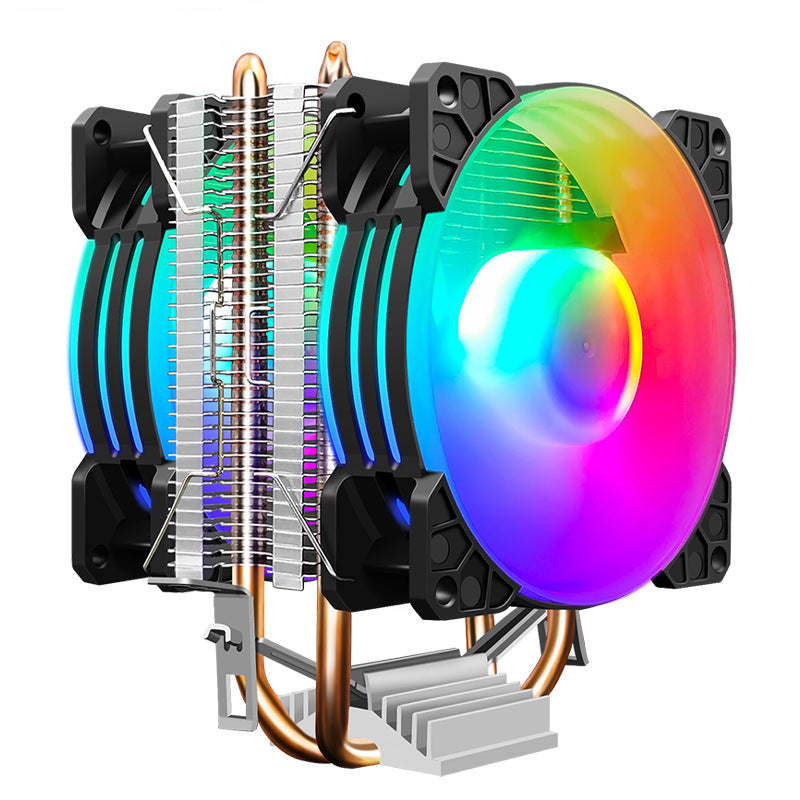

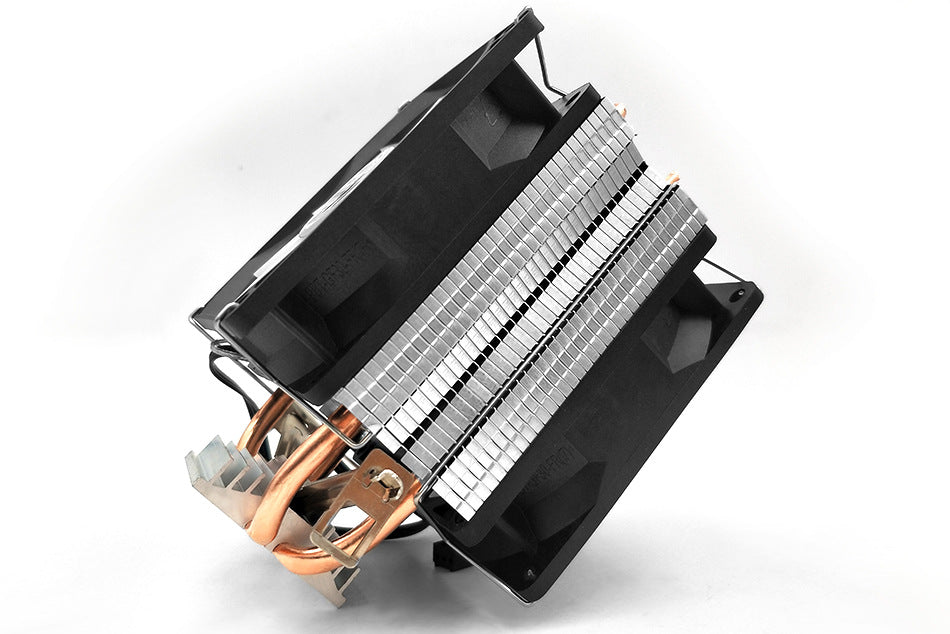

💨Push-Pull Dual Fan Airflow — The dual 90mm fan configuration draws cool air in from one side and exhausts hot air from the other, creating a through-flow pattern across all 35 aluminum fins. This improves heat dissipation compared to a single-fan push-only setup at the same noise level.
🔇Quiet 90mm Hydraulic Bearing Fans — Each 9025 fan (90 × 90 × 25mm) runs at 1800 ±10% RPM with a noise level of 20 ±10% dBA and 48 ±10% CFM airflow. The hydraulic bearing design is quieter and more durable than standard sleeve bearings, with a rated lifespan of 50,000 hours.

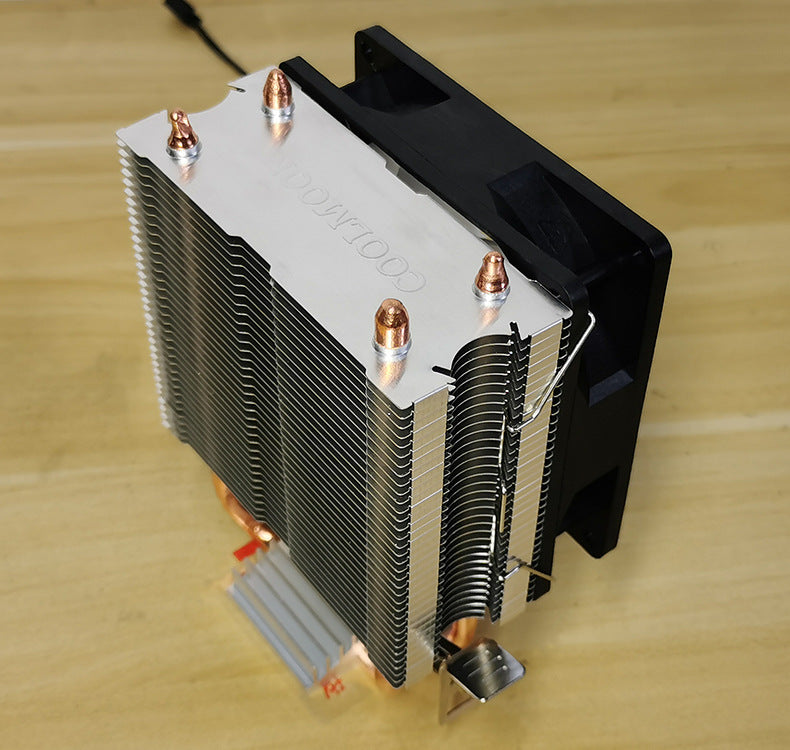

🏗️35-Fin Aluminum Fin Stack — The densely packed 35-fin array maximizes surface area for heat exchange without adding excessive weight. The copper-aluminum combination balances thermal conductivity (copper heatpipes) with lightweight heat dissipation (aluminum fins).
🔧Broad Multi-Platform Compatibility — Supports Intel LGA775 through LGA1700 and AMD AM2 through AM4, covering the majority of mainstream desktop platforms from the past decade. Installation does not require motherboard removal on most supported sockets, making it a straightforward drop-in upgrade.
📦Complete Installation Kit Included — Each order includes the heatsink tower, dual pre-mounted fans, socket-specific mounting brackets, backplate hardware, and a packet of thermal paste. Everything needed for a clean installation is in the box — no separate purchases required.

📐 Technical Specifications — Dual Heatpipe Tower CPU Cooler

Cooler Type	Tower Heatsink with Direct-Contact Heatpipes
Heatpipe Count	2 × 6mm Sintered Copper Heatpipes
Fin Count	35 Aluminum Fins
Heatsink Material	Copper (heatpipes) + Aluminum (fins) + ABS (fan frame)
Dimensions — Single Fan	95 × 65 × 130mm (≈3.7" × 2.6" × 5.1")
Dimensions — Dual Fan	95 × 88 × 130mm (≈3.7" × 3.5" × 5.1")
Weight — Single Fan	290g ±3% (≈10.2 oz)
Weight — Dual Fan	385g ±3% (≈13.6 oz)
Fan Model	9025 (90 × 90 × 25mm / ≈3.5" × 3.5" × 1")
Fan Blade Count	7 Blades
Fan Speed	1800 ±10% RPM
Airflow	48 ±10% CFM
Noise Level	20 ±10% dBA
Fan Bearing Type	Hydraulic Bearing (Fluid Dynamic)
Fan Connector	3-Pin DC
Fan Rated Voltage	DC 12V
Fan Rated Current	0.2 ±10% A
Fan Rated Power	2.4 ±10% W
Fan Rated Lifespan	50,000 hours
Intel Socket Support	LGA775 / LGA1700 / LGA115X / LGA1200
AMD Socket Support	754 / AM2 / AM2+ / AM3 / AM3+ / AM4 / FM1 / FM2+
Package Contents	1 × Heatsink Tower, 2 × 90mm Fans (pre-mounted), Mounting Kit, Thermal Paste, Retail Box

⚠️ Before ordering: Confirm your CPU socket is listed above. This cooler uses a 3-pin DC connector — it will operate on 4-pin PWM headers but speed control may be limited. For CPUs with a TDP above approximately 95W, consider a larger cooler.

❓ Frequently Asked Questions

What CPU sockets does this cooler support?

This cooler supports a wide range of Intel and AMD sockets. Intel: LGA775, LGA1700, LGA115X (1150/1151/1155/1156), and LGA1200. AMD: Socket 754, AM2, AM2+, AM3, AM3+, AM4, FM1, and FM2+. No motherboard removal is required for installation on most supported platforms.

What is the difference between the single-fan and dual-fan configurations?

The single-fan version measures 95 × 65 × 130mm and weighs approximately 290g. The dual-fan version measures 95 × 88 × 130mm and weighs approximately 385g. The dual-fan setup draws cool air in from one side and exhausts hot air from the other, improving heat dissipation through the fin stack compared to a single-fan push-only configuration.

How loud is this CPU cooler during operation?

Each 90mm fan operates at 20 ±10% dBA, which is generally considered quiet for active CPU cooling. The hydraulic bearing design further reduces operational noise compared to sleeve bearing fans. At typical desktop workloads, the cooler is generally inaudible in a closed case.

What CPUs is this cooler designed for — can it handle gaming or overclocking?

This cooler is designed for mainstream desktop CPUs including Intel Core i3/i5, Celeron, Pentium, and AMD Athlon, Sempron, Phenom, and A-Series APU processors. It is generally suitable for stock-speed operation on CPUs with a TDP up to approximately 95W. For heavy overclocking or high-TDP processors above 95W, a larger tower cooler or liquid cooling solution is recommended.

Does this cooler include thermal paste?

Yes. Each package includes the CPU cooler, mounting hardware (backplate and brackets for supported sockets), thermal paste, and retail box packaging. No additional thermal compound is needed for initial installation.

What connector type do the fans use — are they PWM or DC?

The fans use a 3-pin DC connector. Fan speed is controlled by voltage rather than PWM signal. Most modern motherboards support DC fan speed control via 3-pin headers. If your motherboard only has 4-pin PWM headers, the fan will still operate but will typically run at full speed without automatic speed scaling.

How do the direct-contact heatpipes work and why does it matter?

Direct-contact heatpipe technology means the two 6mm sintered copper heatpipes touch the CPU heat spreader directly, without an intermediate copper base plate between them. This reduces thermal resistance at the contact point and allows heat to transfer into the heatpipes and up to the aluminum fin stack more quickly. The base is precision-milled flat to maximize contact area with the CPU lid.

Will this cooler fit inside a standard mid-tower ATX case?

The dual-fan version measures 95 × 88 × 130mm (approximately 3.7" × 3.5" × 5.1"). Most standard mid-tower ATX cases support CPU coolers up to 155–165mm in height, so this cooler generally fits with significant clearance. For compact Micro-ATX or Mini-ITX cases, check your case's maximum CPU cooler height specification before ordering.
