Extremely Heavy Duty Compression Die Spring, Outer Dia 8-40mm Length 15-300mm

Roll over image to zoom in Click on image to zoom

Extremely Heavy Duty Compression Die Spring, Outer Dia 8-40mm Length 15-300mm

HomeDIYer

No reviews

By HomeDIYer®

Outer Diameter: 8mm

Inner Diameter: 4mm

Length & Color: 20mm & Brown

Price:

$2.77 USD

Stock:

In stock (500 units), ready to be shipped

Quantity:

Share this product

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

DIY Expert Support

Get fitment advice & recommendations

Mon–Fri 8:30 AM – 8:00 PM

WhatsApp Email Us

24-Hour Fast Ship

Arrives in 3–14 Days

Worldwide Shipping

30-Day Returns

1 tree planted with every purchase

Extremely Heavy Duty Compression Die Spring — Reliable Force for Demanding Applications

When standard springs fail under repeated load cycles, engineers and serious makers turn to extremely heavy duty compression die springs. Whether you are building a stamping press, a plastic injection mold, or a custom automation fixture, undersized springs cause premature fatigue, inconsistent stroke, and costly downtime. These die springs are engineered to deliver consistent, high-force resistance across thousands of cycles without permanent set.

Each spring is manufactured from high-grade alloy steel wire, wound to tight dimensional tolerances. The outer diameter spans 8 mm (0.31 in) to 40 mm (1.57 in), the inner diameter ranges from 4 mm (0.16 in) to 20 mm (0.79 in), and the free length covers 20 mm (0.79 in) to 250 mm (9.84 in). The brown finish indicates an extremely heavy duty load rating per ISO 10243 / JIS B 5012 color-coding conventions.

Typical use cases include die and mold stripping applications requiring high stripping force, heavy-duty industrial press tooling where standard springs bottom out, CNC router and laser cutter hold-down fixtures, and DIY automation projects such as pneumatic-assist clamps and spring-return actuators. Long-tail search terms that describe this product: heavy duty die spring brown, compression spring for stamping die, ISO 10243 heavy load spring, mold stripping spring 8mm to 40mm.

⚙️ Compatibility: Fits standard die spring pockets per ISO 10243 and JIS B 5012. Select Outer Diameter to match your pocket bore; Inner Diameter clears guide pins. Brown color = Extremely Heavy Duty load class.

✅ Key Features of These Compression Die Springs

🟤 Extremely Heavy Duty Load Rating
Brown color-coded per ISO 10243 / JIS B 5012, delivering the highest standard load class for maximum stripping and clamping force.

📐 Wide Size Range

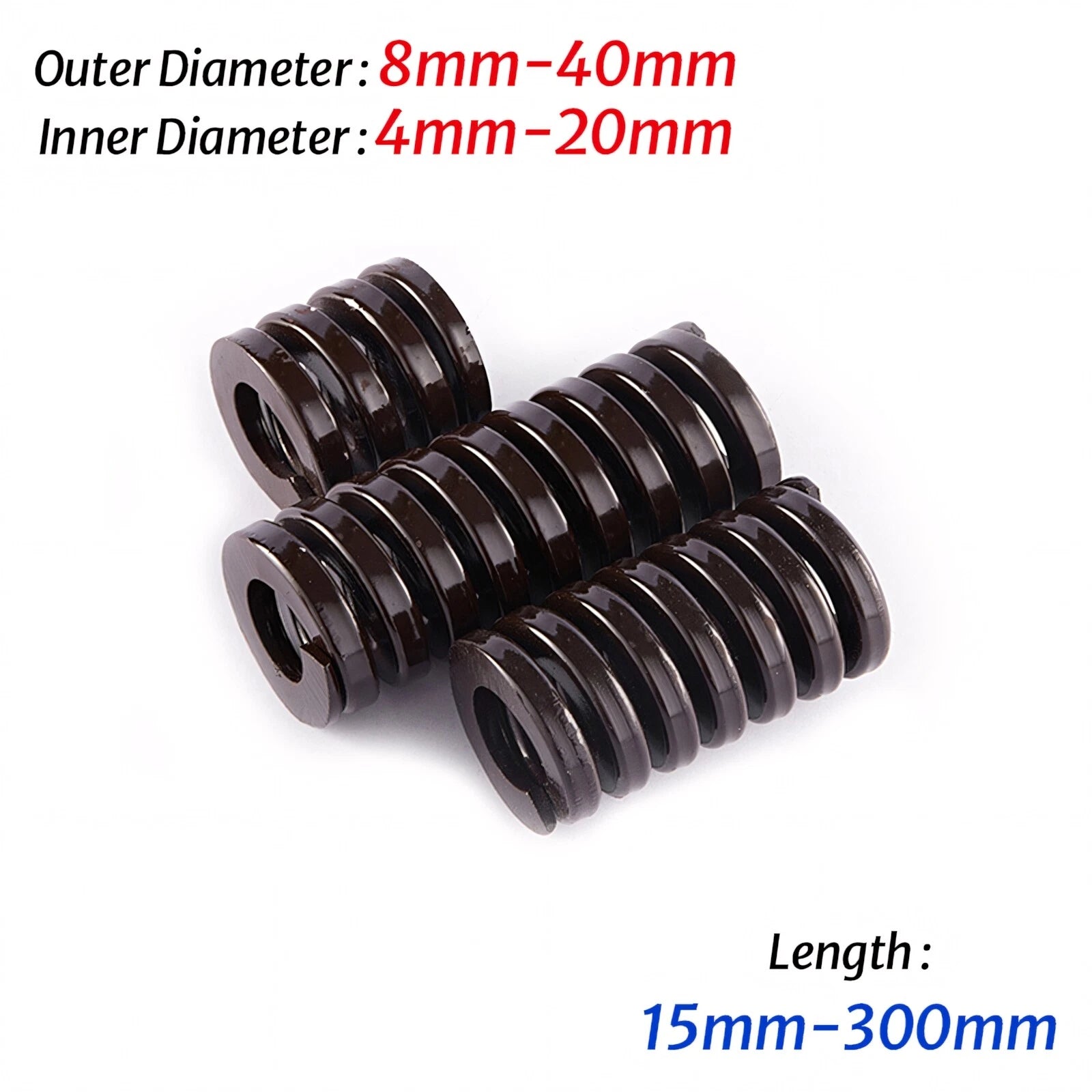

Outer diameter 8–40 mm (0.31–1.57 in), inner diameter 4–20 mm (0.16–0.79 in), free length 20–250 mm (0.79–9.84 in) — one listing covers most tooling needs.

🔩 Alloy Steel Construction
Wound from high-grade alloy steel wire for superior fatigue life and resistance to permanent set under repeated compression cycles.

🎯 Tight Dimensional Tolerances
Consistent OD, ID, and free length ensure drop-in fit into standard die pockets and reliable stroke repeatability across production runs.

🔄 Long Fatigue Life
Designed for high-cycle tooling environments; maintains rated spring force over extended use without significant load loss or coil collapse.

🛠️ Versatile Application Fit
Suitable for stamping dies, injection molds, press tooling, hold-down fixtures, and DIY automation spring-return mechanisms.

📐 Technical Specifications — Compression Die Springs

Load Class	Extremely Heavy Duty (Brown)
Standard	ISO 10243 / JIS B 5012
Material	High-grade alloy steel
Surface Finish	Brown painted / coated
Outer Diameter Range	8 mm – 40 mm (0.31 in – 1.57 in)
Inner Diameter Range	4 mm – 20 mm (0.16 in – 0.79 in)
Free Length Range	20 mm – 250 mm (0.79 in – 9.84 in)
Specific OD / ID / Length	See variant options
Spring Rate	See variant options
Maximum Deflection	See variant options
Wire Diameter	See variant options
End Type	Closed and ground (typical for die springs)
Coil Direction	Right-hand wound
Operating Temperature	Up to approximately 180°C (356°F)

❓ Frequently Asked Questions

How do I choose the right outer diameter for my die spring pocket?

The outer diameter of the spring should be slightly smaller than the pocket bore to allow free movement without binding. A typical clearance of 0.5–1 mm on the radius is recommended. Select the OD variant that is closest to but does not exceed your pocket bore diameter.

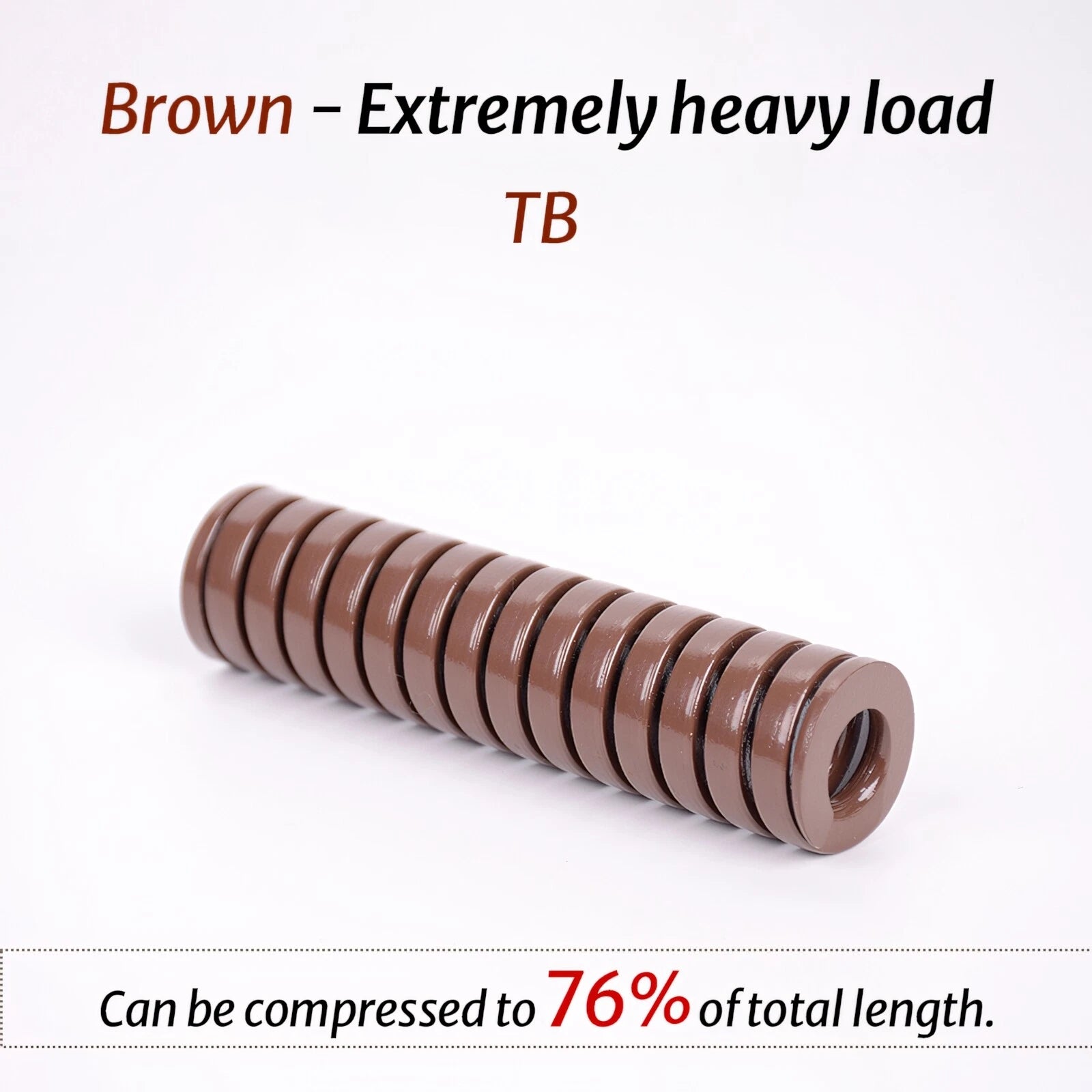

What does the brown color indicate on these die springs?

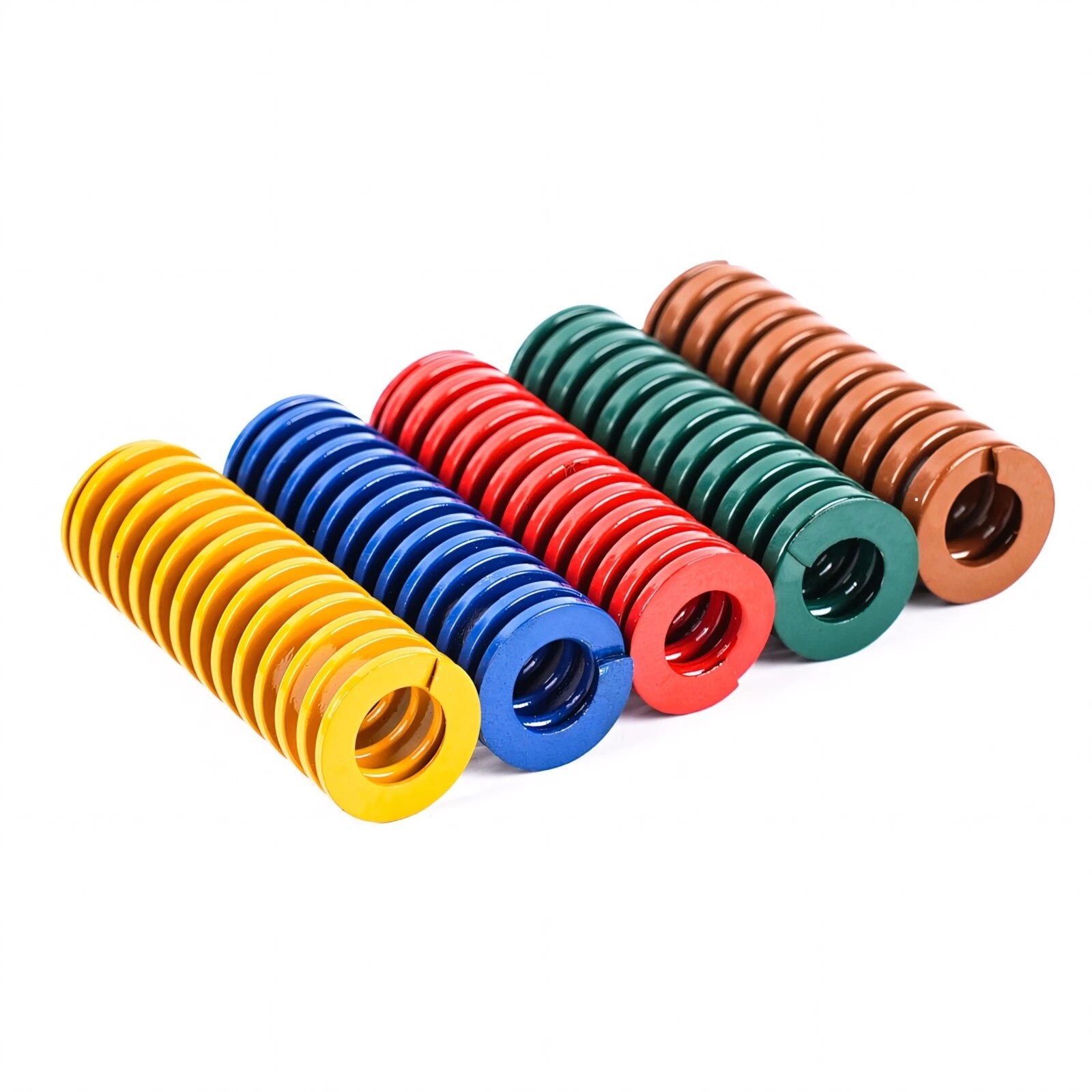

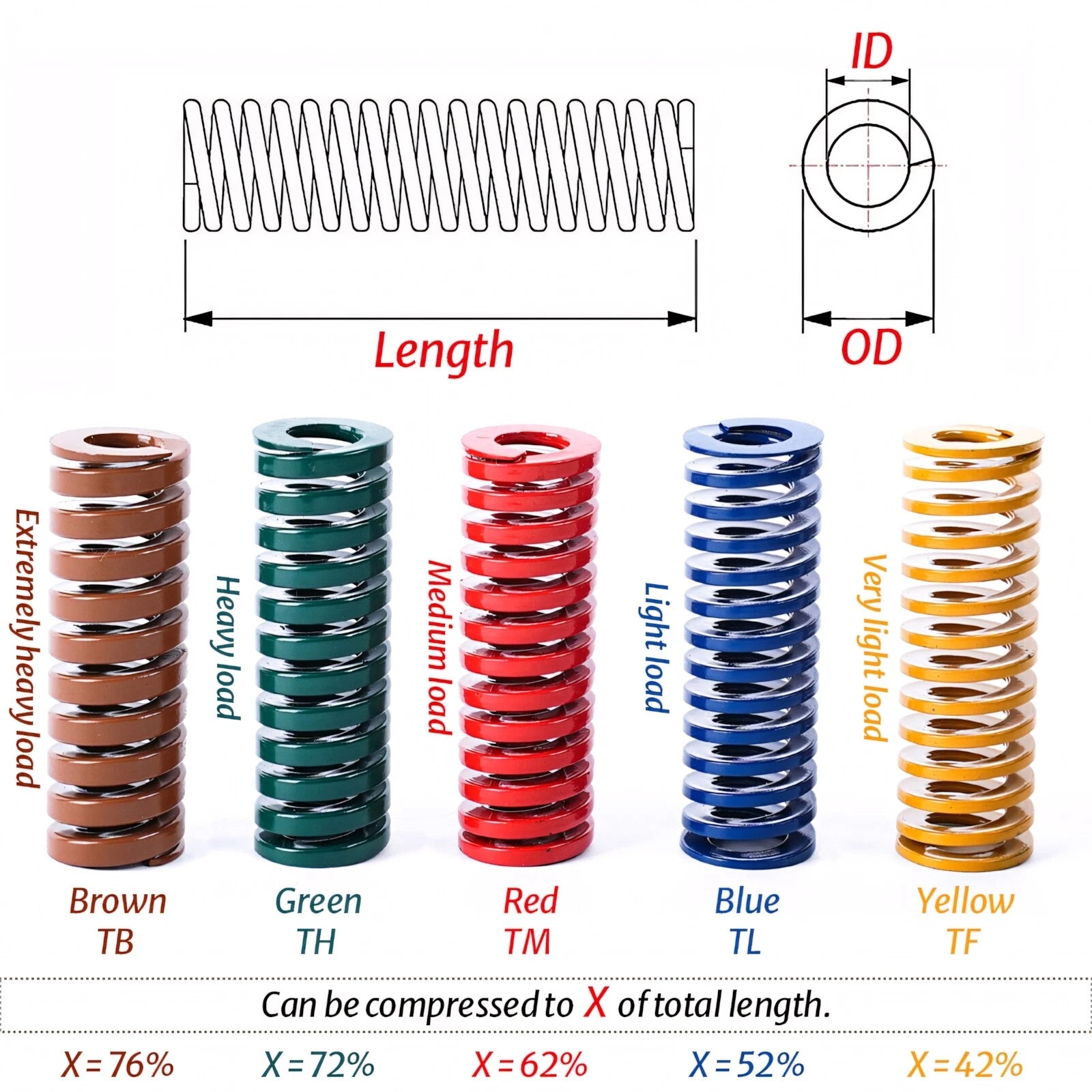

Brown is the color code for the Extremely Heavy Duty load class under ISO 10243 and JIS B 5012 standards. It represents the highest standard load rating, meaning these springs exert the greatest force per unit of deflection compared to light (yellow), medium (red), heavy (blue), and extra heavy (green) classes.

How strong are these springs compared to standard compression springs?

Extremely heavy duty die springs are engineered to deliver significantly higher spring rates than general-purpose compression springs of the same size. They are wound from alloy steel to tighter tolerances and are rated for high-cycle industrial tooling, making them far more robust than off-the-shelf hardware store springs.

Are these springs corrosion resistant?

The brown painted coating provides a basic level of surface protection against light moisture and handling. For environments with significant exposure to coolants, oils, or humidity, we recommend applying a light coat of machine oil or using the springs in a protected die pocket. For highly corrosive environments, contact us to confirm suitability.

Can I use these springs on a guide pin, and what inner diameter should I choose?

Yes, these springs are designed to slide over standard guide pins. Select an inner diameter that is at least 0.5–1 mm larger than your guide pin diameter to ensure smooth travel without binding. The inner diameter options range from 4 mm to 20 mm to accommodate a wide range of pin sizes.

How do I determine the correct free length for my application?

The free length should be chosen so that the spring is pre-compressed (pre-loaded) in the assembled position, and the maximum working deflection does not exceed approximately 30–40% of the free length for extremely heavy duty springs. Exceeding the rated deflection causes rapid fatigue. Measure your available pocket depth and required stroke, then select a free length that keeps deflection within the safe working range.

What applications are these die springs best suited for?

These springs are ideal for stamping and blanking dies requiring high stripping force, plastic injection mold ejector systems, heavy-duty press tooling, CNC fixture hold-downs, spring-return pneumatic clamps, and DIY automation projects where consistent, high-force spring return is critical. They are not recommended for light-duty or decorative applications where a lower load class would be more appropriate.

🛒 Select your Outer Diameter, Inner Diameter, and Length above, then add to cart.
