When standard springs fail under repeated high-force cycles, engineers and serious DIYers reach for heavy-load die springs. These ISO-standard compression die springs are engineered for applications where deflection control and load consistency are non-negotiable — from hydraulic press tooling to industrial stamping fixtures and heavy-duty machinery maintenance.

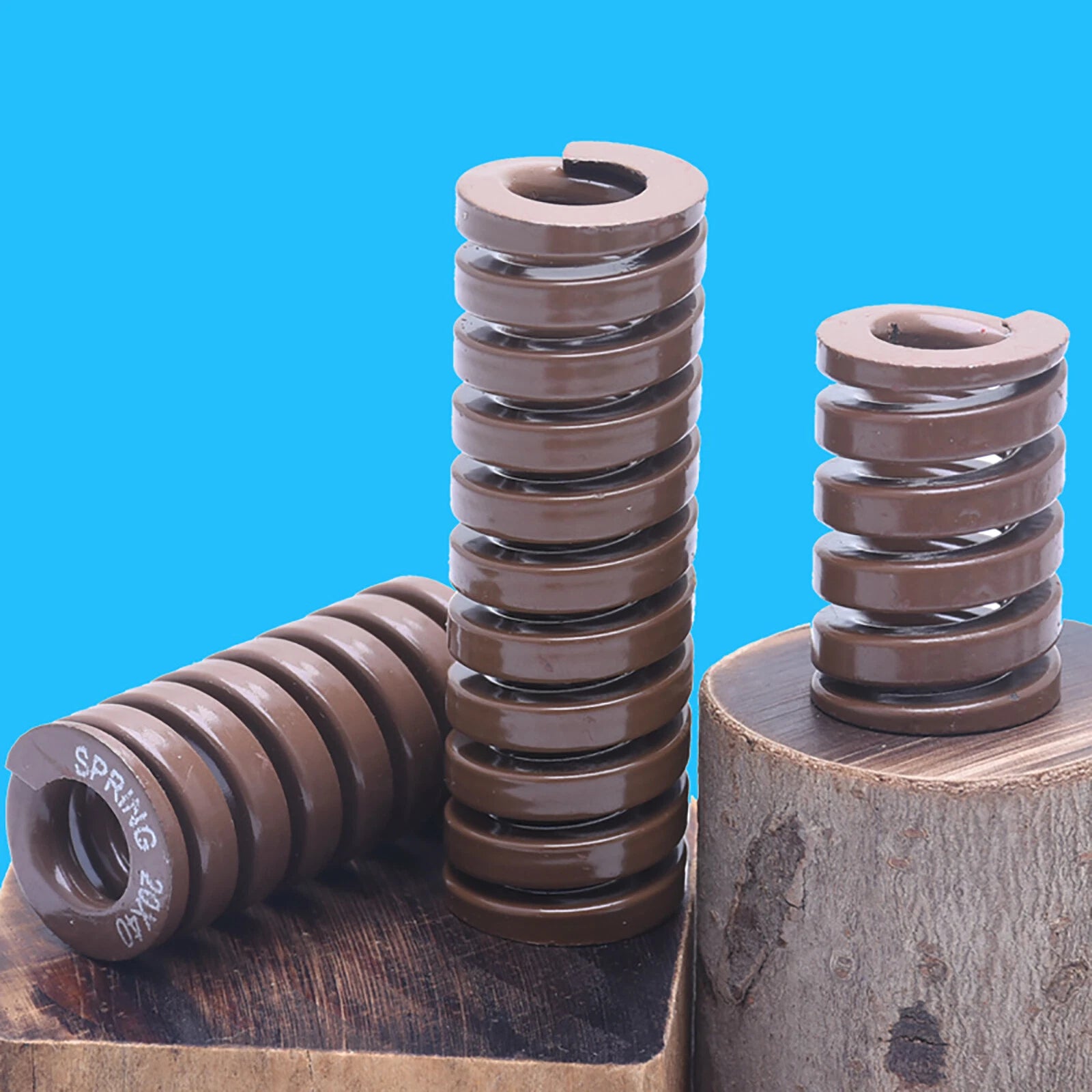

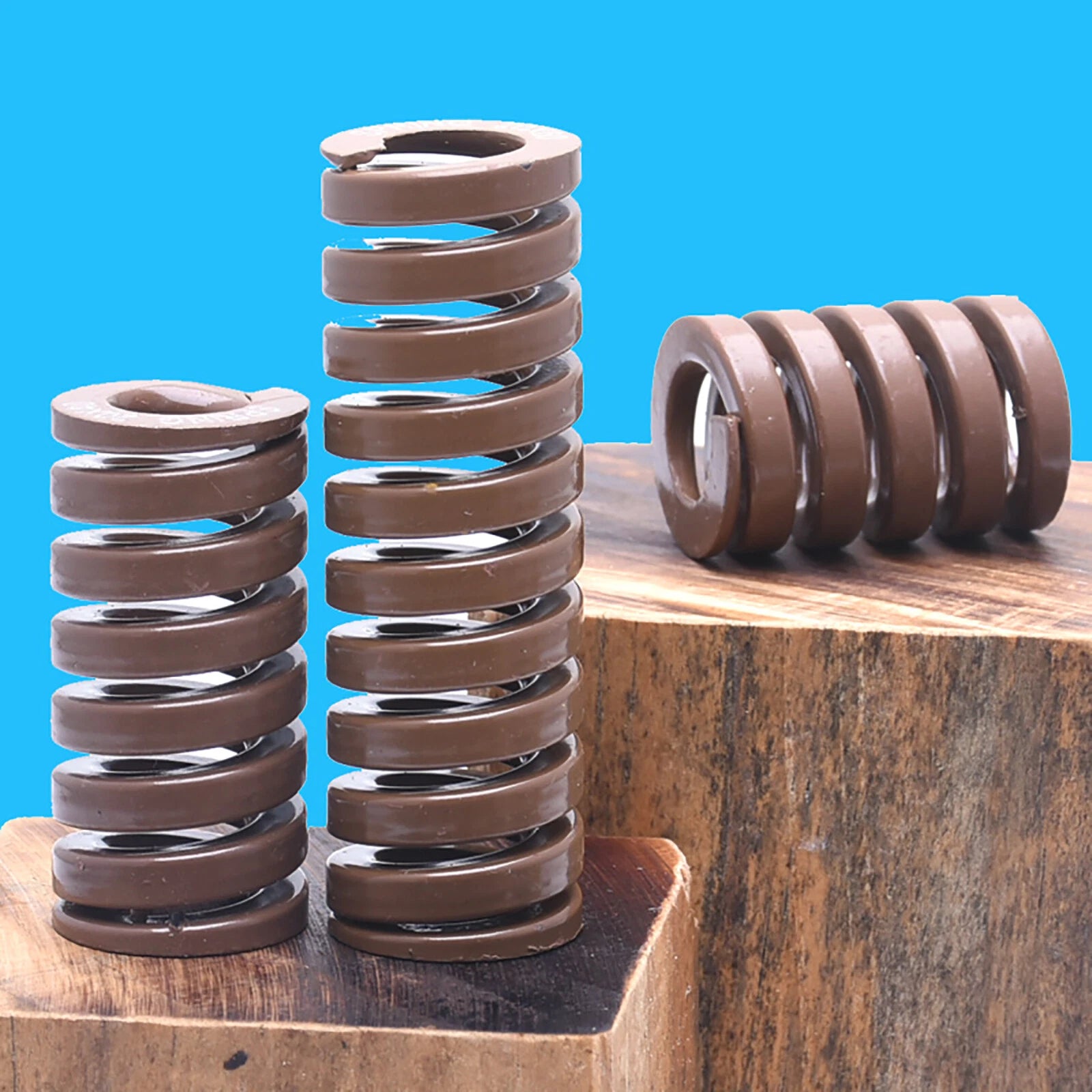

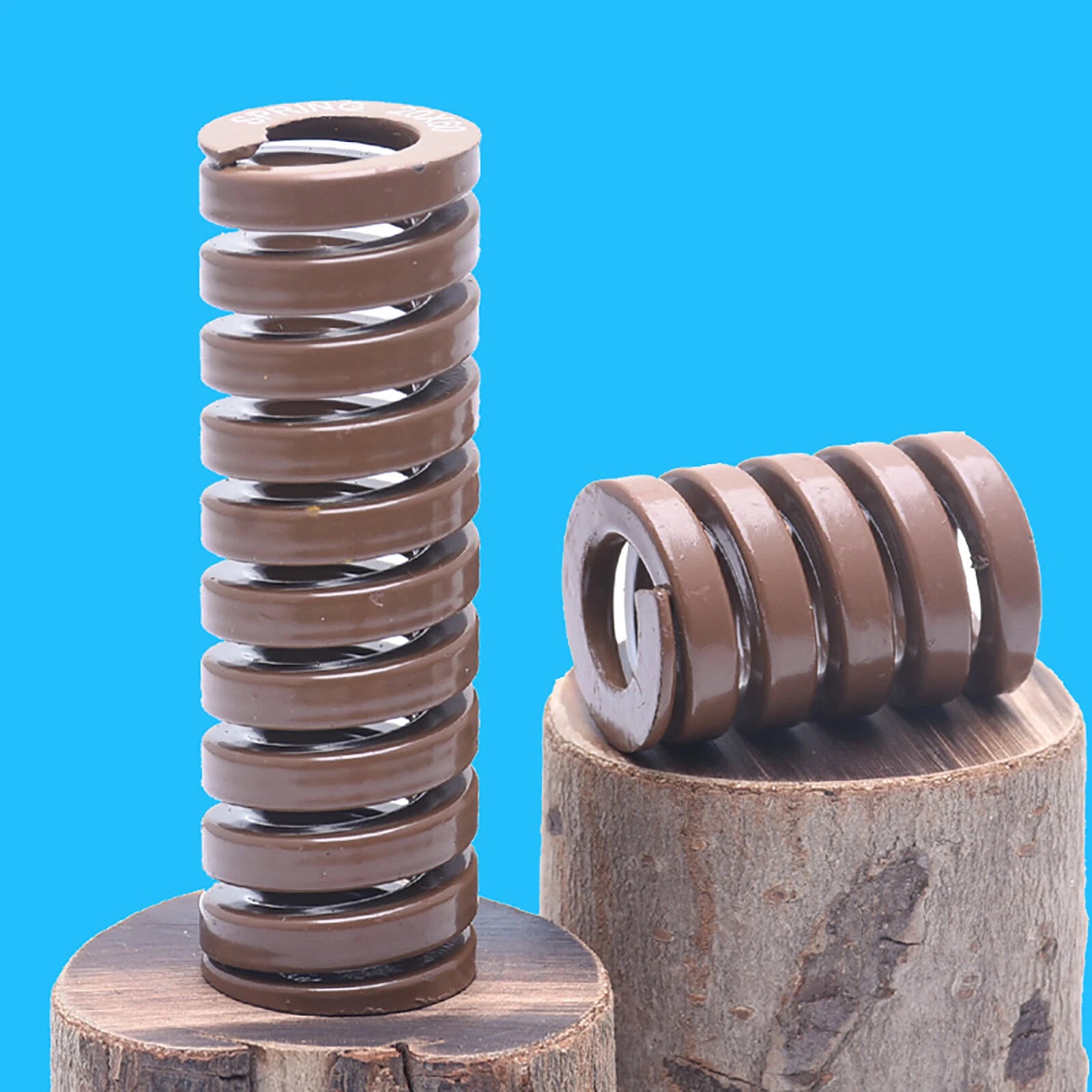

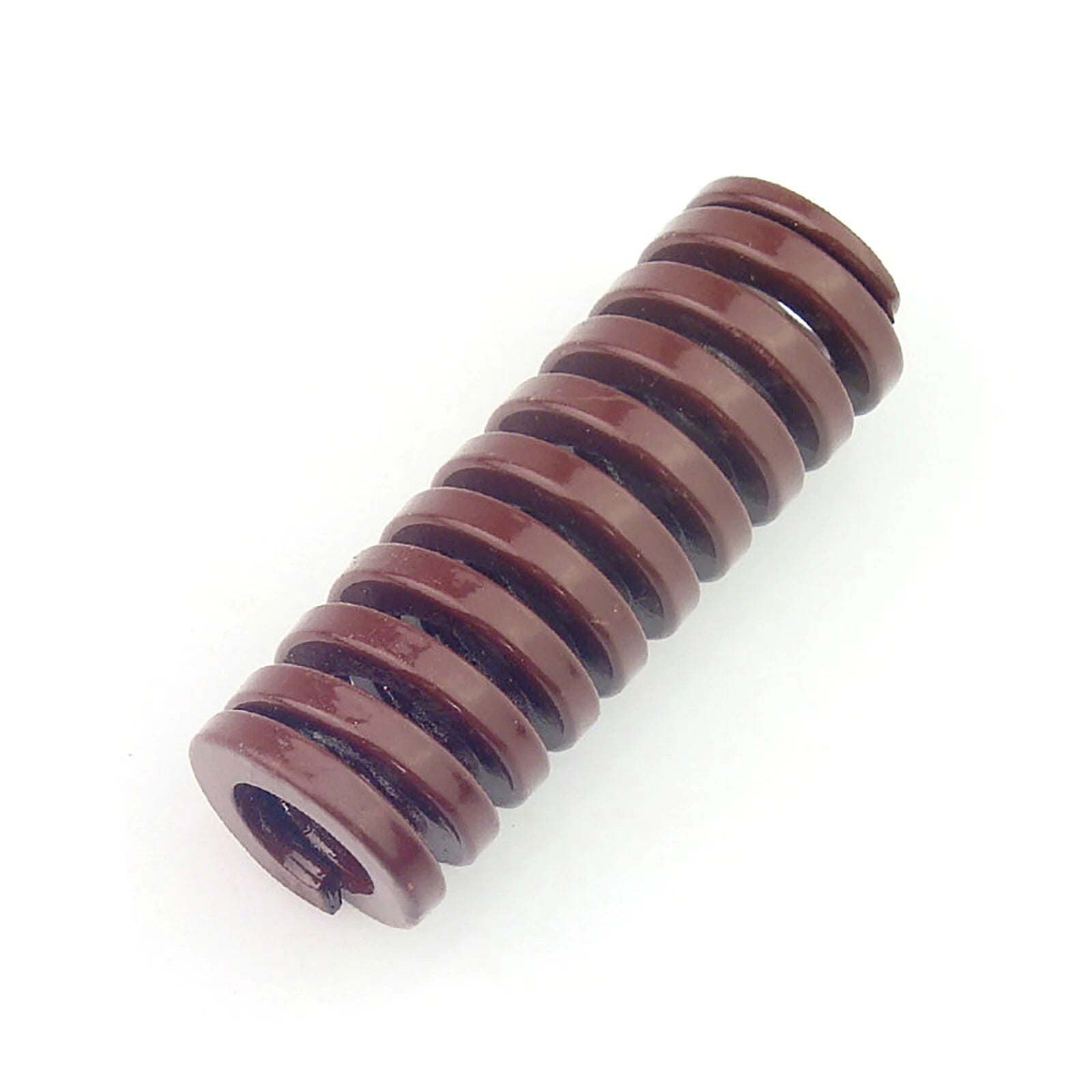

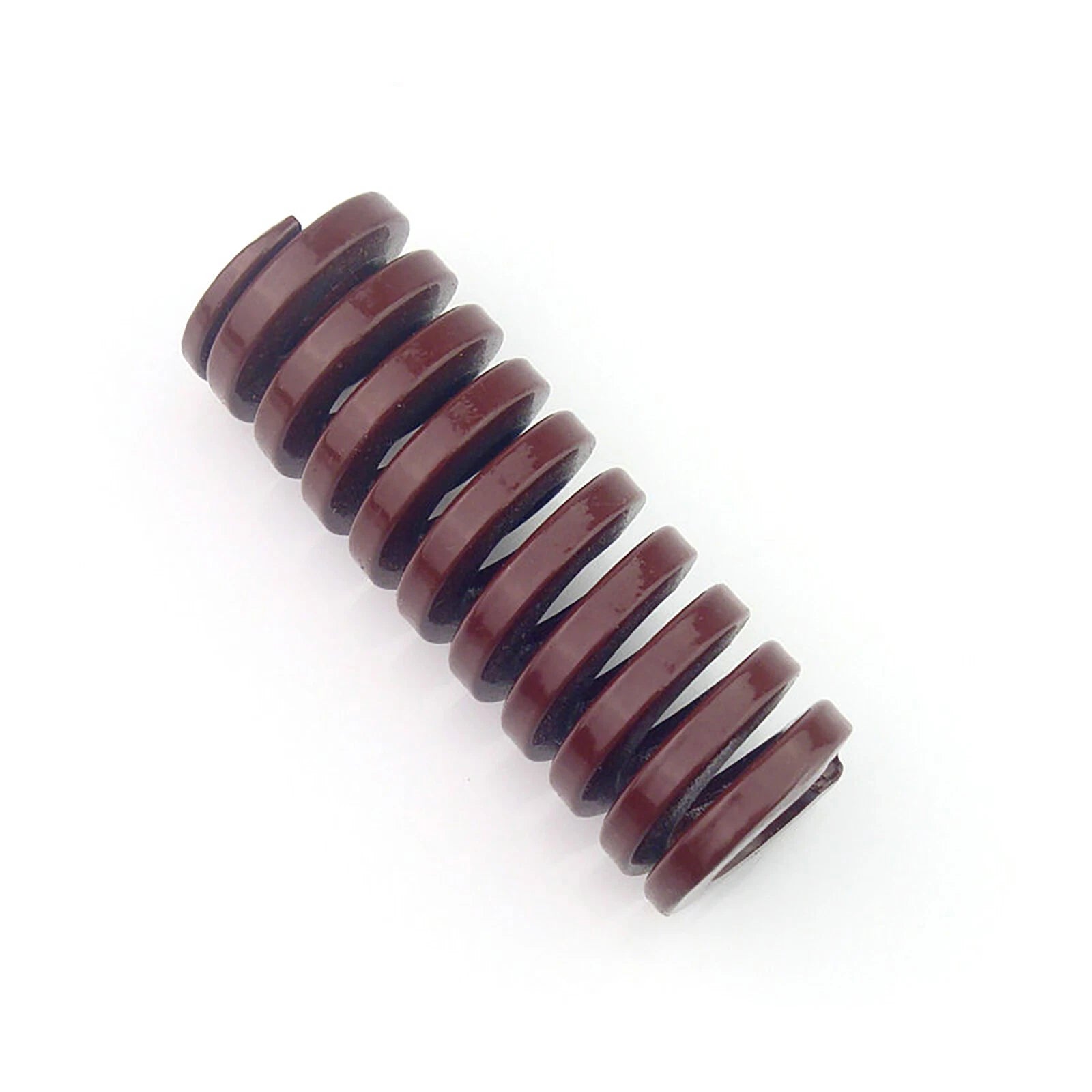

Each spring is manufactured to ISO 10243 heavy-load specifications, featuring a rectangular cross-section wire wound into a cylindrical coil. Available in outer diameters from 8mm (0.31 in) to 35mm (1.38 in), inner diameters from 4mm to 17.5mm, and free lengths from 20mm (0.79 in) up to 250mm (9.84 in), this range covers a wide spectrum of tooling and mechanical engineering needs.
Typical use cases include die and mold tooling for metal stamping presses, heavy-duty jig and fixture clamping systems, and industrial equipment overhaul projects requiring reliable spring-back force under sustained compression loads.
| Standard | ISO 10243 Heavy Load |
|---|---|
| Load Class | Heavy (typically color-coded brown or red) |
| Wire Cross-Section | Rectangular |
| Outer Diameter (OD) | 8mm – 35mm (0.31 in – 1.38 in) |
| Inner Diameter (ID) | 4mm – 17.5mm (0.16 in – 0.69 in) |
| Free Length | 20mm – 250mm (0.79 in – 9.84 in) |
| Material | High-tensile alloy steel |
| Surface Treatment | See variant options |
| Deflection Rate | See variant options |
| Max. Deflection (%) | Typically 25–30% of free length (heavy load class) |
| Operating Temperature | Typically up to 120°C (248°F) standard; higher with special treatment |
| Coil Direction | Right-hand wound |
| End Type | Closed and ground |

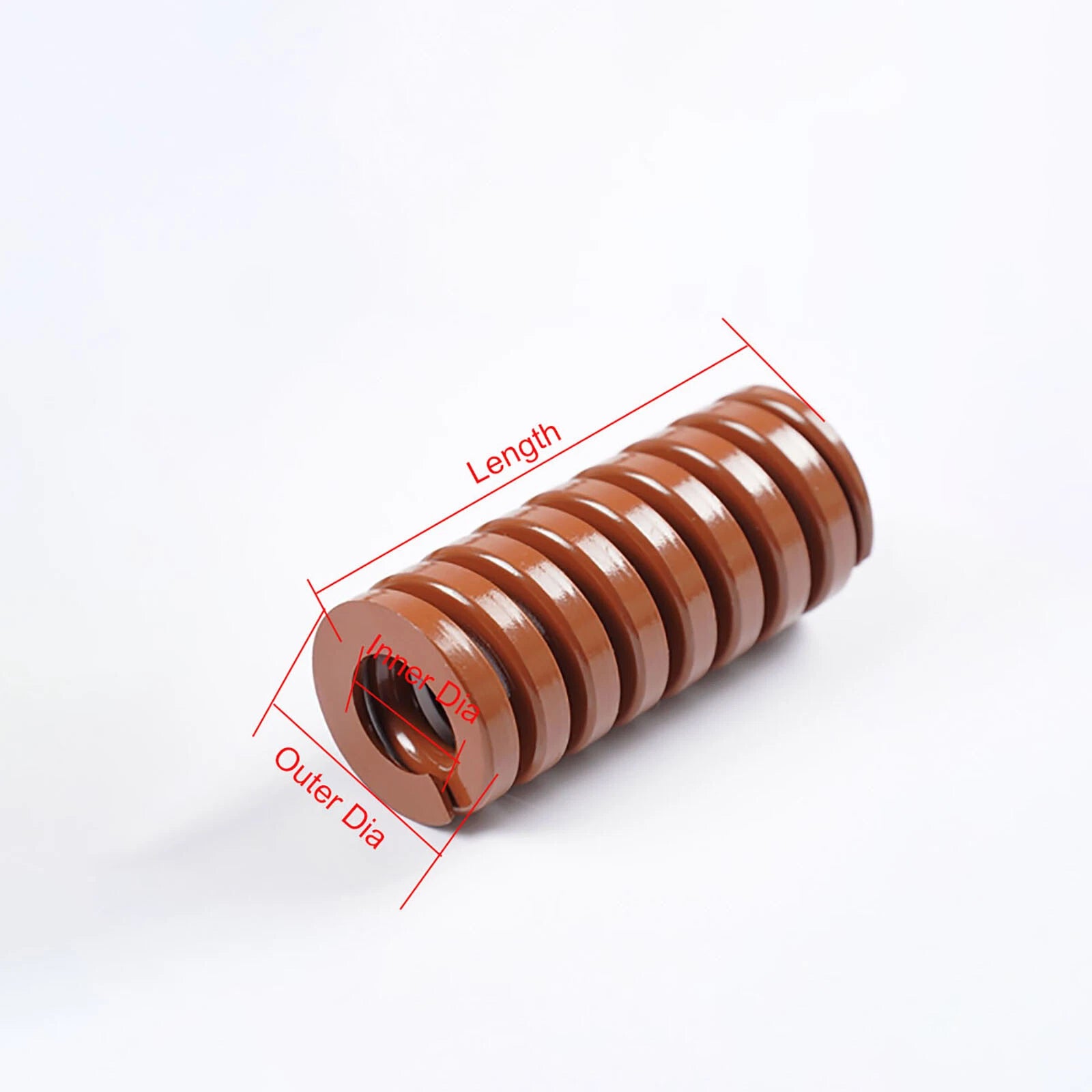

Match the outer diameter (OD) to your die spring pocket bore, and the inner diameter (ID) to your guide pin diameter. The OD should fit snugly in the pocket without binding, and the ID should clear the guide pin with a small gap (typically 0.5–1mm). Refer to your tooling drawings or measure your existing spring pocket and guide pin before selecting a size.
ISO 10243 classifies die springs into load categories — light, medium, heavy, and extra heavy — based on their load rate per unit of deflection. Heavy-load springs (typically color-coded brown or red) deliver a higher force per millimeter of compression than light or medium springs of the same size. They are suited for applications requiring strong return force or where space is limited and a compact spring must generate significant load.
The free length should be chosen so that the spring operates within 25–30% of its free length in deflection during normal use (the recommended working range for heavy-load die springs). Measure the available pocket depth and the required stroke, then select a free length that keeps deflection within this range. Exceeding the maximum deflection shortens spring life significantly.
These springs are manufactured from high-tensile alloy steel with a surface treatment to provide baseline corrosion resistance suitable for typical indoor tooling environments. For applications involving coolant, cutting fluids, or high humidity, consider additional protective measures such as periodic lubrication or selecting springs with enhanced coatings. Contact us to confirm surface treatment details for your specific variant.
Yes. ISO 10243 heavy-load die springs are widely used in injection mold tooling for ejector plate return, stripper plate actuation, and core pull mechanisms. Ensure the selected OD and ID match your mold's spring pockets and guide pins, and that the free length and deflection range suit your mold's stroke requirements.
Replace a die spring if you observe a measurable reduction in free length (set), visible cracking or surface damage, inconsistent press performance, or if the spring has reached its rated cycle life. For heavy-load springs in production tooling, it is good practice to replace springs on a scheduled maintenance interval rather than waiting for visible failure.
ISO 10243 is the international standard for rectangular-wire compression die springs, defining dimensions, load classes, and tolerances. Other common standards include JIS B 5012 (Japanese) and various DIN standards. Springs conforming to ISO 10243 are generally interchangeable with springs from other manufacturers that also conform to the same standard and size, making replacement straightforward in multi-supplier environments.
