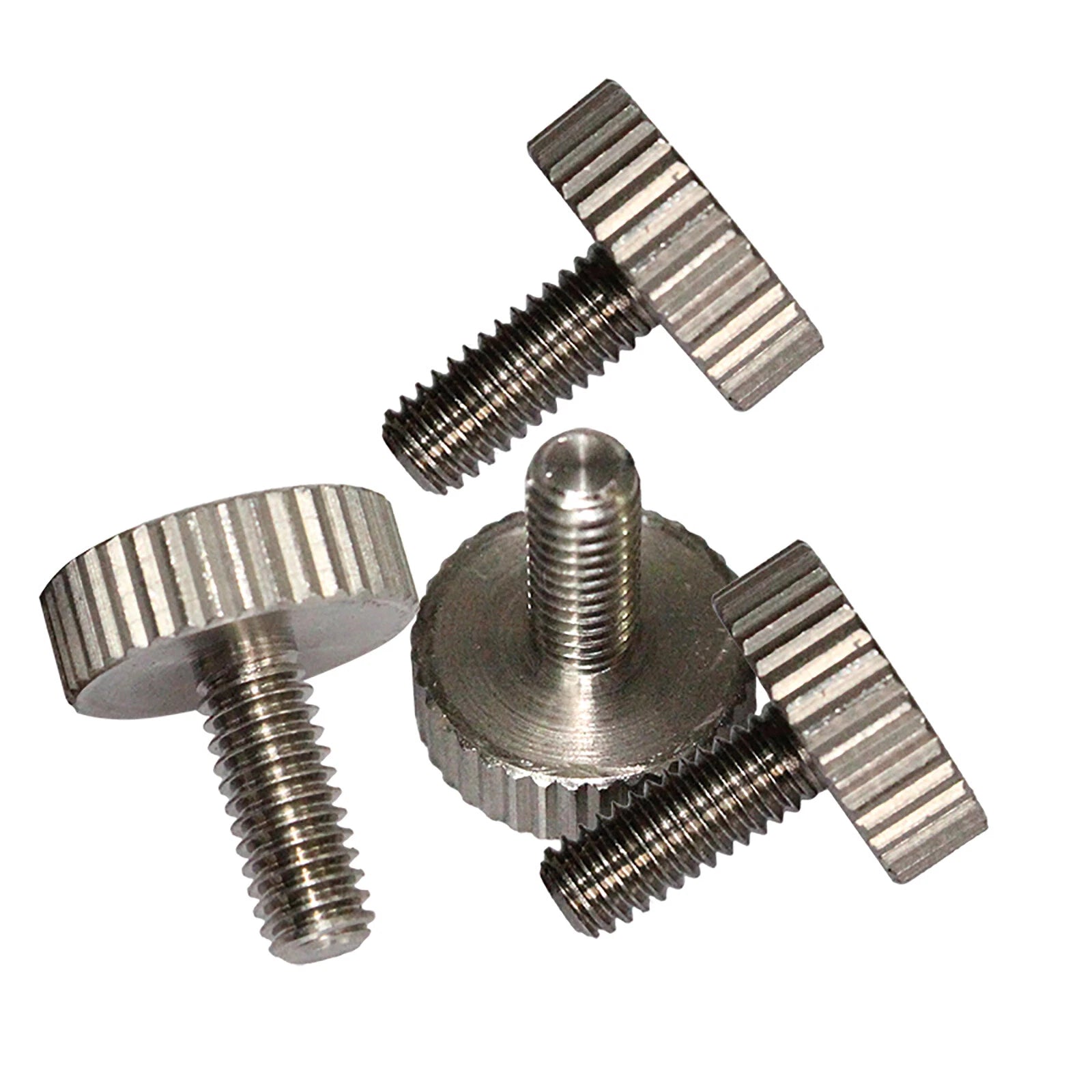

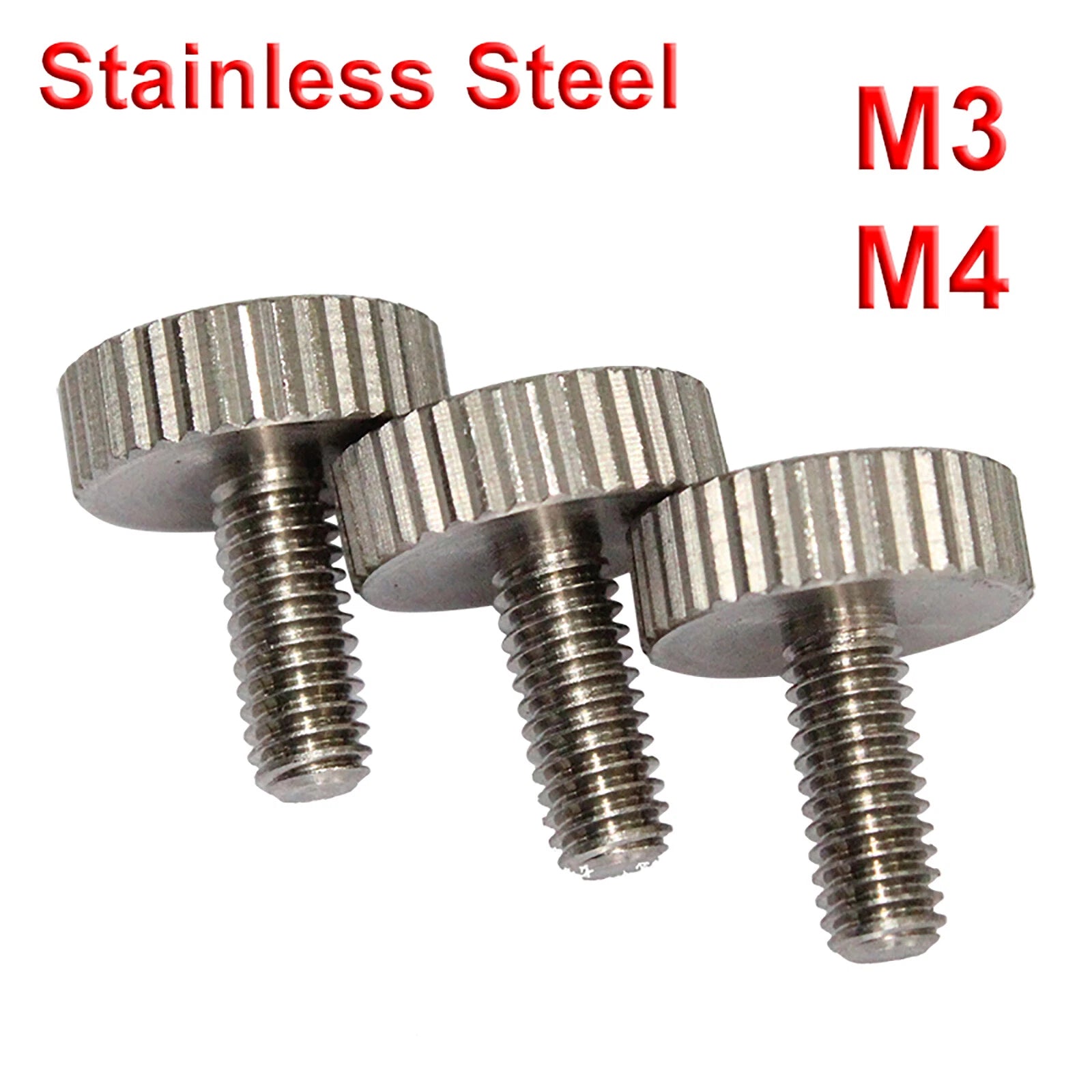

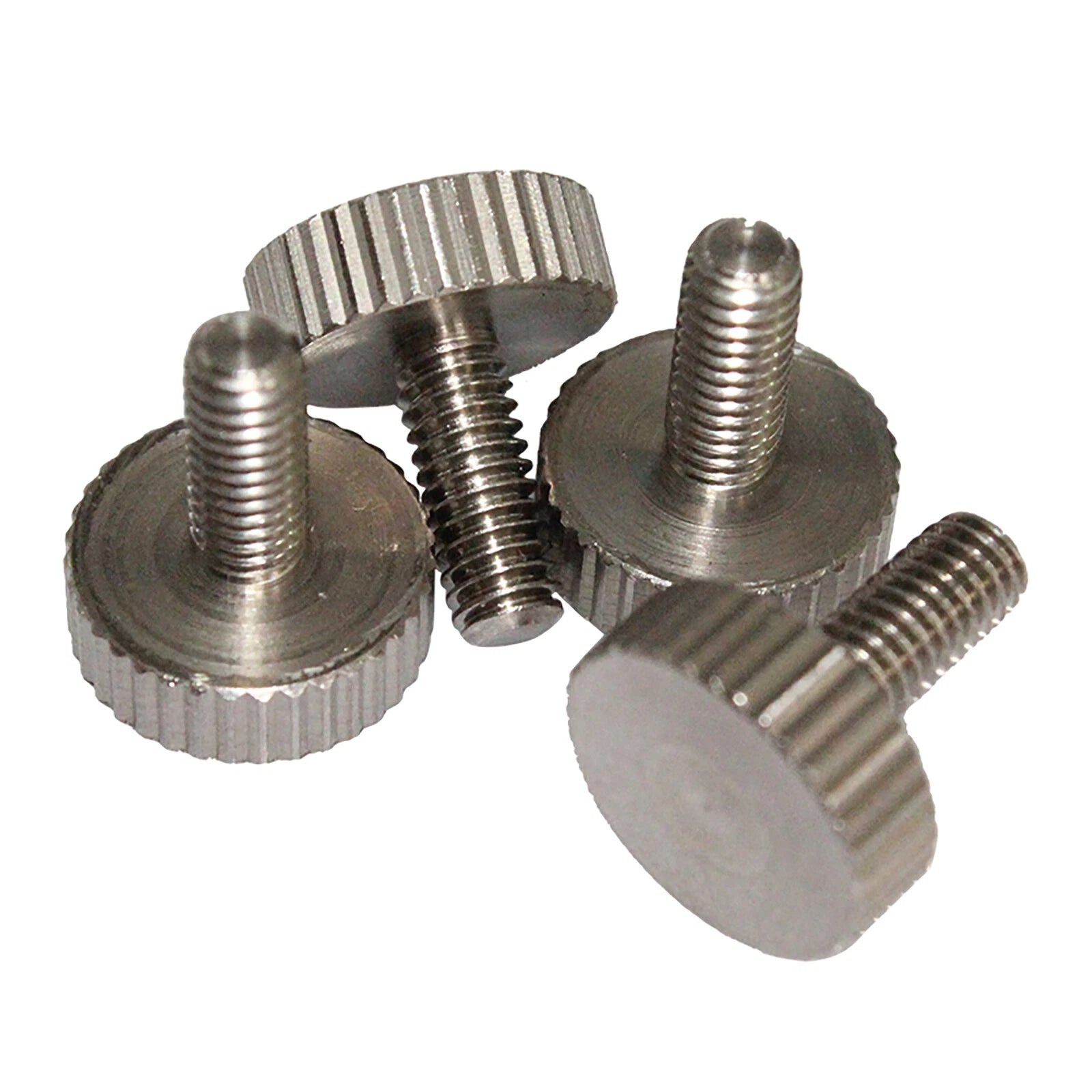

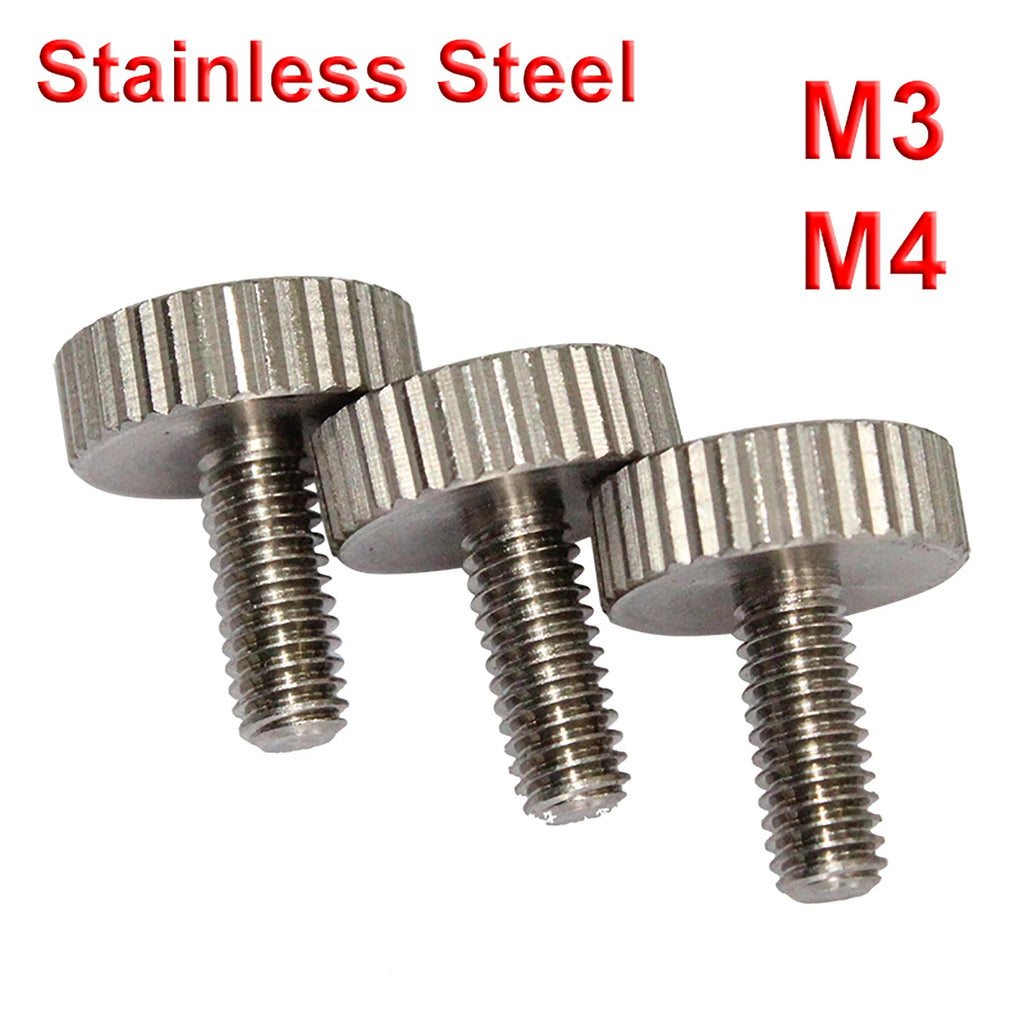

Flat Head Knurled Thumb Screws Stainless Steel M3 M4 Thumbscrews 5mm~12mm Long

M3 screws have a 3 mm nominal thread diameter and are suited for lighter panels, thin sheet metal, and small enclosures where space is limited. M4 screws have a 4 mm diameter and provide greater clamping force and thread engagement, making them better for thicker panels or applications with moderate vibration. Match the screw size to your existing tapped holes or threaded inserts — do not mix thread sizes.

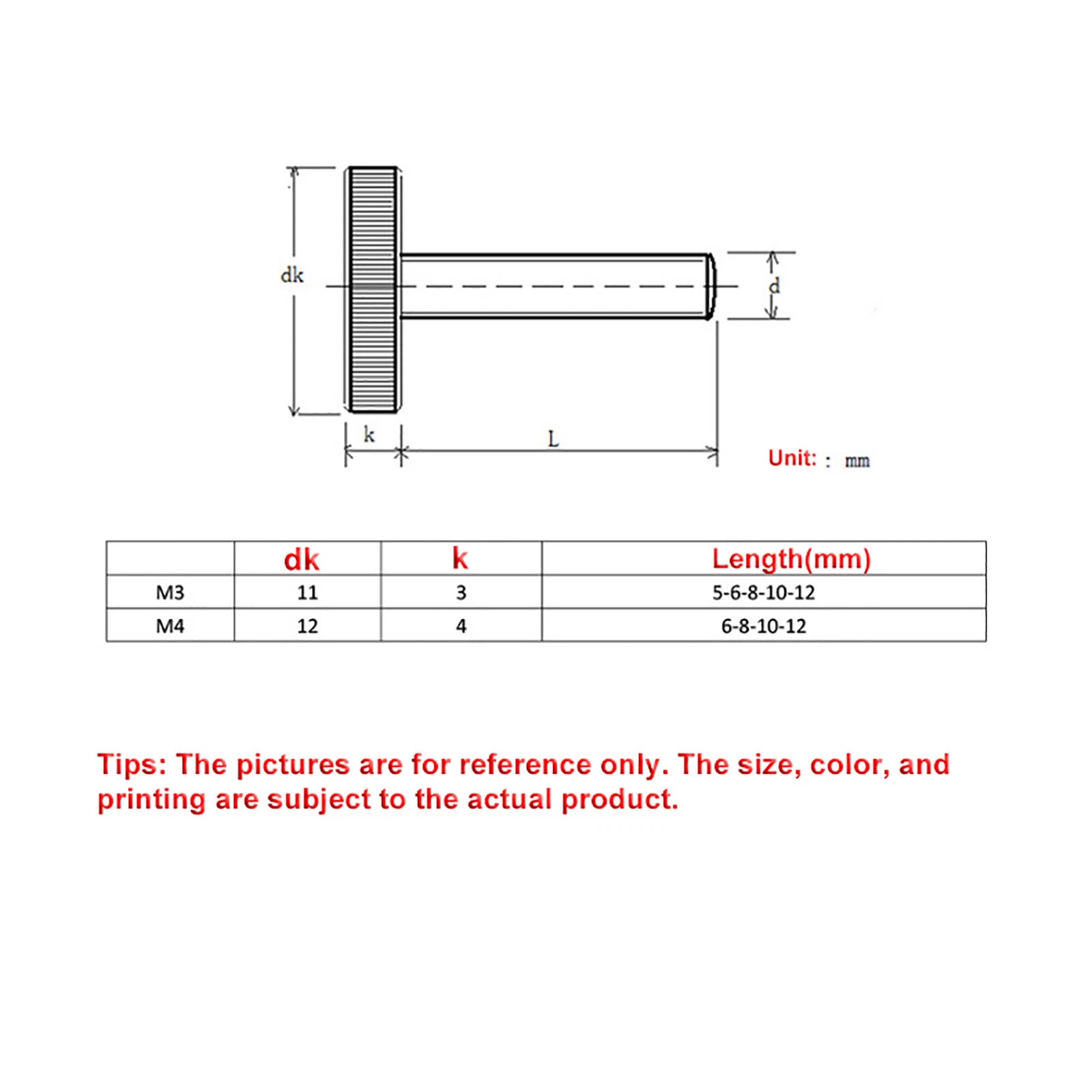

The available shank lengths of 5 mm through 12 mm cover panel and combined stack thicknesses of approximately 3 mm to 10 mm, depending on thread engagement depth required. For very thin panels (under 3 mm), consider using a threaded insert or nut on the back side to ensure adequate thread engagement.

Stainless steel provides good tensile strength and wear resistance for thumb screw applications. These fasteners are designed for repeated hand-tightening in access panel and enclosure applications — not for high-torque structural joints. Avoid using tools to overtighten, as this can strip the knurled head or damage the mating thread.

Stainless steel resists oxidation and surface rust in typical indoor and light-outdoor environments. In high-chloride or salt-spray environments (such as marine applications), additional protection or a higher-grade stainless alloy may be advisable. Contact us to confirm suitability for your specific environment.

Yes. M3 and M4 are the two most common thread sizes in 3D printer frames, electronics enclosures, and DIY maker builds. The flat head profile keeps the screw low-profile against the panel surface, and the knurled grip allows quick tool-free access — both useful for enclosures that need to be opened regularly for maintenance or adjustment.

Measure the total thickness of the material being fastened (panel + any washers or spacers), then add the minimum thread engagement depth — typically 1× to 1.5× the thread diameter (e.g., 3–4.5 mm for M3, 4–6 mm for M4). Choose the shortest length that meets this engagement requirement to avoid the screw bottoming out in a blind hole.

Yes. M3 and M4 standard pitch threads are compatible with standard metric hex nuts, nylon lock nuts, and common threaded inserts (brass, steel, or heat-set). Verify that the insert or nut pitch matches — M3 × 0.5 mm and M4 × 0.7 mm are the standard pitches used on these screws.
