When a rigid connection between your stepper motor and lead screw causes vibration, binding, or premature wear, the culprit is almost always shaft misalignment. Makers, CNC builders, and 3D printer enthusiasts who demand smooth, repeatable motion need a coupling that compensates for angular, parallel, and axial offset without sacrificing torque transmission.

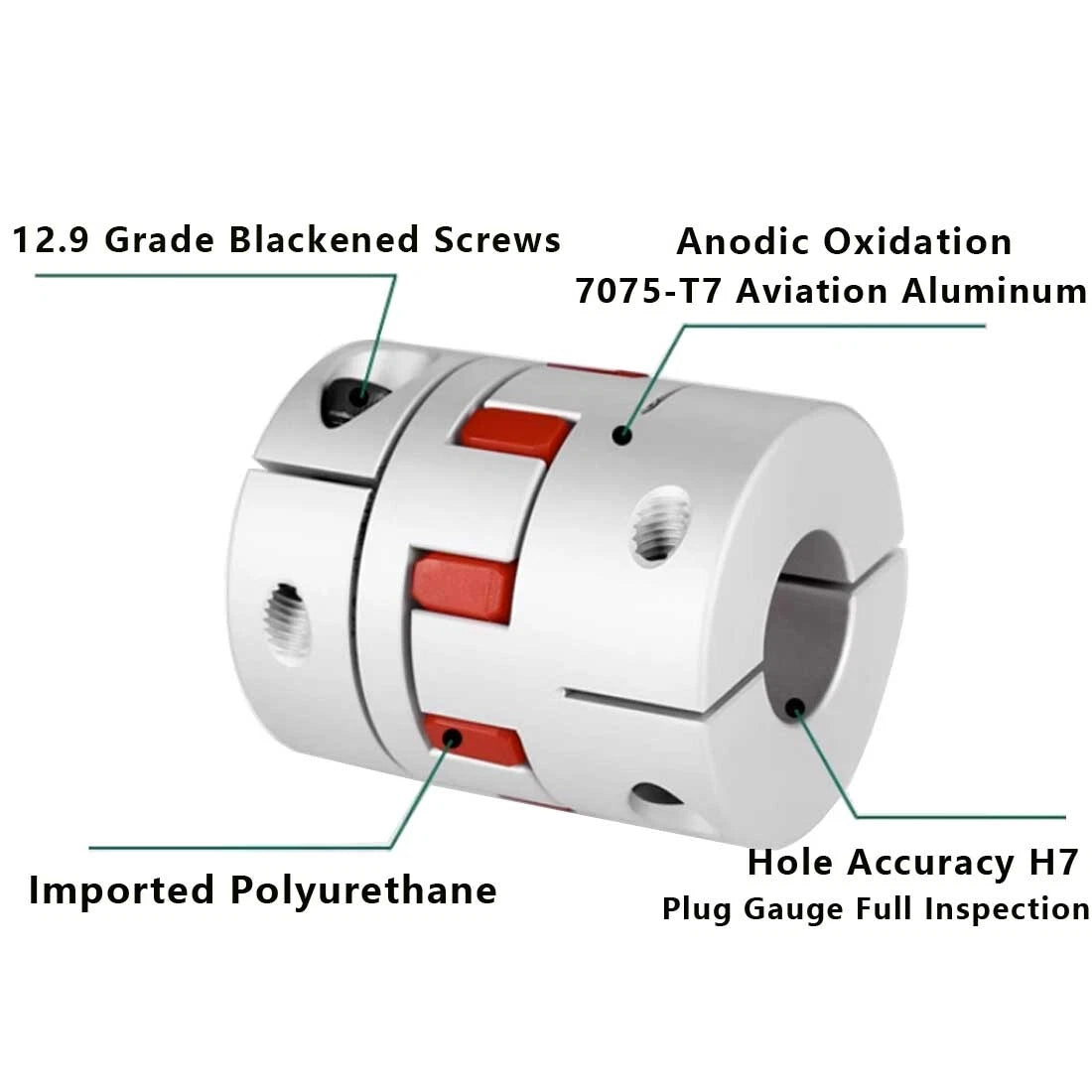

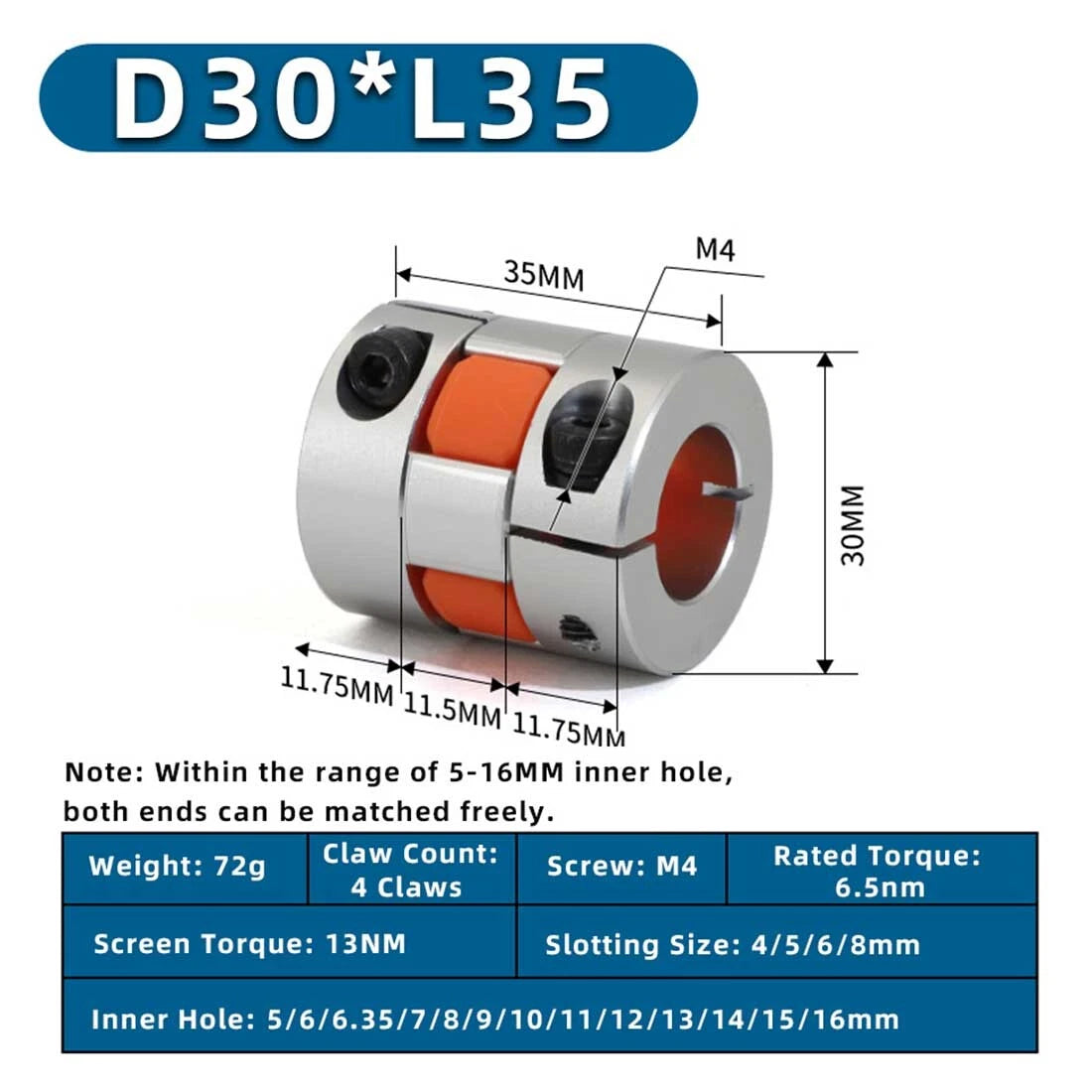

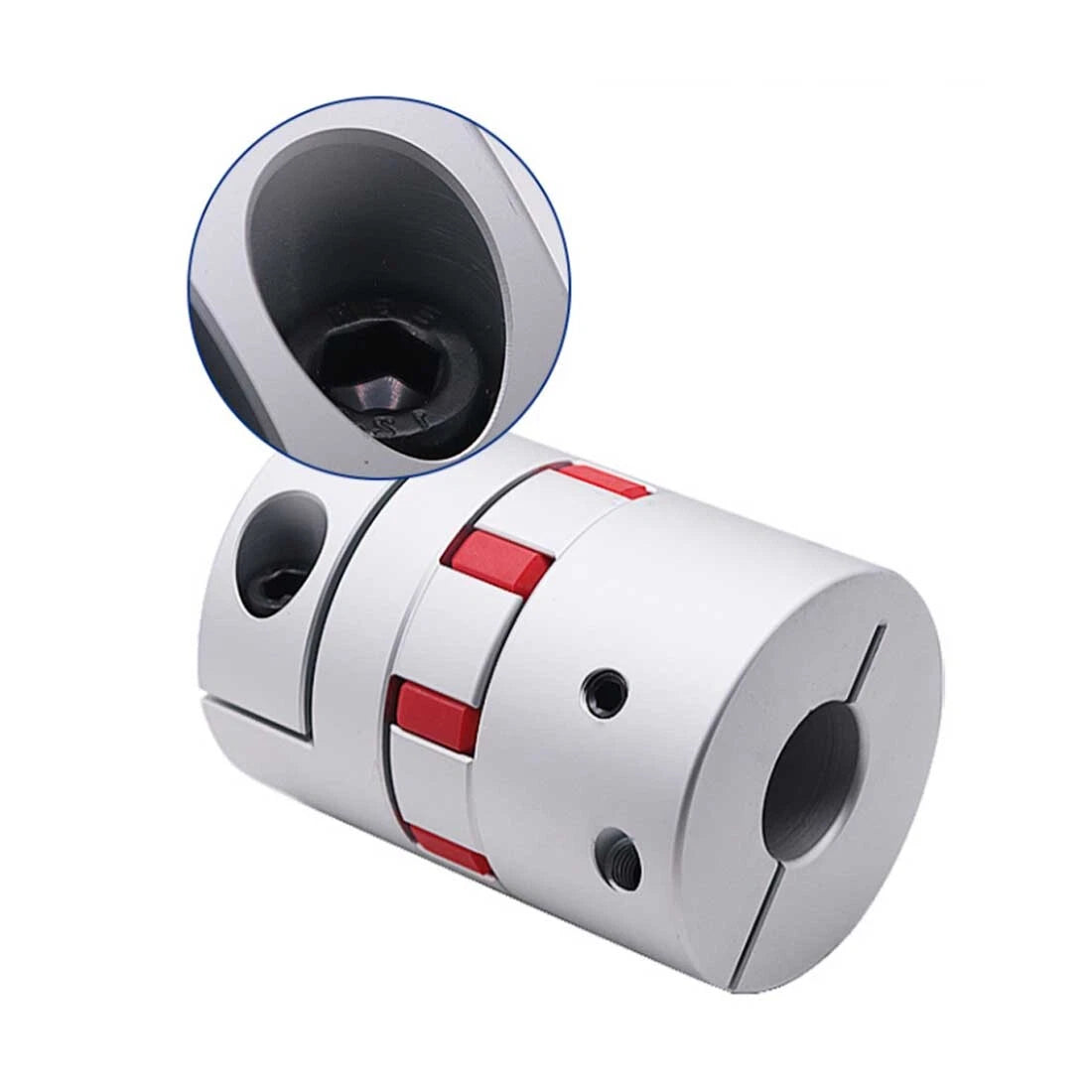

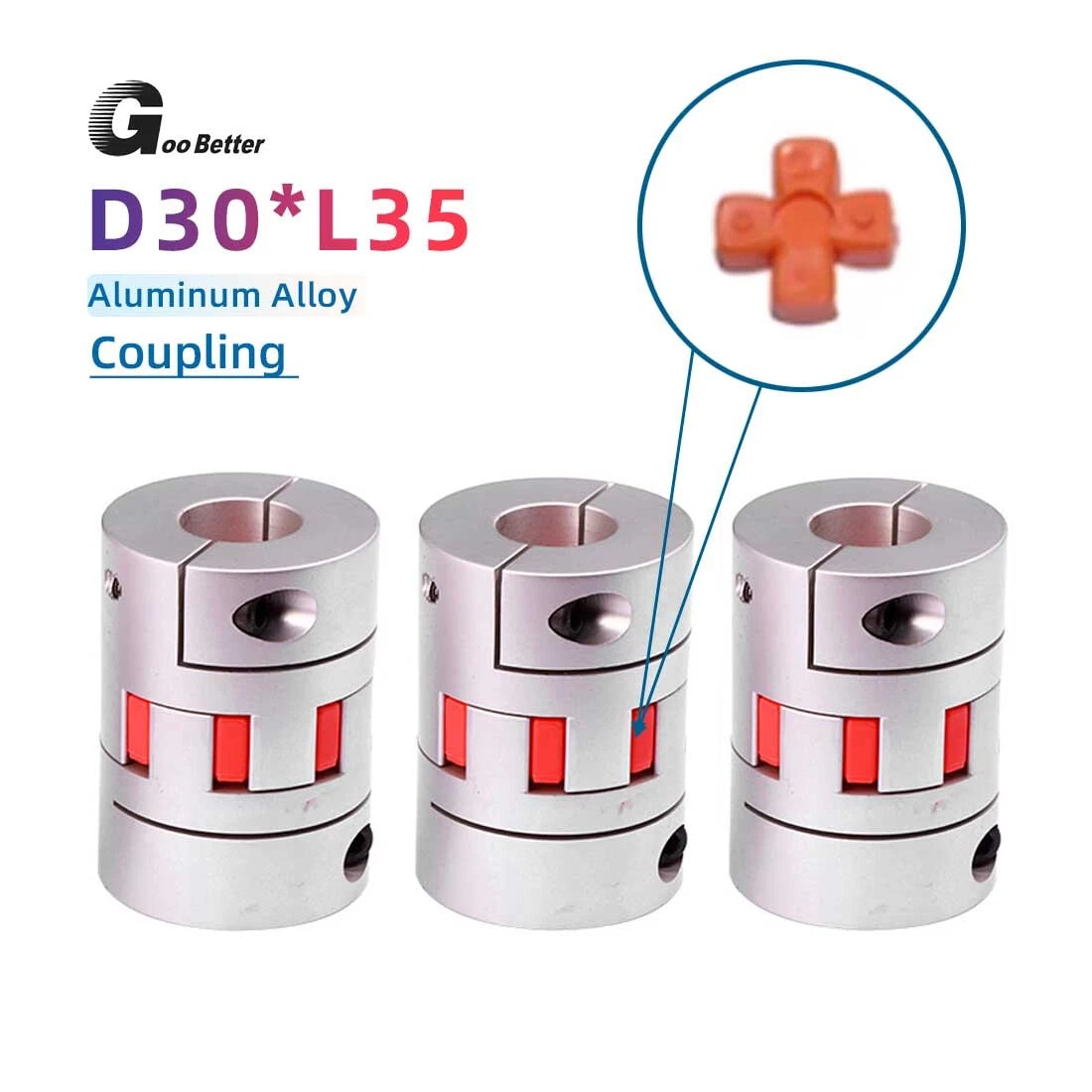

This flexible plum coupling features a D30×L35mm aluminum alloy body (outer diameter 30 mm / ~1.18 in, length 35 mm / ~1.38 in) paired with a polyurethane spider insert. Bore sizes span 5 mm to 16 mm (both same-diameter and stepped combinations), covering the most common stepper motor shaft and lead screw pairings used in DIY CNC routers, laser engravers, and FDM 3D printers.

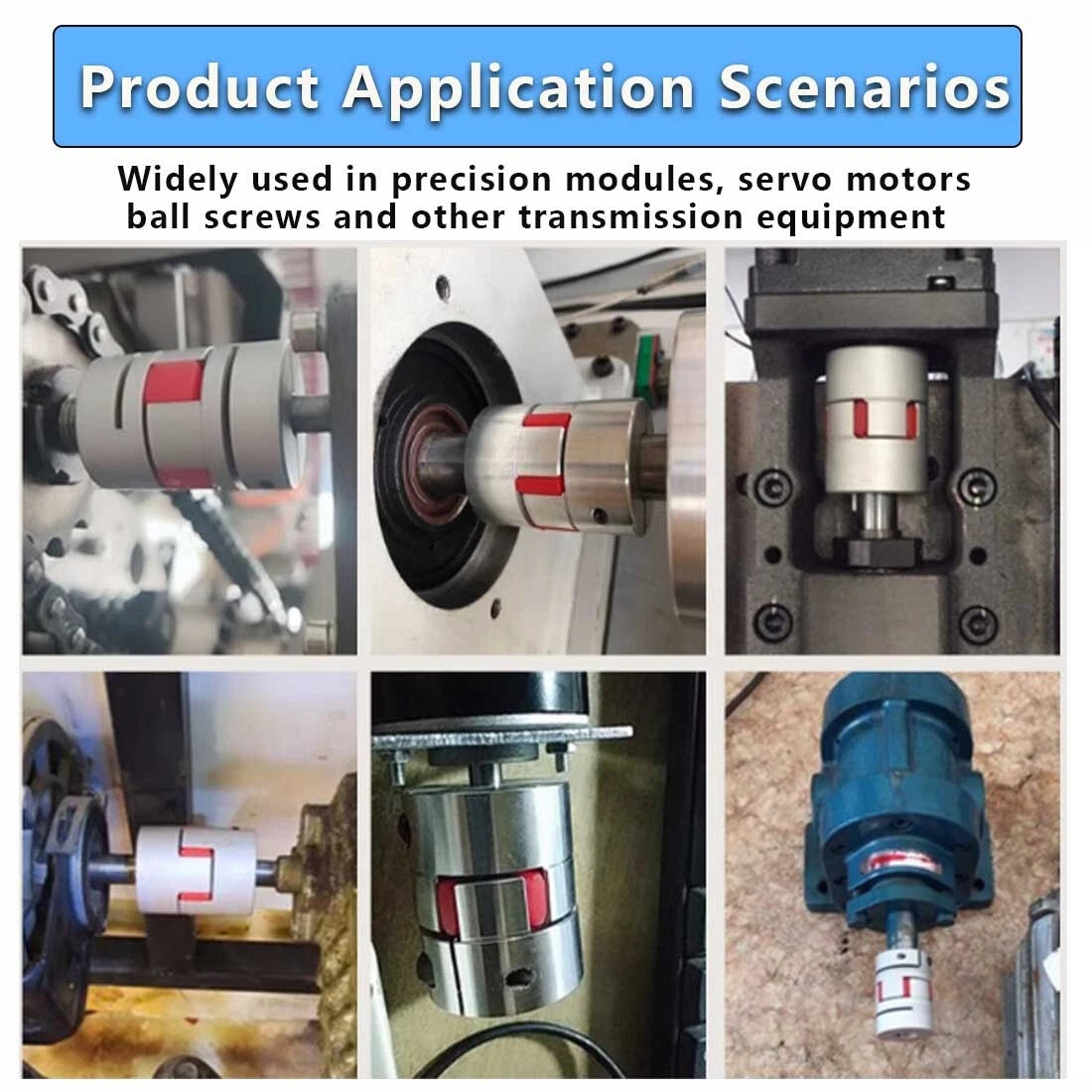

Typical use cases include connecting NEMA 17 or NEMA 23 stepper motors to T8 or T12 lead screws on CoreXY and Cartesian 3D printers, coupling servo shafts on desktop CNC mills, and replacing worn jaw couplings on router Z-axis assemblies — all scenarios where the flexible plum shaft coupler for stepper motor delivers measurable improvement in print quality and machining accuracy.

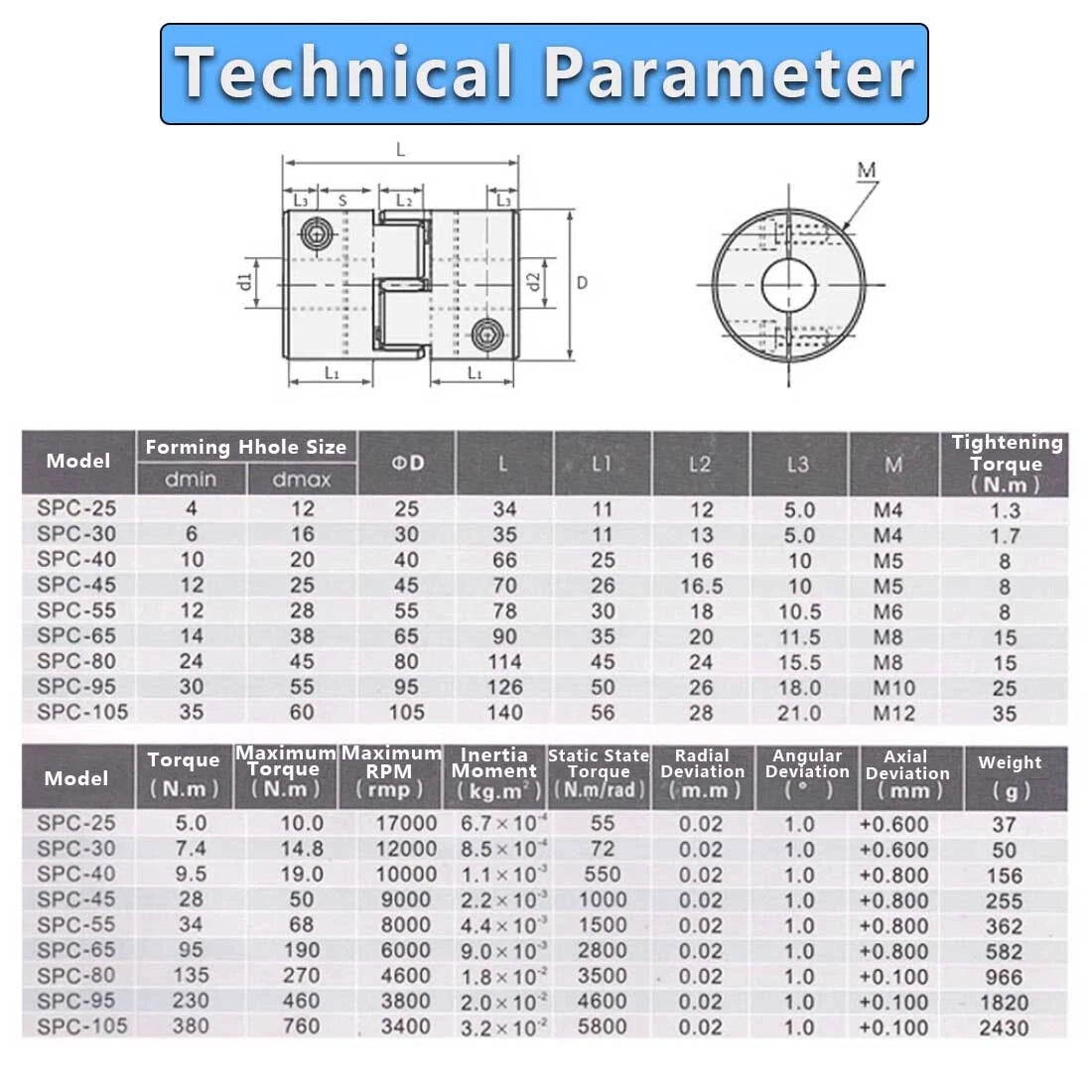

| Coupling Type | Flexible Jaw / Plum (Spider) Coupling |
|---|---|
| Outer Diameter | 30 mm (1.18 in) |
| Length | 35 mm (1.38 in) |
| Bore Diameter | 5 mm – 16 mm (see variant options) |
| Body Material | Aluminum Alloy |
| Spider Insert Material | Polyurethane (PU) |
| Clamping Method | Set Screw |
| Misalignment Tolerance | Angular: typically ≤1°; Parallel: typically ≤0.2 mm |
| Finish | See variant options |
| Quantity per Order | 1 Pcs |
| Compatible Applications | CNC router, 3D printer, laser engraver, stepper motor drive systems |

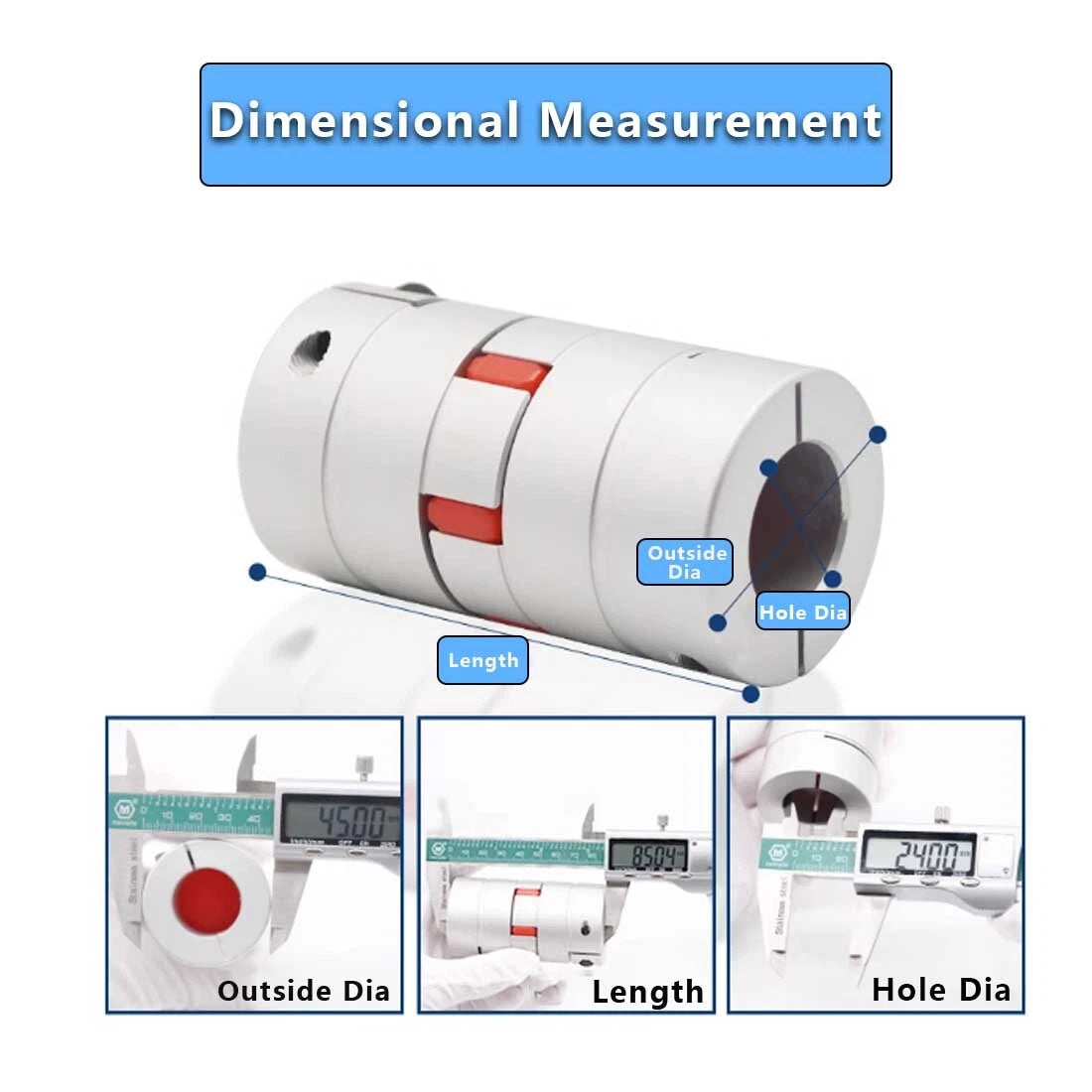

Measure the output shaft diameter of your stepper motor (commonly 5 mm for NEMA 17, 6.35 mm or 8 mm for NEMA 23) and the lead screw shaft diameter (commonly 8 mm for T8 screws). Select the variant that matches both diameters — for example, 5 mm × 8 mm for a NEMA 17 motor paired with a T8 lead screw. If both shafts are the same size, choose the matching same-diameter option.
Yes. NEMA 17 motors typically have a 5 mm output shaft. Select any variant with a 5 mm bore on one side (e.g., 5×5 mm, 5×8 mm, 5×10 mm) to pair with your NEMA 17 motor. The D30×L35 body dimensions are compatible with standard NEMA 17 motor mounts used in most 3D printer and CNC designs.
The aluminum alloy body provides solid torque transmission suitable for typical NEMA 23 stepper motor applications in CNC routing and laser engraving. The polyurethane spider insert is the torque-limiting element; for very high-torque or high-speed applications, confirm your peak torque requirement against the coupling's rated capacity. For standard DIY CNC and 3D printing duty, this coupler handles the load reliably.
The aluminum alloy body offers good natural corrosion resistance for indoor workshop and enclosed CNC environments. For prolonged exposure to moisture, condensation, or outdoor conditions, applying a light coat of machine oil or anti-corrosion spray to the metal surfaces is recommended. The polyurethane spider insert is inherently resistant to oils and mild chemicals.
Yes — this is one of the key advantages of this product. The stepped bore variants (e.g., 5×8 mm, 6×10 mm, 6.35×8 mm) are specifically designed to connect shafts of different diameters. Simply select the variant whose two bore values match your motor shaft and lead screw shaft respectively.
Insert each shaft fully into its respective bore until it reaches the internal stop. Align the set screw with the flat on the shaft (if present) or position it over a smooth section. Tighten the set screws with an appropriate hex key (typically 2–2.5 mm) to a snug, firm torque — avoid overtightening, which can strip the threads or deform the shaft. Re-check tightness after the first few hours of operation as the coupling seats in.
A rigid coupling transmits torque with zero flex, which means any shaft misalignment is transferred directly to the motor bearings and lead screw nut, causing premature wear and Z-wobble artifacts in prints. A flexible plum coupling uses a polyurethane spider insert to absorb small misalignments and vibrations, resulting in smoother Z-axis motion, reduced ringing, and longer component life — making it the preferred choice for most FDM 3D printer Z-axis and CNC lead screw applications.
