When misalignment between a motor shaft and a lead screw causes binding, vibration, or lost steps, the weak link is almost always a rigid coupling. Engineers, makers, and machine builders who demand smooth, repeatable motion need a flexible shaft coupler that absorbs angular and parallel offset without sacrificing torque transmission. These jaw-style plum couplers are engineered for exactly that — delivering reliable performance in CNC routers, 3D printer Z-axis drives, laser engravers, and stepper motor assemblies.

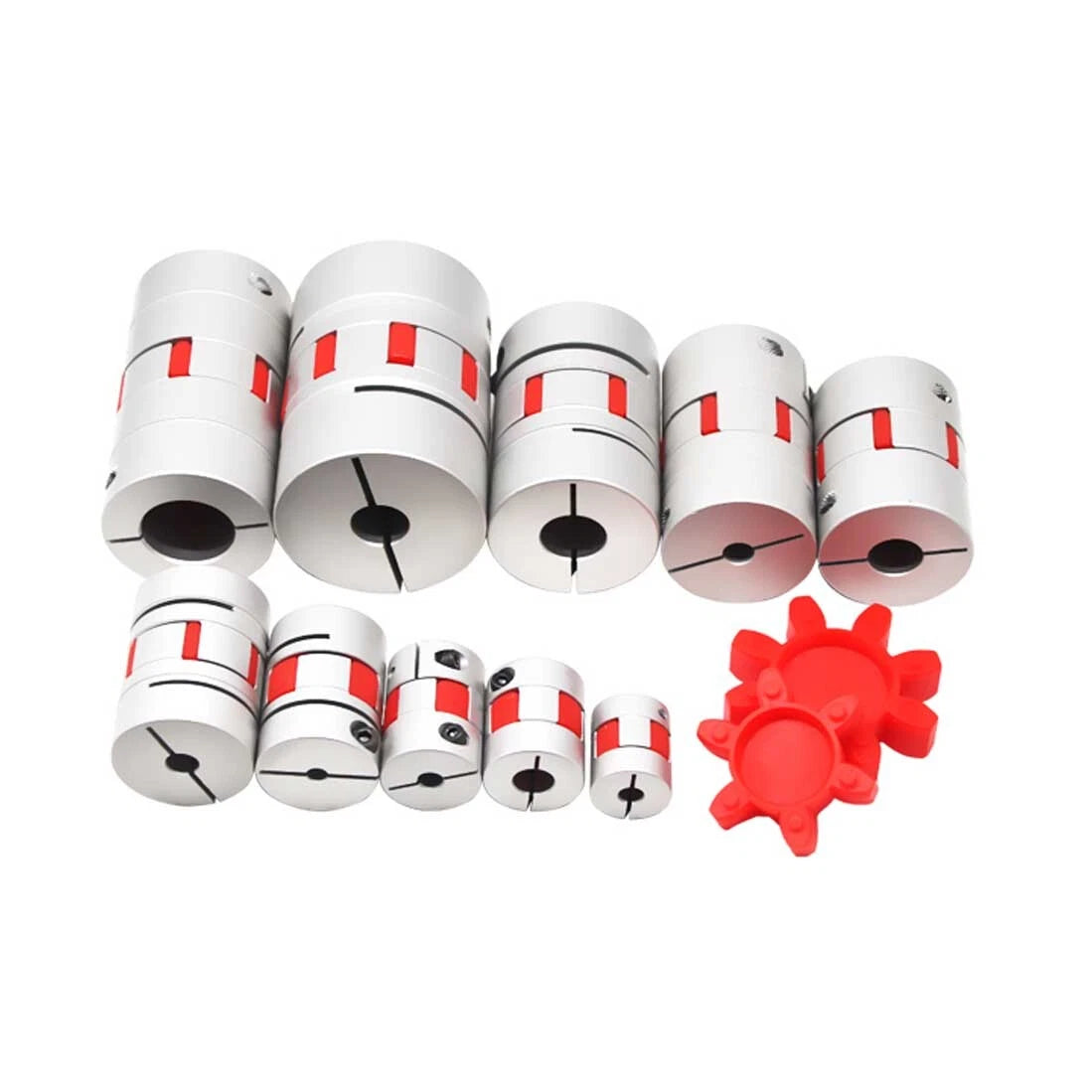

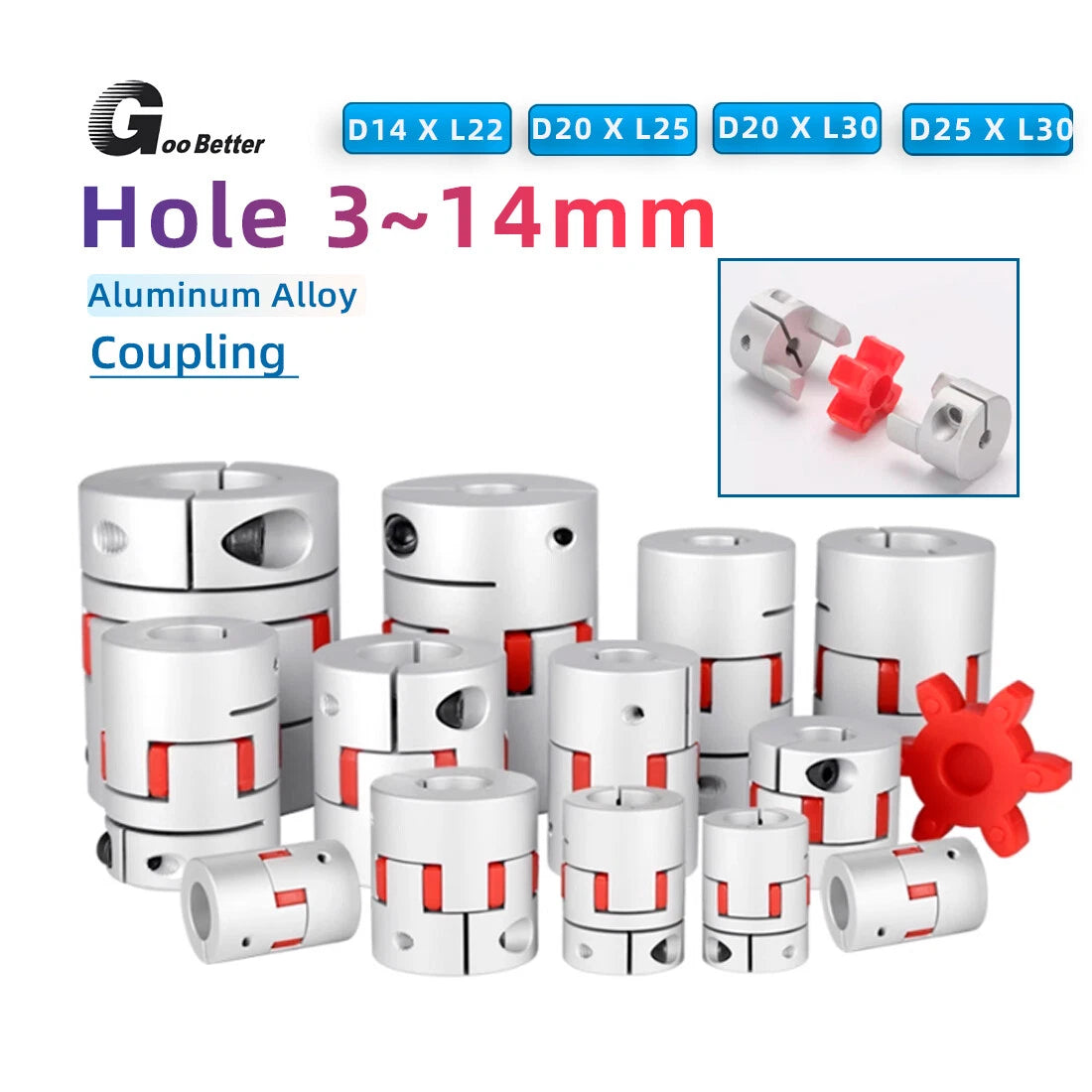

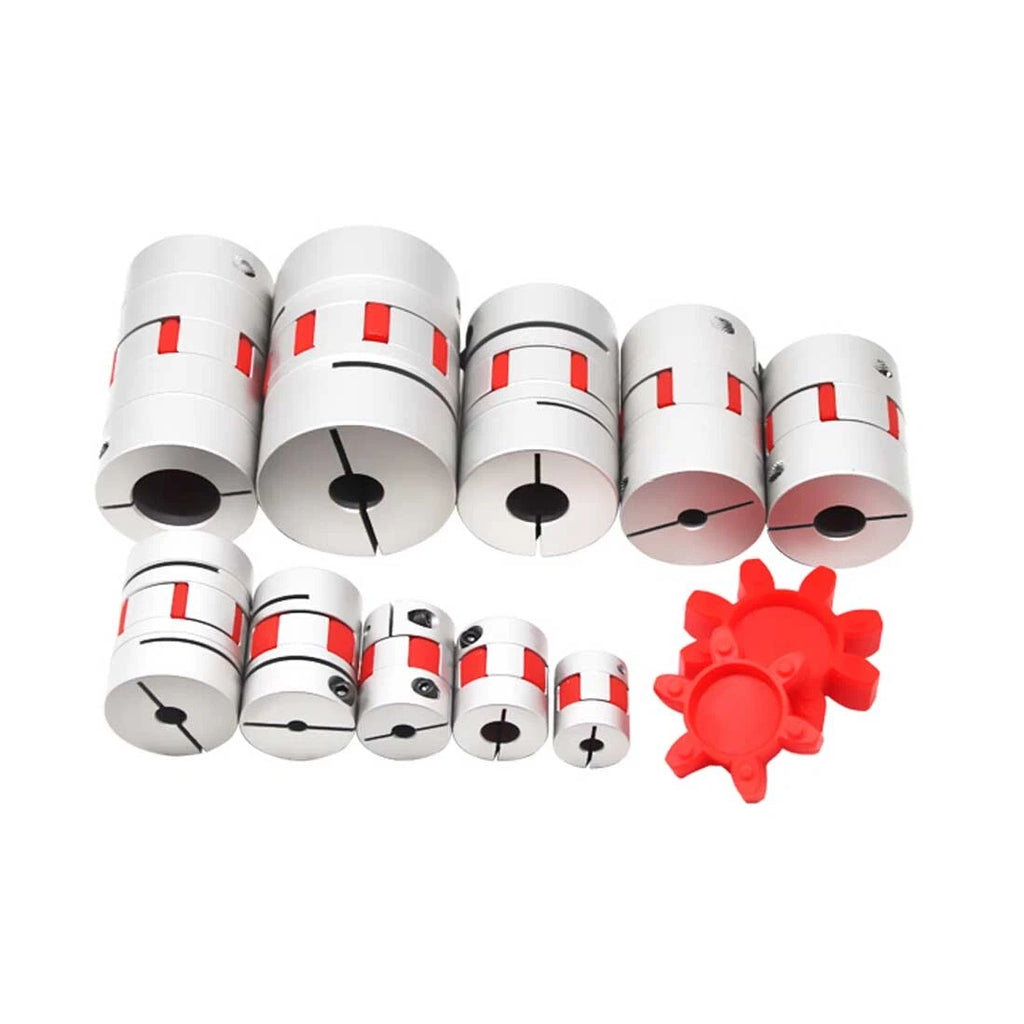

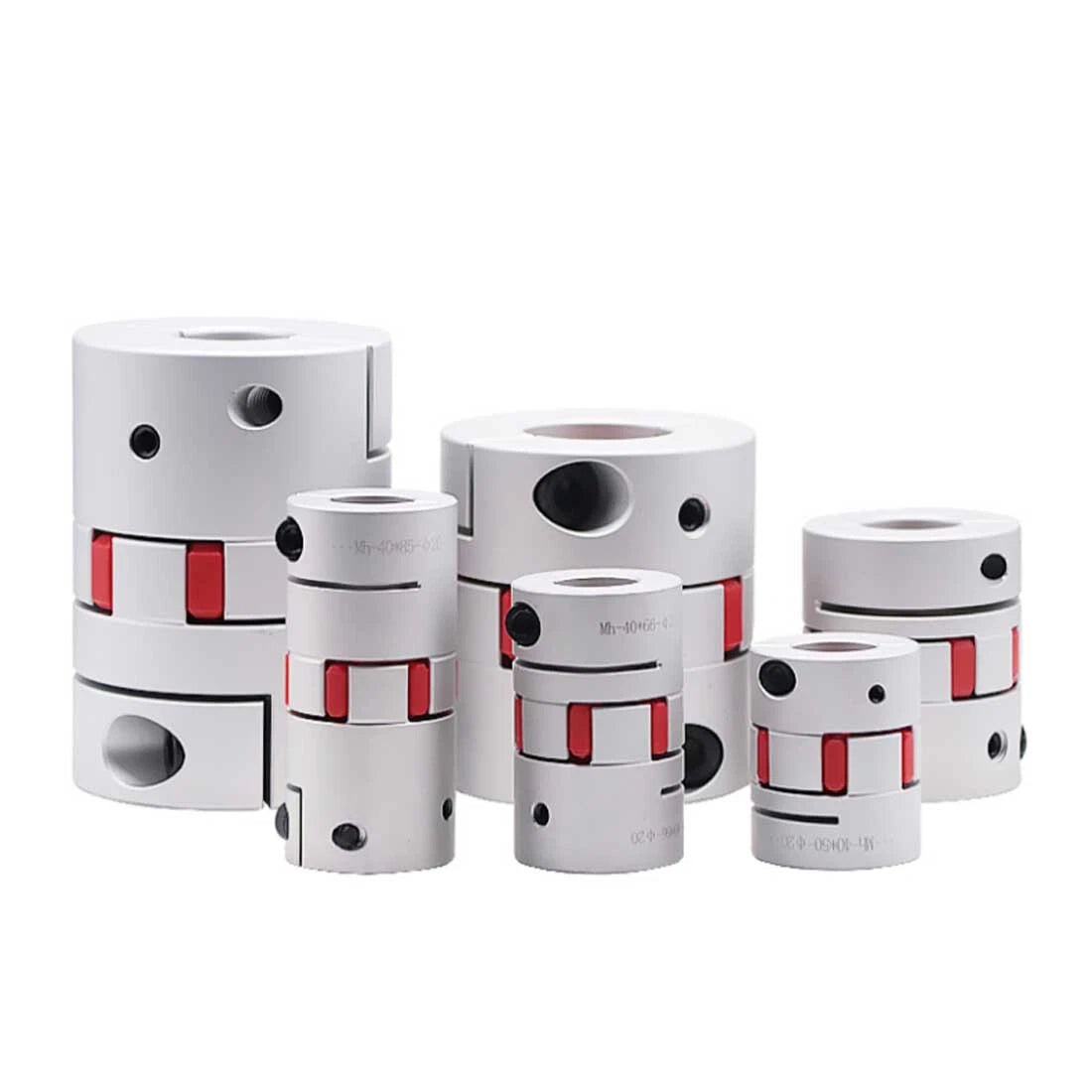

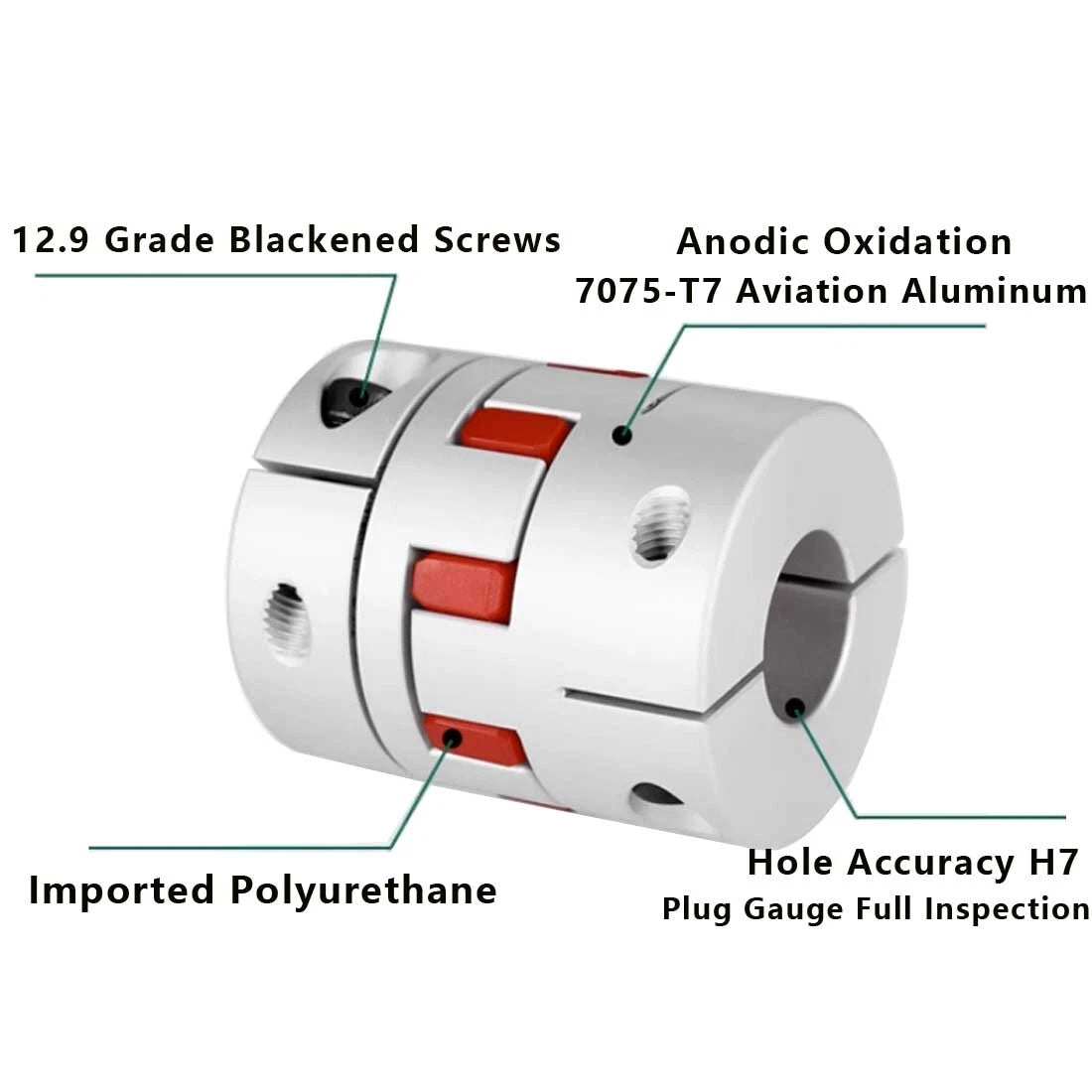

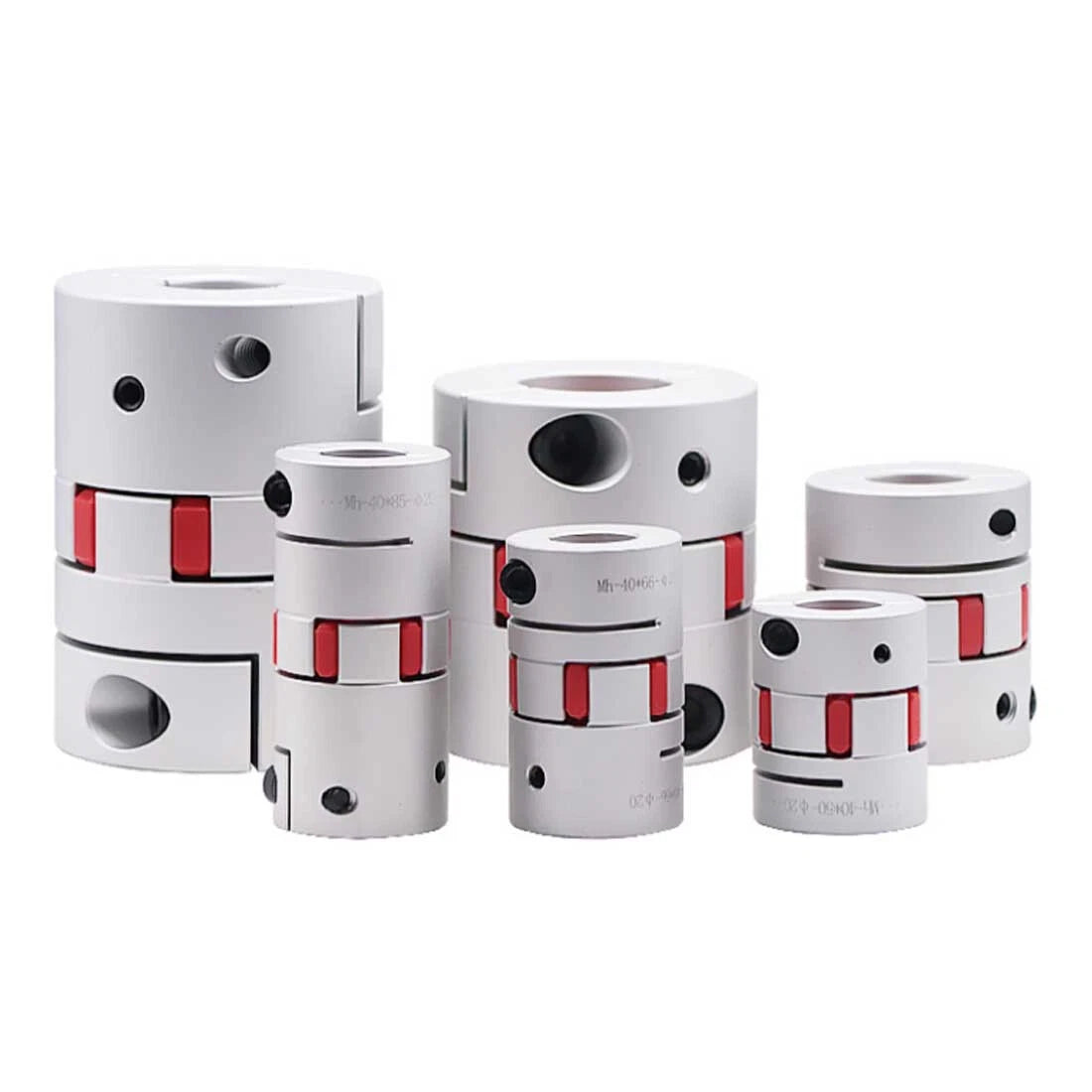

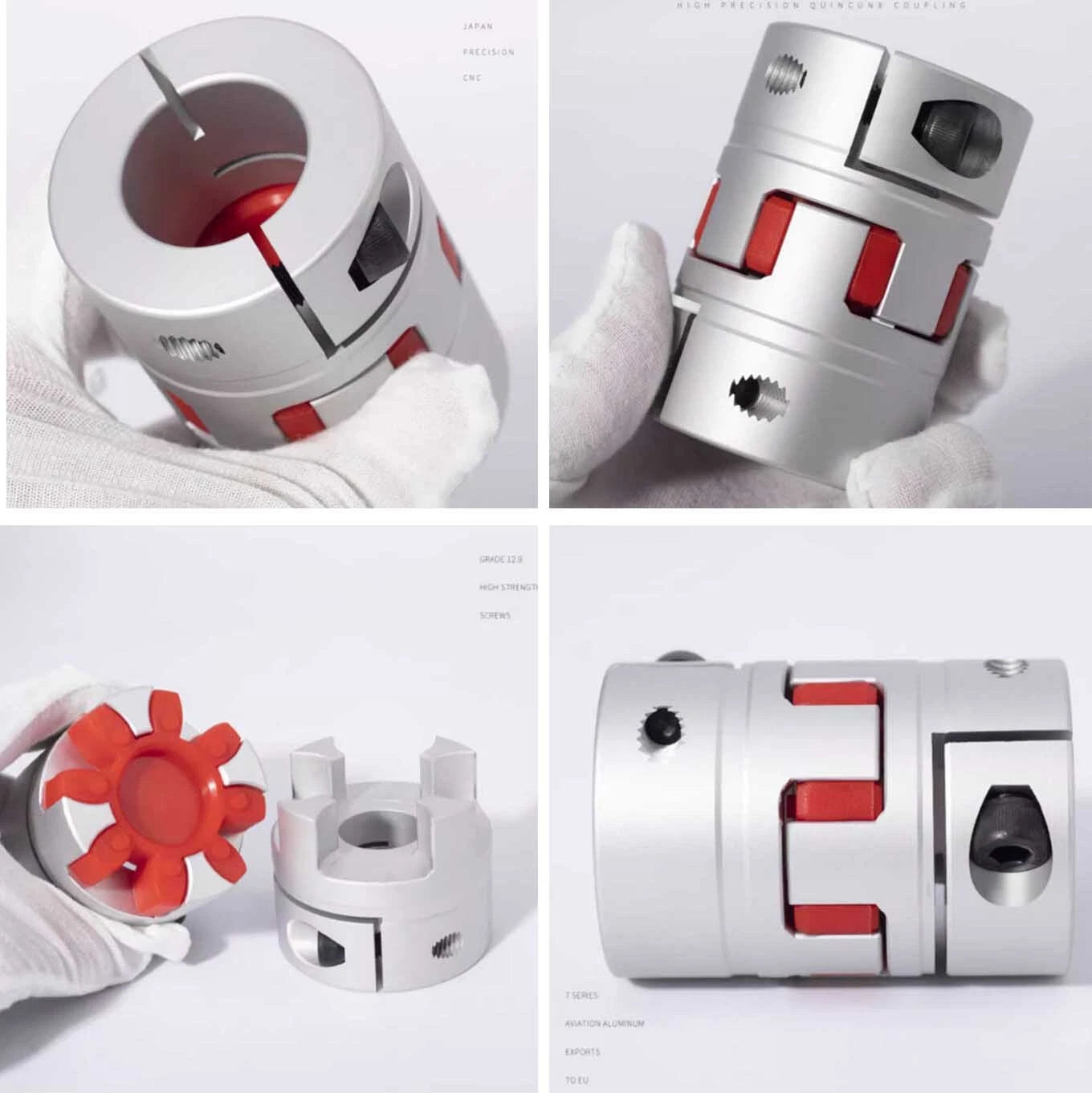

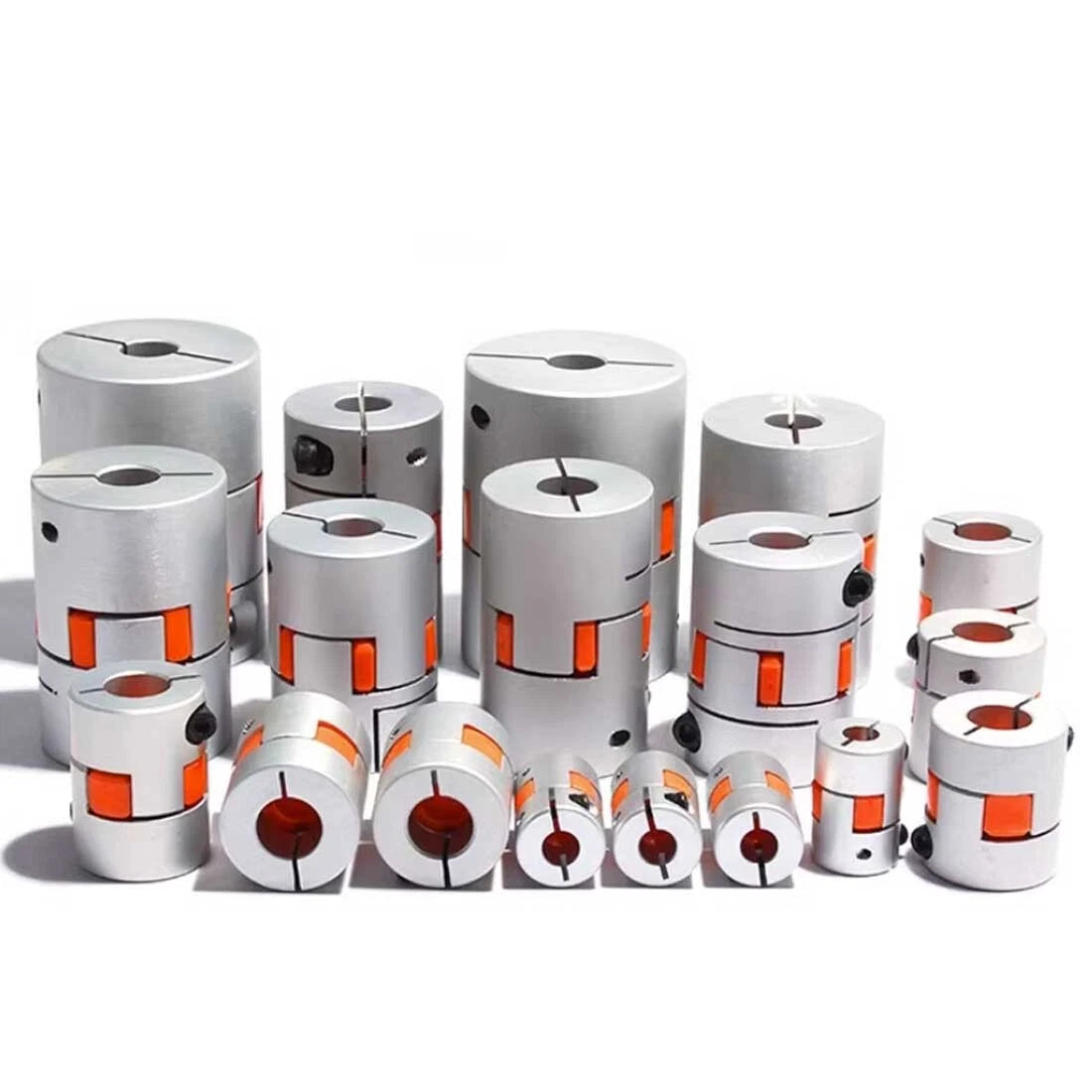

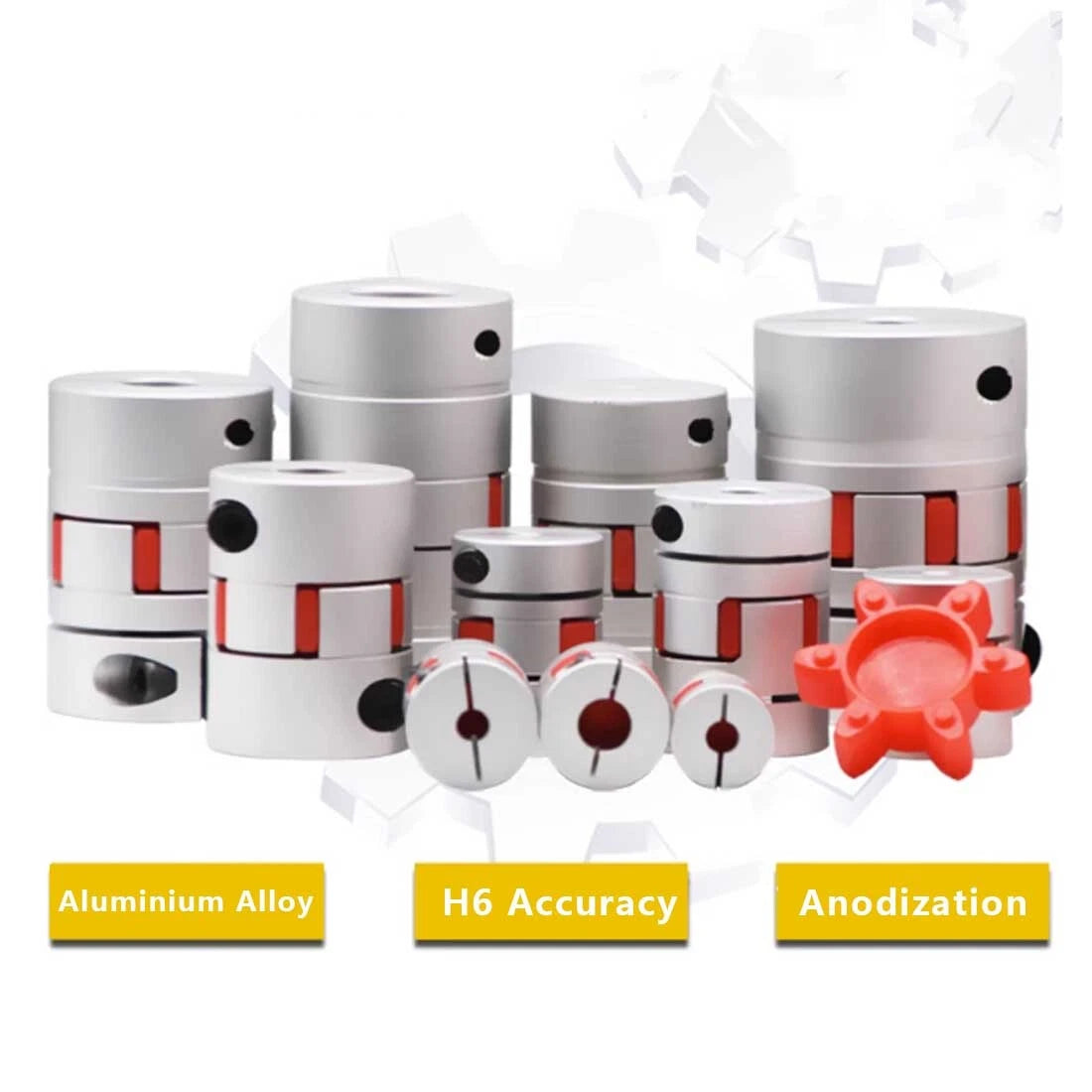

Each coupler consists of two aluminum hubs and a polyurethane spider insert (jaw/plum element). The aluminum hubs are machined from aluminum alloy, with outer diameters ranging from 14 mm to 25 mm (0.55 in to 0.98 in) and lengths from 22 mm to 35 mm (0.87 in to 1.38 in). Bore sizes span 3 mm to 14 mm (0.12 in to 0.55 in) on each side, with same-bore and stepped-bore combinations available to match mixed shaft diameters.

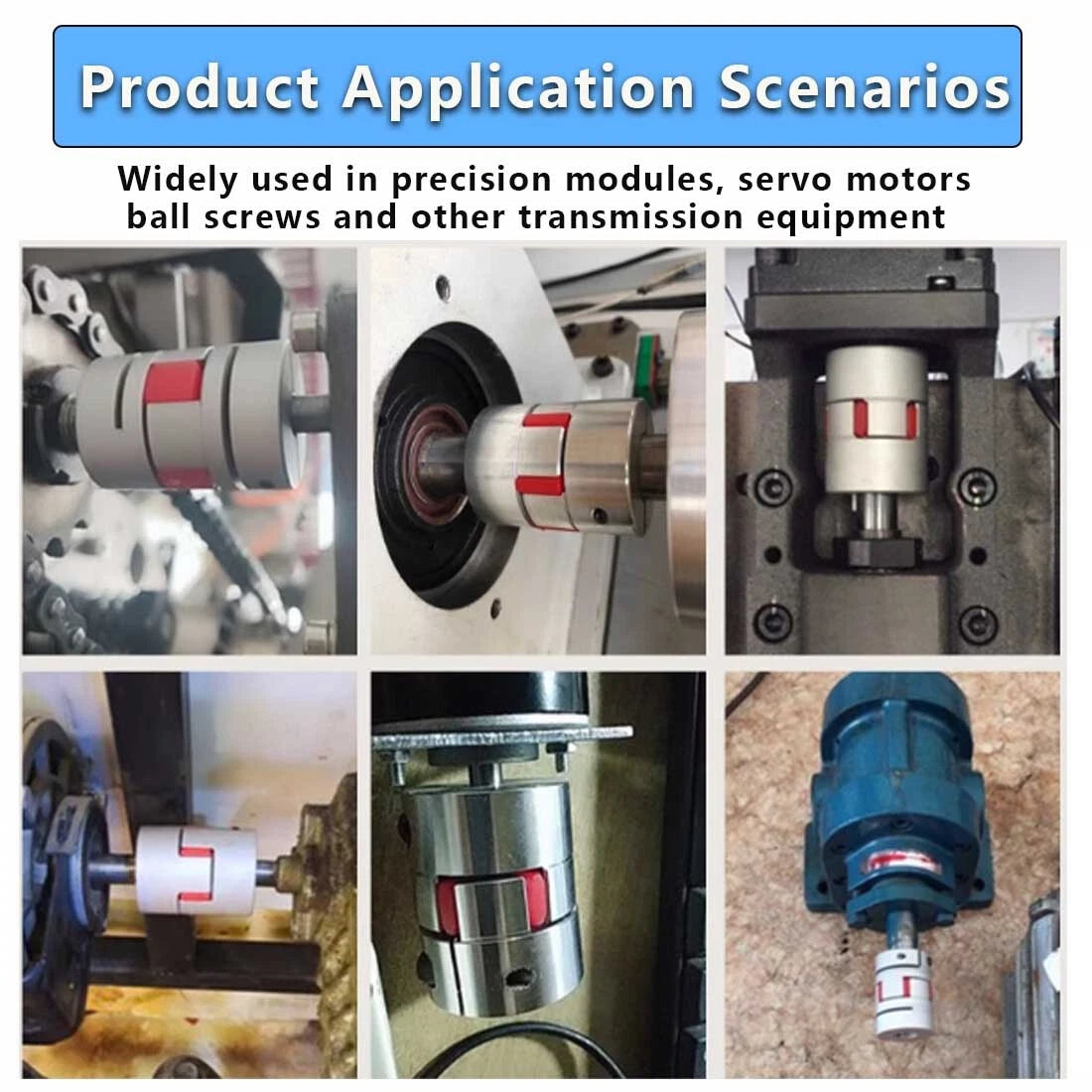

Typical use cases include connecting NEMA 17 or NEMA 23 stepper motors to T8 or T12 lead screws in 3D printer Z-axis assemblies, coupling servo motors to ball screws in CNC milling machines, and linking encoder shafts to drive shafts in automated conveyor systems — all scenarios where a flexible plum coupling for stepper motor jaw spider connection is the industry-standard solution.

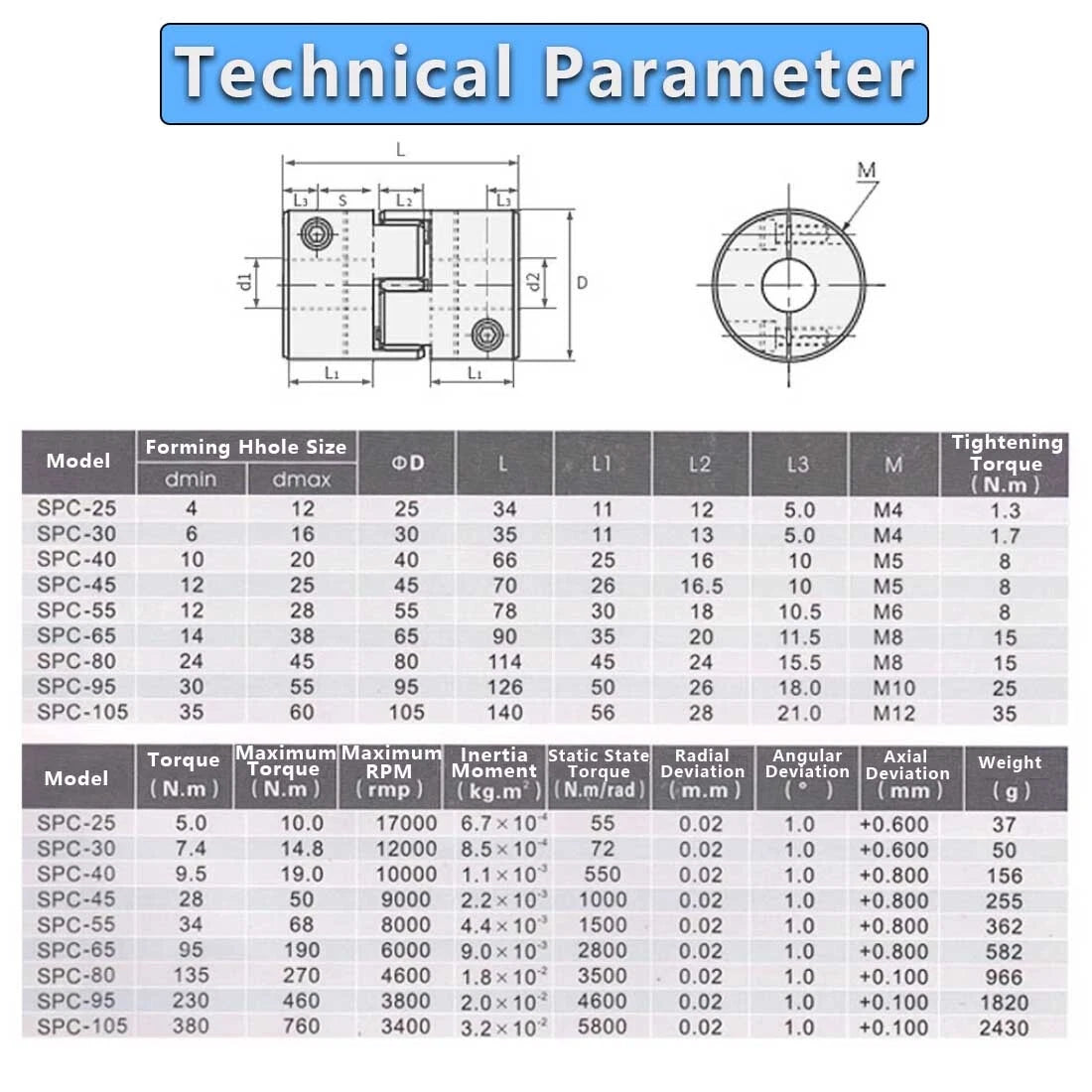

| Coupler Type | Jaw / Plum Spider Flexible Coupling |
|---|---|
| Hub Material | Aluminum Alloy |
| Spider / Insert Material | Polyurethane (PU) |

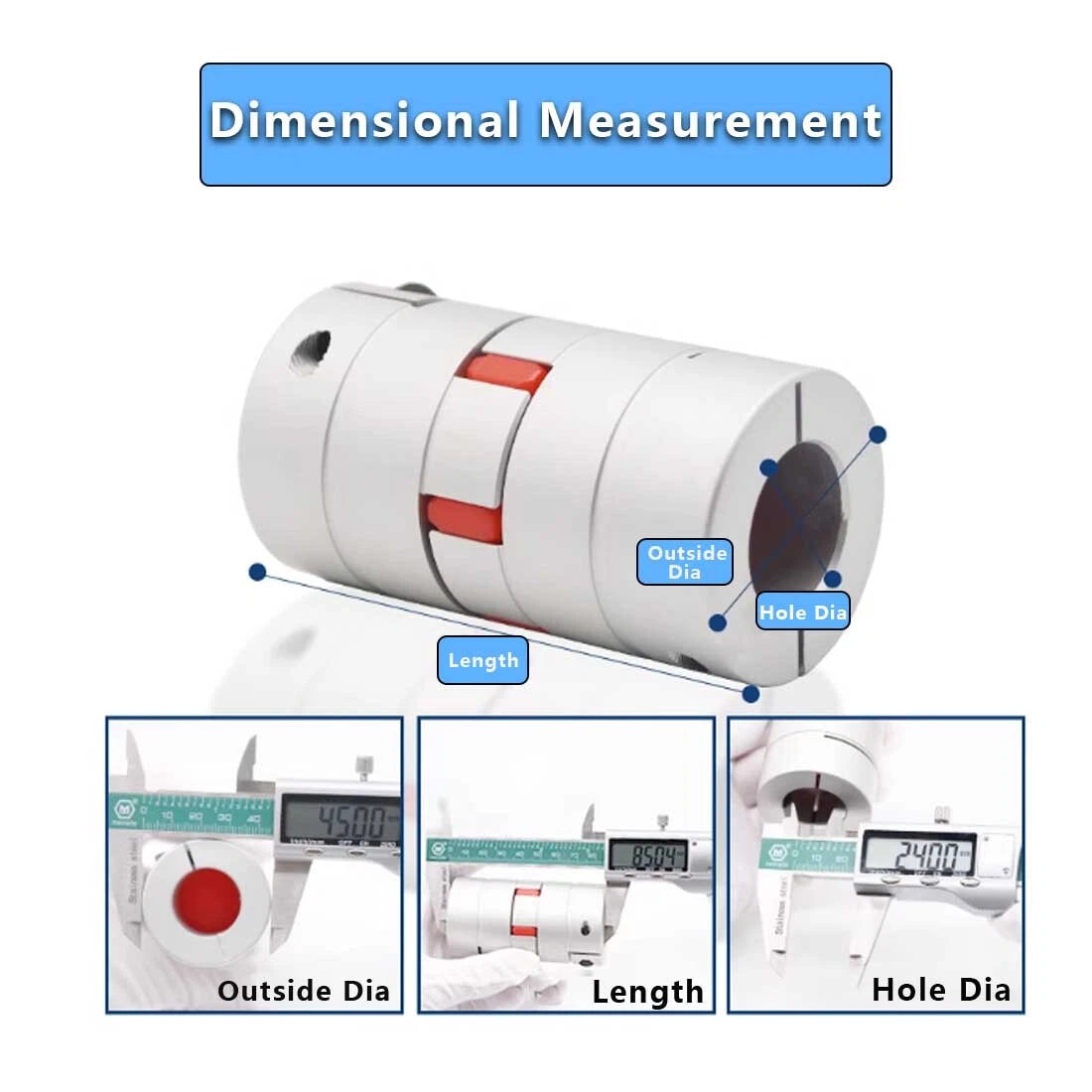

| Outer Diameter (OD) | 14 mm / 20 mm / 25 mm — See variant options |

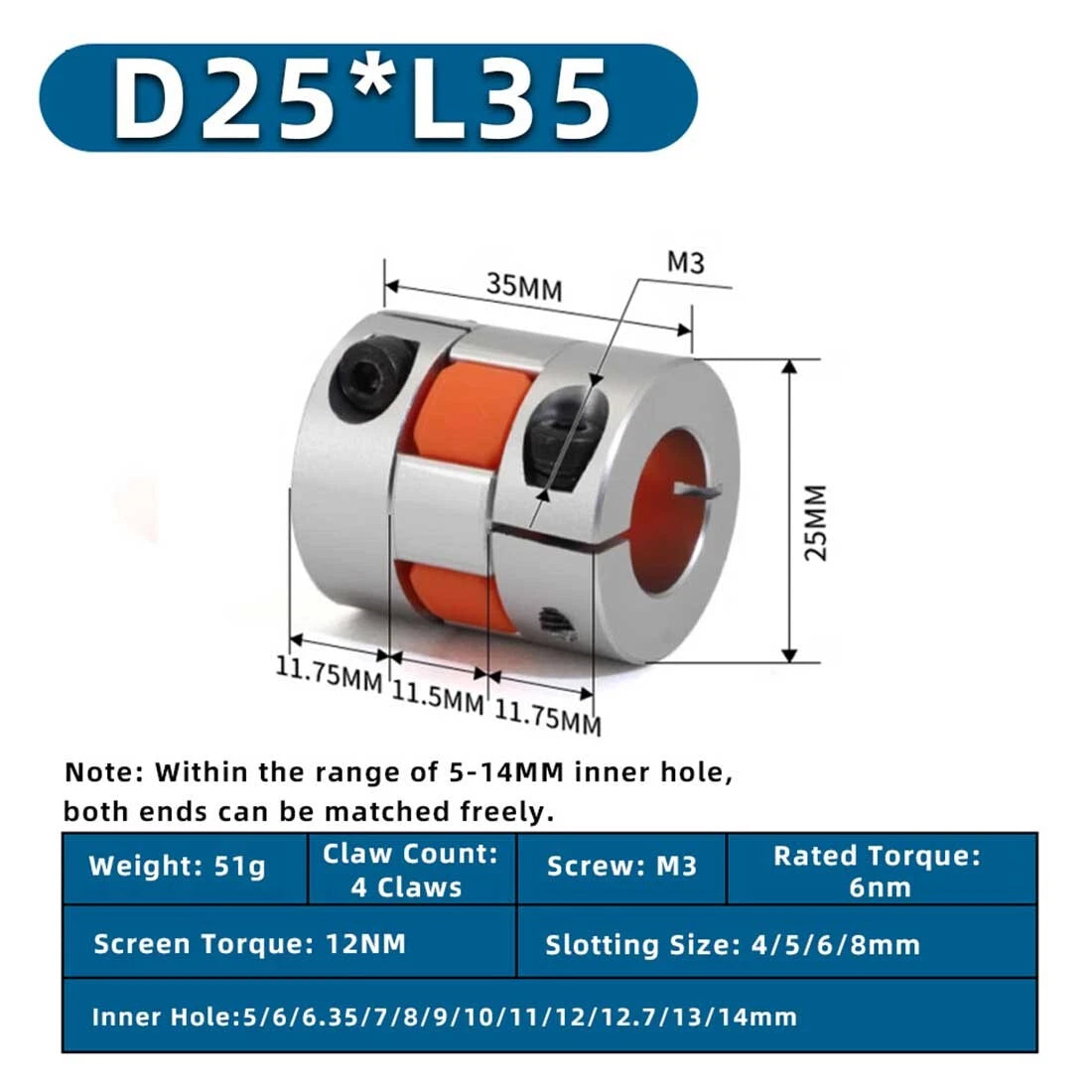

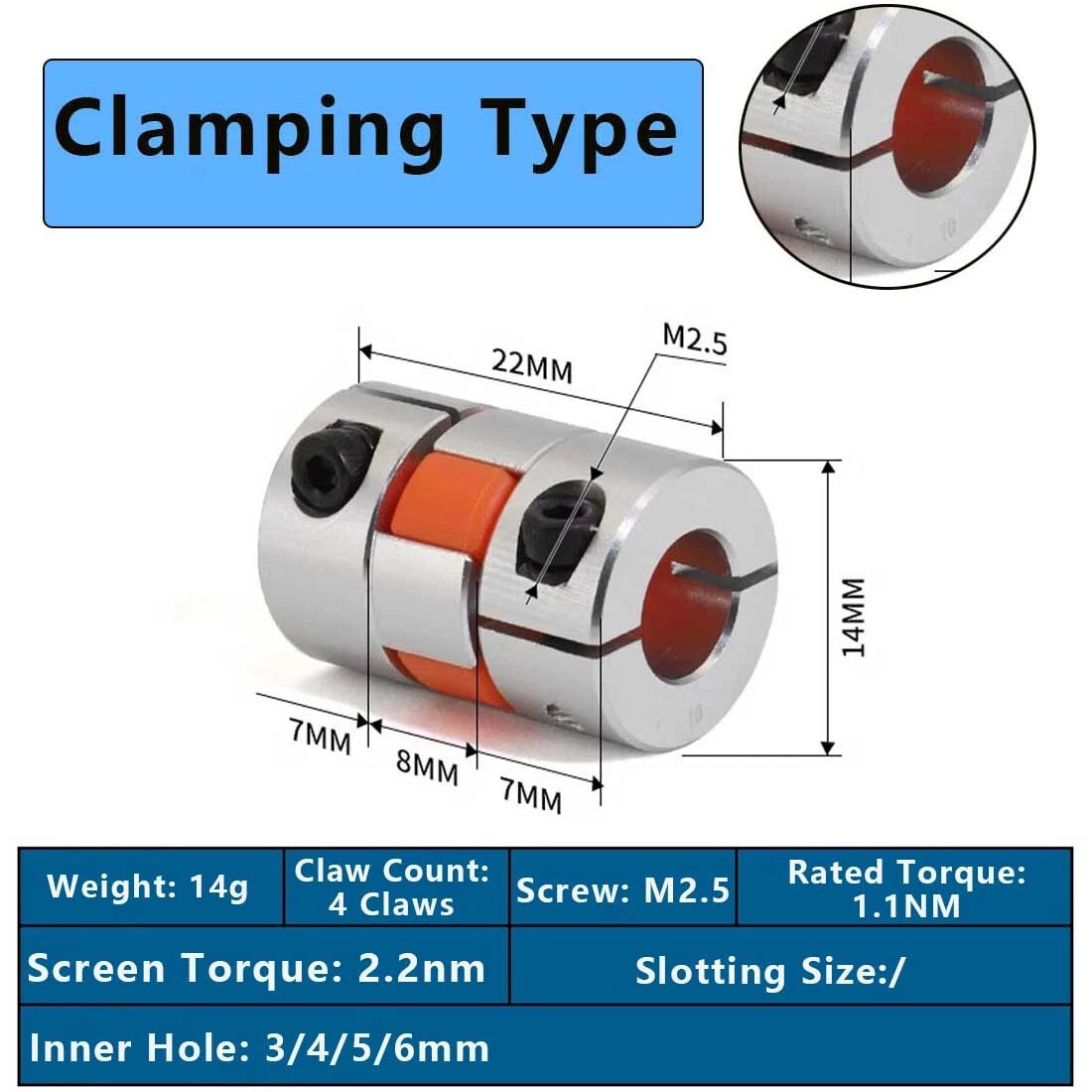

| Coupler Length | 22 mm / 25 mm / 30 mm / 35 mm — See variant options |
| Bore Size (Side A × Side B) | 3 mm × 3 mm up to 13 mm × 14 mm — See variant options |
| Shaft Fit Tolerance | See variant options |
| Clamping Method | Set Screw |
| Angular Misalignment Compensation | Typically up to 1° |
| Parallel Offset Compensation | See variant options |
| Weight | See variant options |
| Finish | Natural / Anodized Aluminum |
| Compatible Motor Types | Stepper Motor, Servo Motor, DC Motor |
| Typical Applications | CNC Router, 3D Printer Z-Axis, Laser Engraver, Lead Screw Drive |

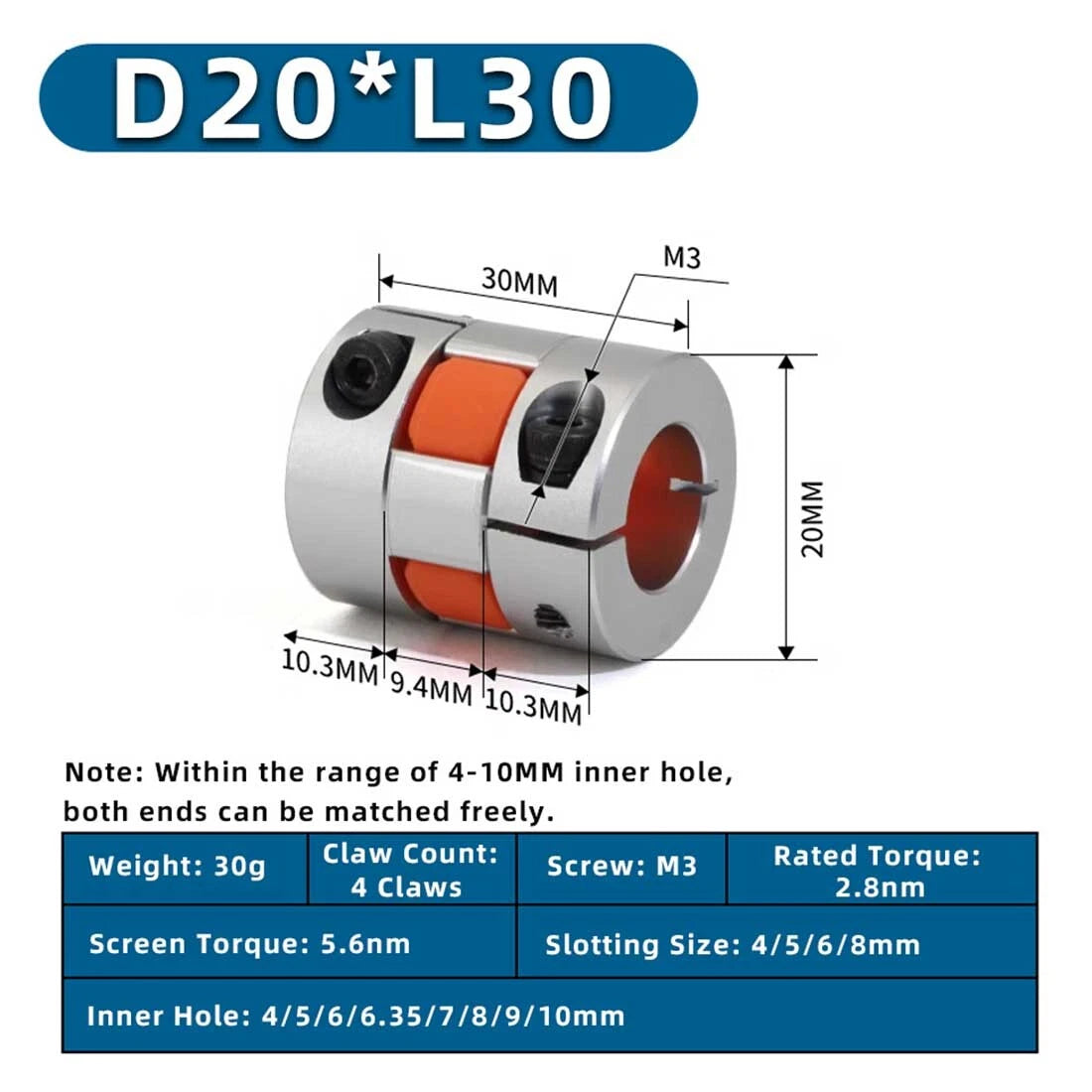

Match the outer diameter to your motor flange size and available clearance. For NEMA 17 motors (42 mm flange), D20 mm couplers are the most common fit. For NEMA 23 motors (57 mm flange), D25 mm couplers provide better proportional stiffness. The length affects how much misalignment the spider can absorb — longer couplers (L30, L35) tolerate slightly more angular offset than shorter ones (L22, L25).
Yes — that is exactly what stepped-bore variants are designed for. For example, a 5 mm × 8 mm coupler connects a 5 mm stepper motor shaft directly to an 8 mm lead screw without any adapter sleeve. Select the variant whose bore pair matches your motor shaft diameter (Side A) and lead screw diameter (Side B).

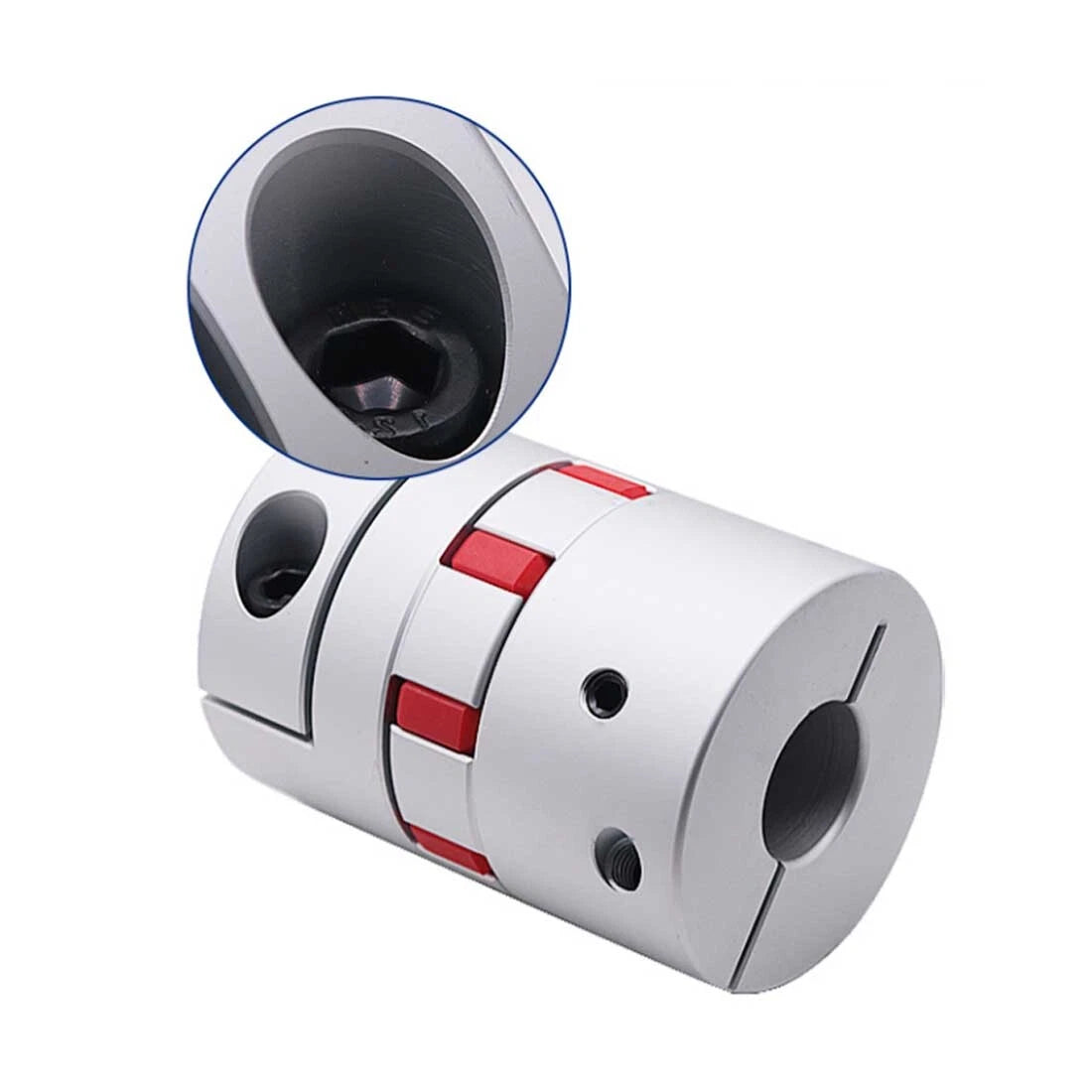

The aluminum hubs are clamped to the shafts via set screws, which provide positive mechanical engagement. The polyurethane spider transmits torque between the hubs. For typical 3D printer and light CNC applications (NEMA 17 / NEMA 23 torque ranges), these couplers are well within their rated capacity. For heavy-duty CNC milling with high cutting forces, verify the torque rating against your motor's peak torque specification before ordering.

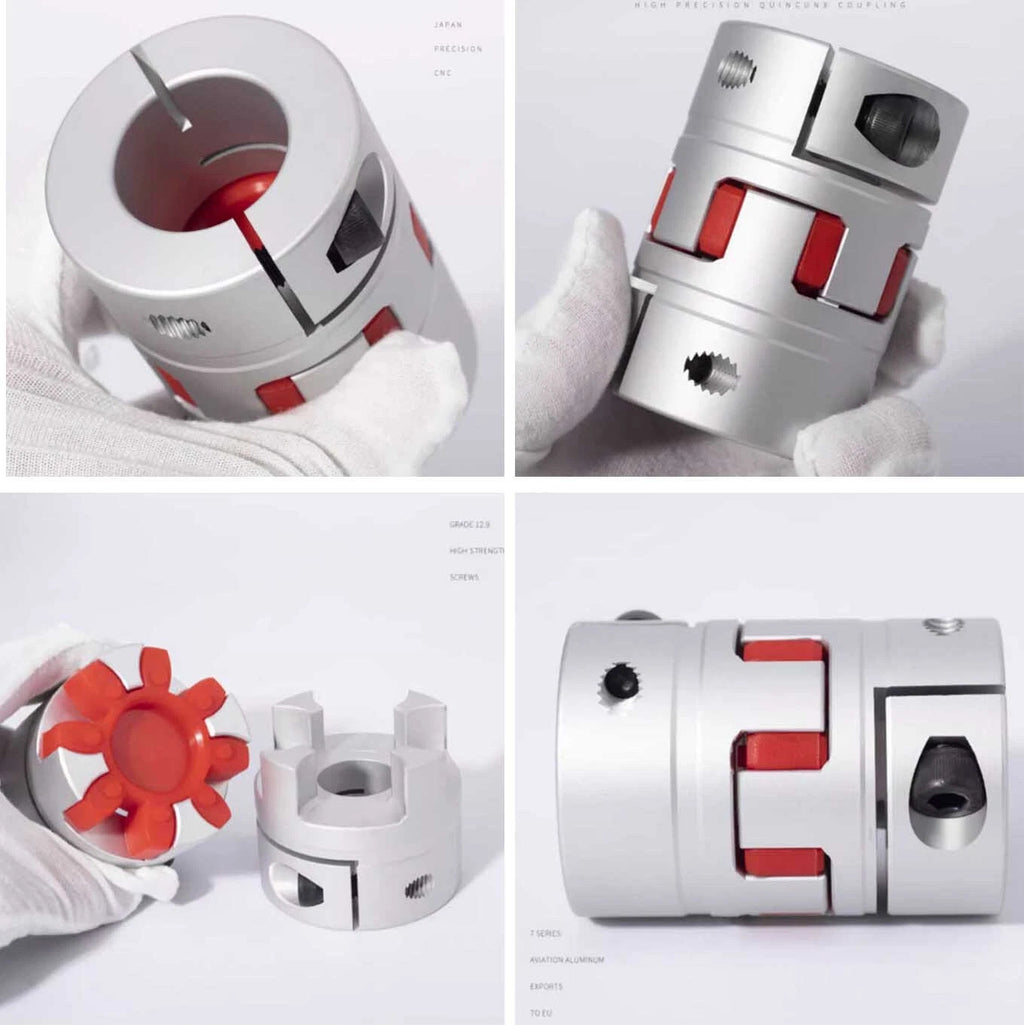

Yes. The polyurethane jaw spider sits between the two hubs and can be removed and replaced without replacing the entire coupler assembly. This makes maintenance straightforward — simply loosen the set screws, slide the hubs apart, swap the spider, and reassemble.
The aluminum alloy hubs have good natural corrosion resistance and are suitable for typical indoor workshop, laboratory, and maker-space environments. The polyurethane spider insert is also resistant to oils and mild solvents commonly found in CNC and 3D printing environments. For outdoor or high-humidity applications, consider applying a light protective coating to the aluminum surfaces.
Insert each shaft fully into its respective hub bore until it bottoms out or reaches the marked depth. Tighten the set screws firmly — do not overtighten, as this can deform the bore. Ensure the motor and lead screw are as co-axially aligned as possible before final tightening; the flexible spider compensates for small residual misalignment but is not a substitute for proper mechanical alignment. Check set screw tightness after the first few hours of operation.

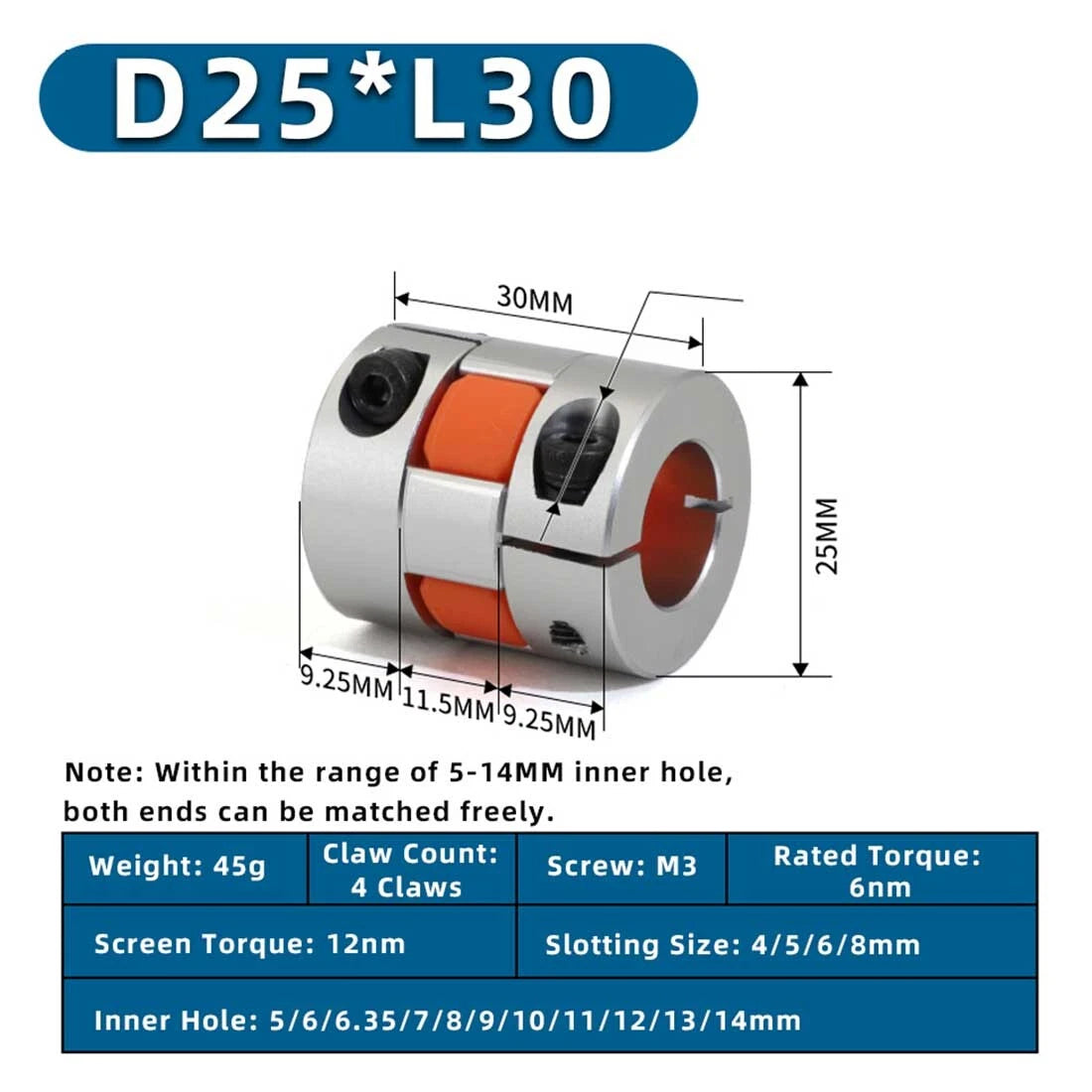

The longer L30 body provides a larger spider element, which increases torsional compliance and vibration damping slightly. It also gives more shaft engagement depth per hub, which can improve grip on shorter motor shafts. The L25 is more compact and suits builds where axial space between the motor face and the lead screw nut is limited.
