Connecting a stepper motor shaft to a lead screw or encoder with a rigid coupler often results in backlash, vibration, and positional error that degrades print quality on 3D printers or reduces accuracy on CNC machines. Makers, engineers, and automation builders who need a reliable, low-backlash flexible shaft coupling connector in the 3–10mm bore range will find this coupler covers virtually every common shaft size combination in a single product listing.

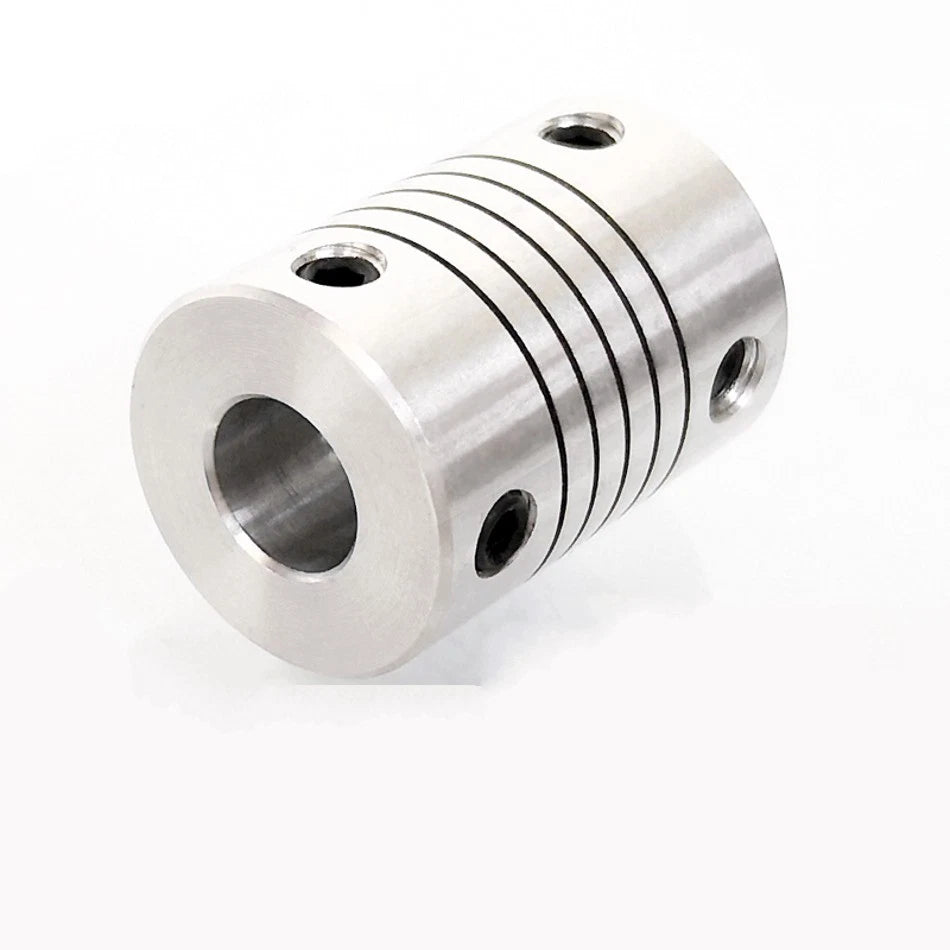

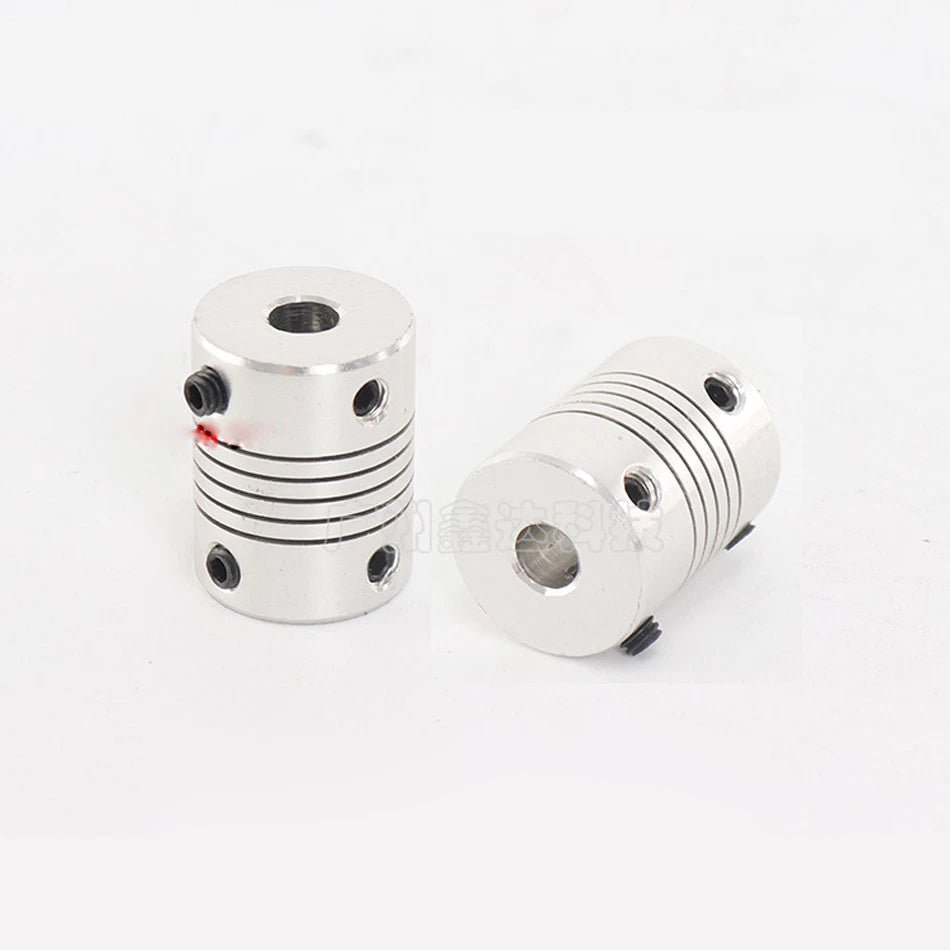

This flexible shaft coupling is machined from aluminum alloy and uses a helical-cut body that acts as a spring element, absorbing angular misalignment and axial play without a separate elastomeric insert. The outer body is a single-piece construction. Bore combinations span 3mm to 10mm (~0.12 in to 0.39 in) on each side, including same-bore and mixed-bore pairings such as 3mm-to-5mm, 4mm-to-8mm, 5mm-to-10mm, and all intermediate steps. Each hub is secured by set screws.
Typical use cases include NEMA 17 stepper motor to T8 lead-screw connections on 3D printer Z-axes, stepper-to-encoder shaft links on CNC router axes, and small servo motor to pump shaft couplings in laboratory automation. The helical-cut flexible shaft coupler is also widely used in rotary stage drives and optical positioning equipment where low backlash and smooth torque transmission are critical.
The coupler is machined from aluminum alloy in a single piece with a helical cut, eliminating the need for a separate spider insert and reducing the number of parts that can wear or fail over time.
The helical slot pattern allows the coupler to flex under angular and axial misalignment while transmitting torque continuously, reducing vibration transmitted to the driven shaft and protecting motor bearings.

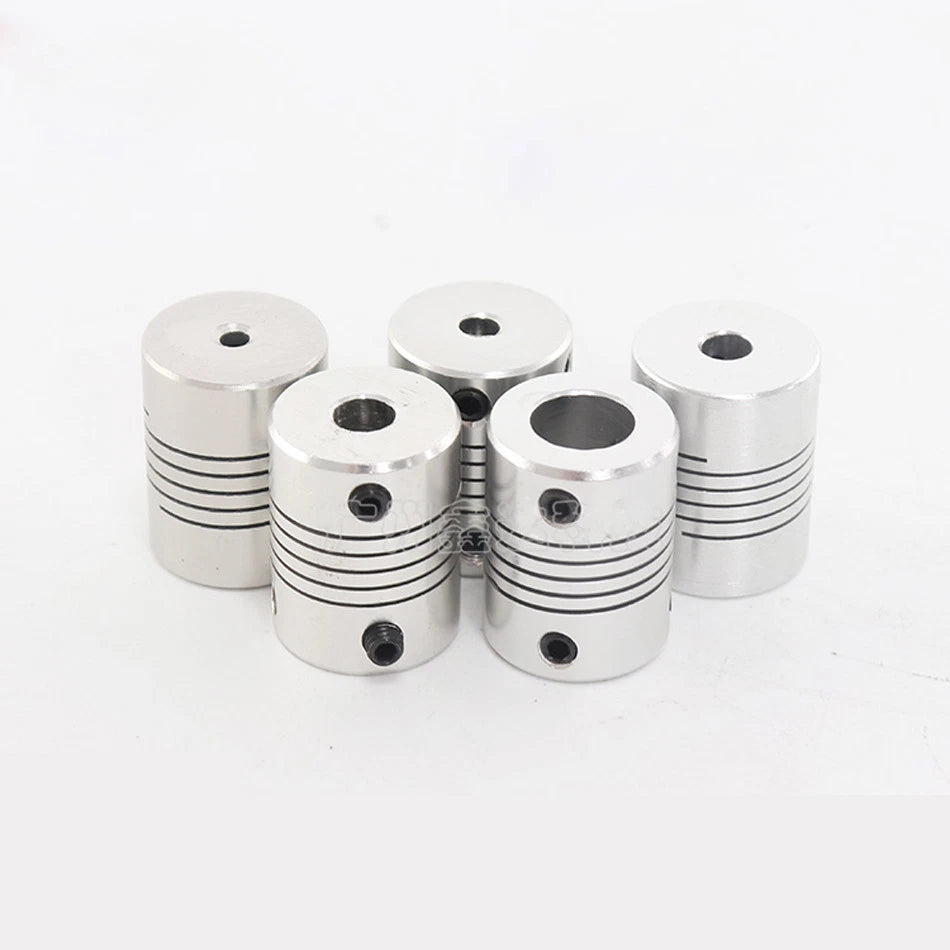

With bore combinations covering 3mm to 10mm on each side — including same-bore and mixed-bore pairings — this listing replaces the need to search for multiple individual couplers for different axis configurations.
Each end is secured to its shaft via set screws, enabling tool-assisted installation and removal without damaging the shaft surface, and allowing quick swaps during prototyping or maintenance.
The aluminum alloy body keeps rotating mass low, which is important for stepper motor systems where high inertia loads can cause missed steps or reduced acceleration performance.
The helical-cut structure maintains continuous contact between the two shaft ends, minimizing rotational play and delivering consistent positional accuracy for CNC and 3D printing applications.
| Coupling Type | Helical-cut flexible shaft coupling |
|---|---|
| Body Material | Aluminum alloy |
| Construction | Single-piece helical-cut body |
| Bore Range (each end) | 3mm to 10mm (~0.12 in to 0.39 in) |
| Bore Combination (d1 / d2) | See variant options |
| Outer Diameter | See variant options |
| Body Length | See variant options |
| Shaft Fixation | Set screw |
| Finish | Natural aluminum (uncoated) |
| Quantity per Order | 1 piece |
Measure the shaft diameter of your motor (d1) and the shaft diameter of your driven component such as a lead screw or encoder (d2). Then select the variant that matches both values. For example, if your NEMA 17 stepper motor has a 5mm shaft and your T8 lead screw has an 8mm shaft, choose the 5mm to 8mm variant. All combinations from 3mm to 10mm are available, including same-bore pairings.
A helical-cut coupler is machined from a single piece of aluminum with a spiral slot that provides flexibility. It has no separate insert to wear out and generally offers lower backlash. A jaw spider coupler uses two separate hubs and a polyurethane spider insert between them, which provides better vibration damping but may introduce slightly more backlash as the insert wears. For precision positioning on 3D printers and CNC machines, the helical-cut design is typically preferred.
Yes. The helical-cut flexible shaft coupling is designed to accommodate small degrees of angular misalignment (typically up to 1°) and minor axial offset. For best results, align the motor and driven shaft as closely as possible during installation and use the coupler's flexibility to absorb residual misalignment rather than as a primary correction for large offsets.
Aluminum alloy is well suited for the torque levels produced by NEMA 17 and NEMA 23 stepper motors used in 3D printers, CNC routers, and light automation equipment. The material provides a good strength-to-weight ratio and resists fatigue under cyclic loading at typical stepper motor speeds. For very high-torque or high-speed industrial drives, verify the coupler's torque rating against your motor specifications.
Aluminum alloy naturally forms a thin oxide layer that provides moderate corrosion resistance in typical indoor workshop environments. For applications involving moisture, cutting fluids, or chemical exposure, consider applying a protective coating such as anodizing or a clear lacquer. The set screws are typically steel and may show surface rust in very humid conditions; applying a small amount of anti-seize compound during installation can help.
Insert the motor shaft into one end of the coupler until the shaft end is flush with or slightly recessed from the inner face of the set-screw bore. Tighten the set screw firmly using the appropriate hex key. Repeat for the driven shaft on the other end. Ensure both set screws are tightened before running the motor. If the shaft has a flat (D-cut), align the set screw with the flat for a more secure grip.
This flexible shaft coupling connector is widely used on 3D printer Z-axis lead screws (typically 5mm motor shaft to 8mm lead screw), CNC router axis drives, rotary encoder connections, and small pump or fan shaft couplings. The 3mm to 10mm bore range covers the most common shaft sizes found in NEMA 17 and NEMA 23 stepper motor builds.
