When shaft misalignment causes vibration, backlash, or premature wear in your CNC machine, 3D printer, or servo-driven system, a rigid coupling simply cannot compensate. Engineers, machine builders, and serious DIY machinists need a coupling that absorbs angular, parallel, and axial misalignment without sacrificing torque transmission accuracy. These CNC-machined aluminum alloy bellows shaft couplings are engineered for exactly that demand.

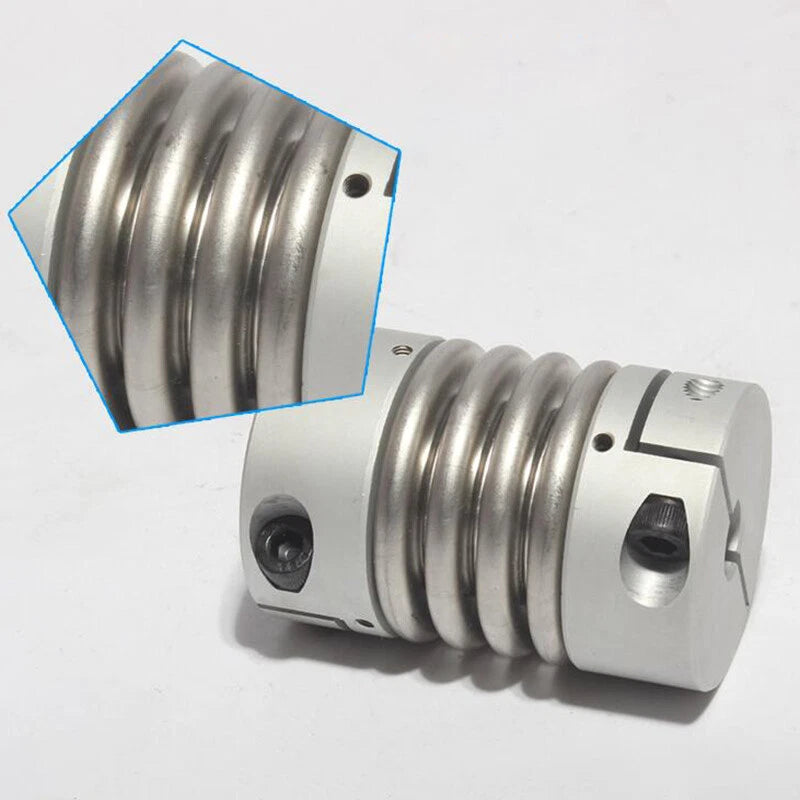

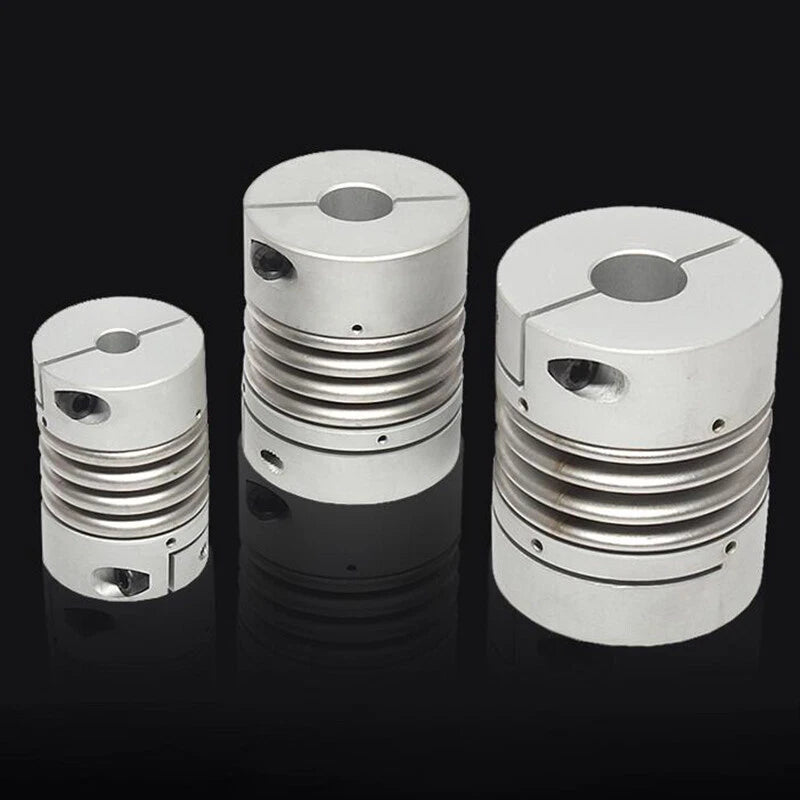

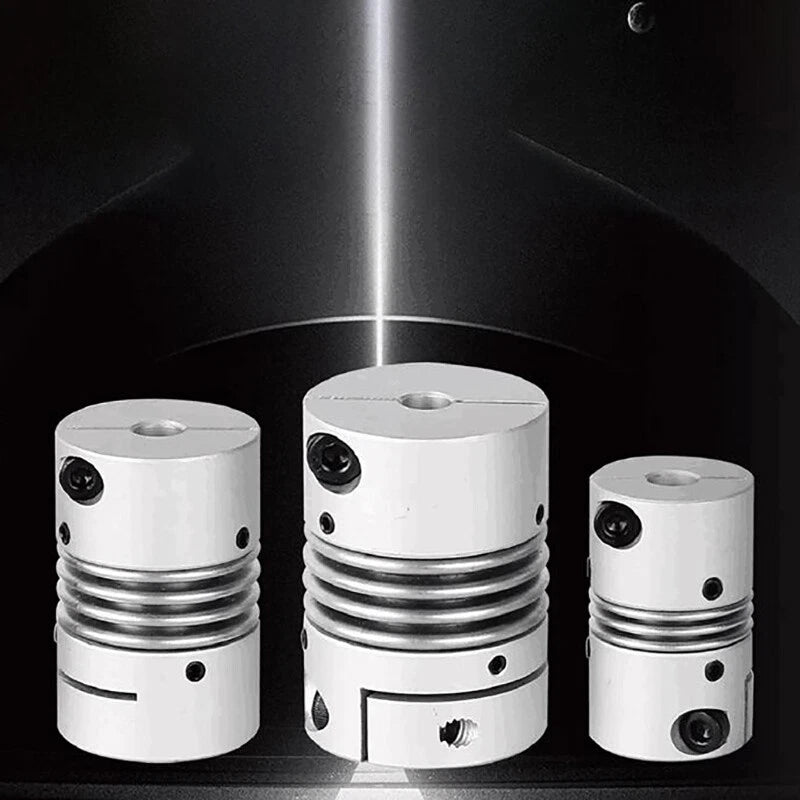

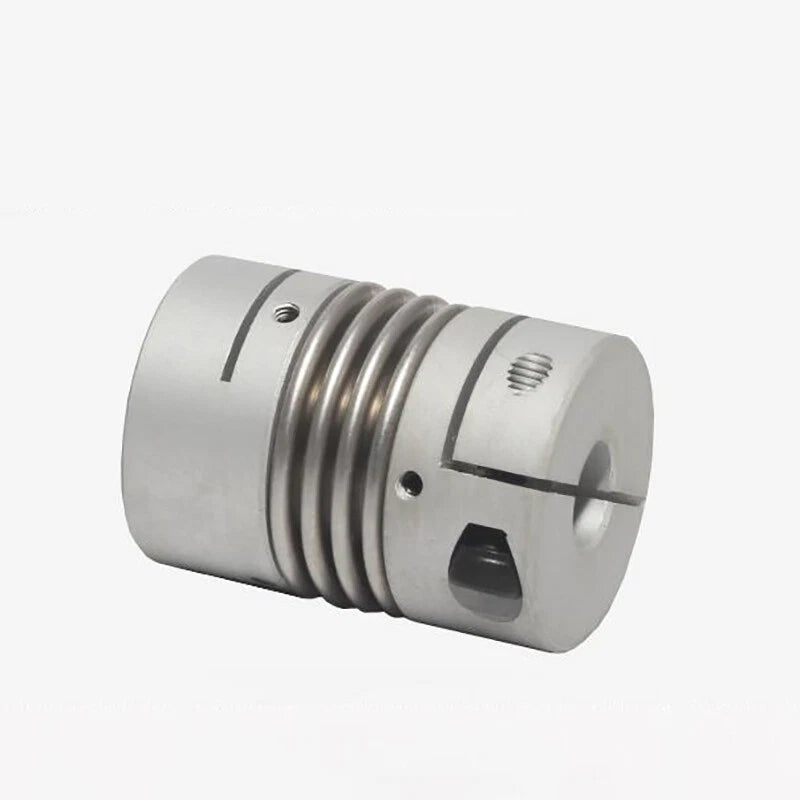

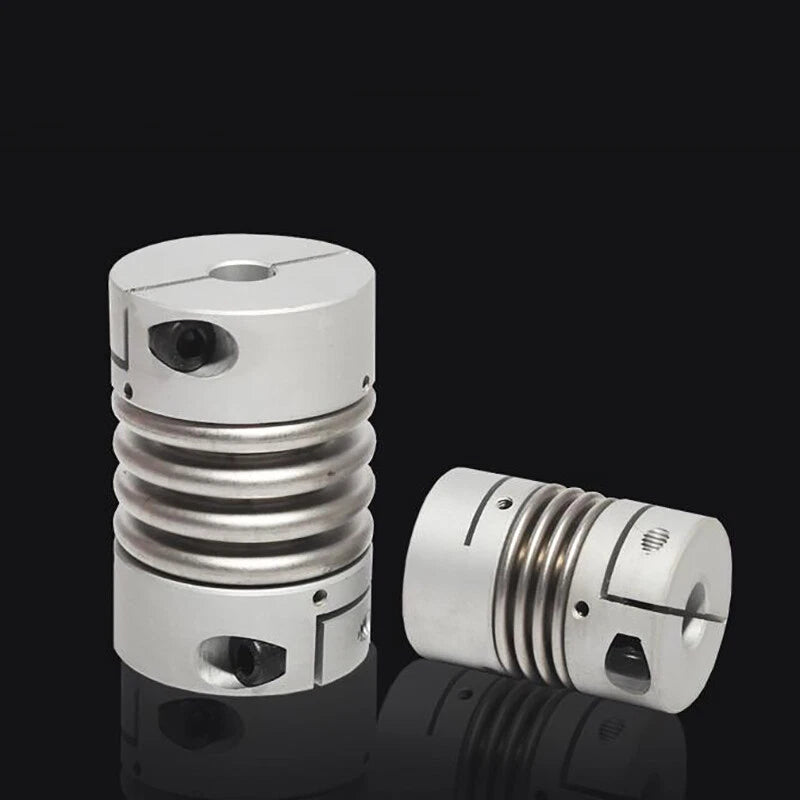

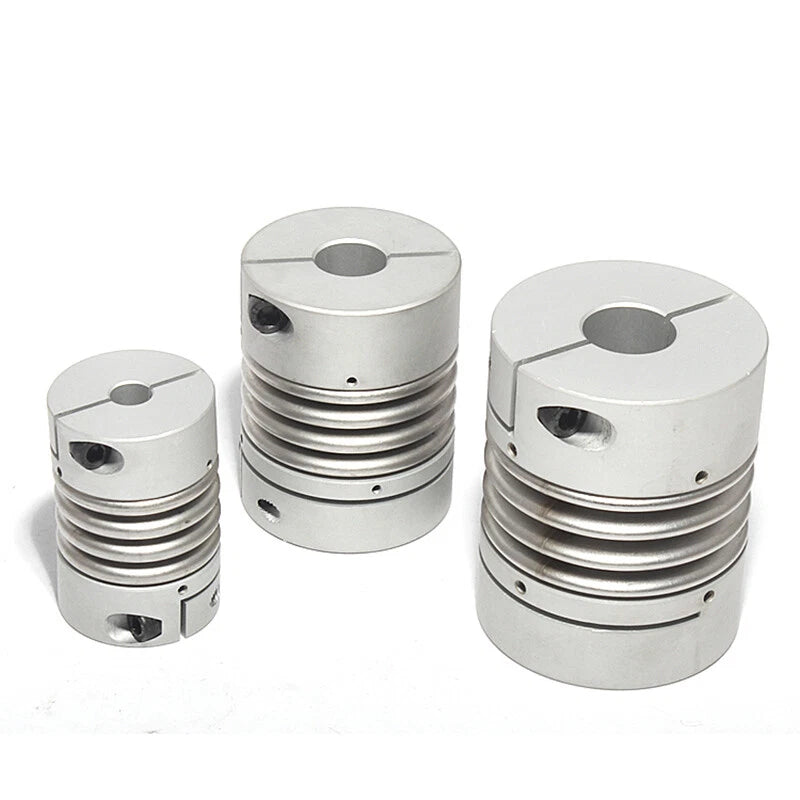

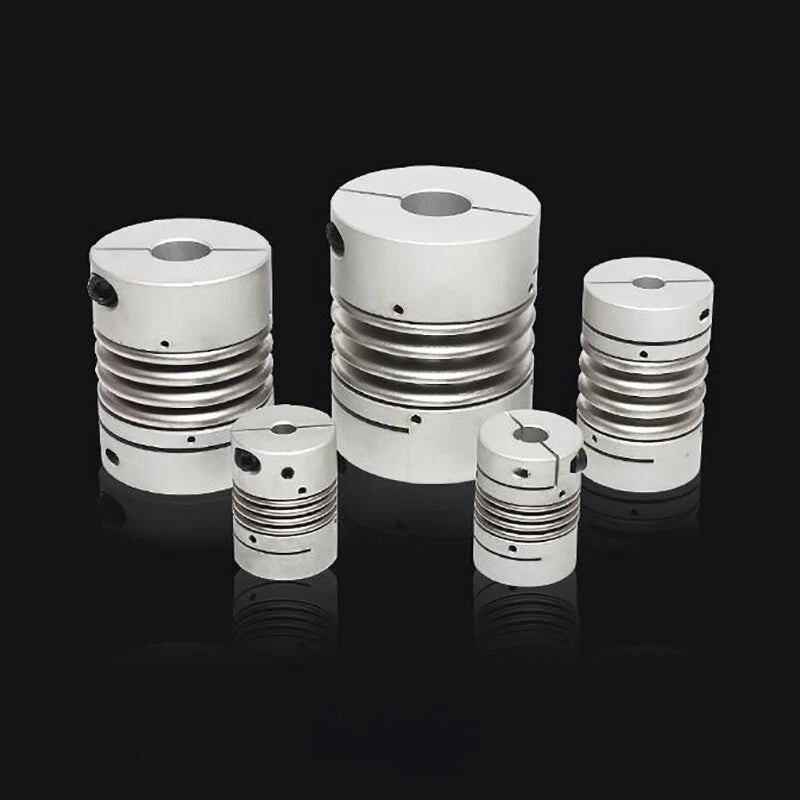

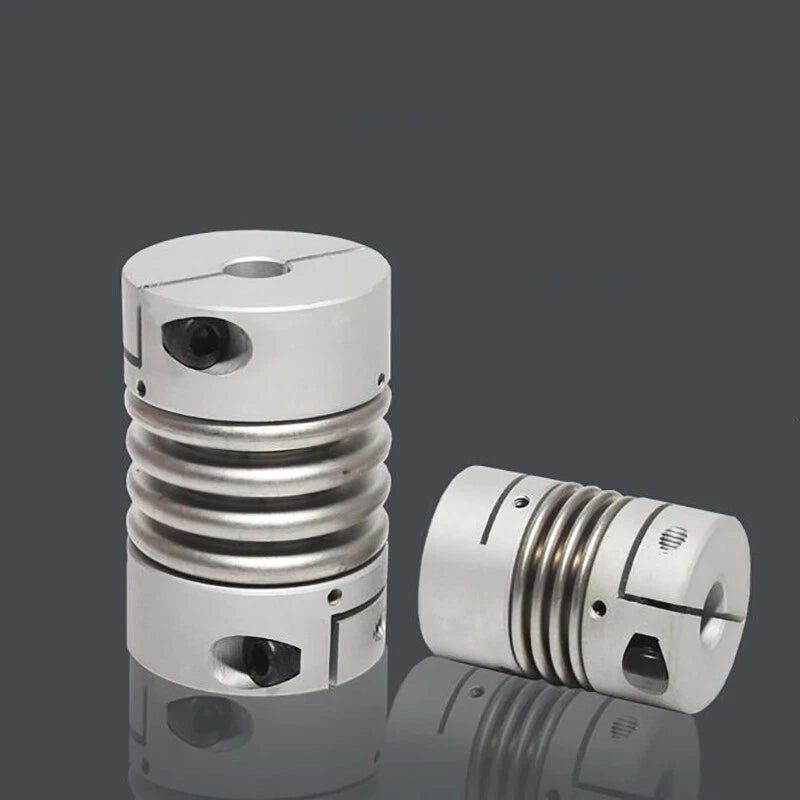

Each coupler is precision-machined from 6061 aluminum alloy with a stainless steel bellows element, available in seven size variants ranging from D20mm × L33mm up to D80mm × L103mm. Bore capacity spans 3mm to 45mm (approximately 0.12" to 1.77"), covering the most common shaft diameters used in stepper motors, servo motors, and lead screw assemblies. The two-piece clamp design allows tool-free shaft insertion and secure clamping without set screws that can mar shaft surfaces.
Typical applications include CNC router Z-axis lead screw connections, 3D printer Z-axis motor couplings, laser engraver drive shaft connections, and light-duty servo motor-to-encoder shaft links. The bellows element makes these couplings especially well-suited for flexible shaft coupling for stepper motor 3D printer builds and CNC bellows coupler for lead screw setups where zero-backlash performance is critical.
Precision-turned aluminum hubs deliver consistent bore concentricity and a secure clamp fit, reducing runout in high-speed applications.

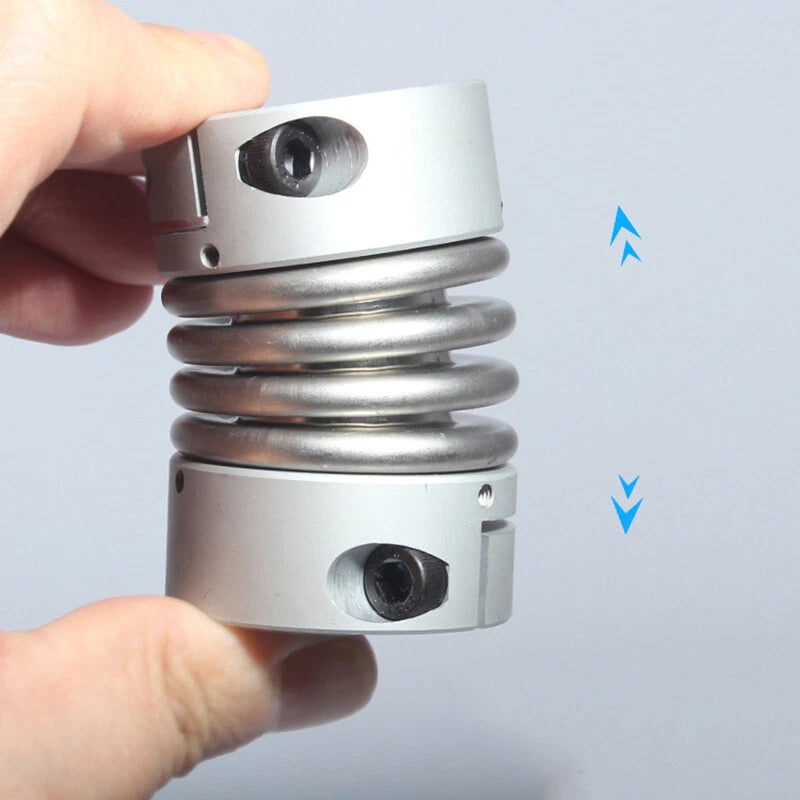

The flexible bellows absorbs angular, parallel, and axial misalignment simultaneously, protecting bearings and encoders from side-load stress.
Choose from seven coupler dimensions with matching bore ranges (3–10mm up to 12–45mm) to fit your exact motor and shaft combination.
Split-clamp hubs grip shafts firmly without set screws, eliminating shaft surface damage and allowing quick repositioning during assembly.
The bellows design transmits torque with minimal angular play, making it suitable for closed-loop servo and stepper positioning systems.
Aluminum hubs with a natural anodize-ready finish and stainless steel bellows resist oxidation in workshop and light industrial environments.
| Material — Hub | 6061 Aluminum Alloy |
|---|---|
| Material — Bellows | Stainless Steel |

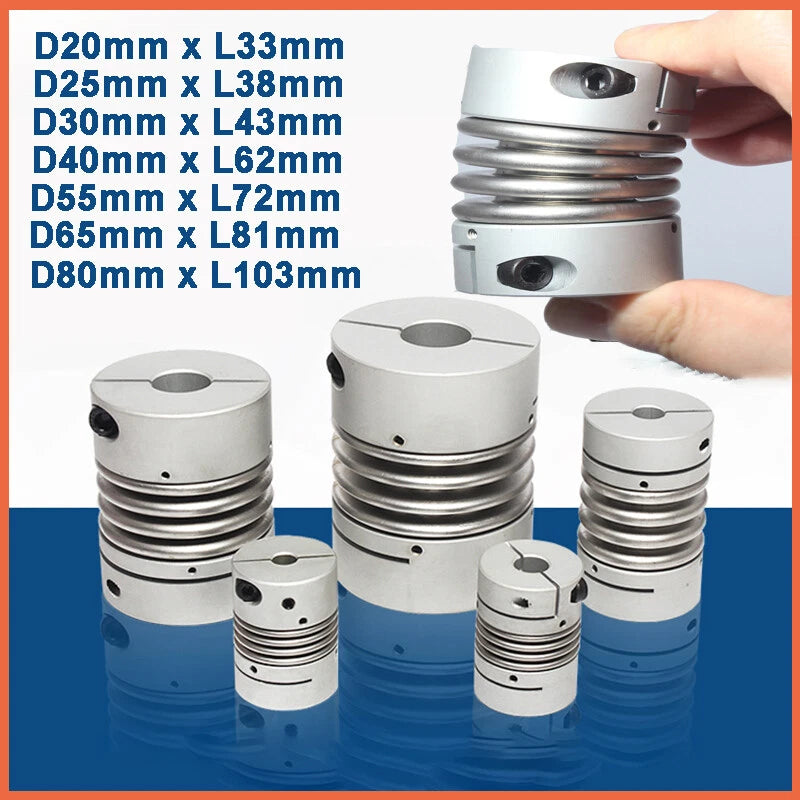

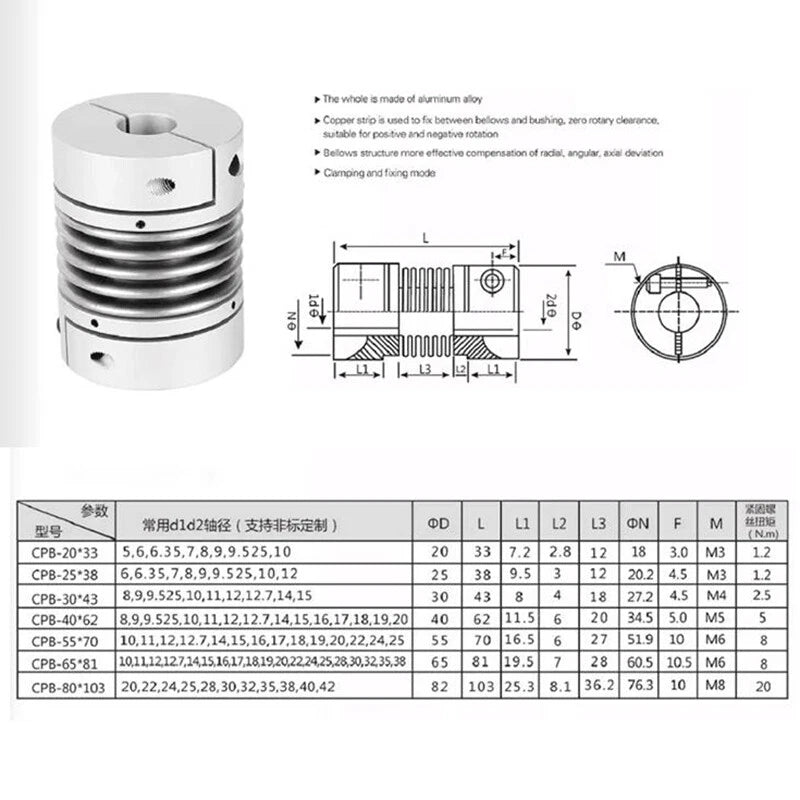

| Coupler Dimensions | D20×L33 / D25×L38 / D32×L43 / D40×L62 / D55×L72 / D65×L81 / D80×L103 (mm) |
| Bore Range (d1–d2) | 3–10mm / 4–12mm / 5–16mm / 6–22mm / 8–28mm / 10–38mm / 12–45mm |
| Bore Range (inches) | 0.12"–0.39" to 0.47"–1.77" depending on variant |
| Coupling Type | Bellows / Flexible |
| Shaft Retention | Split Clamp (no set screw) |
| Misalignment Compensation | Angular, Parallel, Axial |
| Finish | Natural Aluminum (anodize-ready) |
| Weight | See variant options |
| Max Recommended RPM | See variant options |
| Operating Temperature | See variant options |
Match the Coupler Dimension (D × L) to the space available in your machine, then confirm both shaft diameters fall within the listed Inner Hole Range (d1–d2) for that variant. For example, if your stepper motor shaft is 5mm and your lead screw is 8mm, the D25×L38 variant (4–12mm range) covers both. Always measure your actual shaft diameters before ordering.
A bellows coupling uses a thin-walled corrugated metal tube to transmit torque, offering true zero-backlash performance and the ability to compensate for angular, parallel, and axial misalignment simultaneously. A jaw coupling uses an elastomeric spider insert that introduces a small amount of backlash and dampens shock loads. Bellows couplings are preferred for closed-loop servo and precision CNC positioning; jaw couplings are better for applications with shock or vibration damping requirements.
The bore ranges are specified in metric (mm). Many common imperial shaft sizes fall within these ranges — for example, a 1/4" (6.35mm) shaft fits within the D20×L33 variant's 3–10mm bore range. Check the exact bore range for your chosen variant and convert your imperial shaft diameter to millimeters to confirm compatibility.
The stainless steel bellows is designed for continuous cyclic flexing under normal misalignment conditions. Fatigue life depends on the degree of misalignment and operating speed. To maximize service life, align shafts as closely as possible before tightening the clamp hubs — the bellows should compensate for residual misalignment, not serve as the primary alignment correction. Avoid exceeding the rated misalignment angles for your selected size.
Yes. The D20×L33 and D25×L38 variants are the most commonly used sizes for NEMA 17 stepper motor shafts (typically 5mm) paired with TR8 or M5 lead screws (typically 5–8mm). The zero-backlash bellows design helps eliminate Z-axis wobble and layer inconsistency caused by coupling play, making it a direct upgrade over standard flexible jaw couplings in FDM 3D printers.
Insert each shaft into its respective hub bore until it reaches the midpoint of the hub depth. Align the coupling so the bellows is not pre-compressed or pre-stretched. Tighten the clamp screws gradually and evenly — typically to the torque specification for the screw size used (refer to your variant's documentation). Do not overtighten, as this can distort the bore and reduce clamping effectiveness. Re-check alignment after initial tightening.
6061 aluminum alloy forms a natural oxide layer that provides good corrosion resistance in typical indoor workshop conditions. The stainless steel bellows adds further resistance to oxidation. For environments with exposure to cutting fluids, coolants, or high humidity, consider applying a light coat of corrosion-inhibiting oil to the hub exterior periodically. The bore interior should be kept clean and dry for reliable clamping.
🛒 Select your Coupler Dimension and Inner Hole Range above, then add to cart.
