When a misaligned motor shaft causes your CNC router to chatter or your 3D printer to skip steps, the culprit is often a rigid or worn coupling. Engineers, makers, and machine builders who demand repeatable positioning need a flexible shaft coupling that absorbs angular and parallel misalignment without transmitting shock loads back to the motor bearings.

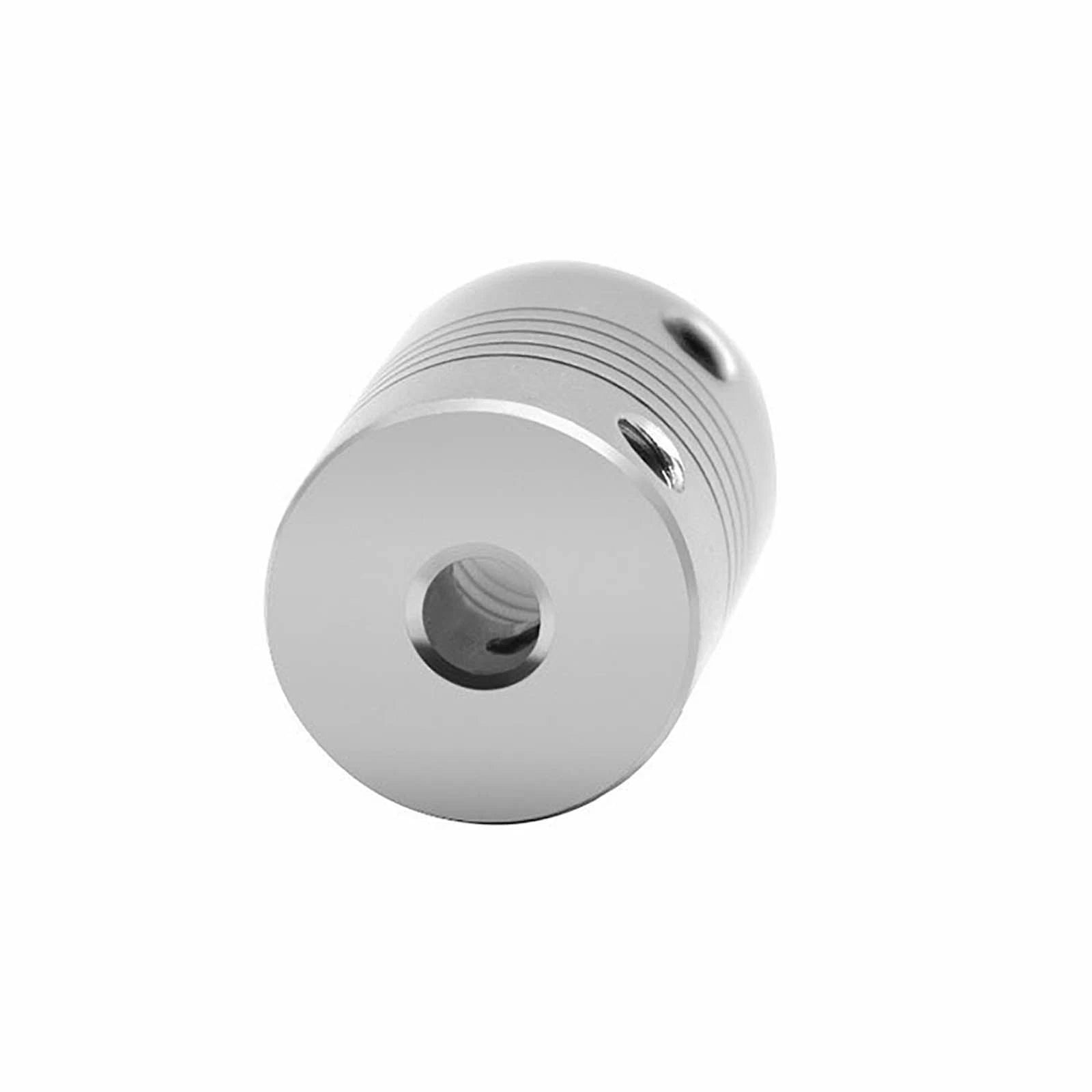

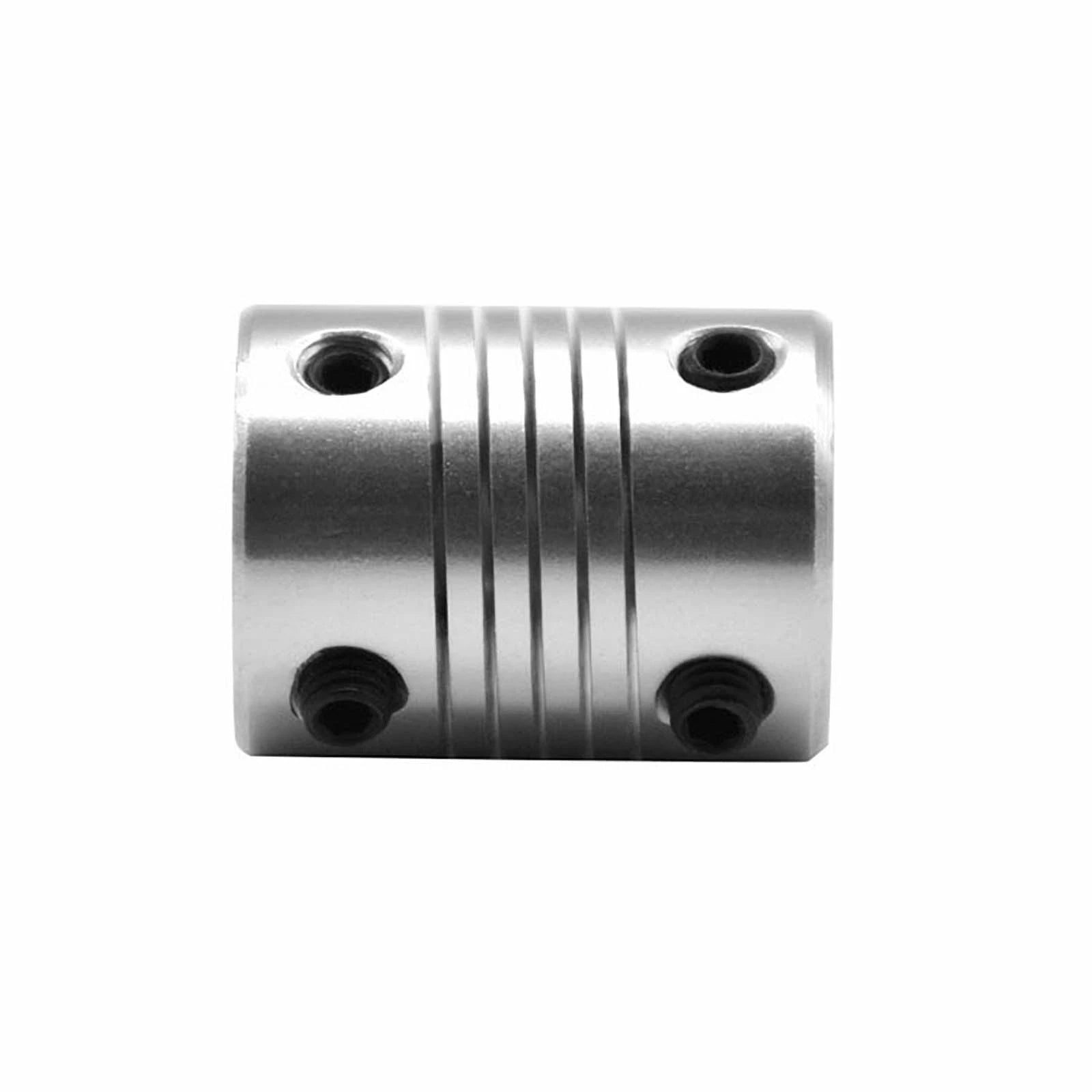

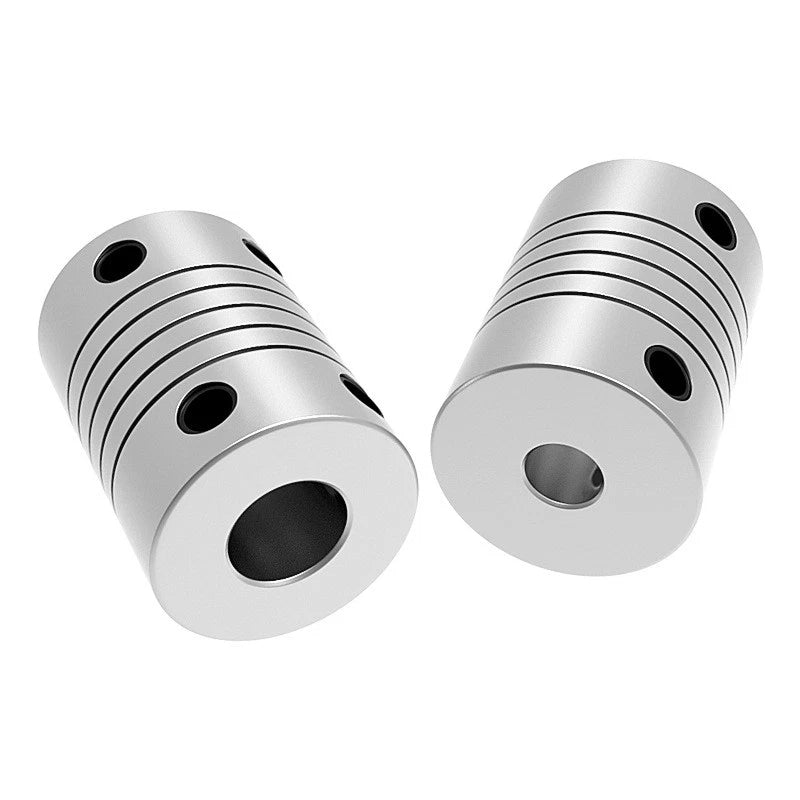

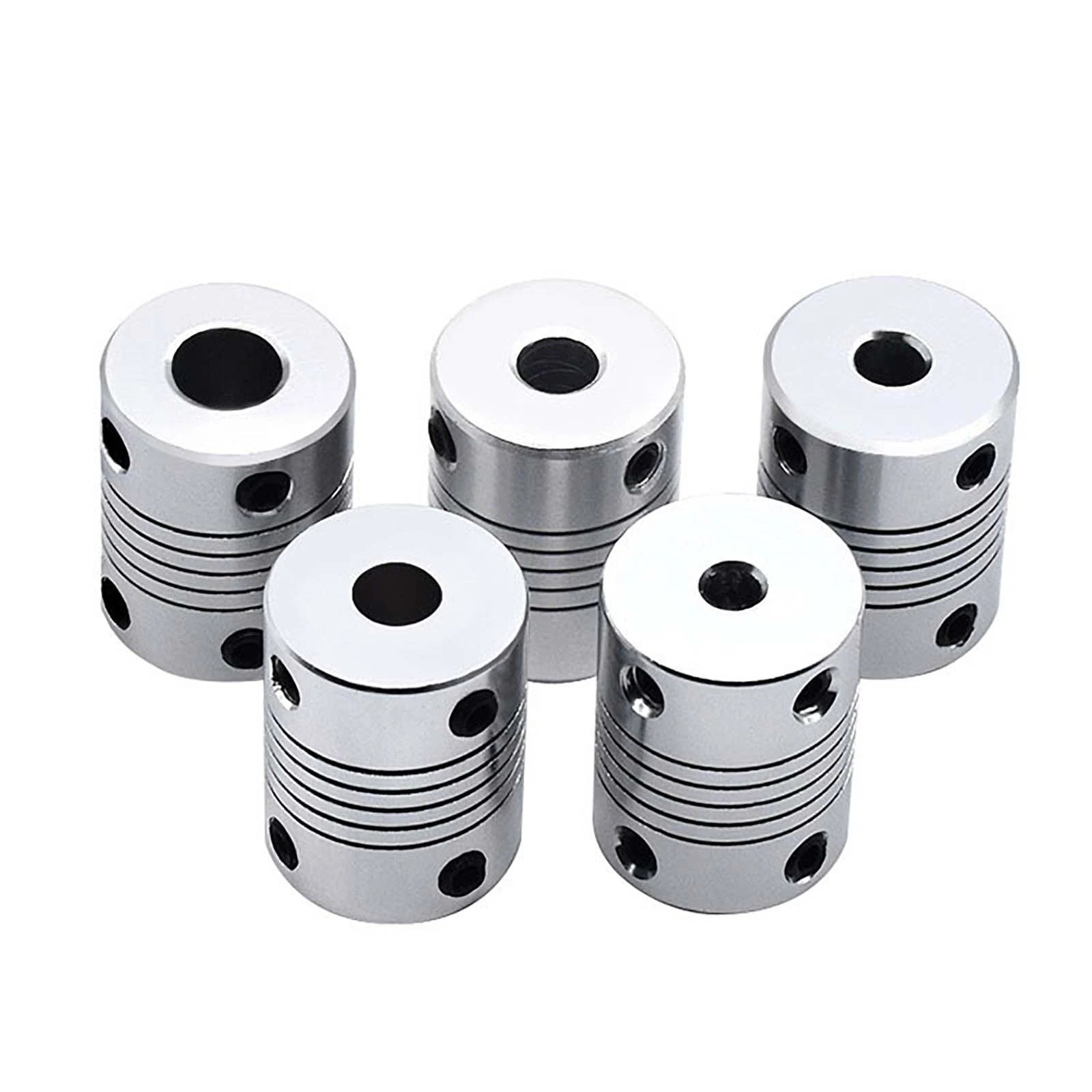

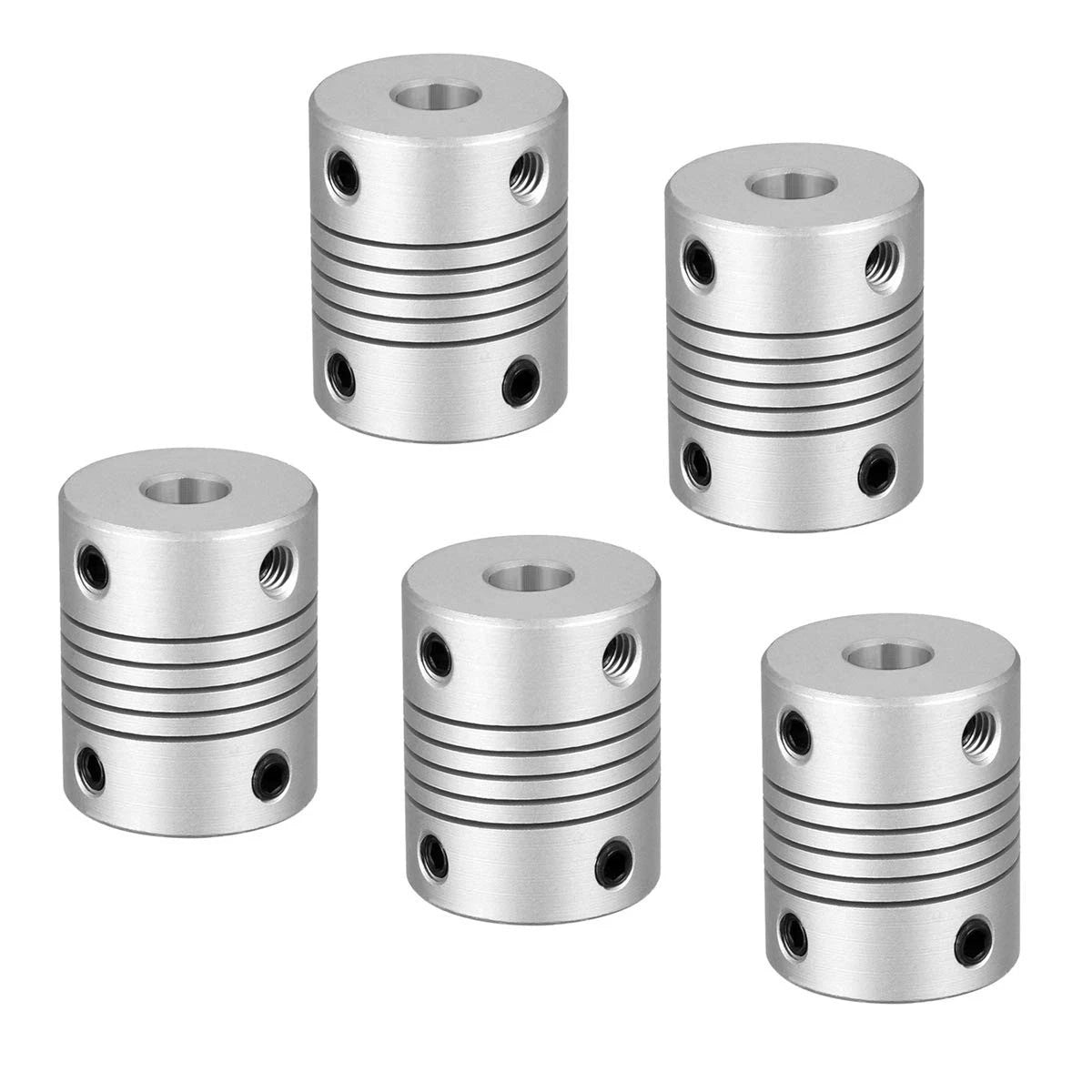

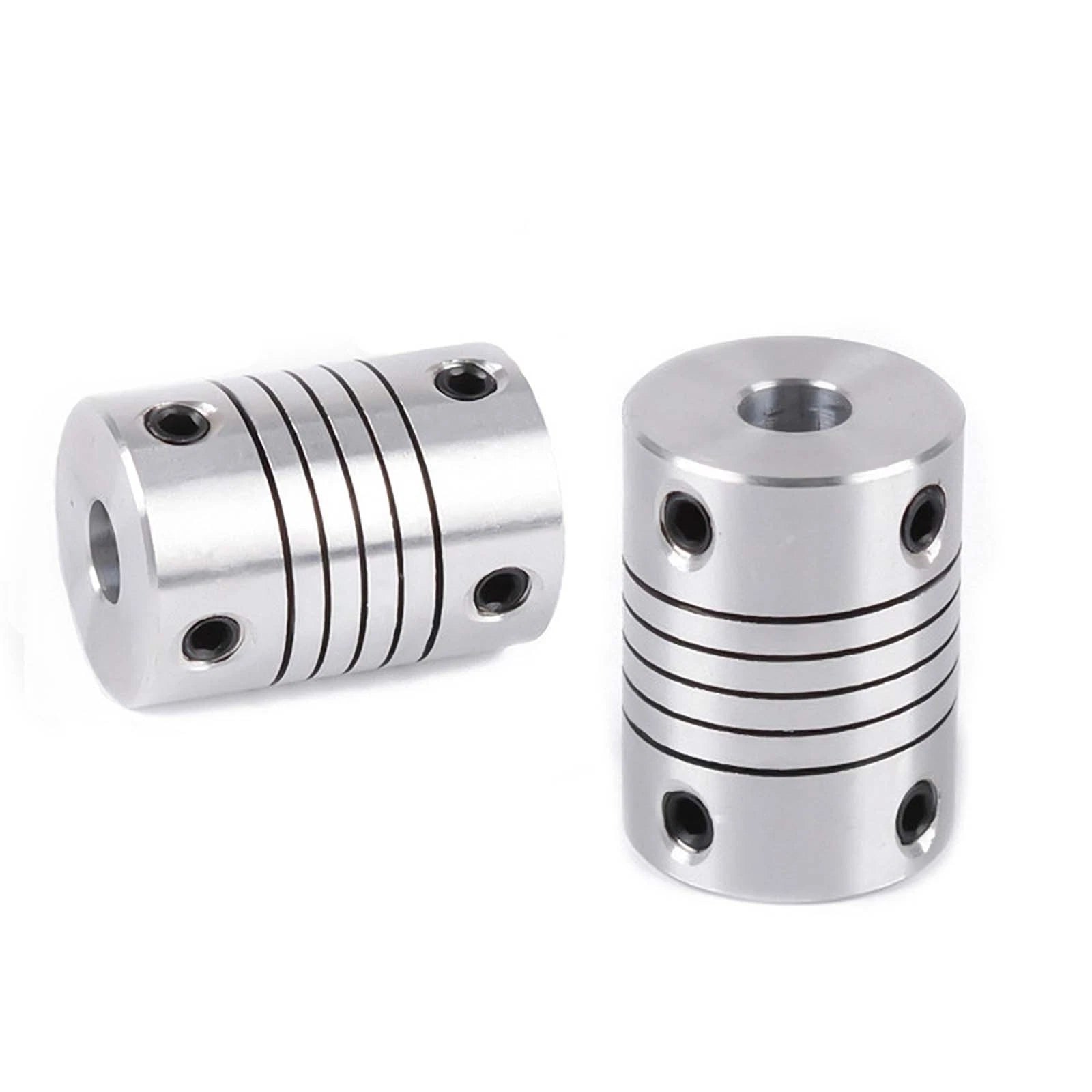

These flexible shaft couplings are machined from aluminum alloy with a helical-cut beam or jaw-spider design. Each coupler connects two shafts with different or matching bore diameters, spanning outer diameters from Ø10mm to Ø32mm (approx. 0.39″–1.26″) and lengths from 12mm to 41mm (approx. 0.47″–1.61″). Bore combinations range from 3mm/3mm up to 15mm/15mm, covering both metric and inch-standard shafts (including 6.35mm / ¼″ and 9.52mm / ⅜″).

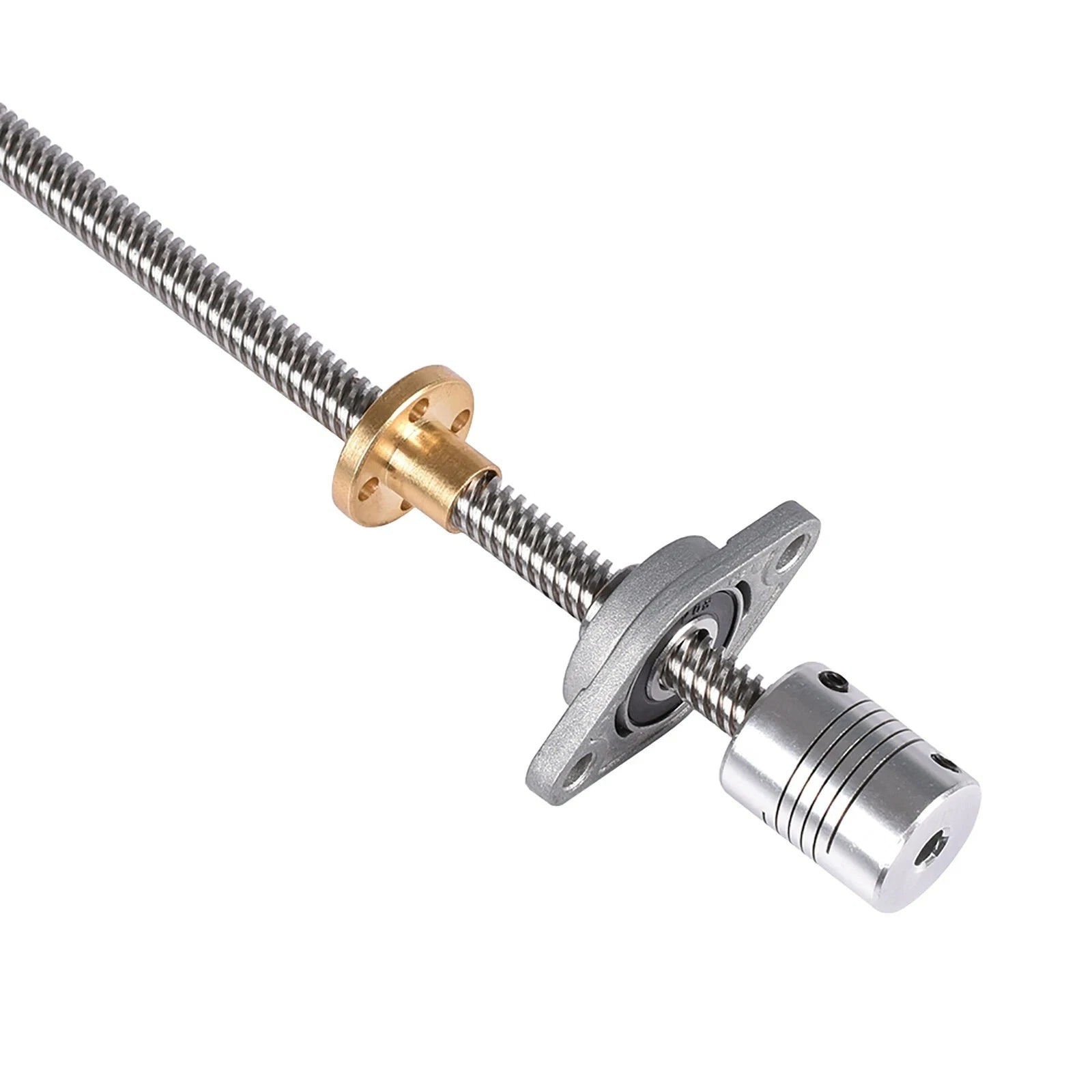

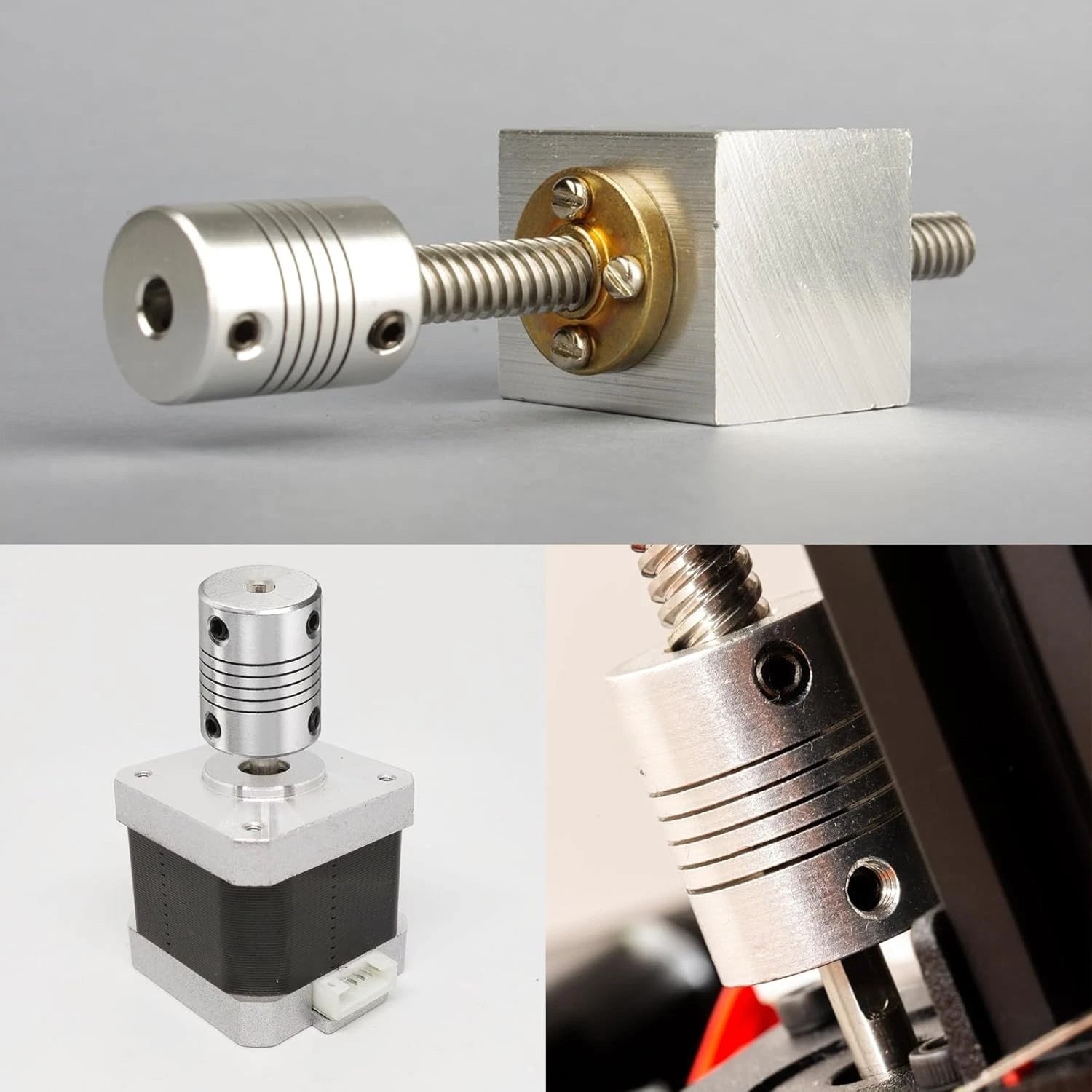

Typical applications include NEMA 17 and NEMA 23 stepper motor shaft connections on FDM 3D printers, ball-screw Z-axis couplings on desktop CNC mills, lead-screw flexible shaft coupling for laser engravers, and servo motor coupler replacements on small lathes and routers.
| Product Type | Flexible Shaft Coupling / Coupler |
|---|---|
| Body Material | Aluminum Alloy |
| Outer Diameter Range | Ø10mm – Ø32mm (approx. 0.39″ – 1.26″) |
| Length Range | 12mm – 41mm (approx. 0.47″ – 1.61″) |
| Bore Diameter Range | 3mm – 15mm (incl. 6.35mm / ¼″ and 9.52mm / ⅜″) |
| Bore Configuration | Same-bore or stepped (two different bore diameters) |
| Shaft Retention | Grub screws (set screws) |
| Coupling Style | See variant options |
| Surface Finish | See variant options |
| Quantity per Order | 1 piece |
| Compatible Applications | CNC router, 3D printer, laser engraver, stepper/servo motor, lead screw, ball screw |

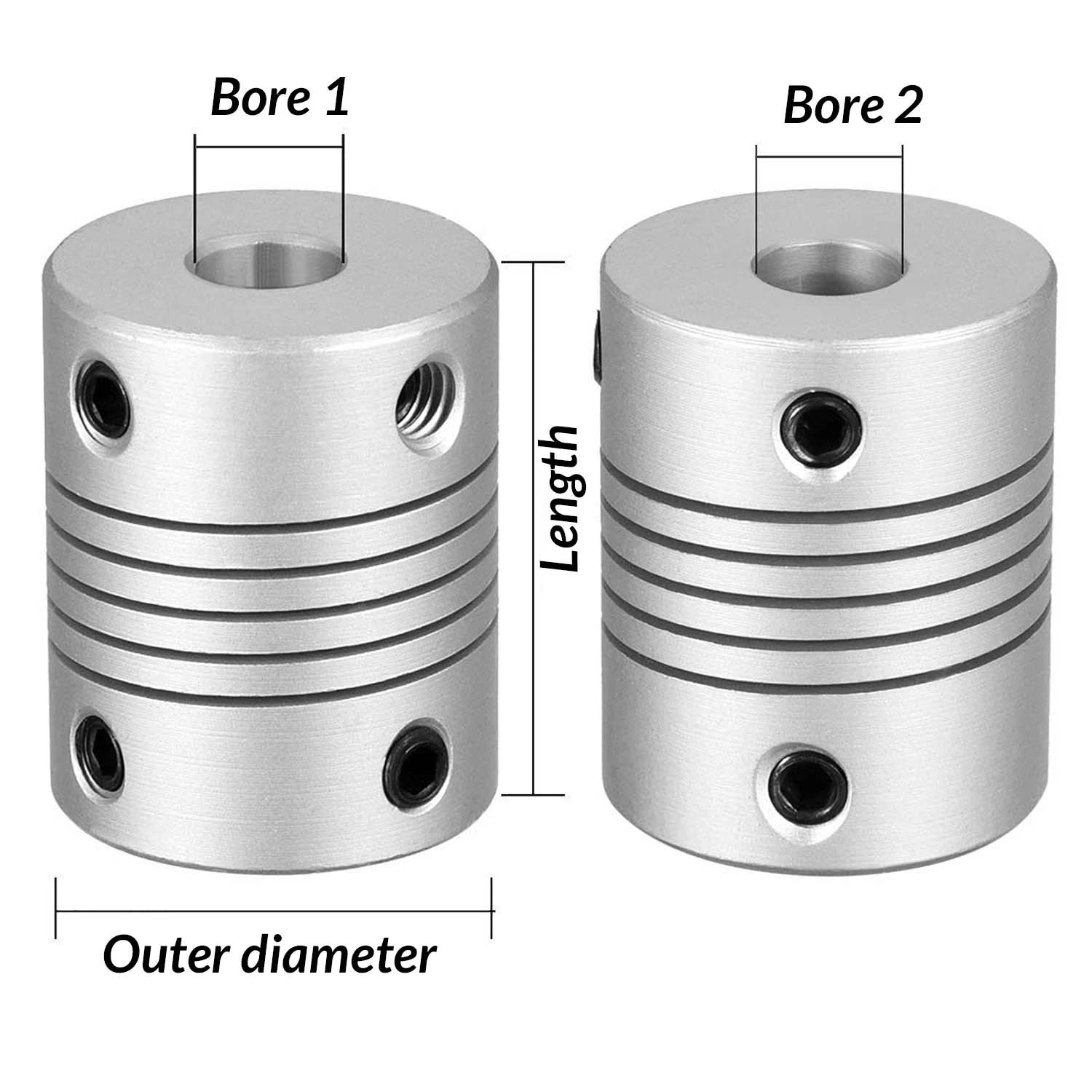

Measure your motor shaft diameter and your lead-screw or ball-screw shaft diameter with a caliper. Then select the variant whose Bore (Dia/Dia) matches those two values — for example, "5mm/8mm" means one end accepts a 5mm shaft and the other accepts an 8mm shaft. If both shafts are the same size, choose a same-bore variant such as "6mm/6mm".
Both share the same 25mm outer diameter but differ in body length (25mm vs 31mm). The longer 31mm version provides a greater clamping surface and is typically used when higher torque transmission or a wider bore range is needed. For compact builds, the 25mm length is sufficient for most desktop CNC and 3D printer applications.
Yes. The flexible (helical or jaw-spider) design accommodates angular misalignment of typically up to 1°–3° and small amounts of parallel offset. This prevents binding and reduces vibration transmitted to the motor bearings. For severe misalignment, realign your motor mount mechanically before relying solely on the coupling's flexibility.
Yes. Several bore variants explicitly include 6.35mm (¼″) and 9.52mm (⅜″) options, making them suitable for mixed metric/imperial drivetrain builds common in North American CNC and woodworking machines. Check the Bore (Dia/Dia) dropdown for the exact combination you need.

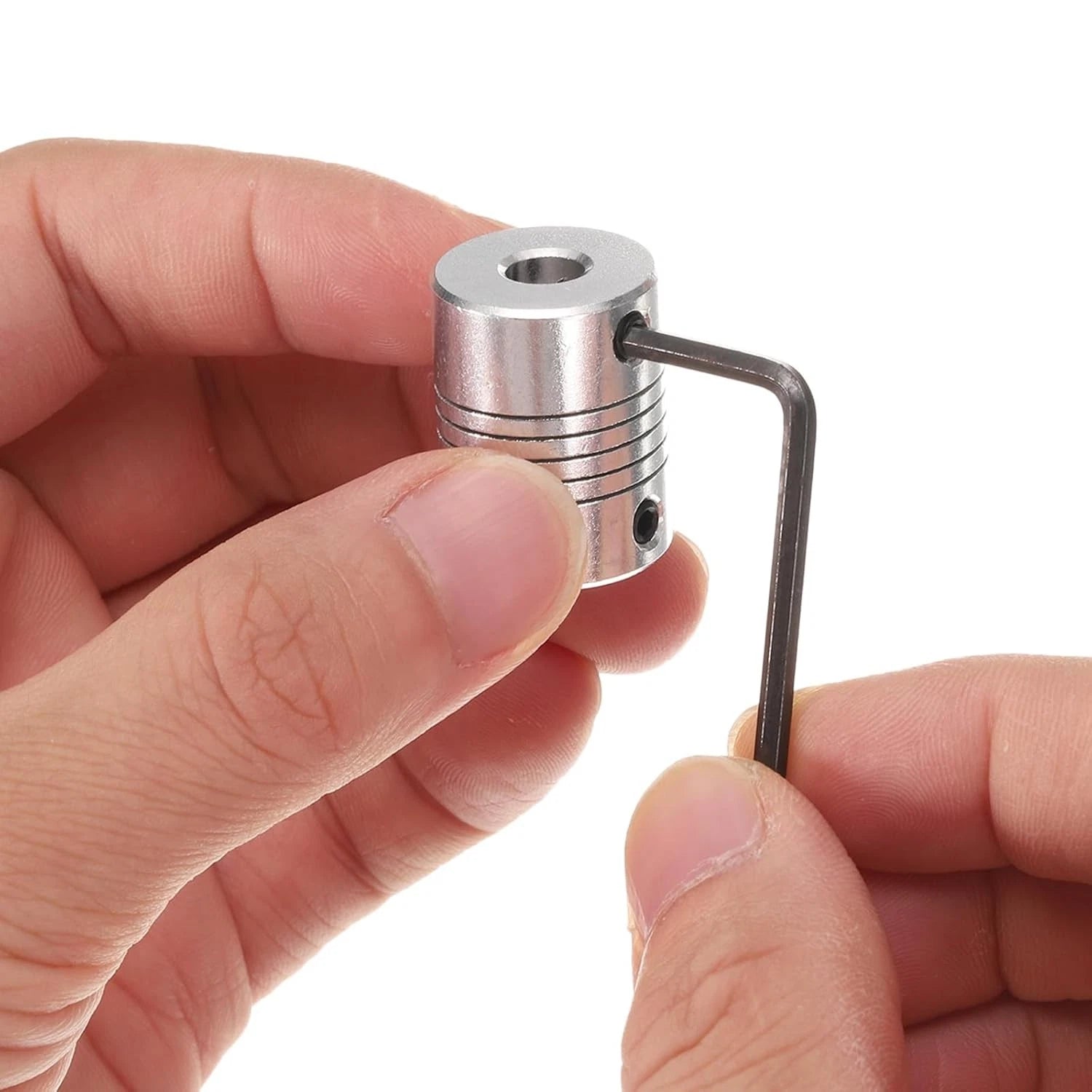

Each bore end is secured by one or two grub screws (set screws) tightened against the shaft with a hex key. For best grip, ensure the shaft surface is clean and free of oil, and tighten the grub screws to the manufacturer's recommended torque. For high-vibration environments, a small flat ground on the shaft (D-cut) further prevents rotation.

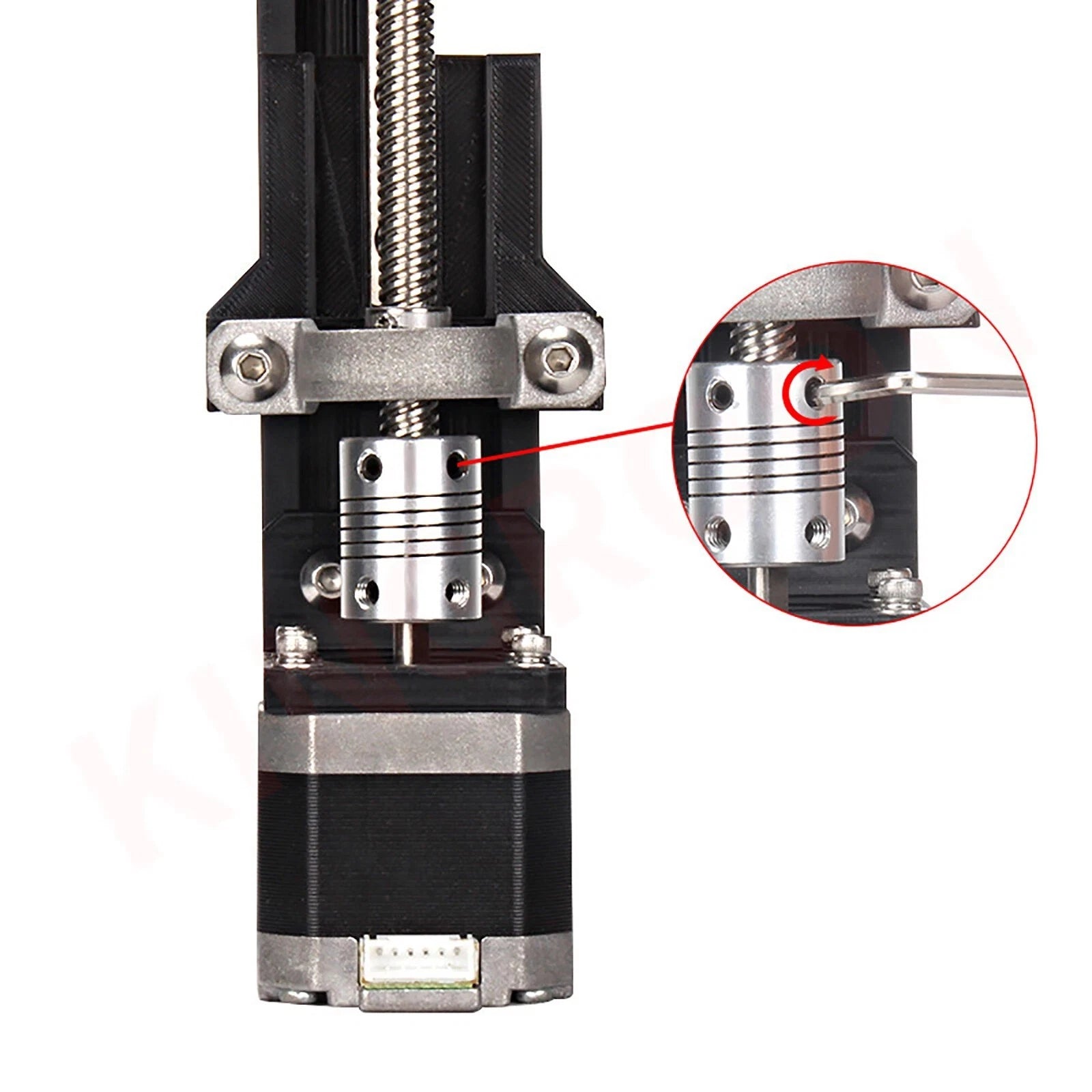

Yes. NEMA 17 motors typically have a 5mm output shaft. Select a variant with a 5mm bore on the motor side — for example, "5mm/8mm" if your lead screw is 8mm, or "5mm/5mm" if both shafts are 5mm. The Ø10mm–Ø20mm outer diameter range is well-suited to the compact Z-axis assemblies found in most FDM printers.

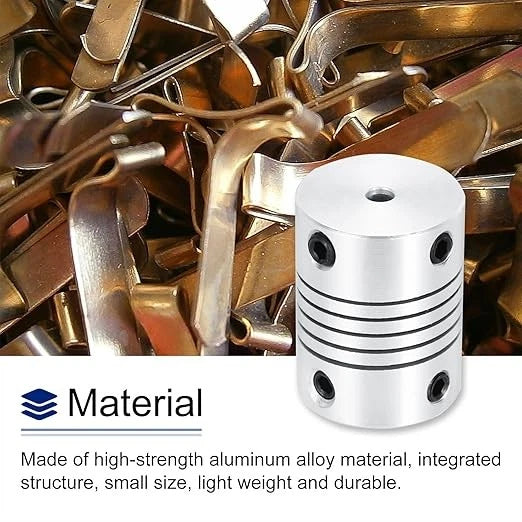

The couplings are machined from aluminum alloy, which offers a favorable strength-to-weight ratio and natural oxide layer corrosion resistance. They are suitable for dry and lightly humid workshop environments. Avoid prolonged exposure to cutting fluids or salt spray without additional protective coating.
