FXL Closed-Loop Rubber Timing Belt — Precise Drive for CNC, 3D Printers & Automation

When a slipping or stretched drive belt throws off your CNC router's axis, ruins a 3D print, or stalls an automation line, the root cause is almost always a belt that wasn't built to spec. Makers, machine builders, and repair technicians who need a drop-in FXL timing belt replacement — or a reliable belt for a new build — need a closed-loop rubber synchronous belt that holds tooth engagement under real working loads.

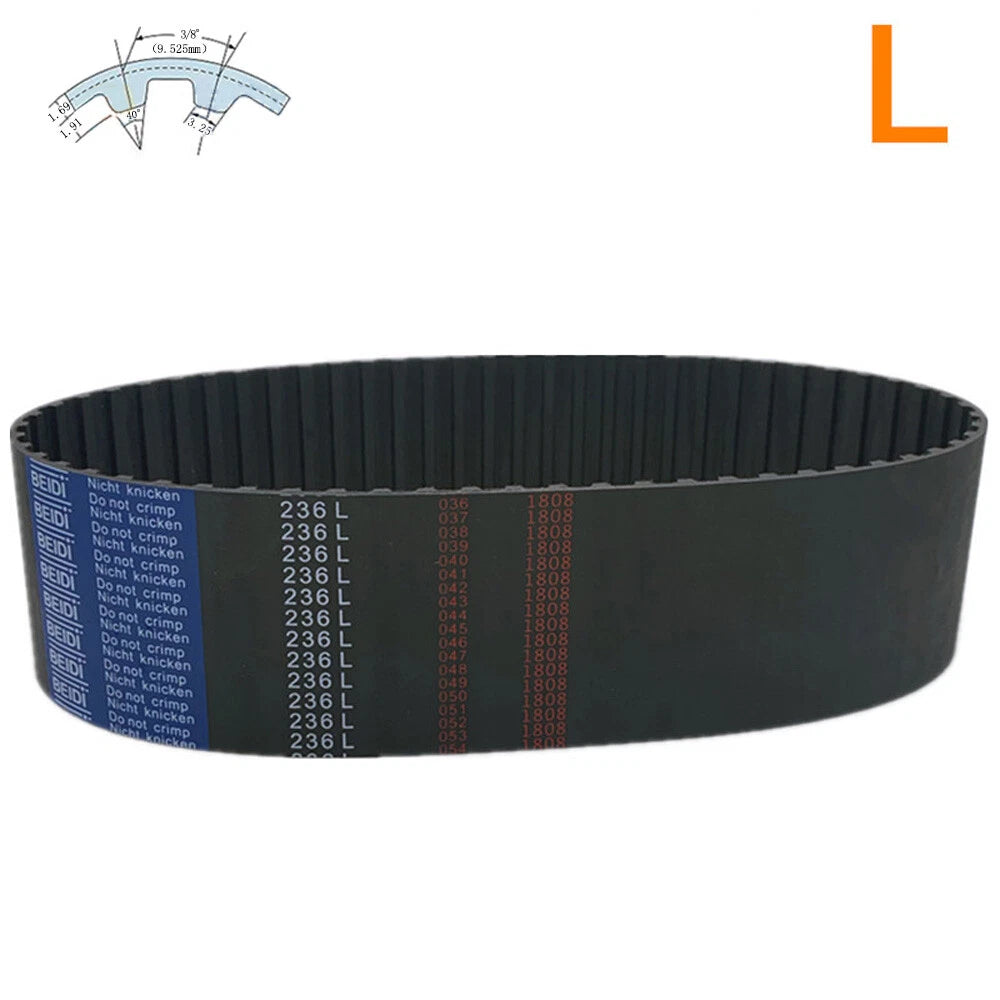

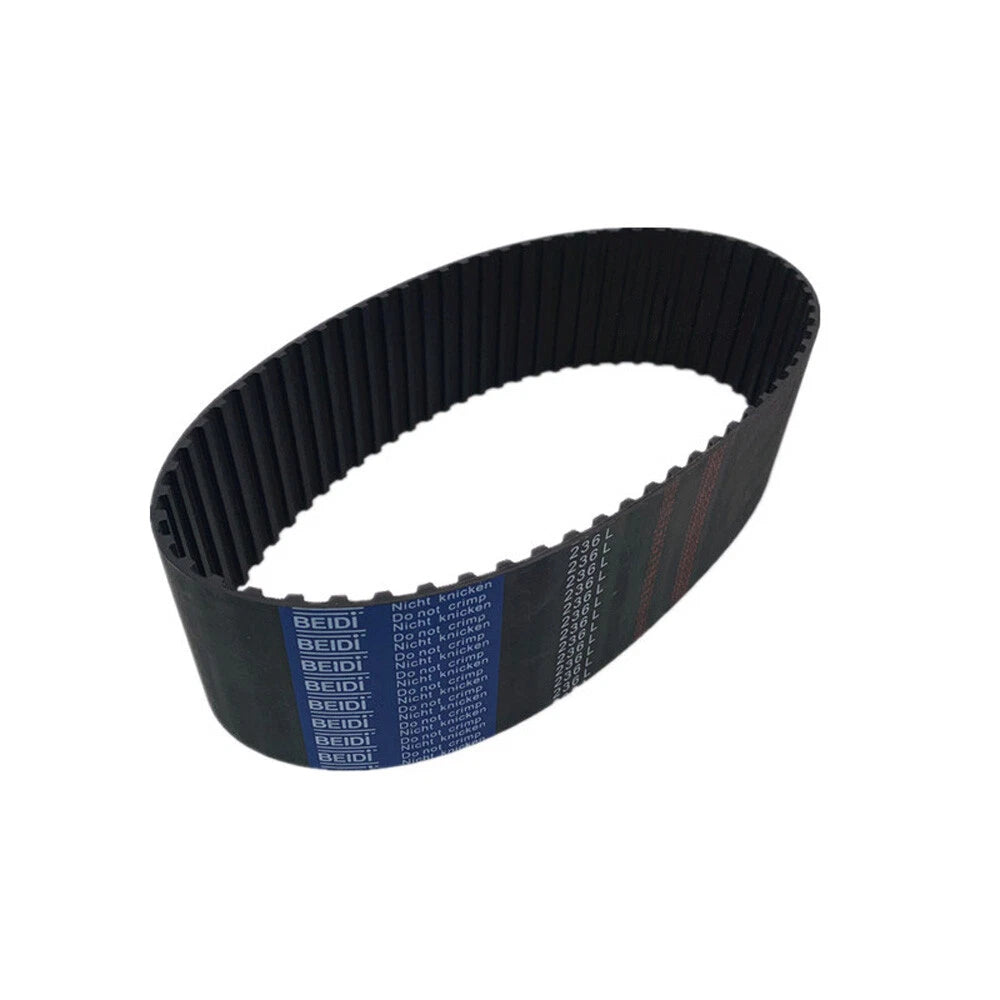

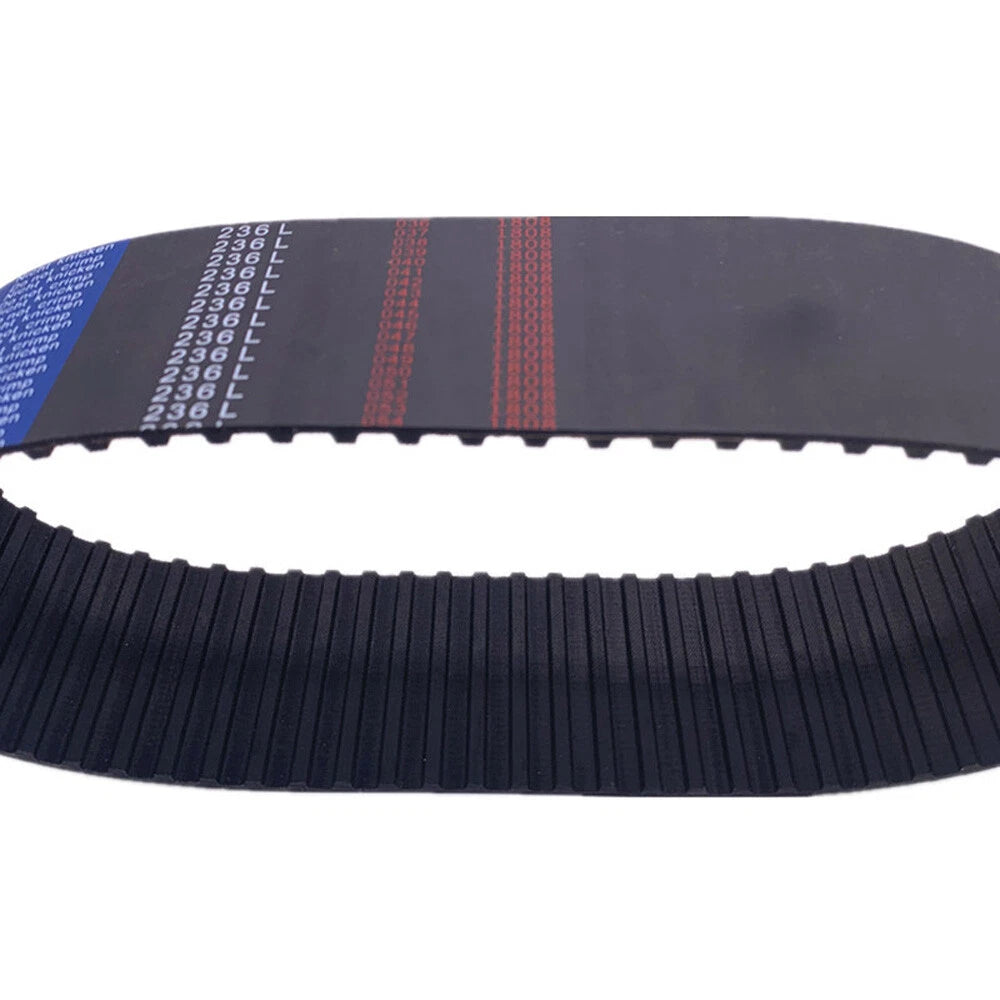

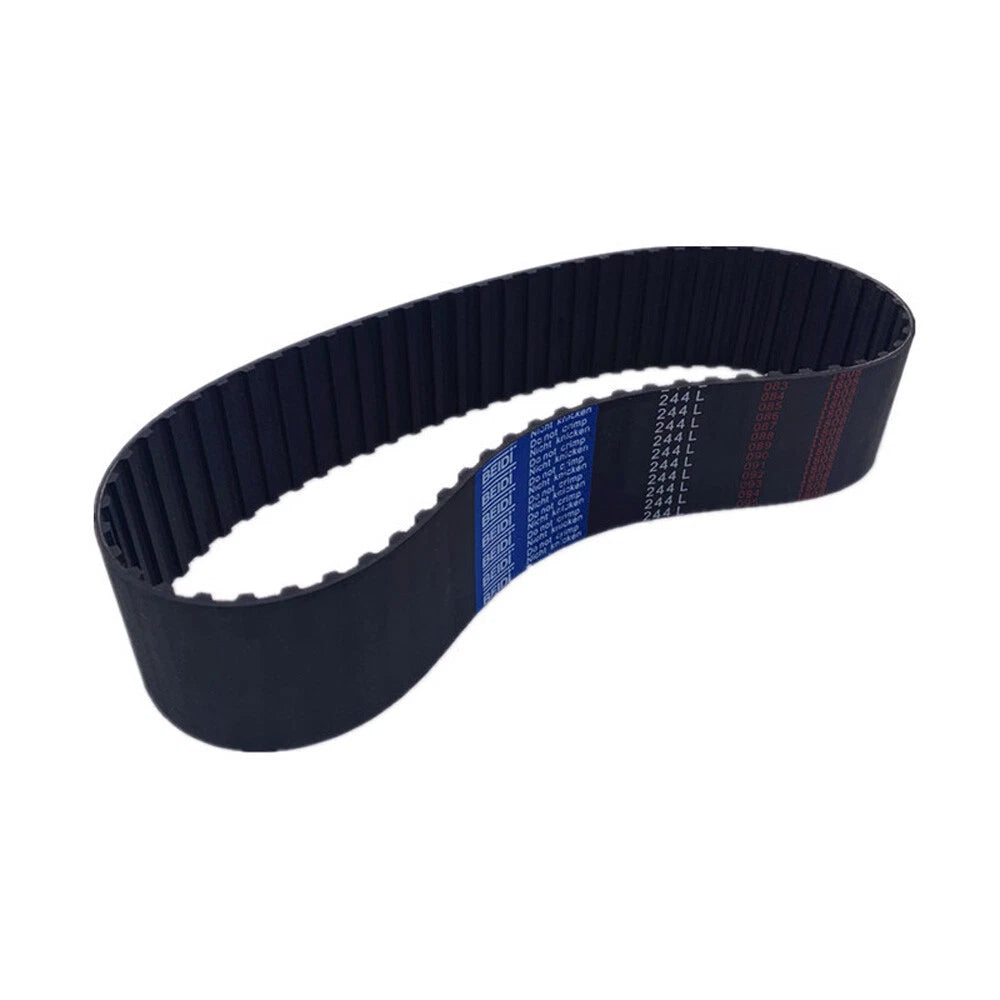

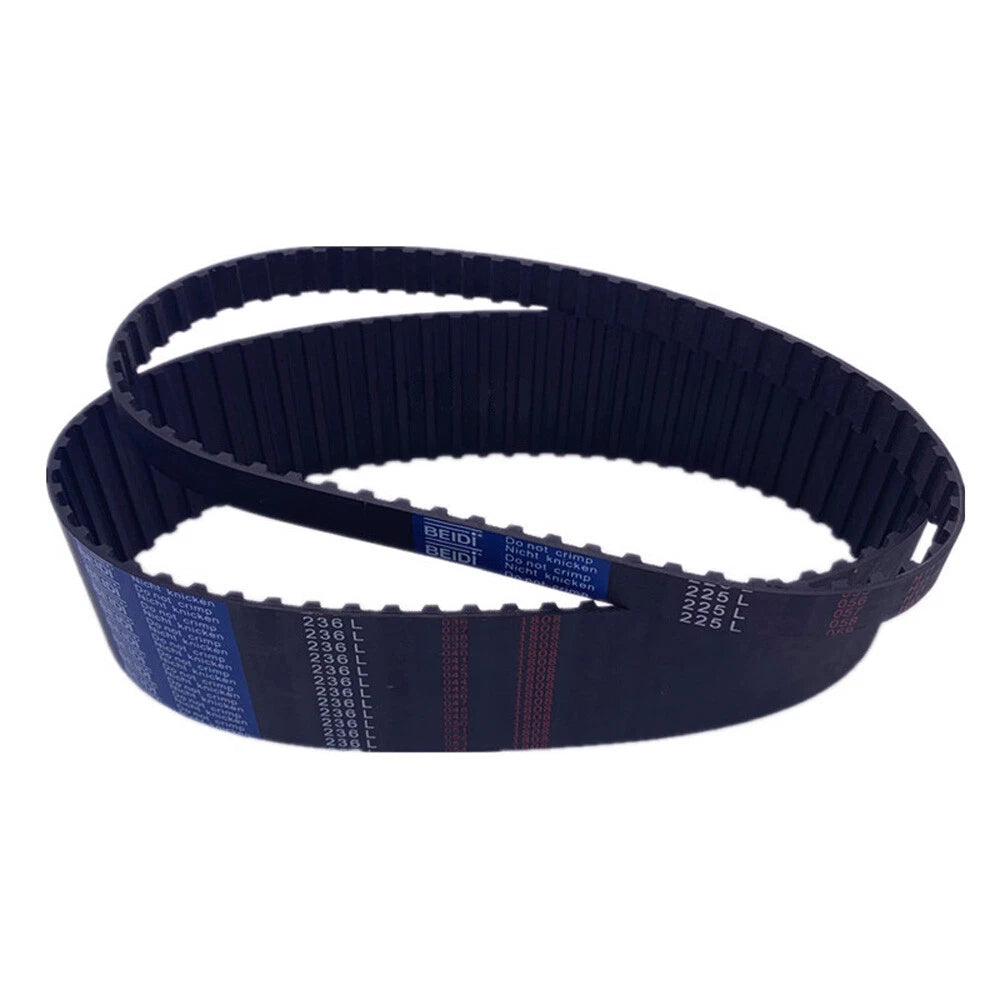

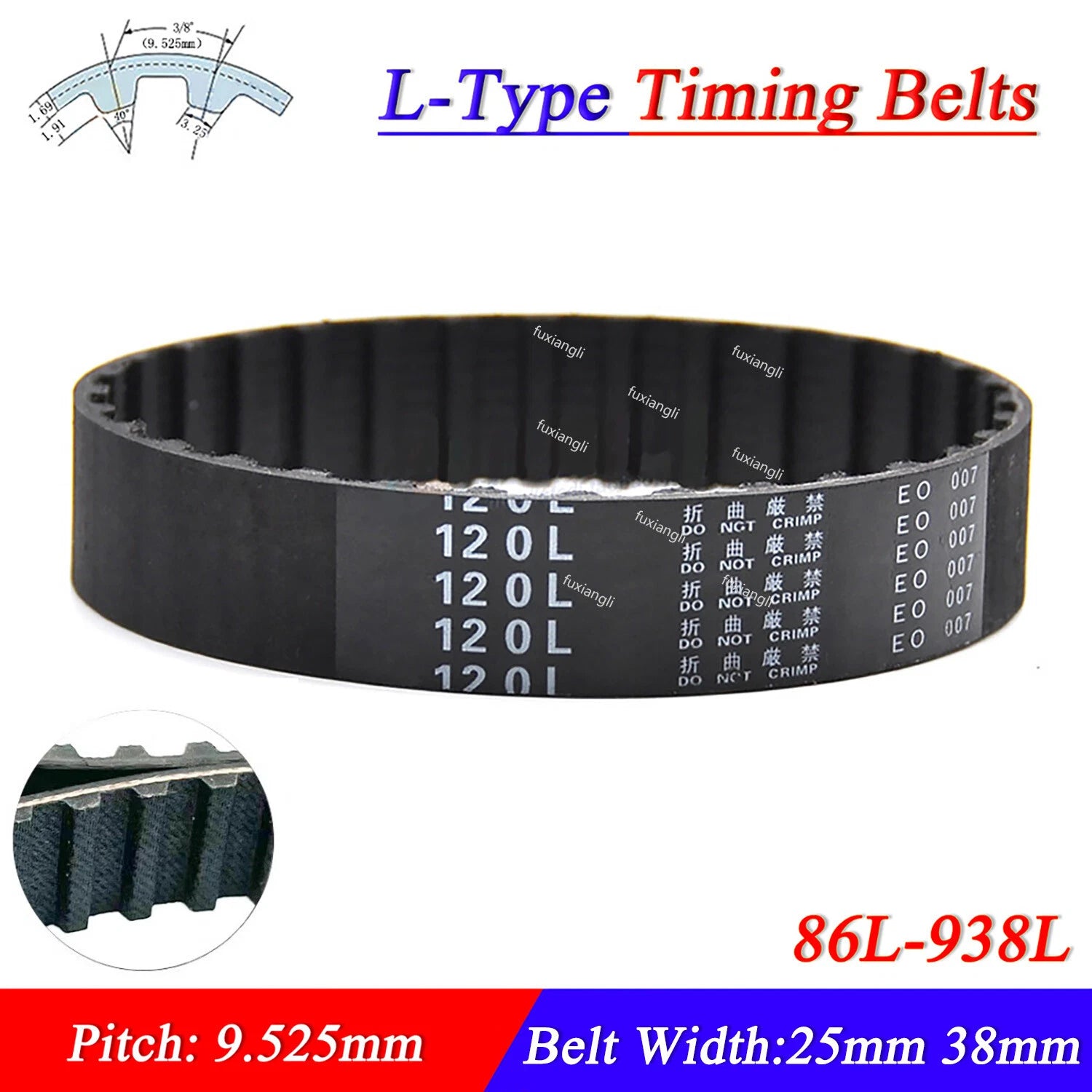

Each belt in this listing is a single closed-loop (endless) FXL-series synchronous belt made from neoprene rubber with a fiberglass tension cord core. Available in two widths — 25mm (≈1") and 38mm (≈1.5") — and in sizes from 86L (219.075mm / ≈8.6" perimeter) up to 938L (2381.25mm / ≈93.8" perimeter), with tooth counts ranging from 23 to 250 teeth. The standard L-pitch tooth spacing is 9.525mm (3/8"), matching any L-series timing pulley.

Typical applications include CNC router X/Y/Z axis drives, desktop 3D printer belt loops, laser engraver gantry systems, conveyor indexing drives, and servo-motor power transmission setups where precise, repeatable positioning is required.

ℹ️ Compatibility: These FXL belts use standard L-pitch (9.525mm / 3/8") tooth profile. They are compatible with any L-series timing pulley in matching widths. Confirm your pulley's flange width (25mm or 38mm) and belt perimeter before ordering.

✅ Key Features of These FXL Closed-Loop Rubber Timing Belts

  • 🔁Endless Closed-Loop Construction — No splice or joint means consistent tension and tooth engagement throughout every rotation, eliminating the failure point common in joined belts.
  • 📐Standard L-Pitch Tooth Profile (9.525mm) — Direct drop-in compatibility with L-series timing pulleys used in CNC routers, 3D printers, and servo-driven automation systems.
  • 🔩Two Width Options: 25mm & 38mm — Choose 25mm for lighter-duty CNC and desktop machines; select 38mm for higher-torque conveyor and servo-axis applications where slip resistance matters.

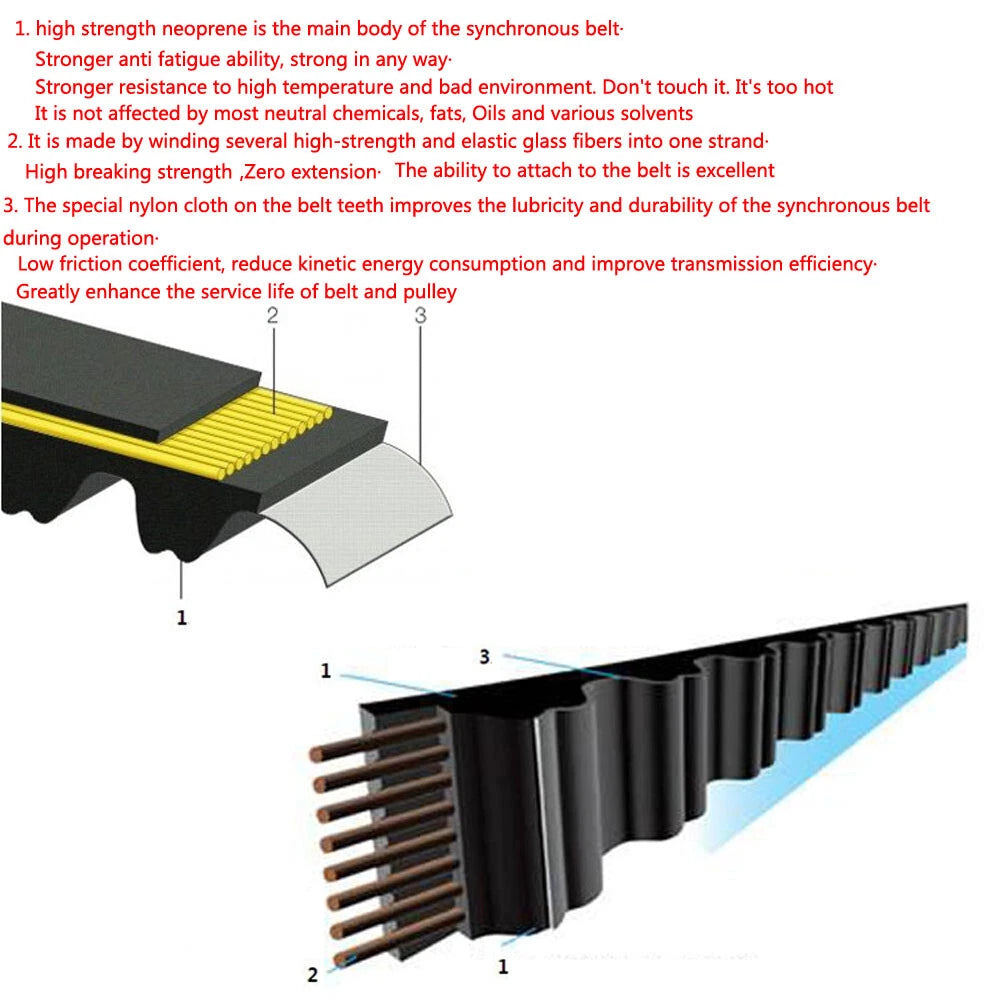

  • 🧱Neoprene Rubber Body with Fiberglass Tension Cord — The rubber compound resists light oils and moderate heat, while the fiberglass cord core limits stretch under load for repeatable positioning accuracy.
  • 📏Wide Size Range: 86L to 938L (23–250 Teeth) — Covers the most common closed-loop timing belt sizes for DIY CNC builds, machine repairs, and custom automation projects without custom ordering.
  • ⚙️Synchronous Drive — No Slip, No Backlash — Toothed synchronous design locks belt to pulley teeth, delivering the precise, repeatable motion that stepper and servo-driven axes require for accurate cuts and prints.

📐 Technical Specifications — FXL Closed-Loop Rubber Timing Belt

Belt Series FXL (L-series, closed loop / endless)
Tooth Pitch 9.525mm (3/8")
Belt Width Options 25mm (≈1") / 38mm (≈1.5")
Size Range (Type) 86L – 938L
Perimeter Range 219.075mm (≈8.6") – 2381.25mm (≈93.8")
Tooth Count Range 23 – 250 teeth
Belt Material Neoprene rubber with fiberglass tension cord
Tooth Profile Standard L-series trapezoidal
Compatible Pulleys L-series timing pulleys (25mm or 38mm flange width)
Loop Type Closed loop (endless / no joint)
Quantity per Order 1 belt per variant
Tensile Rating See variant options — contact us to confirm for specific load
Temperature Range Generally suitable for -20°C to +80°C (typical neoprene range)
Country of Origin Contact us to confirm
⚠️ Sizing tip: The "L" number equals the belt perimeter in tenths of an inch. Example: 120L = 12.0" = 304.8mm. Cross-reference the perimeter (mm) shown in the variant selector with your machine's belt path measurement before adding to cart.

❓ Frequently Asked Questions

How do I choose the right FXL timing belt size?

The "L" number indicates the belt's perimeter in tenths of an inch — so 120L = 12.0" = 304.8mm. To find your size: measure your existing belt's outer circumference, or calculate from your pulley center distance and tooth count. Then match the perimeter (mm) listed in the variant options. When in doubt, size up slightly rather than down to avoid over-tensioning.

What is the tooth pitch on these FXL timing belts?

FXL-series belts use the standard L-pitch: 9.525mm (3/8") between tooth centers. This is the same pitch used across all standard L-series timing pulleys, making these belts a direct fit for any L-series pulley in the matching width.

How strong are these rubber timing belts — what loads can they handle?

These belts are generally suited for light-to-medium duty CNC and automation loads. The 38mm width typically handles higher torque than the 25mm width due to the wider contact area. For specific tensile or torque ratings for your application, contact us to confirm before ordering.

Can these belts be used outdoors or in wet/oily environments?

Neoprene rubber timing belts are generally resistant to light moisture and incidental oil contact. However, they are not rated for continuous outdoor UV exposure, submersion, or heavy chemical environments. For harsh outdoor or wet conditions, a polyurethane (PU) timing belt is typically a better choice.

Are these belts compatible with standard L-series timing pulleys?

Yes. FXL belts use the standard L-pitch (9.525mm / 3/8") trapezoidal tooth profile and are compatible with any L-series timing pulley. Make sure your pulley's flange width matches the belt width you select (25mm or 38mm). Mismatched flange widths can cause the belt to track off the pulley.

Which width should I choose — 25mm or 38mm?

Choose 25mm (≈1") for lighter CNC routers, desktop 3D printers, laser engravers, and small automation systems where the drive load is moderate. Choose 38mm (≈1.5") for higher-torque applications such as larger CNC machines, conveyor indexing systems, or servo-driven axes where slip resistance and load capacity are critical.

What does "closed loop" mean, and why does it matter?

A closed-loop (endless) timing belt is manufactured as a continuous loop with no joint or splice. This eliminates the weak point found in joined or laced belts, ensuring consistent tension and tooth engagement throughout every full rotation. For CNC and precision automation, this translates to more repeatable positioning and longer belt life.

🛒 Select your type (size) and belt width above, then add to cart — ships from our US warehouse.
