Heat Shrink End Caps — Waterproof Glue-Lined Sealing for Wire Ends & Cable Tips
Exposed wire ends corrode, short out, and fail — especially in vehicles, boats, and outdoor electrical runs where moisture and vibration are constant threats. Whether you're a professional electrician, an automotive technician, or a hands-on DIYer finishing a wiring project, having a reliable way to cap and seal bare cable ends is essential for long-term performance and safety.

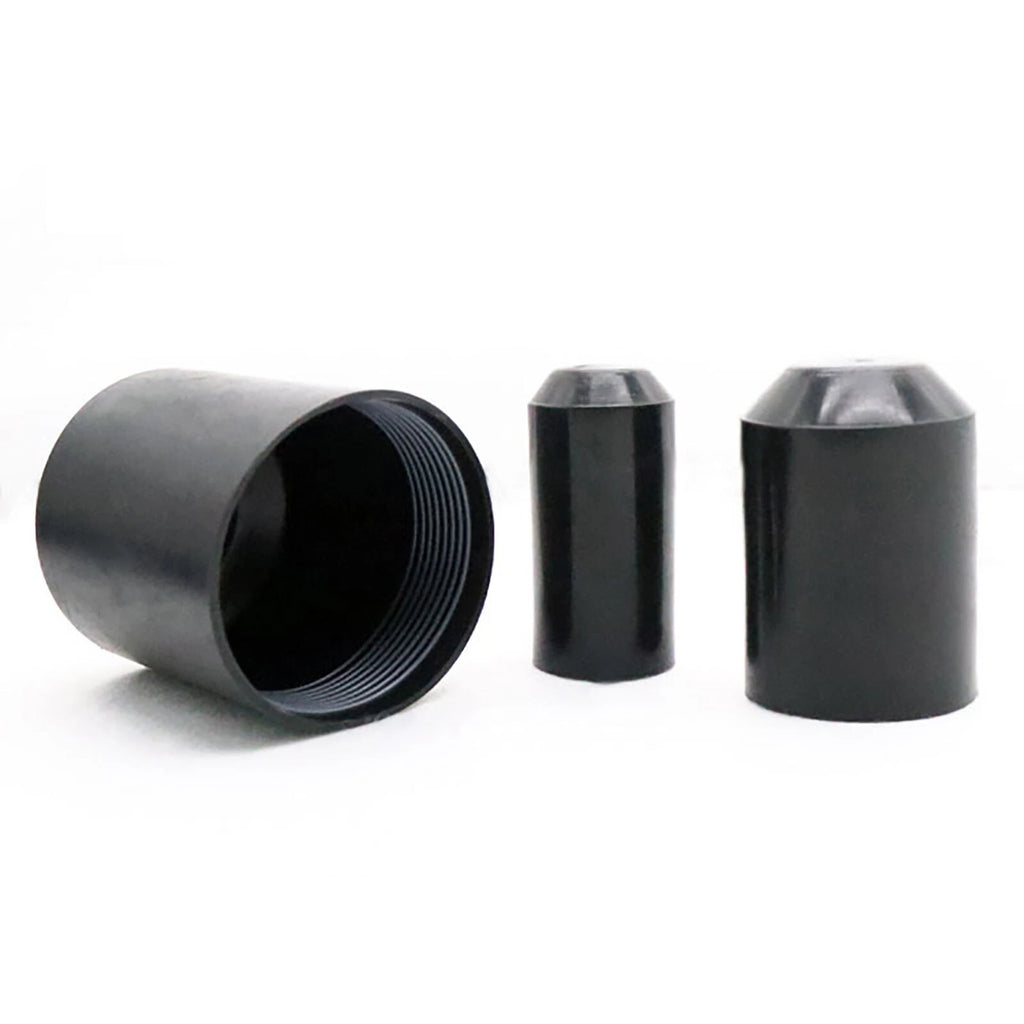

Each cap in this listing is a glue-lined, 2:1 ratio heat shrink end cap made from polyolefin tubing with a hot-melt adhesive inner wall. Available in 22 diameter sizes from 8mm (≈5/16") to 80mm (≈3-1/8"), with lengths ranging from 25mm (≈1") to 100mm (≈3-15/16"). Sold in quantities of 1, 2, 3, 5, 10, 15, 20, 30, or 50 pieces so you can order exactly what your project requires.
Typical use cases include sealing the cut ends of automotive wiring harnesses to prevent corrosion, capping exposed cable ends on marine electrical systems, protecting wire bundles in outdoor lighting installations, and finishing off stranded wire ends in industrial control panels where moisture ingress is a concern.
ℹ️
Compatibility: Fits copper, aluminum, and stranded wire ends. Supplied inner diameter 8–80mm; recovered diameter is approximately half after shrinking. Verify your cable's outer diameter before selecting a size.
✅ Key Features of These Heat Shrink End Caps
-
🔒Glue-Lined Waterproof Seal — The hot-melt adhesive inner wall melts during shrinking to flow around the cable end, creating a moisture-resistant barrier that protects against corrosion in outdoor and marine wiring applications.
-
📐Wide Size Range (8–80mm) — With 22 diameter options from 8mm (≈5/16") to 80mm (≈3-1/8"), these glue-lined end caps cover everything from small signal wires to large power cables in a single product line.
-
🔥2:1 Shrink Ratio — Recovers to approximately half the supplied diameter, ensuring a snug, uniform fit around the cable end without the need for adhesive tape or additional sealing compounds.
-
🚗Automotive & Marine Ready — Designed to withstand the vibration, temperature cycling, and moisture exposure typical of automotive wiring harnesses, trailer wiring, and marine electrical systems.
-
✂️Clean, Closed-End Design — The molded closed end fully encapsulates the wire tip, preventing fraying of stranded conductors and eliminating the need for wire end ferrules in many low-voltage applications.
-
📦Flexible Quantity Options — Available from 1 to 50 pieces per order, making these heat shrink sealing caps practical for single repairs, small batch jobs, or stocking a workshop toolbox.
📐 Technical Specifications — Heat Shrink Glue-Lined End Caps
| Product Type |
Glue-Lined Heat Shrink End Cap |
| Material |
Polyolefin (outer) + Hot-Melt Adhesive (inner lining) |
| Color |
Black |
| Shrink Ratio |
2:1 |
| Supplied Inner Diameter Range |
8mm (≈5/16") – 80mm (≈3-1/8") |
| Length Range |
25mm (≈1") – 100mm (≈3-15/16") — see variant options |
| Available Sizes (Dia × Length) |
8×25, 10×30, 13×30, 15×40, 18×40, 20×40, 23×40, 25×40, 25×60, 28×40, 30×40, 30×60, 35×60, 40×60, 45×60, 50×70, 55×70, 60×80, 65×80, 70×90, 75×90, 80×100 mm |
| Quantity Options |
1, 2, 3, 5, 10, 15, 20, 30, 50 Pcs |
| Activation Temperature |
Typically 90–120°C (194–248°F) with a heat gun |
| Recommended Tool |
Heat gun (open flame not recommended) |
| Typical Applications |
Automotive wiring, marine electrical, outdoor cable sealing, industrial panels |
| Country of Origin |
See variant options |
⚠️
Size Tip: The diameter listed (e.g., "8mm") is the supplied inner diameter before shrinking. Your cable's outer diameter should be smaller than this value. After shrinking, the recovered diameter will be approximately half. If your cable is close to the listed size, select the next size up.
❓ Frequently Asked Questions
How do I choose the right end cap size?
Select a cap whose supplied inner diameter is slightly larger than the outer diameter of the cable or tube you need to seal. For example, an 8mm cap (≈5/16") typically fits cables up to about 4mm in diameter before shrinking. When in doubt, size up — the glue lining fills small gaps as it melts. The "Dia × Length" variant shows the supplied diameter and the cap's body length.
What shrink ratio do these end caps use?
These caps use a 2:1 shrink ratio, meaning the recovered inner diameter is generally half the supplied diameter. The hot-melt adhesive lining melts and flows during shrinking to create a watertight seal around the cable end. No additional sealant is needed in most applications.
Are these end caps waterproof and suitable for outdoor use?
Yes. The glue lining creates a moisture-resistant seal when properly heat-applied. They are generally suitable for outdoor, marine, and automotive environments where moisture ingress is a concern. For prolonged submersion or harsh chemical exposure, confirm suitability with your specific application requirements before use.
What temperature is needed to shrink these caps?
A heat gun set to approximately 90–120°C (194–248°F) is typically sufficient to activate the shrink and melt the adhesive lining. Apply heat evenly around the cap, working from the closed end toward the open end. Avoid open flames, which can scorch the material unevenly and compromise the seal.
What wire and cable types are these compatible with?
These caps are designed for use with copper wire, aluminum wire, and stranded cable ends. They are compatible with most standard wire gauges and cable diameters within the listed size range (8–80mm supplied inner diameter). They are not designed for use with high-voltage power cables — confirm voltage ratings with your application specs.
Can I use these for automotive or marine wiring?
Yes. Glue-lined heat shrink end caps are commonly used in automotive wiring harnesses, marine electrical systems, and trailer wiring to protect exposed wire ends from corrosion, vibration, and moisture. Choose the size that matches your wire bundle's outer diameter before shrinking.
How many pieces should I order for my project?
This product is available in quantities from 1 to 50 pieces. For a single repair or test fit, 1–2 pcs is sufficient. For wiring harness projects or batch work, 10–50 pcs offers better value per piece. Larger quantities are also useful for stocking a workshop or service van.
🛒 Select your size and quantity above, then add to cart — ships from our US warehouse.
