Heat Shrink Tubing That Actually Fits — Reliable Wire Insulation for Every Job
Loose wire connections, exposed splices, and fraying insulation are more than an eyesore — they are a safety hazard. Whether you are a professional electrician, an automotive enthusiast, or a weekend DIYer tackling a home wiring project, having the right heat shrink tubing on hand means cleaner work, better protection, and fewer callbacks.

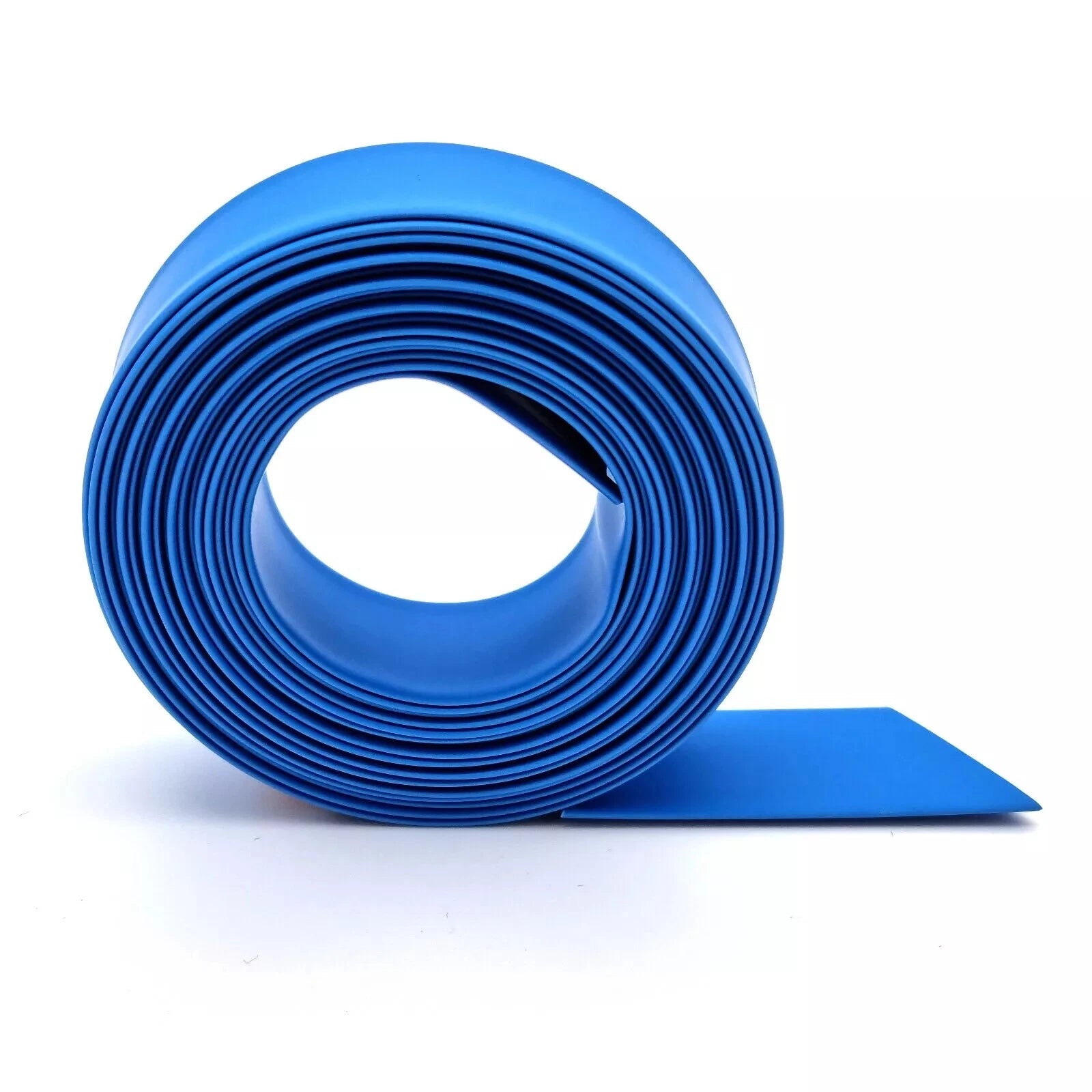

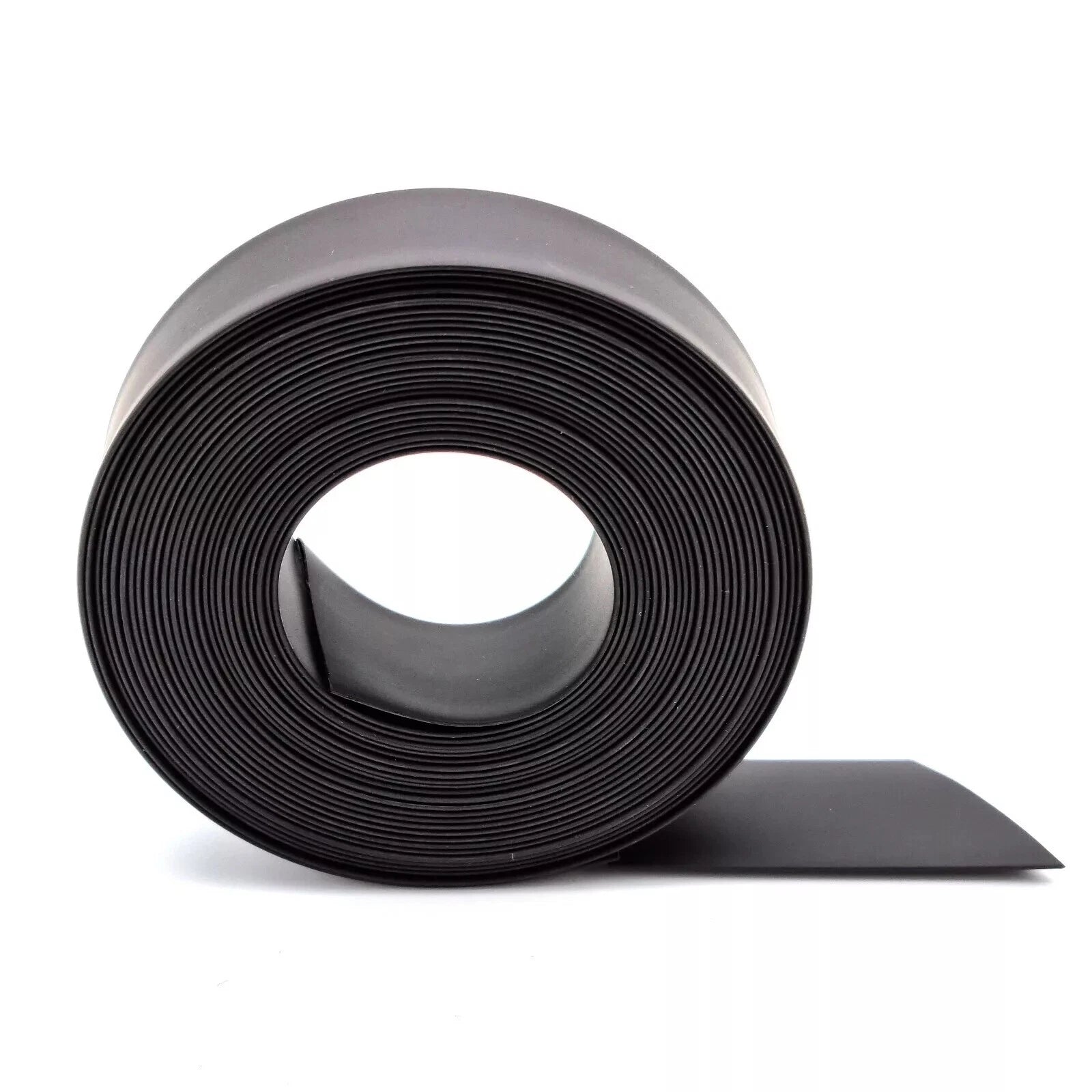

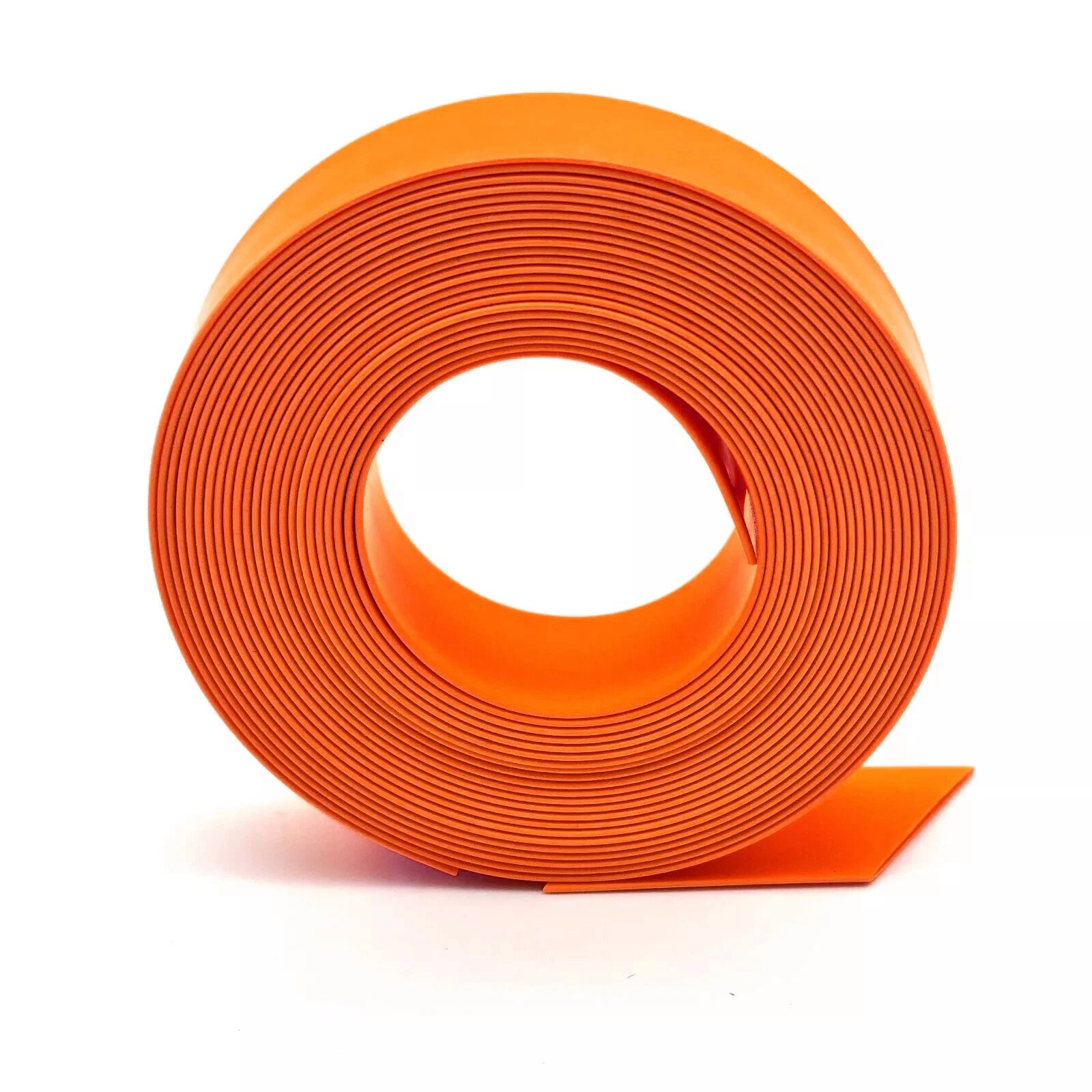

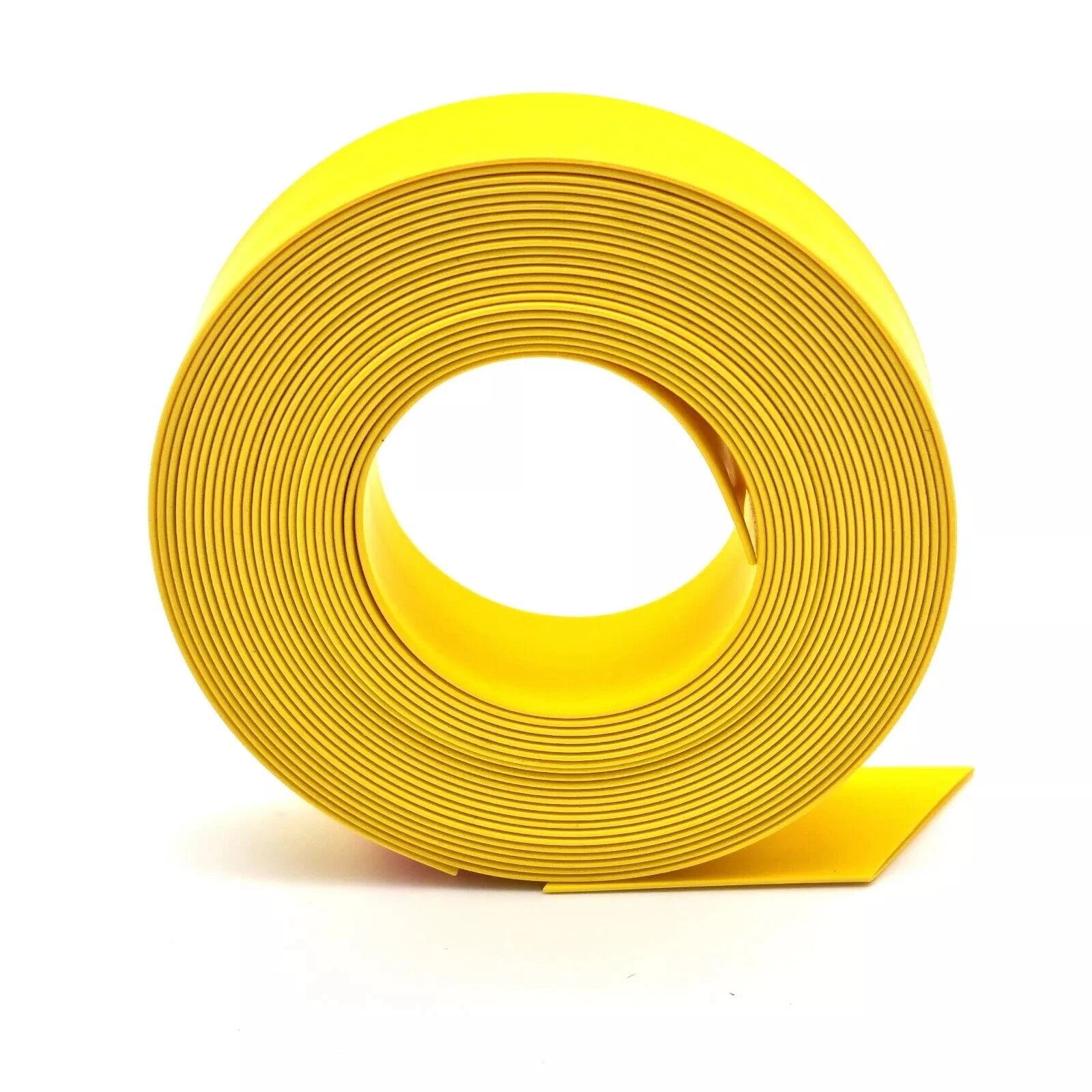

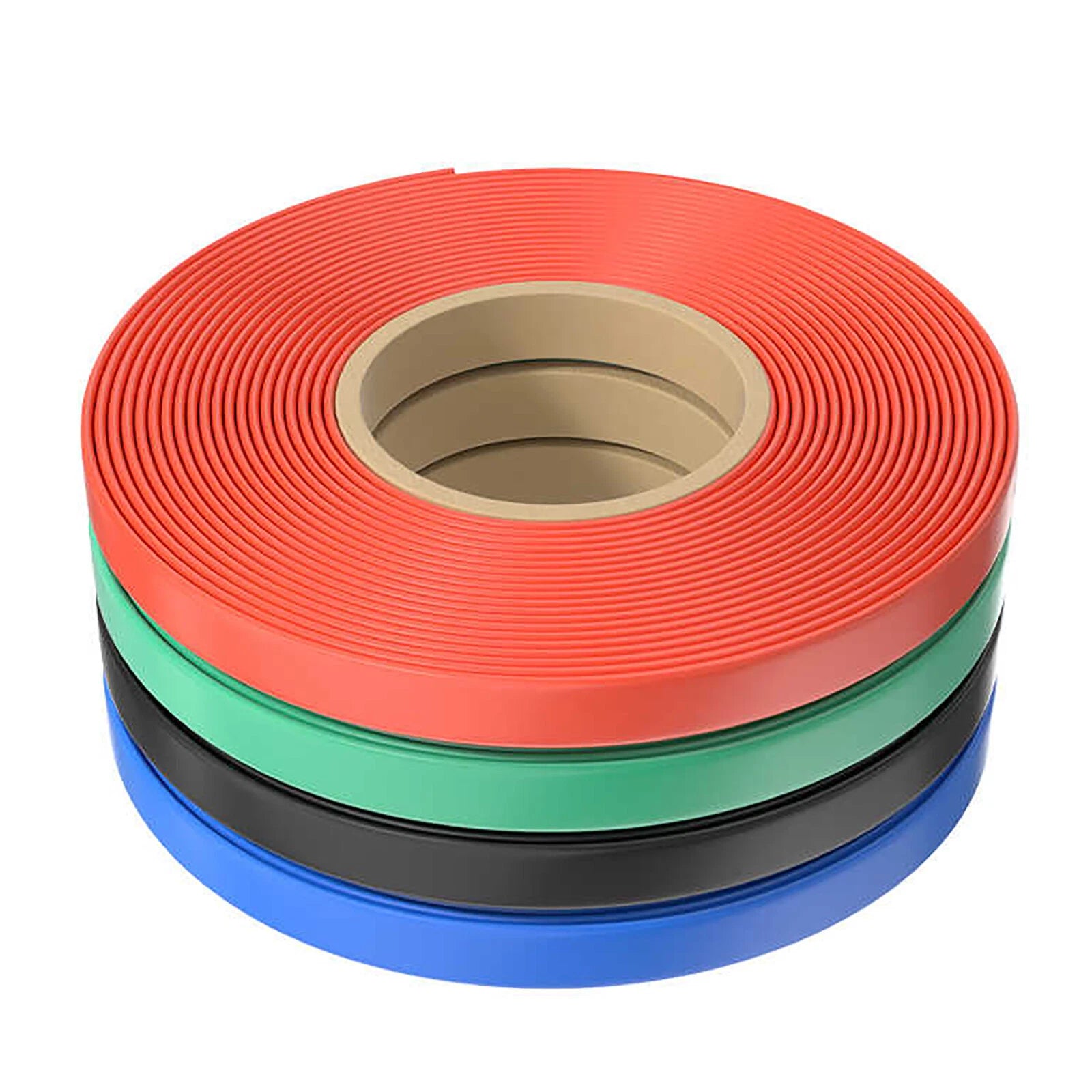

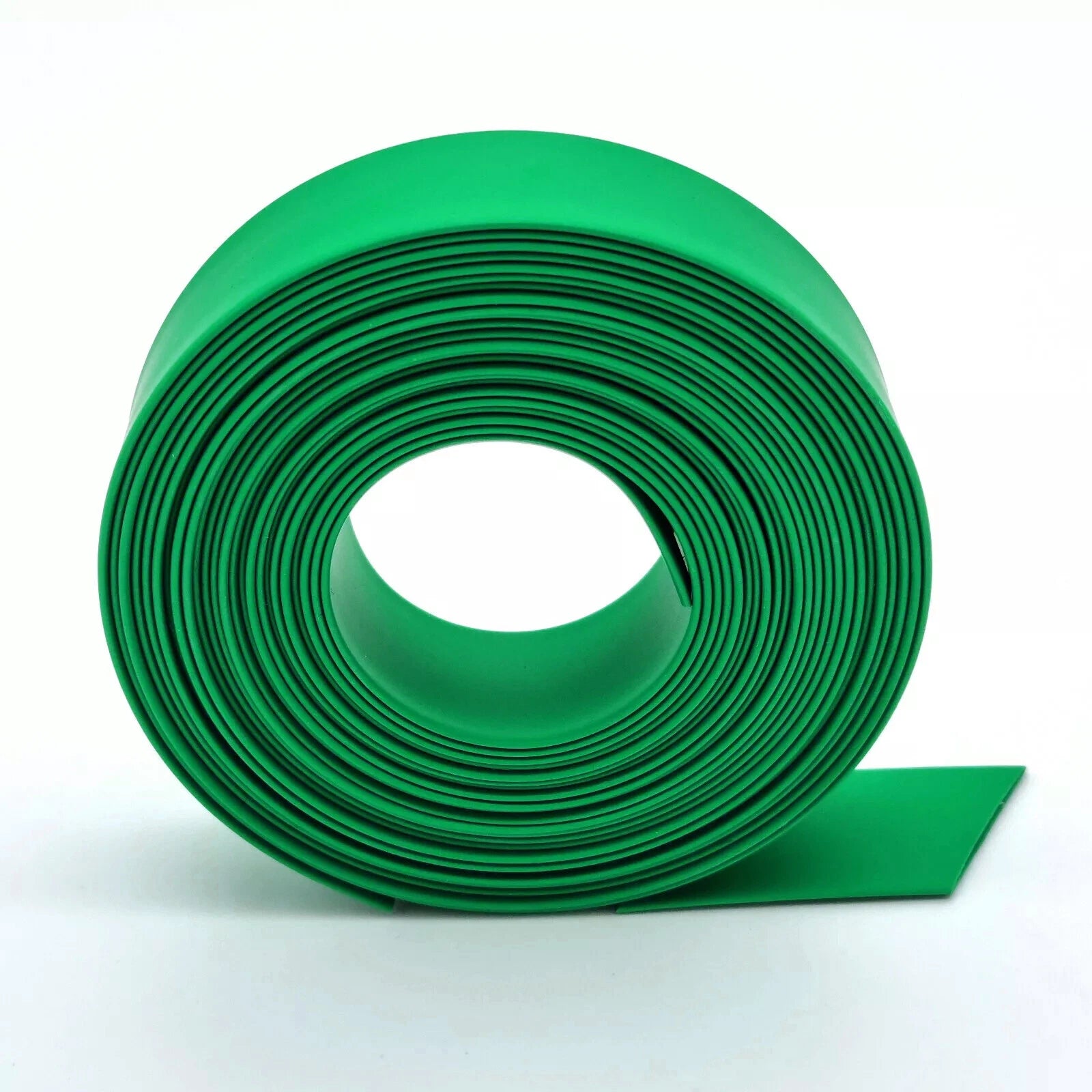

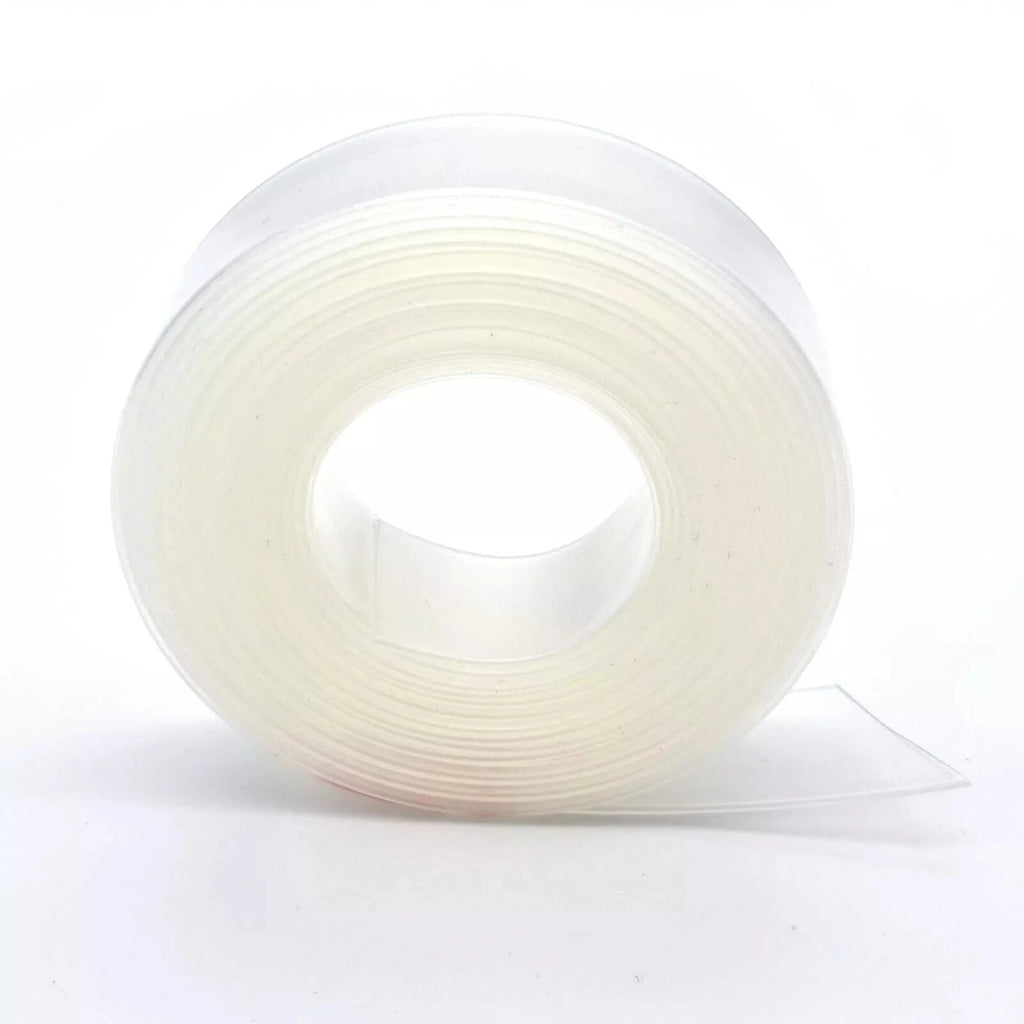

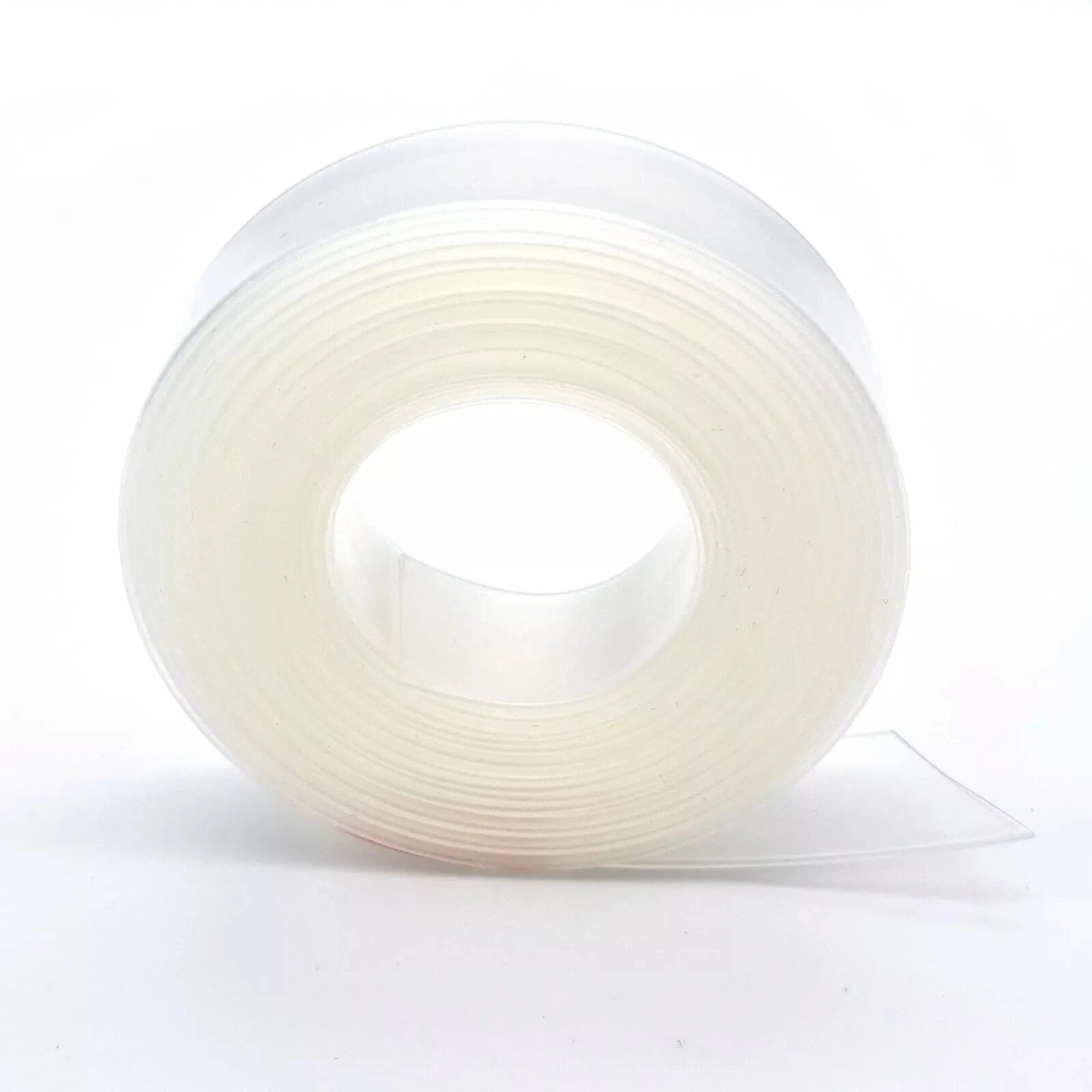

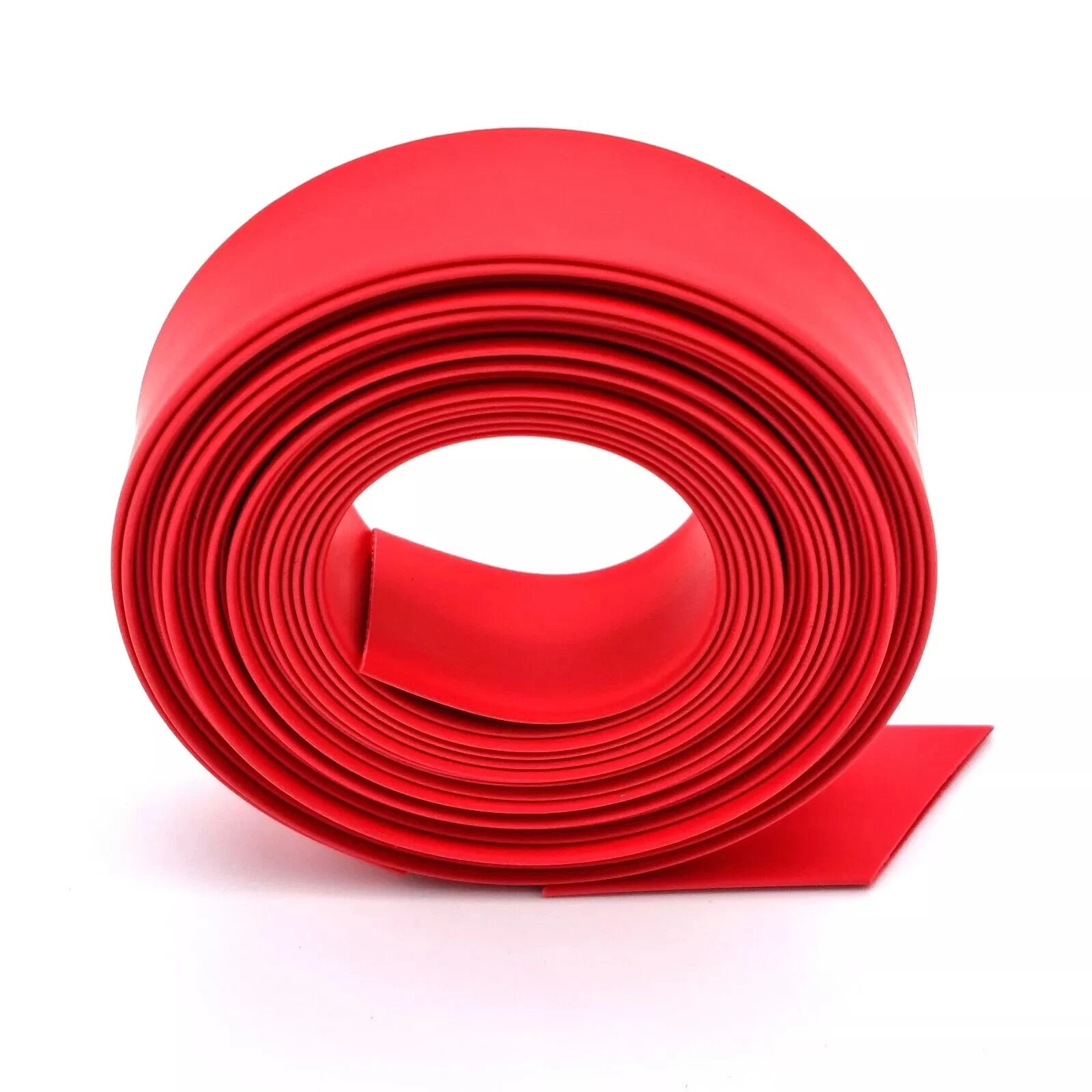

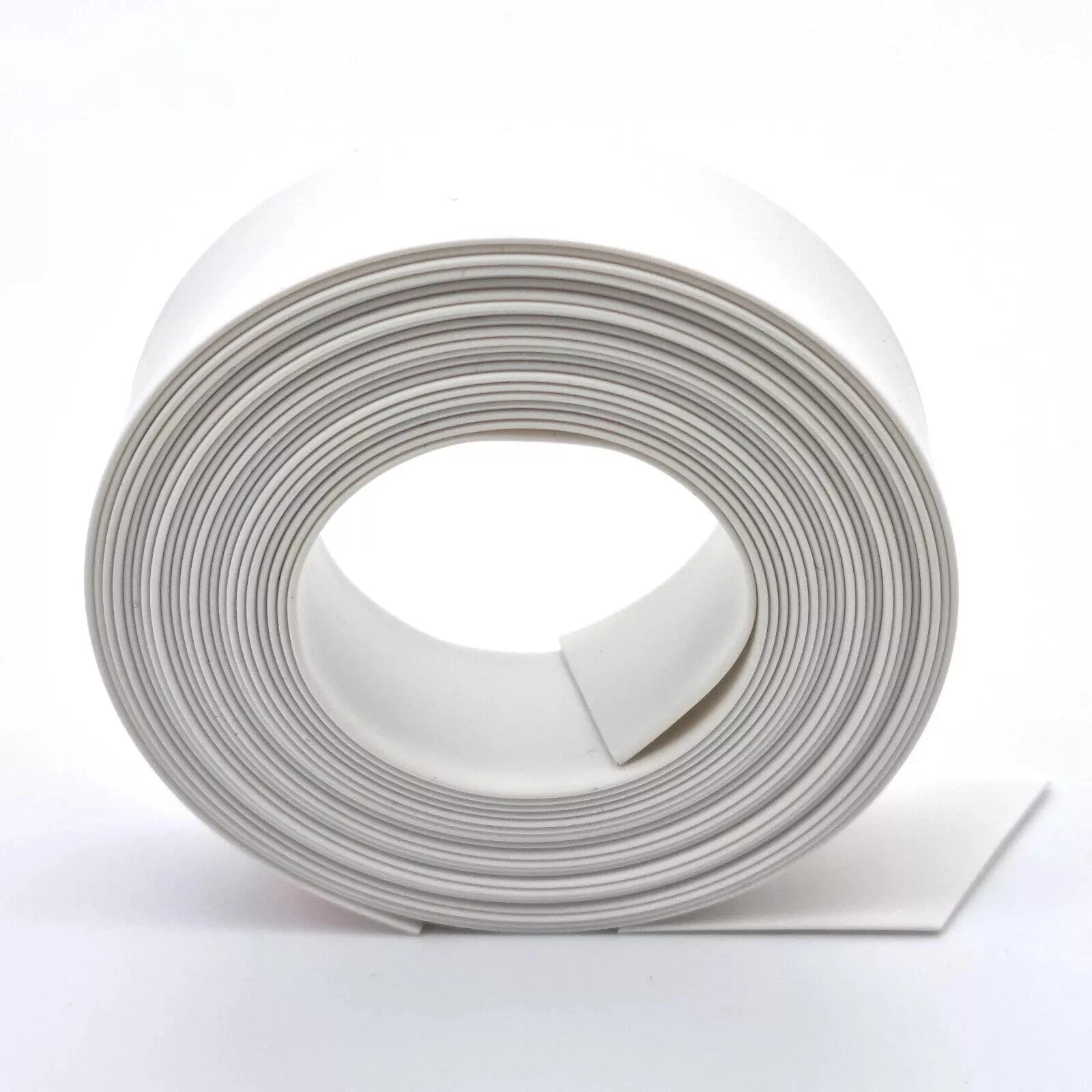

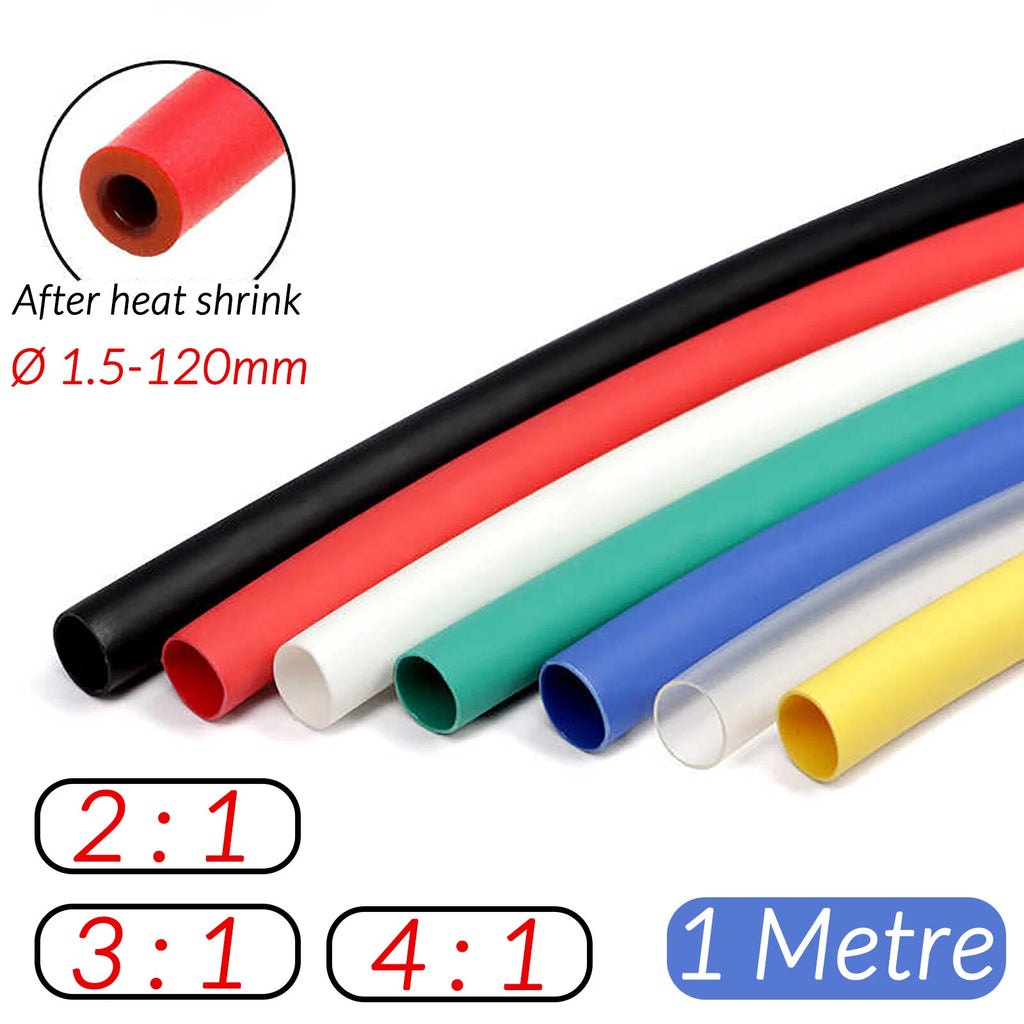

This heat shrink tubing is made from flame-retardant polyolefin and is available in three shrink ratios — 2:1, 3:1, and 4:1 — covering expanded inner diameters from 1.5mm (≈1/16") up to 120mm (≈4.7"). Choose from eight colors including Black, White, Red, Green, Yellow, Blue, Transparent, and Orange. Each listing is sold per piece at the selected size and color.

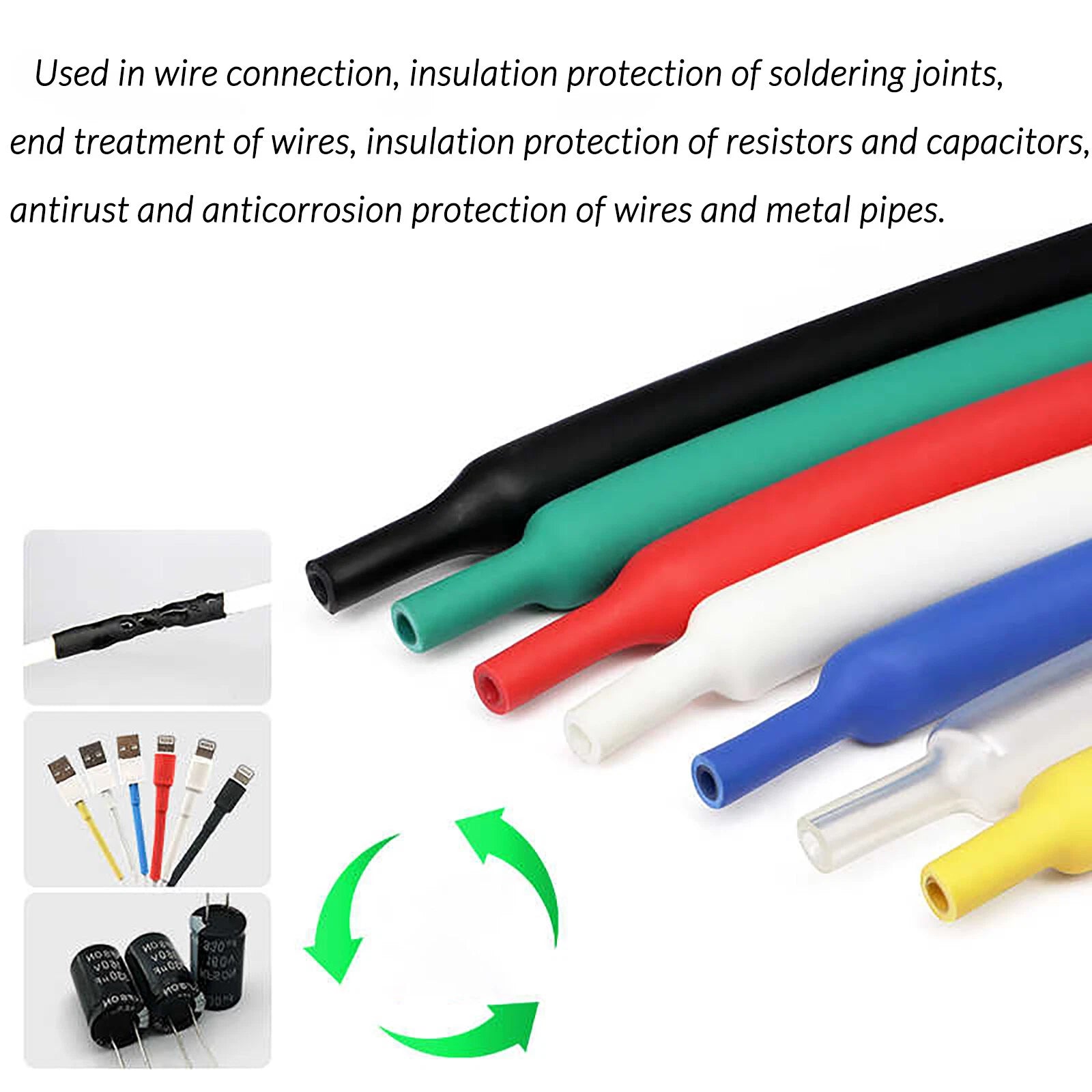

Typical applications include automotive wire harness repair, marine electrical connections, RC hobby wiring, home electrical panel work, and cable management for workshop tools. The wide size range makes it a go-to solution for both fine gauge wire insulation and large cable bundle sleeving.

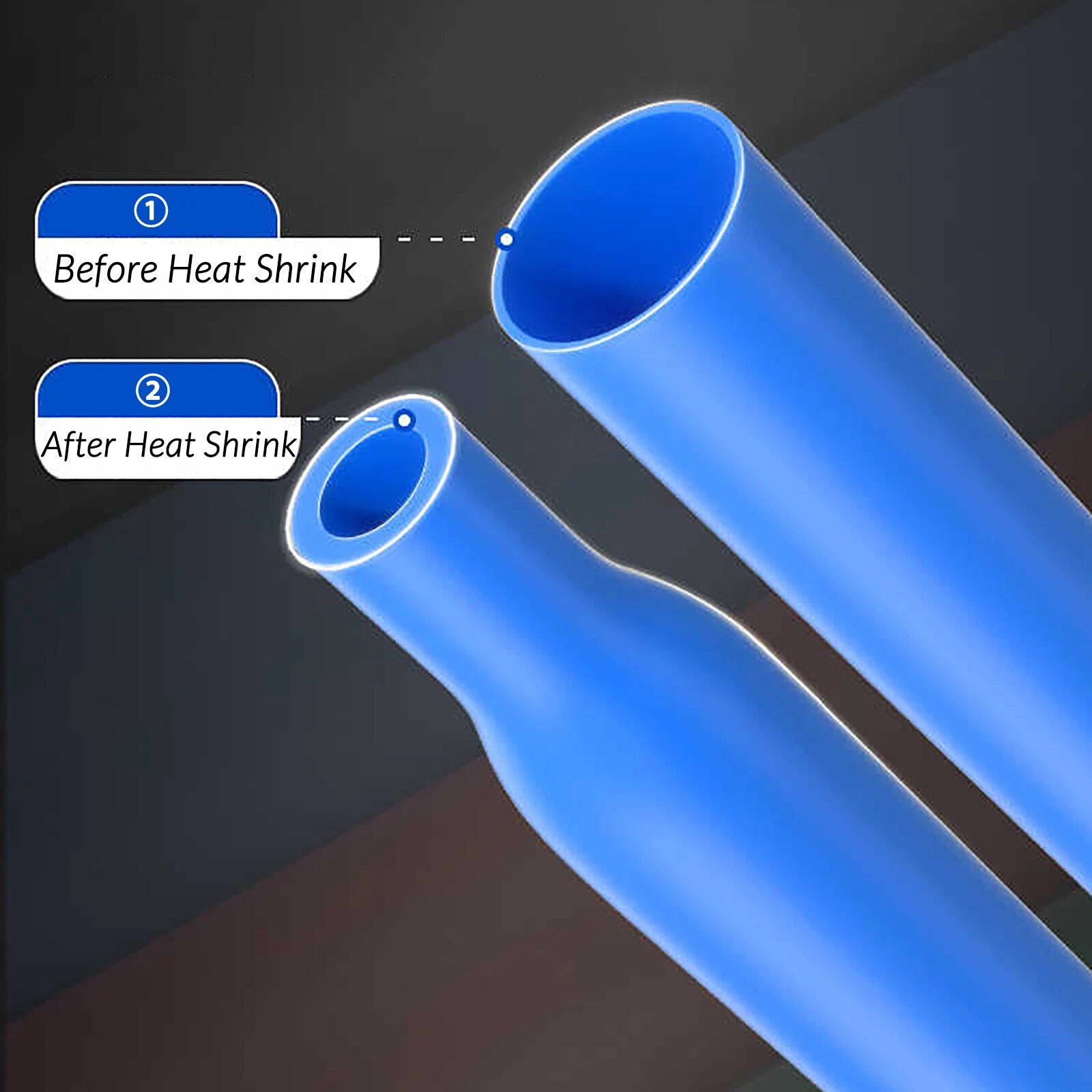

ℹ️ Compatibility Note: Sizes listed are the expanded (pre-shrink) inner diameter. Select a size slightly larger than your wire or connector's outer diameter. After shrinking, a 2:1 tube recovers to ~50%, a 3:1 to ~33%, and a 4:1 to ~25% of the listed diameter.
✅ Key Features of These Heat Shrink Tubing Sleeves
-
🔥Three Shrink Ratios Available — Choose 2:1 for standard wire insulation, 3:1 for connectors and irregular shapes, or 4:1 for maximum coverage on large or stepped components.
-
📏Wide Size Range — Expanded inner diameters from 1.5mm (≈1/16") to 120mm (≈4.7") cover everything from fine gauge signal wires to large cable bundles and conduit ends.
-
🛡️Flame-Retardant Polyolefin Material — Self-extinguishing construction meets common electrical safety standards, making this tubing suitable for automotive, marine, and household wiring applications.
-
💧Moisture and Abrasion Resistance — The recovered tube forms a snug barrier against moisture ingress, dust, and mechanical abrasion, extending the service life of wire splices and connections.
-

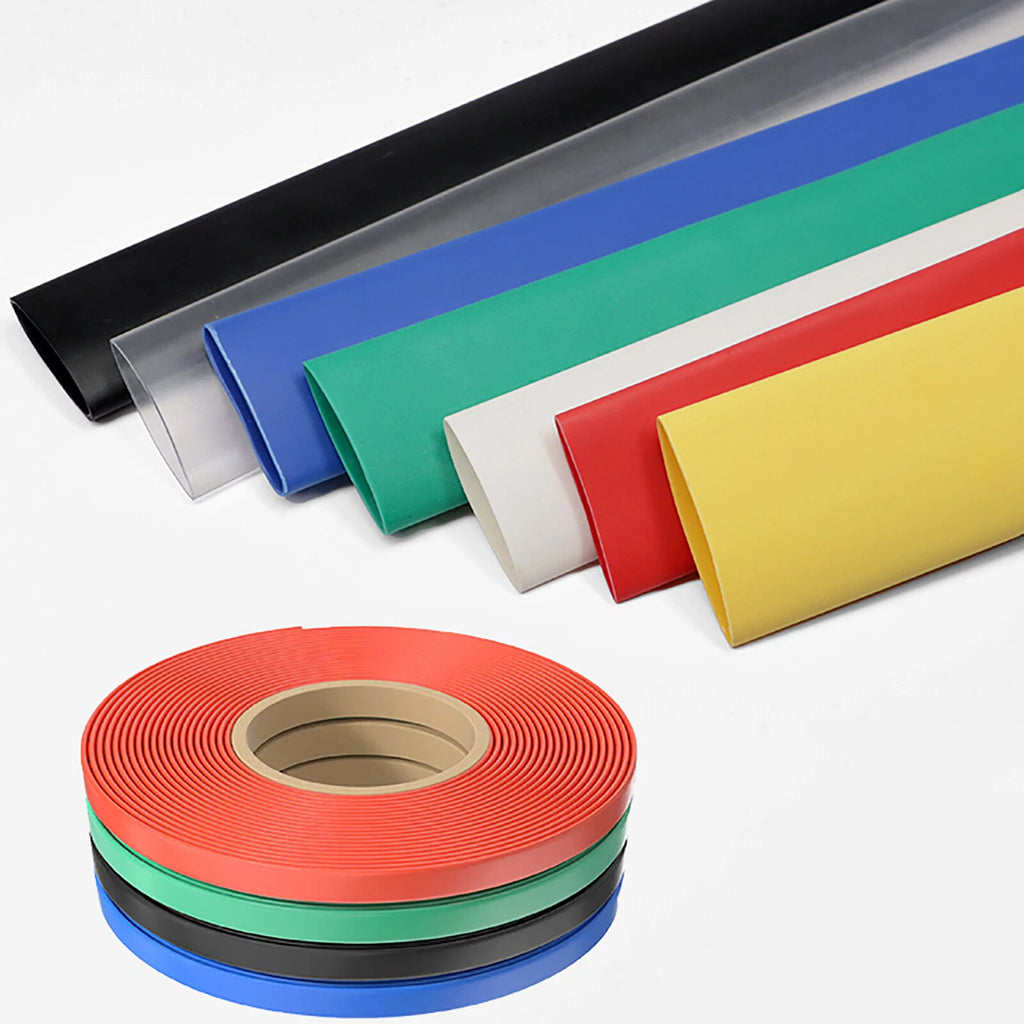

🎨8 Colors for Easy Circuit Identification — Black, White, Red, Green, Yellow, Blue, Transparent, and Orange allow color-coded wiring that simplifies troubleshooting and meets common wiring convention standards.
-
⚡Low Activation Temperature — Begins shrinking at approximately 90°C (194°F) and fully recovers at around 120°C (248°F), compatible with standard heat guns for fast, even application.
📐 Technical Specifications — Heat Shrink Tubing
| Material |
Flame-retardant polyolefin |
| Shrink Ratios |
2:1 / 3:1 / 4:1 |
| Expanded Inner Diameter Range |
1.5mm (≈1/16") — 120mm (≈4.7") |
| Available Colors |
Black, White, Red, Green, Yellow, Blue, Transparent, Orange |
| Activation Temperature |
Typically ~90°C (194°F) |
| Full Recovery Temperature |
Typically ~120°C (248°F) |
| Operating Temperature Range |
Generally -55°C to +125°C (contact us to confirm) |
| Flame Retardancy |
Self-extinguishing (polyolefin) |
| Moisture Resistance |
Yes (standard; not adhesive-lined) |
| Quantity per Order |
See variant options |
| Country of Origin |
See variant options |
⚠️ Sizing Tip: If you are between sizes, always size up. The expanded diameter listed is the pre-shrink measurement. Confirm your wire or connector's outer diameter before ordering.
❓ Frequently Asked Questions
How do I choose the right heat shrink tubing size?
Measure the outer diameter of the wire or connector before shrinking. Choose a tube whose expanded inner diameter is slightly larger than that measurement. After shrinking at a 2:1 ratio, the tube will typically recover to about half its expanded diameter — for example, a 10mm (≈3/8") tube shrinks to approximately 5mm (≈3/16"). When in doubt, size up. You can always apply more heat, but you cannot expand a tube that is too small.
What is the difference between 2:1, 3:1, and 4:1 shrink ratios?
The ratio describes how much the tube shrinks in diameter when heat is applied. A 2:1 tube shrinks to half its original diameter, a 3:1 tube to one-third, and a 4:1 tube to one-quarter. Higher ratios are generally used for irregular shapes, stepped connectors, or applications where a tighter, more conforming fit is needed over a wide range of diameters.
What temperature is needed to shrink this tubing?
Polyolefin heat shrink tubing typically begins activating at around 90°C (194°F) and fully recovers at approximately 120°C (248°F). A heat gun set to low or medium is generally sufficient. Avoid open flames, which can scorch or unevenly shrink the tubing and may damage the underlying wire insulation.
Can this tubing be used outdoors or in wet environments?
Standard polyolefin heat shrink tubing provides good moisture resistance and is generally suitable for outdoor use in most conditions. However, it is not fully waterproof on its own — for sealed, waterproof connections (such as marine or underground wiring), adhesive-lined (glue-lined) heat shrink tubing is recommended. Contact us to confirm suitability for your specific environment.
Is this heat shrink tubing flame-retardant?
Yes. This tubing is made from flame-retardant polyolefin, which will generally self-extinguish when the ignition source is removed. It is suitable for most electrical and automotive wiring applications where flame retardancy is a requirement.
What wire gauges and connector types is this compatible with?
This tubing covers a wide range of applications. Smaller sizes (1.5mm–6.5mm) are typically suited for fine gauge wires (approximately AWG 26–18), mid-range sizes (8mm–20mm) cover AWG 16–8 and most butt connectors, and larger sizes (28mm–120mm) are used for cable bundles, conduit ends, and large connectors. Always verify the expanded inner diameter against your specific component before ordering.
Can I use a hair dryer or lighter instead of a heat gun?
A hair dryer generally does not reach the temperatures needed for reliable shrinkage and is not recommended for consistent results. A lighter can work in a pinch for very small diameters but risks scorching the tubing or creating uneven shrinkage. A heat gun is the recommended tool for clean, professional results across all sizes.
🛒 Select your color, size, and shrink ratio above, then add to cart — ships from our US warehouse.
