HTD 14M Closed Loop Synchronous Timing Belt — Reliable Power Transmission for CNC, Pulley & Industrial Drive Systems

When a slipping or mismatched drive belt brings your CNC router, servo motor system, or industrial conveyor to a halt, the cost in downtime and rework adds up fast. Engineers, machine builders, and serious DIYers who depend on precise, slip-free motion need a timing belt that holds its pitch under load — every cycle, every time. This HTD 14M closed loop synchronous timing belt is built for exactly those demands.

Each belt features a 14mm pitch HTD tooth profile and a 30mm (≈1.18") width, available in 72 cut-to-spec lengths ranging from 784mm (≈30.9") to 4326mm (≈170.3"). The body is constructed from neoprene rubber with embedded tensile cords for dimensional stability, and the tooth face is reinforced with a nylon fabric wear layer. Whether you need a compact 784mm loop for a desktop CNC axis or a 4326mm run for a large-format gantry, select your exact length from the variant dropdown above.

Typical use cases include CNC router X/Y/Z axis drives, 3D printer gantry systems requiring high-torque synchronous motion, servo and stepper motor power transmission in automation equipment, and industrial conveyor or indexing table drives where positional accuracy is critical.

ℹ️ Compatibility: Designed for HTD 14M pulleys only (14mm pitch, curvilinear tooth profile). Not interchangeable with GT2, T10, T5, or trapezoidal-profile pulleys. Confirm your pulley tooth profile before ordering.

✅ Key Features of These HTD 14M Closed Loop Timing Belts

  • ⚙️HTD Curvilinear Tooth Profile — The rounded 14M tooth geometry distributes load across a broader contact area than trapezoidal profiles, reducing tooth stress and extending service life in high-torque synchronous drive applications.
  • 📏72 Precision Lengths Available — Closed loop belts are manufactured to exact circumference specs (784mm–4326mm), eliminating field splicing and ensuring consistent pitch throughout the entire loop for accurate CNC and servo positioning.
  • 🔩30mm Drive Width — The 30mm (≈1.18") belt width provides a substantial load-bearing surface suited to medium-to-high torque drives, matching standard HTD 14M flanged pulleys used in industrial and CNC machine builds.
  • 🛡️Nylon-Reinforced Tooth Face — A bonded nylon fabric layer on the tooth surface resists abrasion from repeated pulley engagement, maintaining tooth geometry over extended duty cycles in dusty or continuous-run environments.
  • 📐Dimensionally Stable Tensile Cords — Embedded tensile cords resist elongation under dynamic load, keeping belt tension consistent and preventing the pitch drift that causes positioning errors in CNC router and automation drive systems.
  • 🔄Endless (Seamless) Loop Construction — No joint, clip, or splice means uniform stiffness and tooth spacing around the full circumference — critical for smooth, vibration-free motion in precision pulley drive and indexing table applications.

📐 Technical Specifications — HTD 14M Synchronous Timing Belt

Belt Type HTD Closed Loop Synchronous Timing Belt
Tooth Profile HTD (High Torque Drive) — curvilinear
Pitch 14mm (0.551")
Belt Width 30mm (≈1.18")

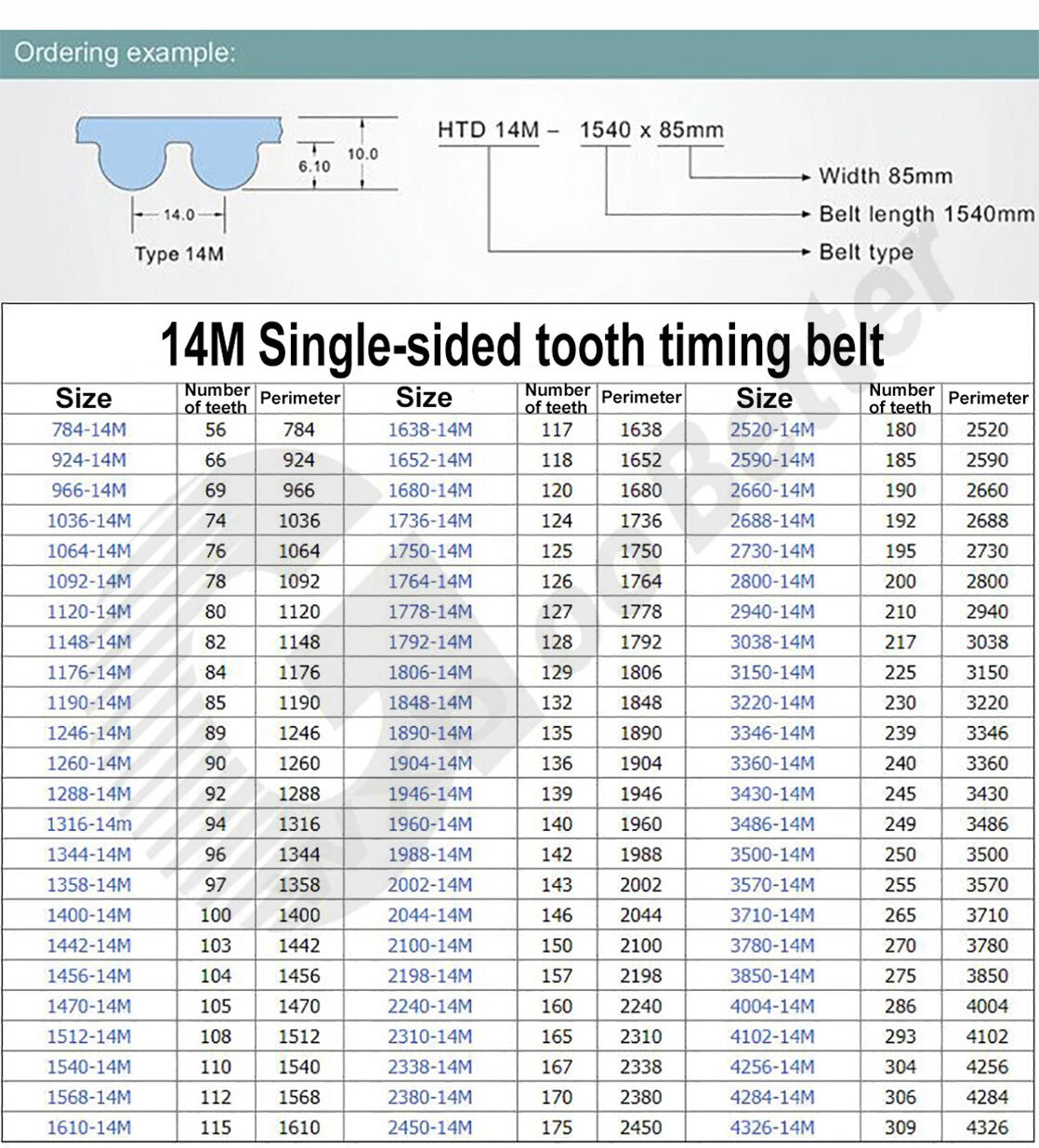

Available Lengths 784mm (≈30.9") to 4326mm (≈170.3") — 72 sizes; see variant options
Belt Body Material Neoprene rubber
Tooth Face Reinforcement Nylon fabric wear layer
Tensile Member See variant options / Contact us to confirm
Loop Construction Endless (seamless, no joint)
Compatible Pulley Standard HTD 14M only
Typical Applications CNC drives, servo/stepper motor systems, industrial conveyors, indexing tables
Operating Temperature Range Contact us to confirm
Quantity per Order 1 belt (single loop)
⚠️ Sizing Note: Closed loop belts must be installed by removing a pulley or bearing to slip the belt over the shaft. Measure your required belt circumference carefully before ordering — closed loop belts cannot be shortened or re-joined in the field.

❓ Frequently Asked Questions

How do I choose the right belt length for my application?

Measure the center-to-center distance between your two pulleys, then calculate the required belt circumference using the standard formula: L = 2C + π(D1+D2)/2 + (D1−D2)²/4C. If you know the required length in inches, multiply by 25.4 to convert to millimeters — for example, a 30" belt is approximately 762mm, so choose the next available size up (784mm in this listing). When in doubt, size up rather than down to avoid over-tensioning your drive.

What tensile strength does this timing belt typically provide?

HTD 14M belts are generally rated for high-torque industrial applications. Tensile cords embedded in the belt body provide strong resistance to elongation under dynamic load. Exact load ratings depend on the number of teeth in mesh, pulley diameter, and operating speed. Contact us to confirm suitability for your specific load requirements before ordering for critical applications.

Can this belt be used outdoors or in wet/oily environments?

The neoprene rubber body generally offers moderate resistance to moisture, mild oils, and common industrial fluids. For continuous outdoor exposure, submersion, or aggressive chemical environments, a polyurethane-body variant may be more appropriate. Contact us to confirm the specific compound before deploying in harsh conditions.

What pulley profile is compatible with this belt?

This belt uses the HTD 14M tooth profile with a 14mm pitch. It is compatible with HTD 14M pulleys only. Do not mix with GT2, T10, T5, or trapezoidal-profile pulleys — tooth geometry differences will cause skipping, accelerated wear, or drive failure.

How do I decide if a 30mm-wide belt is right for my drive system?

Belt width directly affects power transmission capacity. A 30mm-wide HTD 14M belt is generally suited for medium-to-high torque applications such as CNC gantry drives, industrial conveyors, and servo motor systems. Always match belt width to your pulley flange width. If your pulleys are narrower than 30mm, contact us or consult your drive system's engineering documentation before ordering.

Is this an endless (closed loop) belt or can it be cut to length?

This is an endless (closed loop) belt — it has no seam or joint and cannot be cut and re-joined in the field. Installation requires removing one pulley or bearing to slip the belt over the shaft. Select your exact required circumference from the size dropdown before ordering.

What does "HTD" mean and how does the tooth profile differ from trapezoidal belts?

HTD stands for High Torque Drive. The HTD tooth profile features a rounded, curvilinear shape that distributes load more evenly across the tooth face compared to older trapezoidal (e.g., T-series) profiles. This reduces stress concentration at the tooth root, making HTD belts better suited to high-torque, high-load applications where trapezoidal belts would experience accelerated wear or tooth shear.

🛒 Select your size above, then add to cart — ships from our US warehouse.
