When your CNC router skips a step or your 3D printer loses position mid-print, the culprit is often a worn or mismatched timing pulley. Engineers, makers, and automation builders who demand repeatable, backlash-free motion need an HTD-3M timing pulley they can count on — one that fits their shaft precisely and meshes cleanly with standard 3M belts.

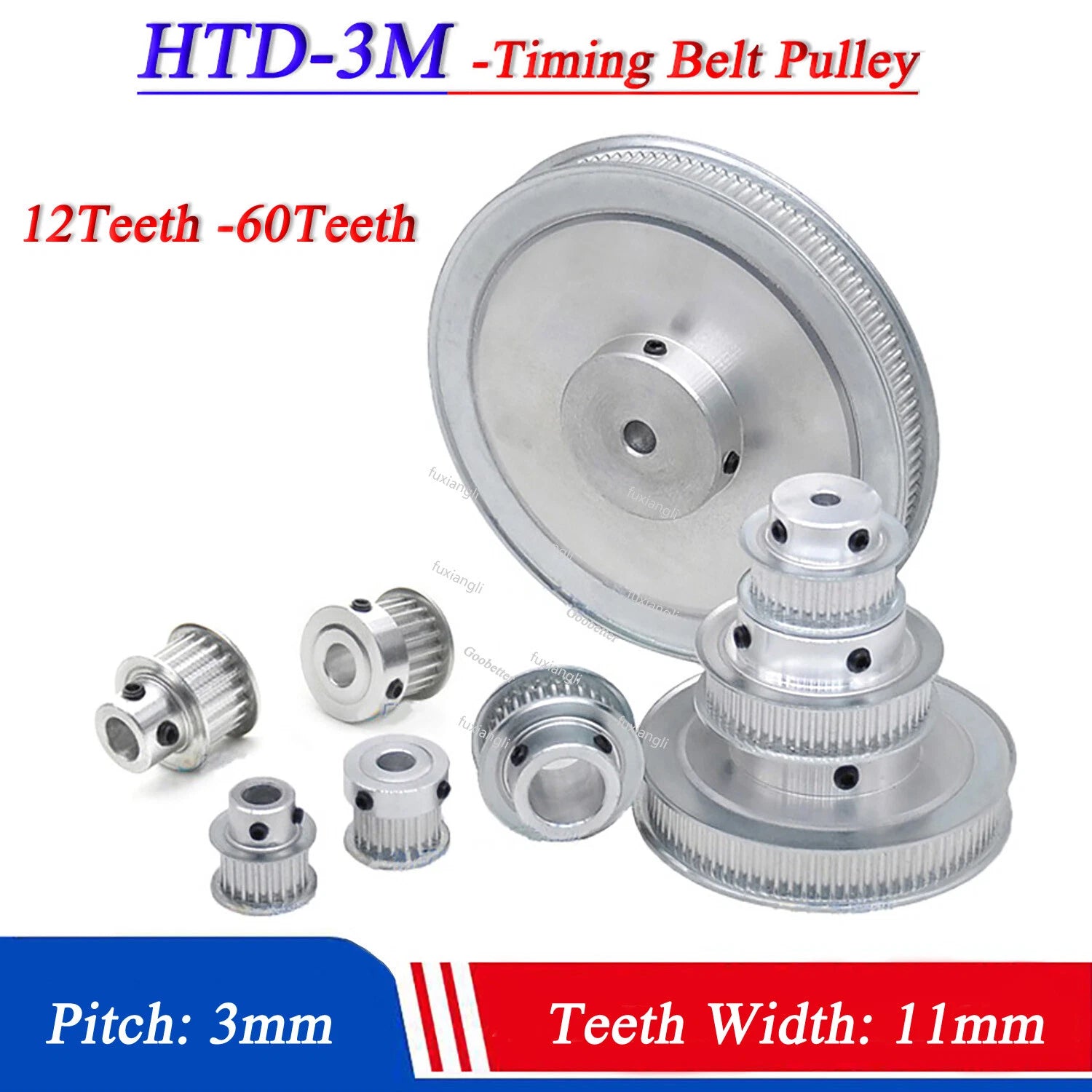

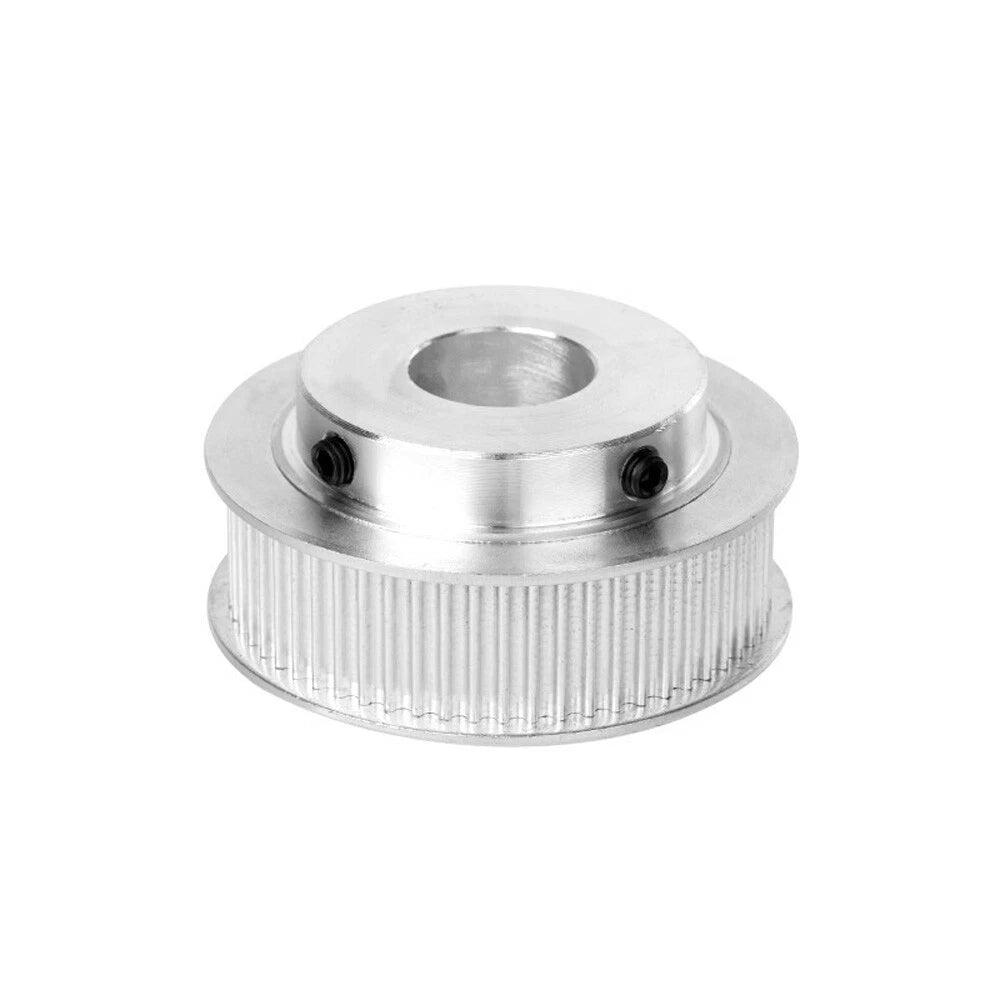

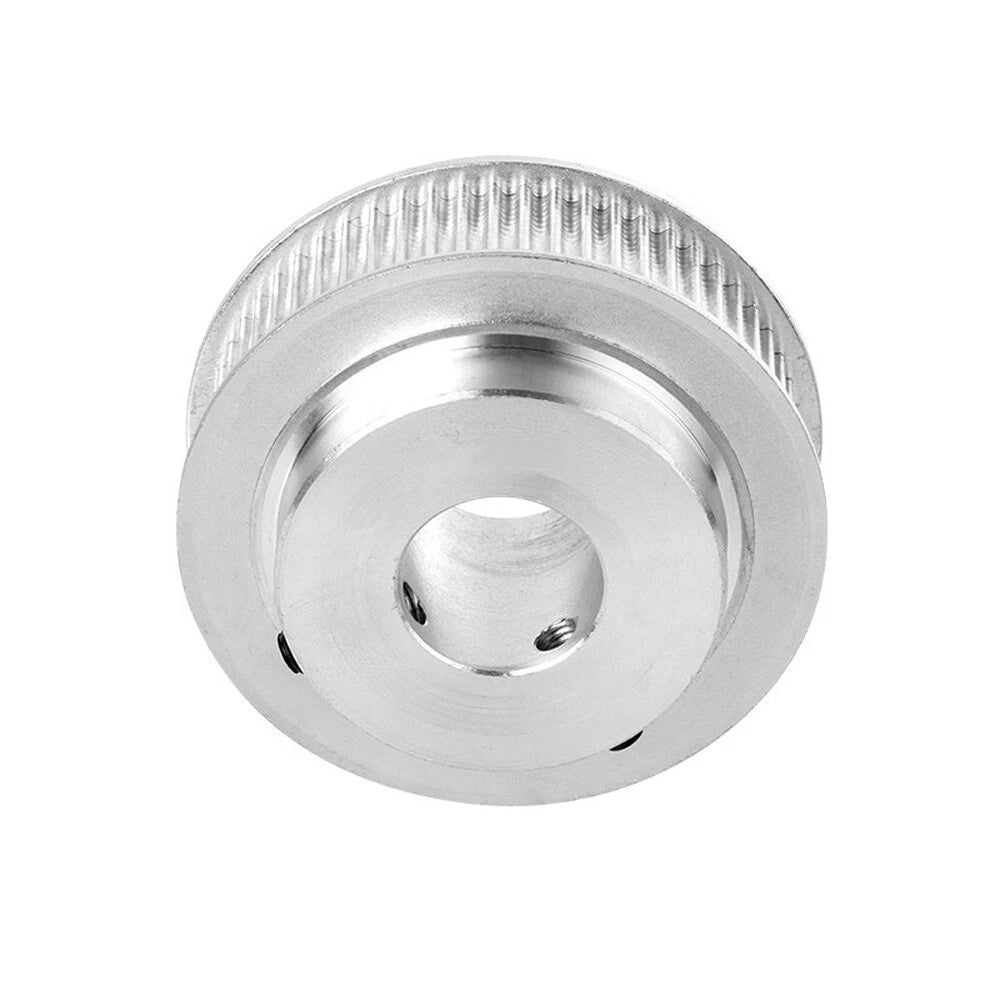

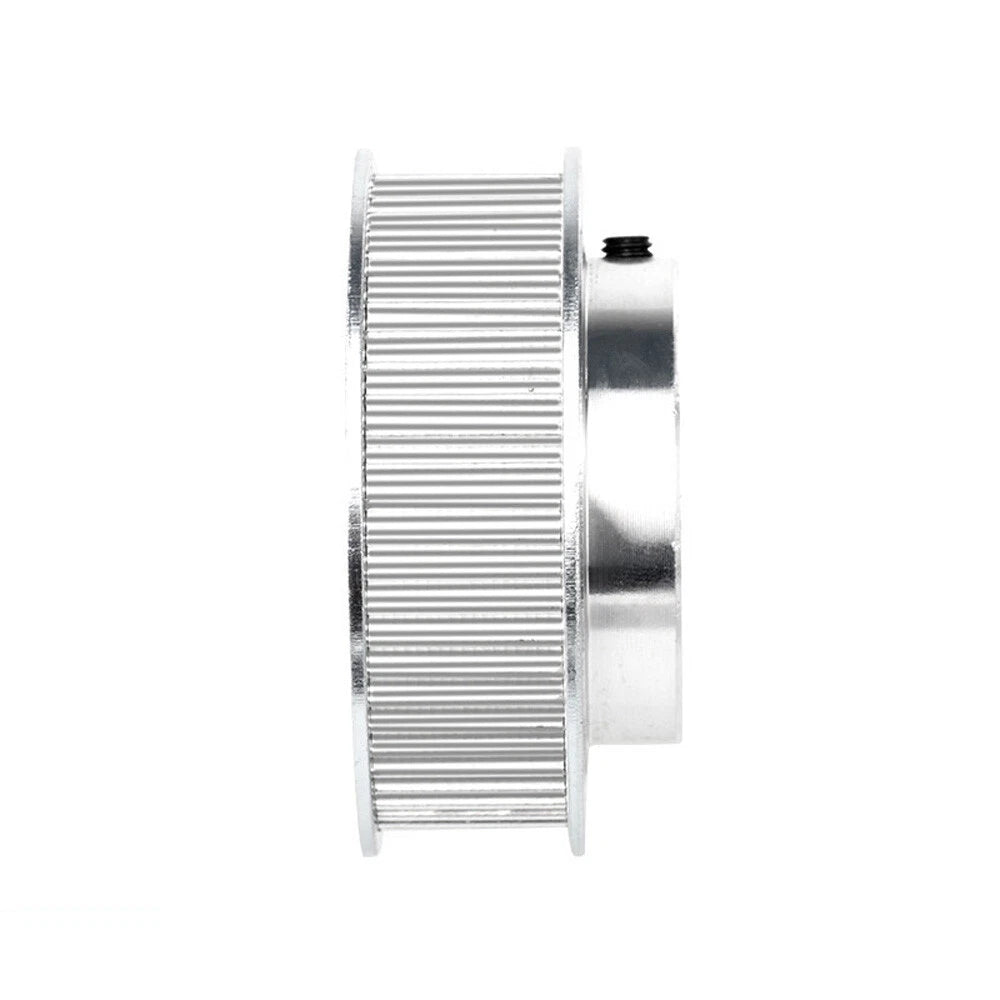

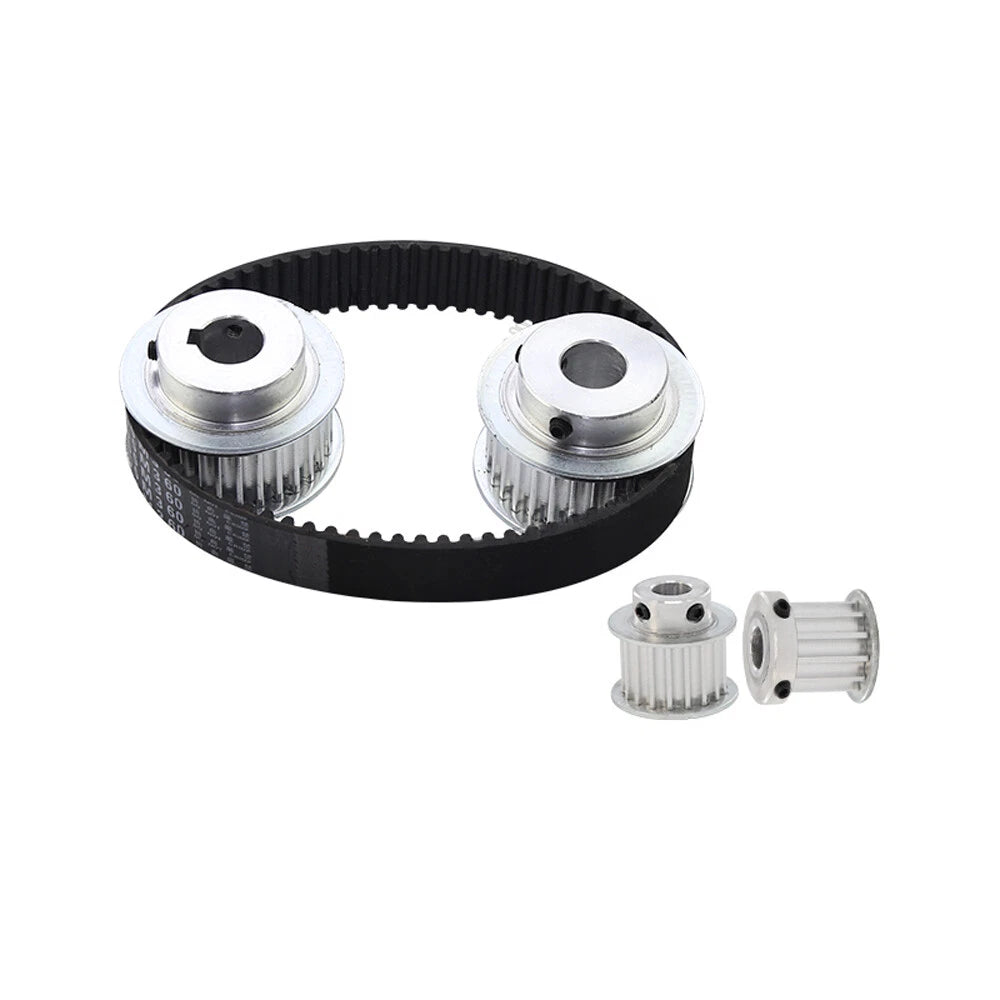

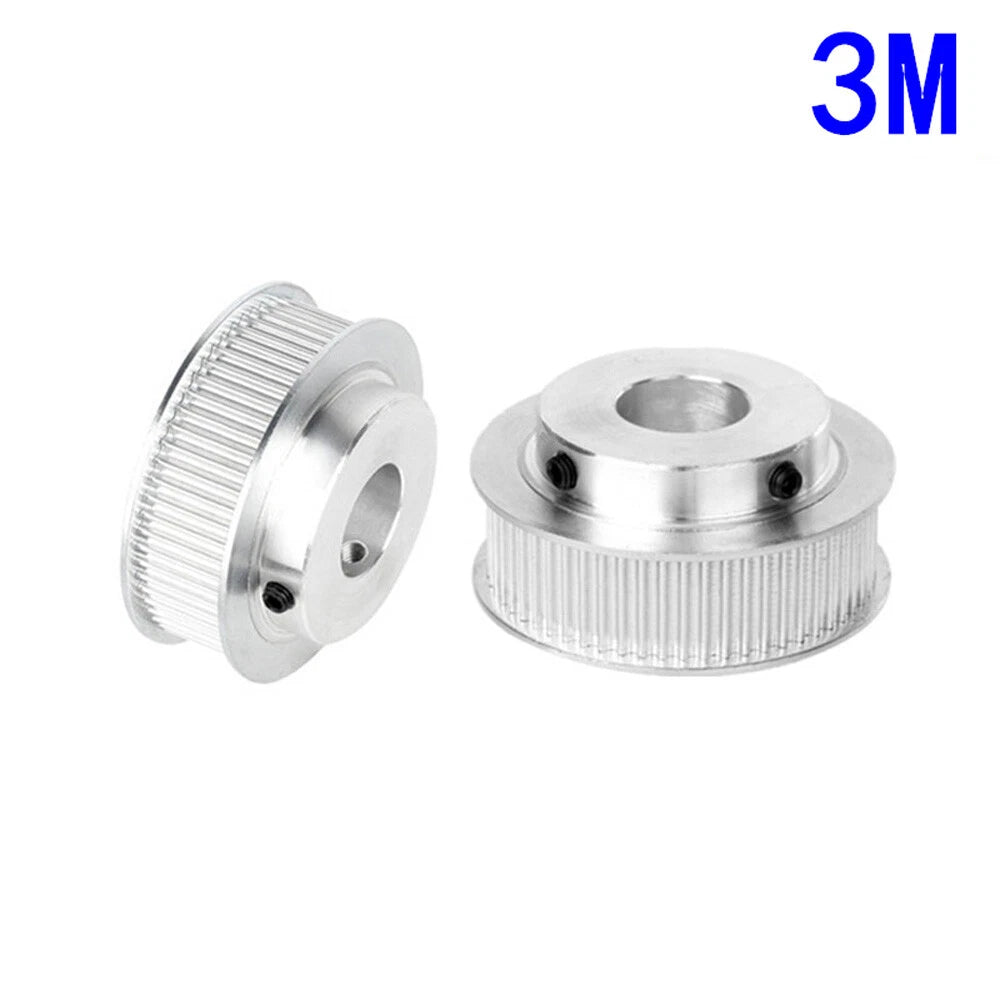

This HTD-3M timing pulley features a 3mm pitch HTD tooth profile machined to accept a 3M-width belt (11mm wide). Available in tooth counts from 12T to 60T and two hub styles — K-type (with set-screw collar) and BF-type (flanged hub with set-screw) — each pulley is offered with bore sizes ranging from 3mm to 25mm (approximately 0.12 in to 0.98 in). The stepped hub design provides axial location for the belt, keeping it tracking straight under load.
Typical use cases include CNC router X/Y axis drives, desktop 3D printer extruder and motion systems, lightweight robotic arm joints requiring precise angular positioning, and DIY laser engraver gantry assemblies where consistent belt tension and tooth engagement are critical for cut quality.
| Belt Type | HTD-3M (High Torque Drive) |
|---|---|
| Pitch | 3mm (0.118 in) |
| Belt Width | 11mm (0.43 in) |
| Number of Teeth | 12T – 60T (see variant options) |
| Hub Style | K-type (set-screw) / BF-type (flanged set-screw) |
| Bore Diameter | 3mm – 25mm (see variant options) |
| Hub Feature | Stepped hub for belt lateral location |
| Material | See variant options |
| Finish | See variant options |
| Quantity per Order | 1 piece |
The tooth count determines your drive ratio. Divide the driven pulley teeth by the driver pulley teeth to get the reduction ratio. For example, a 12T driver paired with a 36T driven pulley gives a 3:1 reduction. Smaller tooth counts produce higher speed; larger tooth counts increase torque. For CNC and 3D printer motion axes, 16T–20T on the motor is a common starting point.
Measure your motor shaft diameter with calipers before ordering. NEMA 17 steppers typically use a 5mm shaft; NEMA 23 steppers commonly use 6.35mm (1/4") or 8mm shafts. Servo motors vary widely — check your motor datasheet. The bore must match your shaft diameter exactly; a loose fit will cause slippage even with the set-screw tightened.

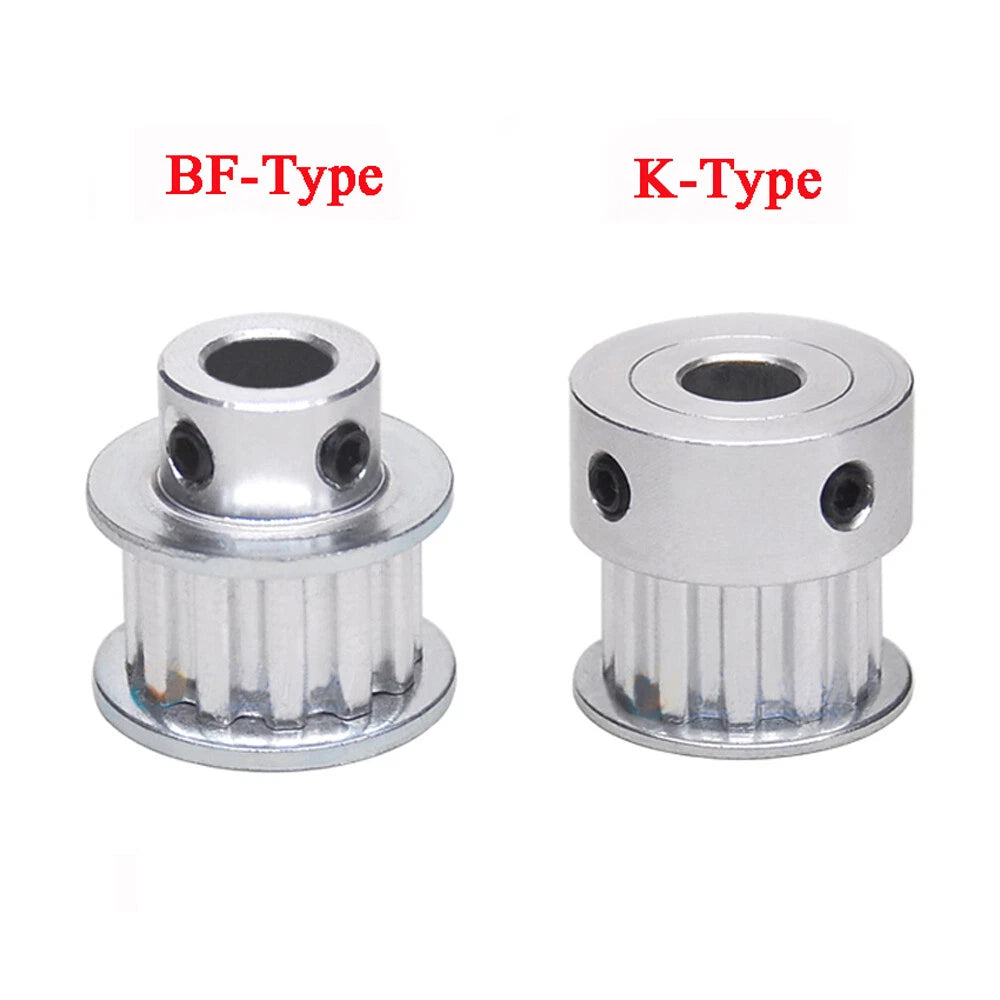

K-type pulleys have a plain cylindrical hub with a set-screw for shaft retention — compact and suitable for most enclosed drive systems. BF-type pulleys add a flange on one or both sides of the belt groove, which physically constrains the belt laterally. BF-type is preferred in open or vibration-prone environments where belt tracking is harder to maintain through tension alone.
Yes — this pulley is designed to the standard HTD-3M tooth profile (3mm pitch, curvilinear tooth form) and is compatible with any HTD-3M belt of 11mm width. Confirm your belt width matches 11mm. Do not use with MXL, GT2, or trapezoidal-profile belts of the same pitch, as the tooth geometry differs and will cause premature wear or skipping.
The set-screw provides adequate holding force for typical CNC and 3D printer torque levels when properly tightened against a flat on the shaft (a shaft flat is strongly recommended). For higher-torque applications, consider adding a shaft flat if one is not present, or use a keyway variant if available. Always use the correct hex key and apply the manufacturer-recommended torque to the set-screw.
The corrosion resistance depends on the material and finish of the specific variant — please check the variant details or contact us to confirm. For outdoor or humid environments, consider selecting a variant with an anodized or coated finish, and ensure the mating belt is also rated for the environment. Stainless steel variants offer better corrosion resistance if available in your required tooth count and bore.
The pitch diameter of an HTD-3M pulley is calculated as: Pitch Diameter (mm) = (Number of Teeth × Pitch) ÷ π = (T × 3) ÷ 3.14159. For example, a 20T pulley has a pitch diameter of approximately 19.1mm. Use this value in your center-distance and belt-length calculations to ensure the correct belt length for your drive geometry.
