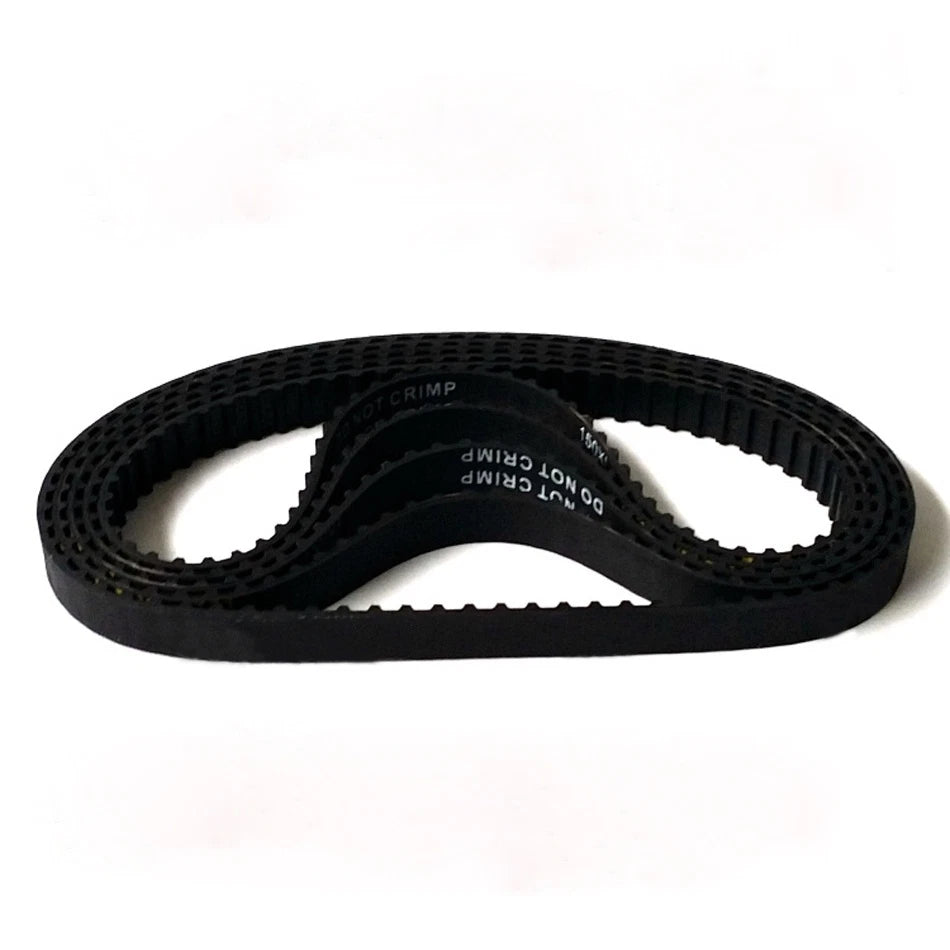

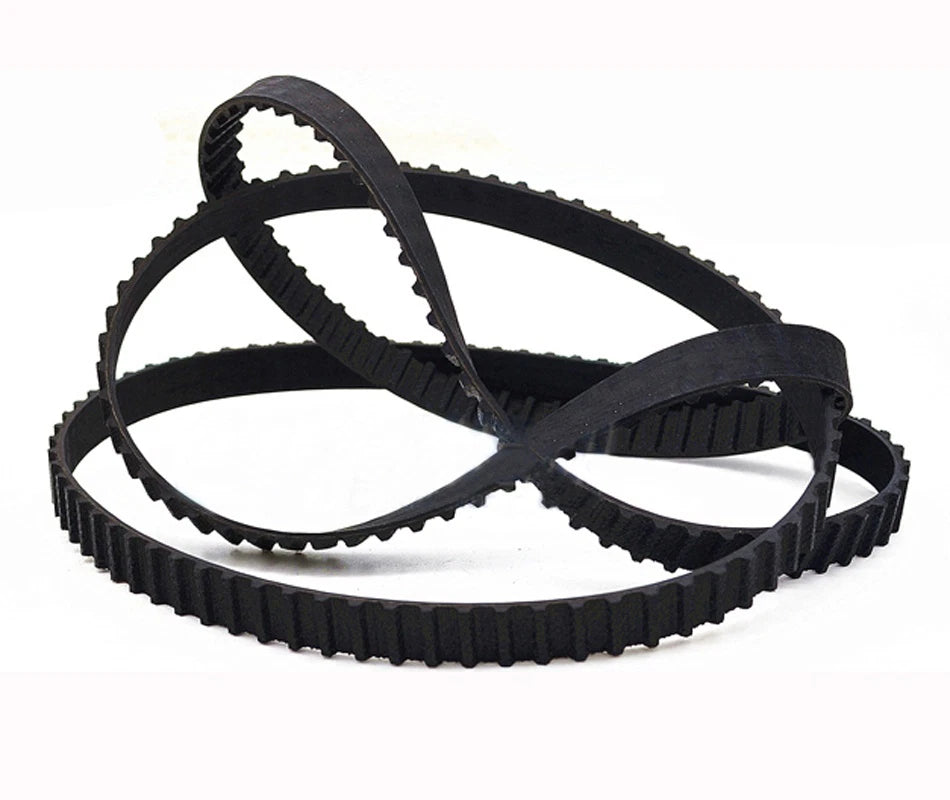

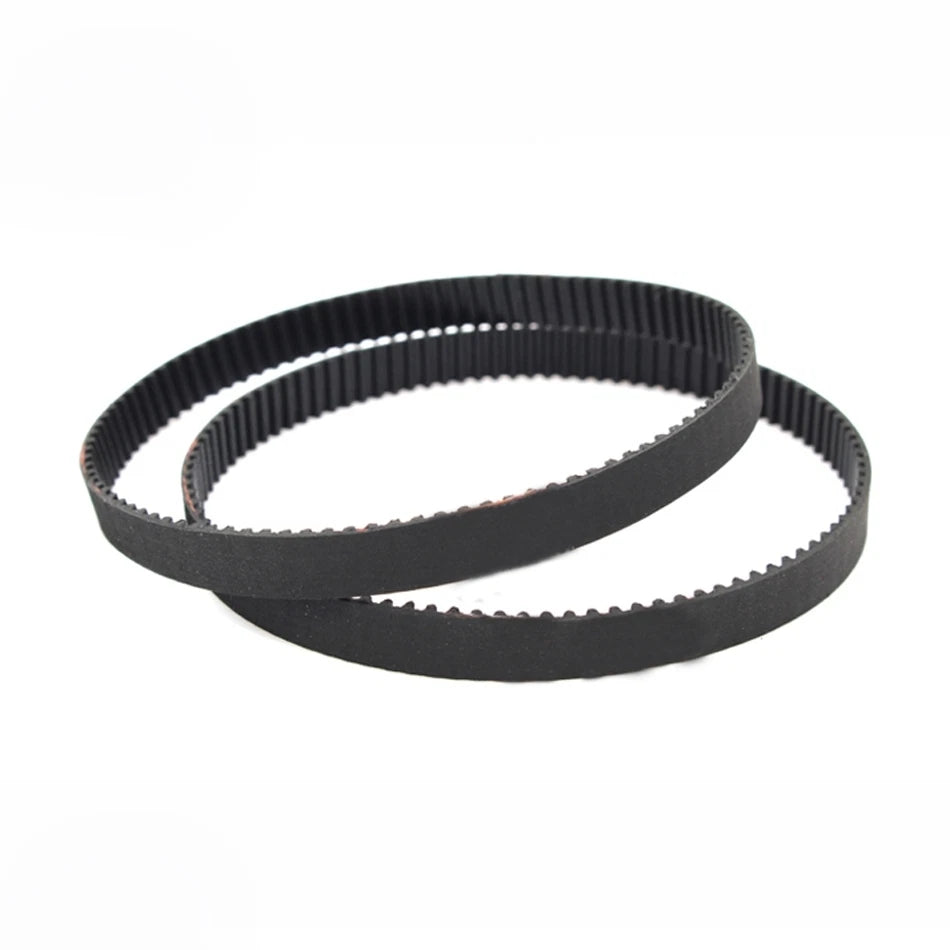

HTD 3M Closed Loop Timing Belt — Reliable Synchronous Drive for 3D Printers, CNC & Robotics

When a slipping or stretched drive belt throws off your print quality, CNC accuracy, or robot positioning, the fix starts with the right synchronous belt. Makers, engineers, and automation builders who need consistent tooth engagement and zero-slip motion transmission rely on HTD 3M closed loop timing belts as a go-to replacement and upgrade component.

Each listing covers one HTD 3M closed loop synchronous belt. The Type option specifies the belt's outer circumference — ranging from 150mm (≈5.9") to 222mm (≈8.7") — and the Width option lets you choose between 10mm (≈3/8") and 15mm (≈19/32"). Belts are constructed from neoprene rubber with reinforcing cord (typically fiberglass or steel), providing a balance of flexibility and tensile strength across the available size range.

Typical use cases include 3D printer X/Y axis drives (e.g., CoreXY, Cartesian), desktop CNC router feed systems, robotic arm joint actuators, and small conveyor or indexing mechanisms — anywhere a compact, closed-loop HTD 3M synchronous belt is needed for repeatable linear or rotary motion.

🔗 Compatibility: Designed for HTD 3M profile pulleys with 3mm pitch. Not compatible with GT2, T2.5, T5, or other tooth profiles. Match belt width to pulley groove width (10mm belt → 10mm pulley; 15mm belt → 15mm pulley).

✅ Key Features of These HTD 3M Closed Loop Timing Belts

  • ⚙️HTD Curvilinear Tooth Profile — The rounded HTD tooth form distributes load more evenly than trapezoidal profiles, reducing stress concentration and extending service life in high-cycle 3D printer and CNC applications.
  • 📏Wide Length Selection — Available in 11 circumference options from 150mm (≈5.9") to 222mm (≈8.7"), making it straightforward to find a drop-in replacement for common closed-loop HTD 3M synchronous belt sizes.
  • ↔️Two Width Options — Choose 10mm for standard light-duty axes or 15mm for higher-torque drives; both widths use the same 3mm HTD pitch so they fit the same pulley family.
  • 🔄Closed Loop Construction — Factory-joined endless loop eliminates splice points that can cause vibration or failure, ensuring smooth, consistent motion in precision motion control systems.
  • 🧱Reinforced Rubber Body — Neoprene outer body with internal cord reinforcement (typically fiberglass) resists elongation under tension, helping maintain positional accuracy over extended use in automation and robotics builds.
  • 🔁Direct Replacement Fit — Dimensioned to standard HTD 3M specifications, these belts are generally interchangeable with OEM belts on popular 3D printer frames and small CNC machines without modification.

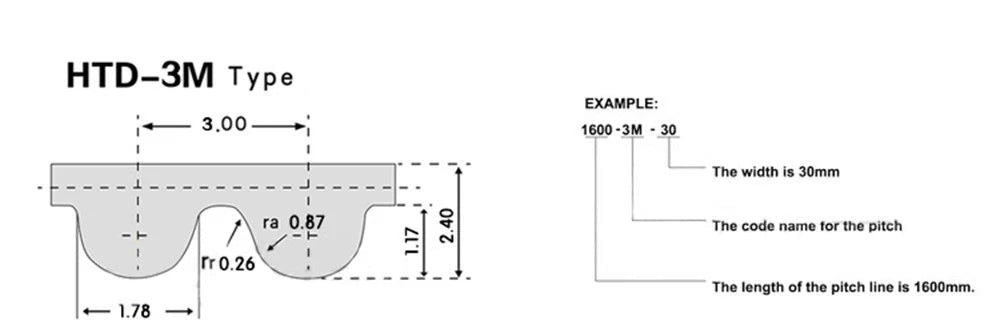

📐 Technical Specifications — HTD 3M Closed Loop Synchronous Belt

Belt Profile HTD (High Torque Drive), curvilinear tooth
Pitch 3mm (tooth-to-tooth spacing)
Available Circumferences 150mm (≈5.9"), 171mm (≈6.7"), 174mm (≈6.9"), 180mm (≈7.1"), 183mm (≈7.2"), 186mm (≈7.3"), 189mm (≈7.4"), 192mm (≈7.6"), 201mm (≈7.9"), 207mm (≈8.1"), 222mm (≈8.7")
Available Widths 10mm (≈3/8") / 15mm (≈19/32")
Belt Type Closed loop (endless / seamless)
Body Material Neoprene rubber (typically)
Reinforcement Fiberglass or steel cord — see variant options
Tooth Count Varies by circumference (circumference ÷ 3mm pitch); e.g., 3M-150 = 50 teeth
Compatible Pulley Profile HTD 3M only
Pack Quantity 1 piece per order (multi-pack options: contact us to confirm)
Operating Temperature Contact us to confirm
Country of Origin See variant options
⚠️ Sizing tip: The number in the Type designation equals the belt's outer circumference in mm. To find the right length, measure your pulley center-to-center distance and calculate accordingly, or refer to your machine's BOM.

❓ Frequently Asked Questions

How do I choose the right belt length for my application?

Measure the center-to-center distance between your two pulleys, then calculate the required belt circumference using the standard formula: Belt Length ≈ 2 × Center Distance + π × (D1 + D2) / 2. For HTD 3M belts, the number in the Type designation equals the belt's outer circumference in millimeters — for example, 3M-150 has a 150mm (≈5.9") loop circumference. When in doubt, size up slightly rather than down to allow for tensioner adjustment.

What does HTD 3M mean, and how is it different from GT2?

HTD stands for High Torque Drive — a curvilinear tooth profile designed to reduce stress concentration compared to older trapezoidal profiles. The "3M" means a 3mm pitch (tooth-to-tooth spacing). GT2 is a different curvilinear profile (2mm pitch) commonly used in lighter-duty 3D printers. HTD 3M and GT2 are not interchangeable — always verify your pulley profile before ordering.

Which width should I choose — 10mm or 15mm?

Width generally determines load capacity. A 10mm wide HTD 3M belt is typically sufficient for light-to-medium duty applications such as 3D printer axes and small CNC routers. A 15mm wide belt offers greater tensile strength and is better suited for higher-torque or higher-speed drives. Always match the belt width to your pulley groove width — a mismatched width will cause the belt to track incorrectly or wear prematurely.

Are these belts compatible with my 3D printer or CNC machine?

These belts fit any machine that uses HTD 3M profile pulleys with a 3mm pitch. They are commonly used in CoreXY and Cartesian 3D printers, desktop CNC routers, and small automation systems. They are not compatible with GT2, T2.5, T5, or MXL profiles. Check your machine's documentation or existing belt label to confirm the profile before purchasing.

Can these timing belts handle outdoor or high-humidity environments?

These belts are typically constructed from neoprene rubber with fiberglass cord reinforcement, which generally provides reasonable resistance to moisture and mild temperature variation. However, they are not typically rated for prolonged UV exposure or full liquid immersion. For outdoor or harsh-environment applications, contact us to confirm material specifications before ordering.

What tensile strength or load capacity can I expect?

Tensile strength varies by width and cord material. A 10mm wide HTD 3M belt with fiberglass reinforcement is generally adequate for the moderate loads found in 3D printer axes and light automation. A 15mm wide version typically offers higher load capacity for more demanding drives. For specific load ratings relevant to your application, contact us to confirm.

How do I install a closed loop timing belt correctly?

Closed loop belts are factory-joined and require no splicing. To install: (1) loosen the motor or idler mount to reduce center distance, (2) slip the belt over both pulleys ensuring teeth seat fully in the pulley grooves, (3) re-tension by adjusting the mount until the belt deflects slightly under moderate finger pressure. Avoid over-tensioning — excessive tension accelerates bearing and belt tooth wear.

🛒 Select your type (length) and width above, then add to cart — ships from our US warehouse.
