HTD 3M Closed Loop Timing Belt — Reliable Synchronous Drive for Long-Span Applications

When your machine demands a long-span synchronous drive that won't slip, stretch, or skip teeth under load, finding the right HTD 3M closed loop timing belt in the exact circumference you need can be a real headache. Engineers building large-format CNC routers, automated conveyor systems, and custom motion platforms often waste hours sourcing belts that are either too short or only available in bulk reels that require splicing — introducing weak points and alignment headaches.

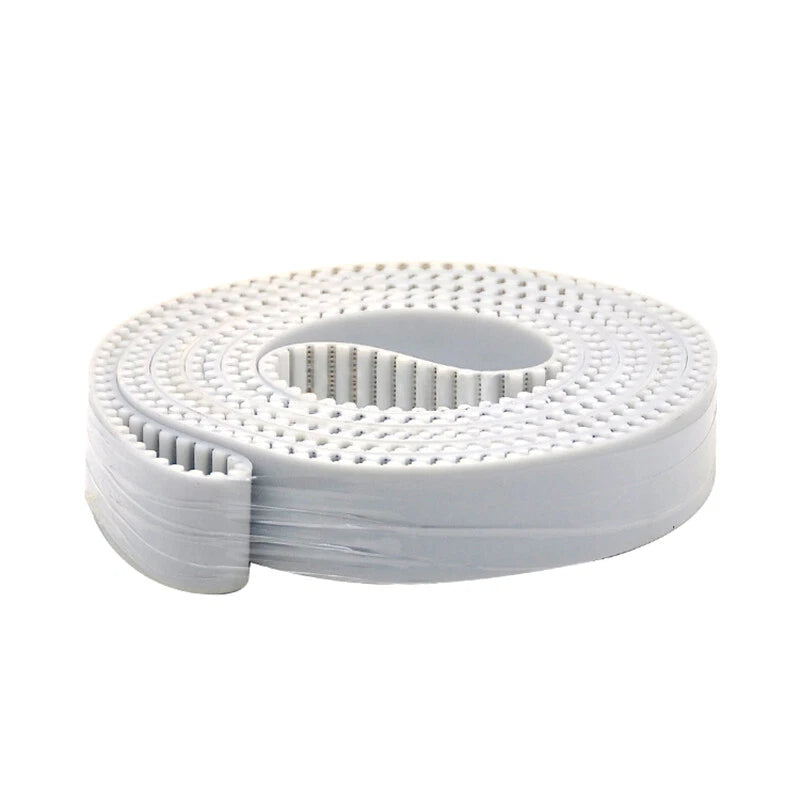

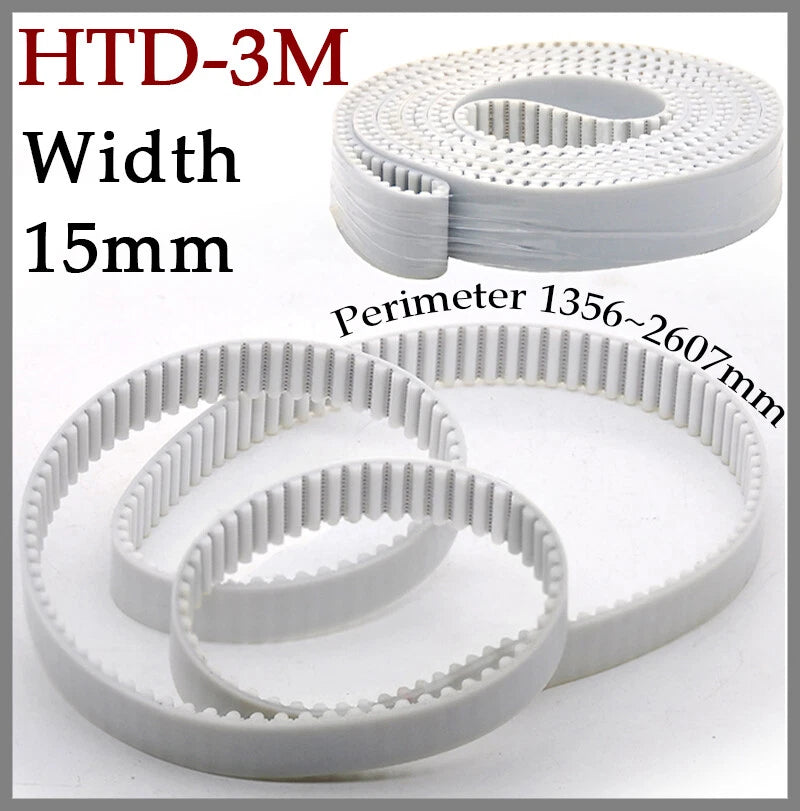

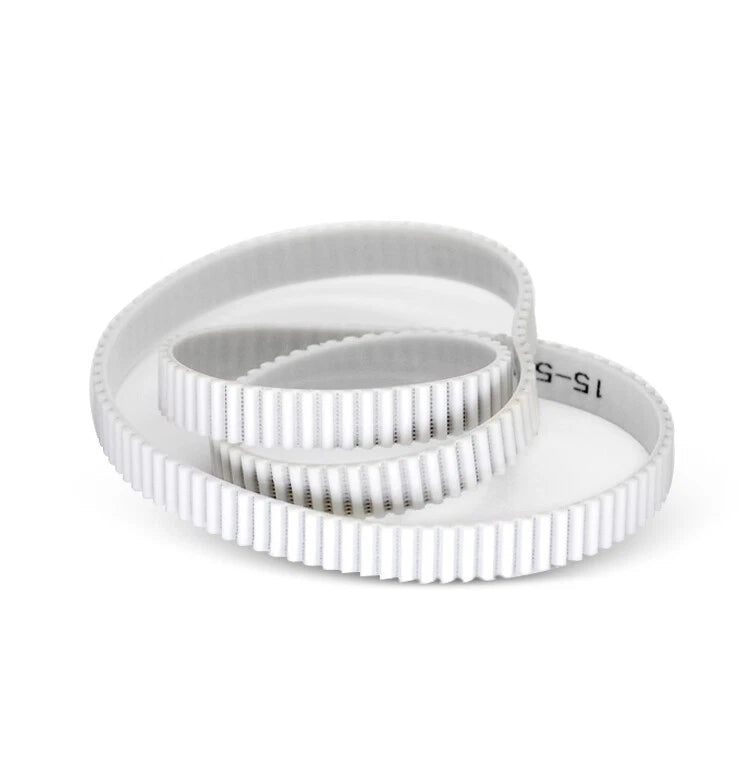

This listing offers a single HTD 3M closed loop timing belt per order, available in circumferences from 2610mm (≈102.8") to 4002mm (≈157.6") in 3mm increments. Each belt is 15mm (≈0.59") wide and constructed from polyurethane (PU) with a steel wire tensile cord — a combination that delivers dimensional stability, oil resistance, and the tensile strength needed for demanding synchronous drive applications. The HTD tooth profile (3mm pitch, rounded tooth form) ensures smooth engagement and reduced noise compared to trapezoidal profiles.

These belts are a natural fit for large-format CNC router Y-axis drives, automated pick-and-place gantry systems, and custom conveyor or indexing tables where a seamless closed loop is essential. The steel wire core makes them particularly well-suited for applications where belt stretch would compromise positioning accuracy — such as laser engravers, plasma cutters, and precision linear actuators.

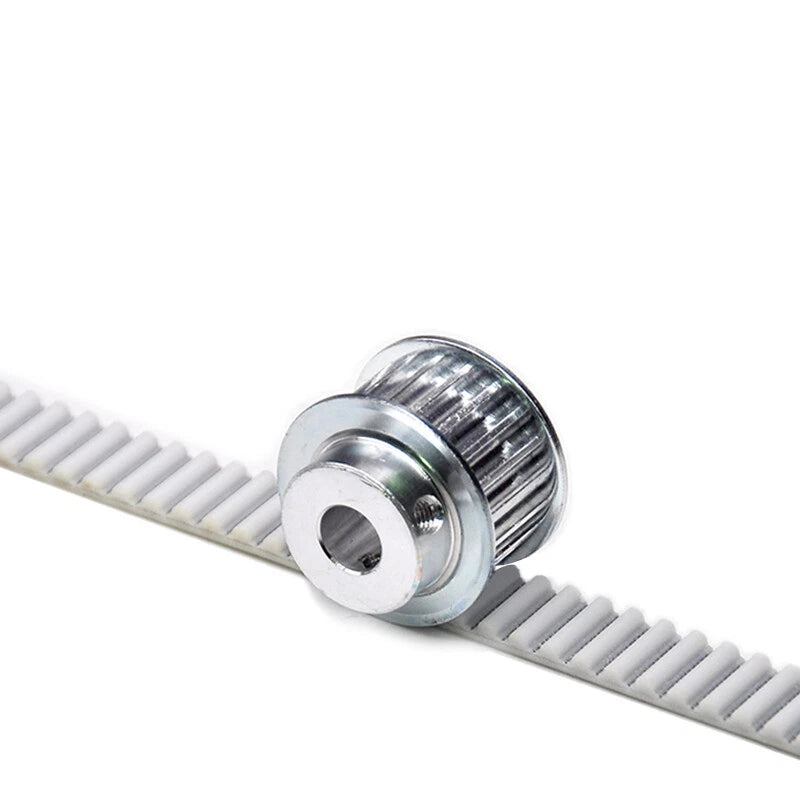

ℹ️ Compatibility: Fits any standard HTD 3M pulley (3mm pitch, rounded tooth). Belt width is 15mm — use with pulleys that are 15mm wide or flanged wider. Not compatible with GT2, MXL, T5, or other tooth profiles.
⚠️ Before ordering: Confirm your required belt circumference by measuring your drive geometry. The model number (e.g., HTD3M-2610mm) indicates the total loop circumference in millimeters.

✅ Key Features of These HTD 3M Closed Loop Timing Belts

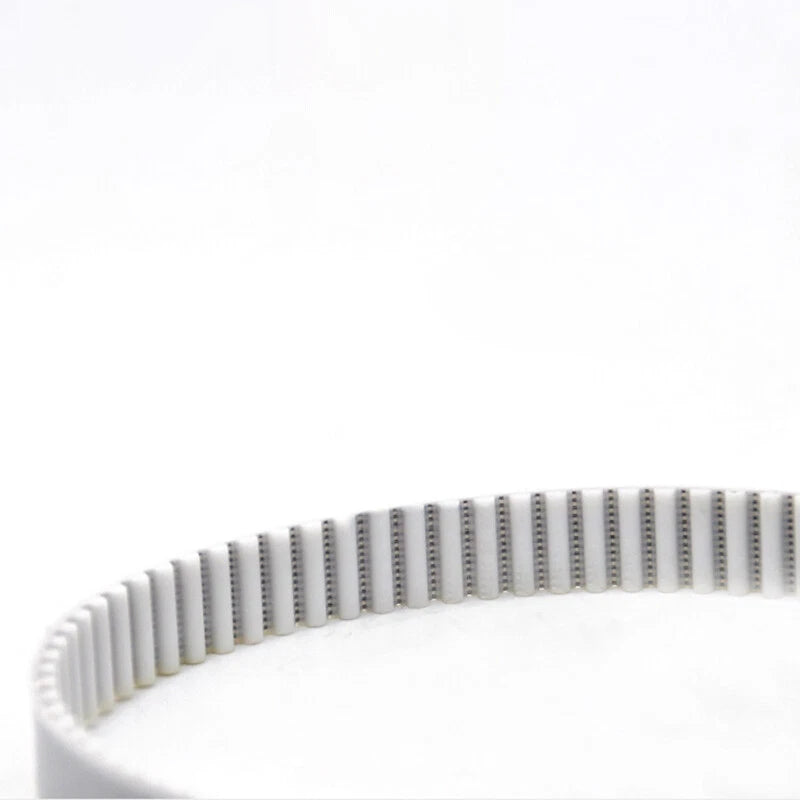

  • 🔩Steel Wire Tensile Cord — Embedded steel wire provides low elongation under load, maintaining accurate positioning in CNC synchronous belt drives and linear motion systems.
  • 🧪Polyurethane (PU) Body — PU construction offers better resistance to oils, mild chemicals, and abrasion compared to standard neoprene rubber timing belts, extending service life in industrial environments.
  • 📐HTD 3M Tooth Profile — The 3mm pitch rounded HTD tooth form provides smooth, quiet engagement with matching pulleys and distributes load across multiple teeth for reliable torque transmission.
  • 🔄Seamless Closed Loop — Factory-formed endless loop eliminates splice joints, ensuring uniform stiffness and balance around the entire belt circumference — critical for high-speed or precision drives.
  • 📏Wide Length Selection — Available in circumferences from 2610mm to 4002mm in 3mm steps, making it straightforward to find the exact size for large-span gantry and conveyor HTD belt drive applications.
  • ⚖️15mm Consistent Width — Uniform 15mm width across all length variants ensures predictable load capacity and easy interchangeability when replacing worn belts in existing drive systems.

📐 Technical Specifications — HTD 3M Closed Loop Timing Belt

Belt Profile HTD 3M (High Torque Drive, 3mm pitch, rounded tooth)
Belt Width 15mm (≈0.59")
Circumference Range 2610mm (≈102.8") to 4002mm (≈157.6")
Pitch 3mm
Tooth Form HTD (curvilinear / rounded)
Body Material Polyurethane (PU)
Tensile Cord Steel wire
Loop Type Seamless closed loop (endless)
Compatible Pulley Profile HTD 3M only
Quantity per Order 1 belt
Tensile Strength See variant options
Operating Temperature Contact us to confirm

❓ Frequently Asked Questions

How do I choose the right belt length for my application?

Measure the center distance between your two pulleys, then calculate the required belt circumference using the standard formula: Belt Length ≈ 2 × Center Distance + π × (D1 + D2) / 2. This product is available in lengths from 2610mm (≈102.8") to 4002mm (≈157.6") in 3mm increments. When in doubt, size up slightly — a belt that is too tight will wear faster and stress bearings. The model number directly encodes the circumference (e.g., HTD3M-2610mm = 2610mm loop).

What tensile strength can this HTD 3M timing belt handle?

The steel wire tensile cord provides significantly higher tensile strength than fiberglass-reinforced belts. Exact load ratings vary by length and pulley configuration, but HTD 3M belts with steel cord are generally suitable for light-to-medium power transmission applications. Contact us to confirm suitability for your specific load requirements.

Can this belt be used outdoors or in humid environments?

Polyurethane (PU) offers better resistance to oils, mild chemicals, and moisture compared to neoprene rubber belts. However, prolonged exposure to UV radiation or standing water is generally not recommended for any timing belt. For outdoor applications, consider shielding the drive from direct sunlight and precipitation to maximize belt service life.

Is this belt compatible with standard HTD 3M pulleys?

Yes. This belt follows the HTD (High Torque Drive) 3M profile standard — 3mm pitch, rounded tooth profile — and is compatible with any HTD 3M pulley of matching or wider flange width. It is not interchangeable with MXL, GT2, T5, or other tooth profiles. Always verify your pulley's tooth profile before ordering.

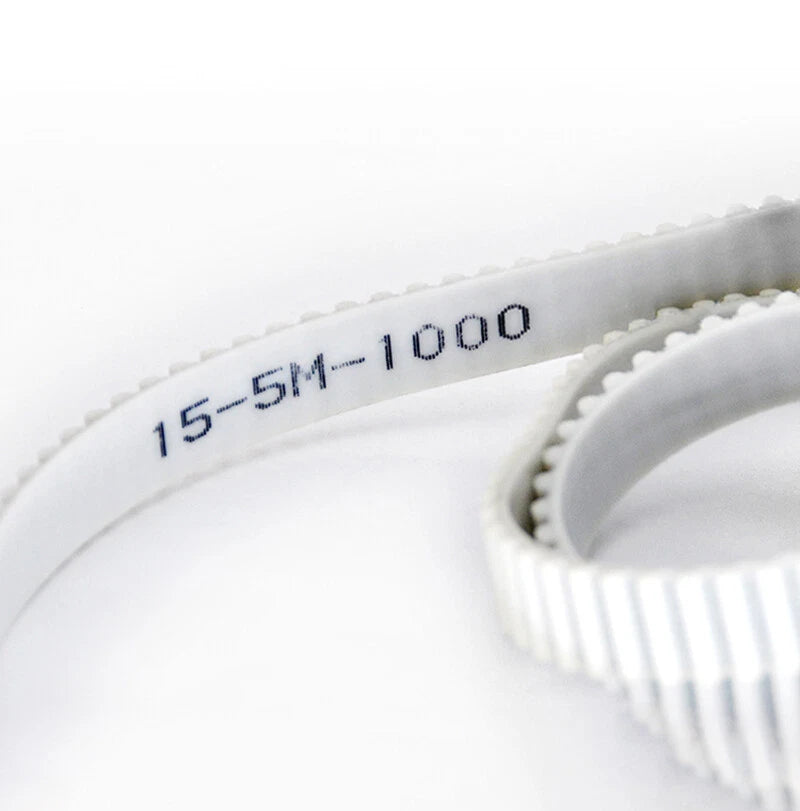

How do I read the model number to find the right size?

The model number encodes the belt circumference directly. For example, HTD3M-2610mm has a total loop circumference of 2610mm (≈102.8"). Choose the length that matches your calculated drive circumference. If your exact size is not listed, select the next size up and adjust your center distance accordingly — typically by moving one pulley slightly outward.

What is the difference between PU and rubber timing belts?

Polyurethane (PU) belts are generally more resistant to abrasion, oils, and chemicals than standard neoprene rubber belts. They also tend to maintain dimensional stability over a wider temperature range. Rubber belts may offer slightly more flexibility at very low temperatures. For most CNC, automation, and light industrial synchronous drive applications, PU with steel wire core is a reliable and durable choice.

Can I use this belt on a 3D printer or CNC router?

This belt is well-suited for CNC routers, laser cutters, plasma tables, and similar machines that use HTD 3M drive systems. Note that most desktop 3D printers use GT2 (2mm pitch) belts — verify your machine's pulley tooth profile before ordering. If your printer or router uses HTD 3M pulleys, this belt is a direct fit.

🛒 Select your model (circumference) above, then add to cart — ships from our US warehouse.
