HTD 3M Closed Loop Timing Belt — Precise, Low-Stretch Drive for 20mm Pulley Systems

When a worn or undersized timing belt causes missed steps, positional drift, or unexpected downtime on your CNC router, 3D printer, or automation rig, the fix needs to be exact — not approximate. This HTD 3M closed loop synchronous timing belt is built for engineers, makers, and machine builders who need a dimensionally accurate, low-stretch drive solution they can count on.

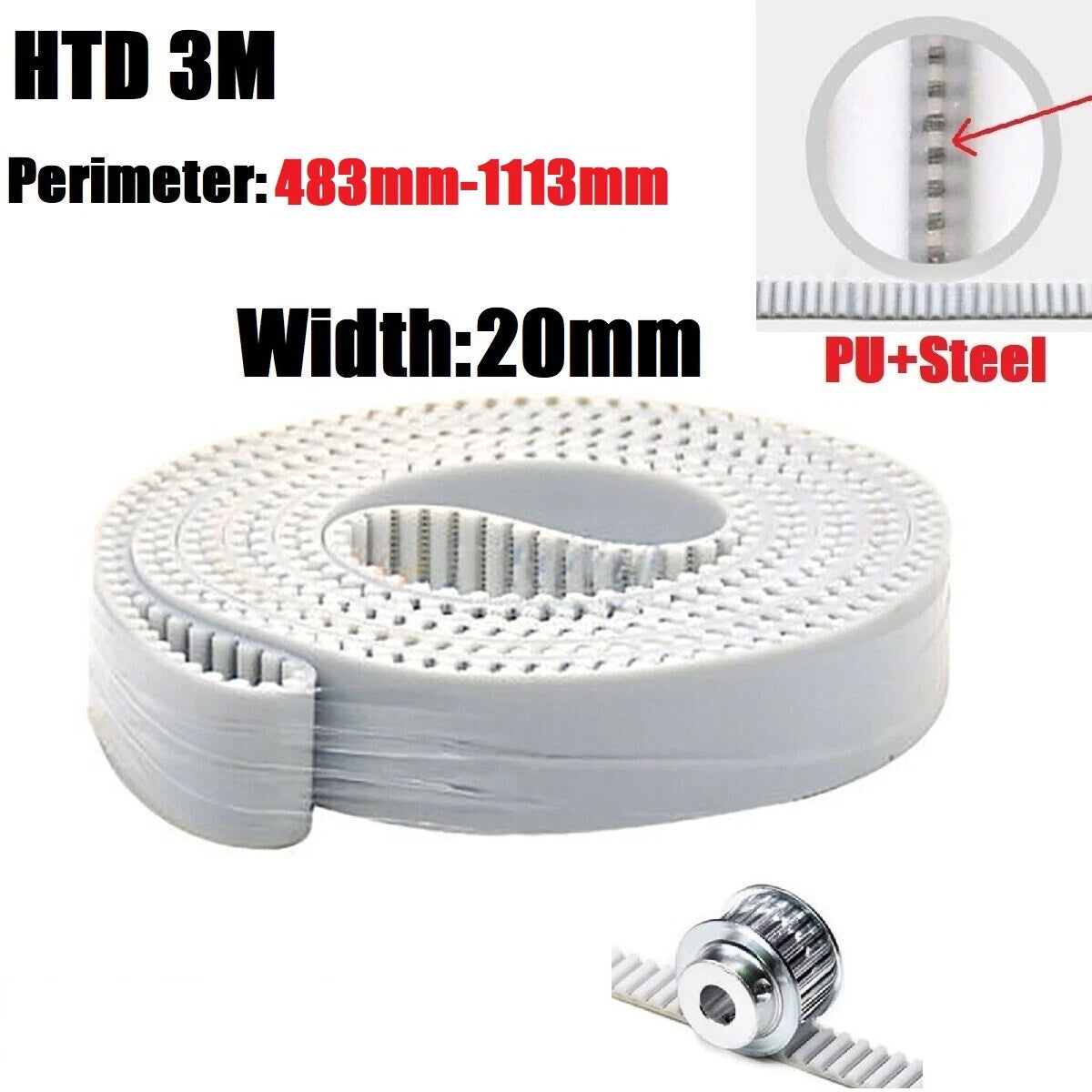

Each belt features a polyurethane (PU) body with steel cord reinforcement, a 3mm HTD pitch, and a 20mm working width. Perimeter sizes range from 483mm (≈19.0") to 1113mm (≈43.8"), available in packs of 1 or 2. The closed-loop construction means no splicing, no weak joints — just a continuous, uniform drive surface ready to install.

Typical applications include CoreXY and bed-slinger 3D printer axis drives, desktop CNC router feed systems, laser engraver gantry belts, and light-duty conveyor and robotics drives where repeatable positioning and low backlash are non-negotiable.

ℹ️ Compatibility: Designed for standard HTD 3M pulleys (3mm pitch, rounded tooth profile), 20mm wide or wider. Not compatible with GT2, T5, or MXL pulley profiles. Confirm your pulley spec before ordering.

✅ Key Features of These HTD 3M Closed Loop Timing Belts

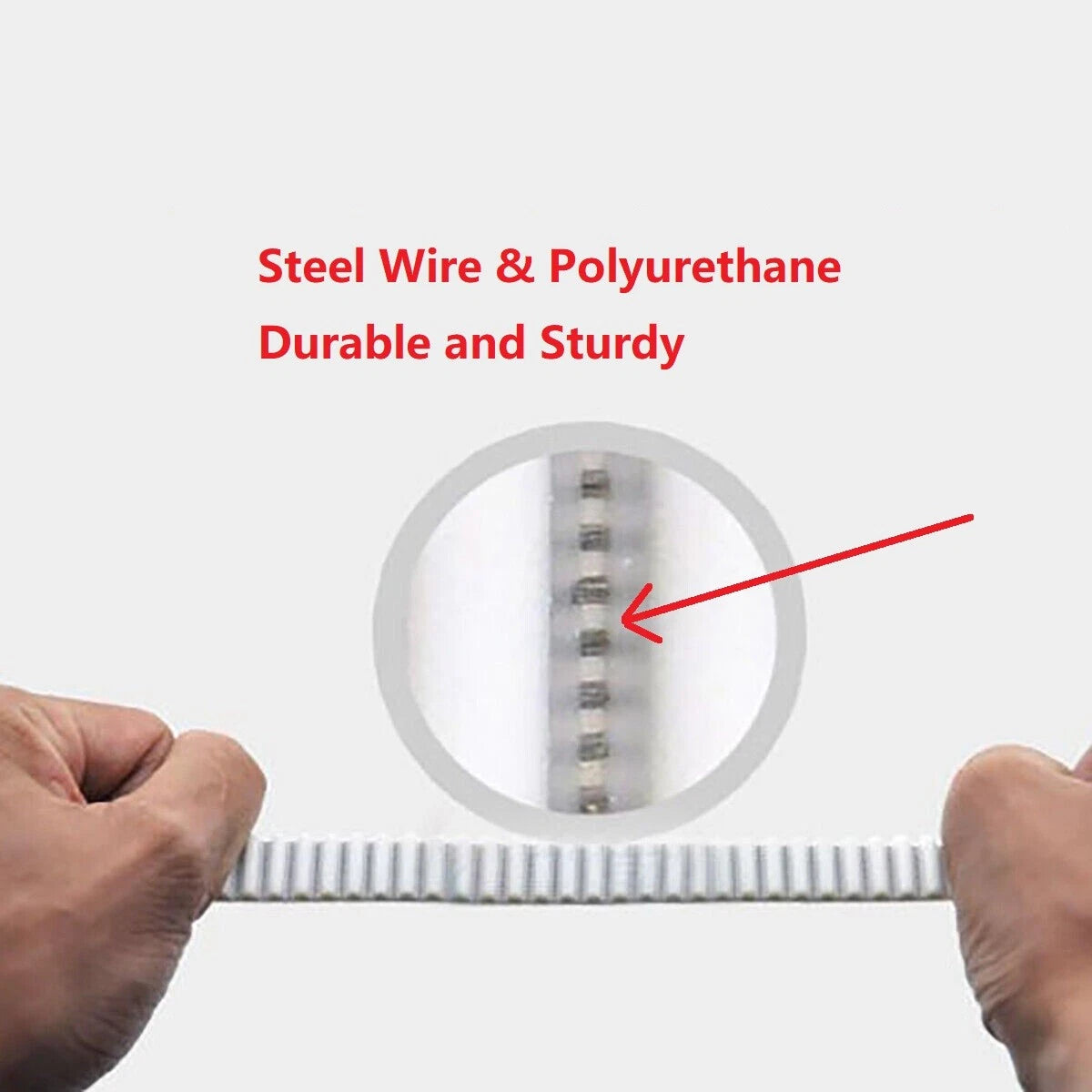

  • 🔩Steel Cord Reinforcement — Embedded steel cords minimize belt stretch under load, maintaining positional accuracy in CNC router feed drives and 3D printer axis systems over long print runs.
  • 🧱Polyurethane Body — PU construction resists oils, greases, and mild chemicals better than standard rubber, extending service life in workshop and light industrial environments.
  • 📐HTD 3M Tooth Profile — The rounded HTD tooth geometry distributes load across a larger contact area than trapezoidal profiles, reducing tooth shear risk in high-torque closed-loop timing belt applications.
  • 📏20mm Working Width — Wider than standard 6mm or 9mm variants, this belt delivers greater torque capacity — suitable for heavier gantries, dual-drive setups, and conveyor belt replacement projects.
  • 🔄Closed-Loop Construction — Factory-formed continuous loop with no splice point, ensuring uniform tension distribution and eliminating the failure mode associated with field-joined open belts.
  • 📦Wide Size Selection — Available in perimeters from 483mm to 1113mm in 3mm increments (most sizes), covering a broad range of machine footprints without custom ordering.

📐 Technical Specifications — HTD 3M Closed Loop Timing Belt

Belt Profile HTD 3M (High Torque Drive, 3mm pitch)
Pitch 3mm (0.118")
Width 20mm (≈0.79")
Perimeter Range 483mm (≈19.0") – 1113mm (≈43.8")
Construction Closed loop (no splice)
Body Material Polyurethane (PU)
Reinforcement Steel cord
Tooth Profile Rounded (HTD standard)
Pack Options 1 piece or 2 pieces
Compatible Pulleys HTD 3M, 20mm wide or wider
Typical Applications 3D printers, CNC routers, laser engravers, light conveyor/robotics
Operating Temperature See variant options
Max Tensile Load Contact us to confirm
⚠️ Size Tip: The perimeter listed (e.g., "HTD3M 600mm") is the total outer circumference of the closed loop, not the center-to-center distance. Measure your existing belt or calculate from your pulley geometry before selecting a size.

❓ Frequently Asked Questions

How do I choose the right perimeter size for my HTD 3M timing belt?

Measure the center-to-center distance between your two pulleys, then calculate the belt perimeter: Perimeter ≈ 2 × center distance + (π × pulley pitch diameter). For reference, 500mm ≈ 19.7", 600mm ≈ 23.6", 750mm ≈ 29.5", 1000mm ≈ 39.4". Always verify against your machine's spec sheet or OEM documentation. When in doubt, size up — a slightly longer belt can typically be tensioned; a belt that is too short cannot be installed.

What load or torque can an HTD 3M 20mm wide timing belt handle?

HTD 3M belts are generally rated for light-to-medium duty applications. A 20mm wide PU + steel core belt typically handles higher tensile loads than a comparable rubber belt of the same width, thanks to the steel cord reinforcement. Exact load ratings depend on pulley diameter, speed, and operating temperature. Consult your drive system's engineering data for precise figures, or contact us to confirm suitability for your application.

Can this timing belt be used outdoors or in humid environments?

Polyurethane (PU) timing belts generally offer better resistance to oils, greases, and moderate moisture compared to standard rubber belts. However, prolonged outdoor UV exposure or immersion in water is not recommended. For outdoor or washdown environments, verify the specific operating conditions with your application engineer before installation.

Is this belt compatible with standard HTD 3M pulleys?

Yes. This belt follows the HTD (High Torque Drive) 3M profile standard — 3mm pitch, rounded tooth profile — and is compatible with any HTD 3M pulley of the same width (20mm) or wider. Confirm your pulley's tooth profile is HTD 3M (not GT2, T5, or MXL) before ordering, as these profiles are not interchangeable.

How do I decide between ordering 1 piece vs. 2 pieces?

Order 1 piece if you are replacing a single worn belt or prototyping a new drive system. Order 2 pieces if you are building a dual-axis machine (e.g., CoreXY 3D printer), want a spare on hand for production environments, or are outfitting multiple machines at once — the 2-pack typically offers a lower per-belt cost.

What is the difference between PU + steel and rubber + fiberglass timing belts?

PU (polyurethane) belts with steel cord reinforcement generally provide lower stretch, better dimensional stability, and longer service life under consistent tension compared to rubber belts with fiberglass cords. They are also more resistant to oils and chemicals. Rubber belts are typically more flexible at low temperatures and lower in cost. For precision motion control applications like CNC and 3D printing, PU + steel is generally the preferred choice.

What machines commonly use HTD 3M 20mm timing belts?

HTD 3M 20mm belts are commonly found in 3D printers (especially larger-format CoreXY and bed-slinger designs), desktop CNC routers, laser engravers, pick-and-place machines, conveyor systems, and light robotics. The 20mm width provides more surface area and torque capacity than the more common 6mm or 9mm variants used in smaller machines.
