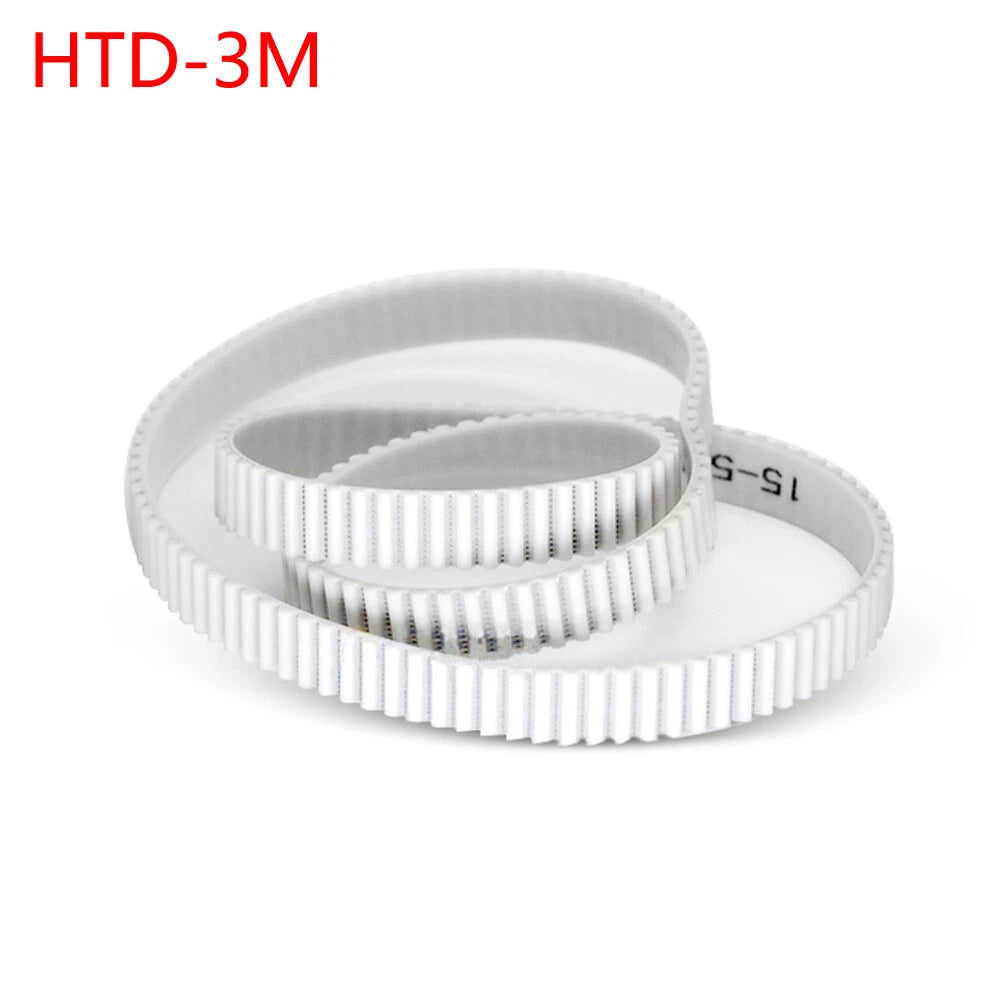

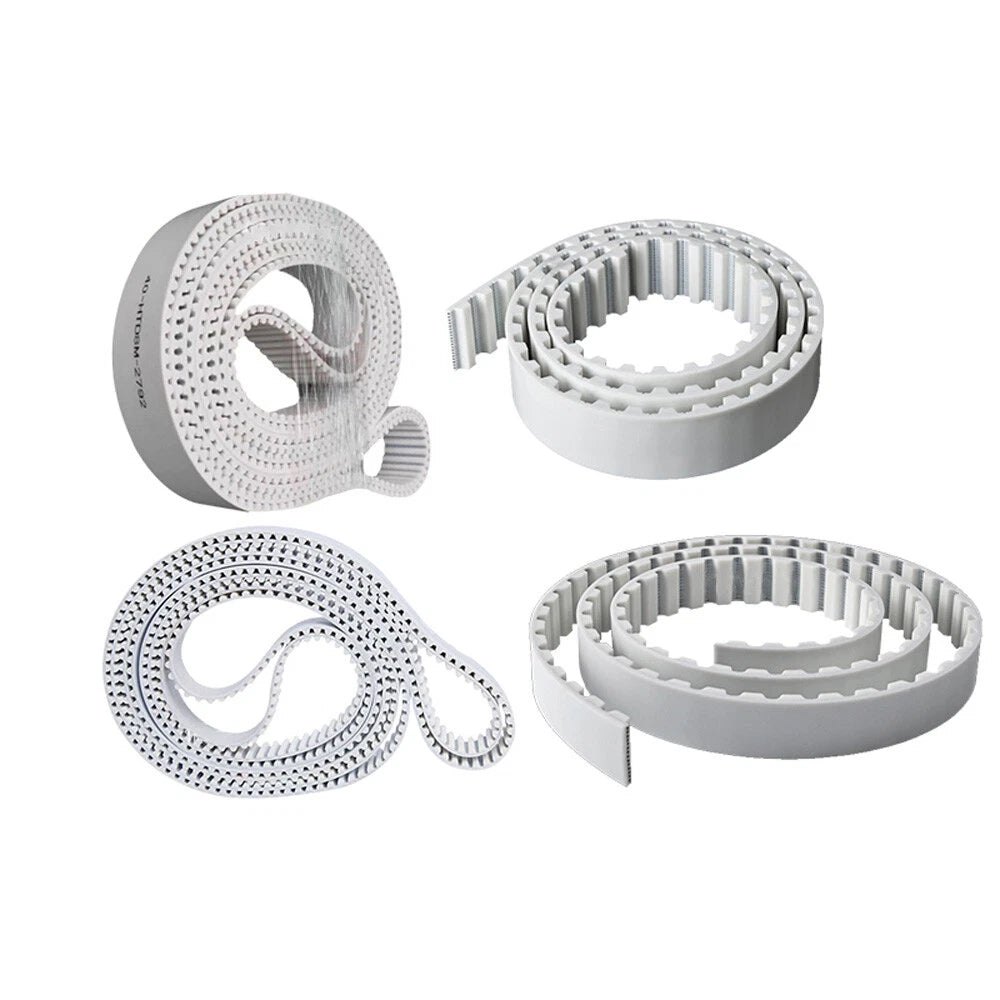

HTD 3M Closed Loop Timing Belt — Reliable Power Transmission for Precision Machines

When a slipping or stretched belt throws off your CNC router, 3D printer, or automated conveyor, every job suffers. Engineers, makers, and maintenance technicians who depend on repeatable, zero-backlash motion need a closed loop timing belt that holds its pitch under load — and that's exactly what this HTD 3M closed loop timing belt delivers.

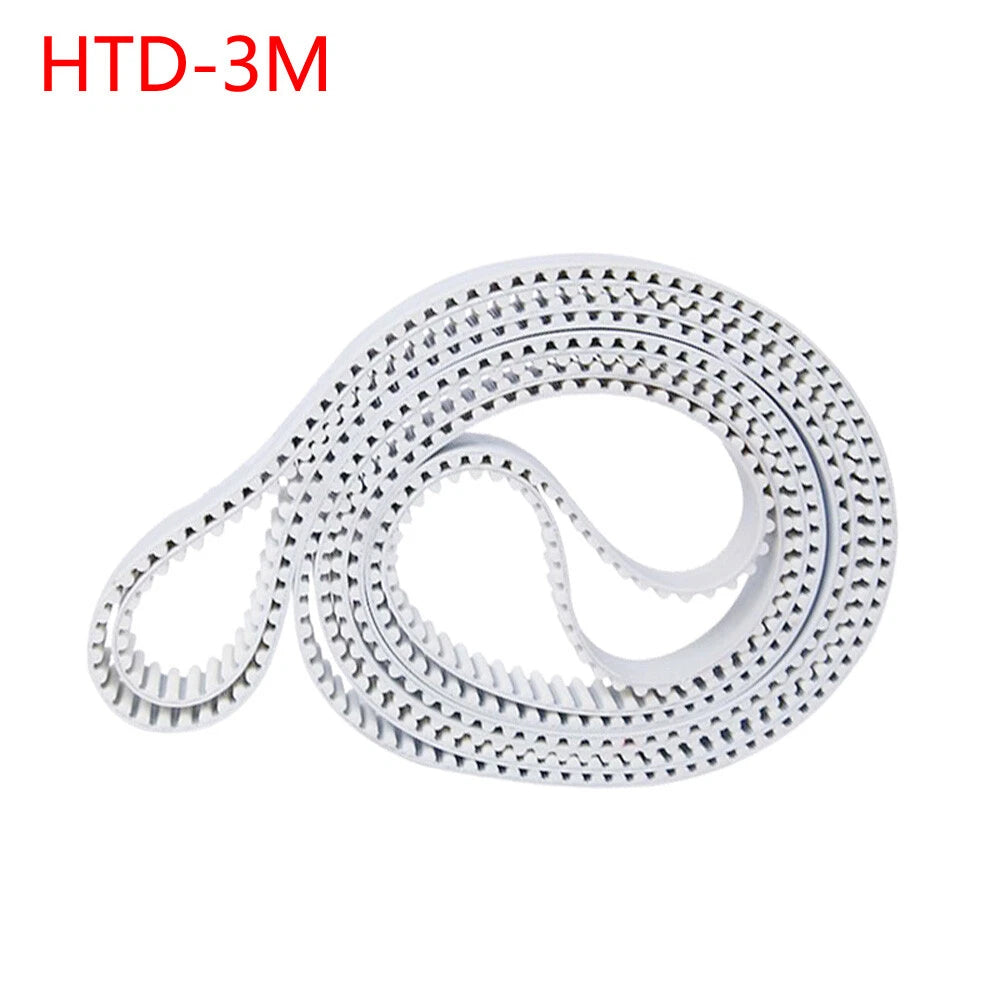

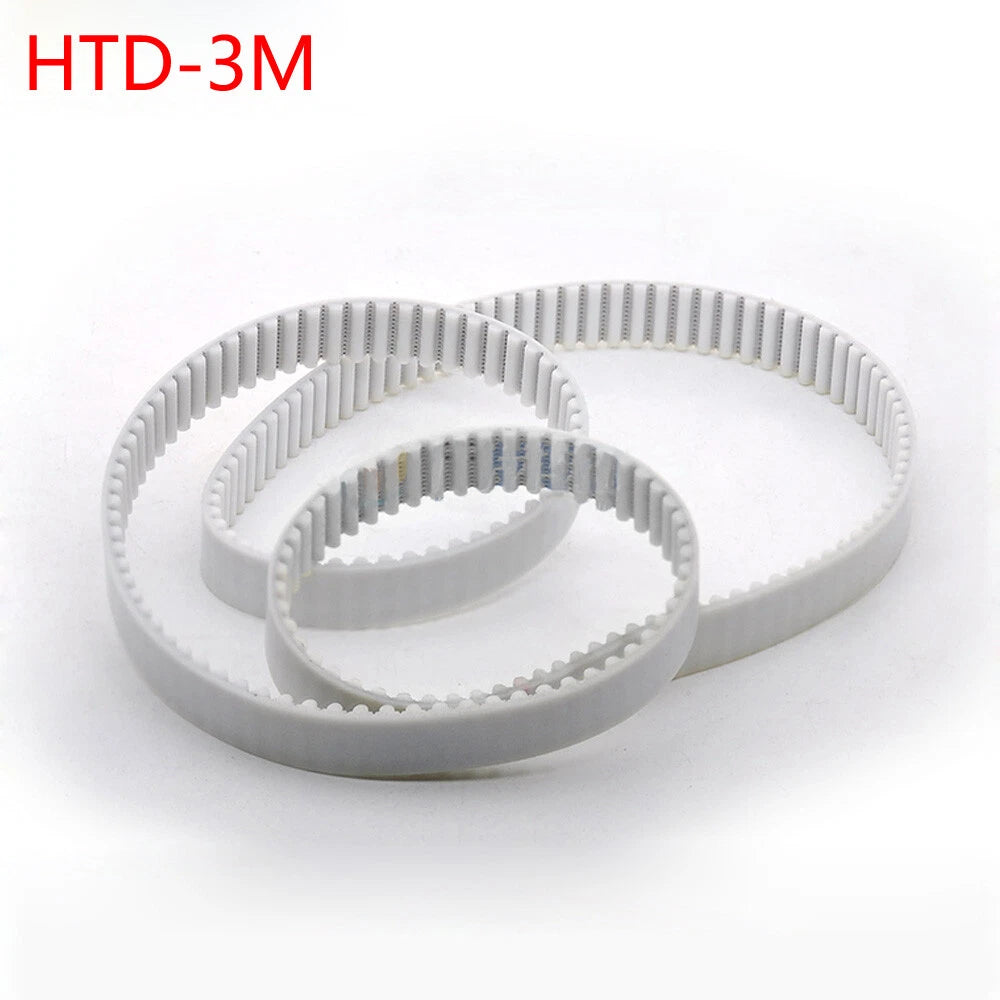

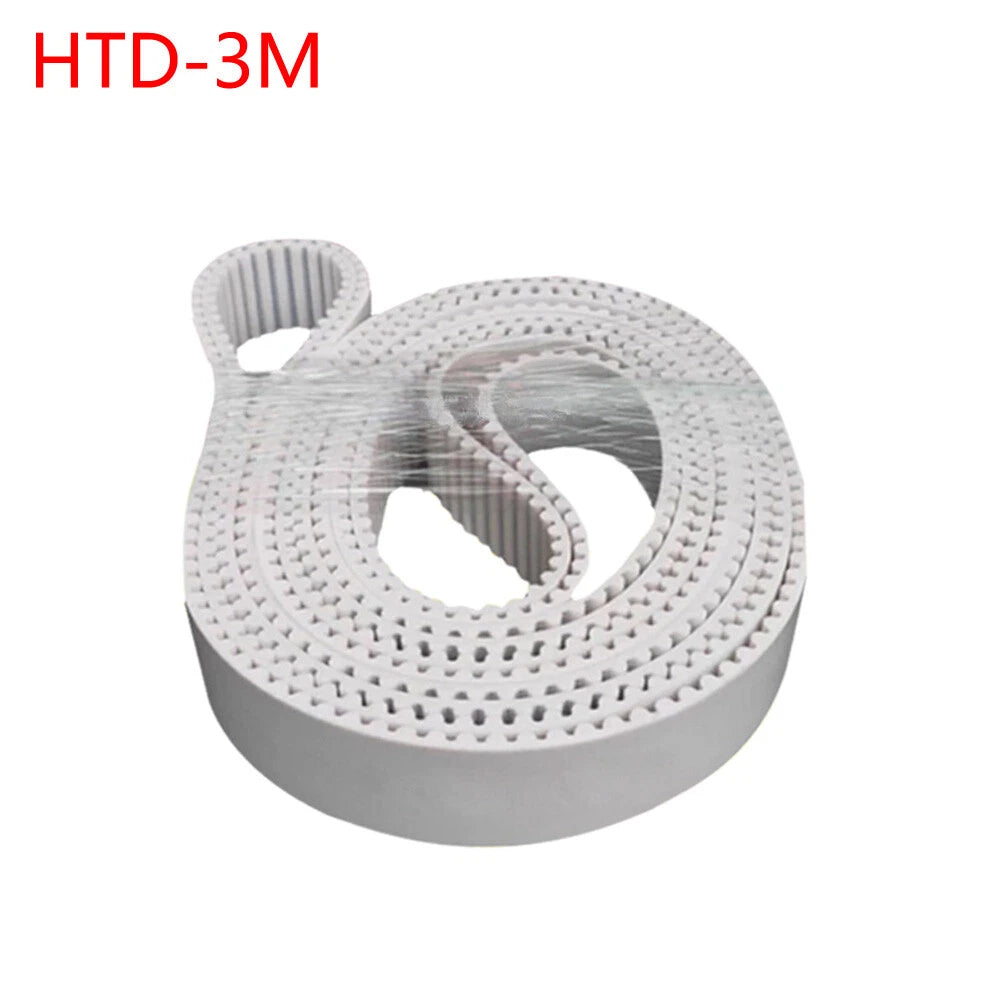

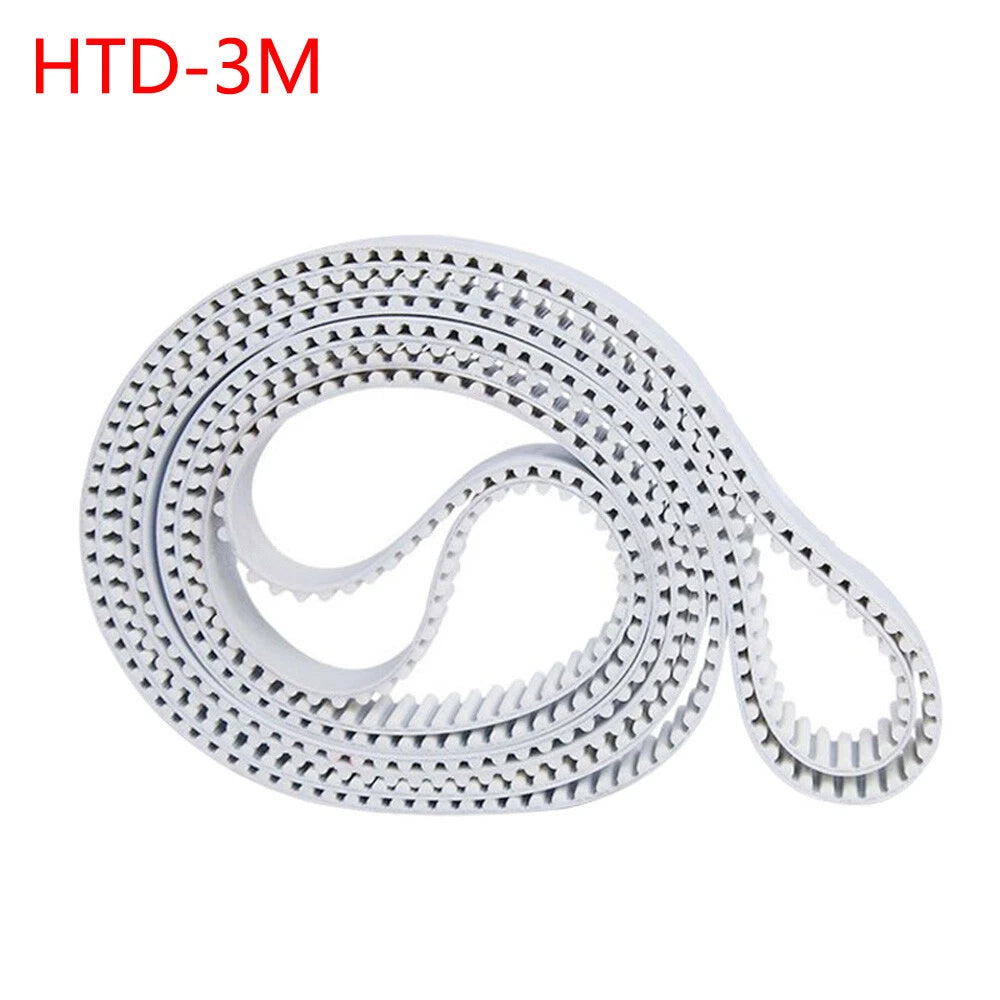

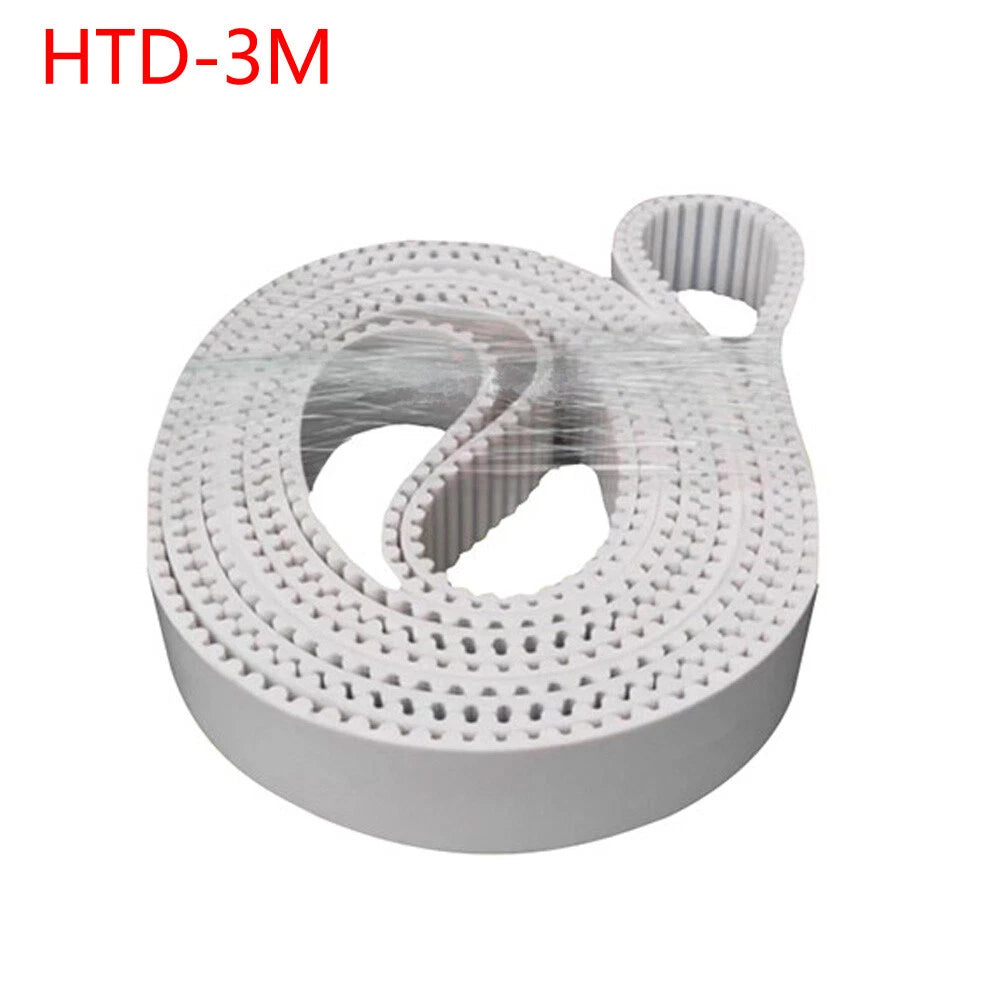

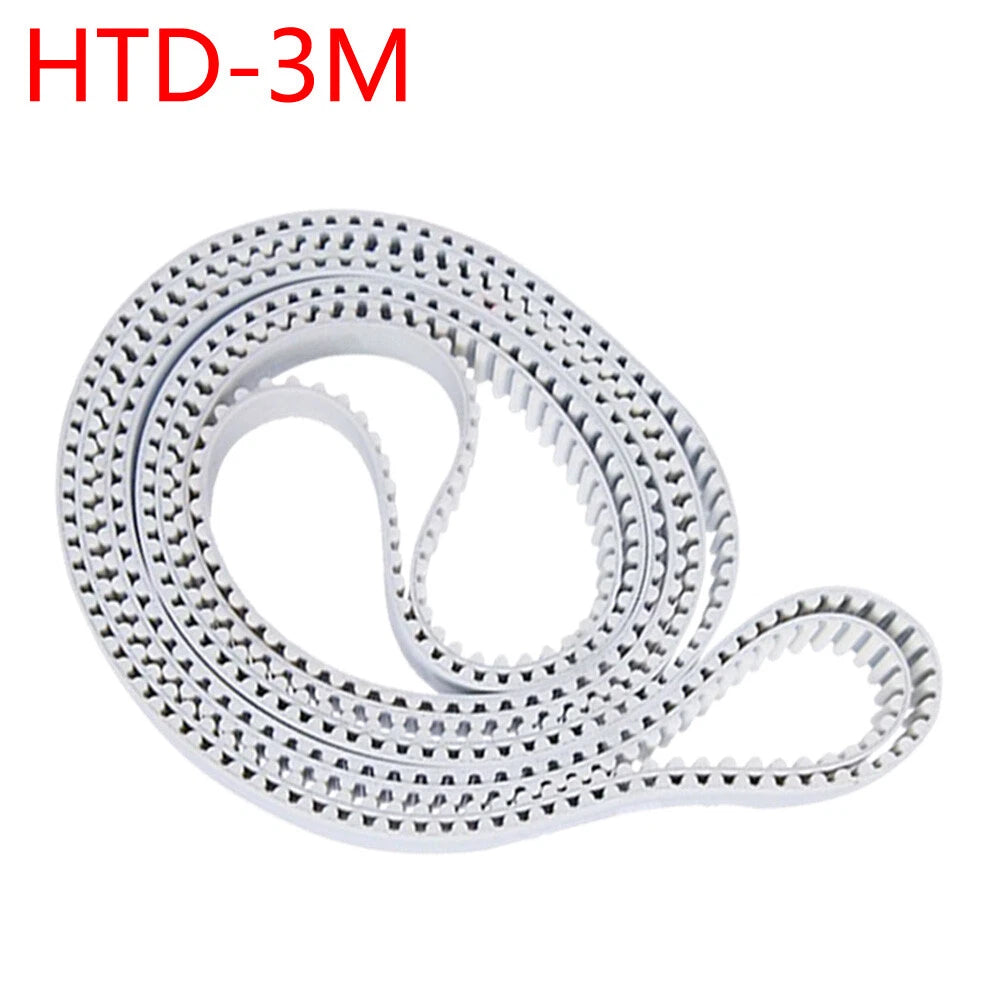

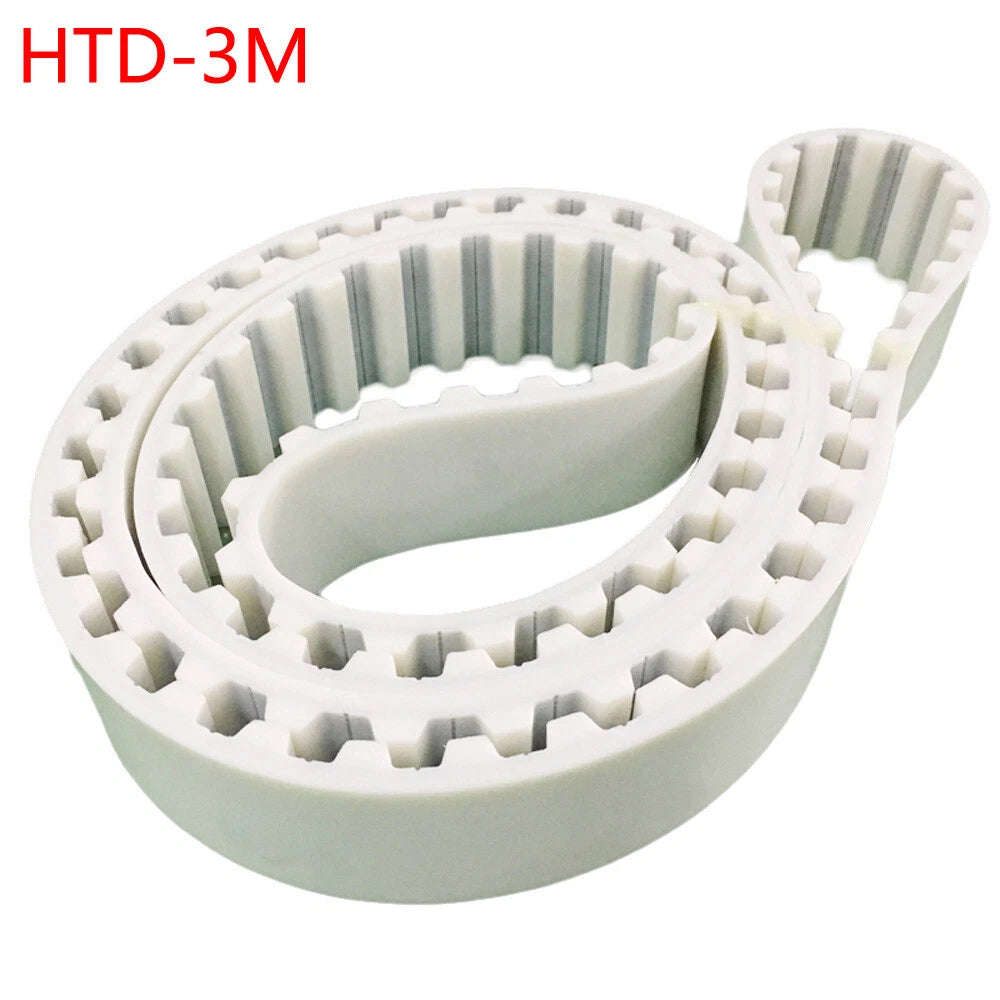

Each belt is made from polyurethane (PU) with a 3mm HTD pitch and a 30mm width. The closed loop design means no splicing or joining — the belt arrives as a continuous loop ready to install. Perimeter options span from 2208mm (≈87.0") to 3915mm (≈154.1"), with teeth counts ranging from 736 to 1305 teeth, so you can match your exact drive geometry. Select your perimeter from the variant dropdown above.

Typical applications include CNC router X/Y axis drives, 3D printer bed and gantry systems, laser cutter motion stages, pick-and-place automation, and light conveyor drives where precise synchronization between pulleys is required.

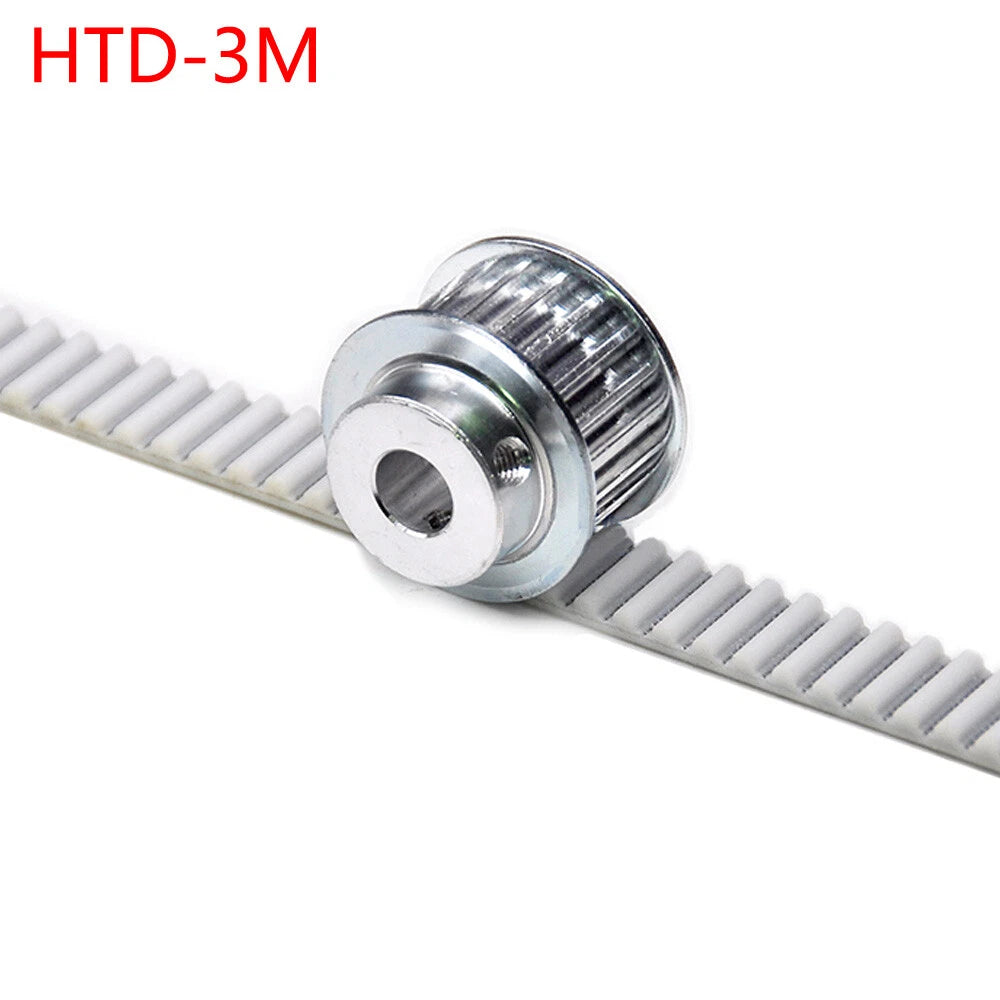

ℹ️ Compatibility Notice: This belt uses the HTD 3M profile (3mm pitch, rounded tooth). It is compatible with HTD 3M pulleys only — not interchangeable with GT2, MXL, T2.5, or other profiles. Verify your pulley spec before ordering.

✅ Key Features of These HTD 3M Closed Loop Timing Belts

  • 🔁Seamless Closed Loop Construction — No joints or splices; the continuous loop eliminates weak points and ensures consistent tension distribution across the full perimeter.
  • 📐3mm HTD Pitch Accuracy — The rounded HTD tooth profile provides smooth engagement with matching pulleys, reducing noise and tooth wear in CNC and 3D printer timing belt applications.
  • 🧪Polyurethane (PU) Material — PU construction offers better oil and chemical resistance than standard neoprene, making it suitable for light industrial environments where rubber belts degrade prematurely.
  • 📏Wide Size Selection — Available in perimeters from 2208mm to 3915mm (≈87" to 154"), covering a broad range of drive spans for automation, conveyor, and motion control systems.
  • ↔️30mm Belt Width — The 30mm width provides increased contact area compared to narrower belts, supporting higher lateral stability in demanding closed loop drive applications.
  • ⚙️Drop-In Replacement Geometry — Teeth count is listed per variant (736–1305 teeth), making it straightforward to cross-reference against OEM specs or calculate gear ratios for your drive system.

📐 Technical Specifications — HTD 3M Closed Loop Timing Belt

Belt Profile HTD 3M (High Torque Drive)
Pitch 3mm
Belt Width 30mm (≈1.18")
Perimeter Range 2208mm–3915mm (≈87.0"–154.1")
Teeth Count Range 736–1305 teeth (varies by perimeter)
Belt Type Closed Loop (seamless)
Material Polyurethane (PU)
Tooth Form Rounded HTD profile
Reinforcement See variant options / Contact us to confirm
Operating Temperature Contact us to confirm
Color See variant options
Quantity per Order 1 piece (1pcs)
Compatible Pulley HTD 3M pulleys only
⚠️ Spec Confirmation: Reinforcement cord type and operating temperature range are not confirmed for this listing. If your application requires specific tensile strength or temperature ratings, please contact us before ordering.

❓ Frequently Asked Questions

How do I choose the right perimeter length for my HTD 3M timing belt?

Measure the center-to-center distance between your pulleys, then use the formula: Perimeter ≈ 2 × center distance + (π × pulley pitch diameter). For example, a 2208mm (≈87.0") belt suits shorter drive spans, while a 3915mm (≈154.1") belt covers longer runs. Always verify against your machine's spec sheet or OEM documentation. The teeth count listed per variant (Perimeter ÷ 3mm) can also help you cross-reference with pulley tooth counts.

What load capacity can this HTD 3M timing belt handle?

HTD 3M belts are generally rated for light-to-medium duty applications such as 3D printers, CNC routers, and light automation. Actual load capacity depends on pulley diameter, belt speed, span length, and reinforcement cord type. For precise tensile ratings specific to your application, contact us to confirm before ordering.

Is this timing belt suitable for outdoor or high-humidity environments?

Polyurethane (PU) generally offers better resistance to oils, mild chemicals, and moisture compared to neoprene rubber belts. For most indoor industrial and workshop environments, PU performs well. For prolonged outdoor UV exposure or immersion in liquids, additional protection or a different material may be needed. Contact us to confirm suitability for your specific environment.

What pulley profile is compatible with this belt?

This belt uses the HTD (High Torque Drive) 3M profile — 3mm pitch with a rounded tooth form. It is compatible with HTD 3M pulleys only. It is not interchangeable with GT2, MXL, T2.5, T5, or other timing belt profiles, even if the pitch appears similar. Always verify your pulley's profile designation before purchasing.

Can I use this belt on my 3D printer or CNC router?

Yes — HTD 3M closed loop timing belts are commonly used in 3D printer bed and gantry drives, CNC router axis systems, laser cutter motion stages, and pick-and-place automation equipment. Confirm that your machine uses HTD 3M pulleys (not GT2 or other profiles) and that the perimeter matches your drive geometry before ordering.

Why choose a polyurethane belt over a rubber timing belt?

PU belts typically offer greater dimensional stability over time, better resistance to oils and mild chemicals, and longer service life in clean indoor environments. Rubber belts may be more flexible at very low temperatures. For most CNC, 3D printing, and light industrial automation applications, PU is generally the preferred material for consistent performance.

What does the teeth count tell me, and how do I use it?

Teeth count = Perimeter ÷ Pitch (3mm). For example, a 2208mm belt has 736 teeth; a 3915mm belt has 1305 teeth. This number is useful for verifying compatibility with your pulley tooth count and for calculating gear ratios in your drive system. Each variant in this listing displays both the perimeter and the corresponding teeth count.

🛒 Select your perimeter size above, then add to cart — ships from our US warehouse.
