HTD 3M Closed Loop Timing Belt — Precise Motion Control for 3D Printers, CNC & Robotics

When your 3D printer starts skipping layers or your CNC router loses position mid-cut, a worn or incorrectly sized drive belt is often the culprit. Makers, machine builders, and repair technicians who need a reliable HTD 3M closed loop timing belt know how frustrating it is to find the right perimeter length without ordering a dozen wrong sizes first.

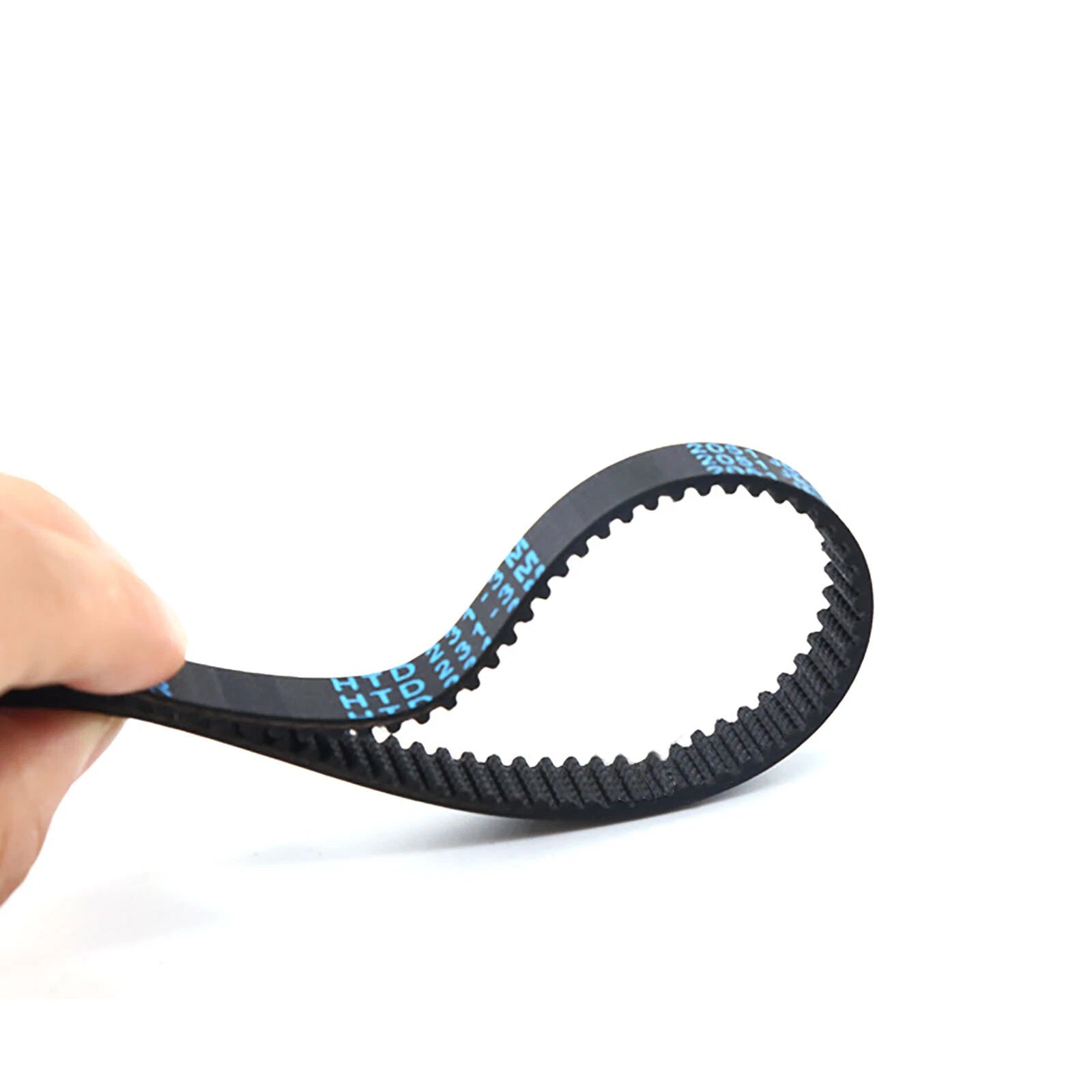

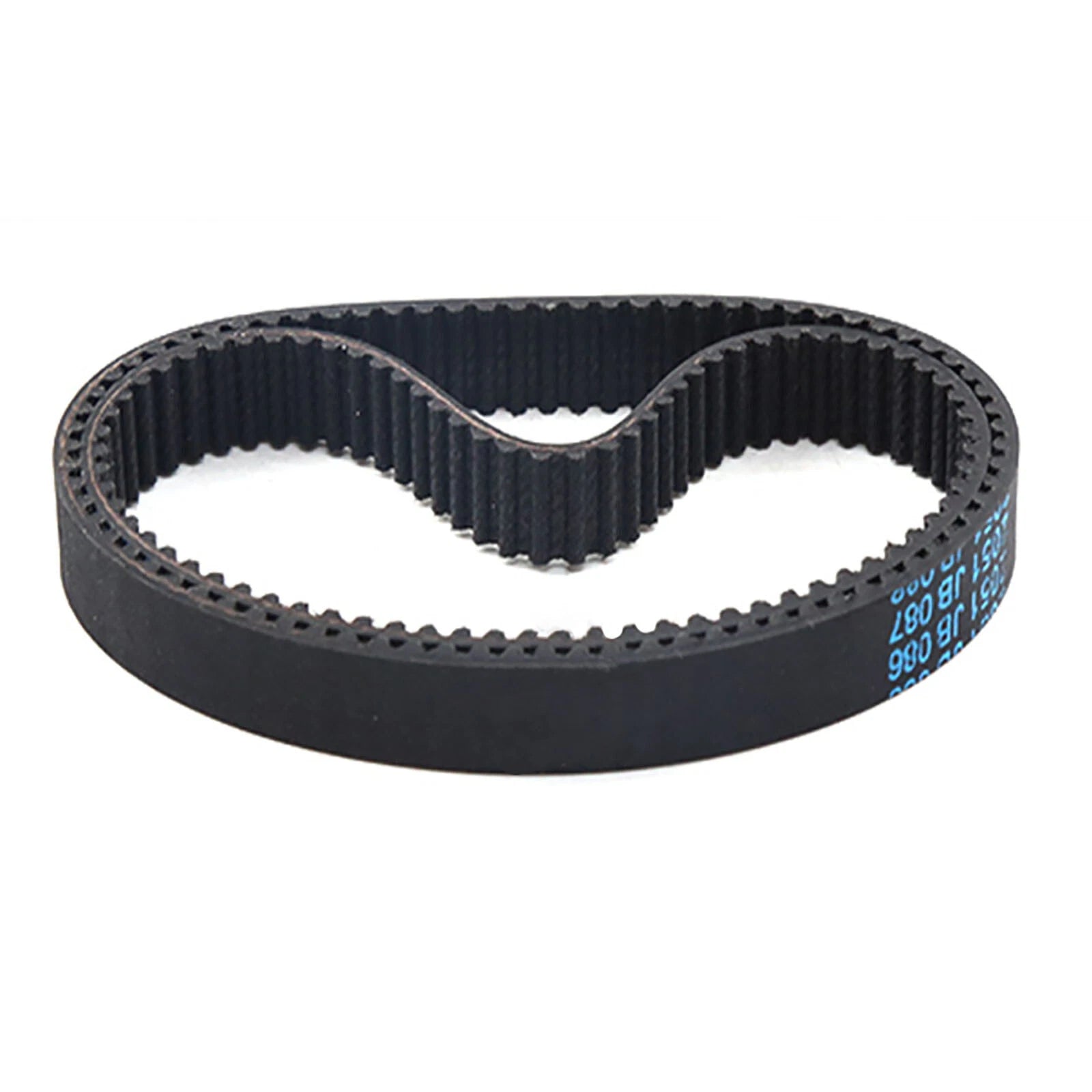

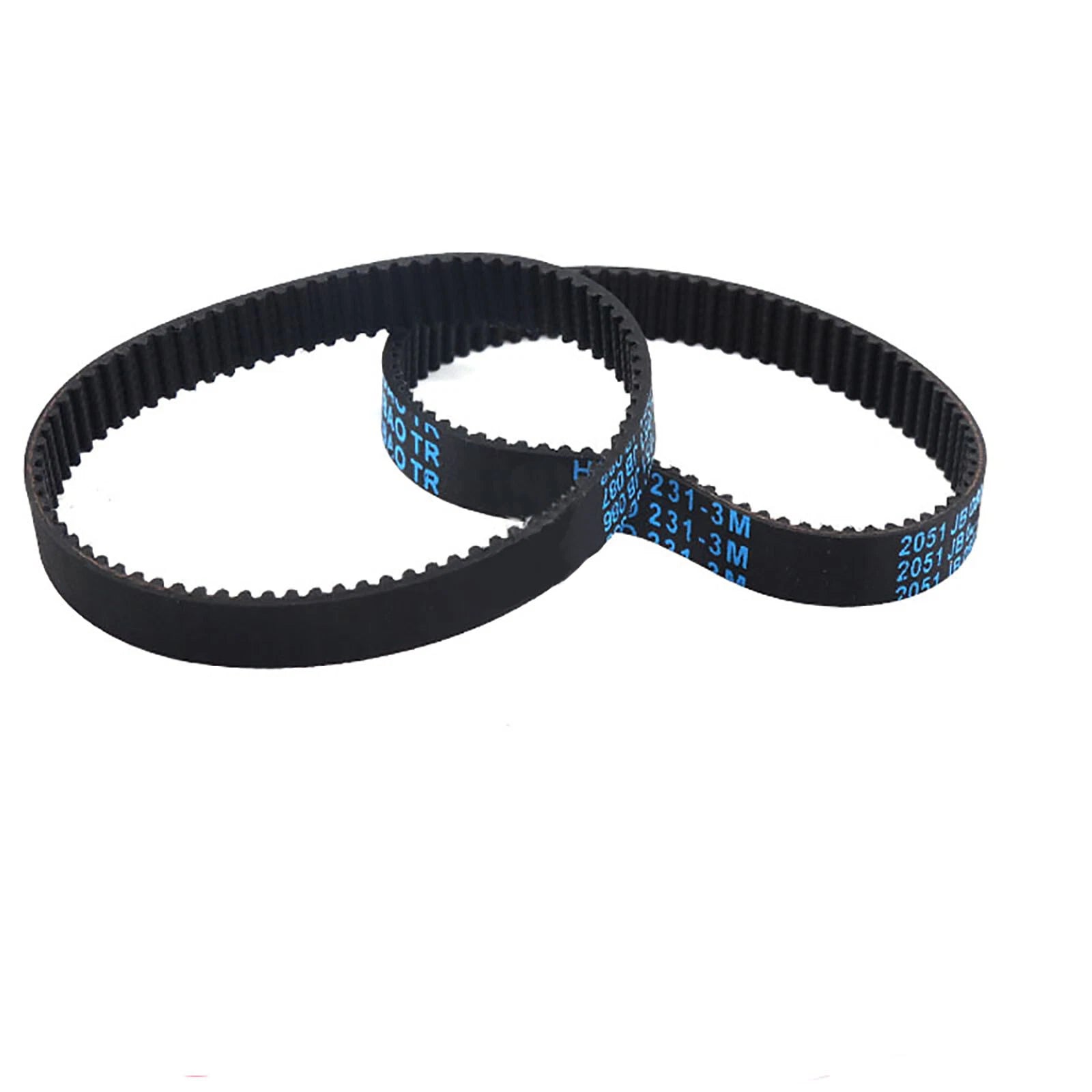

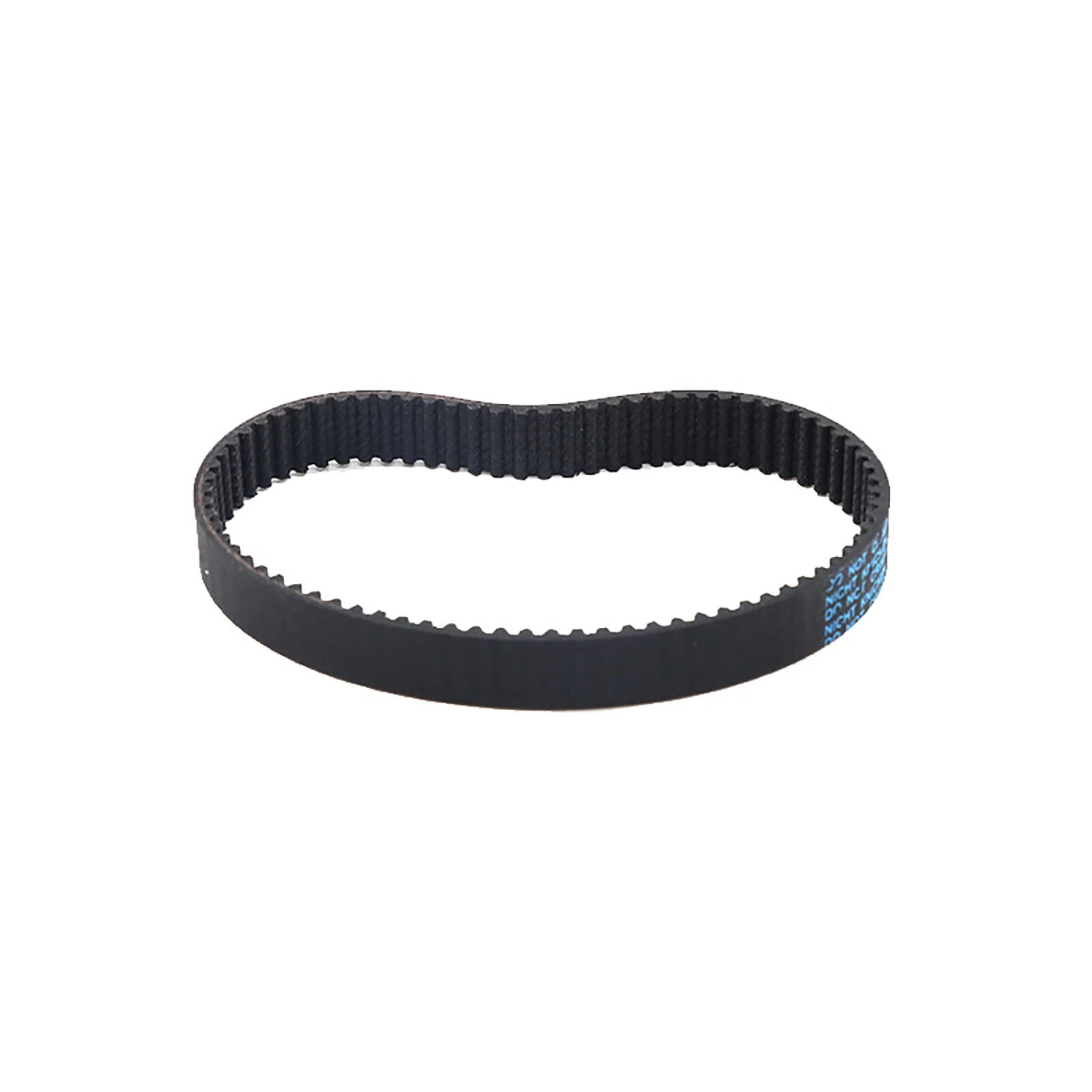

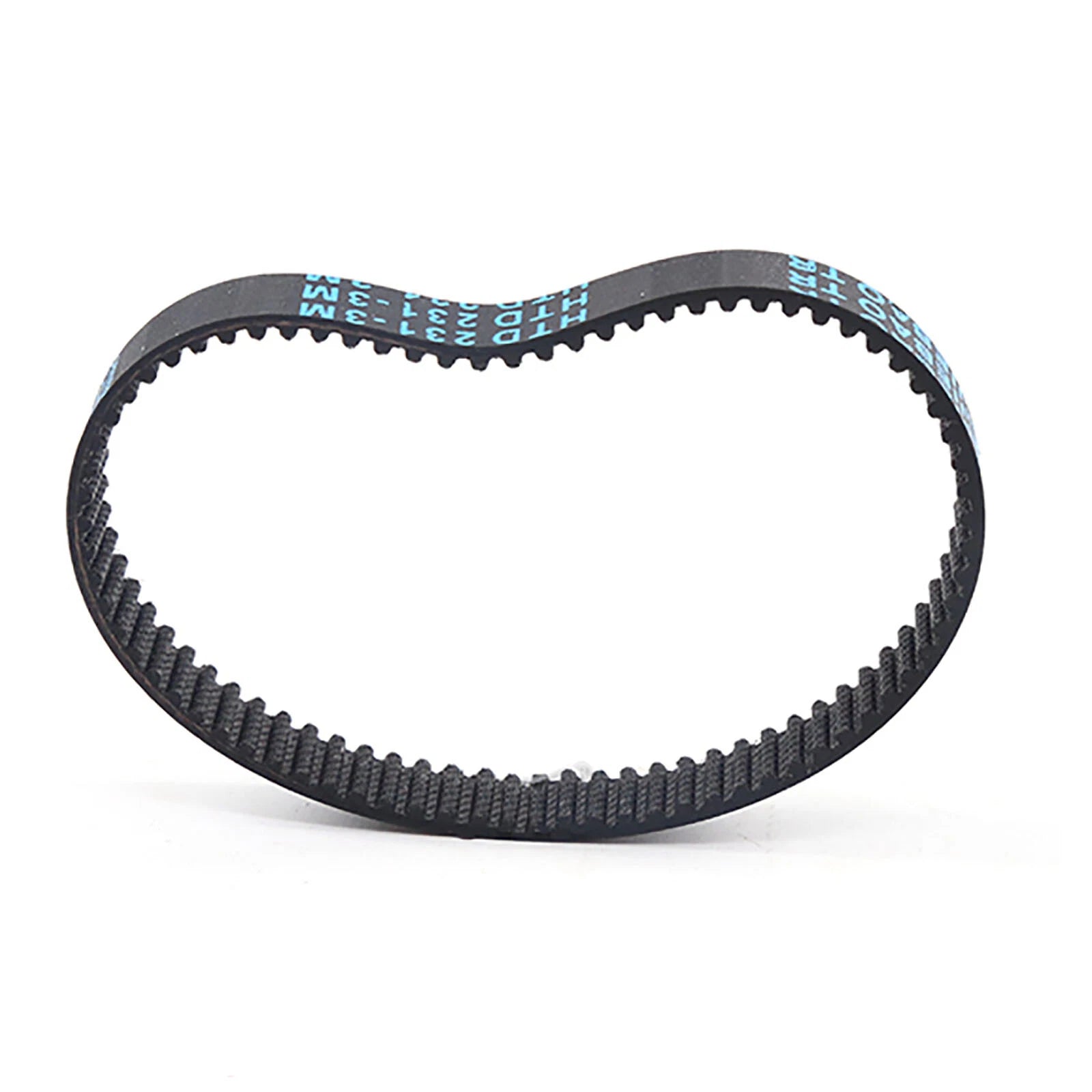

Each belt in this listing is a closed-loop rubber timing belt with a 3mm HTD pitch and a rounded tooth profile. Available in two widths — 10mm (≈3/8") and 15mm (≈19/32") — and in perimeter sizes ranging from 171mm (≈6.7") to 531mm (≈20.9"), with tooth counts from 57 to 177. You can order 1, 3, 5, or 10 pieces per variant to match your project scale. The belt body is rubber with fiberglass cord reinforcement for dimensional stability under load.

These HTD 3M closed loop timing belts are widely used as replacement drive belts for Creality Ender 3D printers, motion control belts for CoreXY and Cartesian printer frames, and power transmission belts for desktop CNC routers and laser engravers. They also serve well in light robotics, conveyor systems, and any application requiring a compact, slip-free closed-loop drive.

🔗 Compatibility: Fits any standard HTD 3M pulley (3mm pitch, rounded tooth profile). Commonly used in Creality Ender series, Voron, RatRig, and similar 3D printer platforms, as well as CNC routers and robotics with HTD 3M drive systems. Verify your pulley tooth count and belt perimeter before ordering.
⚠️ Size Note: Belt perimeter is the total outer loop length. Select the perimeter that matches your machine's specification. If unsure, measure center-to-center pulley distance and calculate: Perimeter ≈ 2 × C-to-C + (π × pulley pitch diameter). Contact us to confirm if needed.

✅ Key Features of These HTD 3M Closed Loop Timing Belts

  • ⚙️HTD 3M Standard Profile — 3mm pitch with rounded HTD tooth geometry ensures smooth meshing with standard HTD 3M pulleys, reducing backlash in 3D printer drive systems and CNC motion axes.
  • 🔄Closed-Loop Construction — Seamless loop eliminates splice points, maintaining consistent tension and preventing the belt stretch or slippage that open-ended belts can develop at joints.
  • 🧱Rubber Body with Fiberglass Cord — The rubber compound provides flexibility and grip, while the embedded fiberglass tension cord resists elongation under load — a key factor for accurate positioning in closed-loop timing belt drives.
  • 📐Wide Size Selection — Perimeters from 171mm (≈6.7") to 531mm (≈20.9") and widths of 10mm or 15mm cover a broad range of desktop 3D printer replacement belt and CNC router belt applications without custom cutting.
  • 📦Flexible Quantity Options — Choose 1, 3, 5, or 10 pieces per order. Ideal for single-axis repairs, dual-belt CoreXY builds, or stocking a workshop with spare HTD 3M drive belts.
  • 🚀Drop-In Replacement Fit — Dimensionally consistent with OEM HTD 3M belt specifications, making these a straightforward replacement for worn Creality, Ender, or generic 3M timing belt loops without frame modification.

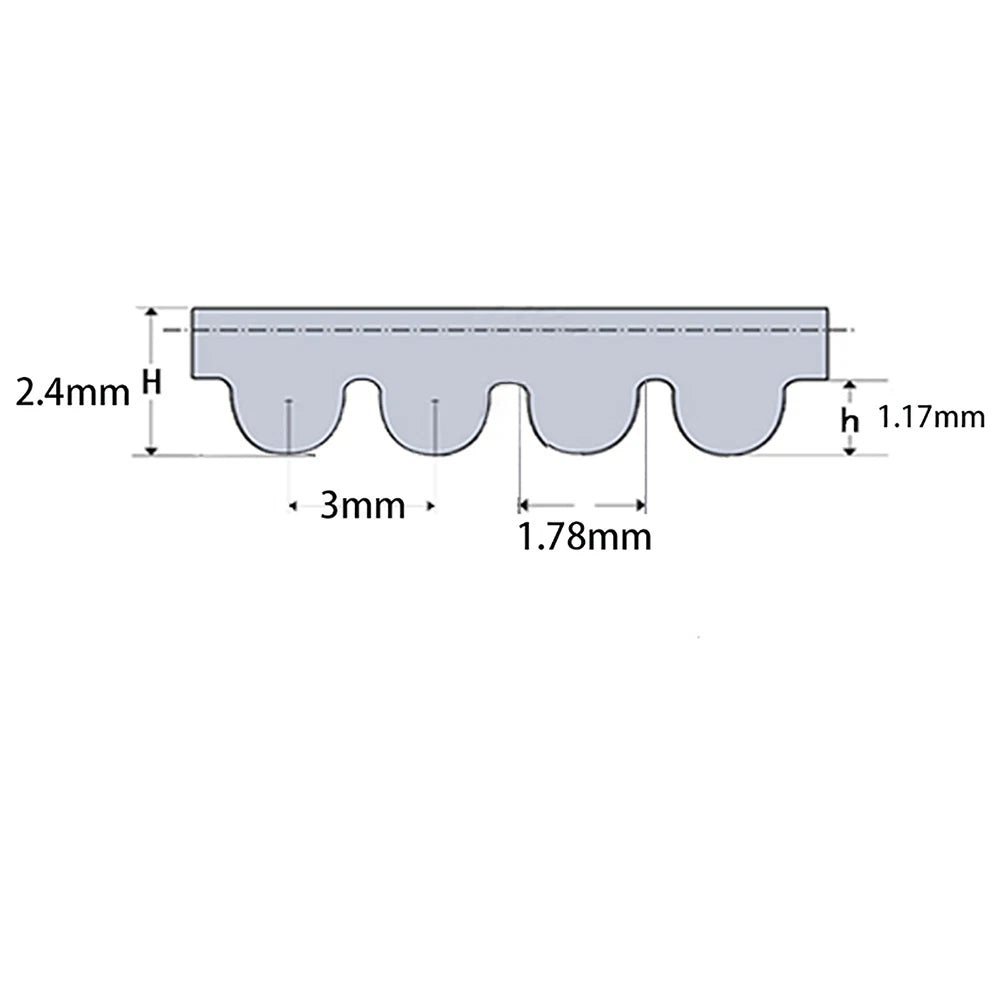

📐 Technical Specifications — HTD 3M Closed Loop Timing Belt

Belt Standard HTD (High Torque Drive) 3M
Pitch 3mm
Tooth Profile Rounded HTD profile
Available Widths 10mm (≈3/8") / 15mm (≈19/32")
Perimeter Range 171mm (≈6.7") – 531mm (≈20.9")
Tooth Count Range 57 – 177 teeth
Belt Type Closed loop (endless)
Material Rubber with fiberglass cord reinforcement
Color See variant options
Quantity per Order 1 / 3 / 5 / 10 pieces (select variant)
Compatible Pulley Standard HTD 3M (3mm pitch)
Typical Applications 3D printers, CNC routers, laser engravers, robotics
Operating Temperature Contact us to confirm

❓ Frequently Asked Questions

How do I choose the right perimeter length for my HTD 3M timing belt?

Measure the center-to-center distance between your two pulleys, then use the formula: Perimeter ≈ 2 × center distance + (π × pulley pitch diameter). For reference, a 57-tooth belt has a 171mm perimeter (≈6.7"), and a 177-tooth belt has a 531mm perimeter (≈20.9"). Always verify against your machine's spec sheet or the original belt markings before ordering.

What width should I choose — 10mm or 15mm?

10mm width is generally sufficient for light-duty applications such as desktop 3D printers (Ender, Voron, RatRig) and small CNC routers. 15mm width provides greater load capacity and is typically used in heavier CNC machines, robotics, or applications with higher torque requirements. When in doubt, match the width of your existing belt or pulley groove.

What load or torque can these HTD 3M belts handle?

HTD 3M belts are generally rated for moderate torque transmission. The 10mm width typically handles lighter loads, while the 15mm width supports higher tension. Exact load ratings depend on pulley diameter, operating speed, and wrap angle — consult your machine's engineering documentation for precise values. These belts are well-suited for the motion loads found in desktop 3D printers and light CNC systems.

Can these belts be used outdoors or in wet/oily environments?

The rubber compound offers moderate resistance to moisture and mild environmental exposure. However, prolonged contact with oils, solvents, or UV radiation may degrade the rubber over time. For outdoor or chemically exposed environments, inspect belts regularly and replace as needed. These belts are primarily designed for indoor machine applications.

Are these compatible with standard HTD 3M pulleys from Creality, Voron, or other brands?

Yes. These belts follow the HTD 3M standard — 3mm pitch, rounded tooth profile — and are compatible with any standard HTD 3M pulley regardless of brand. They are commonly used as replacement drive belts in Creality Ender 3, Ender 5, Voron 2.4, RatRig V-Core, and similar platforms. Always confirm the pulley tooth count matches your selected belt perimeter.

How do I decide between buying 1, 3, 5, or 10 pieces?

Choose 1 piece for a single-axis replacement. Choose 3 or 5 pieces for CoreXY or H-bot printers that use two belts, or to keep spares on hand. Choose 10 pieces for workshop stock, batch builds, or repair shops. Buying in larger quantities typically reduces the per-belt cost.

What machines commonly use HTD 3M closed loop timing belts?

HTD 3M closed loop timing belts are commonly found in FDM 3D printers (Creality Ender series, Voron, RatRig, Prusa clones), desktop CNC routers, diode laser engravers, pick-and-place machines, and light robotics. The closed-loop design eliminates splicing and ensures consistent tension throughout the belt's service life.

🛒 Select your perimeter, width, and quantity above, then add to cart — ships from our US warehouse.
