HTD 3M Timing Belt 20mm Wide — Reliable Power Transmission for Precision Drives

When a slipping or stretched belt throws off your CNC axis, ruins a 3D print, or stalls a conveyor mid-run, the root cause is usually a belt that wasn't built for the job. This HTD 3M timing belt is designed for engineers, makers, and machine builders who need consistent tooth engagement and zero-stretch performance across demanding duty cycles.

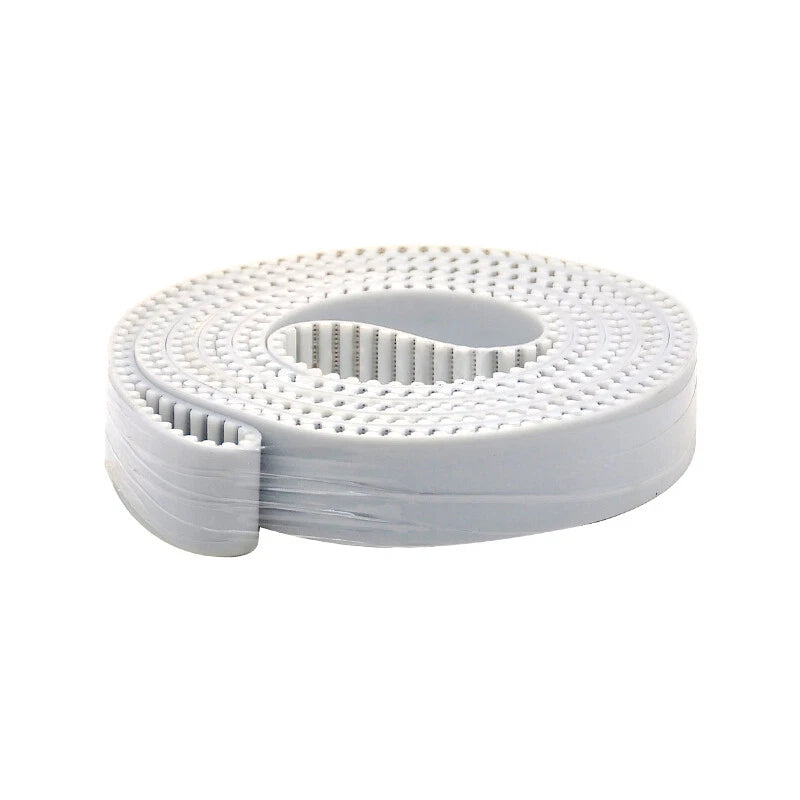

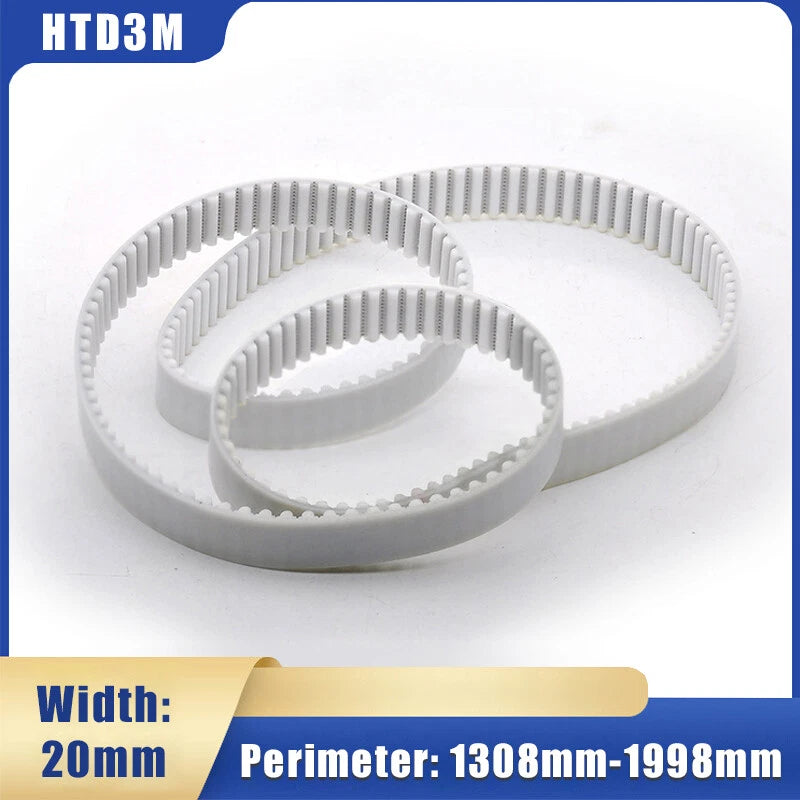

Each belt is a closed-loop polyurethane construction reinforced with a steel wire tensile cord. The HTD 3M tooth profile has a 3mm pitch and a rounded (curvilinear) tooth form. Belt width is 20mm. Perimeter options span 1308mm (≈51.5") to 1998mm (≈78.7"), available in 1-piece or 2-piece packs — select your exact perimeter and quantity from the variant dropdowns above.

Typical applications include CNC router X/Y axes, 3D printer drive systems, laser cutter gantries, robotic joint actuators, and light industrial conveyor drives where an HTD 3M synchronous belt replacement or upgrade is needed.

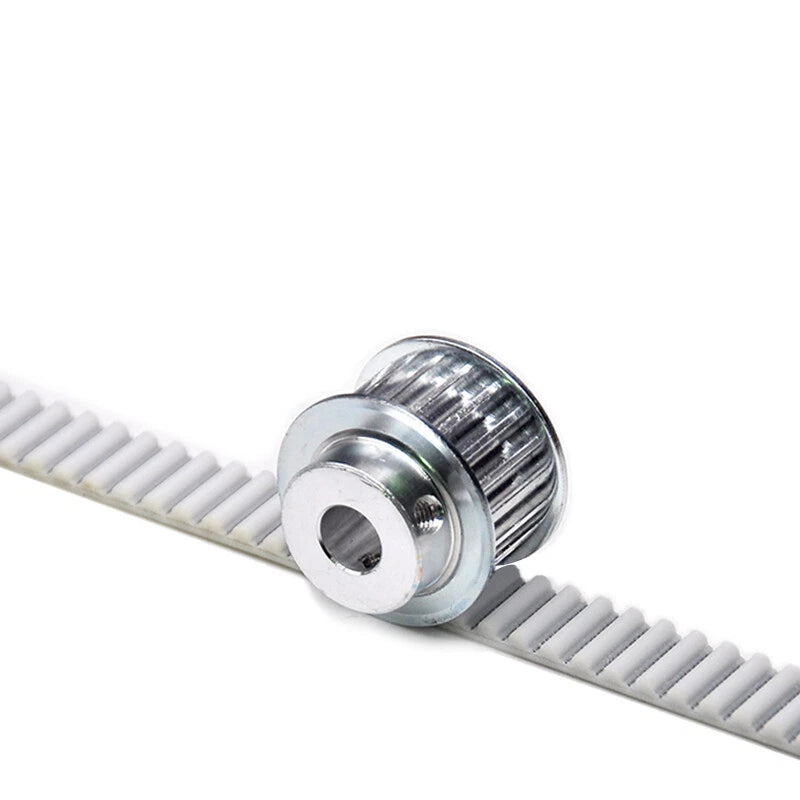

ℹ️ Compatibility: Fits any standard HTD 3M pulley (3mm pitch, rounded tooth). Confirm your pulley groove accommodates a 20mm wide belt before ordering. Perimeter must match your drive geometry — see FAQ below for sizing guidance.

✅ Key Features of These HTD 3M Polyurethane Timing Belts

  • ⚙️HTD 3M Tooth Profile — 3mm pitch curvilinear teeth provide smooth, low-noise meshing and reduce stress concentration compared to trapezoidal profiles, making them well-suited for precision motion control applications.

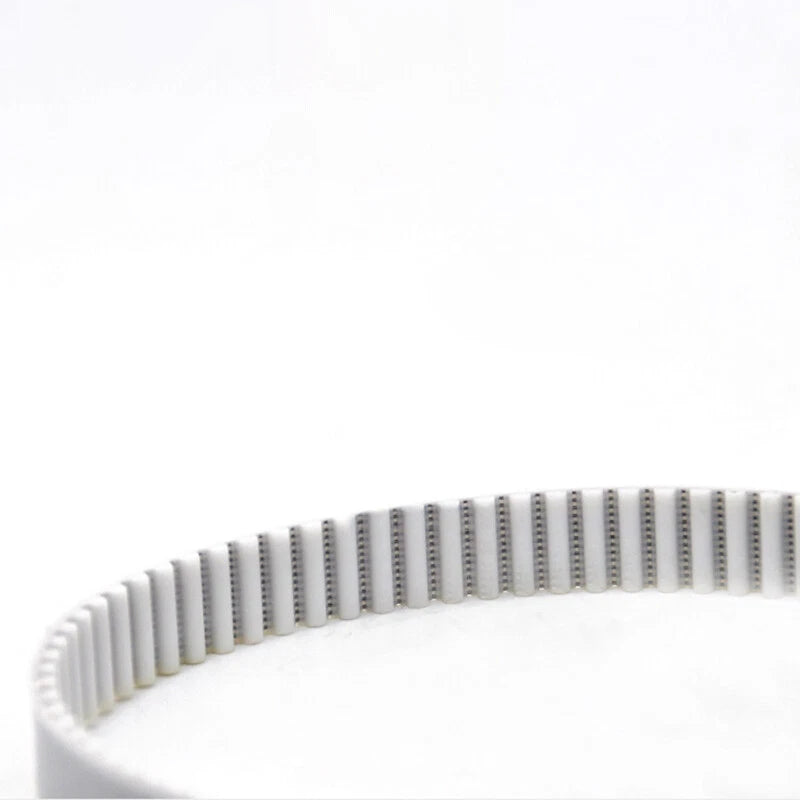

  • 🔩Steel Wire Tensile Core — Embedded steel cord resists elongation under load, maintaining consistent center-to-center distance and positional repeatability — critical for CNC and 3D printer HTD belt drives.
  • 🧪Polyurethane Construction — The belt body is molded from polyurethane, which offers better abrasion resistance and oil tolerance than standard rubber, extending service life in workshop and light industrial environments.
  • 📏Wide Perimeter Selection — Available in perimeters from 1308mm (≈51.5") to 1998mm (≈78.7") in 3mm increments across key size ranges, reducing the need for custom cuts or splicing on synchronous belt replacement projects.
  • 📐20mm Consistent Width — Uniform 20mm width across all perimeter variants ensures compatibility with the same pulley and tensioner hardware, simplifying multi-axis machine builds.
  • 📦Single or Twin Pack — Order 1 pcs for a single-axis replacement or 2 pcs to equip both axes or keep a spare on hand — both options ship from our US warehouse.

📐 Technical Specifications — HTD 3M Timing Belt

Belt Type HTD (High Torque Drive) Synchronous Belt
Tooth Pitch 3mm (HTD 3M)
Tooth Profile Curvilinear (rounded), HTD standard
Belt Width 20mm (0.79")

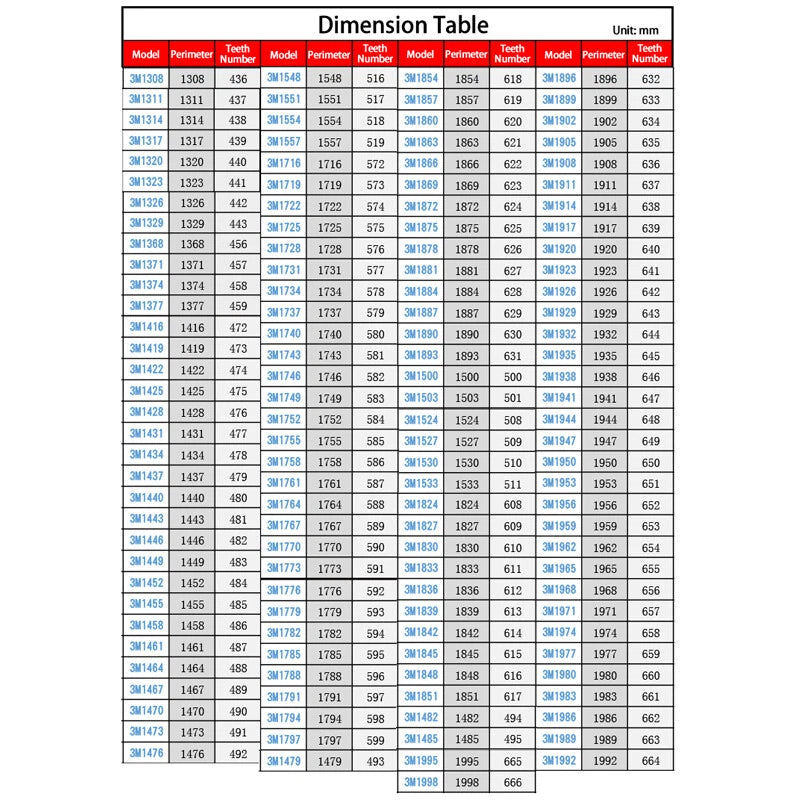

Perimeter Range 1308mm (≈51.5") – 1998mm (≈78.7")
Tensile Cord Material Steel wire
Belt Body Material Polyurethane (PU)
Belt Construction Closed loop (endless)
Packing Quantity 1 pcs or 2 pcs (select above)
Compatible Pulley Standard HTD 3M (3mm pitch, rounded groove)
Recommended Pulley Width See variant options
Operating Temperature Contact us to confirm
Color / Finish See variant options
⚠️ Sizing Note: Perimeter is the total outer circumference of the belt, not the center-to-center distance. If you are unsure which perimeter fits your machine, measure the old belt or calculate using your pulley geometry. See FAQ below for the formula.

❓ Frequently Asked Questions

How do I choose the right perimeter length for my HTD 3M timing belt?

Measure the center-to-center distance between your pulleys, then use the formula: Perimeter ≈ 2 × C + π × (D1 + D2) / 2. For example, a 1500mm (≈59.1") belt generally suits a drive with roughly 700mm center distance and standard HTD pulleys. Always verify against your machine's spec sheet before ordering. If replacing an existing belt, measure the old belt's outer circumference directly.

How do I convert the perimeter from mm to inches?

Divide the mm value by 25.4. Quick reference: 1308mm ÷ 25.4 ≈ 51.5"; 1500mm ÷ 25.4 ≈ 59.1"; 1998mm ÷ 25.4 ≈ 78.7". Use this to cross-reference with imperial-spec machines or documentation.

What load can this 20mm wide HTD 3M belt handle?

A 20mm wide HTD 3M polyurethane belt with steel wire tensile cords can typically transmit higher torque than a standard rubber belt of the same width. Exact capacity depends on pulley tooth count, operating speed, and wrap angle. In most cases this belt is suitable for light-to-medium duty CNC, 3D printing, and robotic actuator applications. Contact us to confirm suitability for high-load industrial drives.

Is this belt compatible with standard HTD 3M pulleys?

Yes. This belt follows the HTD 3M tooth profile standard (3mm pitch, rounded curvilinear tooth form), so it is compatible with any HTD 3M pulley of the appropriate width. Confirm your pulley groove width accommodates a 20mm belt before ordering.

Is this belt suitable for outdoor or high-humidity environments?

Polyurethane timing belts generally offer better resistance to oils, mild chemicals, and moisture than rubber belts. However, prolonged UV exposure or immersion in water is not recommended. For outdoor installations, shield the belt from direct sunlight when possible to extend service life.

Can I use this belt on a 3D printer, CNC router, or laser cutter?

Yes. HTD 3M belts are widely used in 3D printers, CNC routers, laser cutters, and robotic actuators where precise, low-backlash motion is required. The steel wire core provides dimensional stability under tension, which is important for positional accuracy in these applications.

What is the difference between the 1 pcs and 2 pcs options?

Both options ship the same belt at the same perimeter. Choosing 2 pcs gives you a spare or allows you to equip two axes simultaneously. The 2-pcs pack is priced at a discount compared to purchasing two single units separately.

🛒 Select your perimeter and packing quantity above, then add to cart — ships from our US warehouse.
