Belt tension loss and misalignment are among the most common causes of print artifacts in 3D printers and positioning errors in CNC machines. Engineers, makers, and automation builders who need reliable HTD 5M idler pulleys to redirect or tension their drive belts require a component that fits precisely, runs quietly, and holds up under continuous cyclic loading. This listing covers a comprehensive range of aluminum HTD 5M idler pulleys spanning 12 to 50 teeth, available in both toothless (smooth bore idler) and with-teeth (driven) hub configurations.

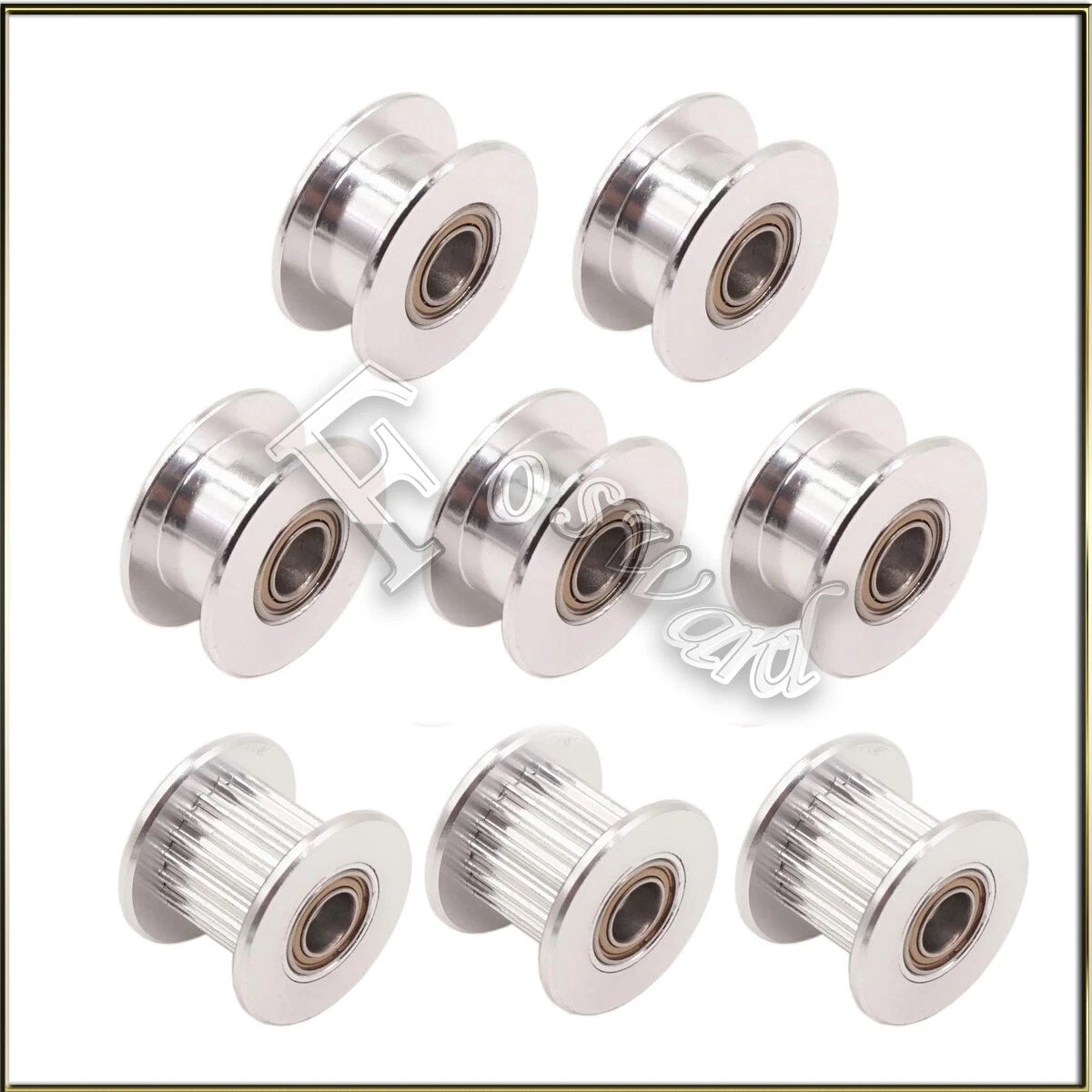

Each pulley is machined from aluminum alloy with a natural or anodized finish, keeping rotational inertia low while maintaining dimensional rigidity. Bore diameters range from 3mm to 30mm (approximately 0.118” to 1.181”), covering shaft sizes from small stepper motor outputs to larger servo and spindle shafts. Belt width compatibility spans 15mm and 20mm HTD 5M belts, with flanged edges on most variants to keep the belt tracking true during operation.
Typical use cases include 3D printer belt tensioner and idler assemblies (CoreXY, Cartesian, and delta kinematics), desktop CNC router belt-drive axis redirection, laser engraver gantry idler systems, and lightweight robotic arm belt transmission stages requiring low-noise HTD 5M belt routing.
| Belt Profile | HTD 5M (5mm pitch) |
|---|---|
| Belt Width Compatibility | 15mm or 20mm (see variant options) |
| Tooth Count Options | 12T, 15T, 16T, 18T, 20T, 25T, 30T, 35T, 36T, 40T, 50T |
| Hub Type | Toothless (smooth idler) or With Teeth (driven) |
| Bore Diameter Options | 3, 4, 5, 6, 7, 8, 9, 10, 12, 15, 20, 30mm |
| Material | Aluminum alloy |
| Finish | Natural anodized / silver |
| Outer Diameter | See variant options |
| Hub Length / Width | See variant options |
| Shaft Retention | See variant options |
| Weight | See variant options |

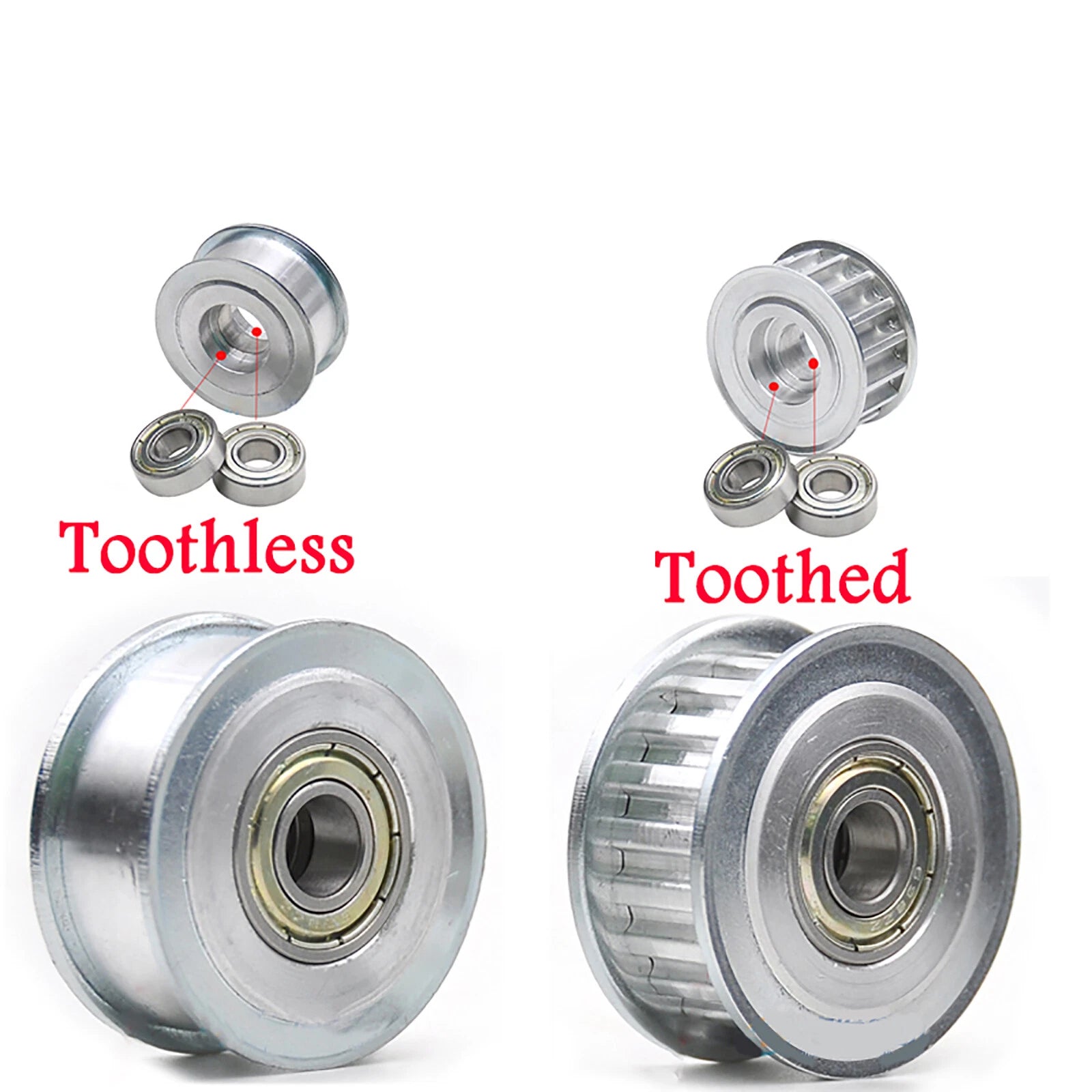

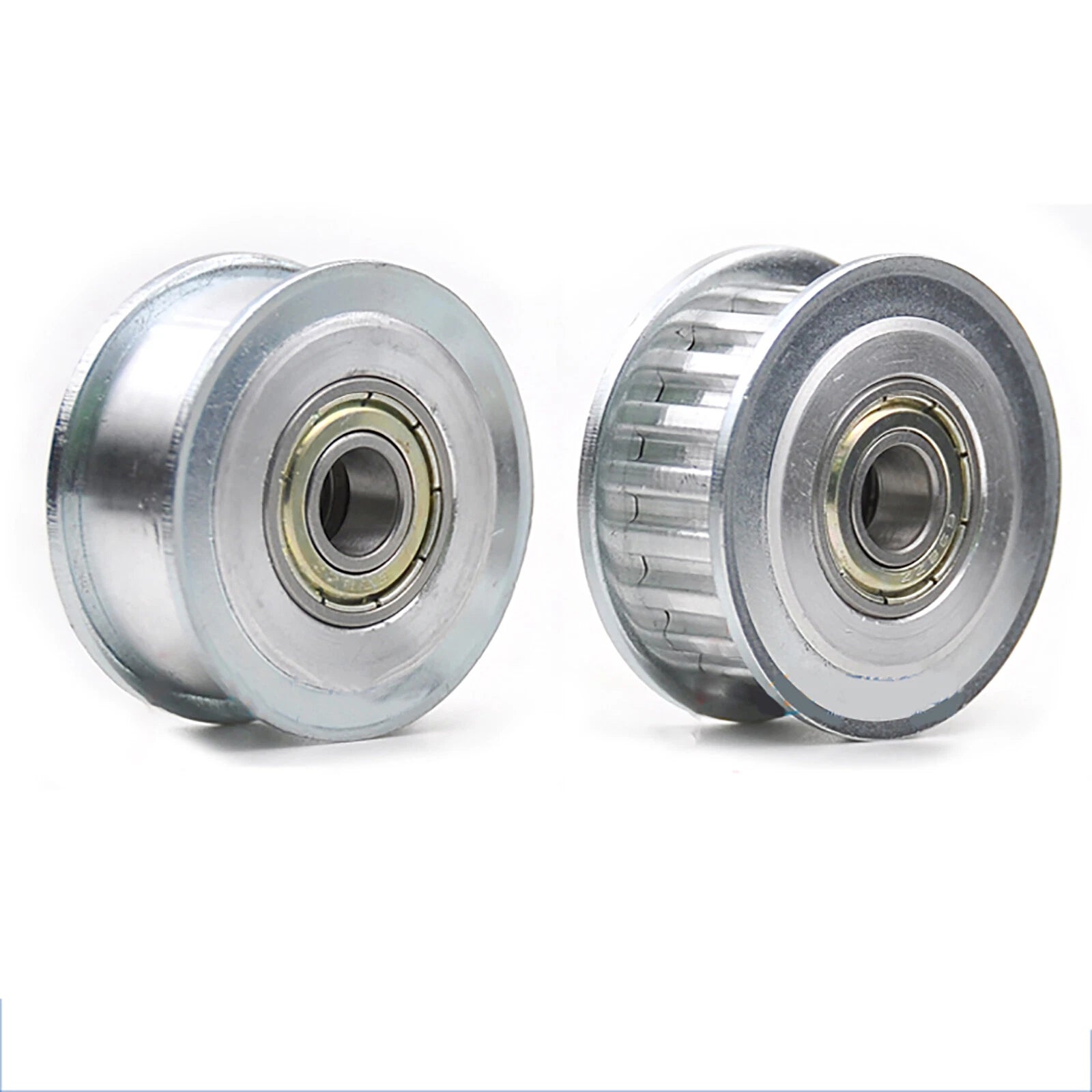

Toothless (smooth) idler pulleys are used to redirect or tension a belt without engaging the belt teeth. They are the correct choice for idler positions in a belt drive system where the belt simply wraps around the pulley. With-Teeth variants have a matching HTD 5M tooth profile on the pulley body and are used as driven pulleys that positively mesh with the belt to transmit torque from a motor shaft.
For idler pulleys (toothless), tooth count primarily affects the pulley diameter and therefore the belt wrap angle and minimum bend radius. Larger tooth counts mean a larger diameter, which reduces belt fatigue at the idler. For driven pulleys (with teeth), tooth count determines your drive ratio and belt speed. Match the tooth count to your existing drive pulley and firmware steps-per-mm calibration when replacing a component.
Standard NEMA 17 stepper motors have a 5mm output shaft. Select the 5mm bore variant. If your motor has a D-flat on the shaft, pair the pulley with a set-screw that bears against the flat for maximum torque transfer. NEMA 23 motors typically use 6.35mm (1/4”) or 8mm shafts — select accordingly.
Yes. These pulleys are compatible with both open-loop HTD 5M timing belts and closed-loop HTD 5M belt loops, provided the belt width matches the selected variant (15mm or 20mm) and the pitch is 5mm. For closed-loop belts, verify that the inner circumference of the belt loop matches the center distance and pulley tooth count of your system.
Aluminum alloy with an anodized finish offers good corrosion resistance in typical indoor workshop, laboratory, and light-industrial environments. The HTD tooth profile distributes belt load across multiple teeth simultaneously, which significantly reduces localized wear compared to single-point contact drive systems. For high-humidity or outdoor environments, periodic inspection is recommended.
Match the belt width option to the actual width of your HTD 5M belt. Using a 15mm pulley with a 20mm belt will cause the belt to overhang the pulley flanges and risk derailment. Using a 20mm pulley with a 15mm belt will leave the belt floating laterally within the flanges, which may cause tracking issues under load. Measure your existing belt or check your machine's BOM before ordering.
Yes. Toothless HTD 5M idler pulleys are widely used as belt tensioners and redirection idlers in CoreXY, HBot, and Cartesian 3D printer builds. Select the toothless variant with the bore diameter that matches your idler shaft or bearing outer diameter. For bearing-mounted idlers, you may need to press-fit a bearing into the bore — confirm the bore diameter matches your bearing outer diameter before ordering.
