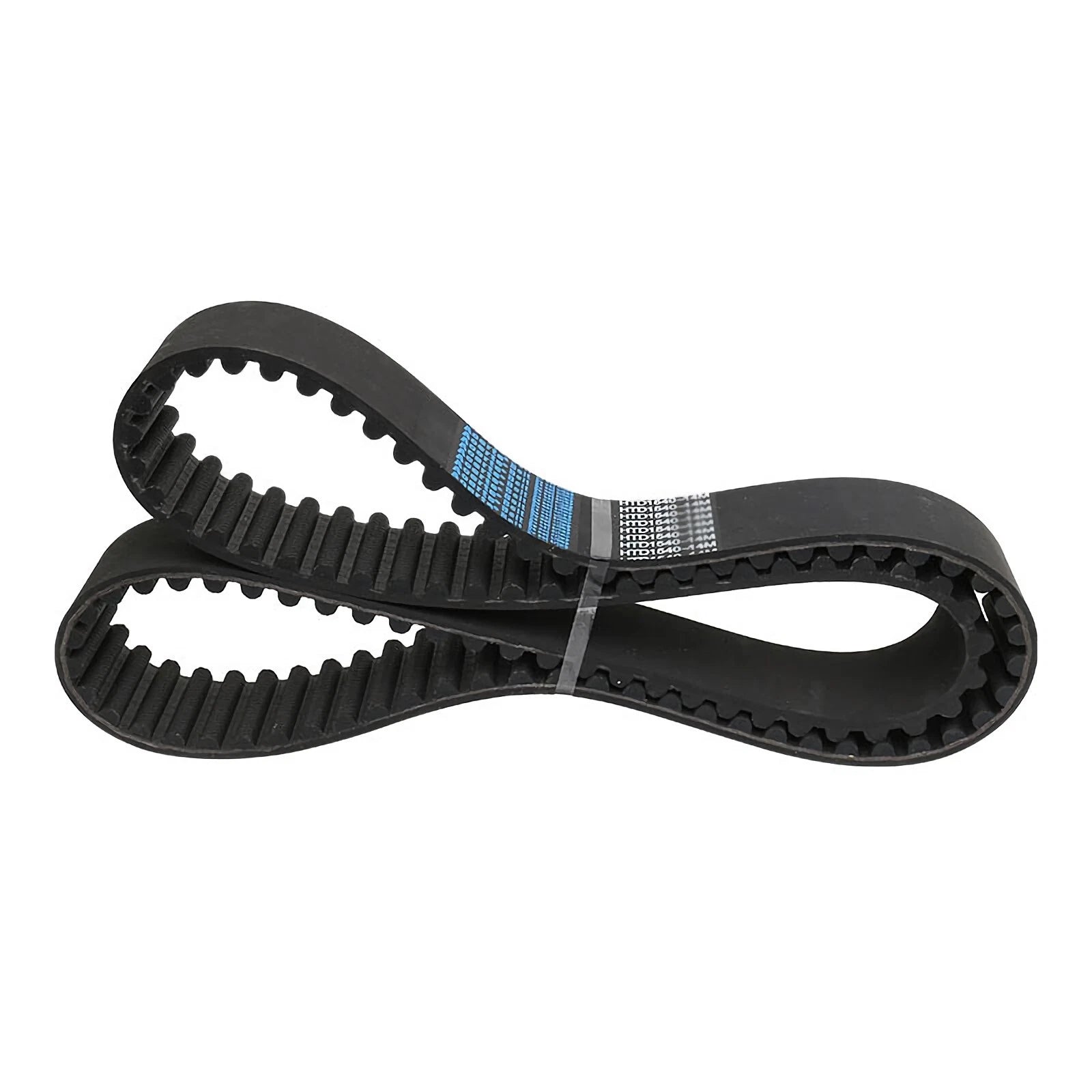

HTD 5M Timing Belt 15mm Wide — Reliable 5mm Pitch Drive Belt for CNC, Robotics & Automation

When a slipping or mismatched drive belt brings your CNC router, laser cutter, or robotic arm to a halt, the cost isn't just the belt — it's lost time, ruined workpieces, and missed deadlines. Builders, makers, and automation engineers who need a dependable HTD 5M timing belt with consistent tooth engagement and accurate pitch will find this belt a straightforward, no-fuss replacement or upgrade.

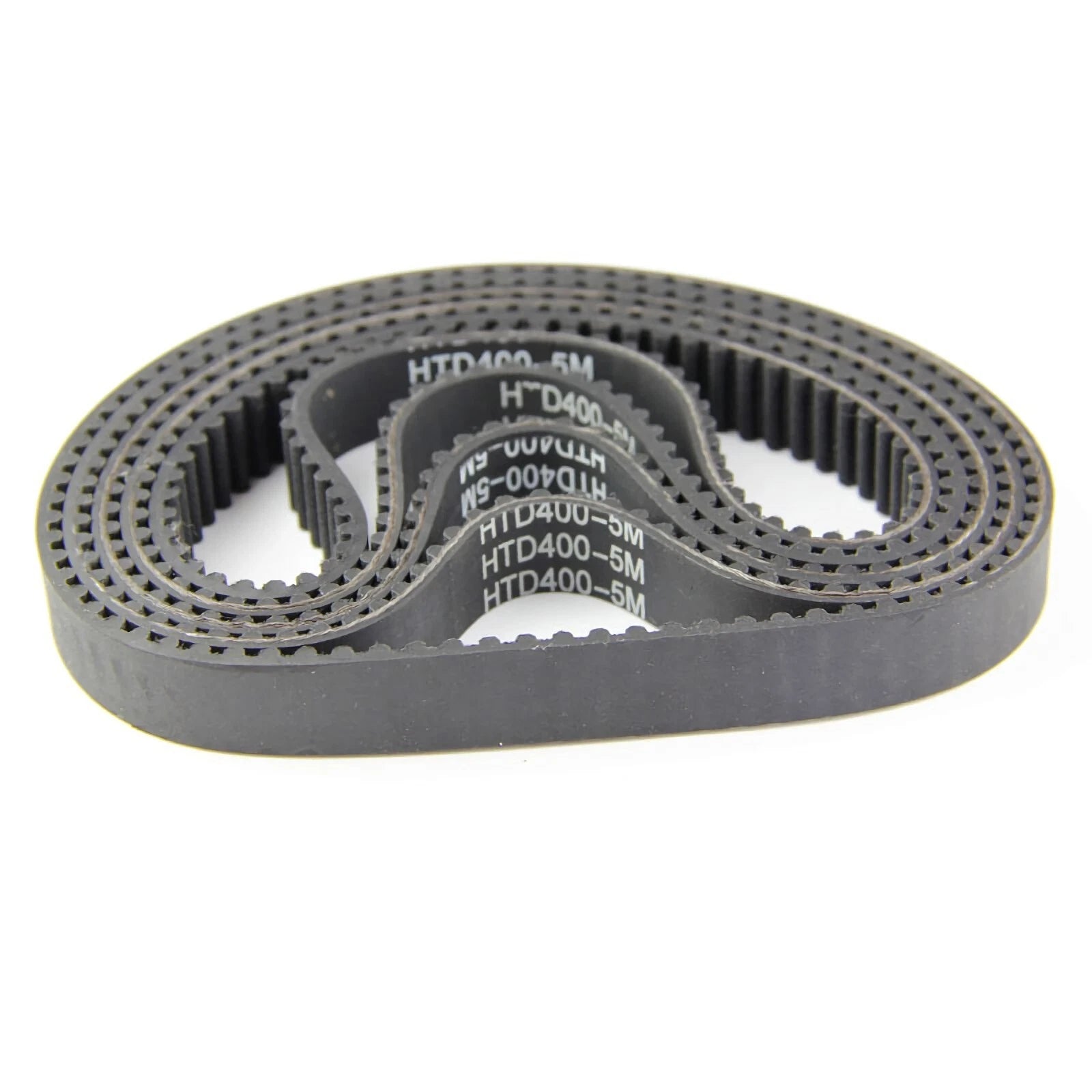

Each belt features the HTD 5M tooth profile with a 5mm pitch and 15mm width, constructed from neoprene rubber with a nylon tooth facing and internal tensile cord reinforcement. Available in pitch circumferences from 175mm (≈6.9") to 2100mm (≈82.7"), covering a wide range of drive configurations. Sold individually — one belt per order.

Typical applications include CNC router X/Y axis drives, laser engraver gantry systems, 3D printer motion systems requiring higher torque than GT2, robotic joint actuators, and conveyor or indexing mechanisms in light industrial automation.

ℹ️ Compatibility Notice: This belt uses the HTD 5M tooth profile (5mm pitch). Compatible only with HTD 5M pulleys. Not interchangeable with GT2, T5, XL, or MXL pulleys. Verify your pulley profile before ordering.

✅ Key Features of These HTD 5M Timing Belts

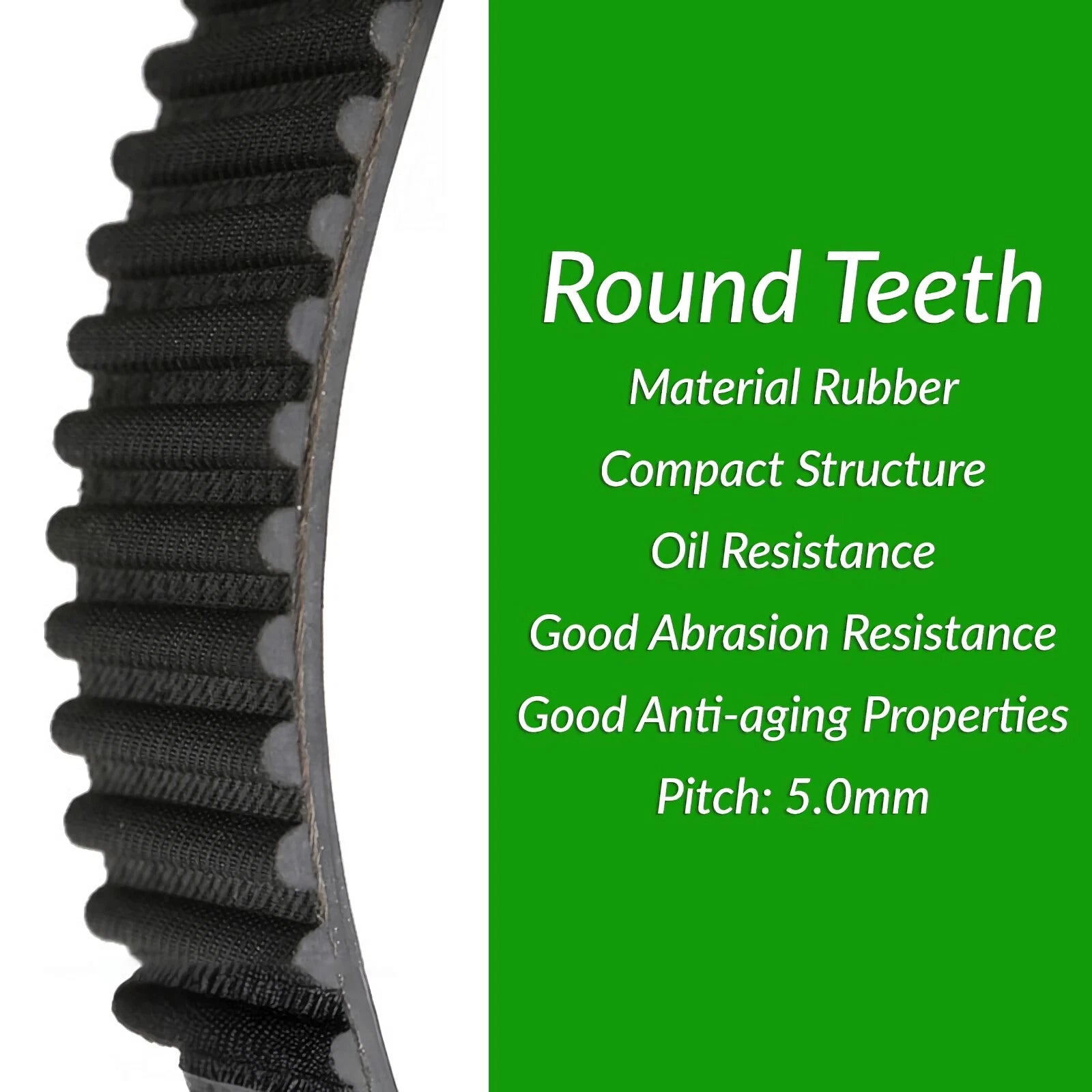

  • ⚙️HTD 5M Tooth Profile — Rounded HTD tooth geometry provides positive engagement with HTD 5M pulleys, reducing tooth jump under load in CNC router and robotics drive systems.
  • 📏Wide Size Selection — Available in pitch circumferences from 175mm to 2100mm, making it straightforward to find the correct belt length for custom-built or replacement drive systems.
  • 🔩15mm Belt Width — Greater contact area than narrower 6mm or 9mm variants, supporting higher torque transmission in demanding CNC and automation applications.

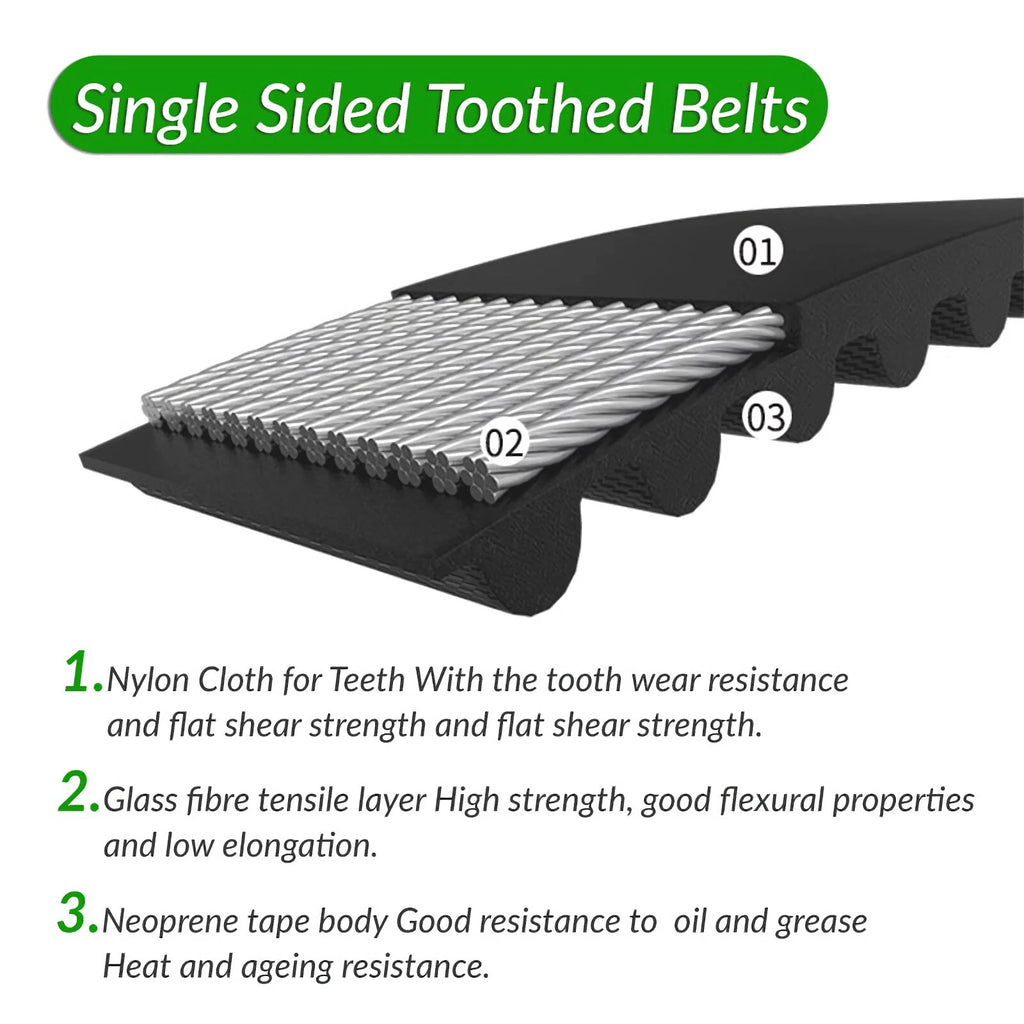

  • 🛡️Neoprene Body with Nylon Tooth Facing — Resists moderate oil and moisture exposure; nylon facing reduces wear during continuous operation in 3D printer and conveyor drive systems.
  • 🔗Internal Tensile Cord Reinforcement — Limits elongation under load, maintaining consistent pitch spacing critical for accurate CNC axis positioning and repeatable motion.
  • 🔄Single-Sided Toothed Design — Teeth on one side only, suitable for standard two-pulley open or closed loop drive configurations in robotics, laser cutters, and linear motion systems.

📐 Technical Specifications — HTD 5M Timing Belt

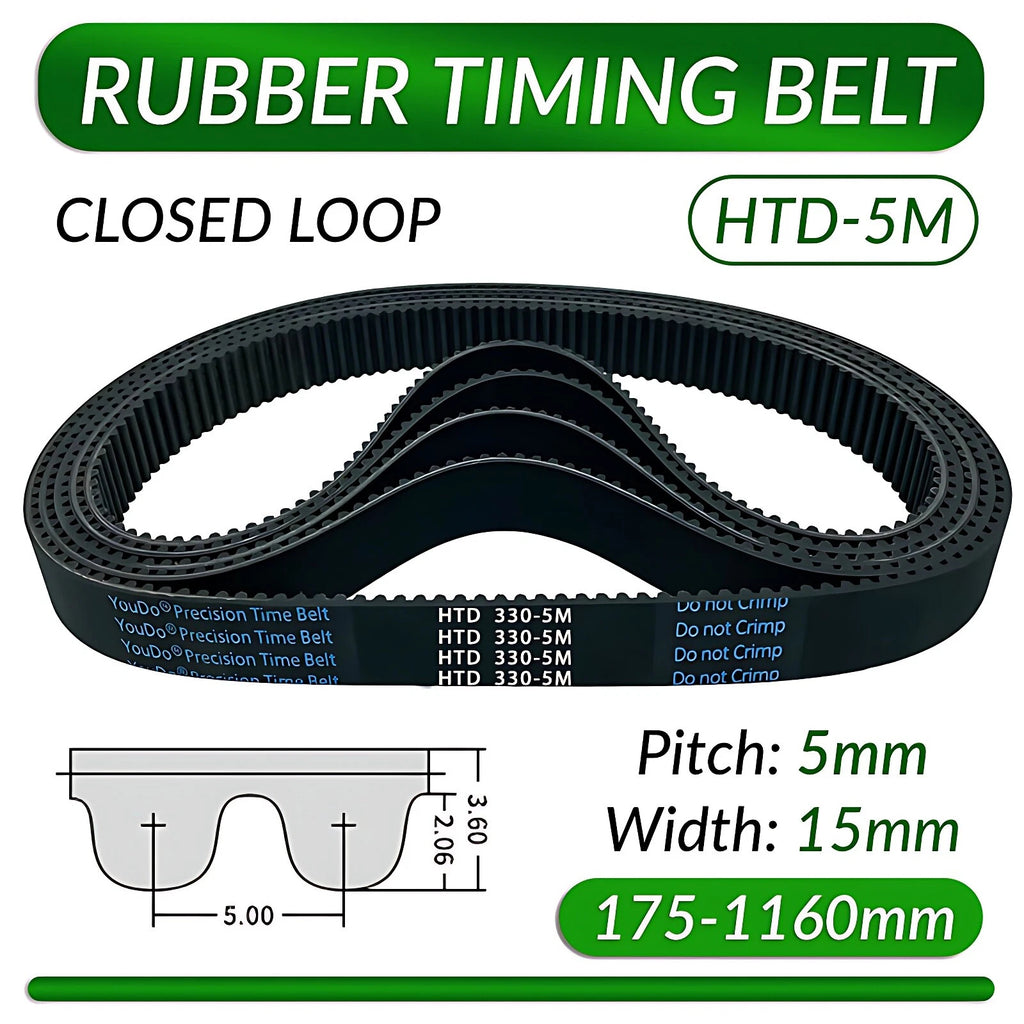

Belt Profile HTD 5M
Pitch 5mm (0.197")
Belt Width 15mm (≈0.59")
Tooth Style Single-sided, rounded HTD profile

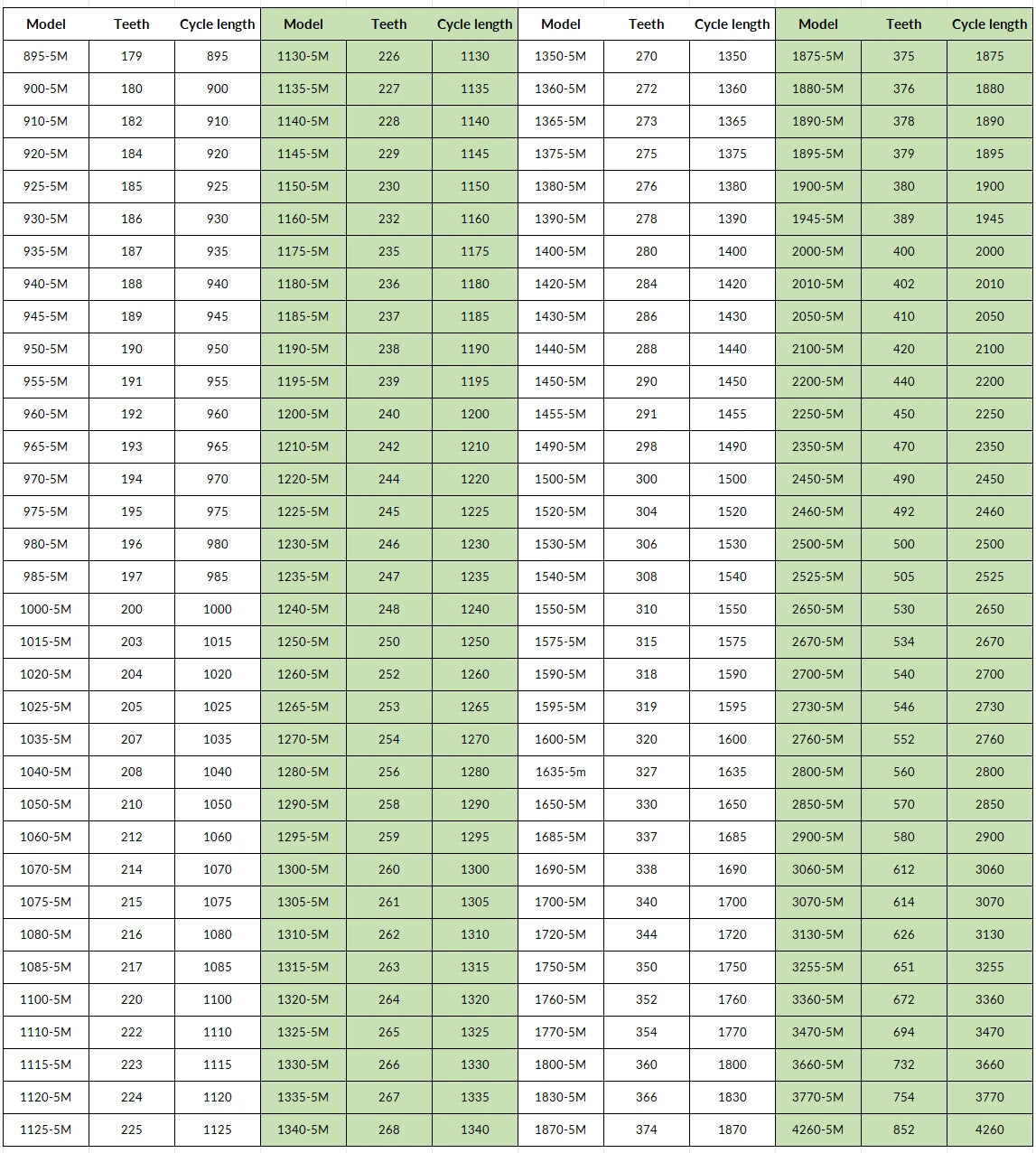

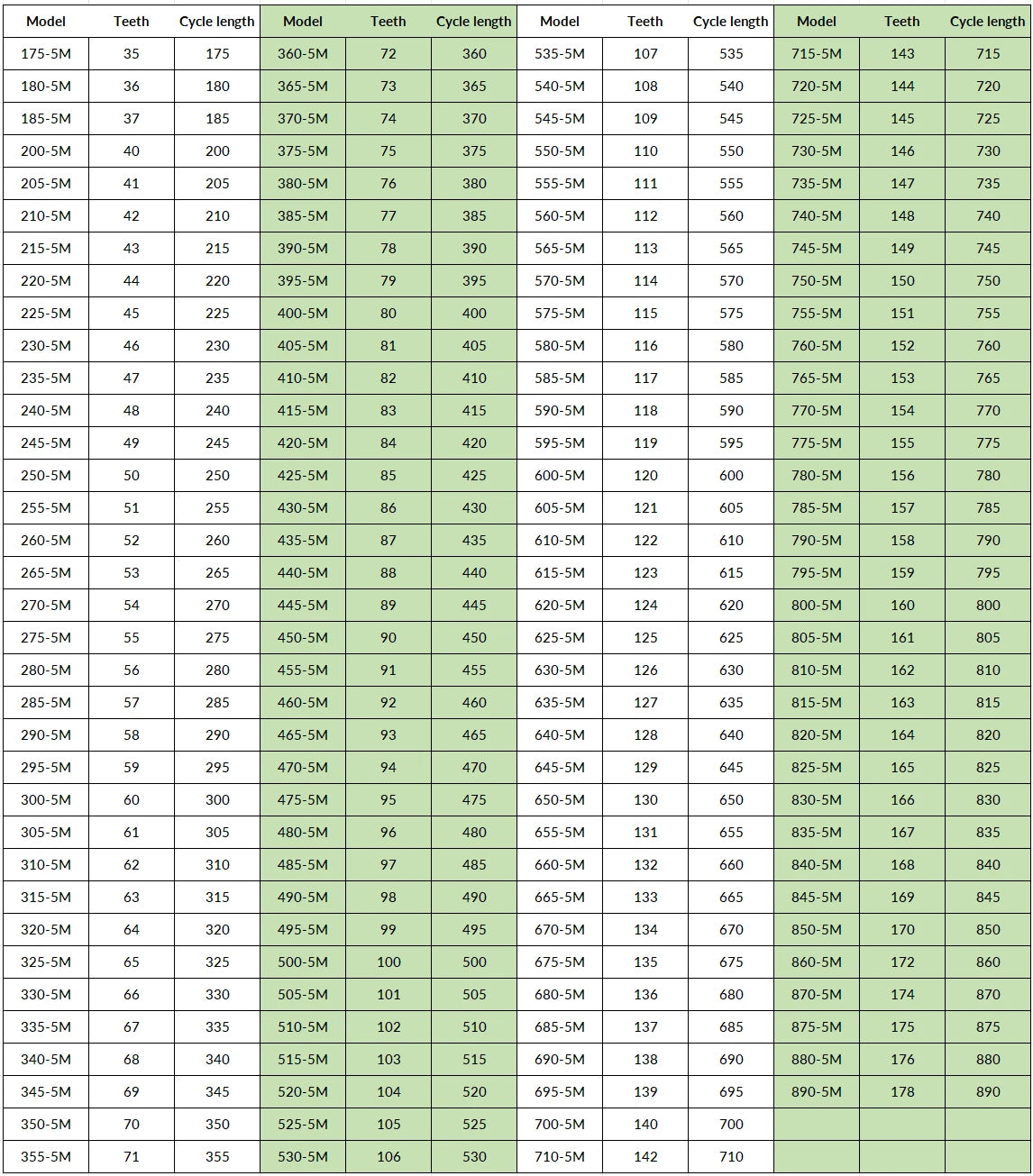

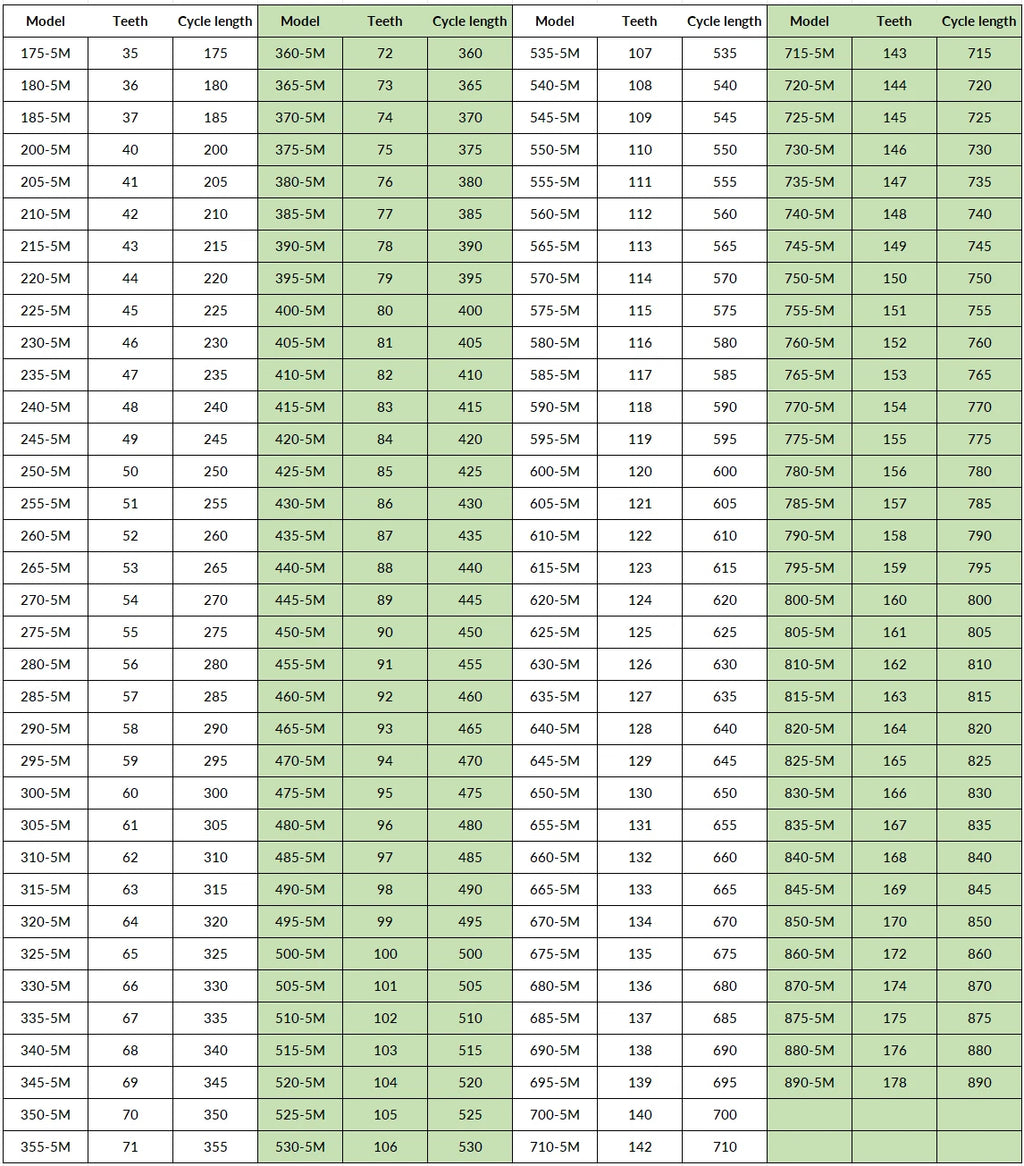

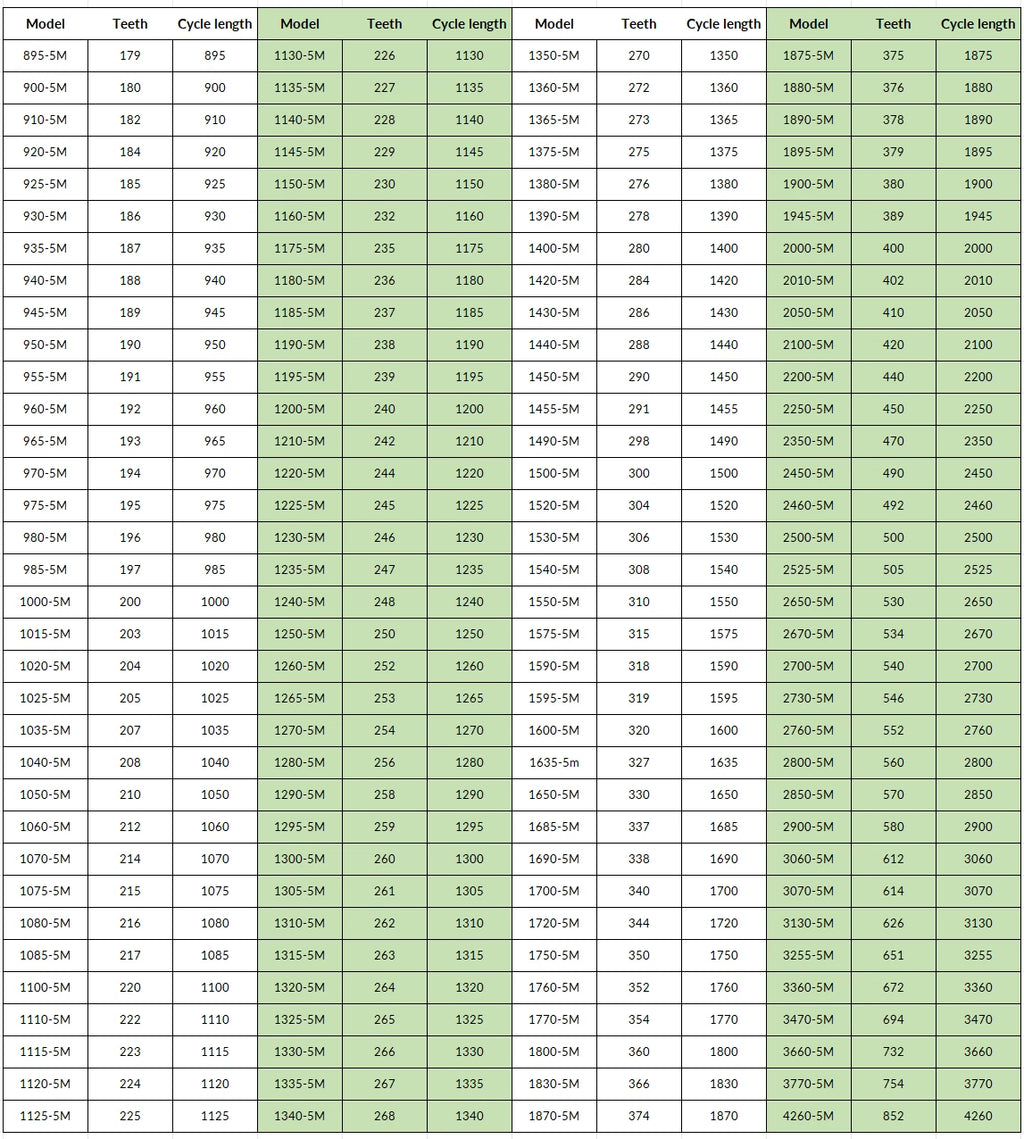

Available Pitch Circumference 175mm (≈6.9") — 2100mm (≈82.7")
Material Neoprene rubber body, nylon tooth facing
Reinforcement See variant options
Tooth Count Varies by size (pitch circumference ÷ 5mm)
Compatible Pulley Profile HTD 5M only
Quantity per Order 1 belt
Operating Temperature Contact us to confirm
Color Black
⚠️ Size Selection Tip: The belt size number (e.g., "500") is the pitch circumference in millimeters. Divide by 25.4 to convert to inches. Measure your existing belt or calculate from your pulley center distance before selecting a size.

❓ Frequently Asked Questions

How do I choose the right belt length for my machine?

Measure the center-to-center distance between your two pulleys, then calculate: L = 2C + π(D1+D2)/2. The belt size number (e.g., 500) is the pitch circumference in millimeters — 500mm is approximately 19.7". If replacing an existing belt, measure the old belt's pitch circumference directly. Always verify against your pulley specs before ordering.

What tensile strength can I expect from this timing belt?

HTD 5M belts generally provide tensile load capacity suitable for light-to-medium power transmission. Internal cord reinforcement typically delivers tensile strength in the range of 500–1500 N depending on belt length and construction. Consult your drive system's torque requirements to confirm suitability for your specific application.

Can this belt be used outdoors or in wet environments?

HTD 5M belts are typically made from neoprene rubber with a nylon tooth facing, offering moderate resistance to oil, moisture, and mild chemicals. They are generally not recommended for prolonged submersion or highly corrosive environments. For outdoor use, shield the belt from direct UV exposure when possible to extend service life.

What pulley profile is compatible with this belt?

This belt uses the HTD 5M tooth profile with a 5mm pitch. It is compatible with HTD 5M pulleys only — not interchangeable with MXL, XL, T5, GT2, or other profiles. Mixing profiles causes tooth jump or premature wear. Always match belt profile and pitch to your pulley specification.

How do I convert the belt size number to inches?

The belt size number is the pitch circumference in millimeters. Divide by 25.4 to convert to inches. Examples: 500mm ÷ 25.4 = ≈19.7" | 1000mm ÷ 25.4 = ≈39.4" | 1500mm ÷ 25.4 = ≈59.1". Select the size closest to your calculated or measured belt circumference.

Is this belt suitable for 3D printers and CNC routers?

Yes. HTD 5M belts are widely used in CNC routers, laser cutters, larger-format 3D printers, and robotic actuators where higher torque transmission is needed compared to GT2 belts. Confirm your machine uses HTD 5M pulleys before ordering — many desktop 3D printers use GT2, not HTD 5M.

What is the difference between HTD 5M and GT2 timing belts?

HTD 5M has a 5mm pitch with a rounded tooth profile designed for higher torque applications. GT2 has a 2mm pitch with a modified curvilinear tooth profile optimized for precision and low backlash at lighter loads. They are not interchangeable. Choose HTD 5M when your drive system requires greater torque capacity over longer spans.

🛒 Select your belt size above, then add to cart — ships from our US warehouse.
