HTD 5M Timing Belt — Precise, Slip-Free Power Transmission for Makers and Engineers
When a slipping V-belt or mismatched drive component brings your CNC router, 3D printer, or automation project to a halt, the fix is a properly sized HTD 5M timing belt. Hobbyists, robotics engineers, and machine builders rely on closed-loop synchronous belts to maintain exact positional accuracy — and this HTD 5M timing belt delivers exactly that, without the guesswork of open-ended belt cutting.

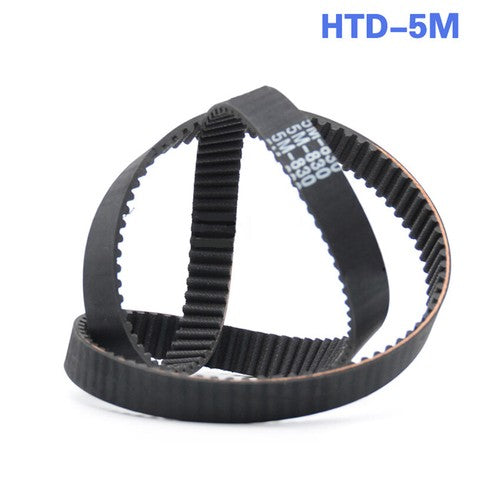

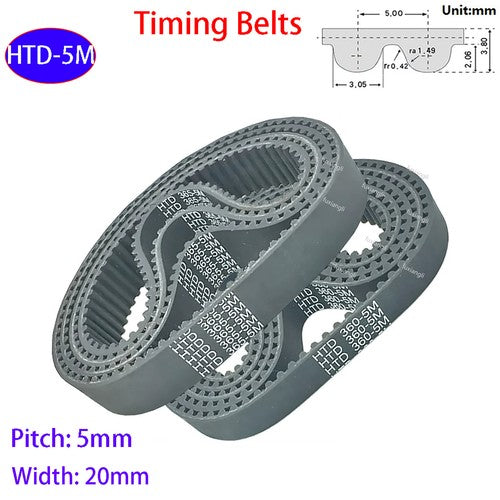

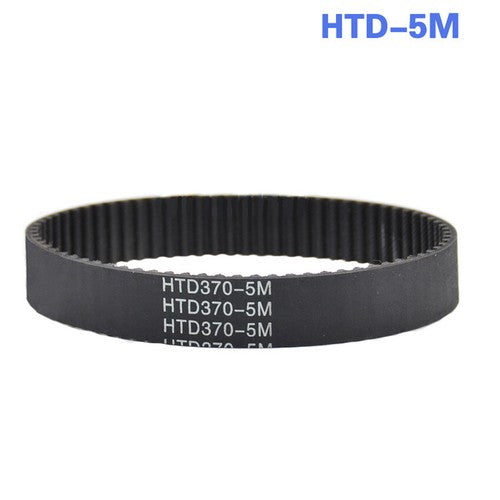

Each belt is a closed-loop rubber timing belt with an HTD (High Torque Drive) tooth profile, 5mm pitch, and 20mm width. Perimeter sizes range from 170mm (≈6.7") to 3750mm (≈147.6"), with teeth counts from 34 to 750 — select your exact model from the dropdown above. The rubber construction with internal fiber reinforcement provides flexibility, tensile strength, and quiet operation across a wide speed range.
Typical applications include CNC axis drives and HTD 5M belt replacement for routers and plasma tables, closed-loop drive systems for robotic arms and pick-and-place machines, and large-format 3D printer Y-axis or Z-axis belt upgrades where a 5mm pitch synchronous belt is specified.
ℹ️
Compatibility Notice: HTD 5M belts are only compatible with HTD 5M pulleys (5mm pitch, HTD tooth profile). They are not interchangeable with GT2, T5, MXL, or XL profile pulleys. Verify your pulley specification before ordering.
✅ Key Features of These HTD 5M Closed-Loop Rubber Timing Belts
-

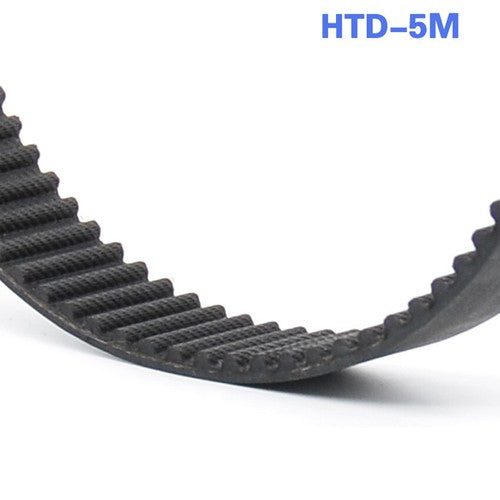

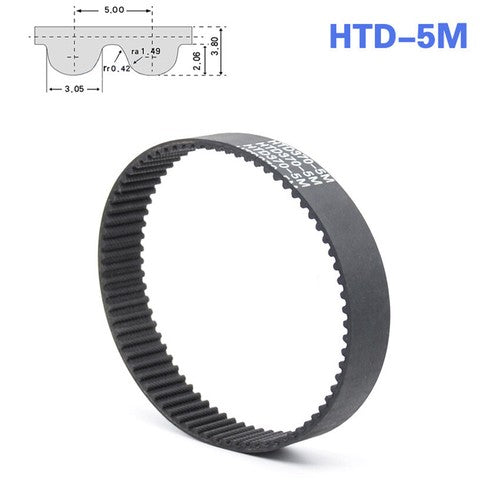

⚙️HTD 5mm Pitch Tooth Profile — The curved HTD tooth geometry distributes load across a larger contact area than trapezoidal profiles, reducing tooth shear stress in moderate-torque CNC and robotics drive systems.
-
📏Wide Size Selection (170mm–3750mm) — With over 200 perimeter options in 5mm increments, you can find an exact-fit HTD 5M belt replacement without resorting to custom fabrication or shimming tensioners.
-
🔄Closed-Loop Construction — Seamless loop eliminates the splice failure point common in joined belts, maintaining consistent tension and tooth engagement throughout the belt's service life.
-
🧱Fiber-Reinforced Rubber Body — Internal tensile cords (typically fiberglass or aramid) resist elongation under load, keeping your axis positioning repeatable over thousands of cycles in 3D printer and CNC timing belt applications.
-
🔇Low-Noise Operation — The rubber tooth compound dampens vibration and mesh noise compared to metal chain drives, making these belts well-suited for workshop and lab environments where noise matters.
-
🏭Broad Application Compatibility — Fits standard HTD 5M pulleys used in automation conveyors, laser engravers, robotic actuators, and DIY motion control builds — anywhere a 5mm pitch synchronous drive belt is specified.
⚠️
Size Tip: The model number encodes the perimeter. For example, HTD5M-500 = 500mm perimeter, 100 teeth. Cross-reference with your machine's service manual or measure your existing belt before selecting a variant.
📐 Technical Specifications — HTD 5M Closed-Loop Rubber Timing Belt
| Belt Type |
HTD (High Torque Drive) Synchronous Timing Belt |
| Tooth Pitch |
5mm (HTD 5M profile) |
| Belt Width |
20mm (≈0.79") |
| Perimeter Range |
170mm (≈6.7") – 3750mm (≈147.6") |
| Teeth Count Range |
34 teeth – 750 teeth (perimeter ÷ 5mm) |
| Loop Type |
Closed loop (seamless, not open-ended) |
| Body Material |
Rubber (neoprene-based compound) |
| Reinforcement |
Internal fiber tensile cords (typically fiberglass) |
| Tooth Profile |
HTD curved profile — compatible with HTD 5M pulleys only |
| Operating Temperature |
Typically –20°C to +80°C (–4°F to +176°F); confirm for your application |
| Color / Finish |
Black |
| Compatible Pulleys |
HTD 5M pulleys only (5mm pitch, HTD tooth form) |
| Quantity per Order |
1 belt per variant selected |
| Country of Origin |
Contact us to confirm |
❓ Frequently Asked Questions
How do I choose the right perimeter length for my HTD 5M belt?
Measure the center-to-center distance between your two pulleys, then use the formula: Belt Perimeter ≈ 2 × C + π × (D1 + D2) / 2, where D1 and D2 are the pulley pitch diameters. Round up to the nearest available size. For example, a 500mm perimeter belt is approximately 19.7". When in doubt, size up — a slightly longer belt can be tensioned; a belt that is too short cannot be installed.
What load or torque can an HTD 5M belt typically handle?
HTD 5M belts are generally rated for moderate power transmission. For a 20mm-wide belt, transmitted power is typically in the range of 0.5–3 kW at common operating speeds, depending on pulley size and teeth in mesh. Always consult your drive system's engineering specifications to confirm suitability for your load.
Can I use this timing belt outdoors or in wet environments?
These rubber belts are generally resistant to light moisture and moderate temperatures. However, they are not rated for continuous submersion or prolonged exposure to oils, solvents, or extreme UV. For harsh outdoor or chemical environments, a polyurethane (PU) belt variant is typically more appropriate.
What pulley standard is compatible with HTD 5M belts?
HTD 5M belts use the HTD curved tooth profile with a 5mm pitch. They are compatible with HTD 5M pulleys only. Do not mix with GT2, MXL, T5, or XL pulleys — the tooth profiles are not interchangeable and will cause rapid wear or belt skipping. Verify your pulley is labeled HTD 5M before ordering.
How do I convert the perimeter from mm to inches?
Divide the perimeter in mm by 25.4 to get inches. Quick reference: 500mm ≈ 19.7", 1000mm ≈ 39.4", 1500mm ≈ 59.1", 2000mm ≈ 78.7". The teeth count equals the perimeter (mm) ÷ 5mm pitch, so a 500mm belt has 100 teeth and a 1000mm belt has 200 teeth.
Is this belt suitable for 3D printers, CNC machines, or robotics?
Yes. HTD 5M belts are widely used in large-format 3D printers, CNC routers, laser cutters, robotic arms, and automated conveyor systems. The 5mm pitch provides a good balance of tooth strength and positioning accuracy. Note: compact desktop 3D printers often use GT2 2mm pitch belts — confirm your machine's specification before ordering.
What does 'closed loop' mean, and can I cut this belt to a custom length?
'Closed loop' means the belt is a continuous seamless loop with no open ends. It cannot be cut and re-joined without special vulcanizing equipment. You must select the correct perimeter length for your application from the variant options above. If you need a custom cut length, open-ended belt sold by the meter is a separate product category.
🛒 Select your model (perimeter & teeth count) above, then add to cart — ships from our US warehouse.
