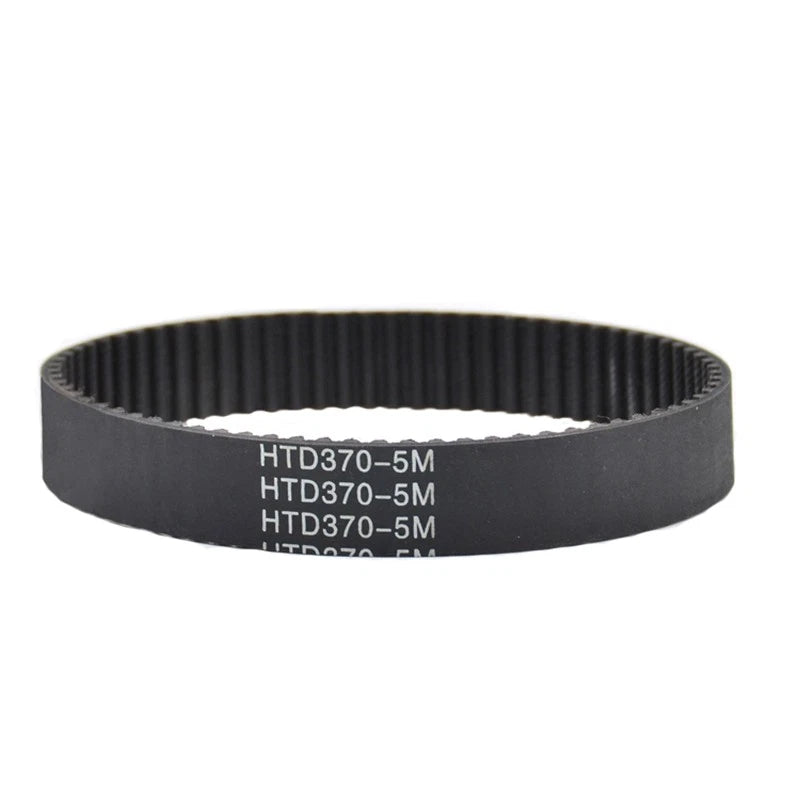

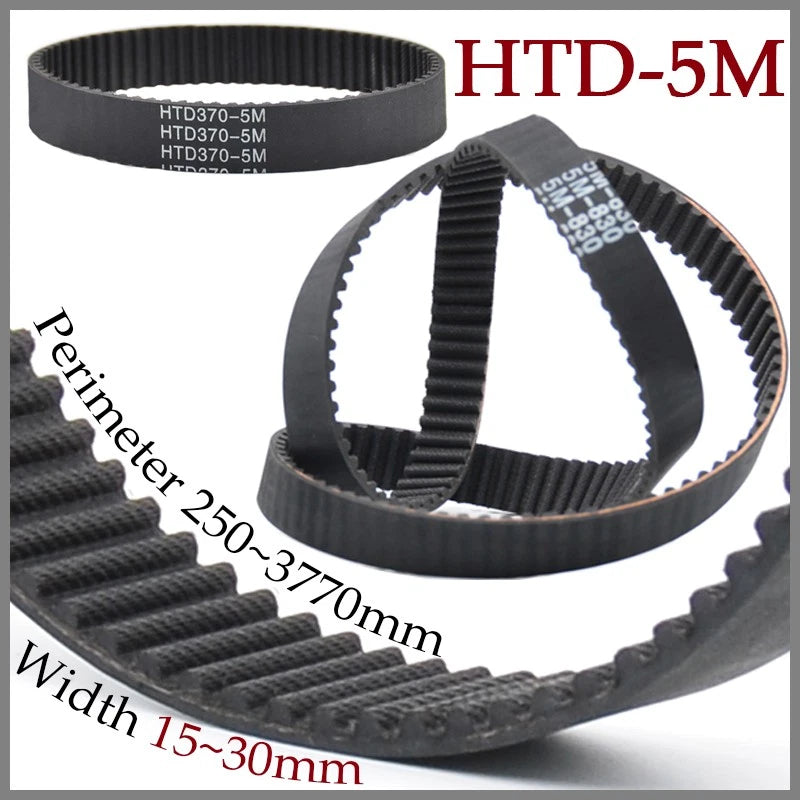

HTD 5M Timing Belt Closed Loop — Reliable Power Transmission for Precision Machines

When a slipping or mismatched drive belt throws off your CNC router, 3D printer, or robotic axis, every project suffers. Engineers, makers, and machine builders who depend on repeatable, slip-free motion need a timing belt that holds its pitch under load — not one that stretches, skips, or wears out after a few hundred hours. This HTD 5M closed-loop timing belt is built for exactly those demanding applications.

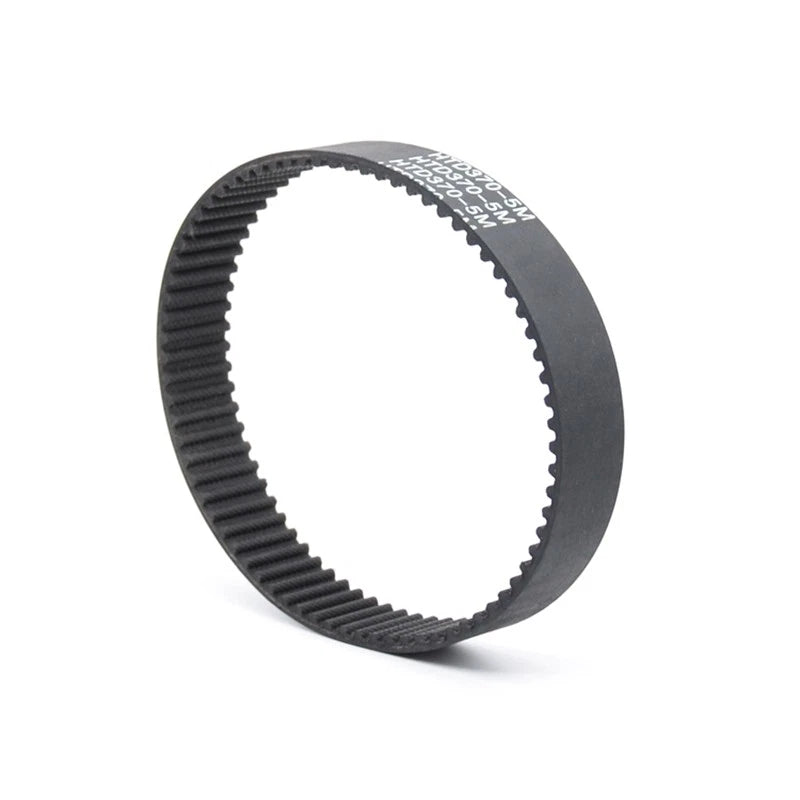

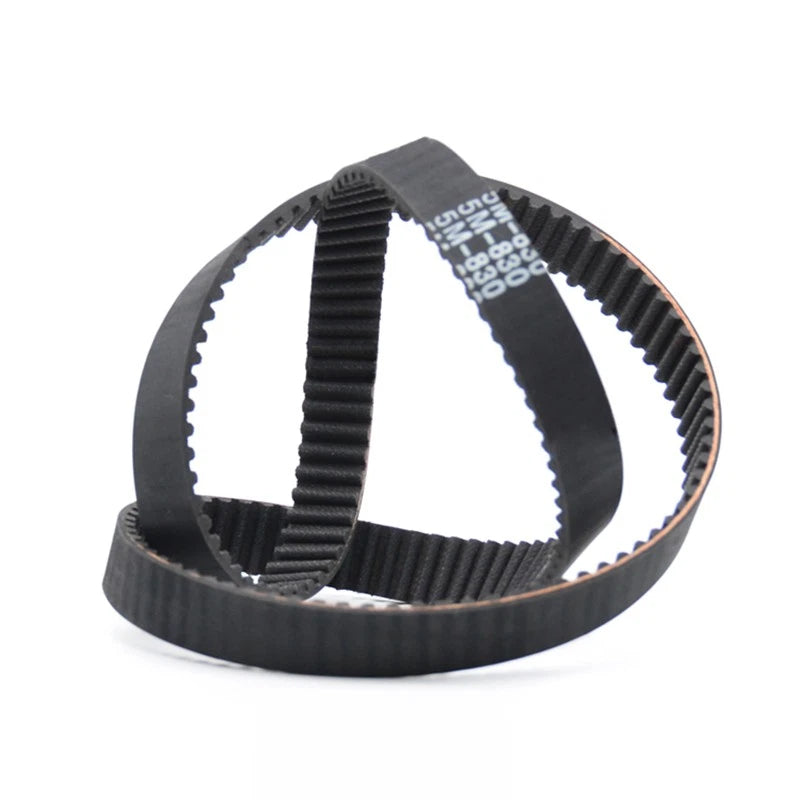

Each belt is a fully closed loop with a 5mm HTD tooth pitch and a rounded tooth profile for smooth, high-torque engagement. Available in belt widths of 15mm, 20mm, 25mm, and 30mm, and in circumference lengths ranging from 250mm (≈9.8") to 3770mm (≈148.4"), the belt body is constructed from neoprene rubber reinforced with a fiberglass or steel cord tension member for dimensional stability under dynamic loads.

Typical use cases include CoreXY and Cartesian 3D printer drive systems, CNC router gantry axes, laser engraver motion systems, servo-driven linear actuators, and light industrial conveyor loops — anywhere a closed-loop HTD 5M timing belt for CNC or 3D printer is required for precise, repeatable positioning.

ℹ️ Compatibility: Designed for standard HTD 5M pulleys only. Not compatible with GT2, T5, XL, or other belt profiles. Verify your pulley is labeled HTD 5M before ordering.

✅ Key Features of These HTD 5M Closed-Loop Timing Belts

  • 🔁Closed-Loop Design — No splicing or clamping required; the seamless loop installs directly onto standard HTD 5M pulleys for a clean, low-maintenance drive setup.

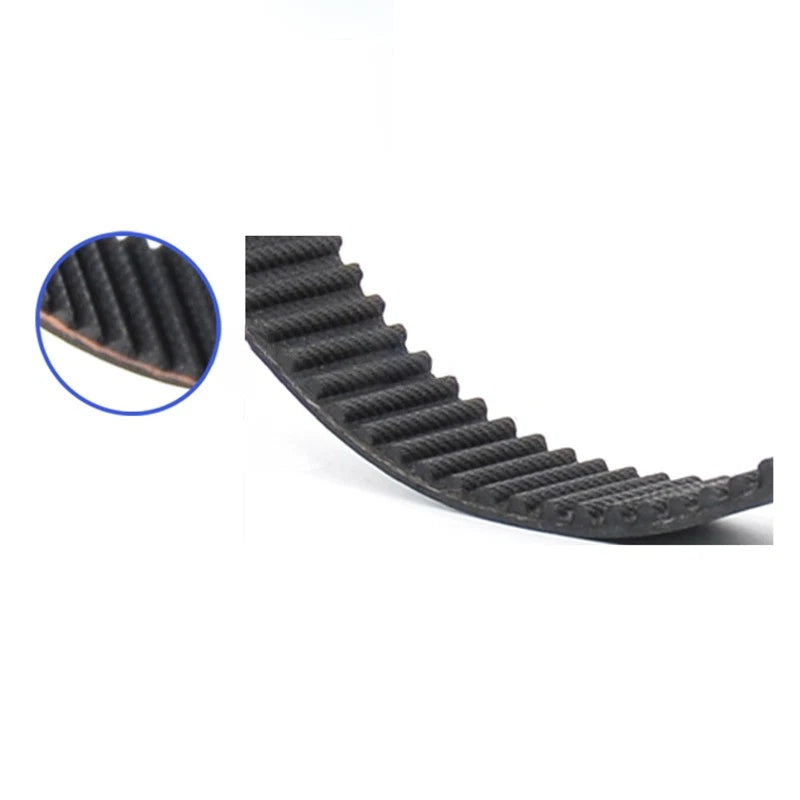

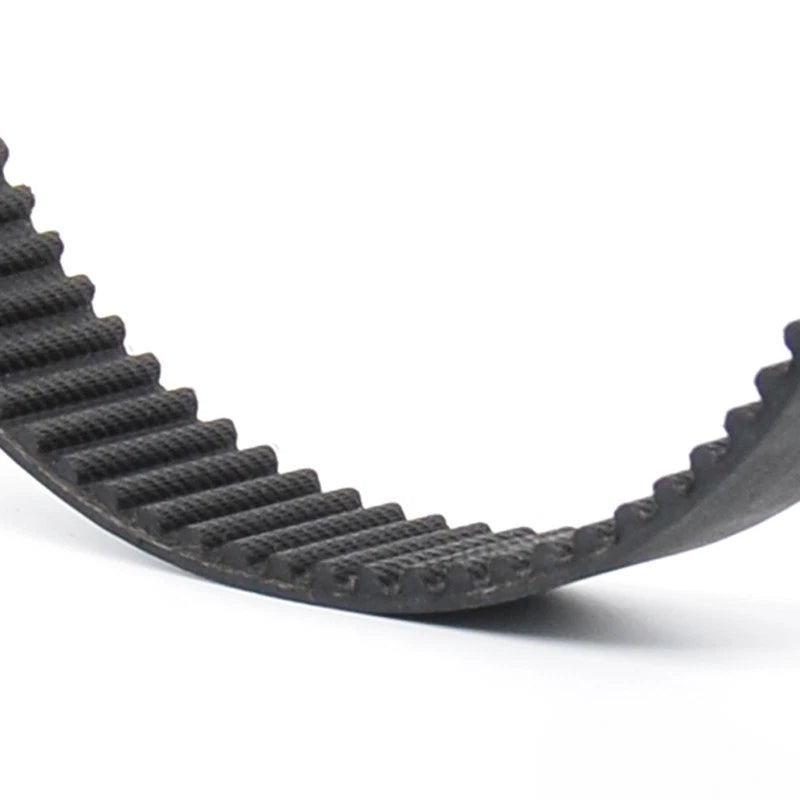

  • 📐5mm HTD Tooth Pitch — The rounded HTD tooth profile distributes load across a larger contact area than trapezoidal profiles, reducing tooth shear stress in high-torque synchronous belt drive applications.
  • 📏Wide Size Selection — Available in 70+ length variants from 250mm (≈9.8") to 3770mm (≈148.4") and four widths (15mm, 20mm, 25mm, 30mm) to match compact desktop machines and larger industrial frames alike.
  • 💪Reinforced Tension Member — Fiberglass or steel cord core resists elongation under dynamic loads, maintaining consistent tooth pitch and positioning accuracy over time — critical for CNC router timing belt replacement applications.
  • 🛡️Neoprene Rubber Body — Offers moderate resistance to oil, moisture, and mild chemicals, making these belts suitable for workshop environments where occasional fluid exposure is expected.
  • ⚙️Broad Application Fit — Commonly used as a 3D printer drive belt replacement, in robotic arm joints, laser engraver axes, and servo motor conveyor loops where slip-free synchronous motion is non-negotiable.

📐 Technical Specifications — HTD 5M Closed-Loop Timing Belt

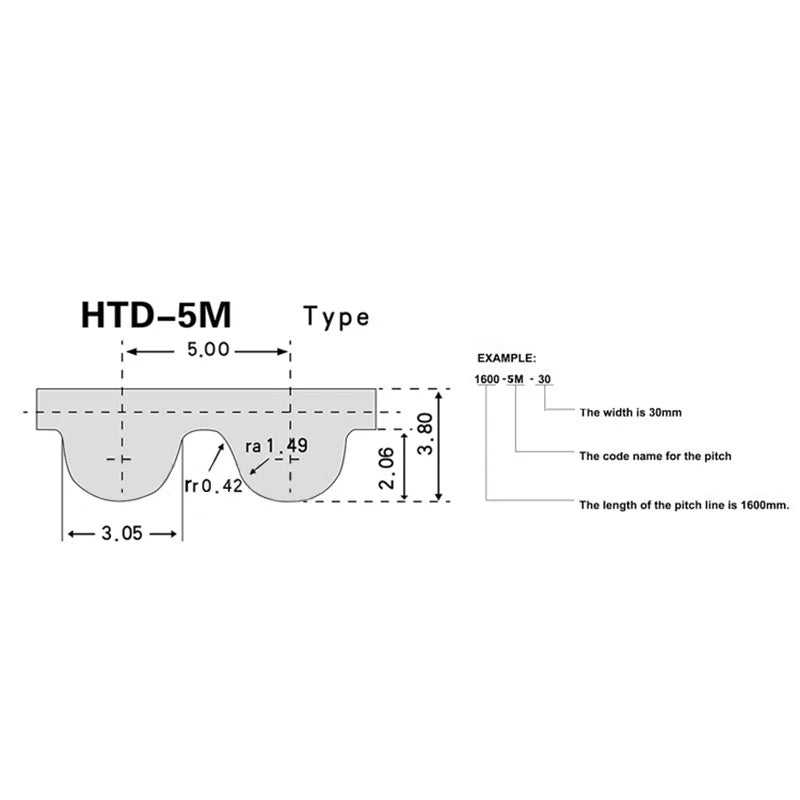

Belt Profile HTD 5M (High Torque Drive, 5mm pitch)
Tooth Pitch 5mm (0.197")
Tooth Profile Rounded (HTD standard)
Belt Type Closed loop (endless)
Available Widths 15mm (≈0.59"), 20mm (≈0.79"), 25mm (≈0.98"), 30mm (≈1.18")

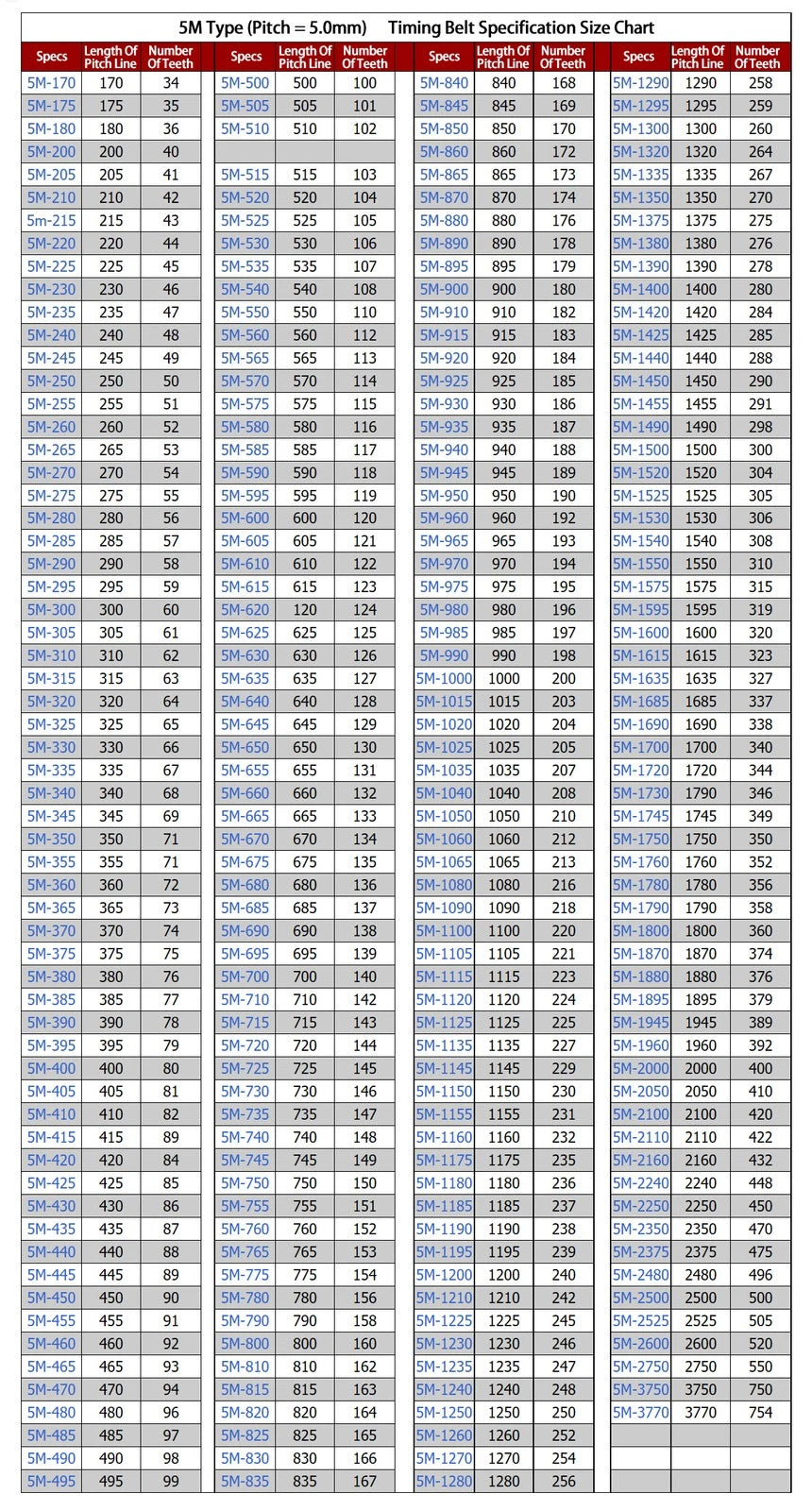

Available Circumferences 250mm (≈9.8") to 3770mm (≈148.4") — see variant options
Body Material Neoprene rubber
Tension Member Fiberglass or steel cord (varies by size)
Operating Temperature Typically −20°C to +80°C (−4°F to +176°F)
Pulley Compatibility HTD 5M pulleys only
Tensile Load Capacity See variant options — contact us to confirm for your application
Color Black
Country of Origin Contact us to confirm
⚠️ Sizing Note: Belt circumference is the total closed-loop length, not center-to-center distance. Measure your drive path carefully before selecting a size. If you are unsure, contact us with your pulley specs and center distance.

❓ Frequently Asked Questions

How do I choose the right HTD 5M belt length?

Measure the center-to-center distance between your two pulleys, then calculate the belt circumference using the standard formula: Belt Length = 2 × C + π × (D1 + D2) / 2, where C is center distance and D1/D2 are pulley pitch diameters. For quick reference, 500mm (≈19.7") typically suits compact desktop machines, while 2000mm (≈78.7") fits larger CNC gantries. Always verify against your pulley tooth count and center distance before ordering.

What width should I choose — 15mm, 20mm, 25mm, or 30mm?

Width determines load capacity. Generally, 15mm suits light-duty 3D printers and small robotics; 20mm works for mid-range CNC routers and conveyor systems; 25mm and 30mm are typically used in heavier-duty industrial automation and servo-driven axes where higher torque transmission is required. Always check your pulley groove width to confirm a proper fit.

What is the tensile strength and load capacity of this belt?

HTD 5M belts typically feature a fiberglass or steel cord tension member embedded in a neoprene body. Dynamic tensile load capacity generally ranges from around 200N for 15mm widths up to 600N or more for 30mm widths, depending on speed and application. For exact rated values specific to your use case, please contact us to confirm.

Can this belt be used outdoors or in wet environments?

The neoprene rubber body offers moderate resistance to oil, moisture, and mild chemicals, making these belts generally suitable for workshop environments with occasional fluid exposure. They are not rated for continuous submersion or highly corrosive chemical environments. Avoid prolonged direct UV exposure or contact with harsh solvents to maximize belt life.

Is this belt compatible with standard HTD 5M pulleys?

Yes. This belt follows the HTD (High Torque Drive) 5M profile standard — 5mm pitch with a rounded tooth profile — and is designed to mesh with any standard HTD 5M pulley. It is not compatible with GT2, T5, XL, or other belt profiles. Always verify your pulley is labeled HTD 5M before ordering.

What machines and applications is this belt commonly used in?

HTD 5M closed-loop timing belts are widely used in CoreXY and Cartesian 3D printers, CNC routers, laser engravers, robotic arms, servo motor-driven linear actuators, and light industrial conveyor loops. The closed-loop design eliminates the need for belt clamps, making installation straightforward on most standard pulley setups.

How do I know if my belt needs replacement?

Signs that an HTD timing belt needs replacement include visible cracking or fraying on the tooth surface, teeth skipping under load, increased backlash or positioning errors in CNC or 3D printer applications, or an audible slapping noise during operation. Inspect the belt periodically and replace if any of these symptoms appear.

🛒 Select your model length and belt width above, then add to cart — ships from our US warehouse.
