HTD 5M Timing Belt — Reliable Closed Loop Drive Belt for Precision Power Transmission

When a slipping or mismatched drive belt brings your CNC router, conveyor, or motor-driven project to a halt, finding the right replacement fast matters. This HTD 5M closed loop timing belt is built for engineers, makers, and maintenance technicians who need a dependable synchronous drive solution across a wide range of machine sizes.

Each belt is a closed loop rubber timing belt with an HTD 5mm tooth pitch. Available circumferences run from 175mm (≈6.9") to 495mm (≈19.5"), and widths span 10mm (≈3/8"), 15mm (≈19/32"), 20mm (≈25/32"), 25mm (≈1"), and 30mm (≈1-3/16"). The rubber construction with internal fiber reinforcement provides consistent tooth engagement and dimensional stability under load.

Typical use cases include replacement drive belts for CNC milling machines, servo motor coupling in automation equipment, conveyor drive systems in light industrial settings, and custom power transmission builds where an HTD 5M closed loop rubber drive belt is specified. The standardized HTD tooth profile ensures drop-in compatibility with any HTD 5M pulley.

ℹ️ Compatibility Notice: These belts use the HTD 5M tooth profile (5mm pitch). They are not interchangeable with GT2, T5, MXL, or other belt profiles. Verify your pulley is rated for HTD 5M before ordering.
⚠️ Size Tip: If you are unsure of your required belt length, measure your existing belt's outer circumference or calculate using your pulley center distance. Contact us before ordering if you need help confirming the right model.

✅ Key Features of These HTD 5M Closed Loop Timing Belts

  • ⚙️HTD 5mm Tooth Pitch — The curved HTD tooth profile distributes load across a larger contact area than trapezoidal profiles, reducing tooth shear stress in moderate-torque synchronous drive applications.
  • 🔄Closed Loop Construction — Seamless closed loop design eliminates the weak point of a mechanical joint, delivering consistent tension and smooth rotation throughout the belt's service life.
  • 📏Wide Size Range — Available in circumferences from 175mm to 495mm and widths from 10mm to 30mm, covering a broad range of HTD 5M replacement belt and custom drive system requirements.
  • 🧱Fiber-Reinforced Rubber Body — Internal tensile cord reinforcement (typically fiberglass or aramid fiber) resists elongation under load, maintaining accurate tooth pitch spacing over time.
  • 🔧Drop-In Pulley Compatibility — Designed to fit any standard HTD 5M pulley without modification, making these belts a straightforward swap for worn or broken drive belts in CNC machines, conveyors, and motor drives.
  • 🏭Consistent Tooth Geometry — Molded tooth profile maintains dimensional accuracy across the full belt circumference, supporting repeatable positioning in light automation and motion control systems.

📐 Technical Specifications — HTD 5M Timing Belt

Belt Type HTD Closed Loop Timing Belt
Tooth Pitch 5mm (HTD 5M profile)
Available Circumferences 175mm (≈6.9") to 495mm (≈19.5") — see variant options

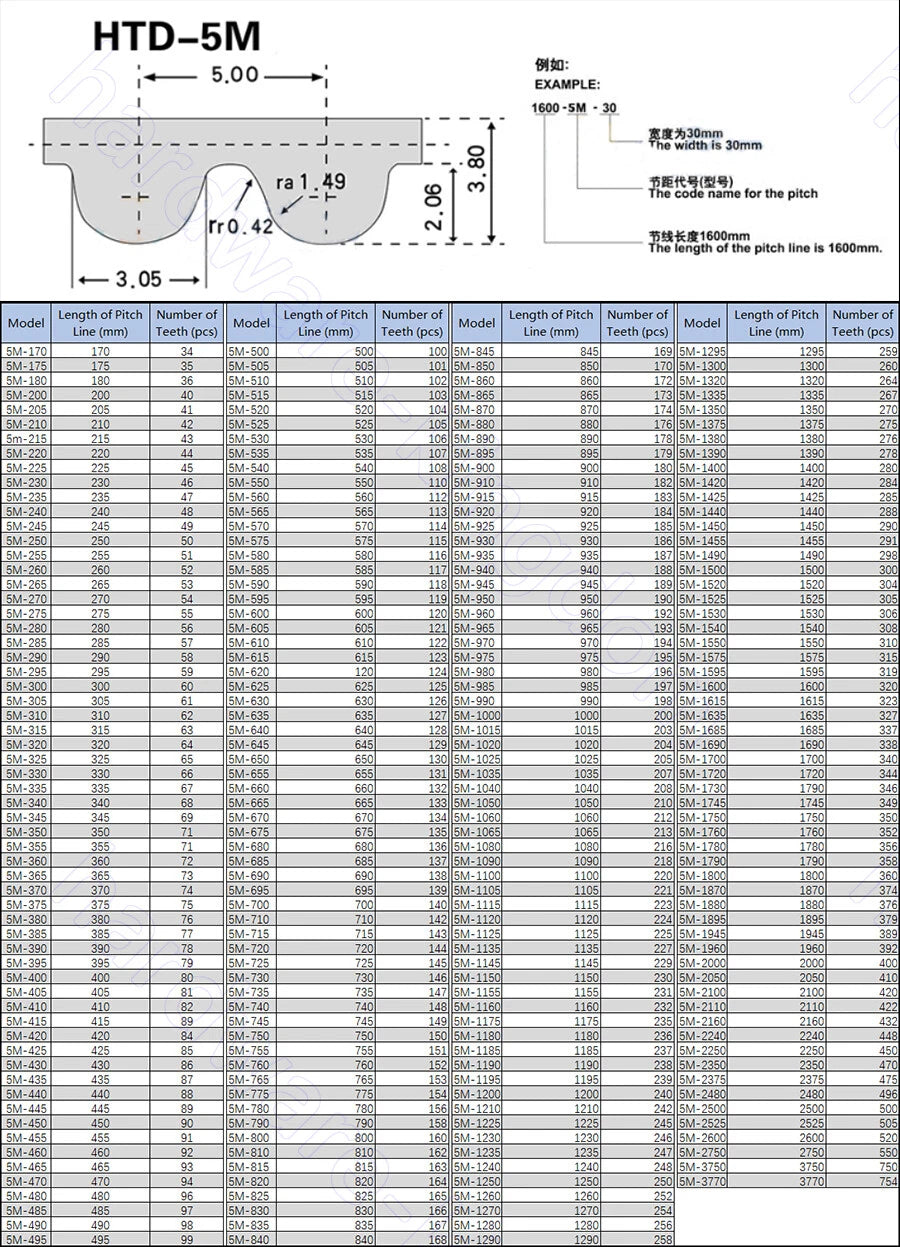

Available Widths 10mm (≈3/8"), 15mm (≈19/32"), 20mm (≈25/32"), 25mm (≈1"), 28mm, 30mm (≈1-3/16"), 35mm — see variant options

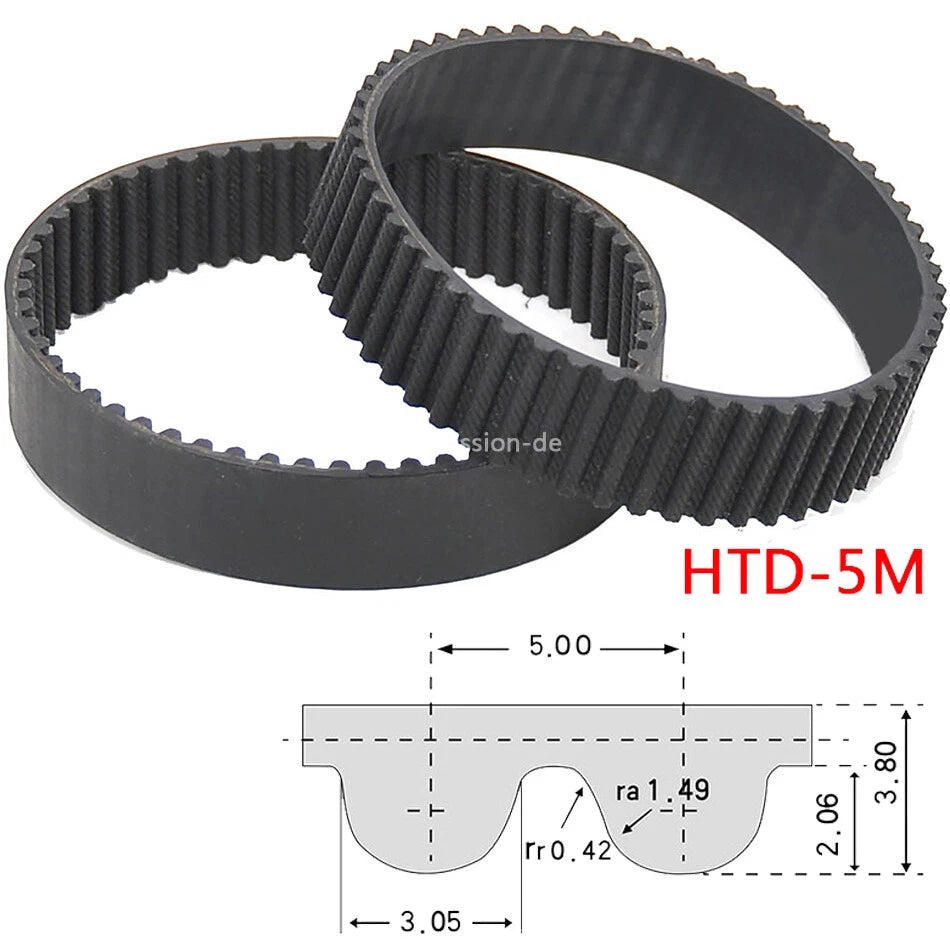

Tooth Profile HTD (High Torque Drive) — curved/rounded tooth
Material Rubber with internal fiber tensile cord reinforcement
Loop Type Closed loop (endless / seamless)
Compatible Pulleys HTD 5M pulleys only
Typical Applications CNC machines, conveyor drives, servo motor coupling, automation equipment
Operating Temperature Contact us to confirm
Quantity per Order 1 belt per listing

❓ Frequently Asked Questions

How do I choose the right HTD 5M belt length?

Measure the center-to-center distance between your two pulleys, then use the standard belt length formula: Belt Length ≈ 2 × C + π × (D1 + D2) / 2, where C is the center distance and D1/D2 are the pulley pitch diameters. For quick reference, 175mm ≈ 6.9" and 495mm ≈ 19.5". When in doubt, size up slightly — a belt that is a little long is easier to tension than one that is too short.

What width should I choose — 10mm, 15mm, 20mm, 25mm, or 30mm?

Wider belts generally handle higher torque loads. For light-duty applications like small CNC routers or motor test rigs, 10–15mm is typically sufficient. For servo motor drives, conveyor systems, or higher-torque machinery, 20–30mm widths are generally recommended. Always verify that your pulley groove width matches the belt width you select.

What is the load capacity of an HTD 5M timing belt?

Load capacity depends on belt width, pulley diameter, wrap angle, and operating speed. HTD 5M belts are generally suited for moderate power transmission applications — typically up to several hundred watts depending on configuration. For precise load ratings specific to your application, contact us to confirm or consult your system's engineering documentation.

Can this belt be used outdoors or in wet environments?

These belts are made from rubber and can generally handle light moisture exposure. They are not designed for continuous submersion or highly corrosive chemical environments. For outdoor installations, shield the belt from prolonged direct UV exposure and standing water where possible to extend service life.

What pulley profile is compatible with HTD 5M belts?

These belts use the HTD (High Torque Drive) tooth profile with a 5mm pitch. They are compatible with HTD 5M pulleys only. Do not use with GT2, T5, MXL, or other pitch profiles — the tooth geometry differs and will cause premature wear, skipping, or slippage.

How do I know if this belt fits my CNC machine or automation equipment?

Check your machine's documentation or the existing belt for the pitch designation (should read "5M" or "5mm pitch") and the belt circumference. Measure your existing belt's outer circumference or check the part number stamped on the belt. If you are unsure, contact us with your machine model and we can help confirm compatibility before you order.

Are these belts sold individually or in packs?

Each listing is for one (1) belt. Select your required model (circumference) and width from the variant dropdowns above. If you need multiple belts for a project, adjust the quantity in your cart before checkout.

🛒 Select your model (length) and width above, then add to cart — ships from our US warehouse.
