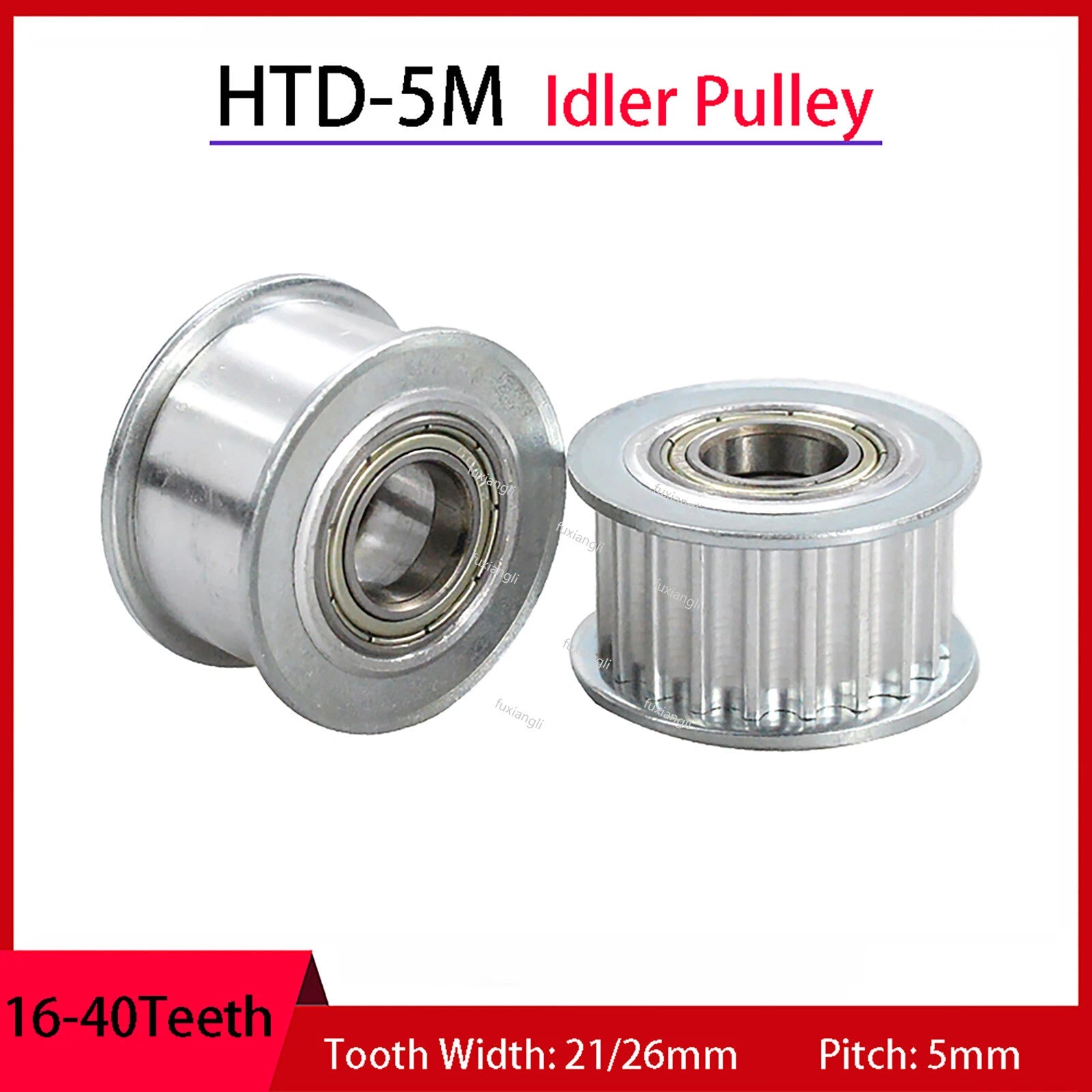

HTD-5M Timing Belt Idler Tensioner Pulley — Precise Belt Tension for Smooth & Toothed Drive Systems

Maintaining consistent belt tension is one of the most overlooked factors in motion control accuracy. Whether you are building a 3D printer, tuning a CNC router, or assembling a robotics drive train, a loose or misaligned belt leads to skipped steps, vibration, and premature wear. These HTD-5M idler tensioner pulleys are engineered for makers, engineers, and small-batch manufacturers who demand repeatable, low-maintenance belt drive performance.

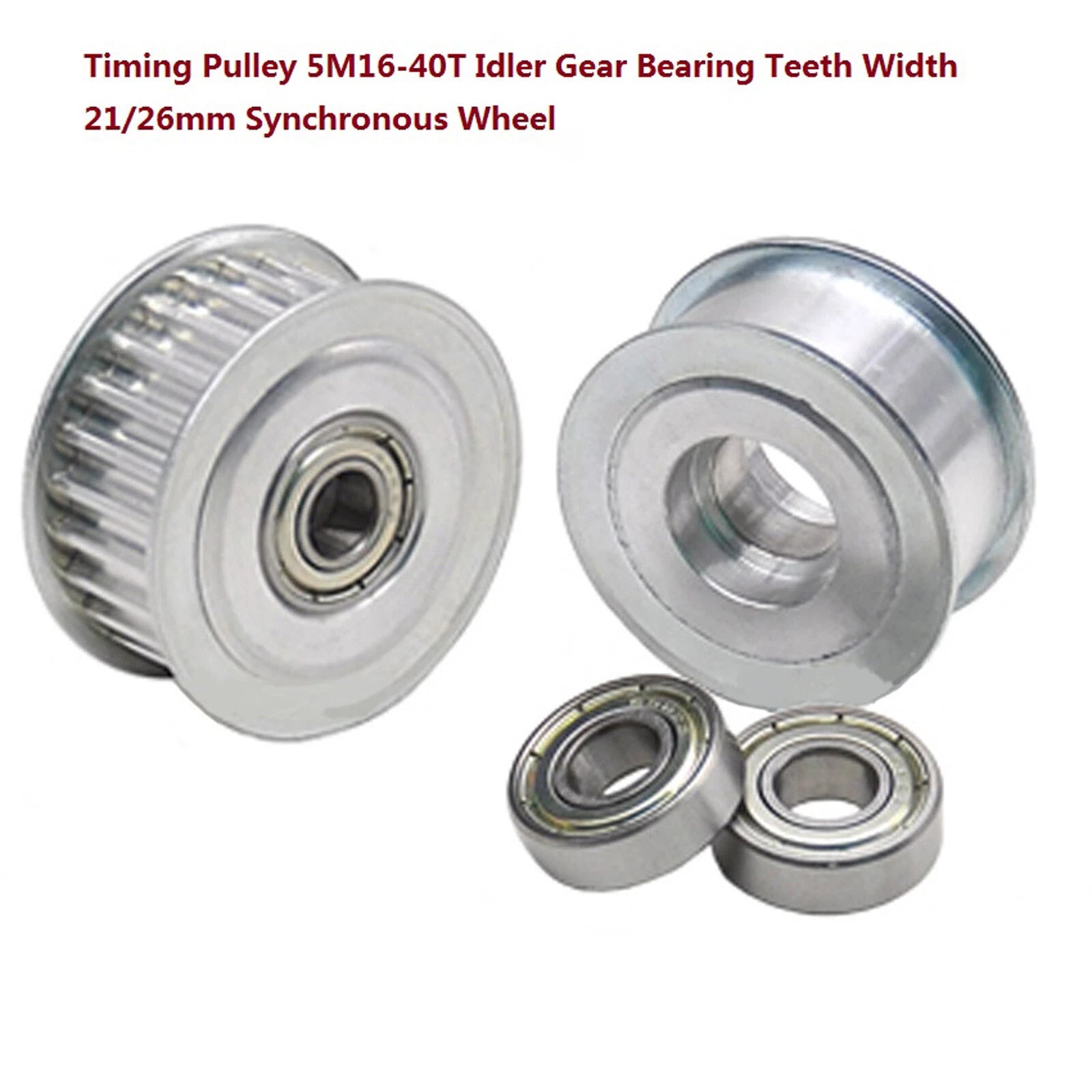

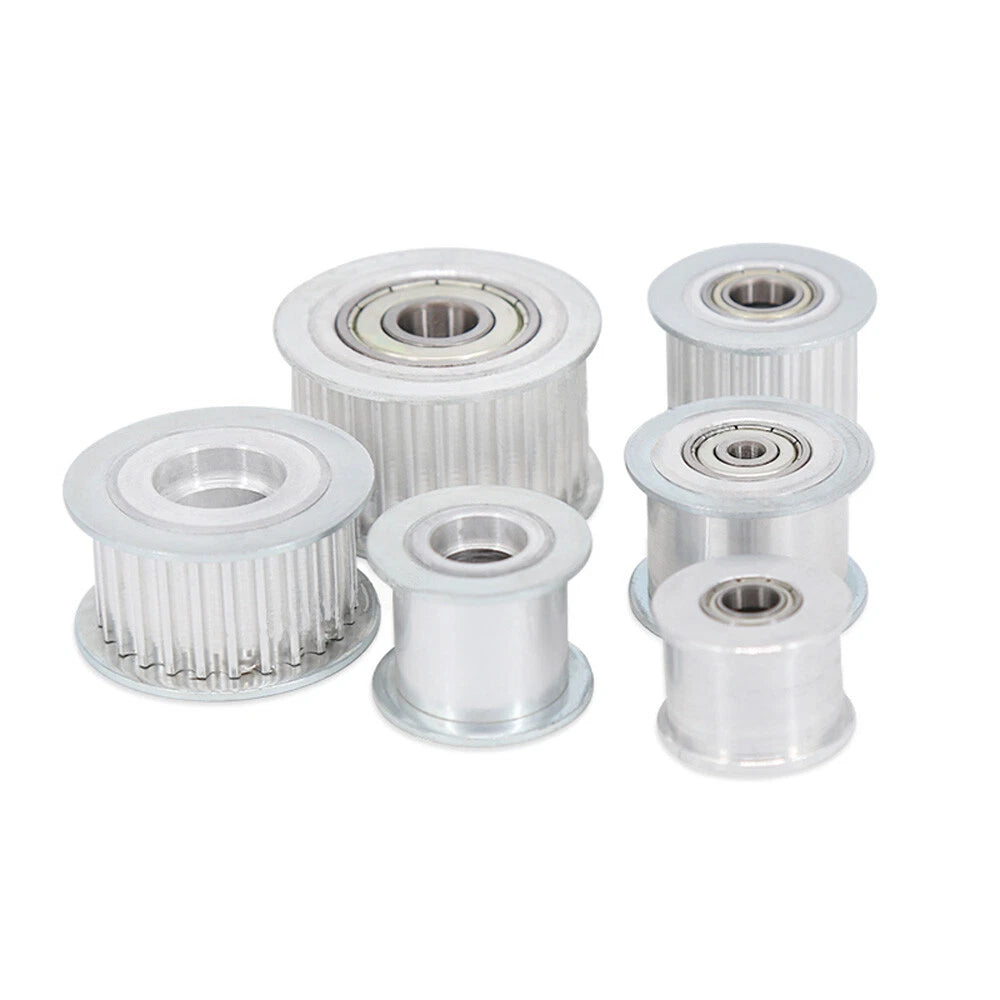

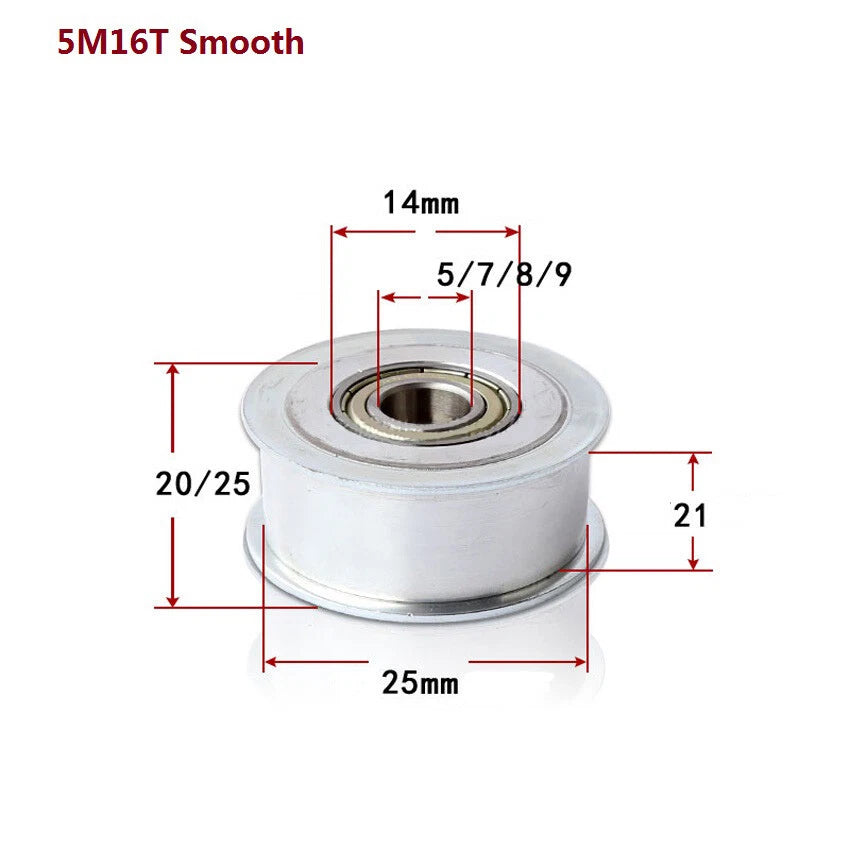

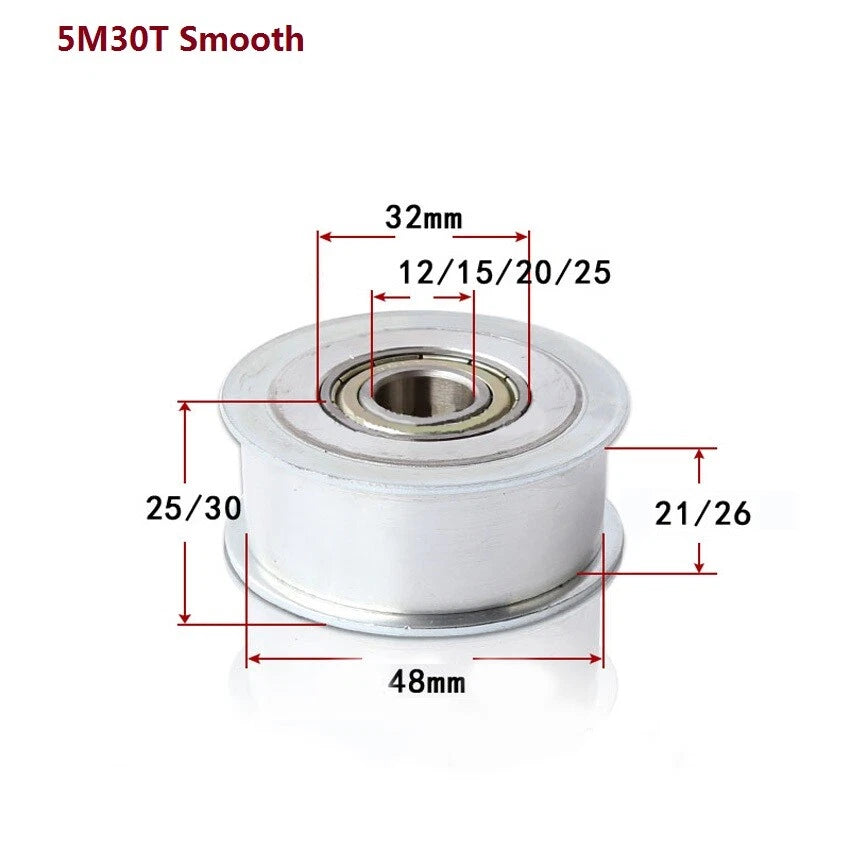

Each pulley is machined from aluminum alloy with a hard-anodized or natural finish and fitted with a precision sealed bearing at the core. Available in two profile types — toothed (for positive engagement with HTD-5M belts) and smooth (for back-side tensioning without tooth engagement) — with teeth counts ranging from 16T to 40T and teeth widths of 21 mm (approx. 0.83 in) or 26 mm (approx. 1.02 in). Bore diameters span 5 mm to 25 mm to suit a wide range of shaft sizes.

Typical applications include idler and tensioner positions in desktop 3D printer X/Y gantries, CNC plasma and router belt axes, robotic arm joint drives, and automated conveyor sub-assemblies — anywhere an HTD-5M belt requires guided tension without introducing backlash.

⚙️ Compatibility: Designed for HTD-5M (5 mm pitch) timing belts. Toothed variants engage belt teeth directly; smooth variants contact the belt back face. Verify bore diameter and shaft size before ordering.

✅ Key Features of These HTD-5M Idler Tensioner Pulleys

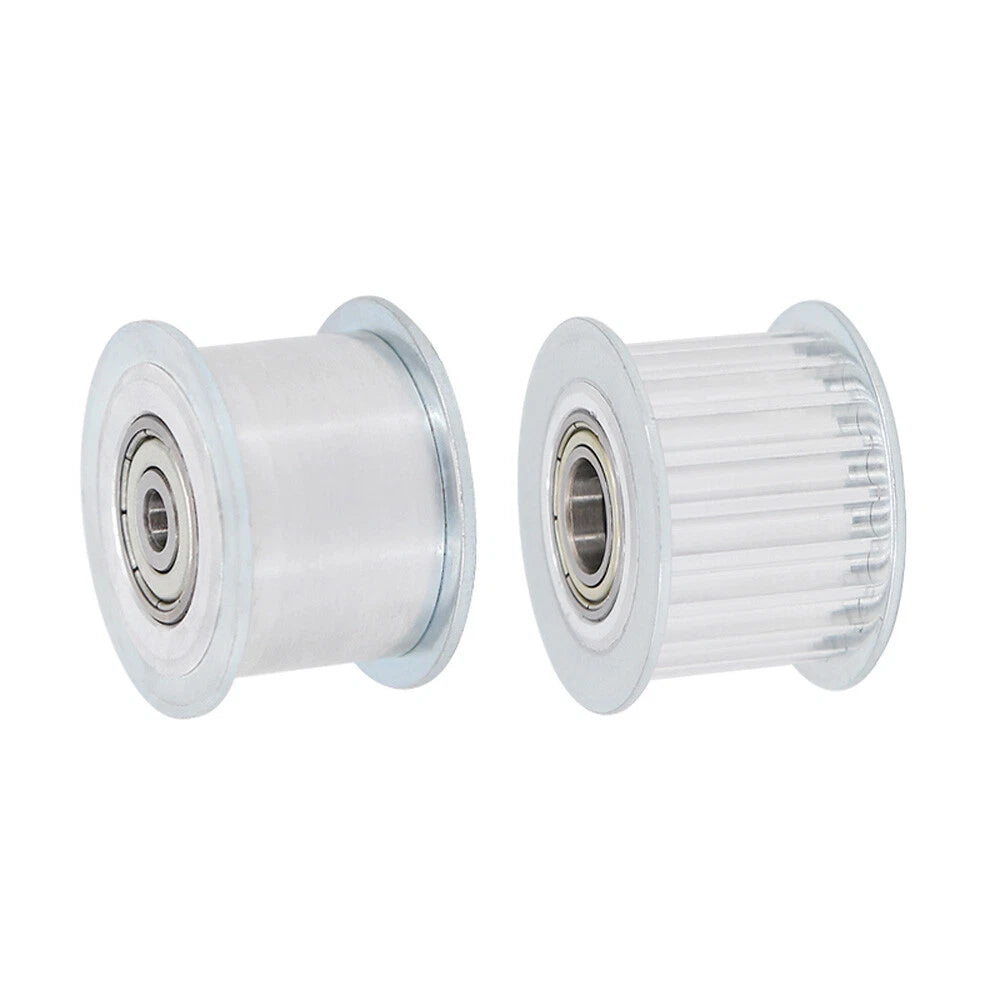

🔩Dual Profile Options — Choose toothed for positive belt engagement or smooth for back-side tensioning; both profiles available across all tooth counts.
📐Wide Size Range — Teeth counts from 16T to 40T and bore diameters from 5 mm to 25 mm cover the majority of HTD-5M drive configurations in one product family.
🏗️Aluminum Alloy Construction — Lightweight yet rigid body resists deformation under continuous belt load, keeping tension consistent over long run times.

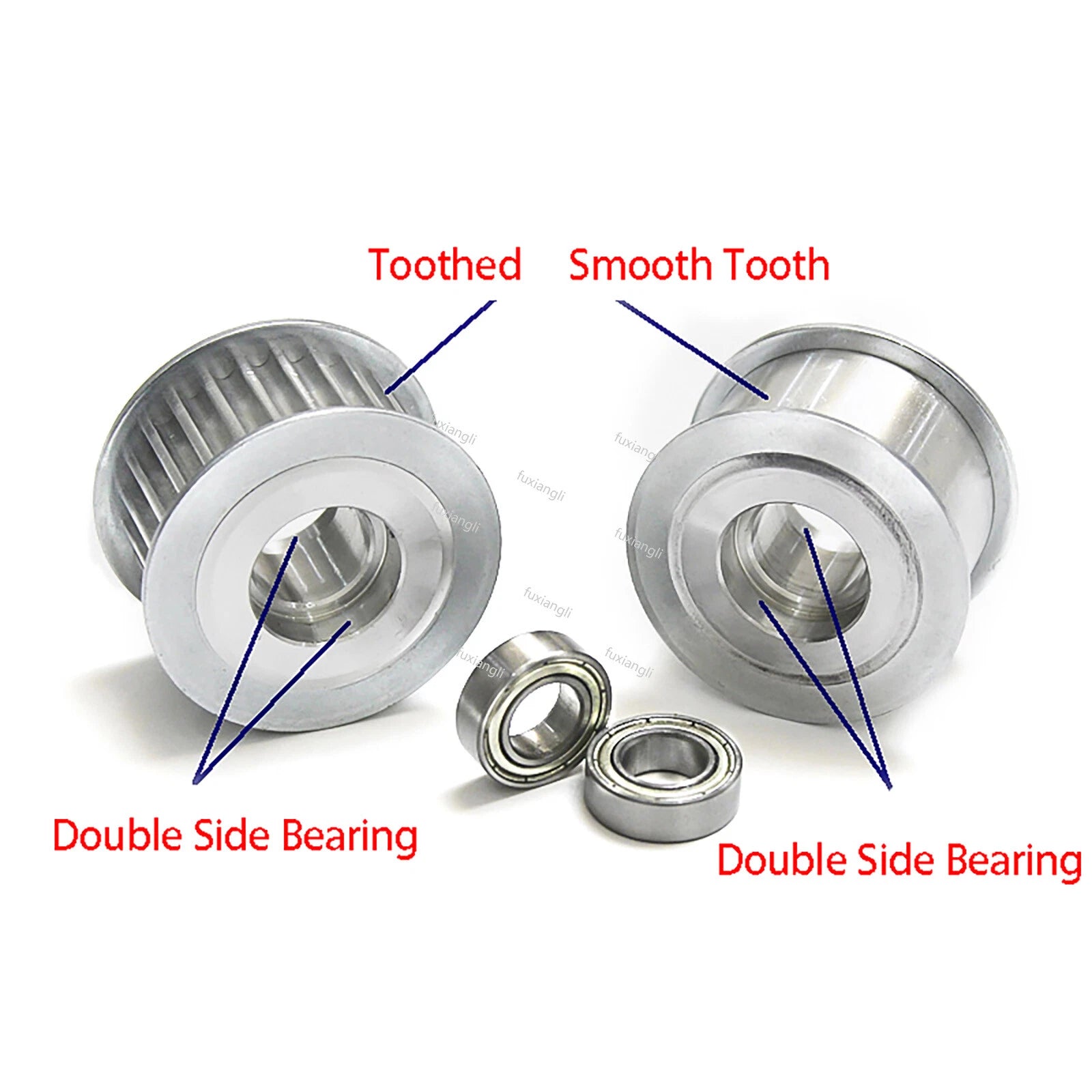

🔄Precision Sealed Bearing — Integrated sealed bearing minimizes rotational friction and protects against dust and debris ingress in workshop environments.
📏Two Belt Width Options — 21 mm and 26 mm teeth widths accommodate standard and wide HTD-5M belt variants without requiring spacers or adapters.
🛠️Drop-In Replacement Ready — Standard bore sizing (5 / 6 / 7 / 8 / 9 / 10 / 12 / 15 / 20 / 25 mm) aligns with common motor and idler shaft diameters for straightforward installation.

📐 Technical Specifications — HTD-5M Timing Belt Idler Pulley

Belt Pitch	HTD-5M (5 mm)
Profile Types	Toothed / Smooth

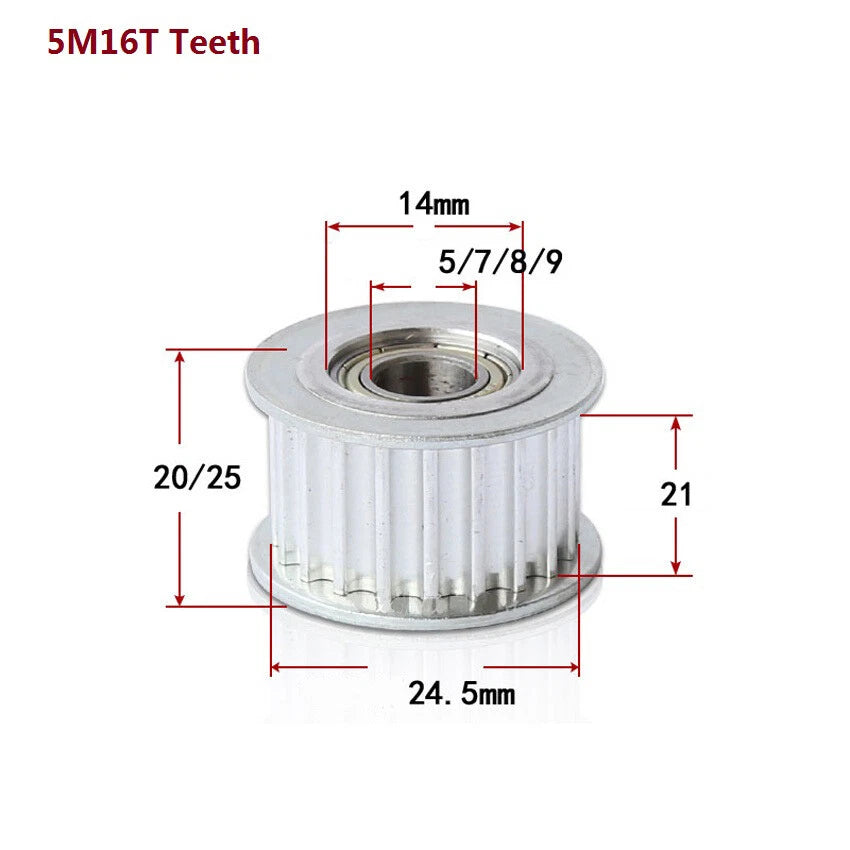

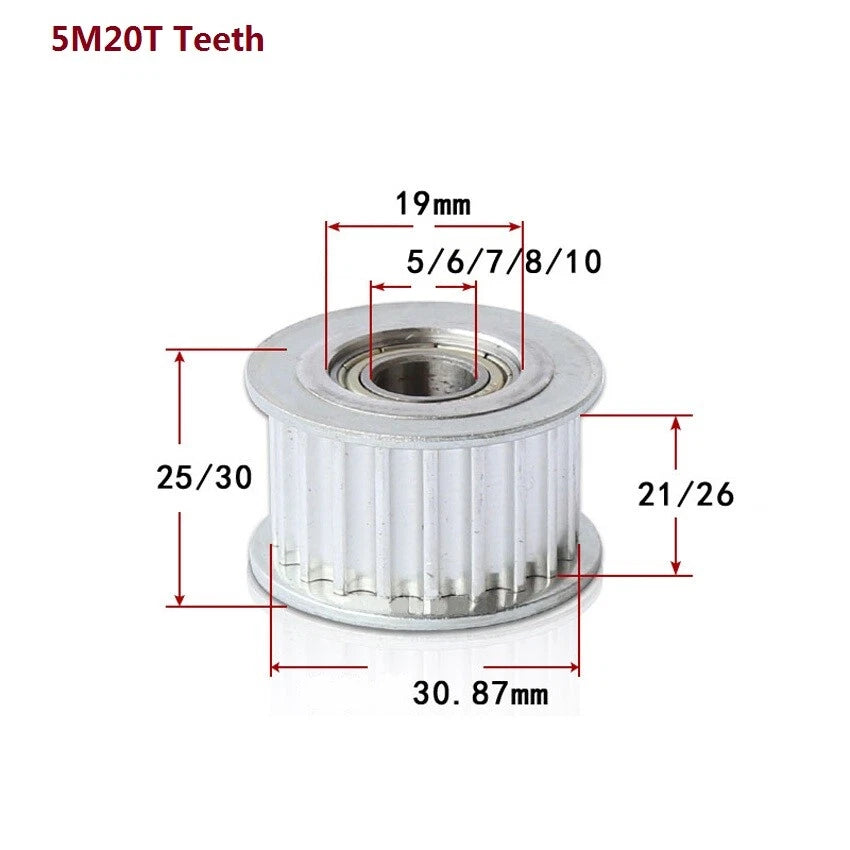

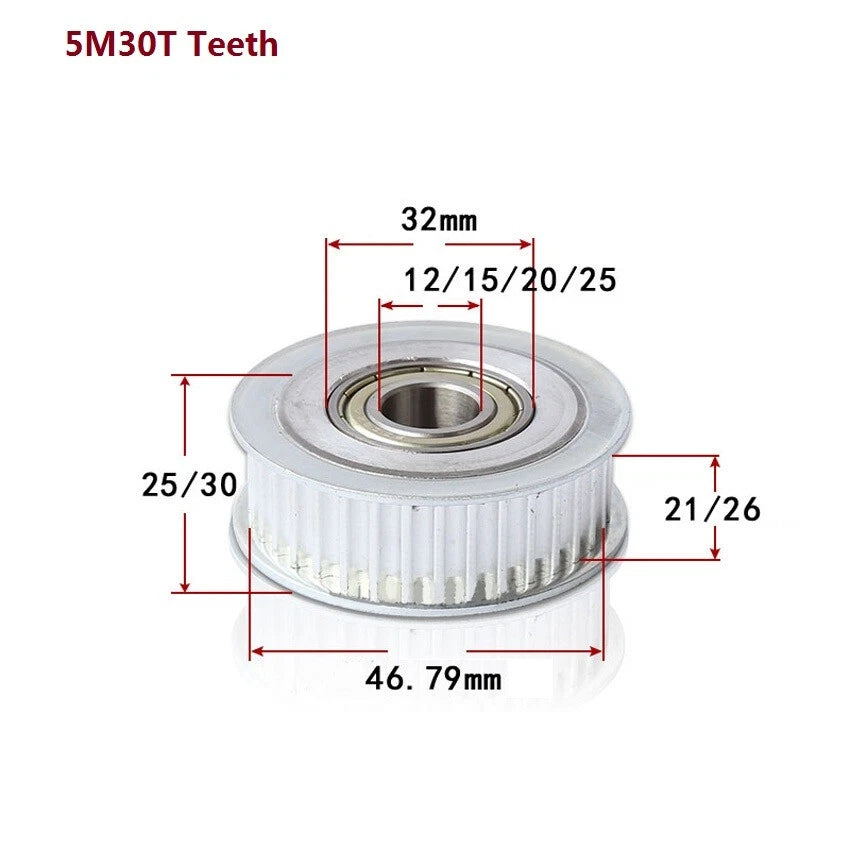

Teeth Count Options	16T, 20T, 25T, 30T, 36T, 40T
Teeth Width	21 mm (0.83 in) / 26 mm (1.02 in)
Bore Diameter Options	5, 6, 7, 8, 9, 10, 12, 15, 20, 25 mm
Body Material	Aluminum alloy
Bearing Type	Precision sealed ball bearing
Outer Diameter	See variant options
Pitch Diameter	See variant options
Finish	See variant options
Quantity per Order	1 piece

❓ Frequently Asked Questions

What is the difference between the toothed and smooth pulley variants?

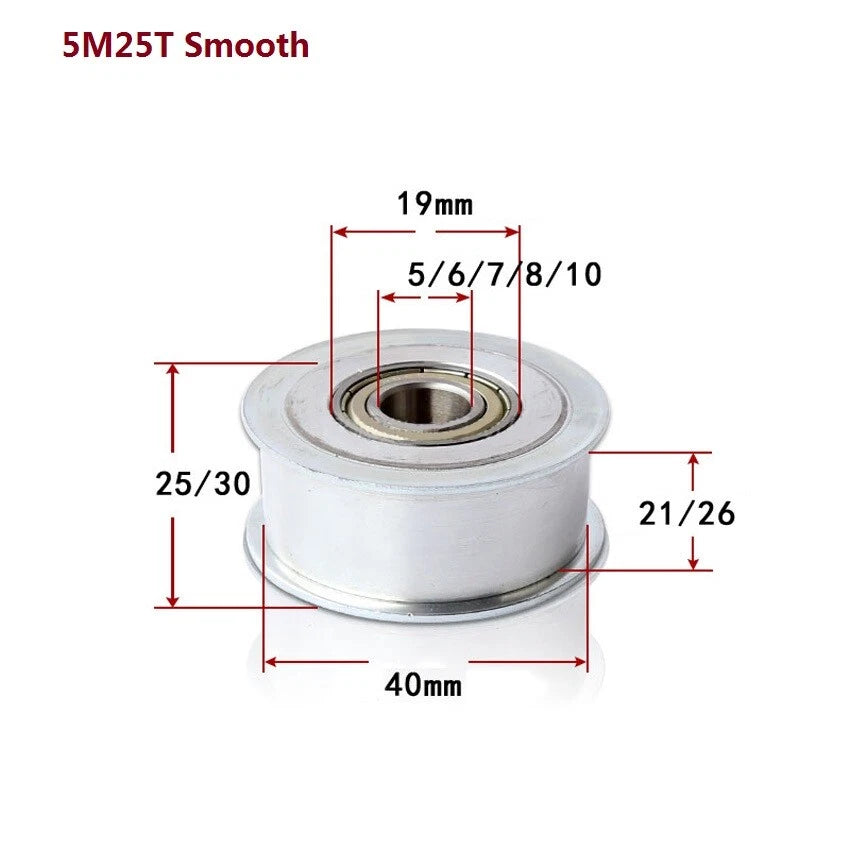

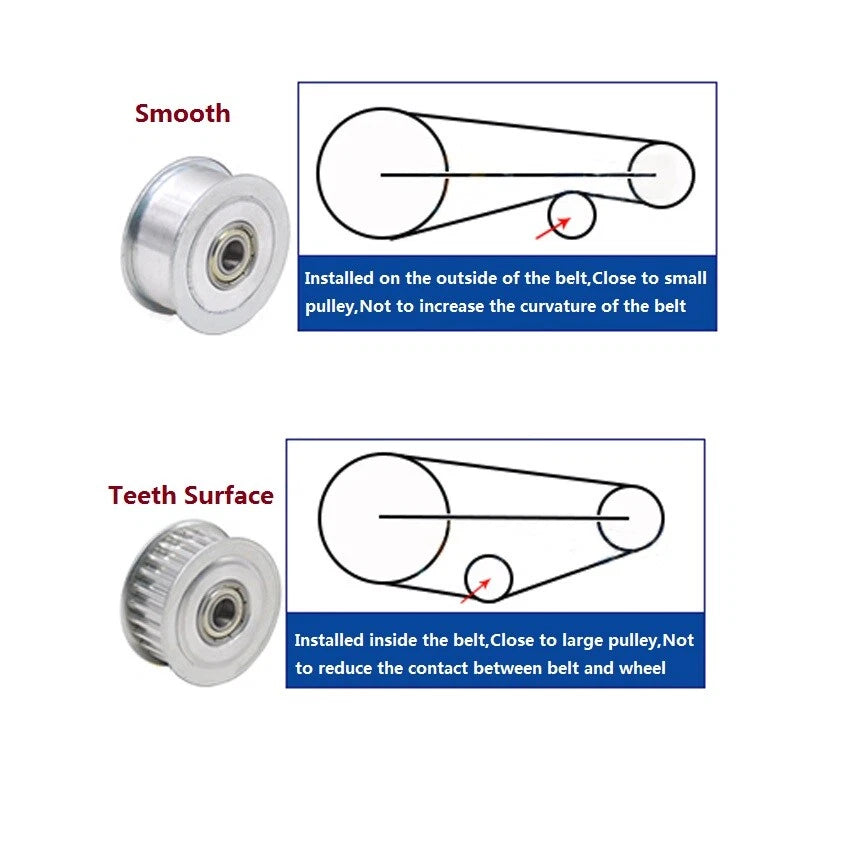

Toothed pulleys have HTD-5M tooth profiles machined into the rim and engage directly with the belt teeth, providing positive drive or guided tensioning on the belt's inner face. Smooth pulleys have a flat rim and contact the outer (back) face of the belt, making them ideal for back-side idler and tensioner positions where tooth engagement is not required or desired.

How do I choose the correct teeth count (16T, 20T, 25T, 30T, 36T, or 40T)?

Select the teeth count based on the outer diameter needed to fit your tensioner bracket or idler mount geometry. A higher tooth count means a larger outer diameter. For tight spaces such as 3D printer gantries, 16T or 20T pulleys are common; for larger CNC or conveyor systems with more clearance, 30T–40T pulleys provide a gentler belt wrap angle and lower contact stress.

Which bore diameter should I order?

Match the bore diameter to your idler shaft or bolt diameter. Common choices are 5 mm for M5 bolts used in 3D printers, 8 mm for standard idler shafts in CNC routers, and 12–25 mm for larger industrial or robotics shafts. If your shaft uses a key or set screw, confirm the bore is plain (no keyway) before ordering — these pulleys feature plain bores.

Are these pulleys compatible with belts other than HTD-5M?

These pulleys are specifically designed for HTD-5M (5 mm pitch, HTD tooth profile) timing belts. The toothed variants will not mesh correctly with GT2, T5, or other pitch belts. The smooth variants can physically contact any belt back face, but the outer diameter is sized for HTD-5M geometry, so verify clearance if used with a different belt pitch.

How strong and durable are these pulleys under continuous load?

The aluminum alloy body provides a good strength-to-weight ratio suitable for continuous duty in 3D printers, CNC machines, and light industrial automation. The integrated sealed bearing handles radial loads typical of belt tensioner applications. For heavy-duty industrial conveyors with high belt tension, verify the specific load rating against your application requirements before use.

Do these pulleys resist corrosion in workshop or outdoor environments?

The aluminum alloy body offers inherent corrosion resistance suitable for typical indoor workshop environments. The sealed bearing protects internal components from dust and light moisture. For prolonged outdoor exposure or high-humidity environments, periodic inspection is recommended. These pulleys are not rated for submersion or highly corrosive chemical environments.

Can I use one of these as a drive pulley instead of an idler?

These are designed as idler and tensioner pulleys. The toothed variants can function as a drive pulley if the bore fits your motor shaft and the tooth count matches your drive ratio requirements. However, they do not include a set screw or keyway as standard — confirm your shaft retention method before using them in a driven position.
