Description

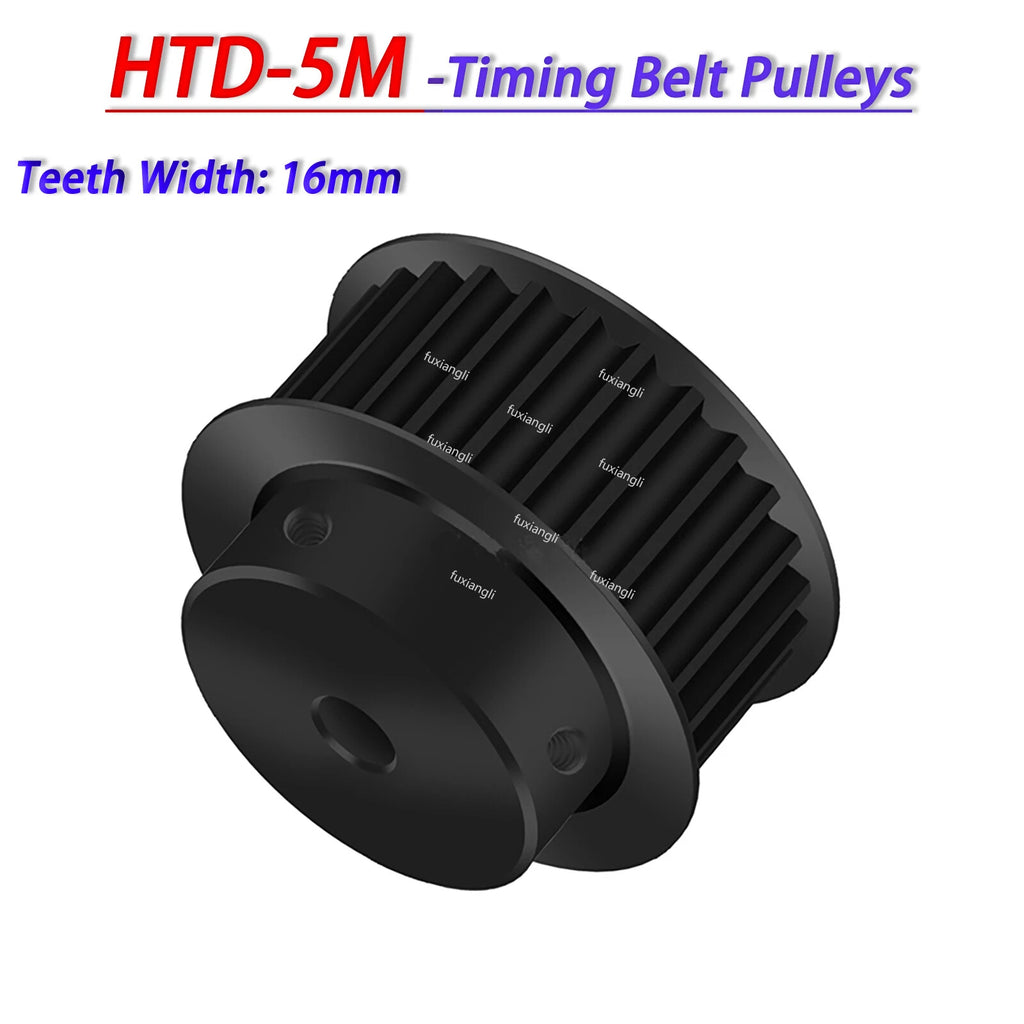

HTD-5M Timing Belt Pulley — Accurate, Low-Backlash Power Transmission

When a belt drive slips, skips teeth, or runs with backlash, motion accuracy and repeatability suffer — a common frustration for makers, engineers, and technicians building CNC machines, 3D printers, and small automation rigs. This HTD-5M timing belt pulley is designed to mesh cleanly with 5mm-pitch HTD belts so torque transfers consistently across your build.

The pulley uses a curved HTD-5M tooth profile machined into 45# steel, in a BF-type flanged configuration with a 16mm tooth width. Tooth counts range from 14 to 60 teeth (14T–60T) and bore sizes span roughly 5mm to 30mm (about 0.20"–1.18"), so you can match the ratio and shaft you already have.

Typical uses include CNC router and mill axes, 3D printer belt drives, robotics joints, conveyor and indexing mechanisms, and other 5mm HTD synchronous belt drive projects where positional accuracy matters.

🔧 Designed for 5mm-pitch HTD-5M synchronous timing belts. Confirm your belt width fits the 16mm tooth width and select the bore that matches your shaft.

✅ Key Features of These HTD-5M Timing Belt Pulleys

⚙️

HTD-5M curved tooth profile for smooth, low-backlash engagement with 5mm-pitch HTD belts.

🛠️

Machined from 45# steel for durability and wear resistance under sustained load.

📏

16mm tooth width suited to common 15mm-class HTD-5M belts.

🔩

BF-type flanged design helps keep the belt tracked and seated on the pulley.

🔢

Wide selection from 14T to 60T to dial in your drive ratio.

⭕

Bore options from about 5mm to 30mm to fit a range of motor and shaft diameters.

📐 Technical Specifications — HTD-5M Timing Belt Pulley

Tooth Profile HTD-5M (curved tooth)
Belt Pitch 5mm
Tooth Width 16mm (≈0.63")
Pulley Type BF-type (flanged)
Material 45# steel
Number of Teeth 14T–60T (see variant options)
Bore Diameter Approx. 5mm–30mm (see variant options)
Set Screw See variant options
Quantity 1 pc per order

❓ Frequently Asked Questions

How do I choose the right number of teeth?

Select the tooth count based on your target drive ratio and the space available. Pairing a smaller pulley on the motor with a larger one on the driven shaft increases torque and reduces speed; matching counts gives a 1:1 ratio. Tooth options run from 14T to 60T — see the variant selector.

Which bore size should I order?

Match the bore to your motor or shaft diameter. Bore options range from roughly 5mm to 30mm (about 0.20"–1.18"). Choose the bore that matches your shaft in the variant options.

How strong is a 45# steel pulley?

45# steel is a medium-carbon steel offering good strength and wear resistance for sustained belt-drive loads, making it well suited to CNC, robotics, and automation duty compared with plastic or aluminum alternatives.

Does it resist corrosion?

45# steel is not inherently stainless. For humid or wet environments, keep the pulley lightly oiled or apply a protective coating to limit surface corrosion. Contact us to confirm the surface finish on a specific variant.

What belt does this pulley work with?

It is made for 5mm-pitch HTD-5M synchronous timing belts. Confirm your belt width suits the 16mm tooth width before ordering.

Will the flanges keep my belt aligned?

Yes — the BF-type flanged design helps retain the belt on the pulley and reduces the chance of the belt walking off under load, which is helpful on longer or higher-speed spans.

Can I use two different tooth counts together?

Yes. Using different tooth counts on the driving and driven shafts sets your reduction ratio. Just make sure both pulleys share the same HTD-5M profile, 5mm pitch, and a belt width compatible with the 16mm tooth width.

🛒 Select your number of teeth and bore size above, then add to cart.
