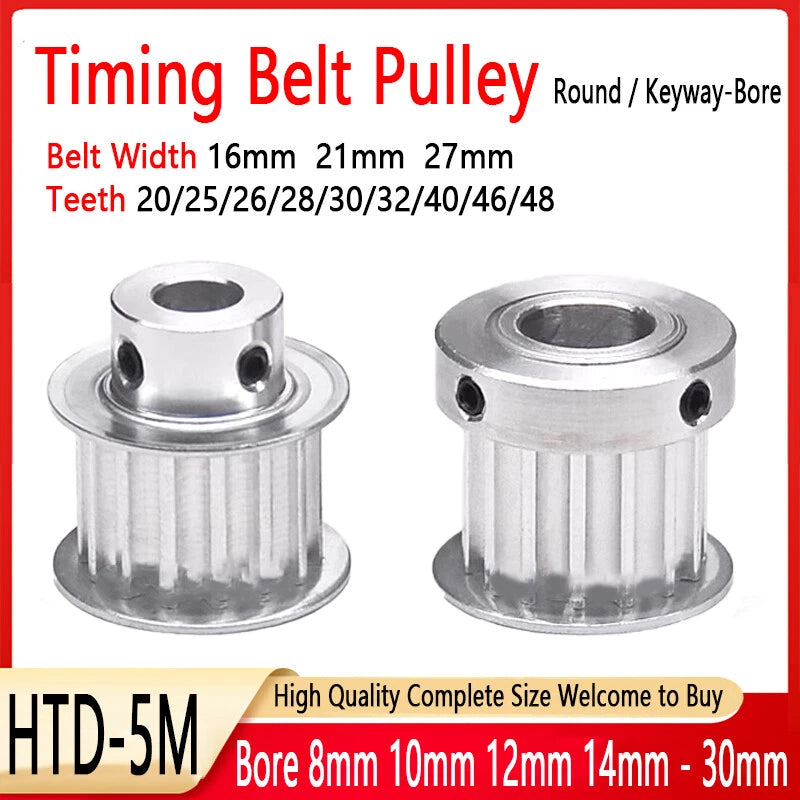

HTD 5M Timing Belt Pulley — Precision Bore & Tooth Count for CNC, 3D Printing, and Robotics

When a mismatched pulley causes belt slip, axis drift, or failed prints mid-job, the root cause is almost always a bore or tooth-count mismatch. Engineers, makers, and small-batch manufacturers who need a reliable HTD 5M timing belt pulley with an exact bore fit — from 8 mm up to 30 mm — will find this range covers the vast majority of shaft sizes used in desktop CNC routers, FDM 3D printers, laser cutters, and light automation rigs.

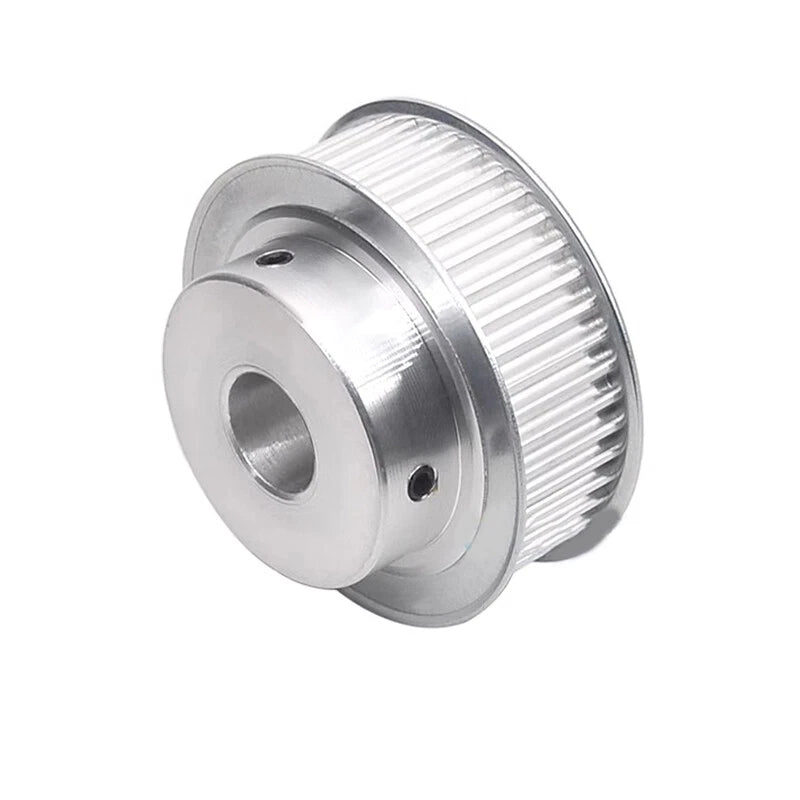

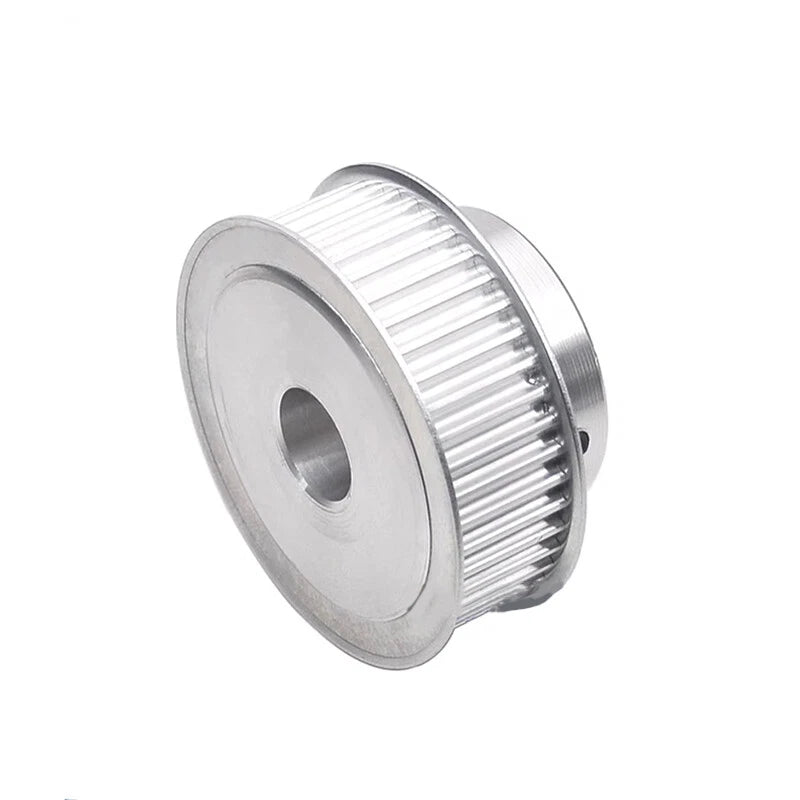

Each pulley is machined from aluminum alloy and is available in two flange configurations: BF Type (with dual flanges to retain the belt laterally) and K Type (single-flange or flangeless, for applications where the belt is guided by the frame). Bore diameters span 8–30 mm (0.31–1.18 in), and tooth counts run from 20 T to 48 T, covering pitch diameters of approximately 31.8 mm to 76.4 mm (1.25–3.01 in). Compatible belt widths are 15 mm, 20 mm, and 25 mm depending on the variant selected.

Typical use cases include X/Y axis drives on desktop CNC routers requiring low-backlash HTD 5M pulley replacements, extruder and Z-axis drives on FDM 3D printers where bore-to-shaft fit is critical, and servo or stepper motor output shafts in light robotics and conveyor automation where keyway variants (3×1.4 mm, 4×1.8 mm, 5×2.3 mm, 6×2.8 mm, 8×3.3 mm) provide positive torque transmission without set-screw slip.

⚙️ Compatibility: HTD 5M open-loop and closed-loop timing belts, 15 mm / 20 mm / 25 mm width. Verify bore diameter and keyway dimensions against your shaft before ordering.

✅ Key Features of These HTD 5M Timing Belt Pulleys

📐

Wide Bore Range
Bore options from 8 mm to 30 mm (0.31–1.18 in) cover most stepper and servo motor shaft sizes used in desktop CNC and 3D printing applications.

🔩

Keyway Variants Available

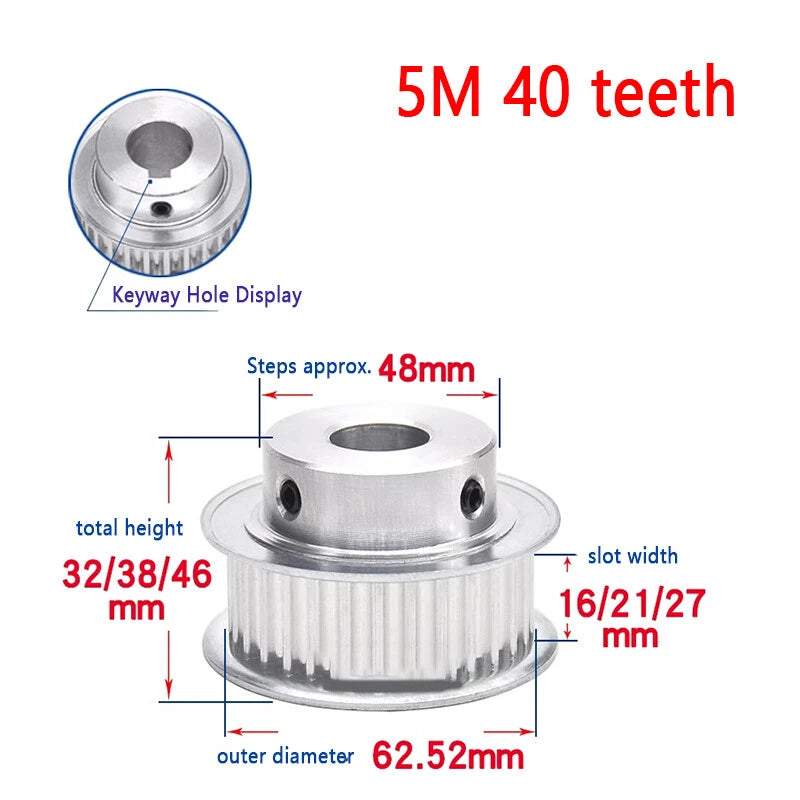

Select variants include precision-cut keyways (3×1.4 mm, 4×1.8 mm, 5×2.3 mm, 6×2.8 mm, 8×3.3 mm) for positive torque coupling on high-load or high-speed shafts.

🔄

BF Type & K Type Configurations

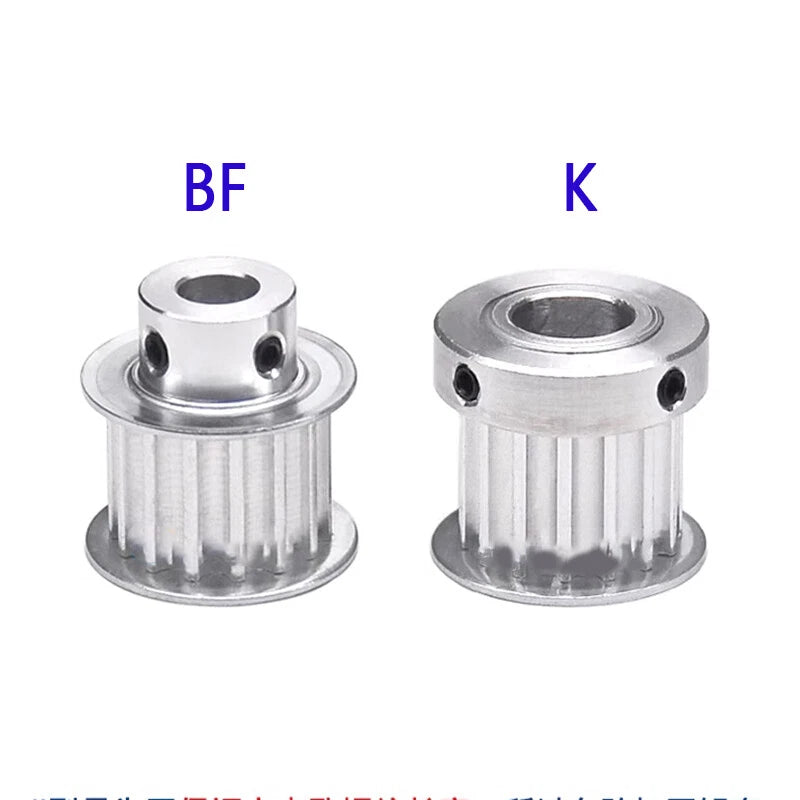

BF Type features dual flanges for lateral belt retention; K Type suits guided-belt setups where frame or tensioner provides lateral constraint.

🦷

20 T to 48 T Tooth Count Selection
Nine tooth-count options (20, 25, 26, 28, 30, 32, 40, 46, 48 T) let you dial in the exact gear ratio needed for your axis or drive system.

📏

Three Belt Width Compatibilities
Variants are matched to 15 mm, 20 mm, or 25 mm wide HTD 5M belts — check the "Bore width & Applicable Belt width" option to confirm the correct pairing.

⚡

Aluminum Alloy Construction
Lightweight aluminum alloy body keeps rotational inertia low, reducing motor load during rapid direction changes in CNC and 3D printing duty cycles.

📐 Technical Specifications — HTD 5M Timing Belt Pulley

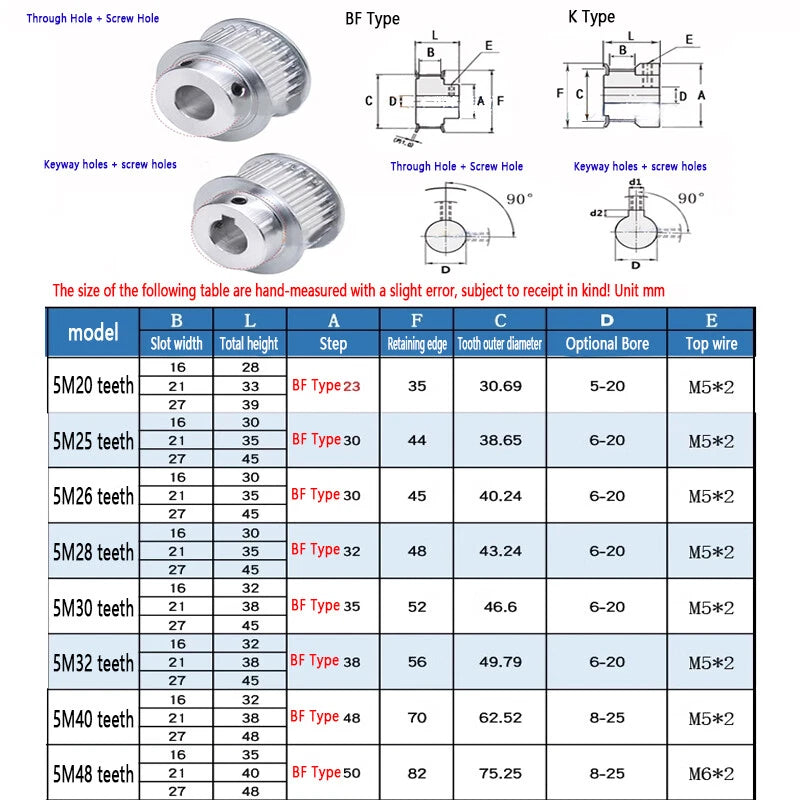

Belt Profile	HTD 5M (5 mm pitch, curvilinear tooth)

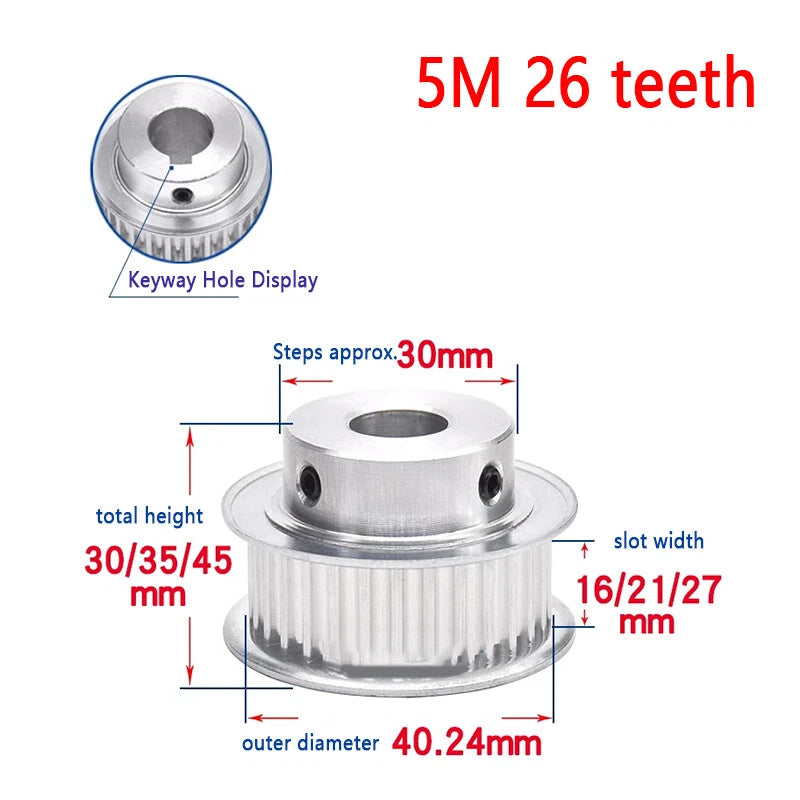

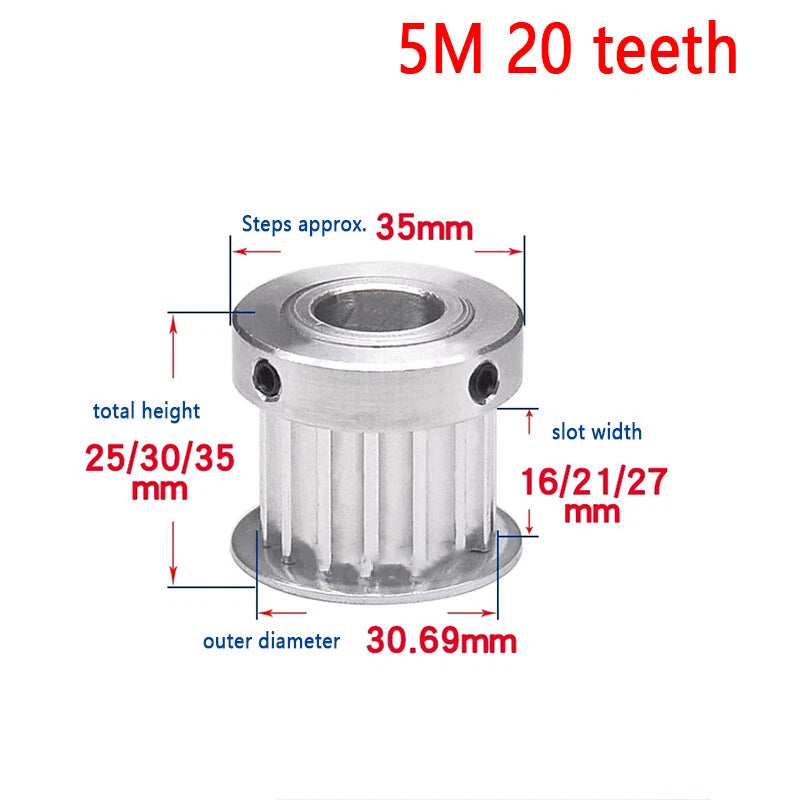

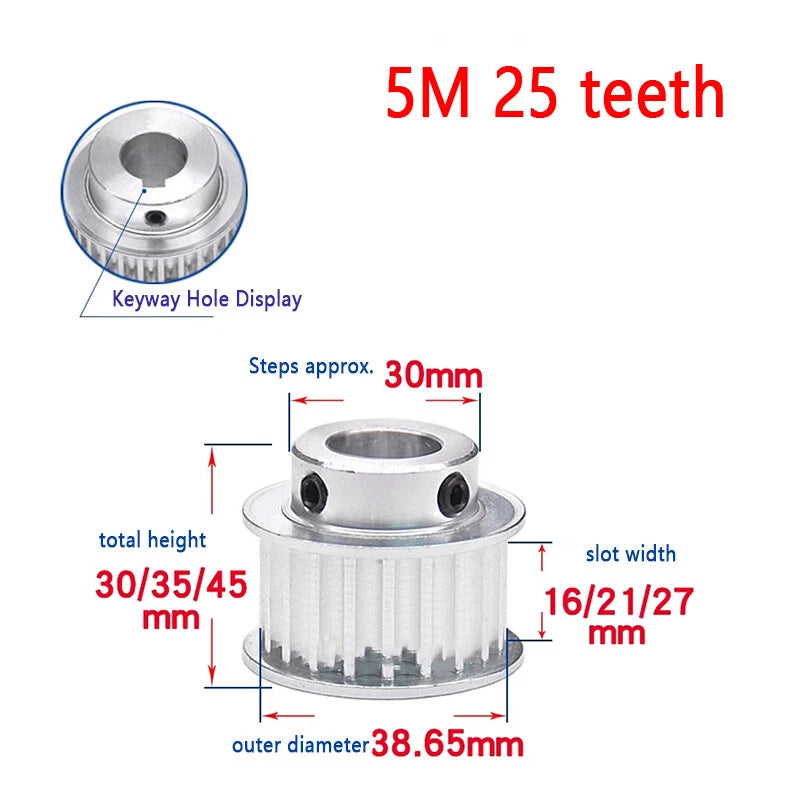

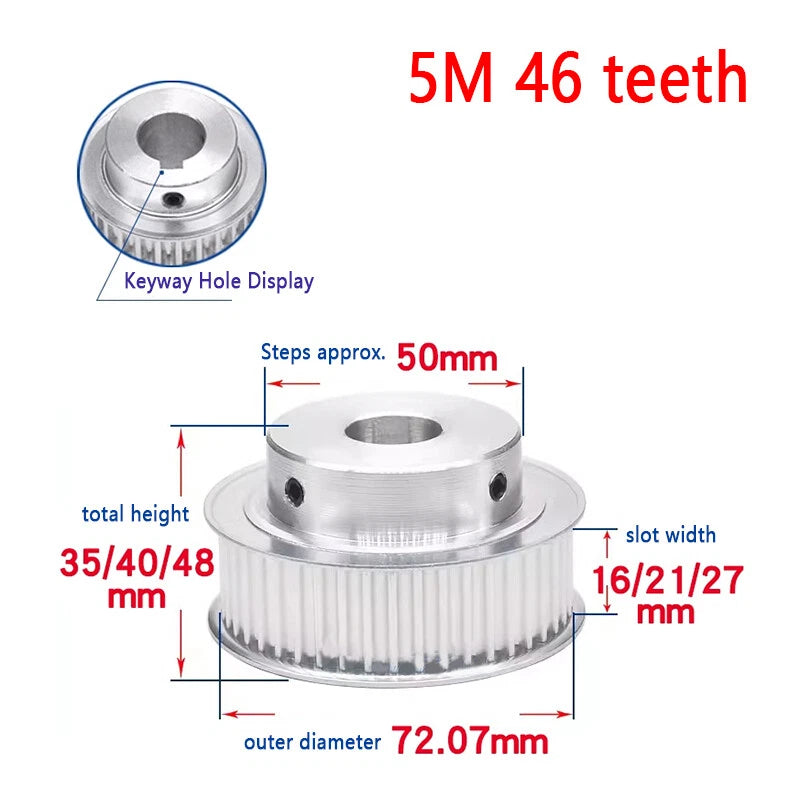

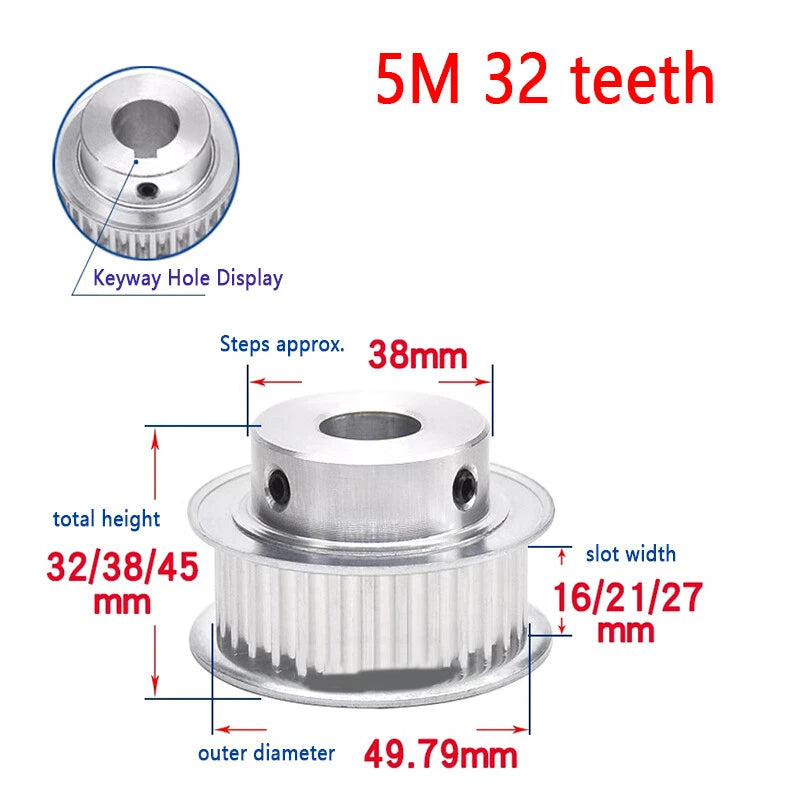

Tooth Count Range	20 T, 25 T, 26 T, 28 T, 30 T, 32 T, 40 T, 46 T, 48 T
Bore Diameter Range	8–30 mm (0.31–1.18 in)

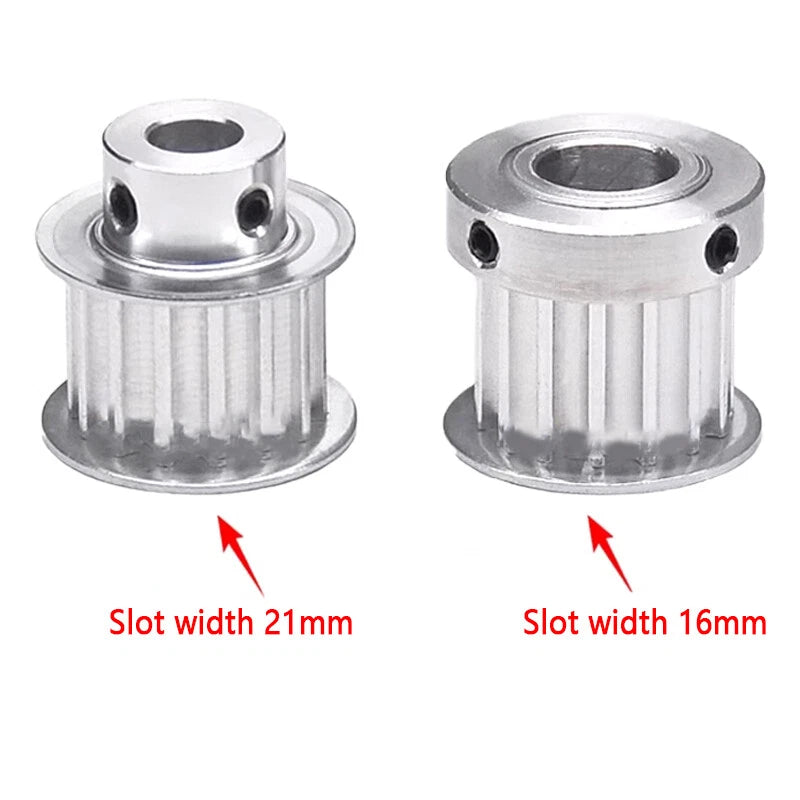

Applicable Belt Width	15 mm / 20 mm / 25 mm (see variant options)
Flange Type	BF Type (dual flange) / K Type (single or no flange)

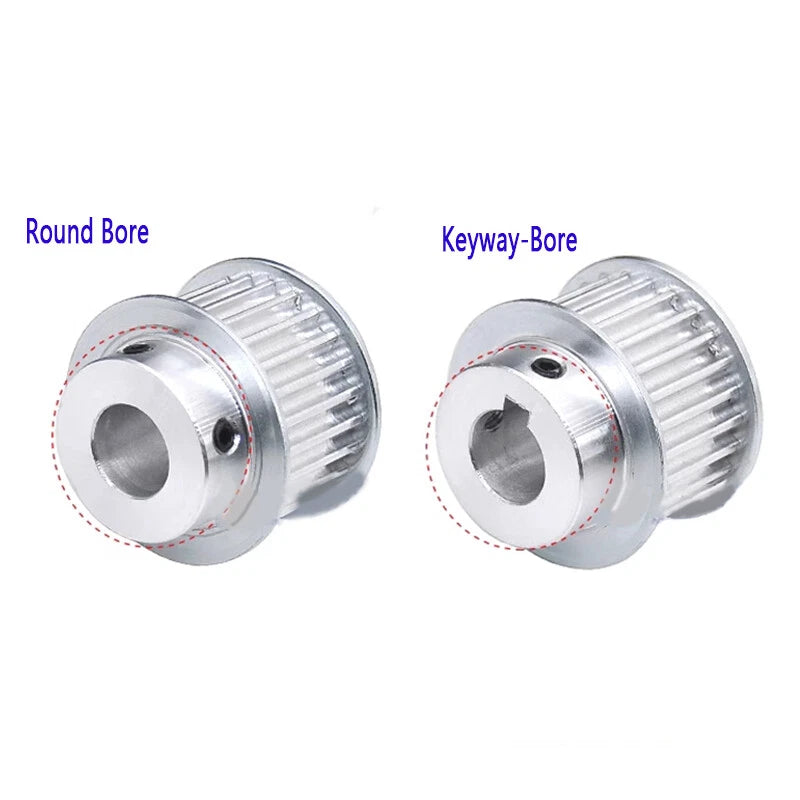

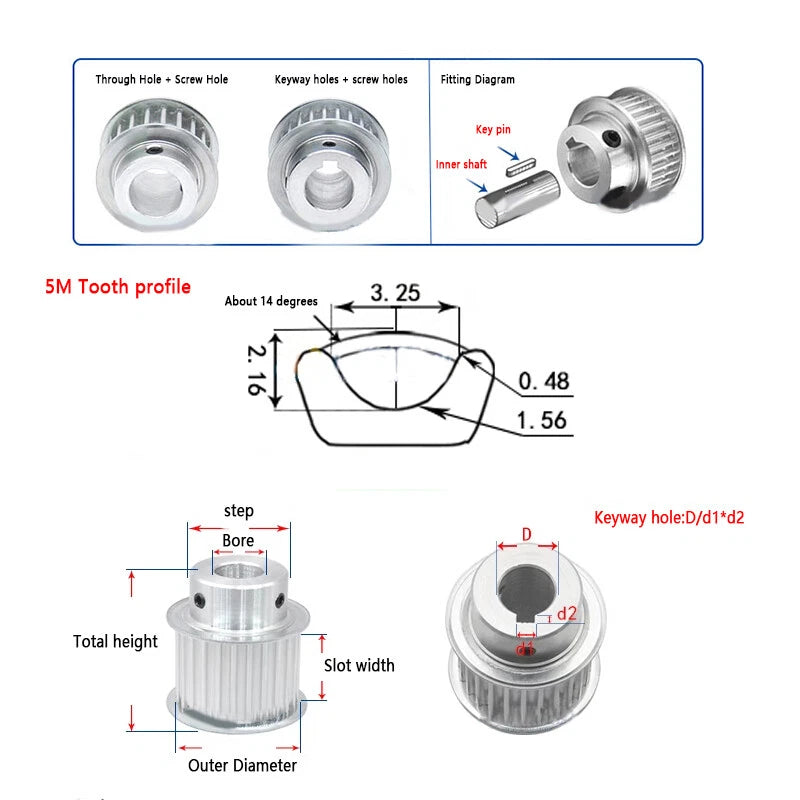

Keyway Options	Plain bore or keyway 3×1.4 / 4×1.8 / 5×2.3 / 6×2.8 / 8×3.3 mm (see variant options)
Material	Aluminum alloy

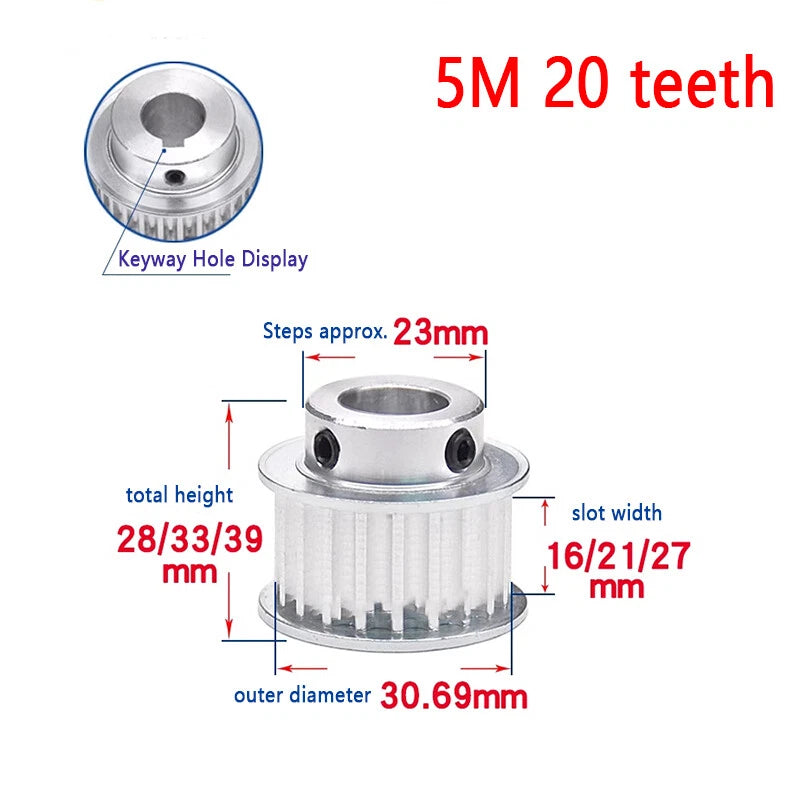

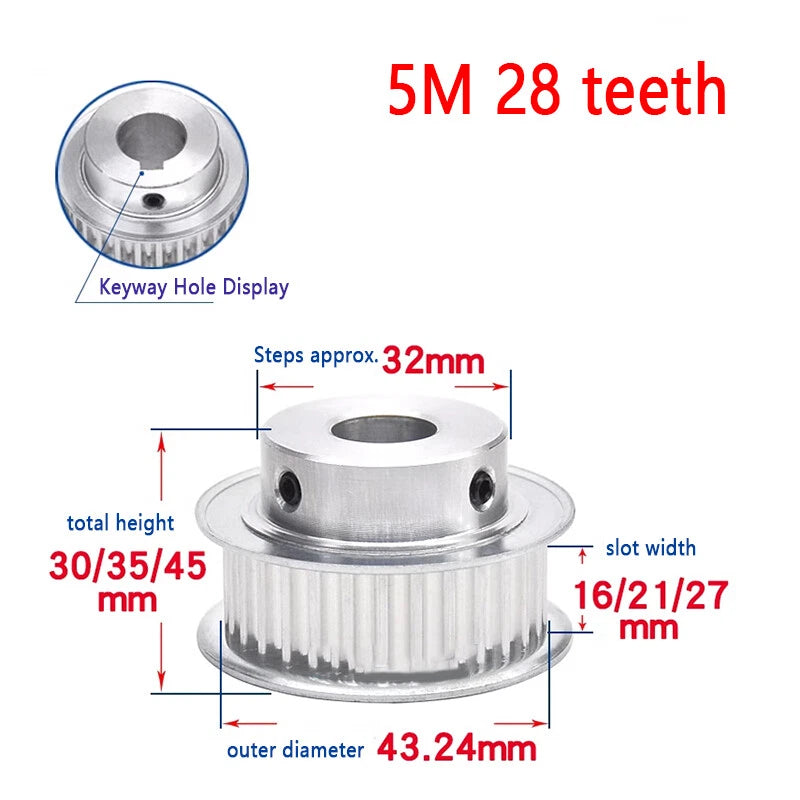

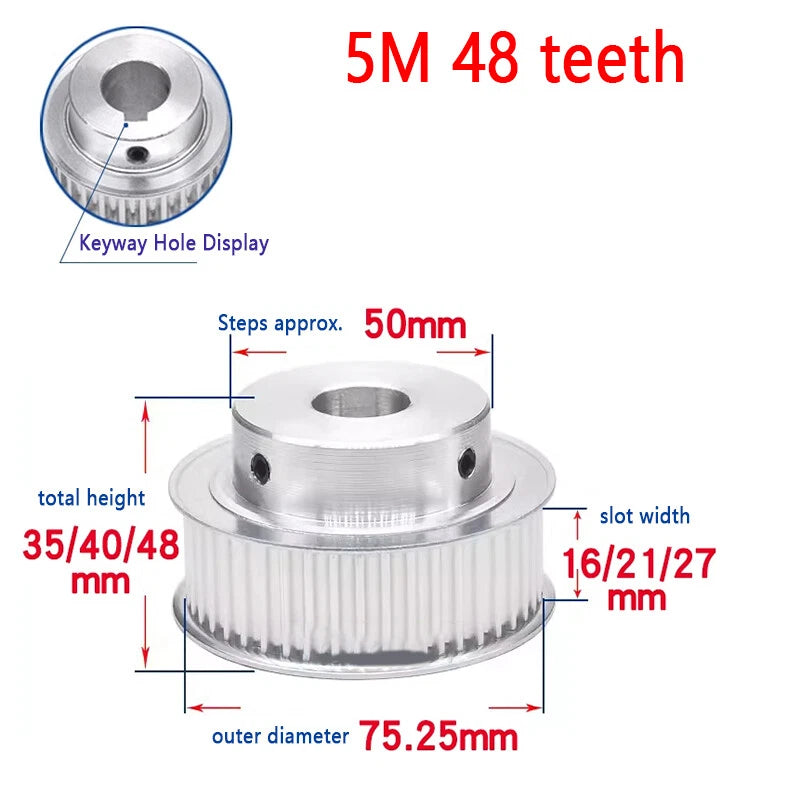

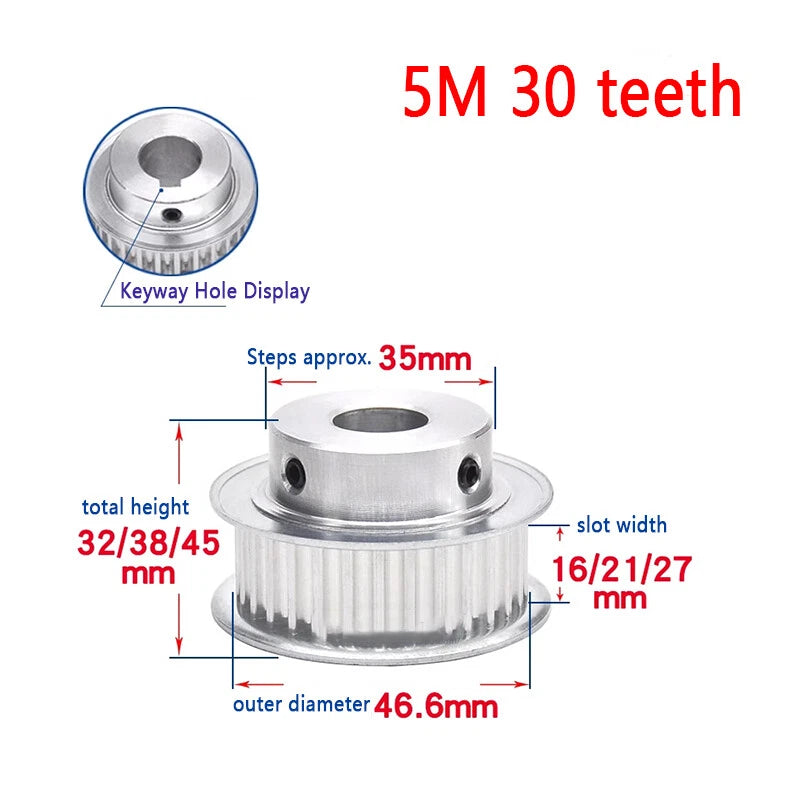

Pitch Diameter (approx.)	31.8 mm (20 T) – 76.4 mm (48 T)
Set Screw	See variant options
Surface Finish	See variant options

❓ Frequently Asked Questions

How do I choose the correct tooth count for my application?

The tooth count determines the pitch diameter and, combined with your motor's tooth count, sets the drive ratio. For a 1:1 drive use identical tooth counts on both pulleys. To reduce speed and increase torque, use a larger tooth count on the driven pulley. Common CNC and 3D printer setups use 20 T on the motor and 20 T on the axis for direct drive, or 20 T / 40 T for a 2:1 reduction.

How do I select the right bore diameter?

Measure your motor or shaft diameter with a caliper. The bore must match the shaft exactly — a loose fit causes runout and belt skip. If your shaft has a flat (D-cut) or keyway, select the corresponding keyway variant and confirm the keyway dimensions match your shaft's key specification.

What is the difference between BF Type and K Type?

BF Type pulleys have two flanges (one on each side of the tooth face) that physically retain the belt and prevent it from walking off the pulley. K Type pulleys have one flange or none, and rely on the machine frame, tensioner, or belt guide to keep the belt aligned. BF Type is generally preferred for open-loop systems; K Type is common in enclosed or guided belt paths.

Are these pulleys compatible with standard HTD 5M timing belts?

Yes. These pulleys are machined to the HTD 5M tooth profile (5 mm pitch, curvilinear tooth form) and are compatible with any standard HTD 5M open-loop or closed-loop timing belt. Ensure the belt width matches the variant's "Applicable Belt Width" specification (15 mm, 20 mm, or 25 mm).

Do keyway variants include a key, or do I need to source one separately?

Keyway variants are supplied with the keyway machined into the bore. Whether a key (the metal insert) is included depends on the specific variant — please check the variant listing or contact us to confirm. Standard metric keys are widely available from industrial fastener suppliers if not included.

How do I verify the pulley will fit my 3D printer or CNC router?

Check three dimensions: (1) bore diameter vs. your motor shaft diameter, (2) tooth count vs. your existing pulley or desired drive ratio, and (3) belt width vs. the pulley's applicable belt width. Most desktop 3D printers (e.g., CoreXY, Cartesian) use 20 T pulleys with 6 mm or 9 mm wide GT2 belts — note that this product uses HTD 5M profile, not GT2. Confirm your belt profile before ordering.

What materials are these pulleys made from, and will they corrode?

The pulleys are machined from aluminum alloy, which offers a good strength-to-weight ratio and natural corrosion resistance suitable for indoor CNC, 3D printing, and light automation environments. For high-humidity or outdoor applications, consider applying a light coating of machine oil to the bore and tooth surfaces.

🛒 Select your Type, Number of Teeth, and Bore width above, then add to cart.
