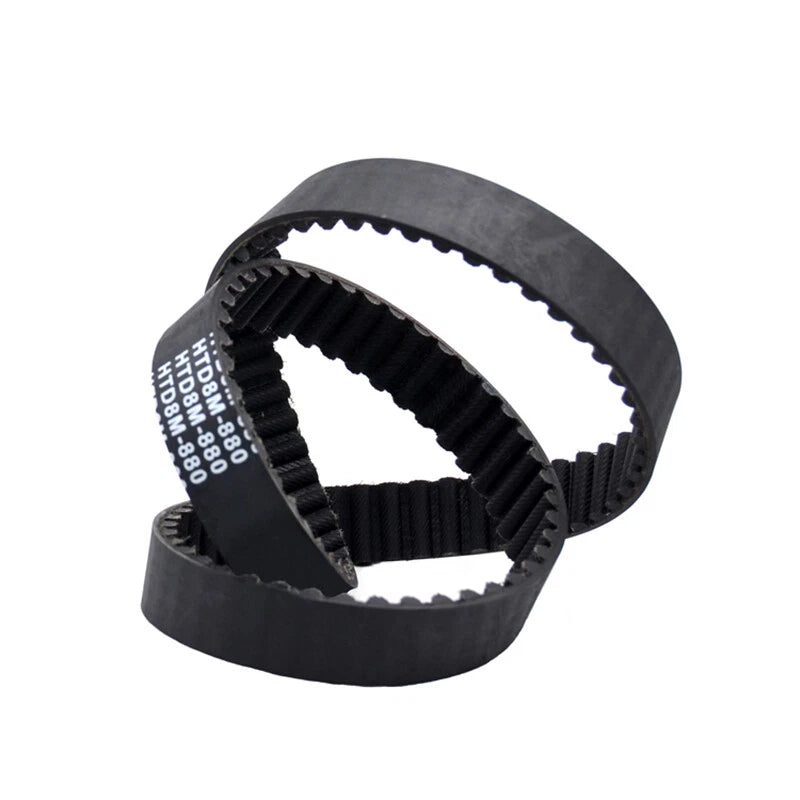

HTD-8M Synchronous Timing Belt — Reliable 8mm Pitch Power Transmission for Demanding Applications

When a slipping V-belt or worn drive chain is costing you precision and downtime, engineers and machine builders turn to synchronous timing belts. The HTD-8M timing belt delivers slip-free, maintenance-reduced power transmission for CNC machines, industrial conveyors, fitness equipment, and any system where exact positional accuracy matters. Whether you're a repair technician sourcing a replacement or a builder speccing a new drive system, getting the right belt the first time saves hours of troubleshooting.

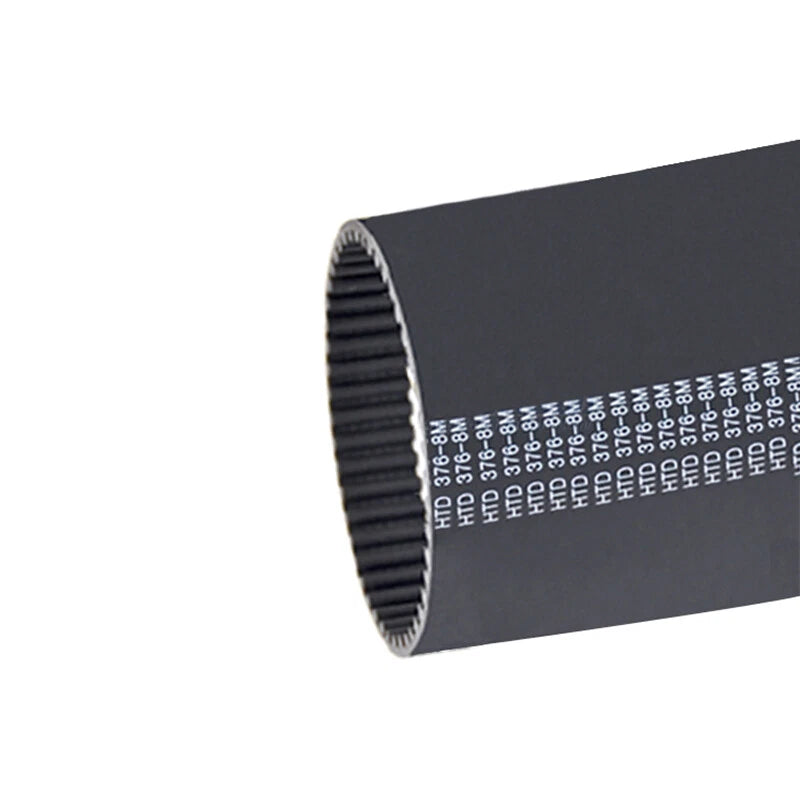

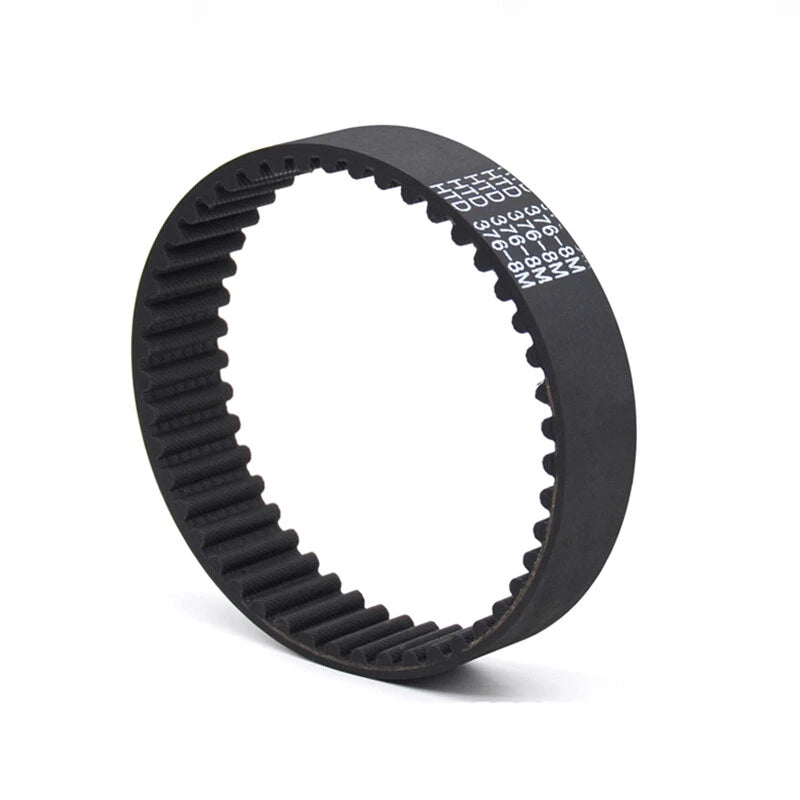

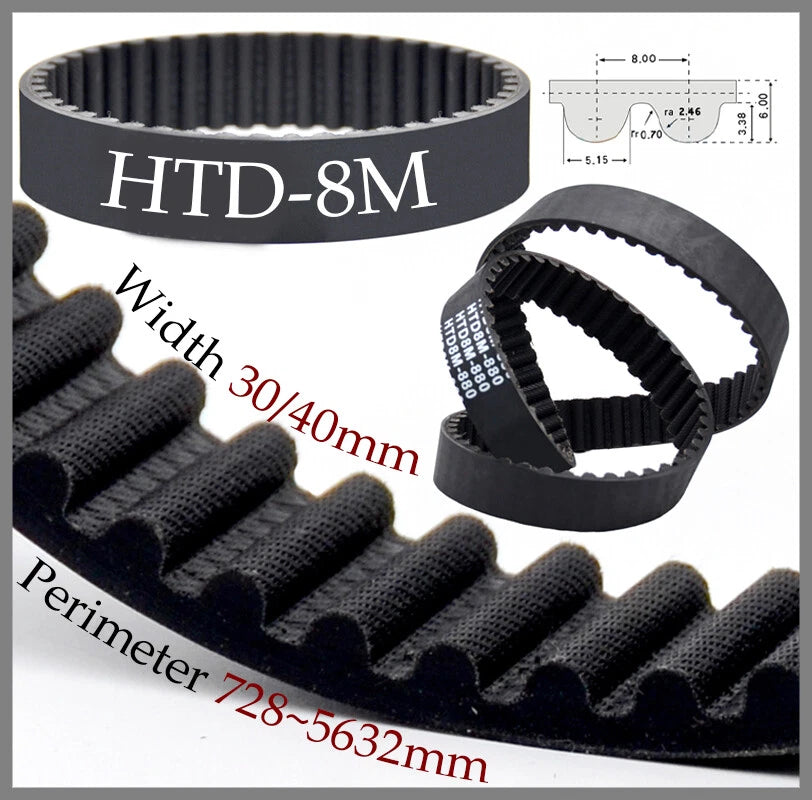

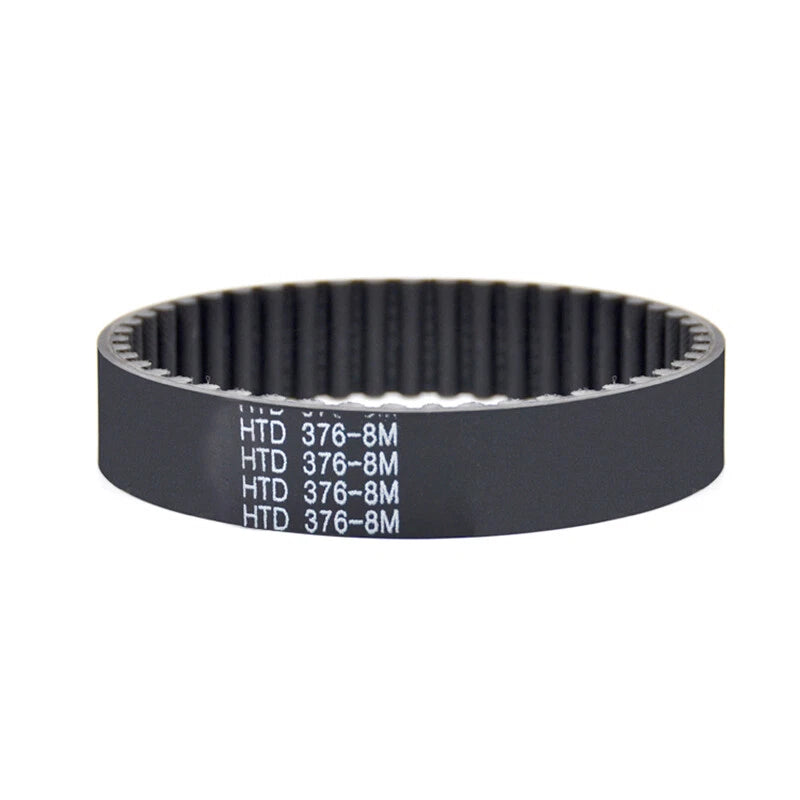

Each belt is a closed-loop synchronous drive belt with an 8mm pitch (tooth-to-tooth spacing of 8mm / ≈0.315"), available in 30mm (≈1.18") or 40mm (≈1.57") widths. Belt circumferences range from 728mm (≈28.7") up to 5632mm (≈221.7"), covering a wide variety of drive configurations. The curvilinear HTD tooth profile is constructed from neoprene rubber with tensile cord reinforcement for dimensional stability under load.

Typical use cases include CNC router axis drives, large-format 3D printer motion systems, laser cutter gantry drives, fitness treadmill decks, and industrial packaging line conveyors — all applications where an HTD-8M closed-loop timing belt replacement or upgrade is needed for precise, synchronous motion.

🔗 Compatibility: Fits standard HTD-8M pulleys with matching belt width (30mm or 40mm). Not compatible with GT2, GT3, T10, or trapezoidal (XL/L) profile pulleys. Verify your pulley pitch and tooth profile before ordering.

✅ Key Features of These HTD-8M Synchronous Timing Belts

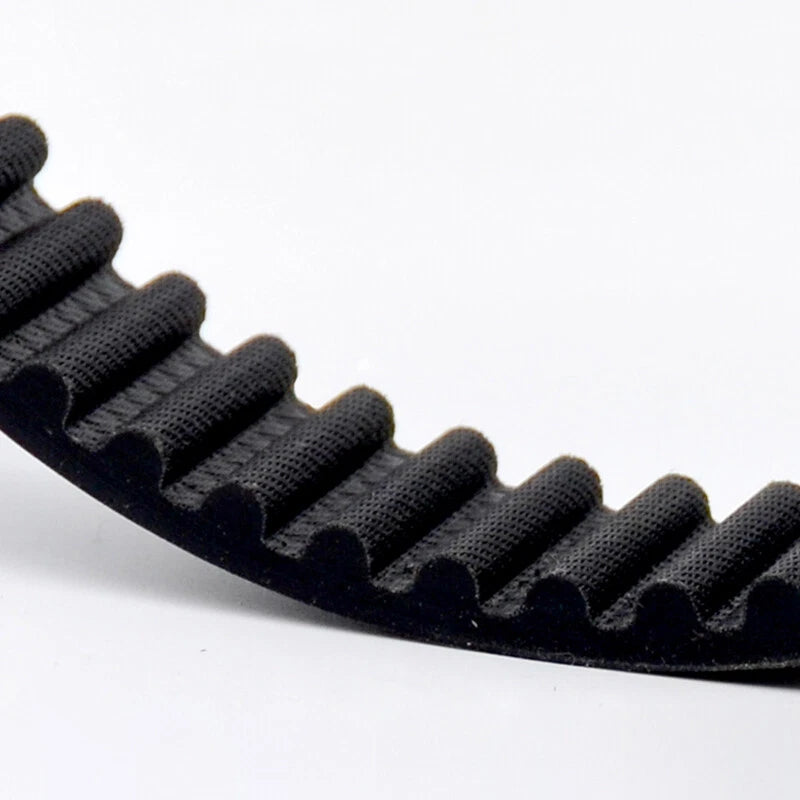

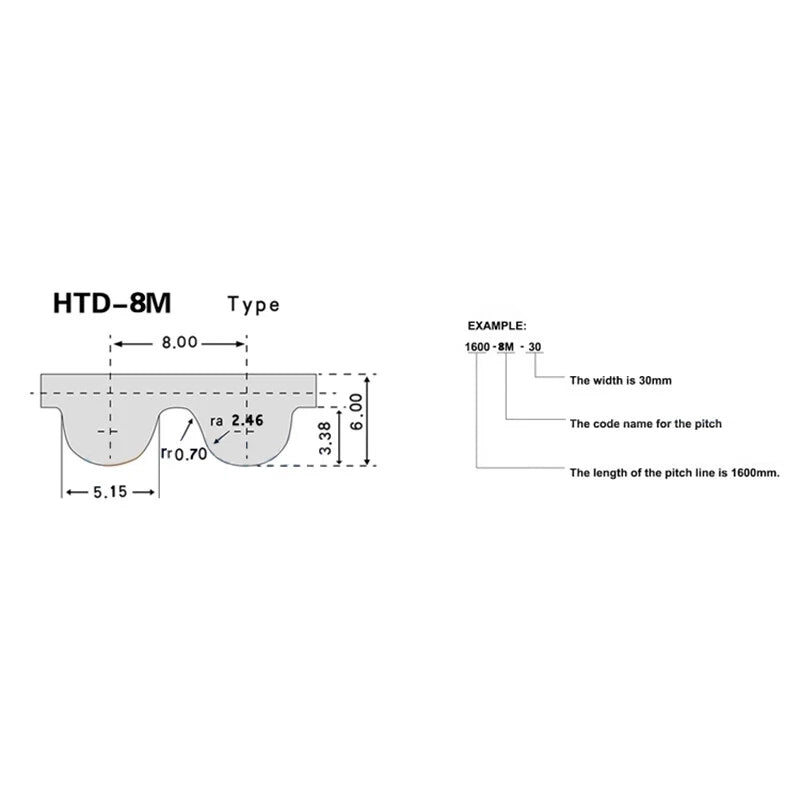

  • ⚙️8mm HTD Curvilinear Tooth Profile — The rounded tooth geometry distributes load across a larger contact area, reducing tooth shear stress compared to trapezoidal profiles in high-torque synchronous belt drive applications.
  • 📏Wide Length Selection — Available in circumferences from 728mm to 5632mm, making it straightforward to find a direct replacement HTD-8M closed-loop belt for most standard and custom drive configurations.
  • ↔️Two Width Options: 30mm & 40mm — Select the width that matches your pulley face. The 40mm width generally supports higher torque loads, while the 30mm width suits lighter-duty or space-constrained drives.

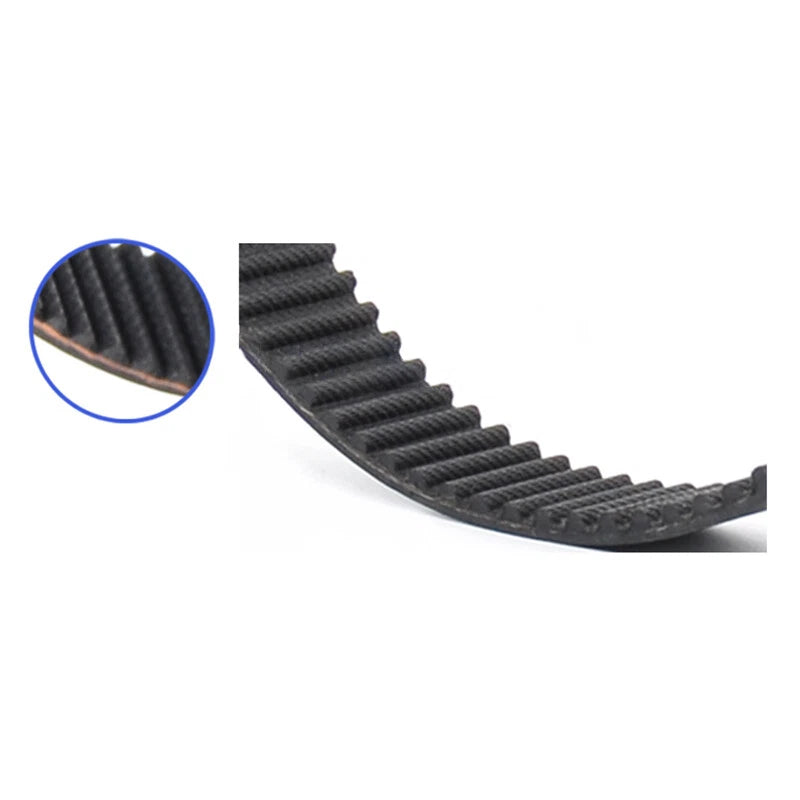

  • 🔩Tensile Cord Reinforcement — Internal cord reinforcement resists elongation under cyclic loading, helping maintain consistent tooth pitch and positional accuracy over the belt's service life.
  • 🔄Closed-Loop Construction — The seamless loop design eliminates the splice fatigue points found in cut-to-length belts, providing more uniform stress distribution during continuous operation.
  • 🛠️Drop-In Replacement Fit — Manufactured to HTD-8M dimensional standards, these belts are designed to fit existing HTD-8M pulley systems without modification, simplifying maintenance on CNC drives, conveyor systems, and fitness equipment.

📐 Technical Specifications — HTD-8M Timing Belt

Belt Type HTD Synchronous Timing Belt (Closed Loop)
Pitch 8mm (≈0.315")
Tooth Profile HTD Curvilinear
Available Widths 30mm (≈1.18") / 40mm (≈1.57")

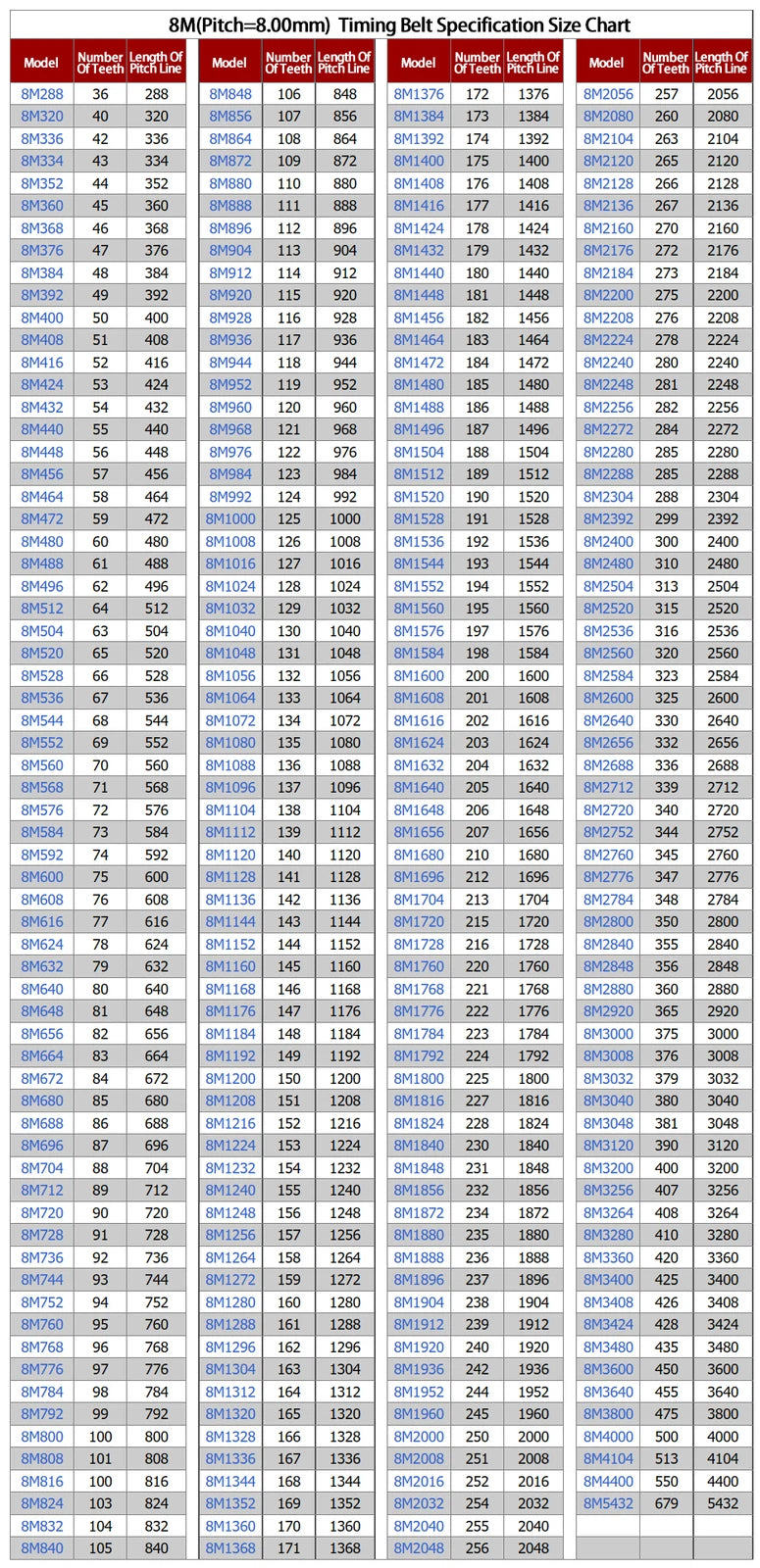

Belt Circumference Range 728mm (≈28.7") — 5632mm (≈221.7")
Body Material Neoprene rubber (typically); See variant options
Reinforcement Tensile cord (fiberglass or steel cord — See variant options)
Tooth Facing Nylon fabric (typically)
Compatible Pulley Profile HTD-8M only
Operating Temperature Contact us to confirm for your specific application
Color Black
Quantity per Order 1 belt
⚠️ Before ordering: Confirm your existing belt's circumference (printed on the belt or measured), width, and tooth profile. HTD-8M belts are not interchangeable with GT2/GT3 or trapezoidal profiles even at the same pitch.

❓ Frequently Asked Questions

How do I choose the right belt length?

Measure the center-to-center distance between your two pulleys, then calculate the required belt circumference using the standard formula: Belt Length ≈ 2C + π(D1+D2)/2, where C is center distance and D1/D2 are pulley pitch diameters. For example, a 1336mm belt is approximately 52.6" in circumference. When in doubt, check your machine's service manual for the OEM belt specification — the belt model number is typically printed on the belt's outer surface.

What load or torque can an HTD-8M timing belt handle?

HTD-8M belts are generally rated for moderate-to-high torque transmission. The 8mm pitch profile provides greater tooth shear strength compared to smaller pitches like 3M or 5M. Actual load capacity depends on belt width, pulley diameter, number of teeth in mesh, and operating speed — a 40mm-wide belt typically handles higher loads than a 30mm-wide belt of the same circumference. Contact us to confirm suitability for your specific application.

Can this belt be used outdoors or in wet/humid environments?

HTD-8M timing belts are typically constructed from neoprene rubber with tensile cord reinforcement, which offers reasonable resistance to moisture and mild chemicals. However, prolonged exposure to UV radiation, ozone, or harsh solvents may degrade the belt over time. For outdoor or wet-environment applications, we recommend verifying the specific material composition and considering a protective enclosure where possible.

Is this belt compatible with standard HTD pulleys I already have?

Yes — this belt follows the HTD (High Torque Drive) tooth profile standard with an 8mm pitch, which is compatible with any HTD-8M pulley of matching width (30mm or 40mm). It is not interchangeable with GT2, GT3, or trapezoidal (MXL/XL/L) profile pulleys, even if the pitch appears similar. Always verify both the pitch and tooth profile of your existing pulley before ordering.

How do I decide between the 30mm and 40mm width?

Choose the width that matches your existing pulley face width — mixing belt and pulley widths causes uneven wear and tracking issues. A wider belt generally transmits more torque and resists lateral slipping better. If your application involves high loads, frequent starts and stops, or high-speed operation, the 40mm width is generally the better choice. Always match belt width to pulley groove width for proper tracking and belt life.

What machines and applications commonly use HTD-8M timing belts?

HTD-8M belts are commonly used in CNC routers, large-format 3D printers, laser cutter gantry drives, industrial conveyors, fitness treadmills and ellipticals, packaging line equipment, and general power transmission systems requiring precise, slip-free synchronous motion. They are also found in agricultural machinery and automated material handling systems.

What is the difference between HTD and GT belt profiles — are they interchangeable?

HTD (High Torque Drive) belts have a rounded, curvilinear tooth profile optimized for high torque. GT (Gates Tooth) belts use a modified curvilinear profile with improved tooth engagement and lower backlash, making them popular in precision motion applications. While both use metric pitches, they are not interchangeable — the tooth geometry differs enough that mixing profiles causes poor engagement and accelerated wear. Always match the belt profile to your pulley profile.

🛒 Select your model (circumference) and belt width above, then add to cart — ships from our US warehouse.
